Ford Fusion Hybrid / Fusion Energi (2018 year). Manual - part 62

Protected Components

Fuse Rating

Fuse or Relay

Number

Amplifier.

20A

1

28

Rear driver side door (window).

30A

1

29

Rear passenger side door (window).

30A

1

30

Not used (spare).

15A

1

31

GPS.

10A

1

32

Voice control.
Display.
Radio frequency receiver.

Radio.

20A

1

33

Active noise control.

Run-start (fuse #19, 20, 21, 22, 35, 36, 37,
circuit breaker).

30A

1

34

Not used (spare).

5A

1

35

Auto-dimming rear view mirror.

15A

1

36

Heated steering wheel.

20A

1

37

Not used.

—

38

1

Micro 2 fuse.

2

Micro 3 fuse.

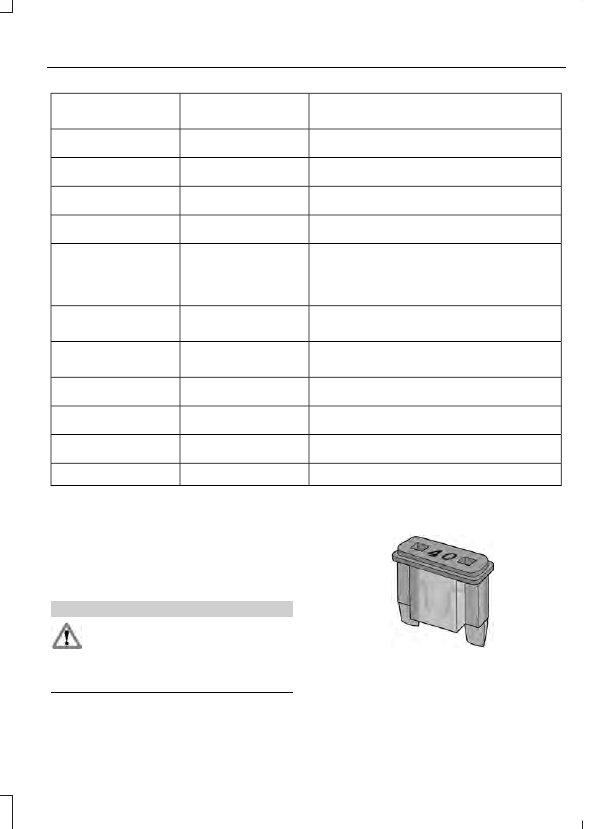

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within

the fuse. Check the appropriate fuses
before replacing any electrical
components.

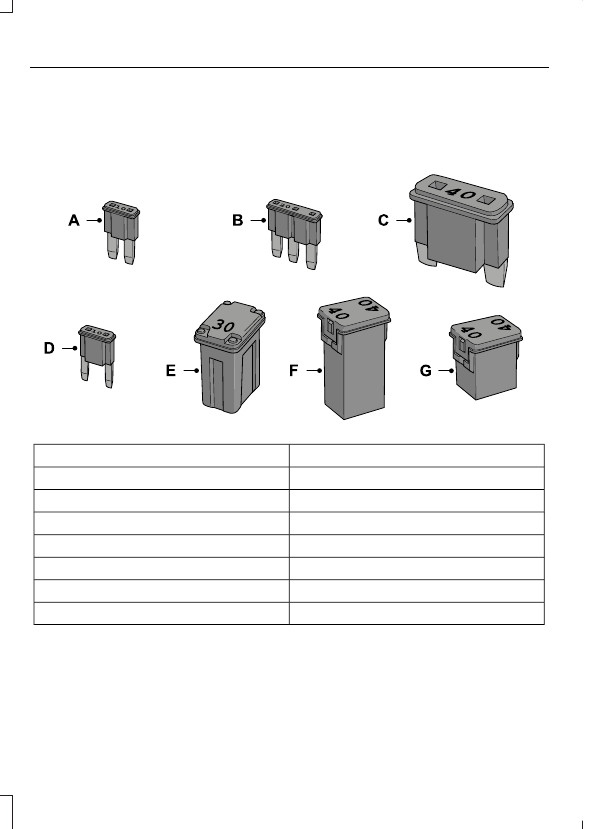

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

1.

Set the parking brake and shift to park
(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

1.

Set the parking brake and shift to park
(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

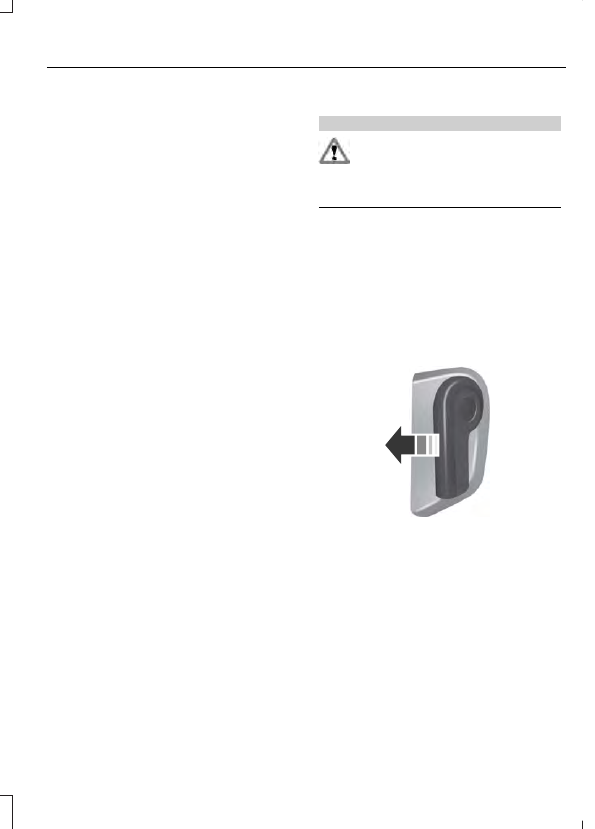

Opening the Hood

E142457

1.

Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.

2. Slightly lift the hood.

3. Release the hood latch by pushing the

secondary release lever to your
left-hand side.

E87786

4. Open the hood.  Support the hood with

the strut.

Closing the Hood

1.

Remove the hood strut from the catch
and secure it correctly after use.

2. Lower the hood and allow it to drop

under its own weight for the last 8-12
in (20-30 cm).

Note: Make sure that the hood is correctly
closed.

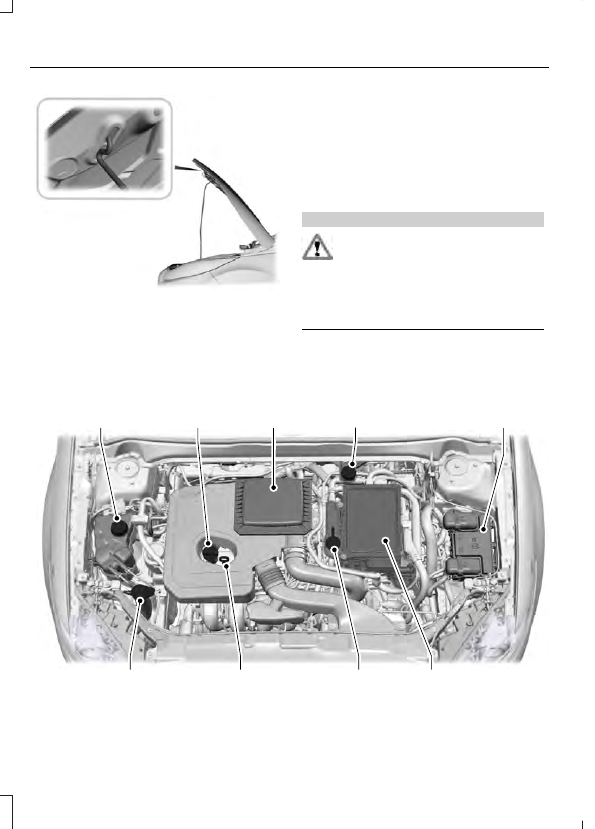

UNDER HOOD OVERVIEW

WARNING

The inverter system controller
contains various high-voltage
components that can cause serious

bodily harm or death. The inverter system
controller is not serviceable and should
never be touched, probed, or tampered
with.

Note: Do not attempt to service any of the
high-voltage components or wiring. For
easier identification, the high-voltage wiring
insulation is color coated orange.

A

I

F

G

H

E

B

C

D

E146046
