Ford Fusion Hybrid / Fusion Energi (2018 year). Manual - part 61

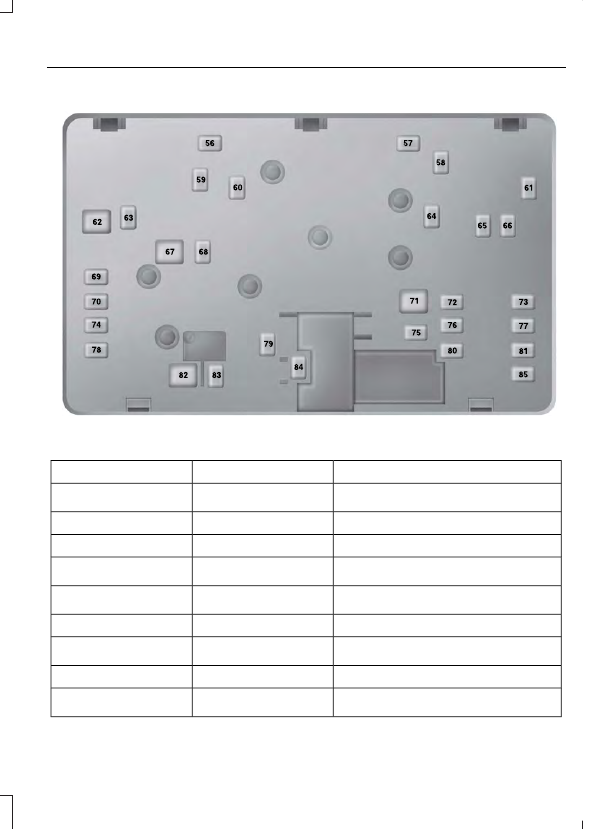

E144949

Protected Components

Fuse Rating

Fuse or Relay Number

Fuel pump feed.

30A

1

56

Not used.

—

57

Not used.

—

58

Vacuum pump relay.

40A

1

59

Pulse width modulated fan.

40A

2

60

Not used.

—

61

Body control module 1.

50A

2

62

Not used.

—

63

PHEV charger.

40A

1

64

Protected Components

Fuse Rating

Fuse or Relay Number

Front heated seat.

20A

2

65

Not used.

—

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used.

—

71

Panoramic roof #1.

30A

1

72

Not used.

—

73

Driver seat module.

30A

1

74

Transmission oil pump (PHEV).

20A

1

75

e-Shifter (transmission range control
module).

20A

1

76

Front climate controlled seats.

30A

1

77

Not used.

—

78

Blower motor.

40A

2

79

Not used.

—

80

Inverter.

40A

1

81

Anti-lock brake system pump.

60A

2

82

Wiper motor 1.

25A

1

83

Not used.

—

84

Not used.

—

85

1

M Case fuse.

2

J Case fuse.

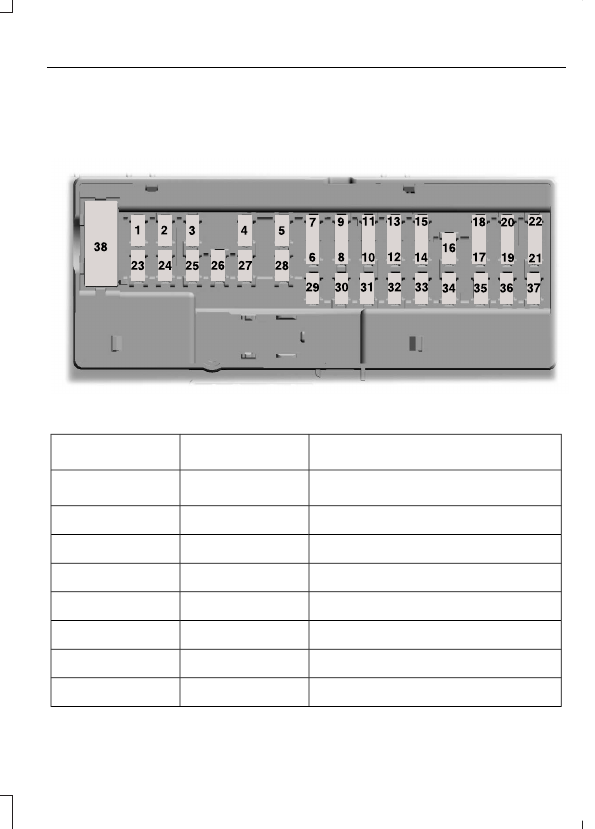

Passenger Compartment Fuse
Panel

The fuse panel is located under the

instrument panel to the left of the steering
column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

E145984

Protected Components

Fuse Rating

Fuse or Relay

Number

Lighting (ambient, glove box, vanity, dome,
trunk).

10A

1

1

Lumbar.

7.5A

1

2

Driver door unlock.

20A

1

3

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used (spare).

10A

2

9

Keypad.

5A

2

10

Cell phone passport module.

Not used (spare).

5A

2

11

Climate control.

7.5A

2

12

Gear shift.

Steering wheel column.

7.5A

2

13

Instrument cluster.
Datalink logic.

Extended power module.

10A

2

14

Datalink-gateway module.

10A

2

15

Child lock.

15A

1

16

Decklid release.

Not used (spare).

5A

2

17

Push button start stop switch.

5A

2

18

Extended power module.

7.5A

2

19

Adaptive headlamps.

7.5A

2

20

Humidity and in–car temperature sensor.

5A

2

21

Spare.

5A

2

22

Delayed accessory (power inverter logic,
moonroof logic, driver master switch).

10A

1

23

Central lock unlock

20A

1

24

Driver door (window, mirror).

30A

1

25

Front passenger door (window, mirror).

30A

1

26

Moonroof.

30A

1

27
