Protected Components

Fuse Rating

Fuse or Relay

Number

Wiper motor 2.

25A

1

1

Not used.

—

2

Rain sensor.

15A

2

3

Blower motor relay.

—

4

Power point 3 - back of console.

20A

1

5

Not used.

—

6

Powertrain control module - vehicle power
1.

20A

2

7

Powertrain control module power.

Powertrain control module - vehicle power
2.

20A

2

8

Emission components.

Powertrain control module relay.

—

9

Power point 1 - driver front.

20A

1

10

Powertrain control module - vehicle power
4.

15A

3

11

Ignition coils.

Powertrain control module - vehicle power
3.

15A

3

12

Non-emission components.

Not used (spare).

10A

3

13

Not used (spare).

10A

3

14

Run-start relay.

—

15

Power point 2 - console.

20A

1

16

Not used (spare).

20A

1

17

Powertrain and hybrid powertrain control
module keep alive power.

10A

2

18

Battery module.

Protected Components

Fuse Rating

Fuse or Relay

Number

Run/start electronic power assist steering.

10A

2

19

Adaptive cruise control.

10A

2

20

Run-start transmission switch.

15A

2

21

HEV inverter.

Not used (spare).

5A

2

22

Run-start: blind spot information system,
Rear view camera, Adaptive cruise control,
Heads-up display, shifter.

15A

2

23

PHEV Run-start transmission oil pump.

10A

2

24

Run-start anti-lock brake system.

10A

3

25

Run-start powertrain control module.

10A

3

26

Fuel door solenoid.

10A

2

27

Not used (spare).

20A

2

28

Not used (spare).

20A

2

29

Not used.

—

30

Not used.

—

31

HEV/PHEV pulse width modulated fan
relay.

—

32

Not used.

—

33

Not used.

—

34

Charger fan.

15A

2

35

HEV battery electronic control module fan.

15A

2

36

Not used.

—

37

Vacuum pump #1 relay.

—

38

Vacuum pump #2 relay.

—

39

Protected Components

Fuse Rating

Fuse or Relay

Number

Fuel pump relay.

—

40

Horn relay.

—

41

Not used.

—

42

Not used (spare).

10A

2

43

Not used.

—

44

Vacuum pump monitor.

5A

2

45

Charge port light ring.

10A

3

46

Brake on-off switch.

10A

3

47

Horn.

20A

2

48

Air flow monitor.

5A

2

49

Hybrid content vehicle power 5.

15A

2

50

Battery energy control module fan.

Hybrid content vehicle power 1.

15A

3

51

Hybrid powertrain control module.

Hybrid content vehicle power 2.

15A

3

52

Battery energy control module.

Not used (spare).

10A

2

53

Hybrid content vehicle power 3.

10A

3

54

Coolant pump.

Hybrid content vehicle power 4.

10A

3

55

Air conditioning compressor.
Positive temperature coefficient heater
(PHEV).
Humidity sensor (PHEV).

1

M-Case fuse.

2

Micro 2 fuse.

3

Micro 3 fuse.

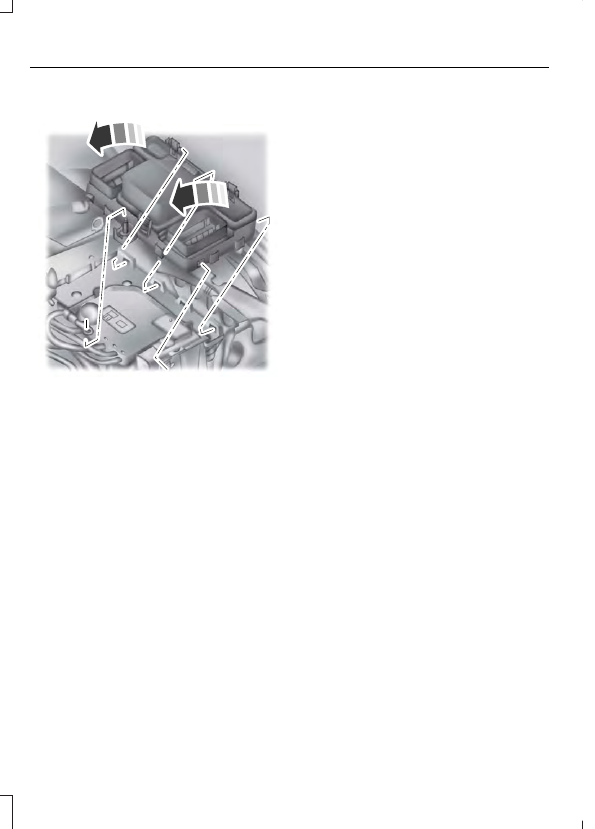

Power Distribution Box - Bottom

E145983

There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following:

1.

Release the two latches, located on
both sides of the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center

of the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.
