Ford Focus RS (2011 year). Instruction - part 43

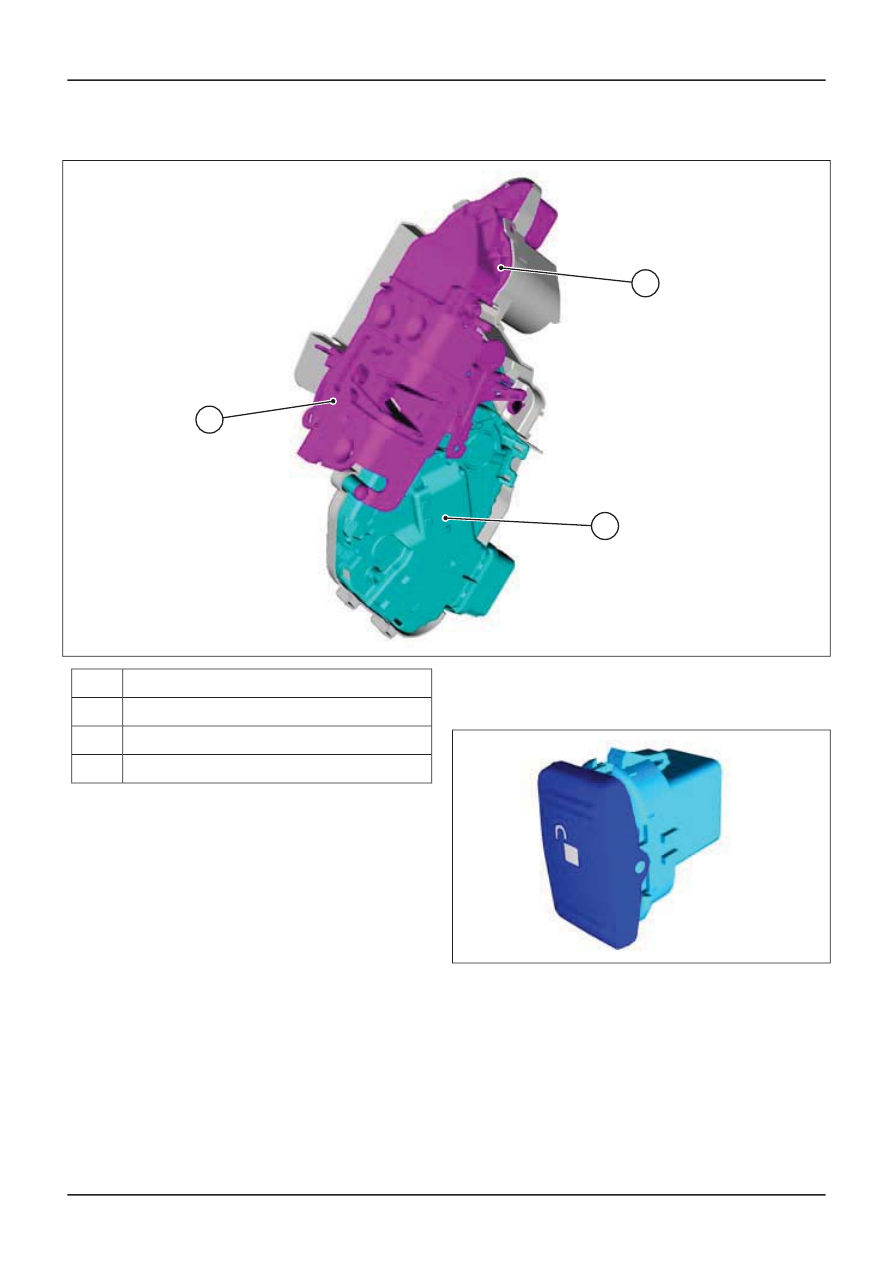

Door Latch

E56150

Description

Item

Door latch

Door latch unlatch motor

Central/double locking motor

The keyless vehicle locking system requires unique
door latches.

The door latches are equipped with electric motors
that replace the mechanical unlatch function of the
exterior door handle when the vehicle is in keyless
vehicle system mode. This is because the exterior
door handle is already in a semi pulled state before
the latch unlatch command is received by the latch
lock motors, the latch linkage is not in a position
to engage with the exterior door handle.

If the emergency key is used to enter the vehicle,
the standard mechanical latch linkage is utilized.

Central and double locking is still controlled by the
door control modules, however the commands to
lock and unlock are relayed through the keyless
vehicle module on the high-speed CAN bus circuit.

Interior Unlock Switch

E56179

The interior unlock switches function, is to unlock
the rear doors and passenger door locks when the
vehicle has been entered using the passive entry
system in drivers unlock mode.

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

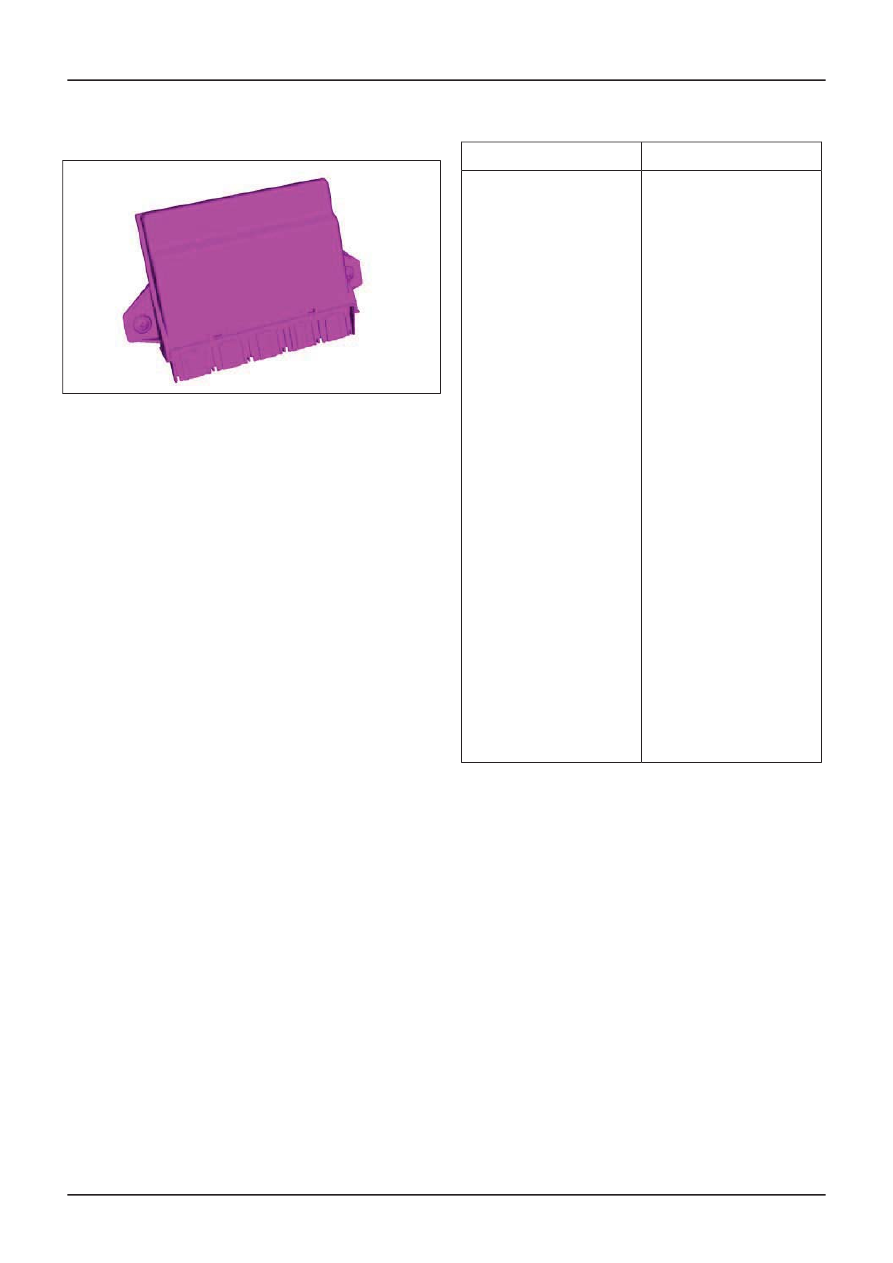

Keyless Vehicle Module

E56101

The keyless vehicle module is at the heart of the
keyless vehicle system. It communicates with the
PJB and with the instrument cluster on the medium
speed CAN bus circuit. The keyless vehicle module
stores the passive vehicle key codes. If a new
keyless vehicle module is installed in a vehicle, the
following sequence must be followed before the
system can function.

• Using WDS Program Module routine, program

the keyless vehicle module.

• Using the Initialize System routine, initialize the

keyless vehicle module to the CJB and to the
steering column lock control unit.

• Using the Teach Key function, teach the

minimum number of passive keys required.

Inspection and Verification (Vehicles
with Keyless Entry)

1. Verify the customer concern.

2. Visually inspect for obvious signs of mechanical

or electrical damage.

Visual Inspection Chart

Electrical

Mechanical

– Fuse(s)

– Relay(s)

– Wiring harness

– Electrical

connector(s)

– Door latch motor(s)

– Vehicle battery

– Liftgate lock switch

– Luggage compart-

ment lid lock switch

– Passive vehicle key

– Keyless vehicle

module

– Keyless vehicle

interior antenna(s)

– Keyless vehicle

exterior antenna(s)

– RF receiver

– Ignition lock cylinder

key insert switch

– Ignition lock cylinder

release solenoid

– Liftgate exterior

release switch

– Luggage compart-

ment lid release
switch

– Misaligned door(s),

hood, liftgate, tail-
gate, luggage
compartment and
hood

– Door latch(es)

– Liftgate latch

– Luggage compart-

ment lid latch

– Hood latch

– Actuating Cable(s)

– Exterior door

handle(s)

– Door latch remote

control(s)

– Door lock cylinder

3. If an obvious cause for an observed or reported

concern is found, correct the cause (if possible)
before proceeding to the next step.

4. If the cause is not visually evident, connect WDS

to the data link connector.

5. Select the Remote Keyless Entry menu.

6. Retrieve the diagnostic trouble codes (DTC)

and refer to the Diagnostic Trouble Code (DTC)
Index - Keyless Vehicle Module.

7. If no DTC(s) are stored in the keyless vehicle

module, retrieve the DTC(s) from the CJB and
refer to the DTC index - CJB.

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

Diagnostic Trouble Code (DTC) Index - Keyless Vehicle Module

Action

Possible Source

Description

DTC

Using WDS, Program

Module menu.

PROGRAM the keyless

vehicle module. TEST

the system for normal

operation. If the DTC is

repeated, INSTALL a

new keyless vehicle

module.

14 Handles, Locks,

Latches and Entry

Systems, Removal

and Installation).

Using WDS, Remote

Keyless Entry, Initialize

System menu.

INITIALIZE the keyless

entry system. TEST the

system for normal opera-

tion

•

Keyless vehicle

module programing

•

Keyless vehicle

module

Keyless vehicle module

configuration failure

B2477

INSTALL a new keyless

vehicle module.

REFER to: Keyless

Vehicle Module

(501-

14 Handles, Locks,

Latches and Entry

Systems, Removal

and Installation).

Using WDS, Remote

Keyless Entry, Initialize

System menu.

INITIALIZE the keyless

entry system. TEST the

system for normal opera-

tion

Keyless vehicle module

failure

B1342

GO to Pinpoint Test A.

•

Wiring harness

•

Keyless vehicle

module

• Steering column lock

control unit

Communication failure

between keyless vehicle

module and steering

column lock control unit

B1096

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

REFER to: Keyless

Vehicle Module

(501-

Action

Possible Source

Description

DTC

INSTALL a new steering
column lock control unit.

REFER to: Keyless

14 Handles, Locks,

Latches and Entry

Systems, Removal

and Installation).

Using WDS, Remote

Keyless Entry, Initialize

System menu.

INITIALIZE the keyless

entry system. TEST the

system for normal opera-

tion

Steering column lock

control unit

Steering column lock

control unit failure

B1095

Using WDS, Remote

Keyless Entry, Initialize

System menu.

INITIALIZE the keyless

entry system. Test the

system for normal opera-

tion

Steering column lock

control unit initialization

Steering column lock

control unit identification

not stored

B1094

Using WDS, Remote

Keyless Entry, Initialize

System menu.

INITIALIZE the keyless

entry system. TEST the

system for normal opera-

tion

Steering column lock

control unit initialization

Steering column lock

control unit identification

does not match stored

data

B1093

GO to Pinpoint Test B.

•

Wiring harness

• Steering column lock

control unit

•

Keyless vehicle

module

Steering column lock

control unit to keyless

vehicle module wiring

harness short to battery

positive

B1092

Using WDS, Remote

Keyless Entry, Initialize

System menu.

INITIALIZE the keyless

entry system. TEST the

system for normal opera-

tion

Keyless vehicle module

initialization

Keyless vehicle module

secure identification

missing

B1069

GO to Pinpoint Test C.

• RF antenna harness

•

RF antenna

•

Keyless vehicle

module

•

Central junction box

RF antenna data circuit,
short to battery or short

to ground

B2090

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

Vehicle Module

(501-

Action

Possible Source

Description

DTC

GO to Pinpoint Test D.

• RF antenna harness

•

RF antenna

•

Keyless vehicle

module

•

Central junction box

RF antenna data circuit,

open circuit

B2091

For LHD vehicles, GO to

Pinpoint Test E.

•

Passenger side rear

door latch wiring

harness

•

Passenger side rear

door latch

•

Passenger side rear

door unlock switch

Passenger side rear

door latch clutch switch

active without door

handle unlock pull

switch functioning

B1087

GO to Pinpoint Test F.

• Drivers side rear door

latch wiring harness

• Drivers side rear door

latch

• Drivers side rear door

unlock switch

Drivers side rear door

latch clutch switch

active without door

handle unlock pull

switch functioning

B1088

GO to Pinpoint Test G.

• Passenger side front

door latch wiring

harness

• Passenger side front

door latch

• Passenger side front

door unlock switch

Passenger side front

door latch clutch switch

active without door

handle unlock pull

switch functioning

B1089

GO to Pinpoint Test H.

• Drivers side front door

latch wiring harness

• Drivers side front door

latch

• Drivers side front door

unlock switch

Drivers side front door

latch clutch switch

active without door

handle unlock pull

switch functioning

B1090

GO to Pinpoint Test I.

•

Drivers side door

exterior keyless

vehicle antenna

wiring harness

•

Drivers side door

exterior keyless

vehicle antenna

•

Key-free module

Drivers side door

exterior keyless antenna

circuit, short to battery

positive

B1078

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

Action

Possible Source

Description

DTC

GO to Pinpoint Test J.

• Passengers side door

exterior keyless

vehicle antenna

wiring harness

• Passengers side door

exterior keyless

vehicle antenna

•

Keyless vehicle

module

Passengers side door

exterior keyless vehicle
antenna circuit, short to

battery positive

B1079

GO to Pinpoint Test K.

•

Liftgate/luggage
compartment lid

exterior keyless

vehicle antenna

wiring harness

•

Liftgate/luggage
compartment lid

exterior keyless

vehicle antenna

•

Keyless vehicle

module

Liftgate/luggage

compartment lid exterior
keyless vehicle antenna

circuit, short to battery

positive

B1080

•

Using the Passive

Key Detection Test,

in this section,

Identify the inoper-

ative keyless vehicle

interior antenna.

•

If the front interior

keyless vehicle

antenna is inoper-

Test L.

•

If the center interior

keyless vehicle

antenna is inoper-

ative,

GO to Pinpoint

Test M.

•

Interior keyless

vehicle antenna

wiring harness

•

Interior keyless

vehicle antenna(s)

•

Keyless vehicle

module

Interior passenger area
keyless vehicle antenna

circuit, short to battery

positive

B1081

GO to Pinpoint Test N.

•

Interior loadspace

keyless vehicle

antenna wiring

harness

•

Interior loadspace

keyless vehicle

antenna

•

keyless vehicle

module

Interior loadspace

keyless vehicle antenna

circuit, short to battery

positive

B1082

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

ative,

GO to Pinpoint

Action

Possible Source

Description

DTC

GO to Pinpoint Test O.

•

Drivers side door

exterior keyless

vehicle antenna

wiring harness

•

Drivers side door

exterior keyless

vehicle antenna

•

Keyless vehicle

module

Drivers side door

exterior keyless vehicle
antenna circuit, short to

ground

B1077

GO to Pinpoint Test P.

• Passengers side door

exterior keyless

vehicle antenna

wiring harness

• Passengers side door

exterior keyless

vehicle antenna

•

Keyless vehicle

module

Passenger side door

exterior keyless vehicle
antenna circuit, short to

ground

B1083

GO to Pinpoint Test Q.

•

Liftgate/luggage
compartment lid

exterior keyless

vehicle antenna

wiring harness

•

Liftgate/luggage

compartment exterior

keyless vehicle

antenna

•

Keyless vehicle

module

Liftgate/luggage

compartment lid exterior
keyless vehicle antenna

circuit, short to ground

B1086

•

Using the Passive

Key Detection Test,

Identify the inoper-

ative keyless vehicle

interior antenna.

•

If the front interior

keyless vehicle

antenna is inoper-

ative,

GO to Pinpoint

Test R.

•

If the center interior

keyless vehicle

antenna is inoper-

ative,

GO to Pinpoint

Test S.

•

Interior keyless

vehicle antenna

wiring harness

•

Interior keyless

vehicle antenna(s)

•

Keyless vehicle

module

Interior passenger area
keyless vehicle antenna

circuit, short to ground

B1070

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

Action

Possible Source

Description

DTC

GO to Pinpoint Test T.

•

Interior loadspace

keyless vehicle

antenna wiring

harness

•

Interior loadspace

keyless vehicle

antenna

•

keyless vehicle

module

Interior loadspace

keyless vehicle antenna

circuit, short to ground

B1071

GO to Pinpoint Test U.

•

Drivers side door

exterior keyless

vehicle antenna

wiring harness

•

Drivers side door

exterior keyless

vehicle antenna

•

keyless vehicle

module

Drivers side door

exterior keyless vehicle

antenna circuit, open

circuit

B1072

GO to Pinpoint Test V.

• Passengers side door

exterior keyless

vehicle antenna

wiring harness

• Passengers side door

exterior keyless

vehicle antenna

•

keyless vehicle

module

Passenger side door

exterior keyless vehicle

antenna circuit, open

circuit

B1073

GO to Pinpoint Test W.

•

Liftgate/luggage
compartment lid

exterior keyless

vehicle antenna

wiring harness

•

Liftgate/luggage
compartment lid

exterior keyless

vehicle antenna

•

keyless vehicle

module

Liftgate/luggage

compartment lid exterior
keyless vehicle antenna

circuit, open circuit

B1074

G167639en

501-14-

Handles, Locks, Latches and Entry Systems

501-14-

DIAGNOSIS AND TESTING

Content .. 41 42 43 44 ..
