Ford Focus RS (2011 year). Instruction - part 16

Headliner — 5-Door, Vehicles Without: Sliding Roof Opening

Panel

General Equipment

Draw cord

1. Disconnect the battery ground cable.

Disconnect and Connect

(414-01 Battery,

Mounting and Cables, General Procedures).

2. Remove the A-pillar trim panels.

Trim Panel

(501-05 Interior Trim and

Ornamentation, Removal and Installation).

3. Disconnect the rear window washer tube.

E41191

4. Remove the overhead console.

Console

(501-12 Instrument Panel and

Console, Removal and Installation).

5. Remove the C-pillar trim panels.

Trim Panel - 4-Door/5-Door

(501-05 Interior

Trim and Ornamentation, Removal and
Installation).

6. Remove the D-pillar trim panels.

Trim Panel - 5-Door

(501-05 Interior Trim

and Ornamentation, Removal and
Installation).

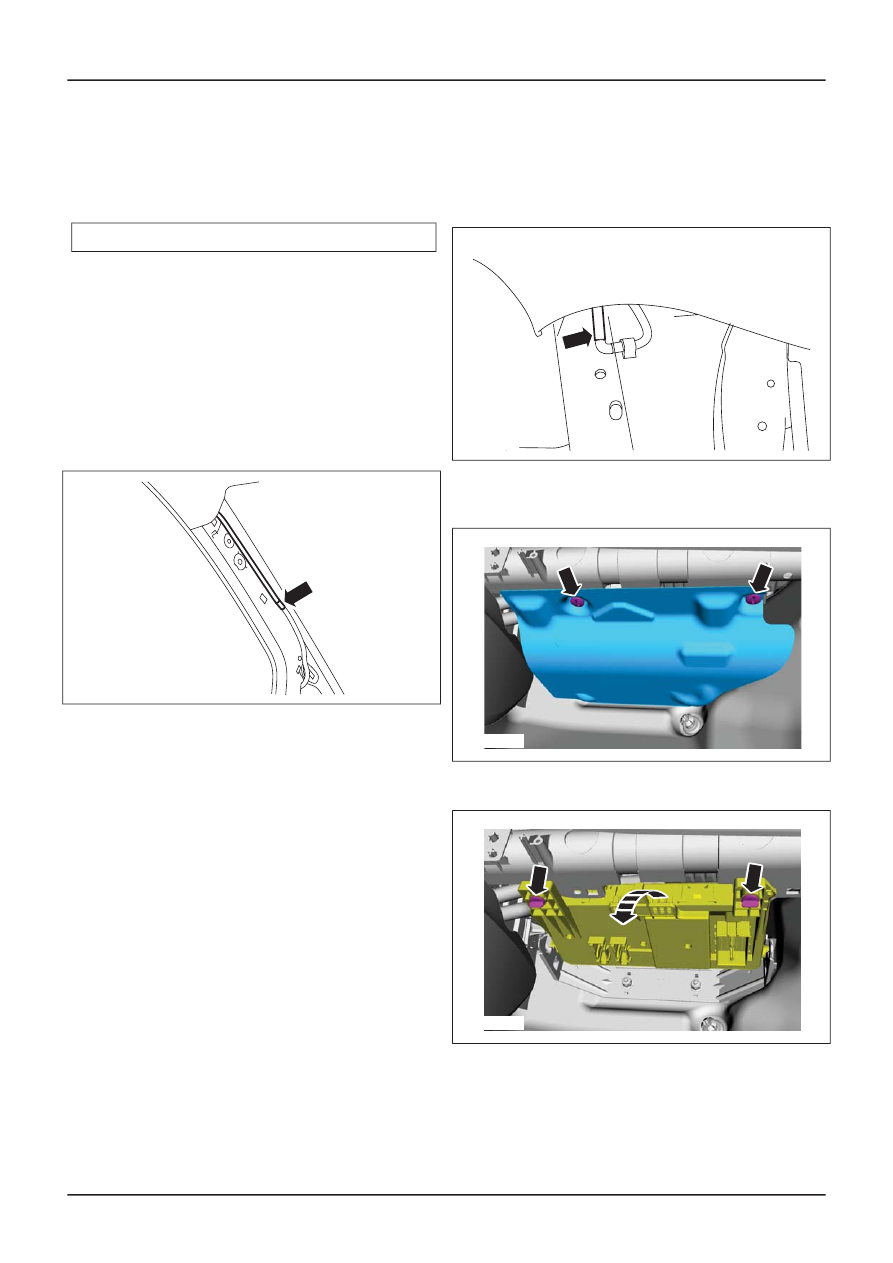

7. Disconnect the rear window washer tube.

E41192

8. Remove the instrument panel passenger side

lower trim panel.

E51002

9. Lower the central junction box (CJB).

E51003

10. Open the glove compartment lid.

G410777en

501-05-

80

Interior Trim and Ornamentation

501-05-

80

REMOVAL AND INSTALLATION

For additional information,

refer to: Battery

For additional information,

refer to: Overhead

For additional information,

refer to: A-Pillar

For additional information,

refer to: C-Pillar

For additional information,

refer to: D-Pillar

11. Remove the navigation system digital

versatile disc (DVD) unit access cover (if
equipped).

E51004

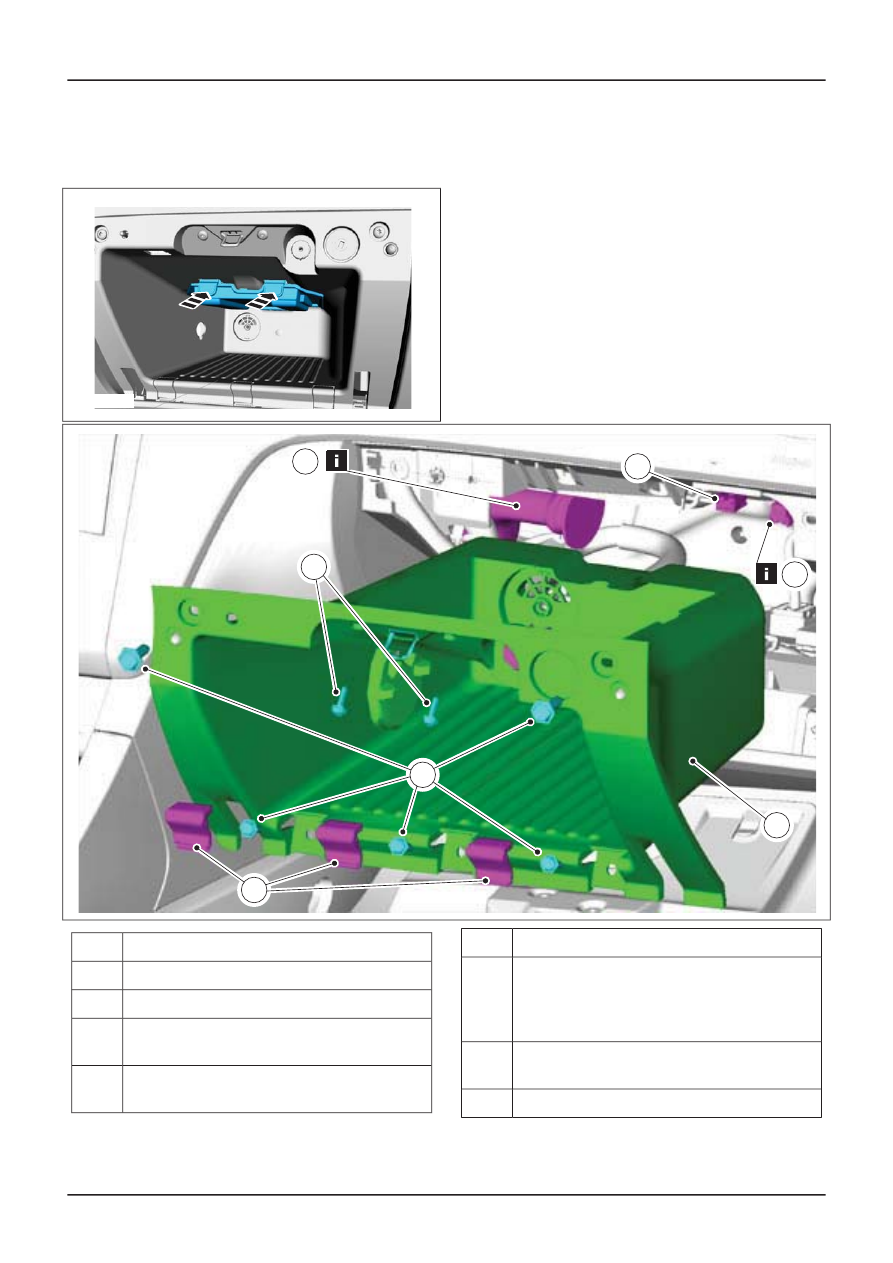

12. Remove the components in the order

indicated in the following illustration(s) and
table(s).

1

2

E51000

3

4

5

7

6

Description

Item

Glove compartment retaining screw covers

1

Glove compartment retaining screws

2

Glove compartment lid striker retaining
screws

3

Glove compartment cooling hose

See Removal Detail

4

Description

Item

Moving pictures experts group audio layer
3 (MP3) auxiliary connector electrical
connector

See Removal Detail

5

Passenger airbag deactivation switch
electrical connector

6

Glove compartment housing

7

G410777en

501-05-

81

Interior Trim and Ornamentation

501-05-

81

REMOVAL AND INSTALLATION

E51005

8

11

9

12

10

13

Description

Item

Roof wiring harness to CJB electrical
connector

8

Roof wiring harness electrical connector

9

Roof wiring harness to A-pillar retaining
clips

10

Description

Item

Noise, vibration and harshness (NVH)
material

See Removal Detail
See Installation Detail

11

Roof wiring harness retaining clips

12

Roof wiring harness

See Removal Detail
See Installation Detail

13

G410777en

501-05-

82

Interior Trim and Ornamentation

501-05-

82

REMOVAL AND INSTALLATION

E51477

18

15

16

17

14

Description

Item

Front door opening weatherstrips

See Removal Detail

14

Rear door opening weatherstrips

See Removal Detail

15

Description

Item

B-pillar trim panel retaining screw trim
covers

16

B-pillar trim panel retaining screws

17

B-pillar trim panels

See Removal Detail
See Installation Detail

18

G410777en

501-05-

83

Interior Trim and Ornamentation

501-05-

83

REMOVAL AND INSTALLATION

28

E51504

19

20

21

22

23

25

26

24

27

Description

Item

Rear passenger assist handles

See Removal Detail

19

Headliner trim panel retaining clips

20

Glasses holder

See Removal Detail

21

Front passenger assist handle

See Removal Detail

22

Sun visors

23

Sun visor retaining clips

See Removal Detail

24

Description

Item

Roof wiring harness ground connection
retaining bolt

See Removal Detail

25

Auto-dimming interior mirror trim covers

See Removal Detail

26

Auto-dimming interior mirror and rain
sensor electrical connectors

See Removal Detail

27

Headliner trim panel

See Removal Detail
See Installation Detail

28

G410777en

501-05-

84

Interior Trim and Ornamentation

501-05-

84

REMOVAL AND INSTALLATION

32

29

30

E51505

35

33

34

31

Description

Item

Sun-visor illumination lamp electrical
connectors

29

Radio frequency (RF) receiver

See Removal Detail

30

Rear interior lamp electrical connectors

31

Roof wiring harness

See Removal Detail
See Installation Detail

32

Sun-visor illumination lamps

See Removal Detail

33

Description

Item

Rear interior lamp

See Removal Detail

34

Rear window washer tube

See Removal Detail
See Installation Detail

35

13. To install, reverse the removal procedure.

14. Vehicles with global closing, initialize the

door window motors.

Window Motor Initialization

(501-11 Glass,

Frames and Mechanisms, General
Procedures).

Removal Details

G410777en

501-05-

85

Interior Trim and Ornamentation

501-05-

85

REMOVAL AND INSTALLATION

For additional information,

refer to: Door

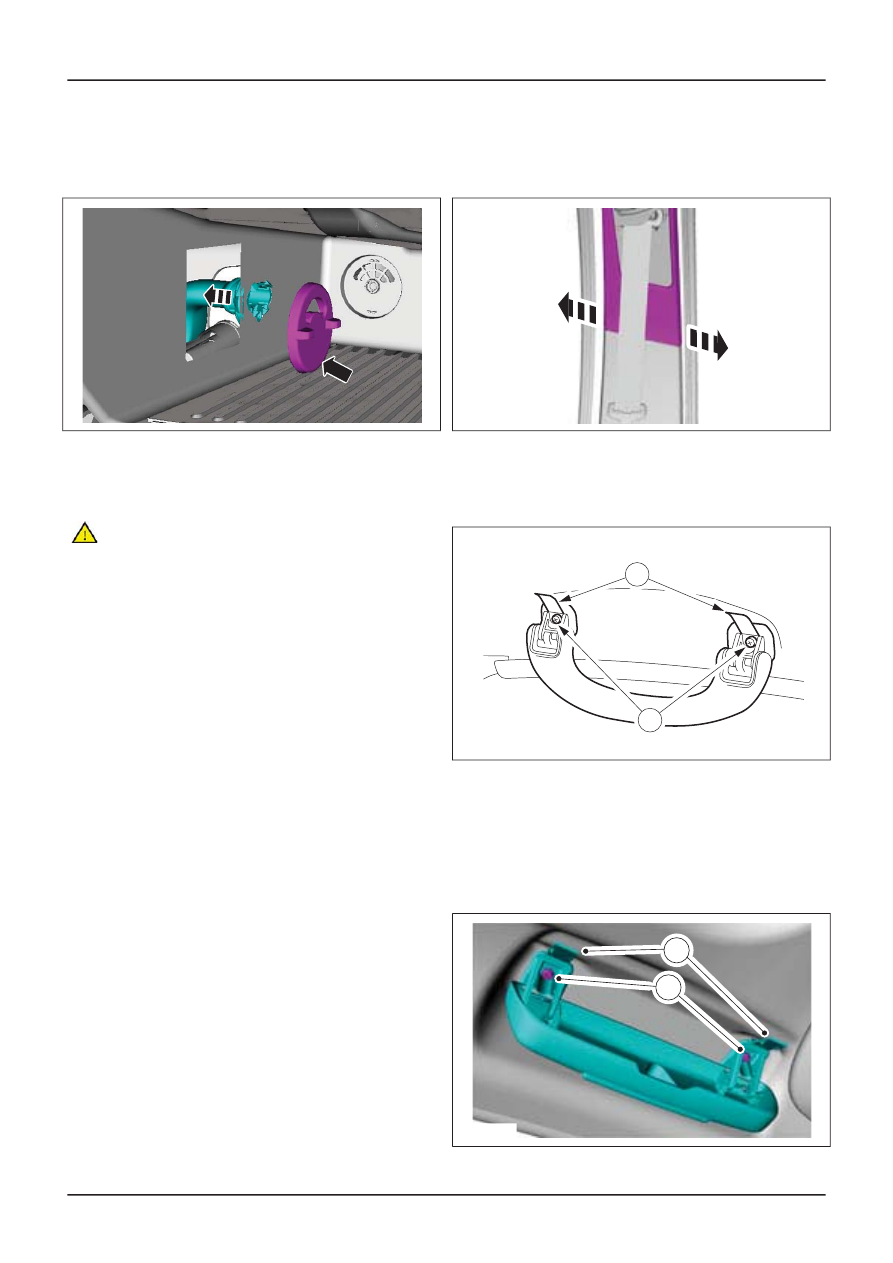

Item 4

Glove compartment cooling hose

1. Detach the glove compartment cooling hose

from the glove compartment cooling vent.

E51010

Item 5

Moving pictures experts group audio

layer 3 (MP3) auxiliary connector electrical
connector

CAUTION: Do not place excessive strain
on the electrical wiring harness when
detaching the glove compartment.

1. Reposition the glove compartment and

disconnect the MP3 auxiliary connector
electrical connector.

Item 11

Noise, vibration and harshness (NVH)

material

1. Detach the NVH material from the upper

A-pillar area to gain access to the roof wiring
harness retaining clip.

Item 13

Roof wiring harness

1. Attach

a draw cord to the

roof wiring harness

and

CJB electrical connector

. Feed the wiring

harness through the NVH

material to above

the instrument panel A-pillar area.

Item 14

Front door opening weatherstrips

1. Detach the front door opening weatherstrips

from the front door upper opening area.

Item 15

Rear door opening weatherstrips

1. Detach the rear door opening weatherstrips

from the rear door upper opening area.

Item 18

B-pillar trim panels

1. Detach the B-pillar trim panels and position

them to one side.

E51478

Item 19

Rear passenger assist handles

1. Lever open the rear passenger assist handle

screw covers.

MPE0002639

1

2

2. Remove the rear passenger assist handle

retaining screws.

Item 21

Glasses holder

1. Lever open the glasses holder retaining

screw covers.

1

2

E51013

G410777en

501-05-

86

Interior Trim and Ornamentation

501-05-

86

REMOVAL AND INSTALLATION

2. Remove the glasses holder retaining screws.

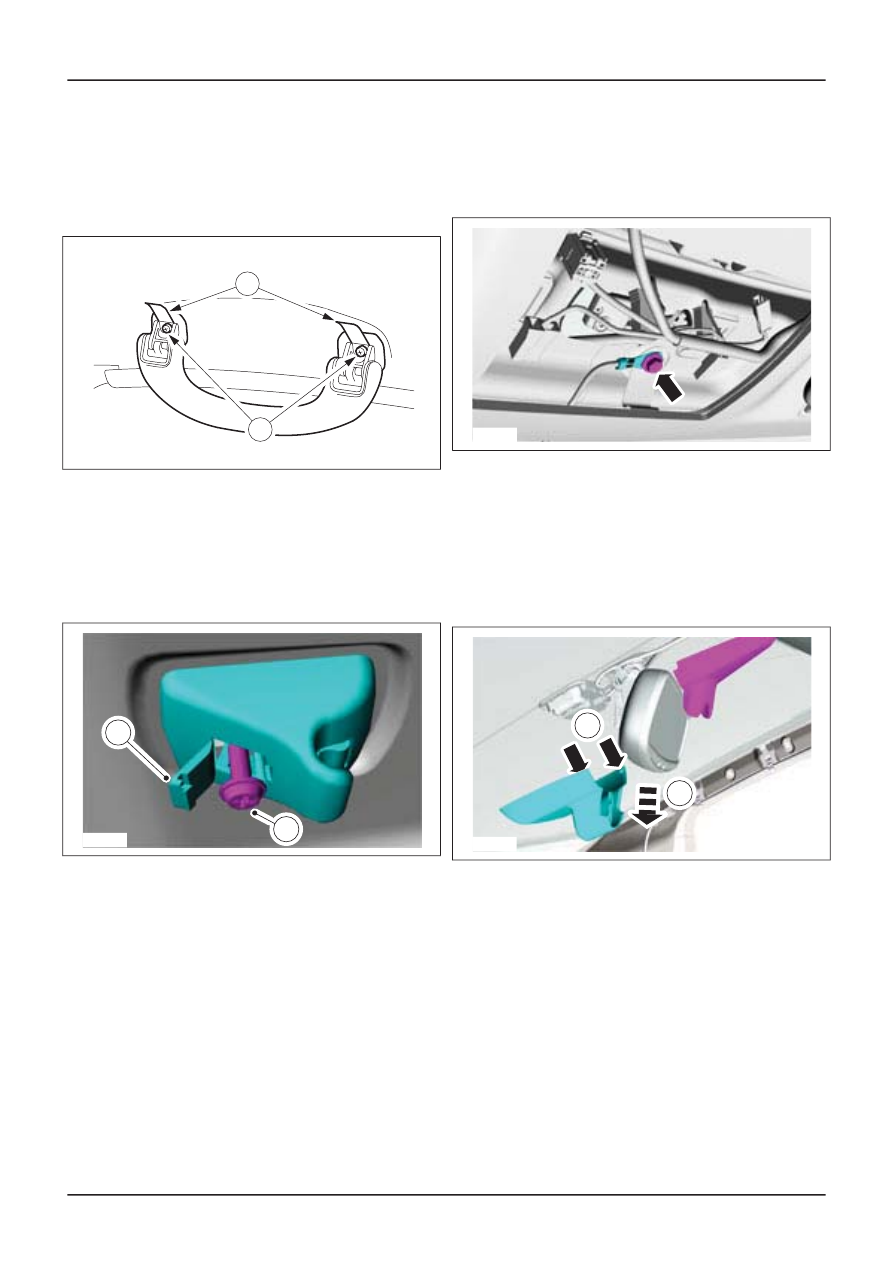

Item 22

Front passenger assist handle

1. Lever open the front passenger assist handle

retaining screw covers.

MPE0002639

1

2

2. Remove the front passenger assist handle

retaining screws.

Item 24

Sun visor retaining clips

1. Lever open the sun-visor retaining clips

retaining screw cover.

1

2

E51015

2. Remove the sun-visor retaining clips

retaining screw.

Item 25

Roof wiring harness ground connection

retaining bolt

1. Detach the roof wiring harness and

windscreen ground electrical connectors.

E51014

Item 26

Auto-dimming interior mirror trim

covers

1. Remove the auto-dimming interior mirror

and rain sensor trim covers.

1. Release the locking clips.
2. Slide the rain sensor trim cover off the

auto-dimming interior mirror trim cover.

1

2

E51017

G410777en

501-05-

87

Interior Trim and Ornamentation

501-05-

87

REMOVAL AND INSTALLATION
