Ford Focus RS (2011 year). Instruction - part 15

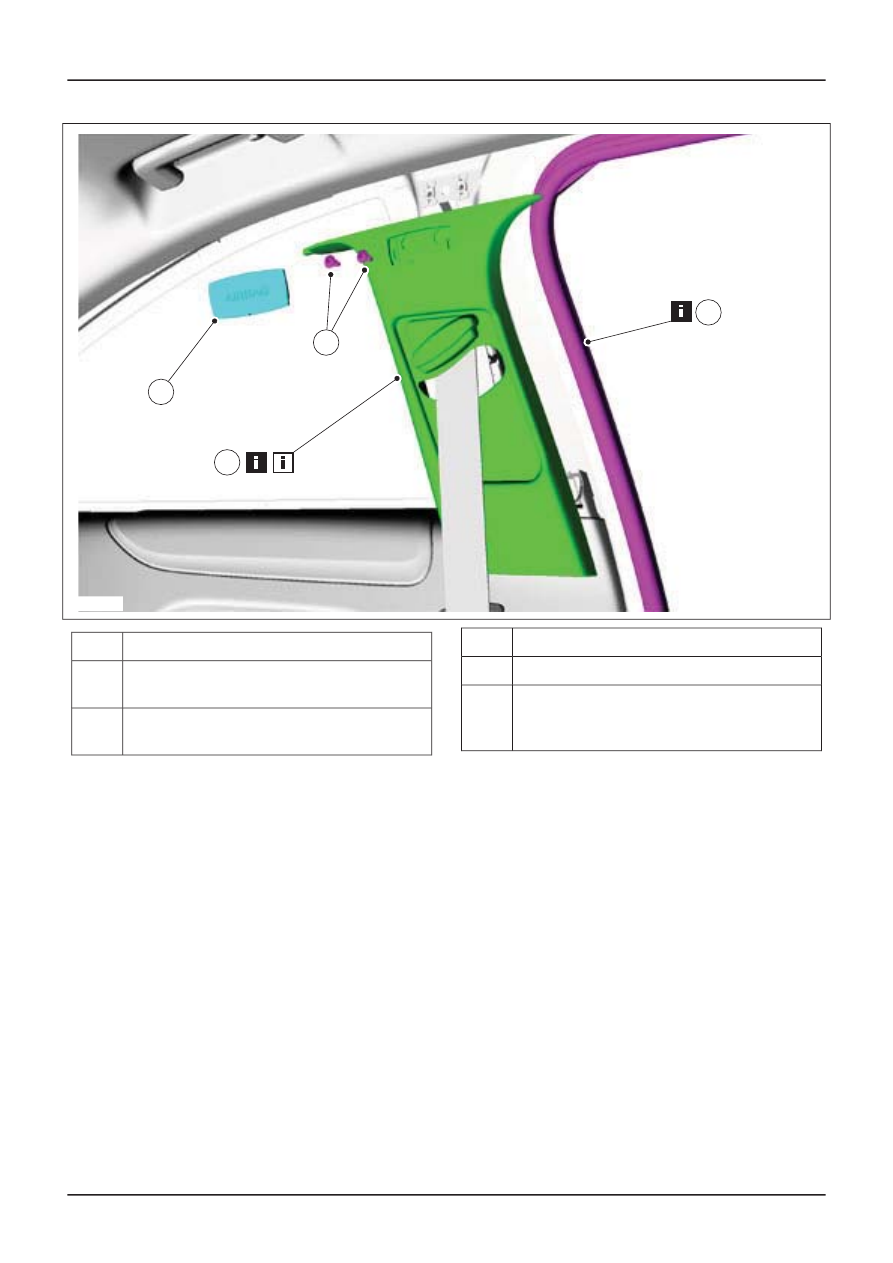

E51009

Description

Item

Door opening weatherstrips

See Removal Detail

B-pillar trim panel retaining screw trim
covers

Description

Item

B-pillar trim panel retaining screws

B-pillar trim panels

See Removal Detail
See Installation Detail

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

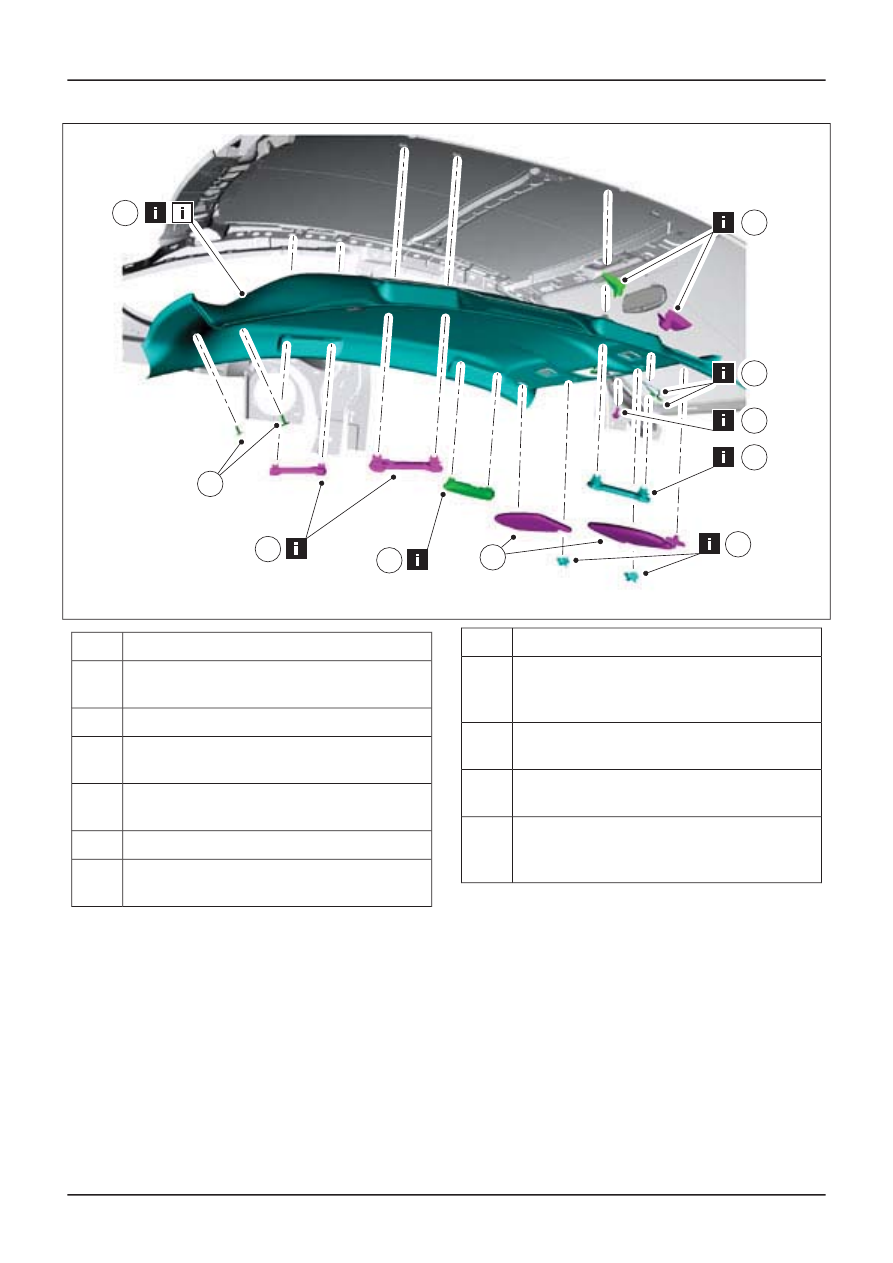

E51464

Description

Item

Rear passenger assist handles

See Removal Detail

Headliner retaining clips

Glasses holder

See Removal Detail

Front passenger assist handle

See Removal Detail

Sun visors

Sun visor retaining clips

See Removal Detail

Description

Item

Roof wiring harness ground connection
retaining bolt

See Removal Detail

Auto-dimming interior mirror trim covers

See Removal Detail

Auto-dimming interior mirror and rain
sensor electrical connectors

Headliner trim panel

See Removal Detail
See Installation Detail

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

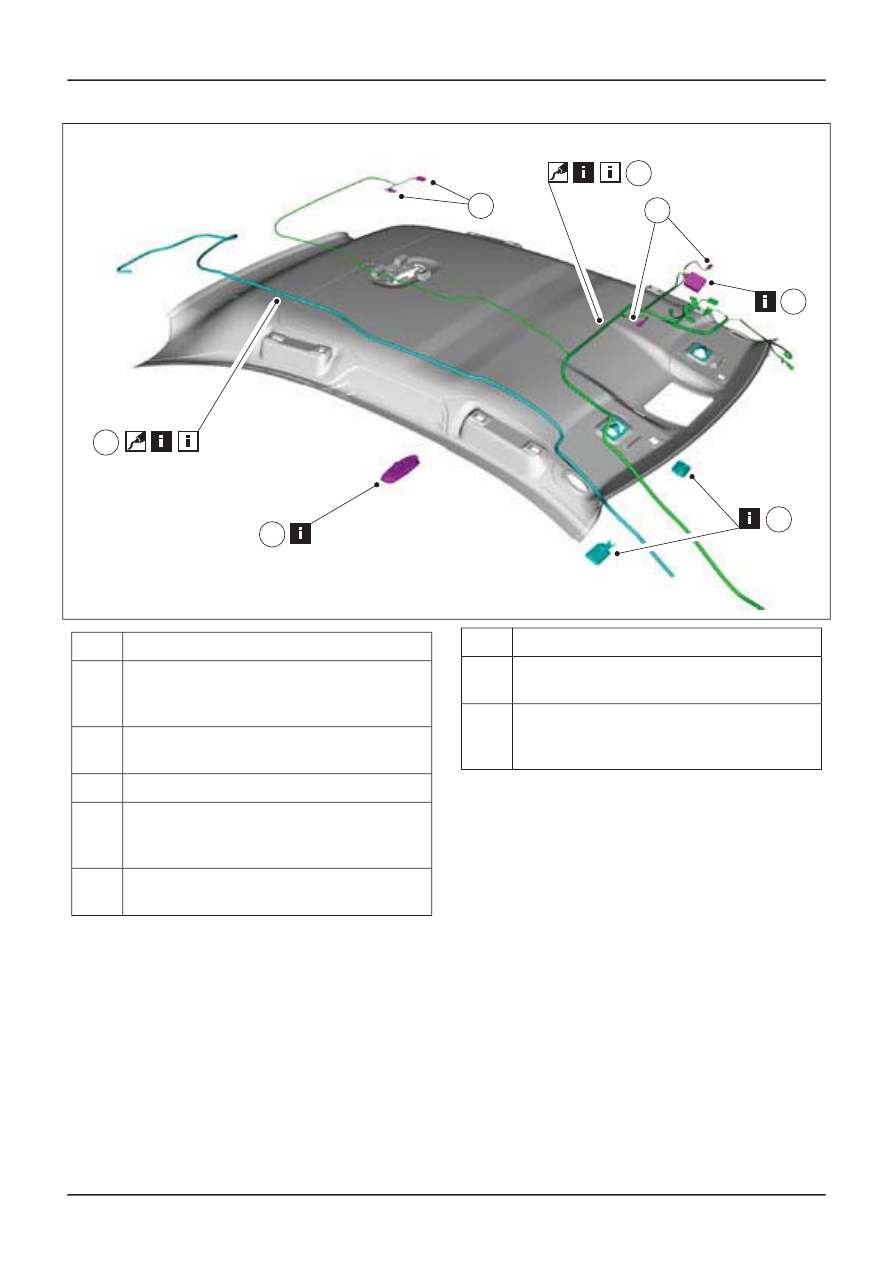

E51465

Description

Item

Sunvisor illumination lamp electrical
connectors

See Installation Detail

Radio frequency (RF) receiver

See Removal Detail

Rear interior lamp electrical connectors

Roof wiring harness

See Removal Detail
See Installation Detail

Sunvisor illumination lamps

See Removal Detail

Description

Item

Rear interior lamp

See Removal Detail

Rear window washer tube

See Removal Detail
See Installation Detail

11. To install, reverse the removal procedure.

12. Vehicles with global closing, initialize the

door window motors.

Window Motor Initialization

(501-11 Glass,

Frames and Mechanisms, General
Procedures).

Removal Details

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

For additional information,

refer to: Door

Item 4

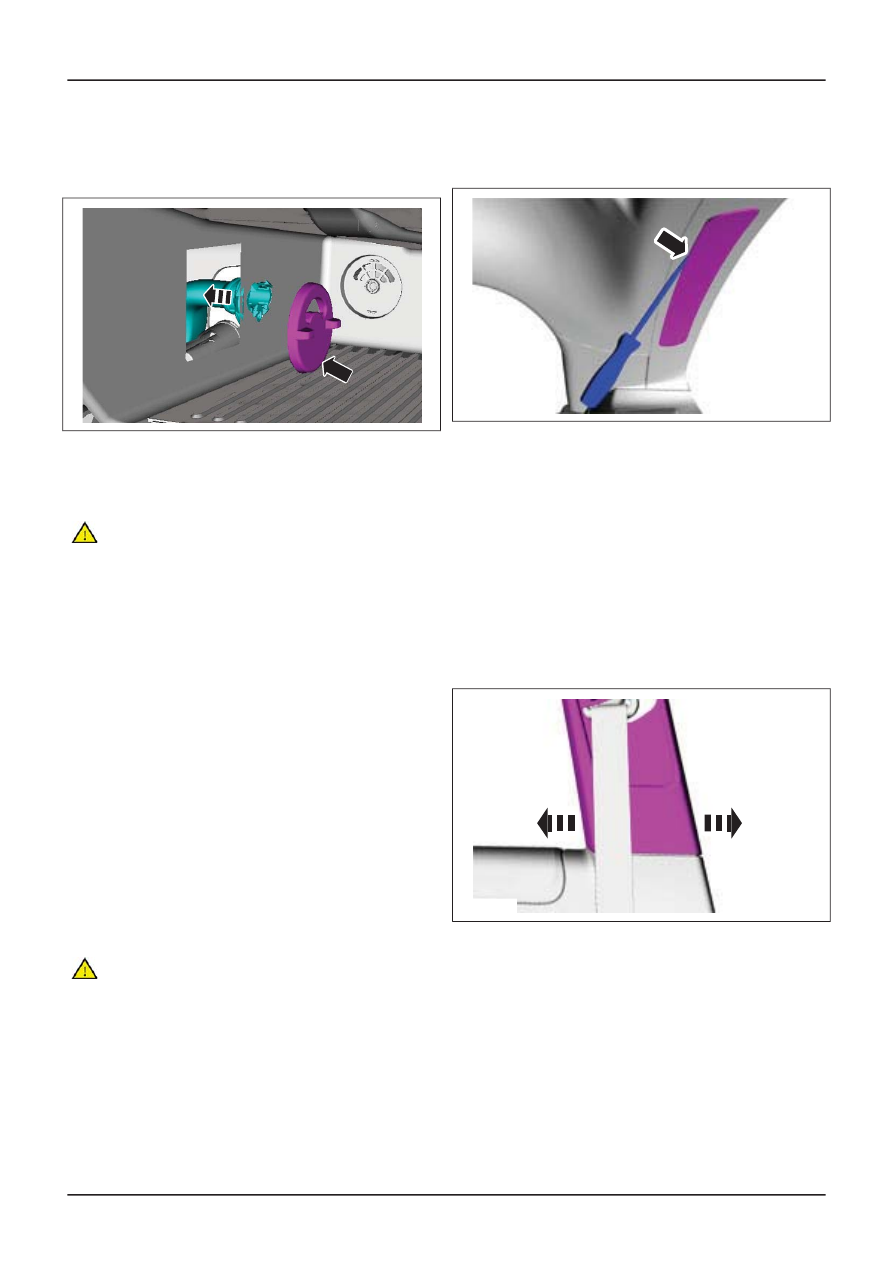

Glove compartment cooling hose

1. Detach the glove compartment cooling hose

from the glove compartment cooling vent.

E51010

Item 5

Moving pictures experts group audio

layer 3 (MP3) auxiliary connector electrical
connector

CAUTION: Do not place excessive strain
on the electrical wiring harness when
detaching the glove compartment.

1. Reposition the glove compartment and

disconnect the MP3 auxiliary connector
electrical connector.

Item 11

Noise, vibration and harshness (NVH)

material

1. Detach the NVH material from the upper

A-pillar area to gain access to the roof wiring
harness retaining clip.

Item 13

Roof wiring harness

1. Attach a

draw cord to the

roof wiring harness

and

CJB electrical connector

. Feed the wiring

harness

through the NVH

material to above

the

instrument panel A-pillar

area.

Item 14

Rear quarter window glass trim panel

retaining screw trim covers

CAUTION: Care must be taken not to
damage the rear quarter window glass trim
panels and retaining screw trim covers.

1. Using a suitable flat blade screwdriver, lever

out the rear quarter window glass trim panel
retaining screw trim covers.

E51011

Item 16

Rear quarter window glass trim panels

1. Detach the rear quarter window glass trim

panel to B-pillar trim panel retaining clip.

Item 18

Door opening weatherstrips

1. Detach the door opening weatherstrips from

the door opening upper area.

Item 21

B-pillar trim panels

1. Detach the B-pillar trim panels and position

them to one side.

E51012

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

Item 22

Rear passenger assist handles

1. Lever open the rear passenger assist handle

screw covers.

MPE0002639

2. Remove the rear passenger assist handle

retaining screws.

Item 24

Glasses holder

1. Lever open the glasses holder retaining

screw covers.

E51013

2. Remove the glasses holder retaining screws.

Item 25

Front passenger assist handle

1. Lever open the front passenger assist handle

retaining screw covers.

MPE0002639

2. Remove the front passenger assist handle

retaining screws.

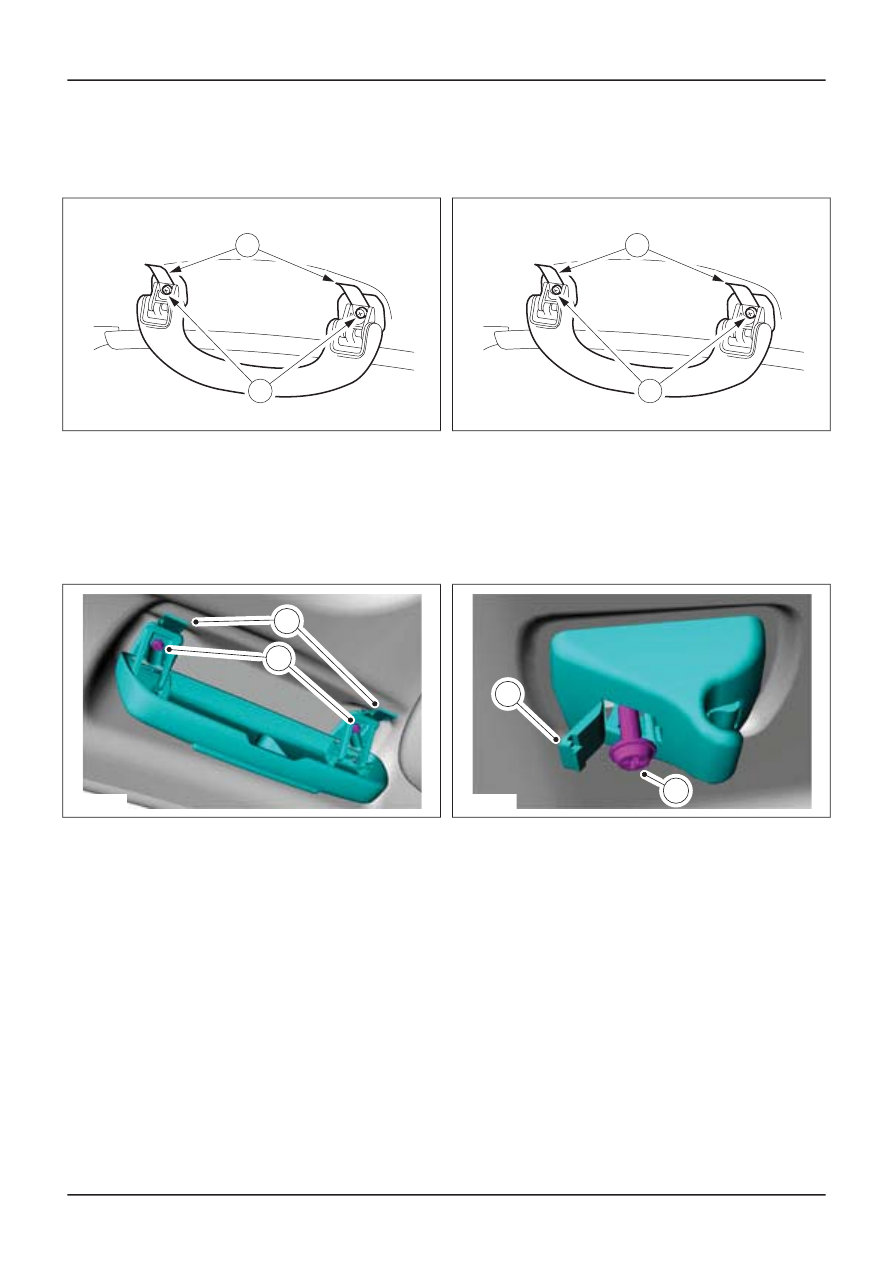

Item 27

Sun visor retaining clips

1. Lever open the sun visor retaining clip

retaining screw cover.

E51015

2. Remove the sun visor retaining clip retaining

screw.

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

Item 28

Roof wiring harness ground connection

retaining bolt

1. Detach the roof wiring harness and

windscreen ground electrical connectors.

E51014

Item 29

Auto-dimming interior mirror trim

covers

1. Remove the auto-dimming interior mirror

and rain sensor trim covers.

1. Release the locking clips.
2. Slide the rain sensor trim cover off the

auto-dimming interior mirror trim cover.

E51017

Item 30

Auto-dimming interior mirror and rain

sensor electrical connectors

1. Disconnect the auto-dimming interior mirror

and rain sensor electrical connectors.

E51018

Item 31

Headliner trim panel

1. Tilt the front seats forward.

2. With the aid of another technician, remove

the headliner through the liftgate opening.

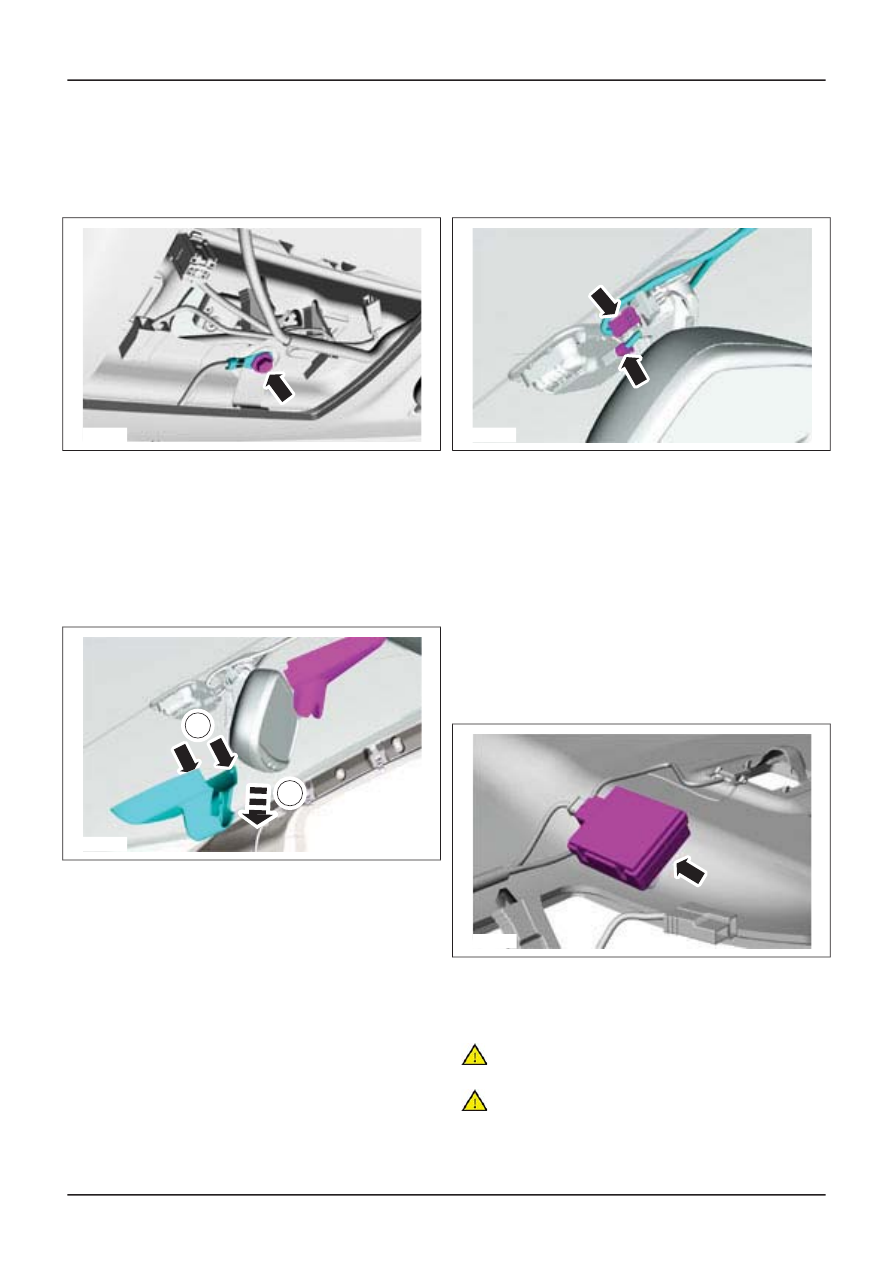

Item 33

Radio frequency (RF) receiver

NOTE: Make a note of the position of the RF
receiver to make sure that it is installed in exactly
the same position as when removed.

1. Using a suitable knife, detach the RF receiver

from the headliner.

E51463

Item 35

Roof wiring harness

CAUTIONS:

Take care not to damage the insulation of
the roof wiring harness.

The roof wiring harness must be cut off
the headliner and not pulled or ripped.
Failure to follow this instruction could

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

result in the incorrect function of electrical
components.

NOTE: Make a note of the position of the roof
wiring harness to make sure that it is installed in
exactly the same position as when removed.

1. Using a suitable knife, remove the roof wiring

harness from the headliner.

Item 36

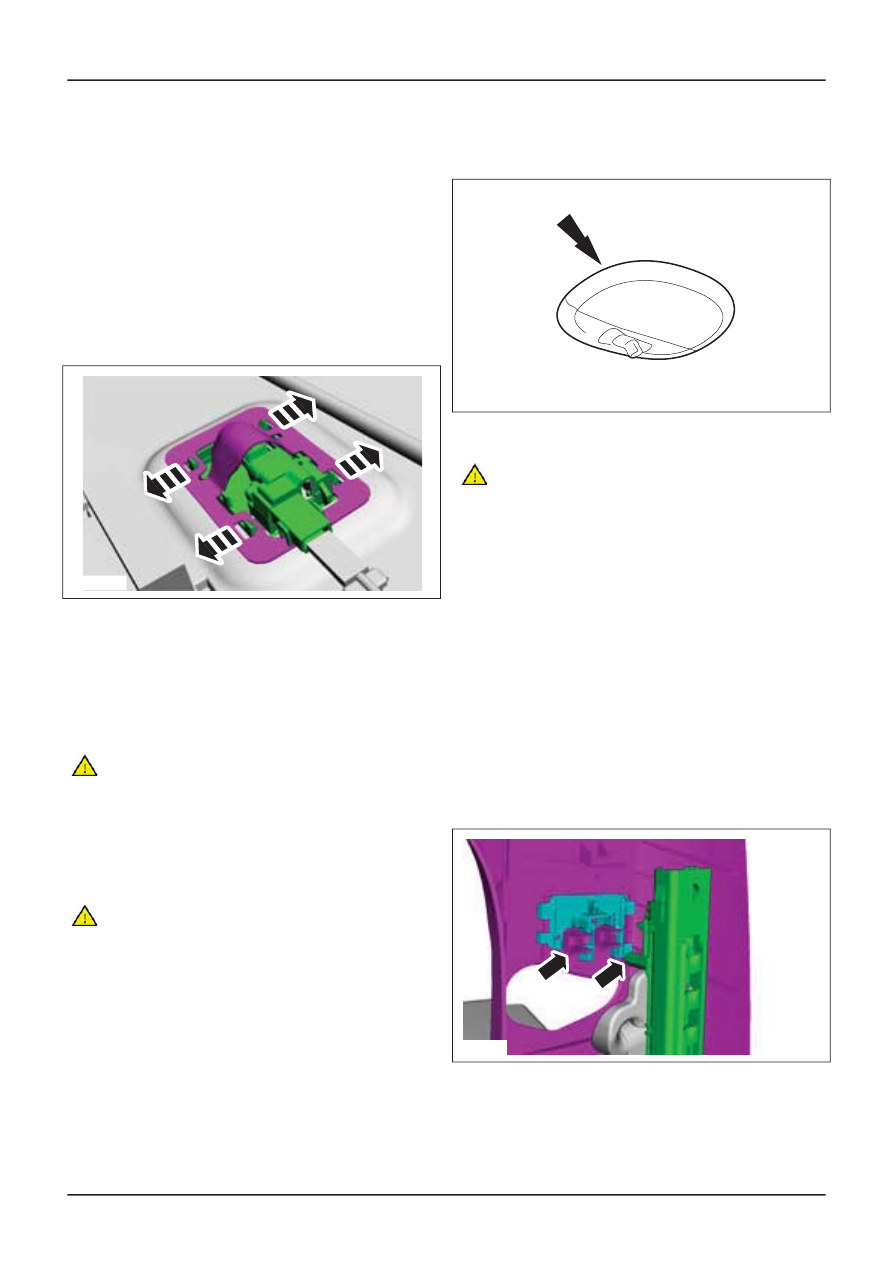

Sunvisor illumination lamps

1. Release the sun visor illumination lamp

retaining clips.

E51019

Item 37

Rear interior lamp

1. Lever out the rear interior lamp.

MPE0005082

Item 38

Rear window washer tube

CAUTION: Take care not to damage the
rear window washer tube. Failure to follow
this instruction could result in damage to
the headliner.

NOTE: Make a note of the position of the rear
window washer tube to make sure that it is installed
in exactly the same position as when removed.

1. Using a suitable knife, remove the rear

window washer tube from the headliner.

Installation Details

Item 38

Rear window washer tube

CAUTION: The rear window washer tube
must be installed in the same position as
when removed.

1. Using a suitable adhesive, bond the rear

window washer tube to the headliner.

Item 35

Roof wiring harness

CAUTION: The roof wiring harness must
be installed in the same position as when
removed.

1. Using a suitable adhesive, bond the roof

wiring harness to the headliner.

Item 31

Headliner trim panel

1. With the aid of another technician, install the

headliner.

Item 21

B-pillar trim panels

NOTE: Make sure the B-pillar safety belt height
adjustment lever is aligned with the safety belt
height adjustment mechanism.

E51422

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION

Item 17

Rear quarter window glass trim panel

retaining clips

1. Install the rear quarter window glass trim

panel retaining clips to the rear quarter
window glass trim panel.

Item 13

Roof wiring harness

1. Using the

draw cord, feed

the roof wiring

harness

through the NVH material.

Item 11

Noise, vibration and harshness (NVH)

material

1. Reposition the NVH material.

G410776en

501-05-

Interior Trim and Ornamentation

501-05-

REMOVAL AND INSTALLATION
