Ford Explorer (2018 year). Manual - part 68

Protected Components

Fuse Rating

Fuse or Relay

Number

Front climate control module.

7.5A

2

12

Instrument cluster.

7.5A

2

13

Smart data link.
Steering column control module.

Extended power module.

10A

2

14

Smart datalink connector power.

10A

2

15

Heads up display.

Not used.

—

16

Electronic finish panel.

5A

2

17

Push button start switch.

5A

2

18

Ignition switch.
Key inhibit.

Transmission control switch.

7.5A

2

19

Not used.

—

20

Terrain management switch.

5A

2

21

Heads up display.
Humidity sensor.

Occupant classification sensor.

5A

2

22

Delayed accessory power.

10A

1

23

Power windows.
Moonroof.
Folding mirror relay.
DC inverter.
Window/moonroof switch illumination.

Central lock relay.

20A

1

24

Left-hand front smart window motor.

30A

1

25

Door zone module.

Right-hand front smart window motor.

30A

1

26

Door zone module.

Moonroof.

30A

1

27

Protected Components

Fuse Rating

Fuse or Relay

Number

Sony amplifier - 10 channel.

20A

1

28

Sony amplifier - 14 channel.

30A

1

29

Not used.

—

30

Not used.

—

31

SYNC module.

10A

1

32

GPS module.
Display.
Radio frequency receiver.

Radio.

20A

1

33

Starter relay.

30A

1

34

Restraints control module.

5A

1

35

Extended power module.

Lane departure warning module.

15A

1

36

Auto high beam.
EC mirrors.
Rear heated seats.

Heated steering wheel.

20A

1

37

Left-hand front window motor.

30A

3

38

Rear power window motors.

1

Micro 2 fuse.

2

Micro 3 fuse.

3

Circuit breaker.

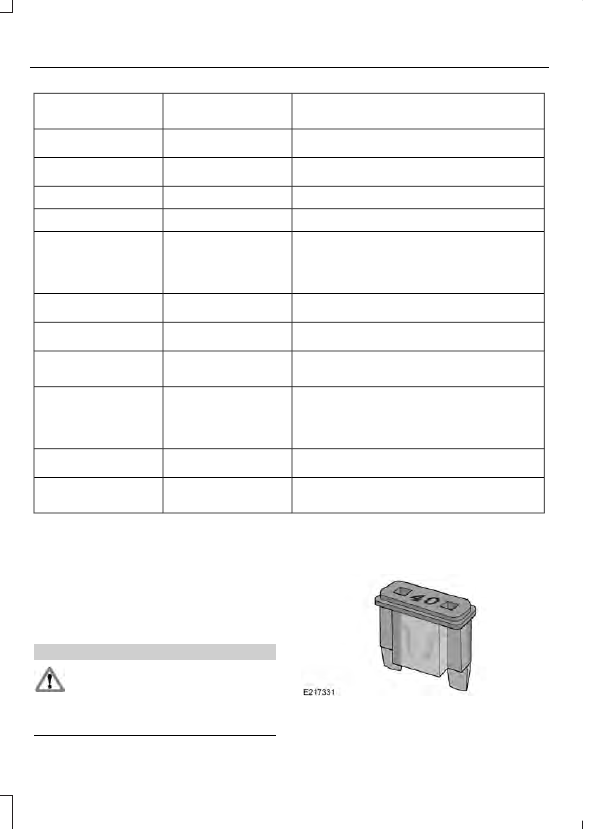

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within

the fuse. Check the appropriate fuses
before replacing any electrical
components.

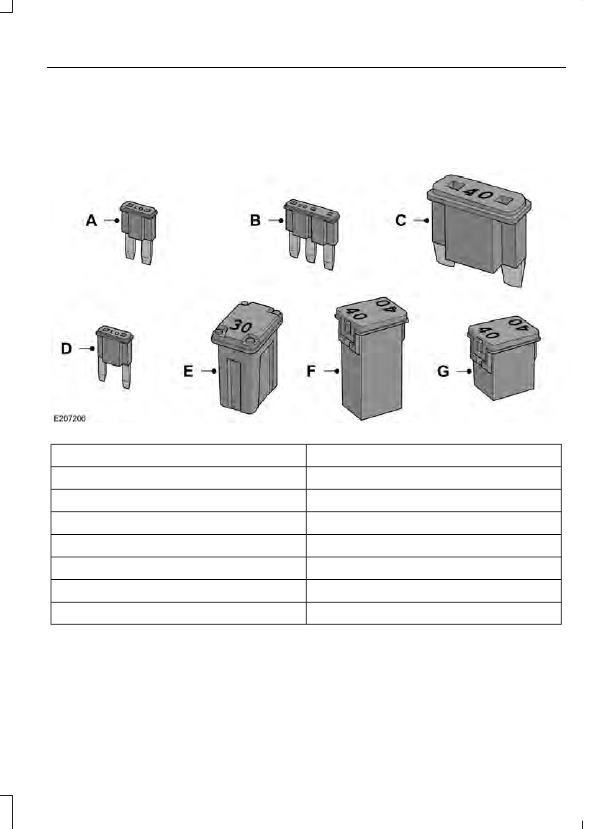

Fuse Types

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

1.

Set the parking brake and shift to park
(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

1.

Set the parking brake and shift to park
(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

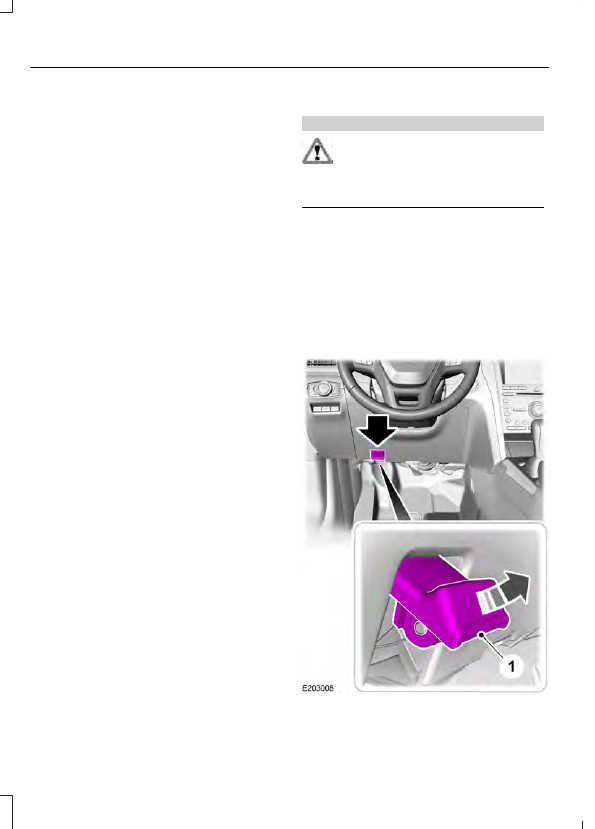

Opening the Hood
