Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-
vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-
automobiles.html (French)

Website

1–800–333–0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

FUSE SPECIFICATION CHART

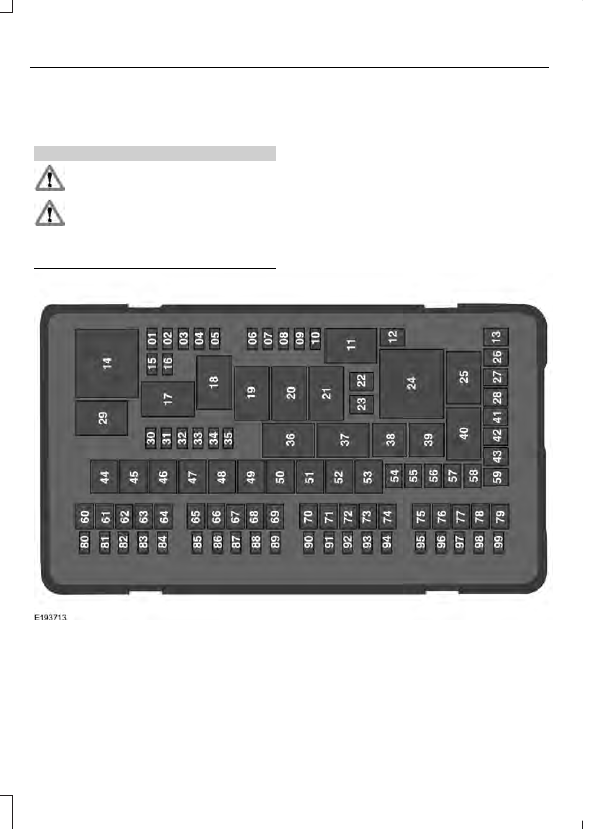

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.

If the battery has been disconnected and
reconnected, some features will need to
be reset.  See Changing the 12V Battery
(page 291).

Protected Component

Fuse Rating

Fuse or Relay

Number

Powertrain control module power.

20A

1

1

Engine emissions (MIL).

20A

1

2

A/C clutch control relay coil.

20A

1

3

Variable Air Conditioning Compressor.
Active grille shutters.

Ignition coils.

20A

1

4

Not used.

—

5

Not used.

—

6

Not used.

—

7

Not used.

—

8

Not used.

—

9

Heated mirrors.

15A

1

10

Right hand side electronic cooling fan 3
relay.

—

11

Heated rear window.

40A

2

12

Not used.

—

13

Powertrain control module relay.

—

14

Horn relay power.

20A

1

15

A/C clutch relay power.

10A

1

16

Rear heated window and heated mirrors
relay.

—

17

Rear blower motor relay.

—

18

Not used.

—

19

Left hand side cooling fan relay.

—

20

Cooling fans series/parallel relay.

—

21

Protected Component

Fuse Rating

Fuse or Relay

Number

Electronic fan relay 2.

25A

2

22

Not used.

—

23

Not used.

—

24

Not used.

—

25

Anti-lock brake system valves.

30A

2

26

Trailer tow battery charge relay power.

30A

2

27

Not used.

—

28

Starter relay.

—

29

Not used.

—

30

Electric power-assisted steering.

10A

1

31

Anti-lock brake system module.

10A

1

32

Powertrain control module (Ignition Switch
Position - Run).

10A

1

33

Blind spot information system.

10A

1

34

Adaptive cruise control.
Front view camera.
Rear camera.

Not used.

—

35

Blower motor relay.

—

36

Trailer tow battery charge relay.

—

37

A/C compressor clutch relay.

—

38

Horn relay.

—

39

Not used.

—

40

Rear blower motor.

40A

2

41

Not used.

—

42

Front blower motor.

40A

2

43
