Ford Explorer (2018 year). Manual - part 67

Protected Component

Fuse Rating

Fuse or Relay

Number

Voltage quality module bus.

50A

3

44

Electronic fan relay 1.

40A

3

45

Trailer tow brake controller.

30A

3

46

Not used.

—

47

Body control module RP1 bus.

50A

3

48

Not used.

—

49

Body control module RP2 bus.

50A

3

50

Electronic fan relay 3.

50A

3

51

Anti-lock brake system pump.

60A

3

52

Not used.

—

53

Not used.

—

54

Not used.

—

55

Power inverter.

40A

2

56

Not used.

—

57

Not used.

—

58

Not used.

—

59

Power point (front console bin).

20A

2

60

Not used.

—

61

Power point (instrument panel).

20A

2

62

Fuel pump.

30A

2

63

Not used.

—

64

Power point (2nd row) (without USB
charger).

20A

2

65

Not used.

—

66

Protected Component

Fuse Rating

Fuse or Relay

Number

Power point (cargo area).

20A

2

67

Not used.

—

68

Power liftgate.

30A

2

69

Trailer tow left-hand and right-hand stop
and direction indicator lamps.

15A

2

70

Not used.

—

71

Heated/cooled seats.

30A

2

72

Driver seat module.

30A

2

73

Driver seat power.

Passenger seat power.

30A

2

74

Front wiper motor.

30A

2

75

Not used.

—

76

Not used.

—

77

3rd row power folding seat module relay.

30A

2

78

Starter relay.

30A

2

79

Not used.

—

80

Trailer tow back-up lamp relay.

10A

1

81

Not used.

—

82

Brake on/off switch.

10A

1

83

Not used.

—

84

2nd row USB charger (if equipped).

5A

1

85

Not used.

—

86

Not used.

—

87

Not used.

—

88

Protected Component

Fuse Rating

Fuse or Relay

Number

Not used.

—

89

Not used.

—

90

Not used.

—

91

Multi-contour seat module relay.

15A

1

92

Alternator sense.

10A

1

93

Rear washer relay.

15A

1

94

Rear wiper relay.

15A

1

95

Powertrain control module relay coil
power.

10A

1

96

Rain sensor.

5A

1

97

2nd row seat motors.

20A

1

98

Trailer tow parking lamp relay.

20A

1

99

1

Micro 2 fuse.

2

M-case fuse.

3

J-case fuse.

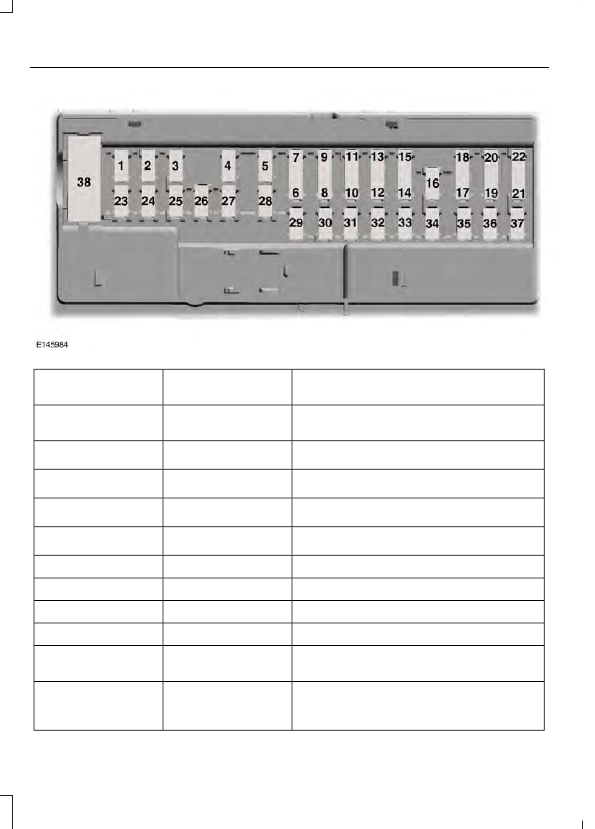

Passenger Compartment Fuse
Panel

The fuse panel is located under the
instrument panel to the left of the steering
column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

Protected Components

Fuse Rating

Fuse or Relay

Number

Demand lamps.

10A

1

1

Battery saver.

Memory seat switch (lumbar power).

7.5A

1

2

Driver unlock relay.

20A

1

3

Aftermarket electronic brake controller.

5A

1

4

Rear heated seat module.

20A

1

5

Not used.

—

6

Not used.

—

7

Not used.

—

8

Not used.

—

9

Embedded modem.

5A

2

10

Hands free liftgate.

Rear climate control module.

5A

2

11

Securicode™ keyless entry keypad.
Power liftgate module.
