POWER WINDOWS

 (If Equipped)

WARNINGS

Do not leave children unattended in
your vehicle and do not let them play
with the power windows. They may

seriously injure themselves.

When closing the power windows,
you should verify they are free of
obstructions and make sure that

children and pets are not in the proximity
of the window openings.

E163056

Note: You may hear a pulsing noise when
just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it. Press
again or lift it to stop the window.

Accessory Delay

You can use the window switches for
several minutes when you switch the
ignition off or until you open either front
door.

EXTERIOR MIRRORS

 (If Equipped)

Power Exterior Mirrors

 (If Equipped)

WARNING

Do not adjust the mirrors when your
vehicle is moving.

E163059

B

A

C

Left mirror.

A

Off.

B

Right mirror.

C

To adjust your mirrors:

1.

Select the mirror you want to adjust.

2. Move the control in the direction you

want to tilt the mirror.

3. Return the control to the center

position to lock the mirrors in place.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Telescoping Mirrors

 (If Equipped)

E163061

This feature lets you extend the mirror
about 3 in (75 mm). It is useful when
towing a trailer. You can manually pull out
or push in the mirrors to the desired
position.

INTERIOR MIRROR

 (If Equipped)

Manual Dimming Mirror

WARNING

Do not adjust the mirrors when your
vehicle is moving. This could result
in the loss of control of your vehicle,

serious personal injury or death.

Pull the tab below the mirror toward you
to reduce the effect of bright light from
behind.

Automatic Dimming Mirror

 (If Equipped)

WARNING

Do not adjust the mirrors when your
vehicle is moving. This could result
in the loss of control of your vehicle,

serious personal injury or death.

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

Do not block the sensors on the front and
back of the mirror.

Note: A rear center passenger or raised rear
center head restraint could prevent light
from reaching the sensor.

SUN VISORS

 (If Equipped)

Illuminated Vanity Mirror

 (If Equipped)

E162197

Lift the cover to switch the lamp on.

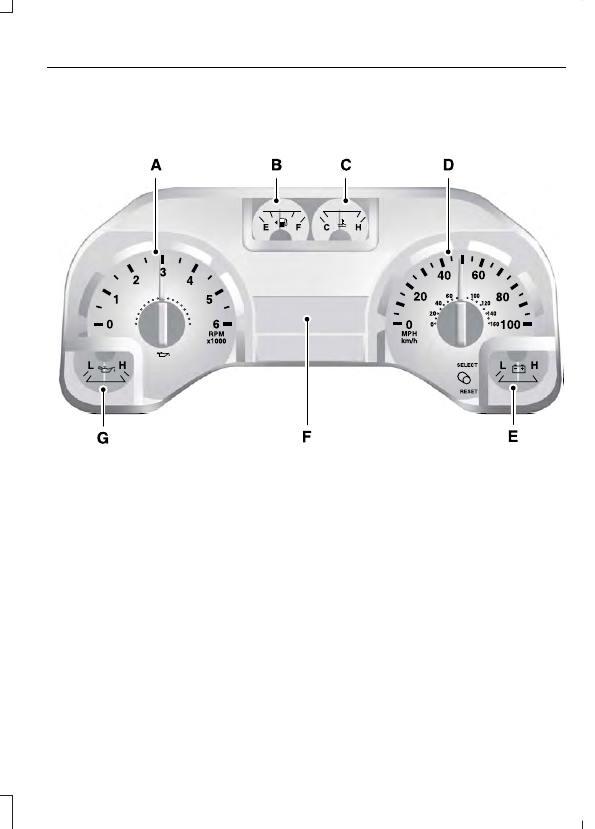

GAUGES

E194283

Tachometer.

A

Fuel gauge.

B

Engine coolant temperature gauge.

C

Speedometer.

D

Battery voltage gauge.

E

Information display. See General Information (page 56).

F

Engine oil pressure gauge.

G

Fuel Gauge

Note: The fuel gauge may vary slightly
when your vehicle is moving or on a slope.

Switch the ignition on.  The fuel gauge
indicates approximately how much fuel
you have left in the fuel tank.  The arrow
adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

The needle should move toward F when
you refuel your vehicle. If the needle points
to E after adding fuel, have an authorized
dealer check the system soon.

After refueling, some variability in the
position of the needle is normal:

•

It may take a short time for the needle
to reach F after leaving the gas station.
This is normal and depends upon the
slope of the pavement at the gas
station.

•

The fuel amount dispensed into the
tank is a little less or more than the
gauge indicated. This is normal and
depends upon the slope of the
pavement at the gas station.

•

If the gas station nozzle shuts off
before the tank is full, try a different
gas pump nozzle.

•

There is a small reserve left in the tank
when the fuel gauge reaches empty.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km).

Engine Coolant Temperature
Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop the vehicle as soon as
safely possible, switch off the engine and
let the engine cool.

WARNING

Never remove the coolant reservoir
cap when the engine is running or
hot.

Battery Voltage Gauge

Indicates the battery voltage when the
ignition is in the on position. If the pointer
moves and stays outside the normal
operating range, have an authorized dealer
check the vehicle’s electrical system as
soon as possible.

Information Display

Odometer

Located in the bottom of the information
display, the gauge registers the distance
your vehicle travels.

Trip Computer

See Information Displays (page 56).

Vehicle Settings and Personalization

See Information Displays (page 56).

Engine Oil Pressure Gauge

Indicates the engine oil pressure. The
needle should stay in the normal operating
range. If the needle falls below the normal
range, stop the vehicle and switch off the
engine. Check the engine oil level and add
oil if needed. If the oil level is correct, have
an authorized dealer check the system.

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious.  Some lamps
illuminate when you start your vehicle to
make sure they work.  If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.
