Traction Control

The system enhances your vehicle’s ability
to maintain traction of the wheels by
detecting and controlling wheel spin. See
Using Traction Control (page 165).

E72903

A

A

A

B

B

B

B

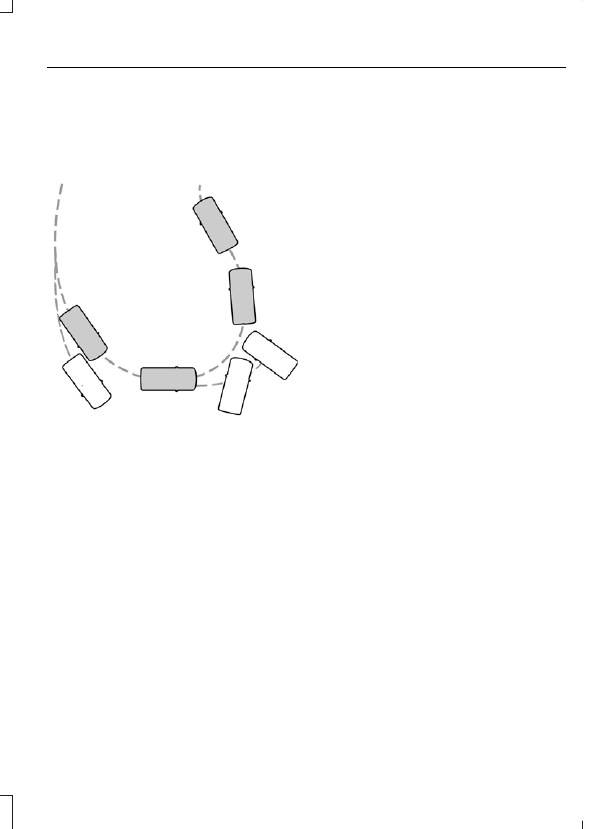

Vehicle without stability control
skidding off its intended route.

A

Vehicle with stability control
maintaining control on a slippery
surface.

B

USING STABILITY CONTROL

The system automatically turns on each
time you switch the ignition on.

You cannot switch the stability control
system off, but when you shift into reverse
(R), the system deactivates.

You can switch the traction control system
off or on.  See Using Traction Control
(page 165).

PRINCIPLE OF OPERATION

WARNINGS

To help avoid personal injury, please
read and understand the limitations
of the system as contained in this

section. Sensing is only an aid for some
(generally large and fixed) objects when
moving on a flat surface at parking speeds.
Certain objects with surfaces that absorb
ultrasonic waves, surrounding vehicle's
parking aid systems, traffic control
systems, fluorescent lamps, inclement
weather, air brakes, and external motors
and fans may also affect the function of
the sensing system; this may include
reduced performance or a false activation.

To help avoid personal injury, always
use caution when in reverse (R) and
when using the sensing system.

This system is not designed to
prevent contact with small or moving
objects. The system is designed to

provide a warning to assist the driver in
detecting large stationary objects to avoid
damaging your vehicle. The system may
not detect smaller objects, particularly
those close to the ground.

Certain add-on devices such as large
trailer hitches, bike or surfboard racks
and any device that may block the

normal detection zone of the system, may
create false beeps.

Note: Keep the sensors, located on the
bumper or fascia, free from snow, ice and
large accumulations of dirt. If the sensors
are covered, the system’s accuracy can be
affected. Do not clean the sensors with
sharp objects.

Note: If your vehicle sustains damage to
the bumper or fascia, leaving it misaligned
or bent, the sensing zone may be altered
causing inaccurate measurement of
obstacles or false alarms.

Note: The sensing system cannot be turned
off when a MyKey is present.  See Principle
of Operation (page 52).

Note: If you attach certain add-on devices
such as a trailer or bike rack, the rear sensing
system may detect that add-on device and
therefore provide warnings. It is suggested
that you disable the rear sensing system
when you attach an add-on device to your
vehicle to prevent these warnings.

The sensing system warns the driver of
obstacles within a certain range of your
vehicle. The system turns on automatically
whenever you switch the ignition on.

E139213

You can turn the system on or
off by pressing the parking aid
button. If your vehicle does not

have a parking aid button, the system can
be switched off through the information
display menu or from the pop-up message
that appears once you shift the
transmission into reverse (R).  See General
Information (page 92).

If a fault is present in the system, a warning
message appears in the information
display.  See Information Messages
(page 101).

REAR PARKING AID

The rear parking aid sensors automatically
turn on when you shift into reverse (R).

As your vehicle moves closer to the
obstacle, the rate of the audible warning
increases. When the obstacle is less than
12 in (30 cm) away, the warning sounds
continuously. If the system detects an
object farther than 12 in (30 cm) from the
corners of the bumper, the tone sounds for
only three seconds. If the system detects
an approaching object the warning sounds
again.

E130178

Coverage area of up to 6 ft (1.8 m) from
the rear bumper. There is decreased
coverage area at the outer corners of the
bumper.

The system detects certain objects while
the transmission is in reverse (R) :
•

Your vehicle is moving toward a
stationary object at a speed of 3 mph
(5 km/h) or less.

•

Your vehicle is not moving, but a
moving object is approaching the rear
of your vehicle at a speed of 3 mph
(5 km/h) or less.

•

Your vehicle is moving at a speed of
less than 3 mph (5 km/h) and a moving
object is approaching the rear of your
vehicle at a speed of less than 3 mph
(5 km/h).

FRONT PARKING AID

The front parking aid sensors automatically
turn on when you shift into reverse (R) or
a forward gear.

The front sensors are active when the
transmission is in any position other than
park (P) and the vehicle speed is below
7 mph (12 km/h).

E187330

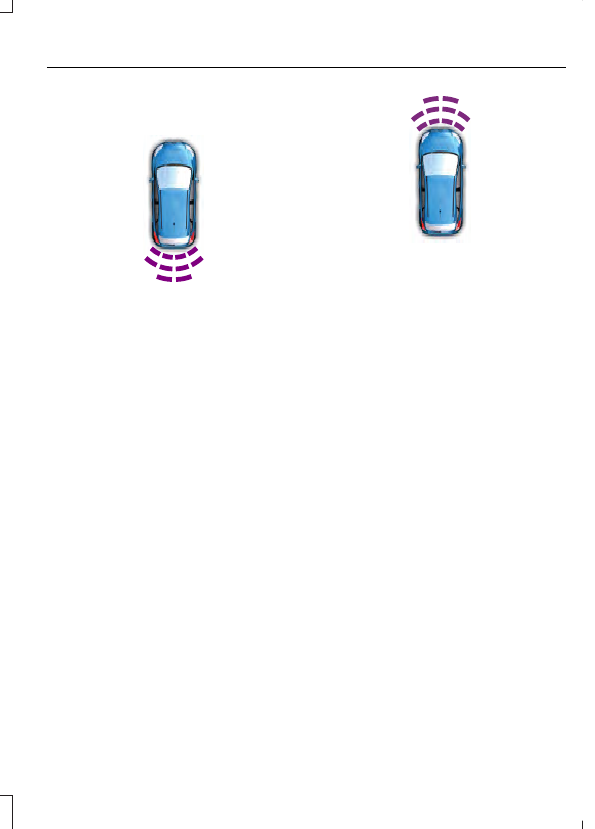

Coverage area of up to 28 in (70 cm) from
the front bumper. There is decreased
coverage area at the outer corners.

The system sounds an audible warning
when obstacles are near either bumper in
the following manner:
•

Objects detected by the front sensors
are indicated by a high-pitched tone
from the front of the vehicle.

•

Objects detected by the rear sensors
are indicated by a lower pitched tone
from the rear of the vehicle.

•

The sensing system reports the
obstacle which is closest to the front
or rear of the vehicle. For example, if
an obstacle is 12 in (30 cm) from the
front of the vehicle and, at the same
time, an obstacle is only 6 in (15 cm)
from the rear of the vehicle, the lower
pitched tone sounds.

•

An alternating warning sounds from
the front and rear if there are objects
at both bumpers that are closer than
12 in (30 cm).

The system provides warnings when your
vehicle is moving or when your vehicle is
stationary and the detected obstacle is
less than 12 in (30 cm) away from the
bumper.

ACTIVE PARK ASSIST

 (If Equipped)

WARNINGS

You must remain in your vehicle
when the system turns on. At all
times, you are responsible for

controlling your vehicle, supervising the
system and intervening, if required. Failure
to take care may result in the loss of
control of your vehicle, serious personal
injury or death.

The sensors may not detect objects
in heavy rain or other conditions that
cause interference.

Active park assist does not apply the
brakes under any circumstances.

Note: The driver is always responsible for
controlling the vehicle, supervising the
system and intervening if required.

Note: The Blind Spot Information System
does not detect traffic alongside or behind
your vehicle during an active park assist
maneuver.

The system detects an available parallel
parking space and automatically steers
the vehicle into the space (hands-free)
while you control the accelerator, gearshift
and brakes. The system visually and
audibly instructs you to park the vehicle.

The system may not correctly operate in
any of the following conditions:
•

You use a spare tire or a tire
significantly worn more than the other
tires.

•

One or more tires are improperly
inflated.

•

You try to park on a tight curve.

•

Something passes between the front
bumper and the parking space (for
example, a pedestrian or cyclist).

•

The edge of the neighboring parking
vehicle is high off the ground (for
example, a bus, tow truck or flatbed
truck).

•

The weather conditions are poor (for
example, heavy rain, snow, fog and so
forth).

Note: Keep the sensors, located on the
bumper or fascia, free from snow, ice and
large accumulations of dirt. Covered sensors
can affect the system's accuracy. Do not
clean the sensors with sharp objects.

Note: The sensors may not detect objects
with surfaces that absorb ultrasonic waves
or cause ultrasonic interference (for
example, motorcycle exhaust, truck air
brakes or horns).

Using Active Park Assist

E142733

Press the button located on the center
console near the transmission selector or
to the right of the center stack. The touch
screen displays a message and a
corresponding graphic to indicate it's
searching for a parking space. Use the turn
signal to indicate which side of the vehicle
you want the system to search on.
