WARNINGS

Install the head restraint properly to
help minimize the risk of neck injury
in the event of a crash.

Note: Adjust the seatback to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

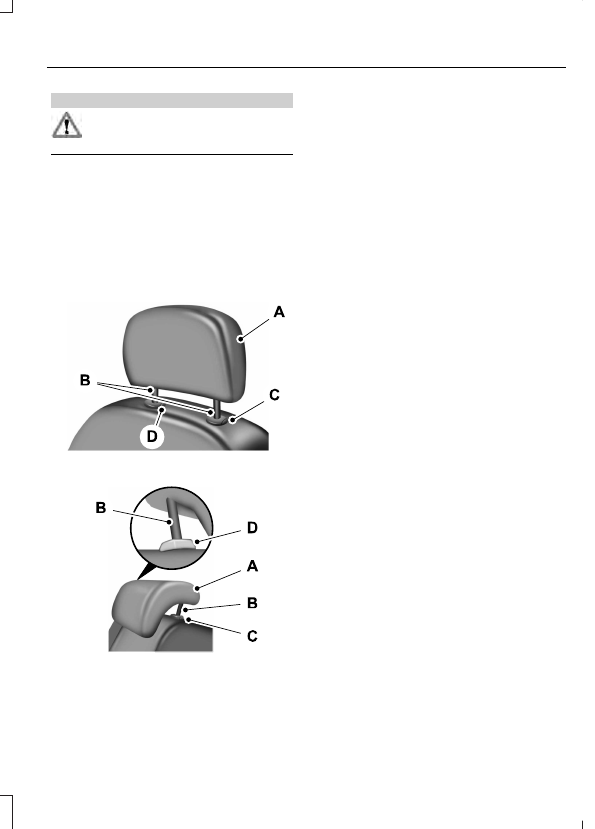

Front seat head restraint

E138642

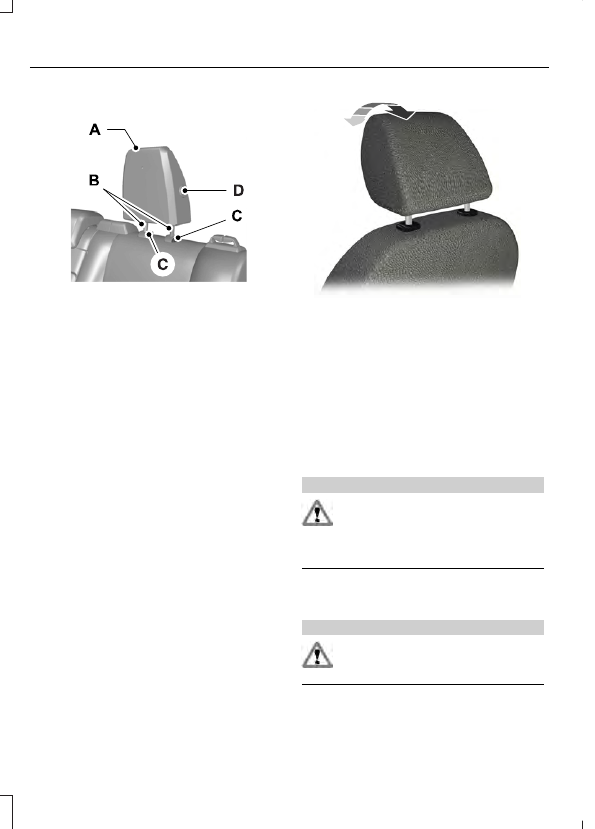

Rear center seat head restraint

E138645

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and unlock
button.

C

Guide sleeve unlock and remove
button.

D

Adjusting the Head Restraint

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1.

Press and hold button C.

2. Push the head restraint down.

Removing the Head Restraint

1.

Pull the head restraint up until it
reaches its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Rear Seat Outboard Head Restraints

E162605

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve unlock and remove
button.

C

Fold button.

D

Removing the Head Restraint

1.

Press and hold buttons C.

2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Folding the Head Restraint

1.

Press and hold button D.

2. Pull it back up to reset.

Tilting Head Restraints

The front head restraints tilt for extra
comfort. To tilt the head restraint, do the
following:

E144727

1.

Adjust the seatback to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

MANUAL SEATS

WARNING

Do not adjust the driver seat or seat
backrest when your vehicle is
moving. This may result in sudden

seat movement, causing the loss of control
of your vehicle.

Moving the Seat Backward and
Forward

WARNING

Make sure that the seats and the
seat backrests are secure and fully
locked in their catches.

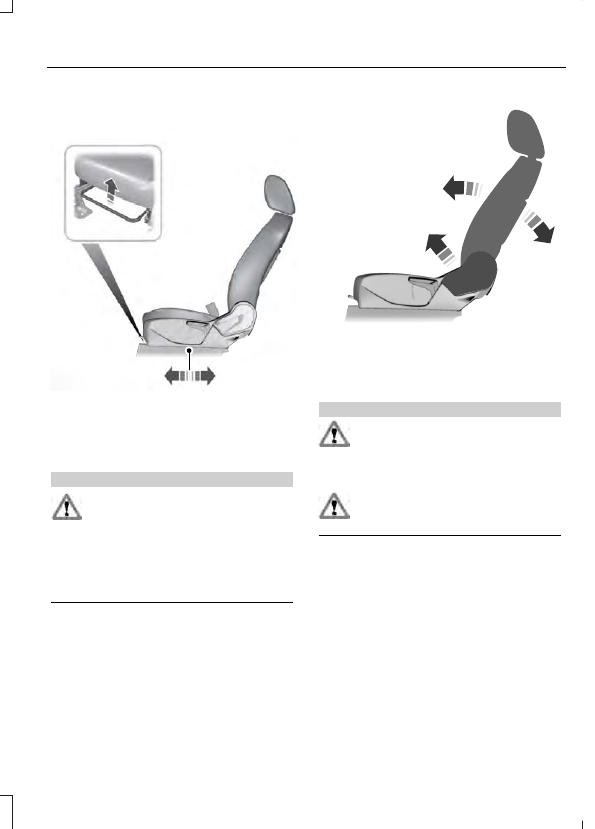

E162375

Recline Adjustment

WARNING

Do not place cargo or any objects
behind the seat backrest before
returning it to the original position.

Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

E163872

POWER SEATS

 (If Equipped)

WARNINGS

Do not adjust the driver's seat or
seatback when your vehicle is
moving. Adjusting your seatback

while your vehicle is in motion may cause
loss of control of your vehicle.

Do not place cargo or any objects
behind the seatback before returning
it to the original position.

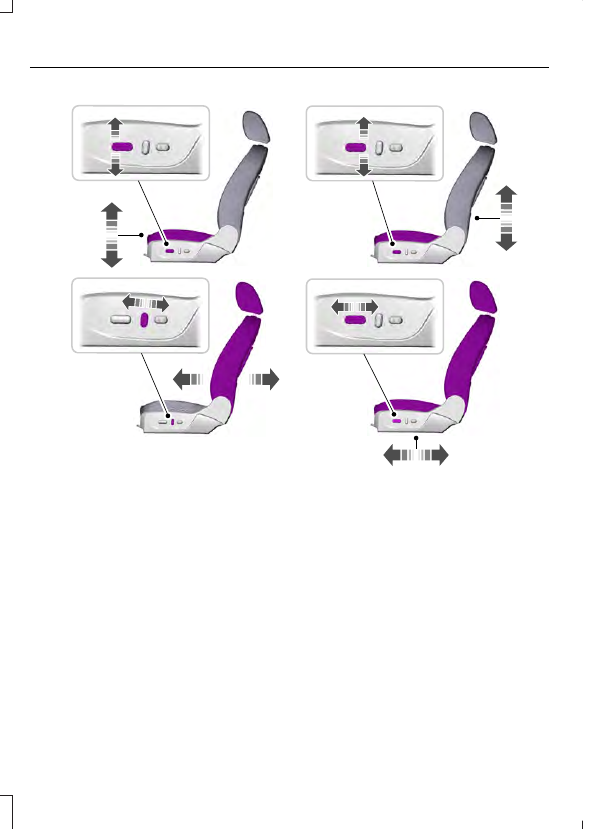

E138647
