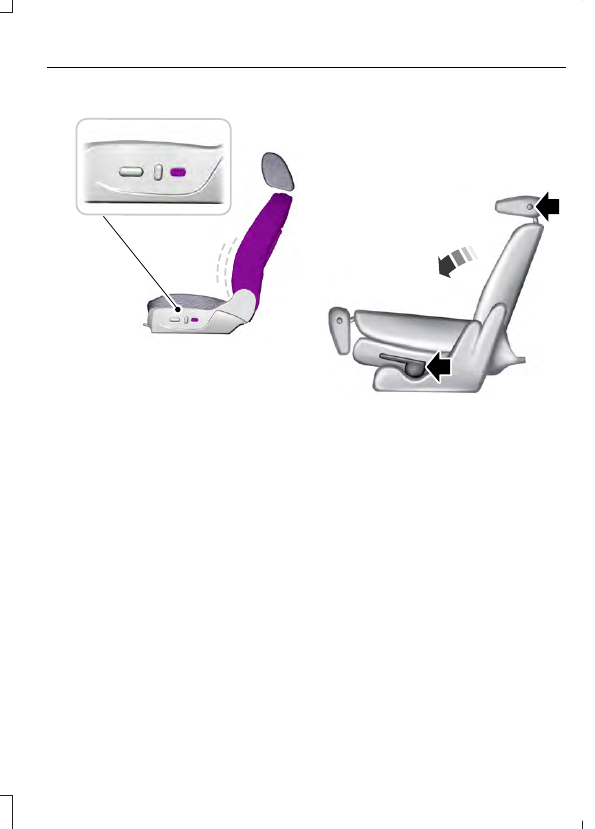

Power Lumbar

 (If Equipped)

E138648

REAR SEATS

E155554

Folding the Seatback

1.

With the seat empty, press the button
on the outboard side of each rear
outboard headrest to fold them. Make
sure the rear center headrest is in the
full down position.

2. Pull the lever up on the outboard side

of the seat to fold the seat.

Unfolding the Seatback

Rotate the seatback upward until the
seatback latches to return the seat to the
upright position.

HEATED SEATS

 (If Equipped)

WARNING

People who are unable to feel pain
to their skin because of advanced
age, chronic illness, diabetes, spinal

cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.
Do not puncture the seat with pins, needles
or other pointed objects. This may damage
the heating element which may cause the
heated seat to overheat. An overheated
seat may cause serious personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid is spilled on the seat. Allow
the seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146941

Press the heated seat symbol to cycle
through the various heat settings and off.
Warmer settings are indicated by more
indicator lights.

REAR SEAT ARMREST

 (If Equipped)

E138656

Fold the armrest down to use the armrest
and cupholder.

HomeLink Wireless Control
System

WARNINGS

Make sure that the garage door and
security device are free from
obstruction when you are

programming. Do not program the system
with the vehicle in the garage.

Do not use the system with any
garage door opener that does not
have the safety stop and reverse

feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.

Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.

Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the Function
Button Codes.

Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the Function
Button Codes.

E142657

The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
that is integrated into the driver’s sun visor.

The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. As well as being programmed for
garage doors, the system transmitter can
be programmed to operate entry gate
operators, security systems, entry door
locks and home or office lighting.

Additional system information can be
found online at www.homelink.com,
www.youtube.com/HomeLinkGentex or
by calling the toll-free help line on
1-800-355-3515.

In-Vehicle Programming

This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.

Note: The programming steps below
assume you will be programming HomeLink
that was not previously programmed.

Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal.

E142658

1.

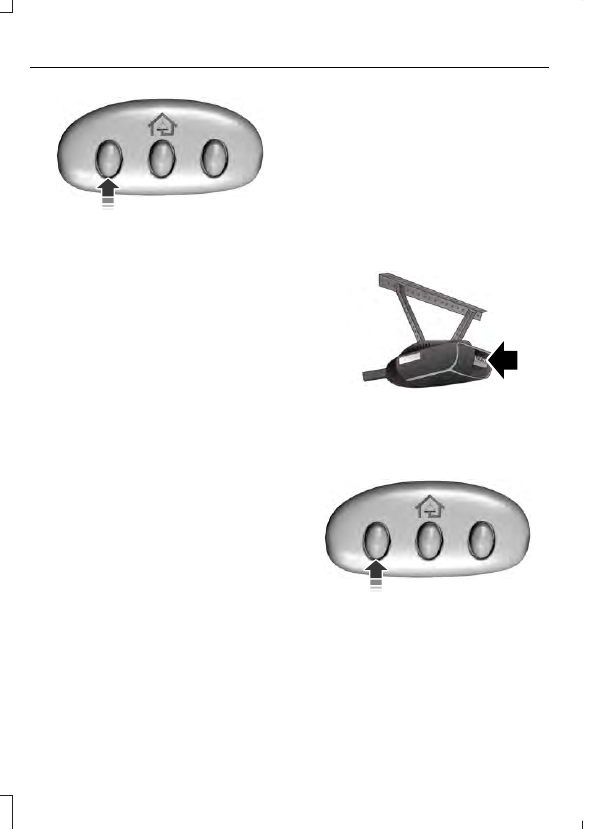

With your vehicle parked outside of the
garage, turn your ignition to the on
position, but do not start your vehicle.

2. Hold your hand-held garage door

transmitter 2–6 in (5–14 cm) away
from the HomeLink button you want
to program.

3. Using both hands, simultaneously,

press and hold the desired HomeLink
button and the hand-held transmitter
button. DO NOT release either one until
the HomeLink indicator light flashes
slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. The rapid
flashing indicates successful training.

Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See Gate Operator
/ Canadian Programming.

4. Press and hold the HomeLink button

you programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.

If the indicator light stays on, the
programming is complete. No further
action is needed.

If the indicator light flashes rapidly for 2
seconds and then turns to a constant light,
the HomeLink button is not programmed
yet. See Programming Your Garage Door
Opener Motor.

To program additional buttons, repeat
Steps 1 – 4.

For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.

Programming Your Garage Door
Opener Motor

Note: You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener.

E142659

1.

Press the learn button on the garage
door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

E142658

3. Press and hold the function button you

want to program for 2 seconds, then
release. Repeat this step. Depending
on your brand of garage door opener,
you may need to repeat this sequence
a third time.
