Ford C-MAX Hybrid / Energi (2017 year). Manual - part 26

Park Brake

Action

Message

Displays when the parking brake is set, the engine is running
and the vehicle is driven more than 3 mph (5 km/h). If the
warning stays on after the parking brake is released, contact
your authorized dealer.

Park Brake Engaged

Power Steering

Action

Message

The power steering system has detected a condition that
requires service. See your authorized dealer.

Steering Fault Service

Now

The power steering system is not working. Stop the vehicle a
safe place. Contact your authorized dealer.

Steering Loss Stop

Safely

Remote Start

Action

Message

Displayed when the remote start system is active.

Remote Start Active

Tire Pressure Monitoring System

Action

Message

Displays when one or more tires on your vehicle have low tire
pressure.  See Tire Pressure Monitoring System (page 276).

Tire Pressure Low

Displays when the tire pressure monitoring system is
malfunctioning. If the warning stays on or continues to come
on, contact your authorized dealer. See Tire Pressure
Monitoring System (page 276).

Tire Pressure Monitor

Fault

Displayed when a tire pressure sensor is malfunctioning, or
your spare tire is in use.  See Tire Pressure Monitoring
System (page 276).  If the warning stays on or continues to
come on, contact your authorized dealer as soon as possible.

Tire Pressure Sensor

Fault

Transmission

Action

Message

Displays as a reminder to shift into park.

Transmission Not in Park

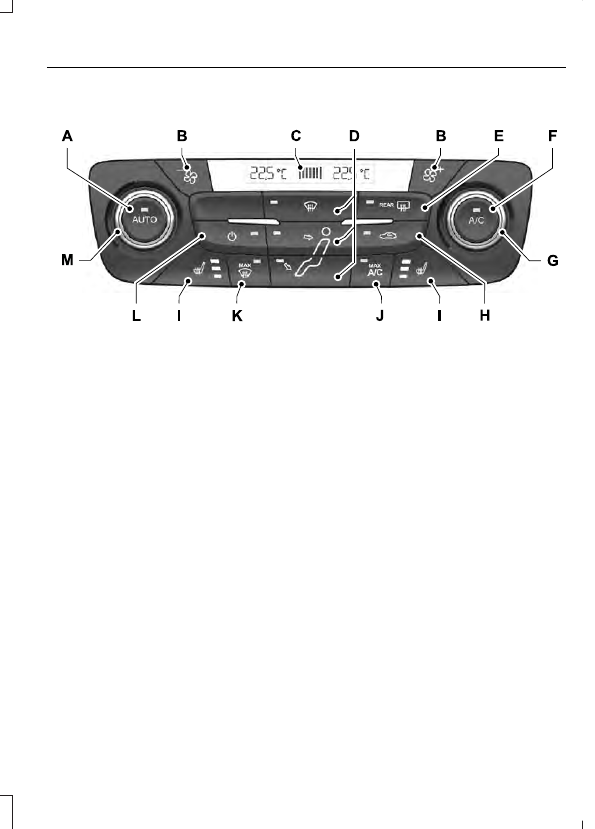

AUTOMATIC CLIMATE CONTROL

E222398

AUTO: Press to switch on automatic operation. Adjust to select the desired
temperature. Fan speed, air distribution, air conditioning operation, and outside
or recirculated air are automatically adjusted to heat or cool the vehicle to
maintain the desired temperature. You can also switch off dual zone mode by
pressing and holding for more than two seconds.

A

Fan speed control: Adjusts the volume of air circulated in the vehicle.

B

Climate control display: Shows the temperature settings and fan speed.

C

Air distribution control: Press to switch airflow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

D

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 112).

E

A/C: Press to switch the air conditioning on or off. Air conditioning cools your
vehicle using outside air. Use A/C with recirculated air to improve performance
and efficiency.

F

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though the air conditioning is
switched off.

Passenger temperature control: Adjust the temperature setting on the
passenger side.

G

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

H

Note: Recirculated air may turn on and off automatically (or prevent you from
switching on) in all modes except MAX A/C to reduce the risk of fogging or to
improve cooling efficiency.

Heated seats: Press to switch the heated seats on and off.  See Heated Seats
(page 120).

I

MAX A/C: Press for maximum cooling. The driver and passenger settings set
to LO, recirculated air flows through the instrument panel vents, air conditioning
automatically turns on and the fan automatically adjusts to the highest speed.

J

MAX Defrost: Press to switch on defrost. The driver and passenger settings
set to HI, outside air flows through the windshield vents, and fan automatically
adjusts to the highest speed. You can also use this setting to defrost and clear
the windshield of a thin covering of ice. The heated rear window also
automatically turns on when you select maximum defrost.

K

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

L

Driver temperature control: Adjust the temperature setting on the driver side.
This control also adjusts the passenger side temperature when you switch off
dual zone mode.

M

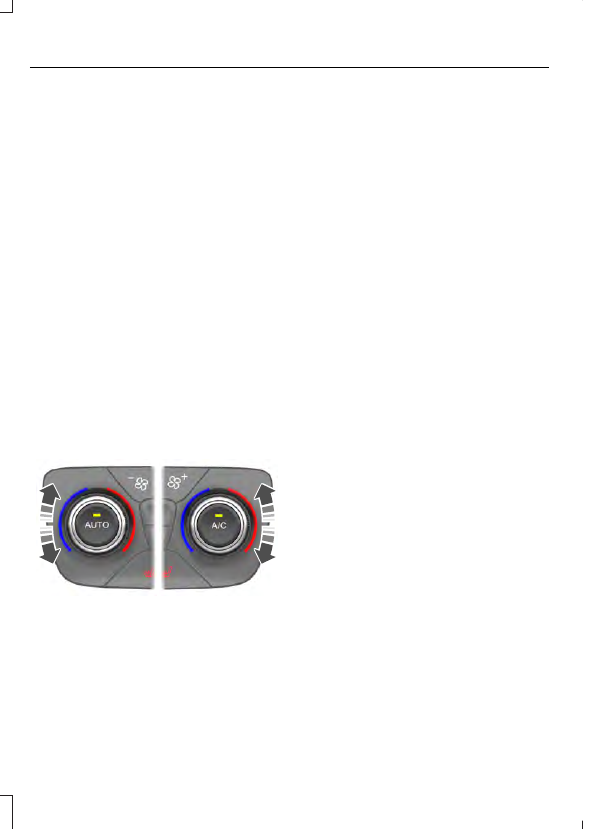

Temperature Control

E183686

You can set a temperature between 60°F
(15.5°C) and 85°F (29.5°C). If you select
LO, the system is set to permanent cooling.
If you select HI, the system is set to
permanent heating.

Note: If you select LO or HI, the system
does not maintain a stable temperature.

Single Zone Temperature Control

In this mode, the climate control system
links the temperature settings for both the
driver’s side and passenger’s side. If you
adjust the setting using the rotary control
on the driver’s side, the system adjusts the
temperature to the same setting on the
passenger’s side.

To switch back to single zone control from
dual zone, press and hold AUTO for a few
seconds. The passenger’s side temperature
switches to the driver’s side temperature
setting.
