Ford C-MAX Hybrid (2018 year). Manual - part 25

MyKey

Action

Message

Displayed during key programming when MyKey cannot be
programmed.

MyKey not Created

Displays when MyKey is active.

MyKey Active Drive

Safely

Displays when a MyKey is in use and the MyKey speed limit is
on and the vehicle speed is approaching 80 mph (130 km/h).

Near Vehicle Top Speed

Displays when a MyKey is in use and the MyKey speed limit is
reached.

Vehicle at Top Speed of

MyKey Setting

Displays when MyKey is active.

Check Speed Drive

Safely

Displays when a MyKey is in use and Belt-Minder is activated.

Buckle Up to Unmute

Audio

Displays when a MyKey is in use and Traction control is
activated.

Traction Control On -

MyKey Setting

Displays when a MyKey is in use and park aid is activated.

MyKey Park Aid Cannot

be Deactivated

Park Aid

Action

Message

Displays when the system has detected a condition that
requires service. Contact your authorized dealer.  See Prin-
ciple of Operation (page 159).

Check Park Aid

Displays the park aid status.

Rear Park Aid On Off

Displays when the system has detected a condition that
requires attention.  See Principle of Operation (page 159).

Check Rear Park Aid

Displays when the system has detected a condition that
requires attention.  See Principle of Operation (page 159).

Check Front Park Aid

Displays when the system has detected a condition that
requires service. Contact your authorized dealer.  See Prin-
ciple of Operation (page 159).

Park Aid Fault

Park Brake

Action

Message

Displays when the parking brake is set, the engine is running
and the vehicle is driven more than 3 mph (5 km/h). If the
warning stays on after the parking brake is released, contact
your authorized dealer.

Park Brake Engaged

Power Steering

Action

Message

The power steering system has detected a condition that
requires service. See your authorized dealer.

Steering Fault Service

Now

The power steering system is not working.  Stop the vehicle
a safe place.  Contact your authorized dealer.

Steering Loss Stop

Safely

Remote Start

Action

Message

Displayed when the remote start system is active.

Remote Start Active

Tire Pressure Monitoring System

Action

Message

Displays when one or more tires on your vehicle have low tire
pressure.  See Tire Pressure Monitoring System (page 265).

Tire Pressure Low

Displays when the tire pressure monitoring system is
malfunctioning. If the warning stays on or continues to come
on, contact your authorized dealer. See Tire Pressure
Monitoring System (page 265).

Tire Pressure Monitor

Fault

Displayed when a tire pressure sensor is malfunctioning, or
your spare tire is in use.  See Tire Pressure Monitoring
System (page 265).  If the warning stays on or continues to
come on, contact your authorized dealer as soon as possible.

Tire Pressure Sensor

Fault

Traction Control

Action

Message

The status of the traction control system after you switch it

off or on.  See Using Traction Control (page 156).

Traction Control Off /

Traction Control On

Transmission

Action

Message

Displays as a reminder to shift into park.

Transmission Not in Park

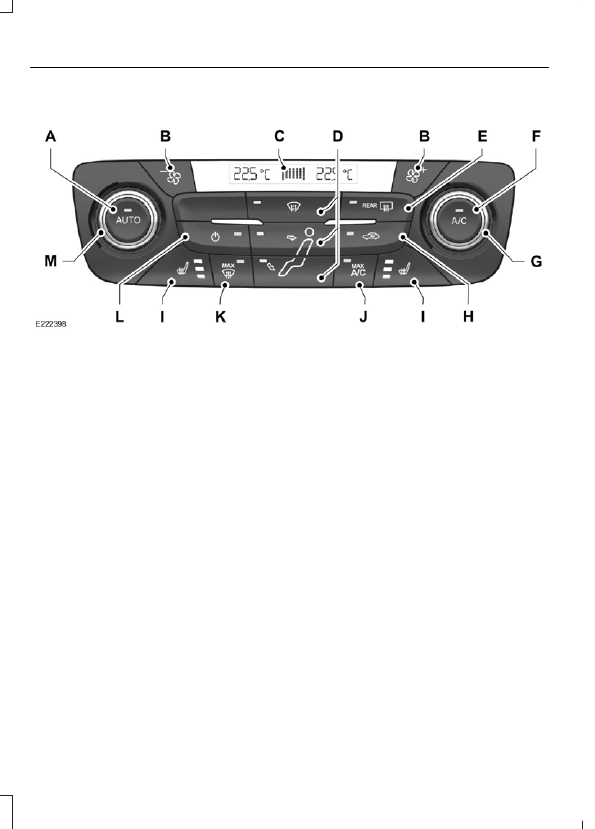

AUTOMATIC CLIMATE CONTROL

AUTO: Press to switch on automatic operation. Adjust to select the desired
temperature. Fan speed, air distribution, air conditioning operation, and outside
or recirculated air adjust to heat or cool the vehicle to maintain the desired
temperature. You can also switch off dual zone mode by pressing and holding
for more than two seconds.

A

Fan speed control: Adjusts the volume of air circulated in the vehicle.

B

Climate control display: Shows the temperature settings and fan speed.

C

Air distribution control: Press to switch air flow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

D

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 108).

E

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

F

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Passenger temperature control: Adjusts the temperature setting on the
passenger side.

G

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

H
