KNOWING YOUR VEHICLE

23)

All adjustments must be carried out

only with the vehicle stationary and the

engine off. Head restraints must be

adjusted so that the head, rather than the

neck, rests on them. Only in this case they

can protect your head correctly.

24)

To make the best use of the head

restraint's protective action, adjust the

backrest so that you are sitting upright and

keep your head as close as possible to the

head restraint.

STEERING WHEEL

The height and axial position of the

steering wheel can be adjusted on all

versions.

To adjust, proceed as follows:

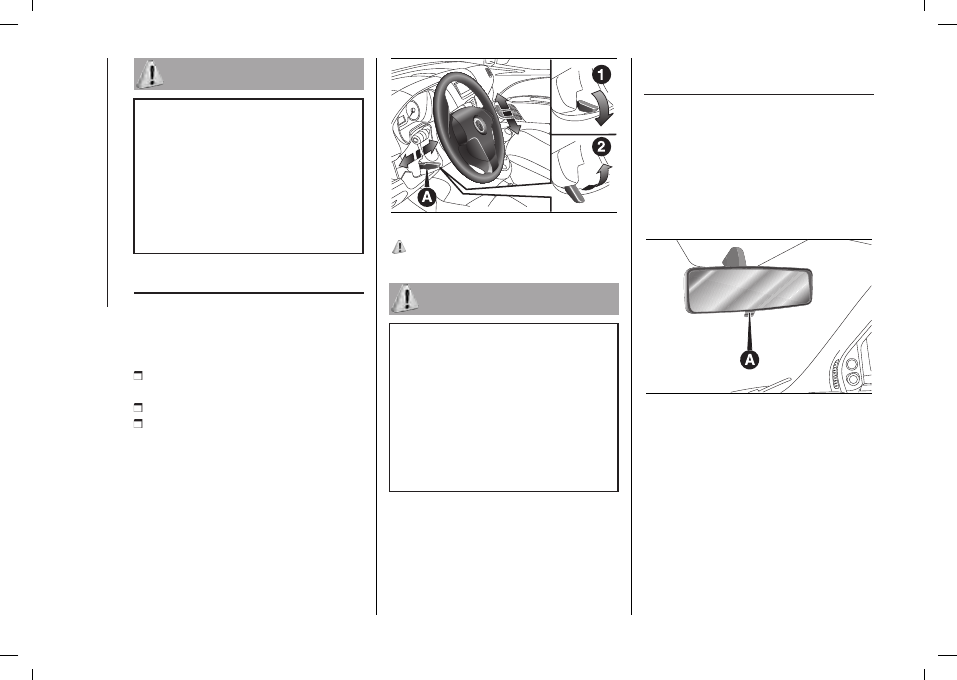

release lever (A) fig. 53 by pushing it

forwards (position 1);

adjust the steering wheel;

lock the lever (A) fig. 53 by pulling it

towards the steering wheel (position 2).

F0V0014

25) 26)

25)

All adjustments must be carried out

only with the vehicle stationary and the

engine off.

26)

It is absolutely forbidden to carry

out any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance, invalidate the warranty,

cause serious safety problems and also

result in the car not meeting type-approval

requirements.

REAR-VIEW

MIRRORS

INTERIOR MIRROR

(for versions/markets, where provided)
The mirror is fitted with a safety device

that causes its release in the event of a

violent impact with the passenger.

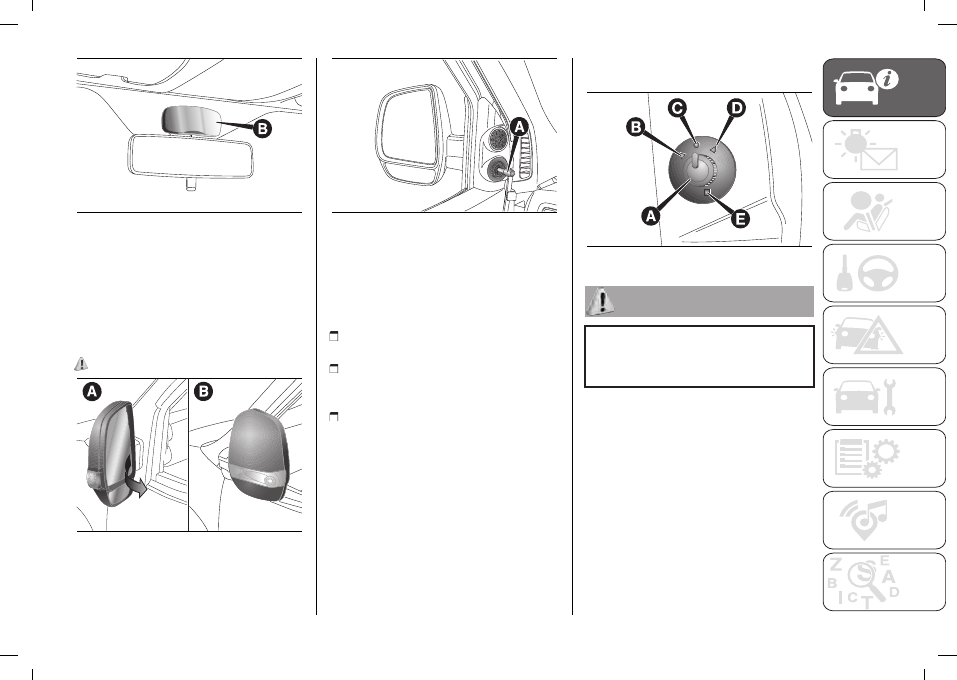

Lever (A) fig. 54 can be used to move

the mirror to two different positions:

normal or anti-glare.

F0V0125

Some versions may feature an internal

child surveillance mirror (B) fig. 55.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F0V0542

DOOR MIRRORS

Manual mirror folding

When required (for example when

the mirror causes difficulty in narrow

spaces ) it is possible to fold the mirrors

manually moving them from position (A)

fig. 56 to position (B).

27)

F0V0084

Manual adjustment

From inside, use device (A) fig. 57.

F0V0120

Electric adjustment

(for versions/markets, where provided)
Door mirrors can be adjusted only if the

ignition key is in MAR position.
Proceed as follows:

select the desired mirror (left or right)

using switch (A) fig. 58;

move switch (A) to position (B) and

manipulate it to adjust the left door

mirror;

move switch (A) to position (D) and

manipulate it to adjust the right door

mirror.
Once you have finished the adjustment,

return switch (A) to intermediate locking

position (C).

Electric folding

Door mirrors can be folded only if the

ignition key is in MAR position.
Bring switch (A) fig. 58 to position (E) to

fold the mirrors in the closed position.

Bring switch A to position C to move

the mirrors back to the driving position.

F0V0560

27)

While driving the mirrors must remain

in position (A) fig. 56. As door mirrors

are curved, they may slightly alter the

perception of distance.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

EXTERIOR LIGHTS

IN BRIEF

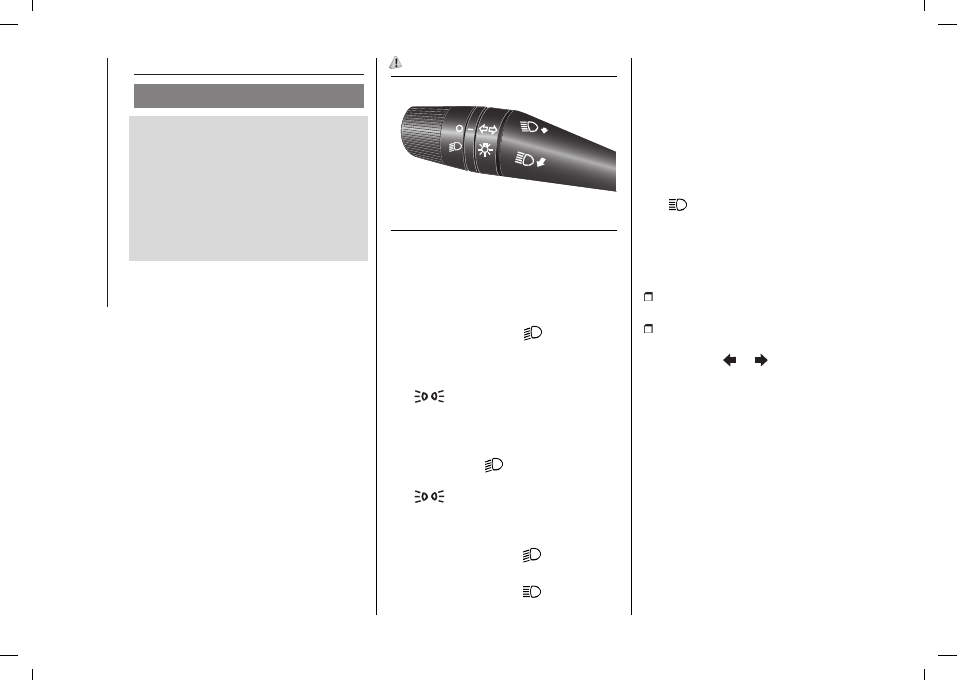

The left stalk includes the controls for

the exterior lights.

The external lights can only be

switched on when the ignition key is

at MAR.

The instrument panel and the various

dashboard controls will come on with

the external lights.

DAYTIME RUNNING

LIGHTS (DRL)

(for versions/markets, where provided)
With the key in MAR position and the

ring nut turned to

position, the

daytime lights switch on automatically;

the other lights and the internal lighting

remain off. In some markets, the

automatic operation of the daytime

running lights can be activated/

deactivated via the display menu (see

"Digital / Multifunction display" in this

section). If the daytime running lights

are deactivated, no light comes on

when the ring nut is turned to

When the daytime running lights are

on, activating the direction indicators

will turn off the corresponding

headlight’s daytime running light

(D.R.L.).

28)

F0V0515

DIPPED

HEADLIGHTS/SIDE

LIGHTS

With the ignition key turned to MAR,
turn the twist switch to

. If dipped

headlights are activated, the daytime

running lights switch off and the side

lights and dipped headlights switch on.

The

warning light switches on in

the instrument panel.
When the ignition key is turned to

STOP or removed and the ring nut is
turned from

, all the side lights

and the number plate lights come on.

The

warning light switches on in

the instrument panel.

MAIN BEAM HEADLIGHTS

When the ring nut is at

, pull the

stalk towards the steering wheel (2nd
unstable position). The

warning light

switches on in the instrument panel.

To turn the main beams off, pull the

stalk towards the steering wheel again

(dipped beams will turn on).

FLASHING THE

HEADLIGHTS

Pull the stalk towards the steering
wheel (1st unstable position) regardless

of the position of the ring.
The

warning light switches on in the

instrument panel.

DIRECTION INDICATORS

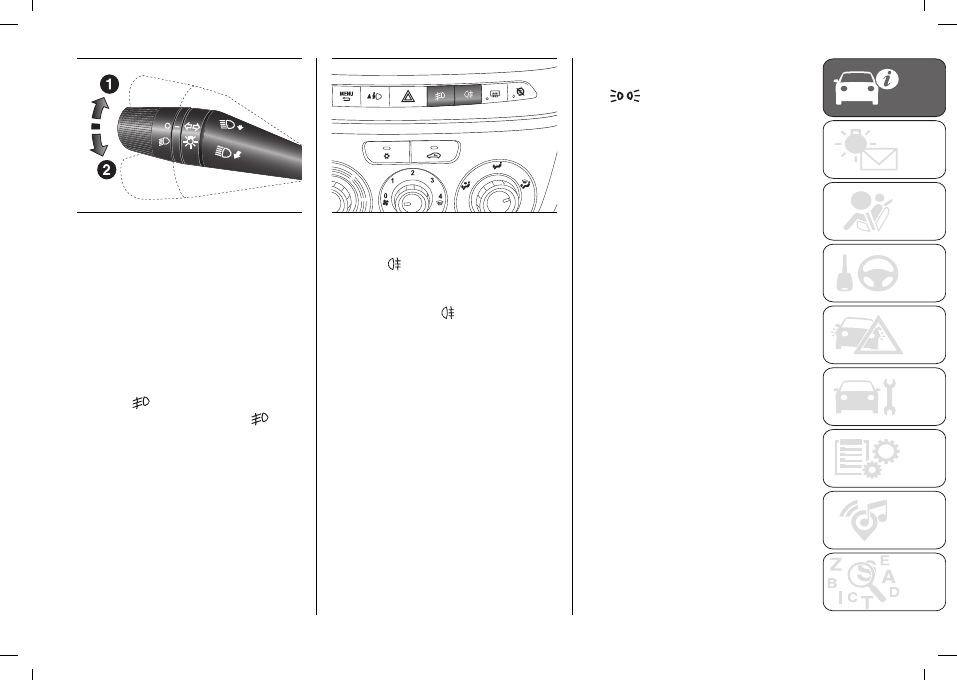

Take the stalk to the (stable) position

fig. 60:

up (position 1): to activate the right

direction indicator;

down (position 2): activates the left

direction indicator.
Warning light

will blink on the

instrument panel. Direction indicators

switch off automatically when the

vehicle is back in a straight line. When

the daytime running lights are on (for

versions/markets, where provided)

activating the direction indicators will

turn off the corresponding headlight

daytime running light (D.R.L.).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F0V0516

Lane change function

If you wish to signal a lane change,

place the left stalk in the unstable

position for less than half a second.

The direction indicator on the side

selected will be activated for 5 flashes

and then go out automatically.

FOG LIGHTS

(for versions/markets, where provided)
Press the

button to turn them on.

Instrument panel warning light

comes on.
When the fog lights are on, the side

lights also come on, while the daytime

running lights go off irrespective of the

position of the twist switch.
Press the button again to switch the

lights off.

F0V0507

REAR FOG LIGHTS

Press the

button with the dipped

beam headlights or front fog lights on

to turn the rear fog lights on. Instrument

panel warning light

comes on.

Press the button again to turn the

lights off, or turn off the dipped beam

headlights and/or the front fog lights

(where provided).

"FOLLOW ME HOME"

DEVICE

This device allows the illumination of

the space in front of the vehicle for a

preset time.

Activation

With the ignition key in the STOP

position or extracted, pull the lever

towards the steering wheel and move

it within 2 minutes of the engine

switching off.
Each time the stalk is moved, the lights

stay on for an extra 30 seconds up to

a maximum of 210 seconds; then the

lights are switched off automatically.
The

warning light on the

instrument panel will light up and the

corresponding message will appear in

the display (see “Warning lights and

messages" paragraph) for as long as

the function is activated.
The warning light comes on when the

stalk is operated and stays on until the

function is automatically deactivated.
Each movement of the stalk only

increases the amount of time the lights

stay on.

Deactivation

Keep the stalk pulled towards the

steering wheel for more than 2

seconds.

AUTO FUNCTION (Dusk

sensor)

(where provided)
This is an infrared LED sensor

that works in conjunction with the

rain sensor and is located on the

windscreen. It is able to detect

variations in outside lighting and switch

on the external lights accordingly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

Function activation

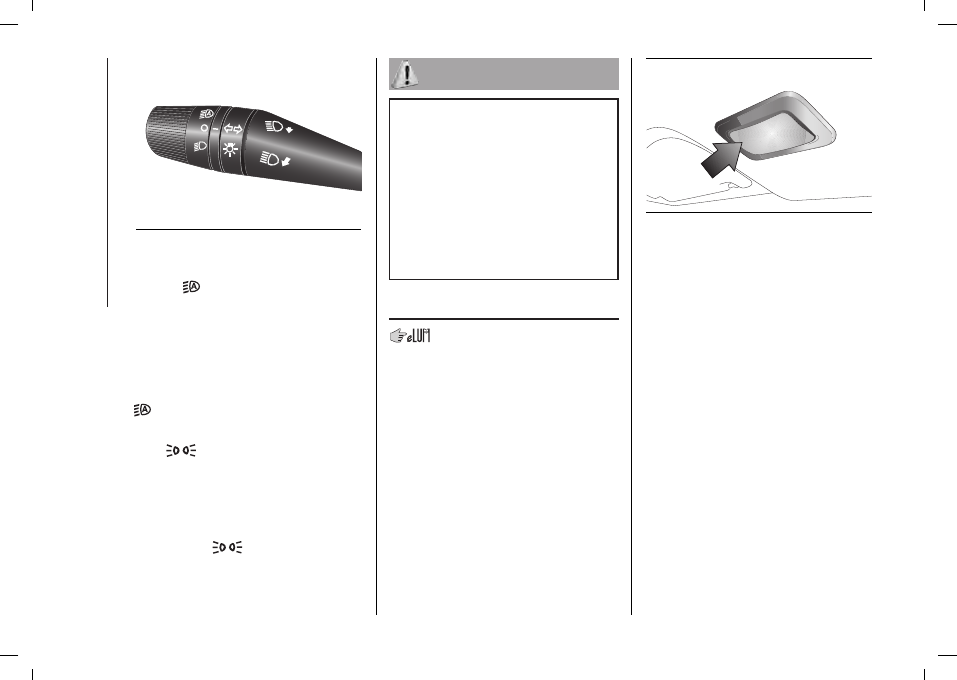

F0V0722

Turn the left stalk ring nut fig. 62 to

position

IMPORTANT The function can only be

activated with the ignition device in the

MAR position.

Function deactivation

To deactivate the function, turn the left

stalk ring nut to a position other than

Function failure

If the

warning light on the

instrument panel illuminates during use

of the car in daylight, with the AUTO

function active, the dusk sensor may

be malfunctioning. In this case, check

that there is no dirt on the windscreen

sensor. If the

warning light stays

on even after the sensor has been

cleaned, contact a Fiat Dealership.

28)

The daytime running lights are an

alternative to the dipped beam headlights

for driving during the daytime in countries

where it is compulsory to have lights on

during the day while driving, and they

are also permitted in those countries

where this is not obligatory. Daytime

running lights cannot replace dipped beam

headlights when driving at night or through

tunnels. The use of daytime running lights

is governed by the highway code of the

country in which you are driving. Comply

with legal requirements.

INTERIOR LIGHTS

FRONT/REAR CEILING

LIGHT WITH MOVABLE

LENS

(For versions/markets, where provided)
The light fades up or reaches full

brightness immediately if pushed at the

sides.
On the Doblò Cargo versions, the front

ceiling light is only connected to the

front doors.
On the Doblò/Doblò Combi versions,

the front and rear ceiling light (where

provided) is connected to the front

doors and the sliding side doors.

F0V0055

FRONT ceiling LIGHT

WITH SPOT LIGHTS

(for versions/markets, where provided)
On the Doblò Cargo versions, the front

ceiling light is only connected to the

front doors.
On the Doblò/Doblò Combi versions, it

is connected to the front doors and the

sliding side doors.

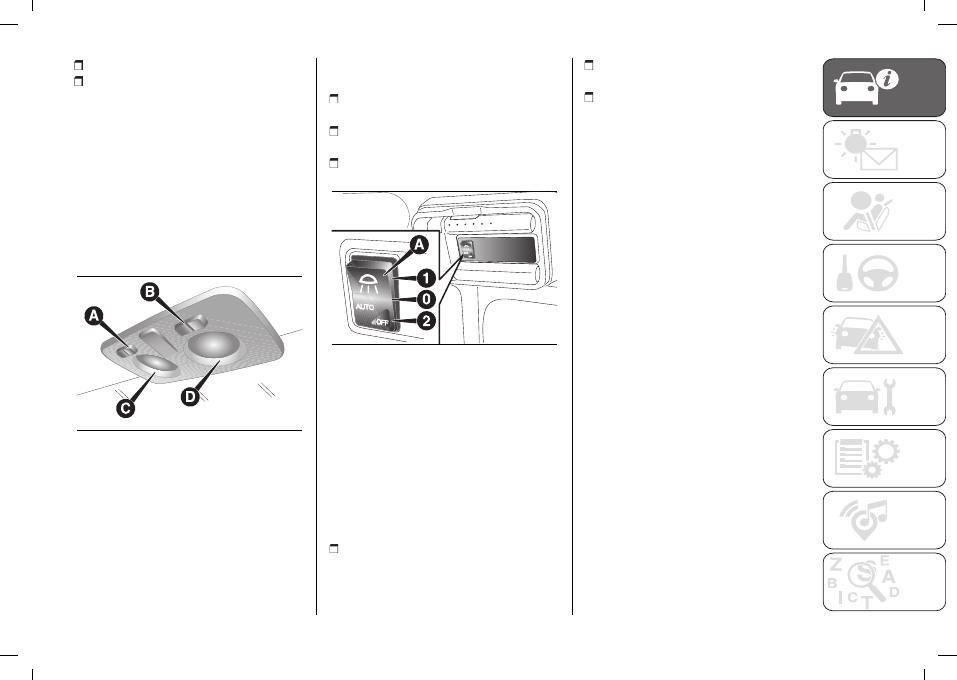

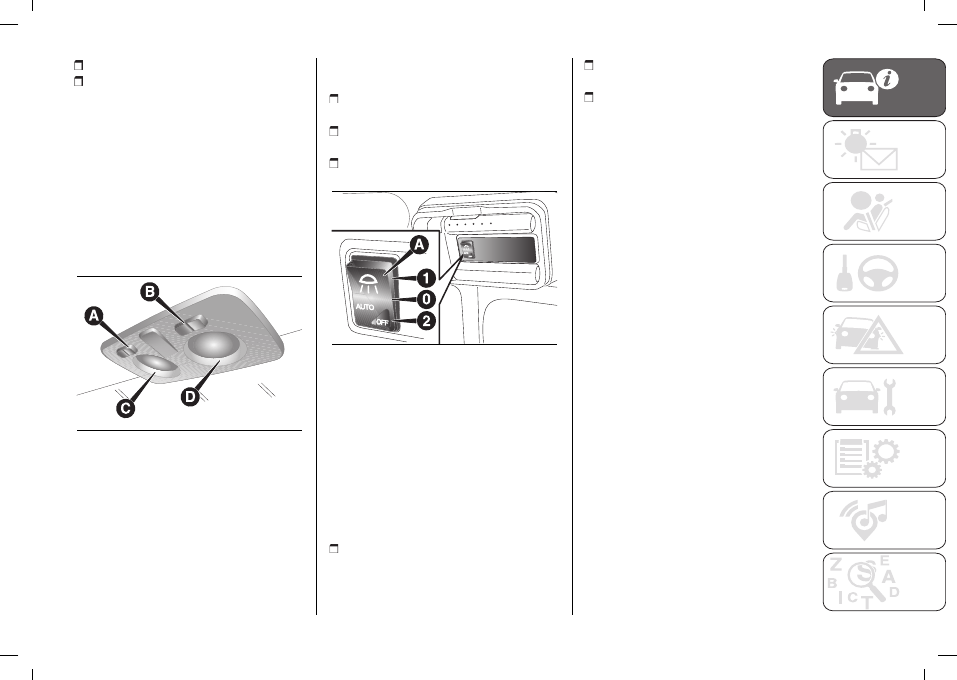

Switch (A) fig. 64 is used to switch

on/off the ceiling light bulbs.
With switch (A) in central position: lights

doors are opened/closed.
With switch (A) pressed to the left,

lights (C) e (D) stay off.
With switch (A) pressed to the right,

lights (C) e (D) stay on.
Lights switch on/off progressively.
Switch (B) is a spot light; when the

ceiling light is off, it switches the

following on individually:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

light (C) if pressed on the left side;

light (D) if pressed on the right side.

WARNING Before getting out of the

vehicle, make sure both switches are in

the middle position; when the doors

are closed, the lights switch off to

prevent the battery from being run

down. In any case, if the switch is left in

on position, the ceiling light switches

off automatically 15 minutes after the

engine switching off.

F0V0056

REAR ceiling LIGHT WITH

REMOVABLE TORCH

(for Cargo versions where provided)
The removable ceiling light is not

connected to the doors: it can only be

switched on/off manually by pressing

switch (A) fig. 65, with the ignition key

in MAR position.

Switch (A) can assume three different

positions:

with the switch in the middle, the

light is always off;

switch pushed up (position 1), light is

always on;

switch pushed down (position 2 -

AUTO OFF), light is always off.

F0V0173

For Cargo versions with

fixed window

The light comes on automatically when

you open the sliding side doors and the

rear swing doors/tailgate ; then, it goes

out when you close them.
Press switch (A) fig. 65 to turn the light

on/off with the doors closed.
Switch (A) can assume three different

positions:

with switch in central position the

light comes on when a rear door is

opened;

with the switch pushed up (position

1), the light is always on;

switch pushed down (position 2 -

AUTO OFF), bulb is always off.

TORCH FUNCTION

(for Cargo versions where provided)
This is located on the right side of the

load compartment. It is a removable

electric torch.

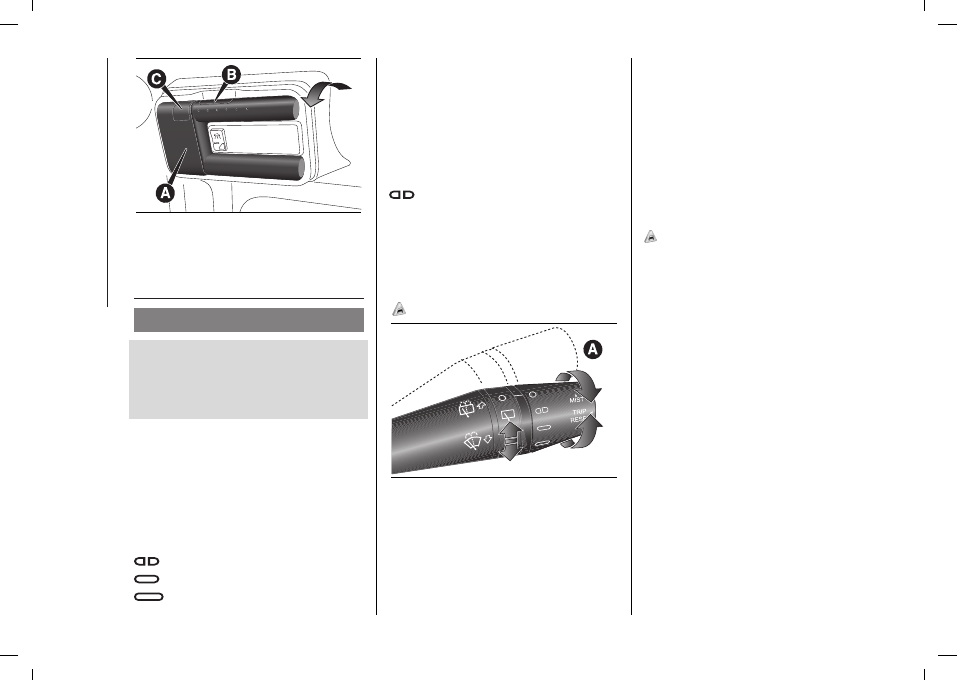

To use the removable torch (A) fig. 66 ,

push button (B) and remove the torch

in the direction shown by the arrow.

Then press switch (C) to switch the

light on/off.
When the removable light is secured

to its fixed support, the electric torch

battery is automatically recharged.

For Cargo versions with fixed

window

With the vehicle stationary and the

ignition key either turned to STOP or

removed, the ceiling light is recharged

for a maximum of 15 minutes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

F0V0174

WINDSCREEN /

REAR WINDOW

WIPERS

IN BRIEF

The right-hand stalk fig. 67 controls

windscreen wiper/ washer and rear

window wiper/ washer operation (for

versions/ markets where provided).

WINDSCREEN

WASHER/WIPER

This operates only with the ignition key

turned to MAR.
Ring nut (A) fig. 67 has four different

positions:

windscreen wiper off.

flick operation.
continuous slow operation.

continuous fast operation.

Move the stalk upwards (unstable

position) to limit operation to the time

for which the stalk is held in this

position. When released, the stalk will

return to its default position and the

windscreen wiper will be automatically

stopped.
With the ring nut (A) fig. 67 in position

, the windscreen wiper will

automatically adapt operating speed to

the speed of the car.
With the windscreen wipers

operational, if reverse gear is engaged,

the rear window wiper is automatically

activated.

3) 4)

F0V0517

“Smart washing” function

(For versions/markets, where provided)
Pull the stalk towards the steering

wheel (unstable position) to operate the

windscreen washer.

Keeping the stalk pulled for more than

half a second, with just one movement

it is possible to operate the washer jet

and the wiper at the same time.
The windscreen wiper stops working

three strokes after the stalk is released.
A further stroke after approx. 6

seconds completes the wiping cycle.

RAIN SENSOR

(where provided)

5) 6)

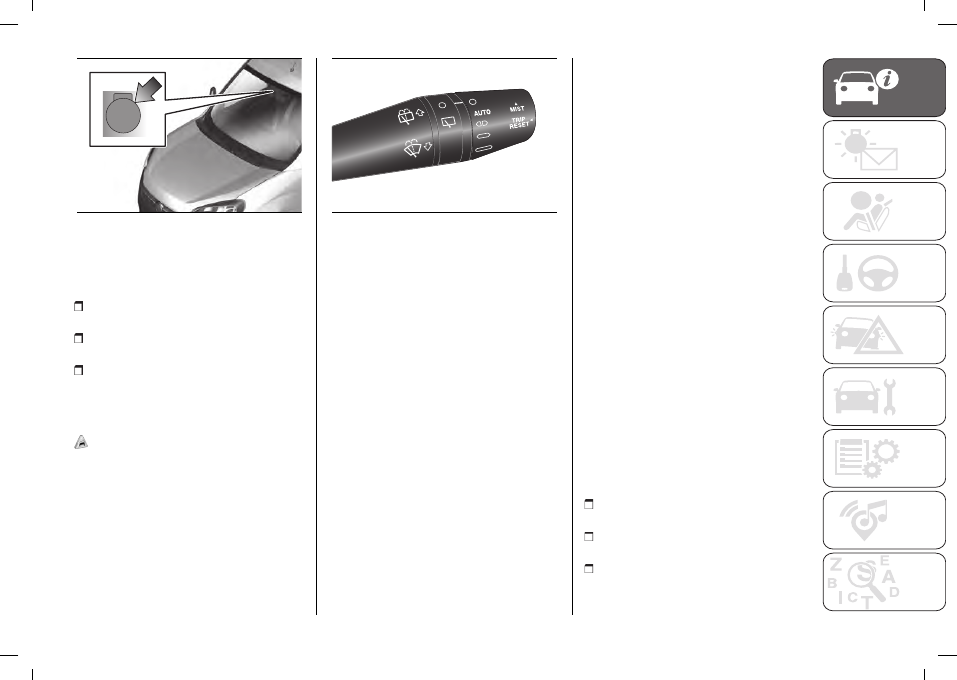

This is a device located behind the

interior rear view mirror fig. 68, in

contact with the windscreen and can

measure the amount of rain and,

consequently, manage the automatic

wiping mode of the windscreen in

accordance with the amount of water

on the screen.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F0V0721

The device is able to recognise,

and automatically adjust itself in the

presence of the following conditions:

presence of dirt on the surface (e.g.

salt, dirt, etc.);

presence of streaks of water caused

by the worn window wiper blades;

difference between day and night.

IMPORTANT Keep the window clean in

the sensor area.

AUTOMATIC WIPING

5) 6)

Activation

The user can select automatic wiping

by turning the ring-nut to AUTO fig. 69.

F0V0723

The activation of the automatic wiping

will be notified to the driver by a single

stroke.
The "Smart Washing" function activates

the normal washing cycle, after which

the automatic wiping function is

restored.
In the event of a rain sensor

malfunction, the wiping mode becomes

constant again and no longer depends

on the amount of rain, and the wipers

will keep moving even when it has

stopped raining.

Deactivation

The user can deactivated automatic

wiping by turning the ring-nut to a

setting other than AUTO.

Service Position

This function makes it possible to

replace the wipers or protect them in

conditions of ice and/or snow.

To activate this function, deactivate the

windscreen wiper (turn the ring-nut in

position

) before setting the starter

switch to STOP.
This function can only be activated

within 2 minutes of setting the starter

switch to STOP, with the blades turned

correctly in the parking position.
To activate this function, move the lever

upwards (MIST position) for at least half

a second.
The command can be repeated up to a

maximum of three times.
The fourth repetition of the command

deactivates the function.
The activations are used to position

the wipers as preferred. The function is

deactivated when the car is turned on,

with a wiping request or when the car

is moving (speed above 5 Km/h).
IMPORTANT Make sure, when turning

on the car, that the windscreen is free

of snow or ice before turning the

ignition key.

Deactivation

The function is deactivated if:

2 minutes have passed since the

ignition device was set to STOP;

the ignition device is set to MAR and

the blades are in rest position;

the command for the function is

repeated four times.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

REAR WINDOW WIPER /

WASHER

(For versions/markets, where provided)
This operates only with the ignition key

turned to MAR.

Activation

Turn the ring nut to

to operate the

rear window wiper:

in intermittent mode when the

windscreen wiper is not operating;

in synchronous mode (at half the

speed of the windscreen wiper) when

the windscreen wiper is operating;

in continuous mode with reverse

gear engaged and the control active.
With the windscreen wiper on and

reverse gear engaged, rear window

wiping will be continuous.
Pushing the stalk towards the

dashboard (rocking position) will

activate the rear window washer jet.

Keep the stalk pushed for more than

half a second to activate the rear

window wiper as well. Releasing the

stalk will activate the smart washing

function, as described for the

windscreen wiper.

Deactivation

The function stops when the stalk is

released.

HEADLIGHT WASHERS

(for versions/markets, where provided)
They are activated when the dipped

headlights are on and the windscreen

washer is activated.

WARNING Check the correct condition

and cleanliness of nozzles at regular

intervals.

Never use the screen wiper to remove

layers of snow or ice from the windscreen

glass. In such conditions, the wiper

may be subjected to excessive stress

and the motor cut-out switch, which

prevents operation for a few seconds, may

intervene. If operation is not restored (even

after turning the key and restarting the

engine), contact a Fiat Dealership.

Do not operate the windscreen wiper

with the blades lifted from the windscreen.

Do not activate the rain sensor when

washing the car in an automatic car wash.

Make sure the device is switched off if

there is ice on the windscreen glass.

Do not use the rear window wiper to

remove layers of snow or ice. In such

conditions, the wiper may be subjected to

excessive stress and the motor cut-out

switch, which prevents operation for a few

seconds, may intervene. If operation is not

restored, contact a Fiat Dealership.

The headlamp washer jet does not

function when the level of fluid in the

reservoir falls below 1.6 litres.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

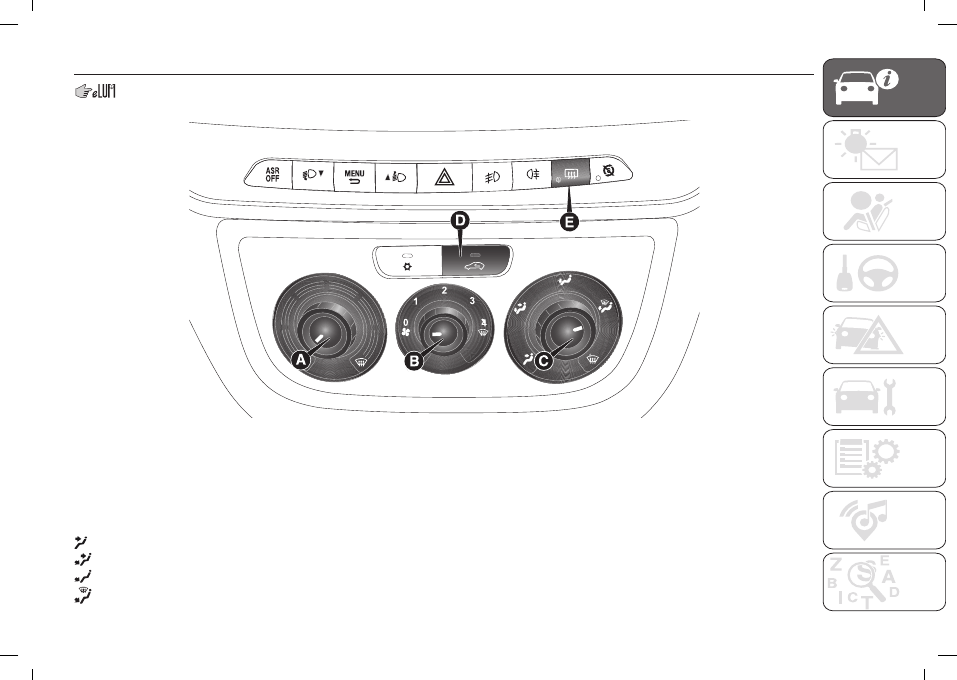

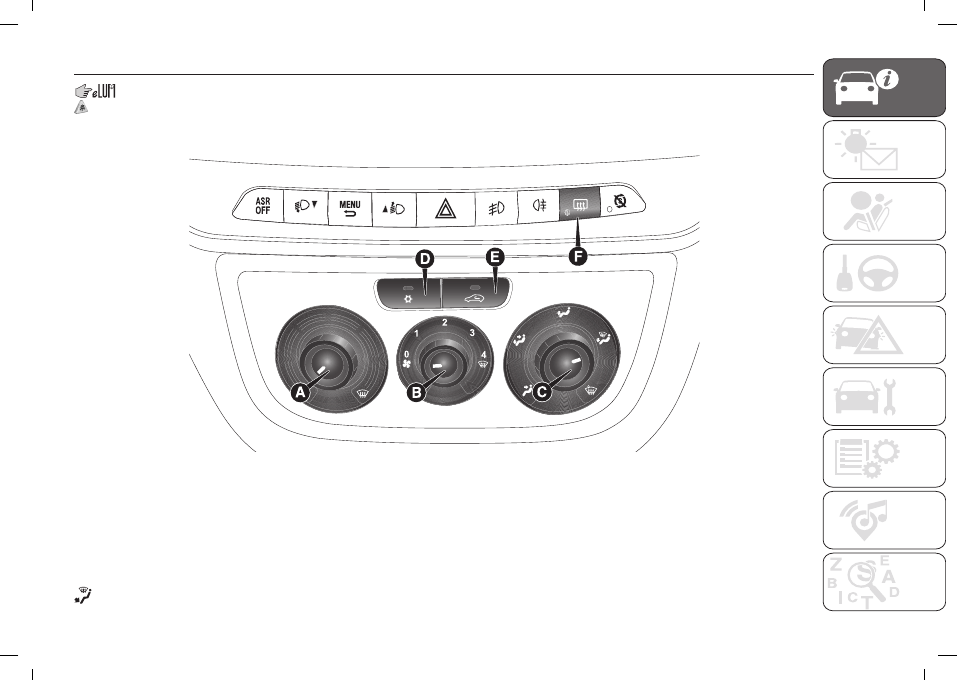

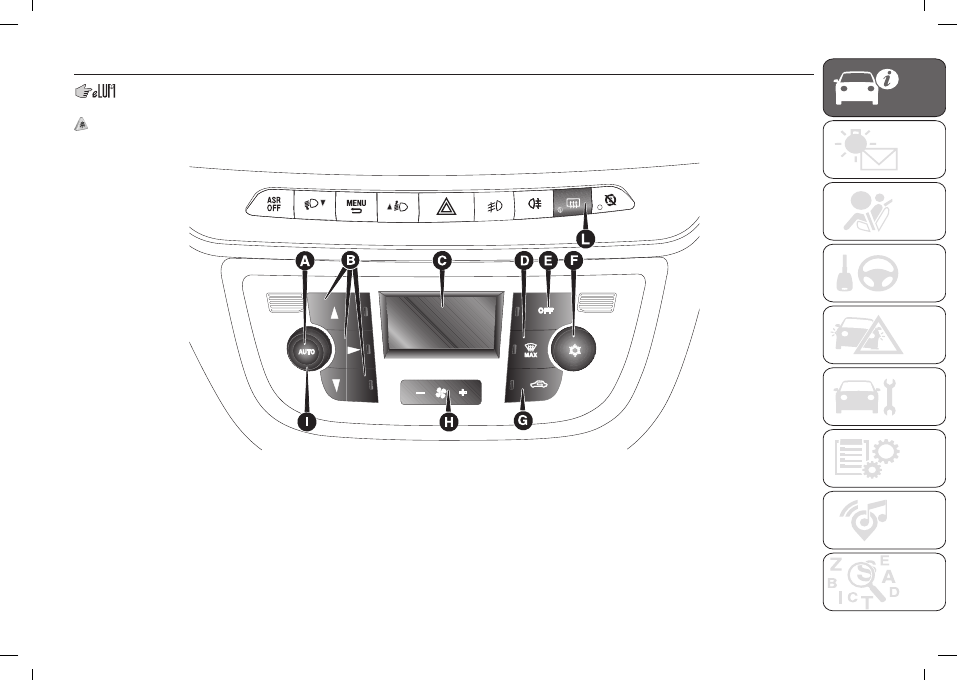

H. Fan speed increase/decrease control buttons.

I. Temperature increase/decrease control knob.

L. Heated rear window and electric door mirror on/off button (for versions/markets, where provided).

Air flow to the windscreen and front side window vents to demist or defrost them.
Air flow at central and side dashboard vents to ventilate the chest and the face during the hot season.
Air flow to the front and rear footwell vents. Thanks to the natural tendency of hot air to rise, this distribution pattern allows

the passenger compartment to warm up as quickly as possible, providing an immediate feeling of warmth.

Air flow distributed between footwell diffusers (hotter air) and central and side dashboard vents (cooler air). This

distribution mode is particularly useful in spring and autumn on sunny days.

Air flow distributed between the footwell vents and the windscreen and front side window defrosting/demisting vents.

This allows an adequate warming of the passenger compartment and prevents the windows from misting up.

The air conditioning system uses refrigerant R134a or R1234yf compatible with the current regulations in the countries where the vehicle is

marketed. When charging, only use the gas indicated on the dedicated plate in the engine compartment . The use of other coolants affects the

efficiency and condition of the system. The lubricant used for the compressor is also strictly linked to the type of cooling gas, please refer to a

Fiat Dealership.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC WINDOWS

ELECTRIC FRONT

WINDOWS

(for versions/markets, where provided)
There are buttons on the driver side

door panel which control the following

functions, with the ignition key turned

to MAR:
TO: Opening/closing of left-hand

window
B: Opening/closing of right-hand

window
Push button (A) or (B) to open/close the

appropriate window.

F0V0020

When one of the two buttons is

pressed briefly, the window moves

in steps; if the button is held down,

"continuous automatic" operation is

activated both for closing and opening.

Press button (A) or (B) again to stop the

window in its current position.
The electric windows are fitted with a

security system (where provided) that

can detect the presence of an obstacle

whilst the window is closing; when this

happens, the system kicks in and the

movement of the glass is immediately

reversed.

WARNING With the ignition key in

the STOP position or extracted, the

electric windows remain activated for

about 2 minutes and are deactivated

immediately when one of the doors is

opened.

29) 30)

FRONT AND REAR

ELECTRIC WINDOWS

(for versions/markets, where provided)

Driver side door

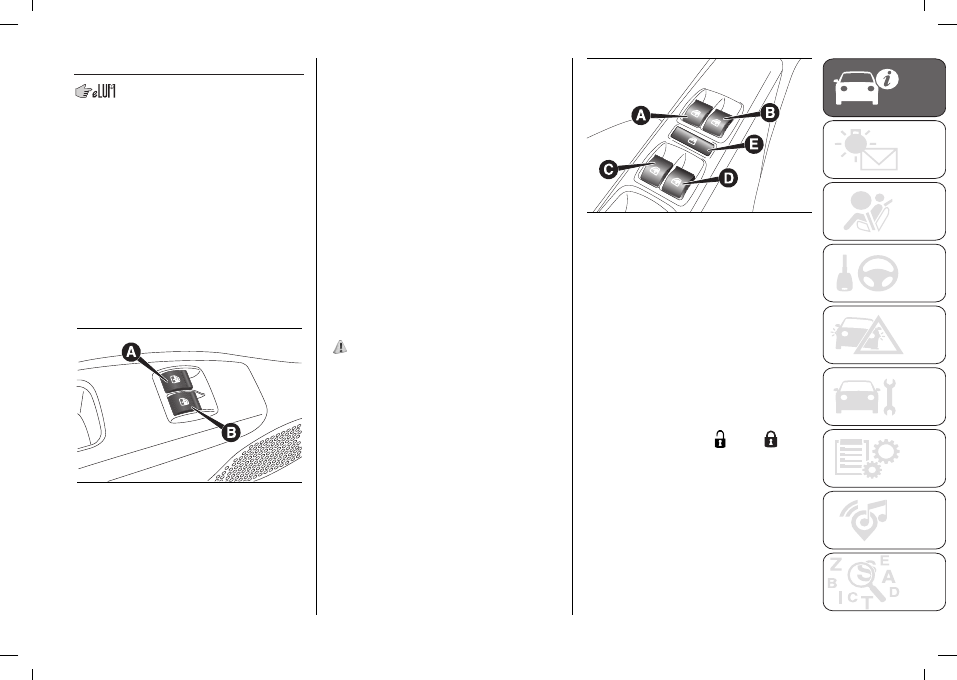

Five switches fig. 74 on the inner

armrest control the following with the

ignition key turned to MAR:
A left front window opening/closing;
B right front window opening/closing;
C left rear window opening/closing;
D right rear window opening/closing;
E inhibition of control switches on rear

doors.

F0V0175

Passenger side and rear doors

(for versions/markets, where provided)
The switch controlling the

corresponding window is located on

the inner armrest of each door.

WINDOW

OPENING/CLOSING BY

MEANS OF A KEY WITH

REMOTE CONTROL

(for versions/markets, where provided)
The windows can be opened/closed
by holding the unlock

/ lock

buttons on the remote control pressed,

respectively.
The windows move simultaneously as

long as the corresponding button is

held down; they will stop when they

reach the upper or lower end of travel

position, or the button is released.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fiat Doblo Panorama (2021 year). Manual in english - page 2
