KNOWING YOUR VEHICLE

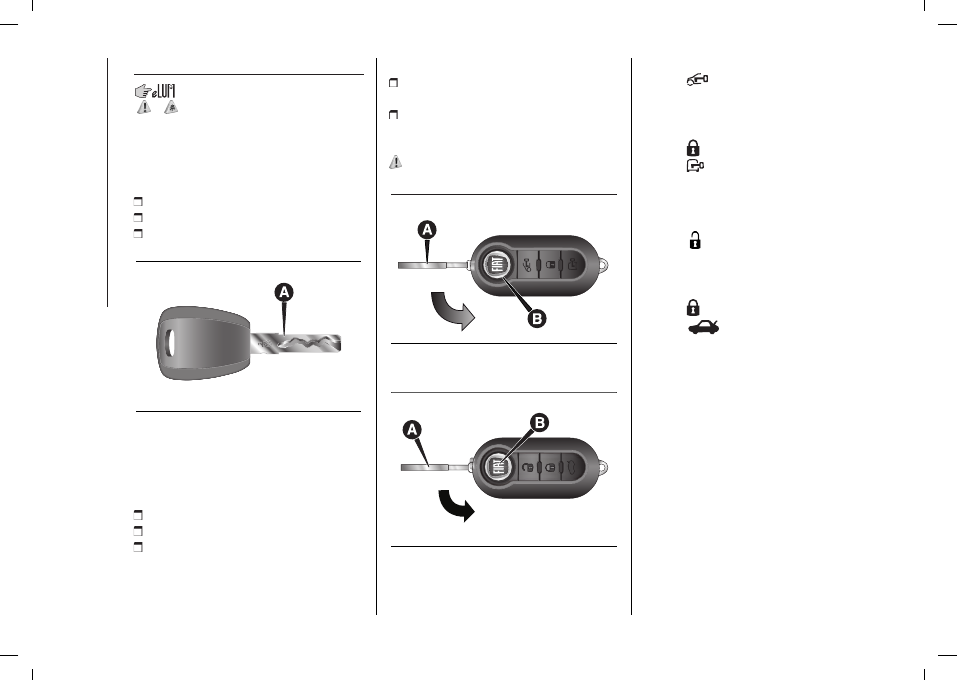

THE KEYS

MECHANICAL KEY

The metal part (A) fig. 1 of the key is

fixed.
The key operates:

the ignition device;

the door lock;

opening and closing of the fuel tank

cap.

F0V0003

KEY WITH REMOTE

CONTROL

The metal insert (A) fig. 2 - fig. 3 is

retractable and operates:

the ignition device;

the door lock;

opening and closing of the fuel tank

cap.
To extract the metal insert, press

button (B) fig. 2 - fig. 3.

To refit it proceed as follows:

hold down button B and turn the

metal insert (A);

release button (B) and turn the metal

insert (A) completely until the locking

click is heard to ensure correct closure.

Cargo versions:

F0V0004

Combi/Panorama versions:

F0V0536

Cargo versions fig. 2

Button

unlocks all the doors

(including the tailgate, the rear swing

doors and the sliding side doors for

versions/markets where provided).
Button

locks all the doors.

Button

unlocks the boot, the rear

swing doors and the sliding side doors

(depending on the version).

Combi/Panorama versions fig. 3

Button

unlocks all the doors

(including the tailgate, the rear swing

doors and the sliding side doors for

versions/markets where provided).
Button

locks all the doors.

Button

unlocks the boot, the rear

swing doors and the sliding side doors

(depending on the version).

DEAD LOCK DEVICE

(for versions/markets, where provided)
This safety device prevents the opening

of the doors from inside the passenger

compartment if there has been a break

in attempt (e.g. a window has been

broken).
The dead lock device therefore offers

the best possible protection against

break in attempts. We recommend

engaging it whenever the vehicle is

parked and left unattended.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Activating the device

The system is automatically enabled
on all the doors by pressing button

twice on the key with remote control.
The direction indicators flash twice to

let you know that the device is active.
If one or more of the doors is not

perfectly shut, the dead lock device

will not be activated, thus preventing a

person getting into the vehicle through

the open door and, on shutting, it,

remaining stuck inside the passenger

compartment.

Deactivating the device

The system is disabled automatically on

every door when:

unlocking the doors;

by turning the ignition key to the

MAR position.

3) 4)

Do not swallow the battery. Danger of

chemical burns. The keys contain a small

battery. If the battery is swallowed, it can

cause severe internal burns in just 2 hours

and cause death. Keep new and used

batteries out of the reach of children. If

the battery compartment does not close

securely, discontinue use of the product

and keep it out of reach of children. If you

believe that batteries may have been

swallowed or inserted inside the body,

seek medical attention immediately. The

emergency key (where provided) must be

immediately inserted into the electronic key

to prevent easy access to the battery.

2)

Button (B) should only be pressed when

the key is away from the body, in particular

from the eyes and from objects that can

be spoilt (e.g. clothes). Do not leave the

key unattended to avoid the button being

accidentally pressed while it is being

handled, e.g. by a child.

3)

Once the safe lock system is engaged

it is impossible to open the doors from

inside the vehicle. Before engaging the

system please therefore check that there is

no one left on board.

4)

If the remote control battery is flat, the

system can only be turned on by inserting

the metal key in the door lock: in this case,

the device remains active for the rear

doors only.

1)

Used batteries are harmful to the

environment. You can dispose of them

either in the correct containers as

specified by law or by taking them to a

Fiat Dealership, which will deal with their

disposal.

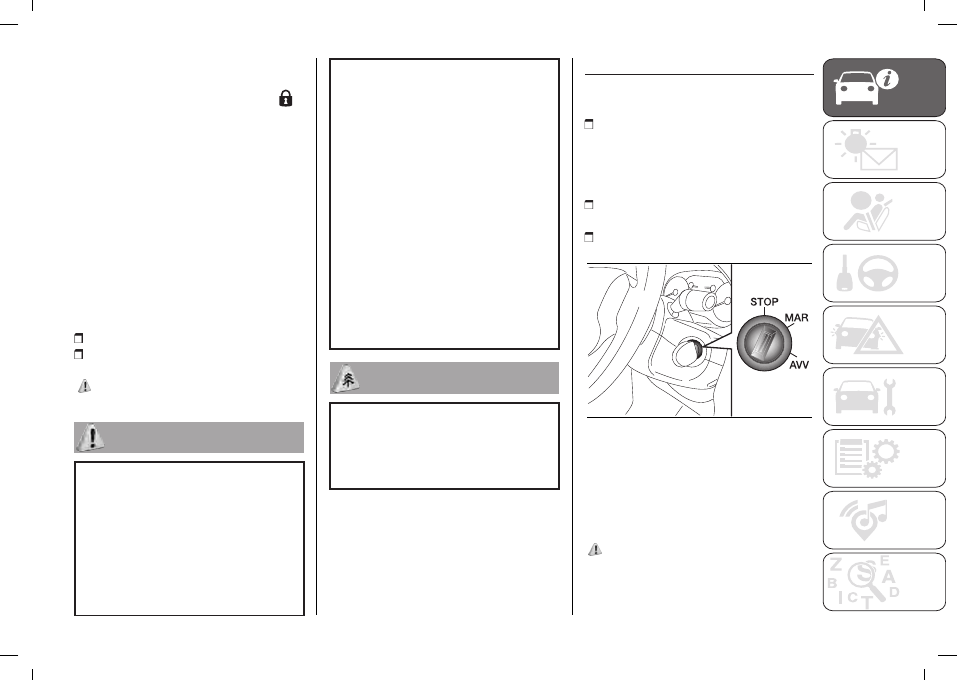

IGNITION DEVICE

The key can be turned to 3 different

positions fig. 4:

STOP: engine off, key can be

extracted, steering locked. Some

electrical devices (e.g. sound system,

central door locking system, etc.) can

operate;

MAR: driving position. All electrical

devices are enabled;

AVV: engine starting (unstable

position).

4

F0V0006

The ignition device is fitted with an

electronic safety system that requires

the ignition key to be turned back to

STOP if the engine does not start,

before the starting operation can be

repeated.

5) 6) 7) 8)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

12

STEERING LOCK

Activation

When the key is at STOP, remove the

key and turn the steering wheel until it

locks.

Deactivation

Move the steering wheel slightly as you

turn the ignition key to MAR-ON

5)

If the ignition device has been tampered

with (e.g. an attempted theft), have it

checked by a Fiat Dealership before driving

again.

6)

Always remove the key when you

leave your vehicle to prevent someone

from accidentally operating the controls.

Remember to engage the handbrake.

Engage first gear if the vehicle is parked

uphill or reverse gear if the vehicle is

parked downhill. Never leave children

unattended in the vehicle.

7)

Never extract the key while the vehicle

is moving. The steering wheel will

automatically lock as soon as it is turned.

This also applies to cases in which the

vehicle is towed.

8)

It is absolutely forbidden to carry

out any aftermarket operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance, invalidate the warranty,

cause serious safety problems and

also result in the vehicle not meeting

type-approval requirements.

THE FIAT CODE

SYSTEM

IN BRIEF

This is an electrical engine locking

system which increases protection

against attempted theft of the vehicle.

It is automatically activated when

the key is removed from the ignition

device.

Each key contains an electronic

device which modulates the signal

emitted during ignition by an aerial

built into the ignition device. The

signal, which changes each time the

engine is started, is the "password",

by means of which the control unit

recognises the key and enables

starting.

1)

Irregular operation

If, during starting, the code has not

been recognised correctly the warning
light

on the instrument panel

turns on accompanied by the related

message on the display (see section

"Warning lights and messages").
In this case, turn the key to

STOP

and then back to

MAR

; if the lock

continues, try with the other keys

provided with the vehicle. Contact a

Fiat Dealership if you still cannot start

the engine.

WARNING Each key has its own code

which must be stored by the system's

control unit. Contact a Fiat Dealership

to have new keys (up to 8) stored with

a code.

Activation of

warning

light while driving

If the

warning light switches on,

this means that the system is running

a self-diagnosis (for example due to a

voltage drop).

If the

warning light stays on,

contact a Fiat Dealership.

1)

The electronic components inside

the key may be damaged if the key is

subjected to strong shocks. In order

to ensure complete efficiency of the

electronic devices inside the key, it should

never be exposed to direct sunlight.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

13

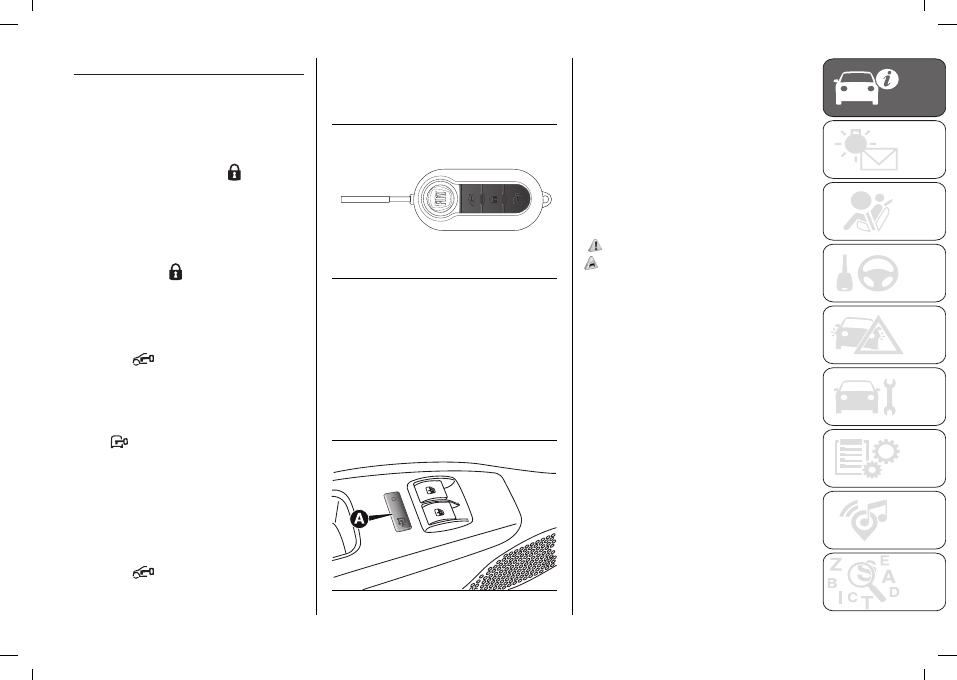

DOORS

DOOR CENTRAL

LOCKING/UNLOCKING

Locking from the outside

The doors will only be locked if all

doors are shut. If one or more of the

doors is open after button

is pressed

on the remote control, the direction

indicators will flash quickly for around

three seconds.
You can lock all the doors by turning

the key clockwise in the driver's door.
Pressing button

on the remote

control twice in quick succession to

activate the dead lock device (see the

"Dead lock device" paragraph).

Door unlocking from the outside

Press the

button shortly to

remotely unlock only the front doors

(Cargo version), to turn on the front

ceiling lights for a limited period and to

double flash the direction indicators.
Press

button and hold it pressed to

remotely unlock the load compartment

(Cargo version), to turn on the rear

ceiling lights for a limited period and to

double flash the direction indicators.

Turn the key anticlockwise in the

driver's door to unlock the front doors

only.
Press the

button briefly to unlock

all the doors (Doblò/Doblò Combi

version), switch on the ceiling lights

temporarily and double-flash the

direction indicators. Turn the key

anticlockwise in the driver's door to

unlock all the doors.

5

F0V0046

Unlocking the load compartment

from inside the vehicle (Cargo

version)

Press button (A) fig. 6 (Cargo version)

to unlock the load compartment (rear

swing doors/tailgate and sliding side

doors) from inside the vehicle. If the

LED is on, the loading area is locked.

6

F0V0022

SLIDING SIDE DOORS

(for versions/markets, where provided)
On Cargo versions, the sliding side

door is fitted with a spring-loaded latch

that stops the door from opening any

further. To lock it, simply push the door

as far as it will go; to unlock it, pull

forward firmly.
In any case, make sure that the door

is correctly attached to the device that

holds it fully open.

9) 10) 11) 12)

2)

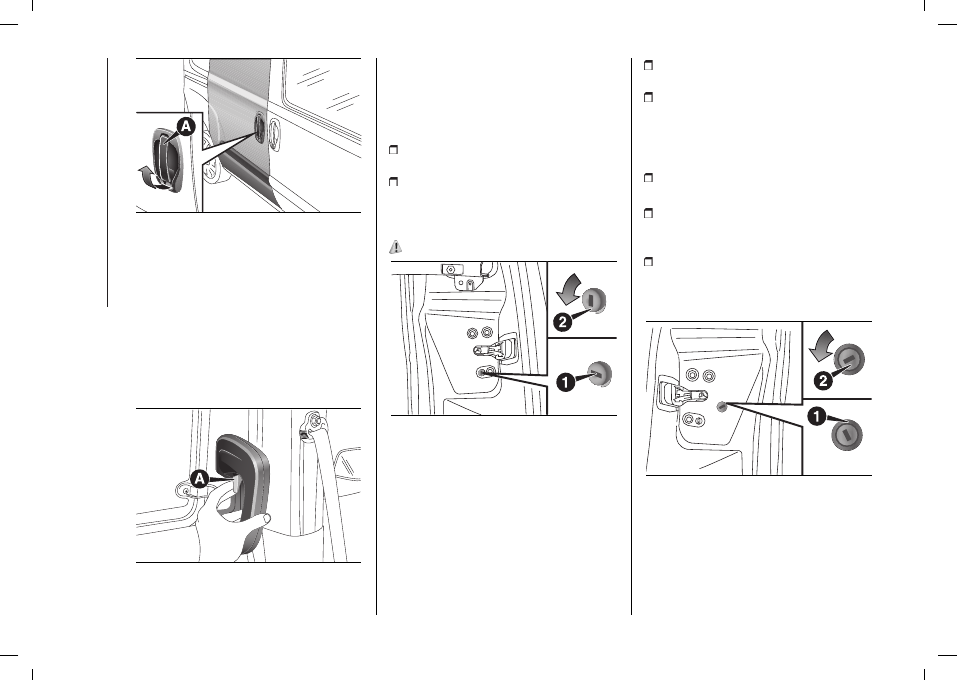

Opening/closing from

outside

Opening: turn the key in the lock and

pull handle(A) fig. 7 in the direction

shown by the arrow, then slide the

door towards the rear of the vehicle

until it locks into place and can go no

further.
Closing: push the handle (A) fig. 7

towards the front of the vehicle. Lock

with the key.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

14

7

F0V0085

Opening/closing from

the inside (Doblò/Doblò

Combi versions)

Opening: push switch (A) fig. 8 to

unlock the door, then pull the handle

and slide the door towards the rear of

the vehicle until it can go no further.
Closing: push switch (A) fig. 8 to

release the door and then push it

towards the front of the vehicle.

8

F0V0382

CHILD SAFETY DEVICE

This system prevents the sliding side

doors being opened from the inside.
The device fig. 10 can be engaged only

with the sliding side door open:

position 1 - device engaged (door

locked);

position 2 - device not engaged

(door may be opened from the inside).
The device remains engaged even if the

doors are electrically unlocked.

13)

9

F0V0186

KEY EMERGENCY LOCK

(KEL) DEVICE

The sliding side doors are provided

with a device for locking all the doors

using the lock in the case of a power

fault. The device can be engaged, with

the sliding side doors open, as follows

fig. 10:

position 2: device not engaged

(doors released)

position 1: device engaged (door

locked). The device is released and

thus the doors can be opened as

follows: in the event that electrical

operation is restored:

by remote control

or

open a front door by inserting the

key into the key pawl. in the event that

electrical operation is restored;

opening the driver side door by key

pawl and the other doors (passenger's

side and sliding side door) pulling the

inner handle.

10

F0V0383

DOUBLE REAR WING

DOORS

(for versions/markets, where provided)

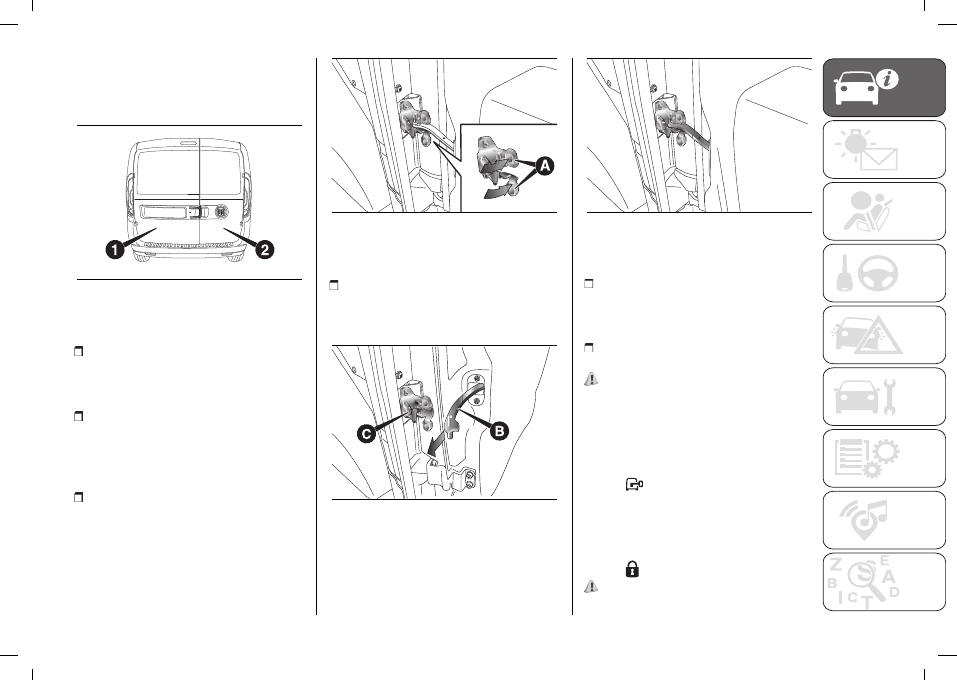

The double rear wing doors fig. 11 are

provided with a safety device to avoid

involuntary opening beyond 90

°

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

15

To open completely to 180

°

you

need to intervene on the specific

catch/release device (A) fig. 12 (one on

each side).

11

F0V0519

Opening from 90

°

to 180

°

Proceed as follows:

open the door to the mechanical

stop approximately at 90

°

without

intervening on the release device (A)

fig. 12;

only after having reached the

maximum opening position of the door,

intervene on the release system by

pressing the device (A) as shown in

fig. 12;

keeping the device pressed, open

the door beyond 90

°

to completely

release the tie-rod (B) from the release

mechanism (C) fig. 13.

12

F0V0067

Closing from 180

°

to 90

°

Proceed as follows:

close the door without intervening on

the release device and letting the tie-

rod (B) engage in the catch mechanism

(C), as shown in fig. 14.

13

F0V0397

In this way, the catch/release device

will prevent involuntary opening of the

door beyond 90

°

again.

14

F0V0529

Using the key latch on the door, you

can do the following:

for Cargo versions with wing door:

centrally unlock the load compartment

(sliding side doors + rear wing doors),

centrally lock all the doors;

for Doblò/Doblò Combi versions with

swing door: local unlocking/locking.

14)

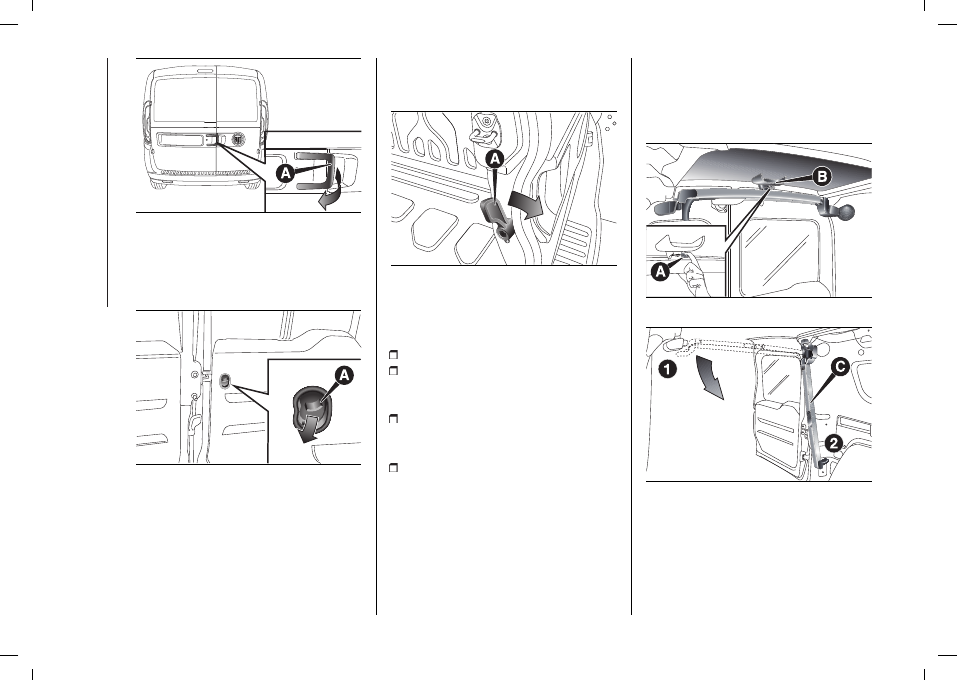

Opening/closing the

first swing door from

the outside

To open the door, turn the metallic

insert of the key in the lock or press

button

on the remote control

and then pull handle (A) fig. 15 in the

direction of the arrow.
To close the door, turn the key metal

insert in the closing direction or press
button

on the remote control.

15)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

16

15

F0V0518

Emergency opening of

the first swing door

from the inside

From inside, use device (A) fig. 16.

16

F0V0080

Opening the second

swing door

After having opened the first door, pull

handle (A) fig. 17 in the direction shown

by the arrow.

WARNING Pull handle (A) fig. 17 in the

direction of the arrow only.

17

F0V0078

FIXED WINDOW

(for versions/markets, where provided)
Using the fixed window:

Open the swing doors;

Push lever (A) fig. 18 downwards,

ensuring that it is held down until the

lock goes beyond the crossmember;

Open using both hands, making sure

to aid the fixed window opening by

using handle (B) fig. 18;

To close, pull the fixed window

downwards using the suitable handle

(B).

WARNING The fixed window remains

open up to a speed of 110 km/h.

With the fixed window open it is

possible, if necessary, to lower the

crossmember (C), accompanying it

from position (1) to position (2) fig. 19.

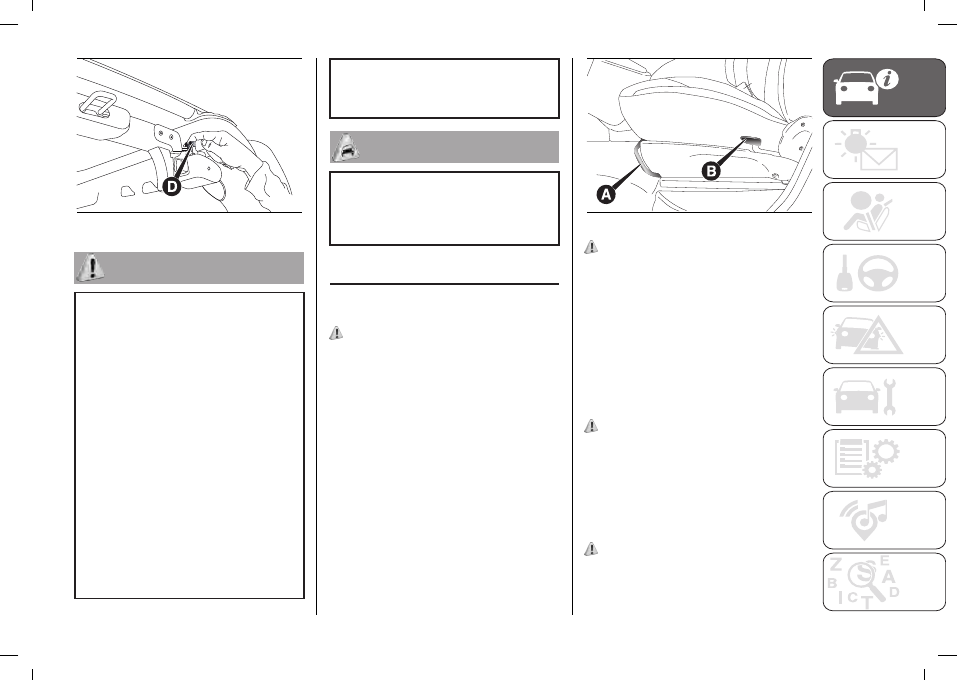

To release and lower the

crossmember, act, with rear doors

open, on lever (D) fig. 20.

18

F0V0526

19

F0V0527

-------------------------------------------------------------------------------------------------------------------------------------------------------------

17

20

F0V0528

9)

Before opening a door, ensure that you

can do it in conditions of safety.

10)

You must not open the left-hand

sliding side door with the fuel cap open

while refuelling. Check that the fuel cap is

closed while opening/closing the sliding

side door to avoid damage.

11)

Do not leave the sliding side door open

when the vehicle is parked on a gradient.

A knock could release the latch leaving the

door free to move forward.

12)

Before leaving the vehicle parked with

sliding doors open, always check that the

latch is engaged.

13)

Always use this device when carrying

children.

14)

This spring loaded system has

activation forces that were designed for

optimum comfort. Accidental knocks

or a strong gust of wind may release

the springs and let the doors close

spontaneously.

15)

When closing, shut the right hand

swing door fully before you close the left

hand swing door. Never shut the two

doors at the same time.

2)

Make sure that the left sliding side door

is all closed before refuelling to prevent

damage to the door and to the sliding

locking system with fuel filler cap open,

activated during refuelling operations.

SEATS

DRIVER’S SEAT

(for Cargo versions, where provided)

16)

Longitudinal adjustment

Lift the lever (A) fig. 21 and push the

seat forwards or backwards: in the

driving position your arms should be

slightly bent and your hands should

rest on the steering wheel rim.

21

F0V0210

17)

Reclining backrest adjustment

Lift lever (B) fig. 21 and, slightly

detaching the back from the backrest,

accompany the movement of the

backrest until it is in the desired

position.

DRIVER’S SEAT

(for Doblò/Doblò Combi/Cargo

versions, where provided)

16)

Lengthwise adjustment

Lift lever (A) fig. 22 and push the seat

forwards or backwards: in the driving

position, you should be able to rest

your arms on the rim of the steering

wheel.

17)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

18

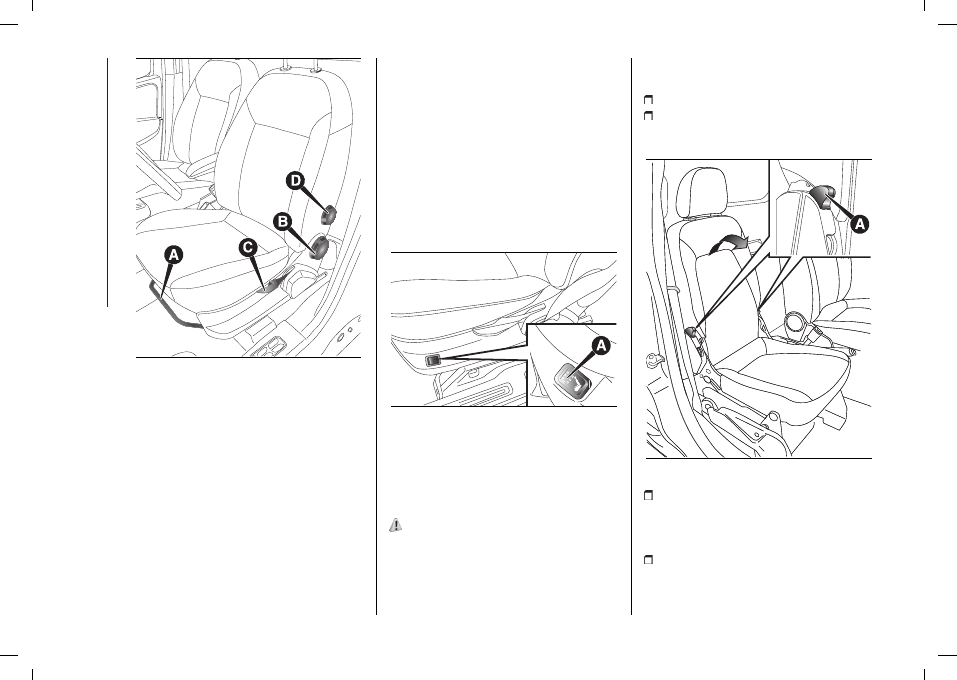

22

F0V0013

Backrest angle adjustment

Turn knob (B) fig. 22.

Driver seat height adjustment

(for versions/markets, where provided)
Operate lever (C) fig. 22 to lift or lower

the rear part of the cushion to achieve

the most comfortable driving position.

WARNING Adjustment must be carried

out only when seated in the relevant

seat.

Driver seat lumbar adjustment

(for versions/markets, where provided)
Turn knob (D) fig. 22 to adjust the

backrest support.

Heated seats

(for versions/markets, where provided)
With the key turned to MAR, press

button (A) fig. 23 to switch the function

on/off.
When the function is enabled, the LED

on the button turns on.

23

F0V0208

FOLDAWAY PASSENGER

SEAT

(for versions/markets, where provided)
The passenger seat can be folded

away on some Cargo versions.

18)

Completely retract the seat for a total

folding down avoiding interference with

the dashboard.

Seat folding

To fold the seat, proceed as follows:

open the passenger side door;

pull lever (A) and fold the backrest

forwards in the direction indicated by

the arrow;

24

F0V0142

then push the backrest (B) fig. 25

down: the seat is now completely

folded over on itself into the "table"

position;

pull tab (C) fig. 26 and push the

backrest down further: the seat is now

completely folded away.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

19

25

F0V0143

26

F0V0144

Repositioning the seat

To return the seat back to its normal

position, proceed as follows:

take tab (A) fig. 27 and lift the

backrest up;

operate levers (B) fig. 28 and further

lift the seat upwards.

19) 20)

27

F0V0145

28

F0V0146

ACCESS TO THE REAR

SEATS

(Doblò and Doblò Combi versions)
To access the rear seats, open one of

the sliding side doors (see "Doors" in

this section).

FOLDING TABLE SEAT

(Doblò and Doblò Combi versions,

where provided)
On some versions the seat can be

folded into a table position.

21)

Completely retract the seat in table

position for a total folding down

avoiding interference with the

dashboard.

WARNING Move the seat only when

there are no rear passengers.

Seat folding

Open the passenger side door;

Operate lever (A) fig. 29 and fold

the backrest forwards in the direction

indicated by the arrow;

Push the backrest (B) fig. 29

downwards: the seat is now completely

folded over on itself into the "table"

position. Repositioning the seat:

operate lever (A) fig. 29 and lift the

backrest upwards.

29

F0V0201

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

20

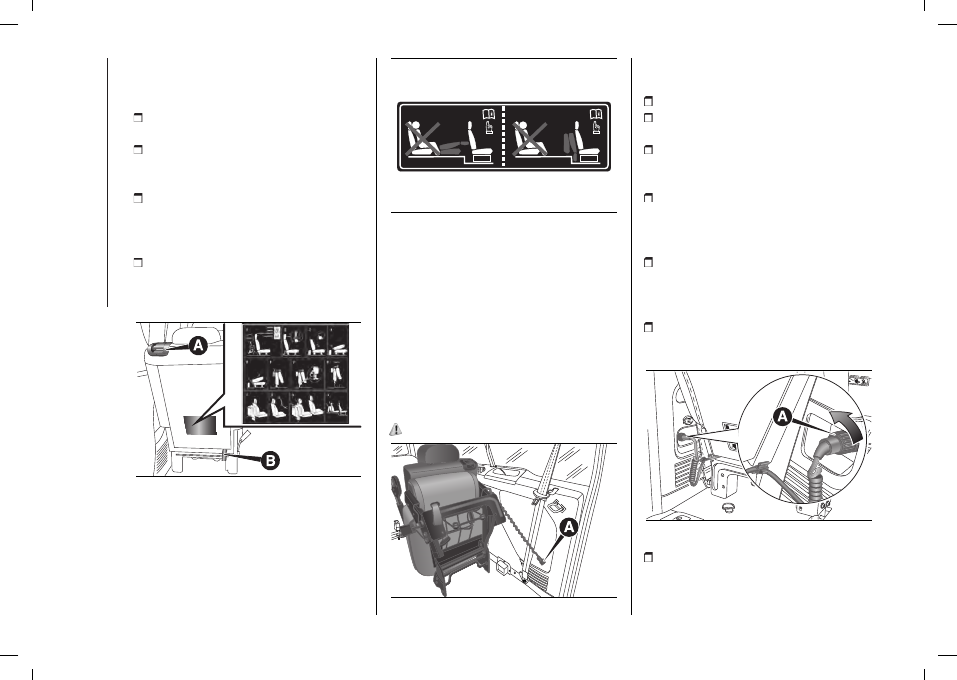

3rd ROW SEAT

MOVEMENTS

Proceed as follows:

completely lower the rear seat head

restraints;

move the seat belt to the side,

making sure that it is fully extended and

not twisted;

lift lever (A) fig. 30 retaining the

backrest and fold the latter forwards.

When you lift the lever, you will see a

red band.

pull the tape (B) fig. 30 behind the

seat backrests and fold the seats and

the backrests forwards, as shown in

fig. 31.

30

F0V0633

31

F0V0408

NOTE On the split seats, there are

rubber bands on the lower edge of the

cushion so you can attach the folded
seat to the 2nd row rear seat head

restraint rods (see the label shown on

the backrest of the seat fig. 30).
NOTE As shown in fig. 32, you do not

need to disconnect electrical connector

(A) when tilting the seat forward as the

spiral cable does not interfere with the

seat movement.

22)

32

F0V0720

3rd ROW SEAT REMOVAL

Proceed as follows:

remove the rear seat head restraints;

remove the rolling curtain from its

housing;

move the seat belt to the side,

making sure that it is fully extended and

not twisted;

lift lever (A) fig. 30 retaining the

backrest and fold the latter forwards.

When you lift the lever, you will see a

red band.

identify the electric connection of the

seat fig. 33 connected to the vehicle in

the left side zone (for the left seat) or in

the right side zone (for the right seat);

turn ring (A) on the seat connection

anticlockwise (until it locks), pull it

towards you and disconnect the wire;

33

F0V0631

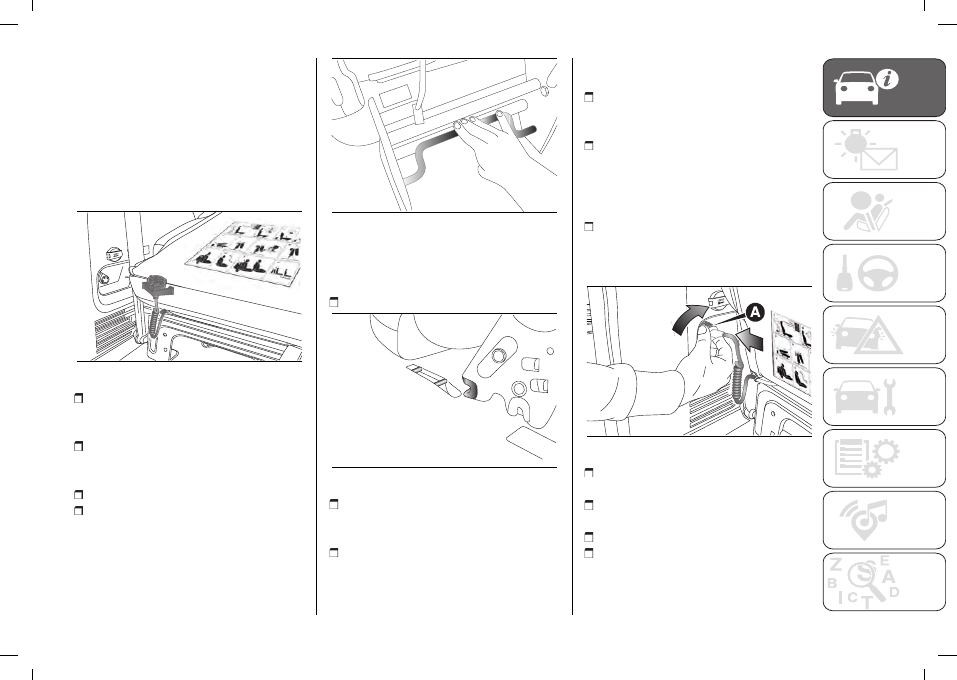

secure the connection with the

elastic tape fig. 34 at the bottom left

(for the left seat) or bottom right (for the

right seat) of the seat backrest;

-------------------------------------------------------------------------------------------------------------------------------------------------------------

21

WARNING Always disconnect the

connection and fasten it to the seat

using the dedicated tape, to prevent it

from being damaged when moving the

seat.

NOTE Always reconnect the electrical
connection for the two 3rd row seats

when they are refitted in the vehicle.

34

F0V0632

pull the tape (B) fig. 30 behind the

seat backrests and fold the seats and

the backrests forwards;

position the head restraint using the

openings under the cushion to insert

the rods;

push the lever as indicated in fig. 35;

remove the seat from the

attachments on the floor.

35

F0V0206

3rd ROW SEAT

REPOSITIONING

Proceed as follows:

attach the hooks to the floor fig. 36;

36

F0V0207

push the lever as illustrated in fig. 35

and pull it to make sure that the seat is

still correctly secured;

identify the electric connection of the

seat constrained by the elastic tape

fig. 34 present in the left side zone (for

the left seat) or in the right side zone

(for the right seat) of the backrest;

pull the elastic tape fig. 34 and

remove the electric connection from

the seat;

extend the wiring exiting from the

seat to the connection of the vehicle

located in the left side zone (for the left

seat) or the right side zone (for the right

seat) fig. 37;

connect the connection of the seat

(A) to the connection on vehicle and

turn the ring present on the seat

connection clockwise (until it locks);

37

F0V0634

withdraw the head restraint under the

cushion;

fold the cushion and the backrest

over;

reposition the head restraint;

reposition the rolling curtain in its

housing.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

22

WARNING Make sure that the seat is

properly secured to the fastenings on

the floor and that the lever (A) fig. 30 is

tightened (red band not visible).

FRONT BENCH

(for versions/markets, where provided)

16)

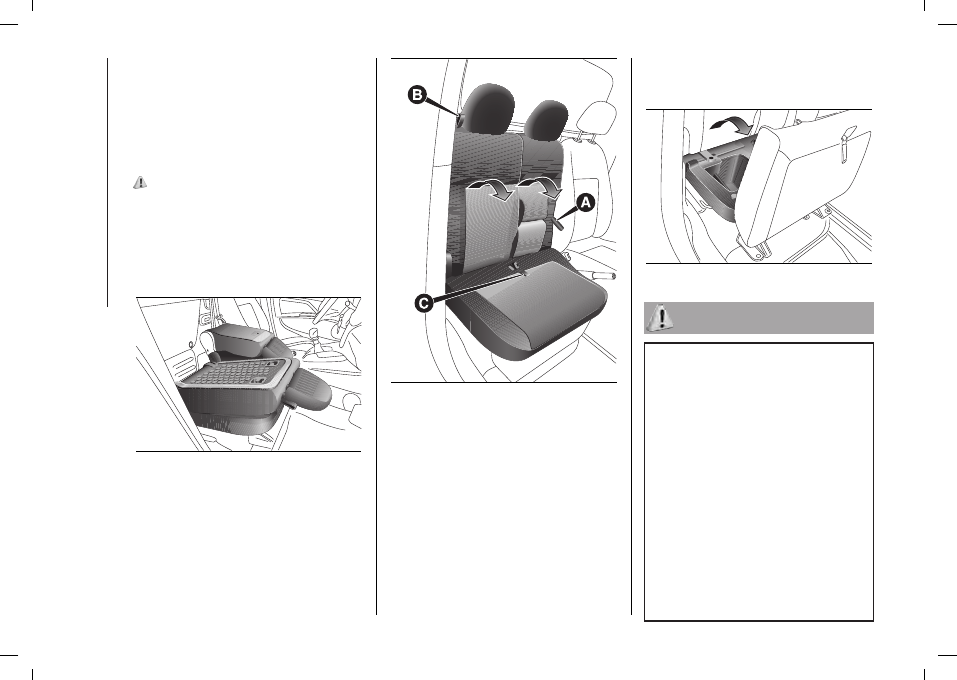

Some versions feature a front bench

with central and side passenger

backrests that fold down to a table.

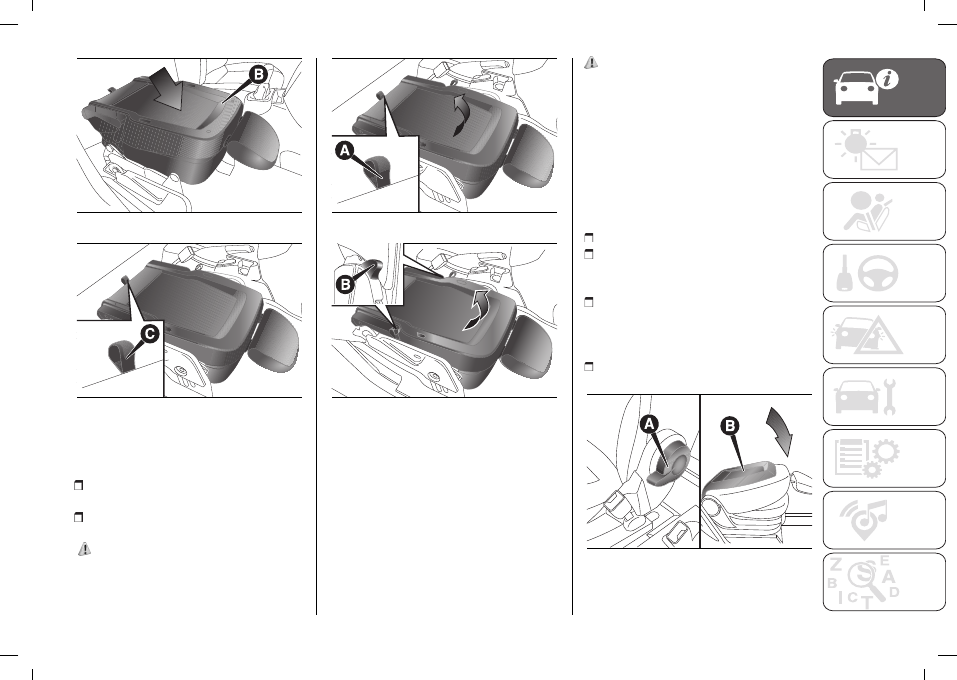

To fold the backrests, pull the tabs (A)

or (B) fig. 39 to recline the central or

side backrest portion fig. 38.

38

F0V0551

39

F0V0550

The central backrest features a

retaining clip that can be used to hold

documents.

WARNING Before folding down

the central backrest, you need to

completely lower the head restraint to

prevent it from interfering with the gear

lever in certain driving conditions.

By pulling the tab (C) fig. 39 you can lift

the single central and side place seat to

access an object compartment fig. 40.

40

F0V0552

16)

All adjustments must be made with the

vehicle stationary.

17)

After releasing the adjustment lever,

always check that the seat is locked on

the guides by trying to move it back and

forth. If it is not locked, the seat may move

unexpectedly and make you lose control of

the vehicle.

18)

Close the dashboard console before

folding the retractable front passenger seat

to avoid damage.

19)

When the passenger seat is folded

away, the space created cannot be used

for loading. When the vehicle is in motion,

you are therefore advised to remove or

secure any objects that might interfere with

the driver.

20)

If there is no partition between the cab

and the load compartment, tall objects

or packages may take up part of the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

23

passenger area. Make sure that these

items are well secured by using the

available hooks and that they cannot

interfere with the driver.

21)

Close the dashboard console before

folding the front passenger seat to form a

table to avoid damage.

22)

While travelling, before using the third

row seats, make sure that the second

row seats are in running position and well

anchored (see the specific label fig. 31).

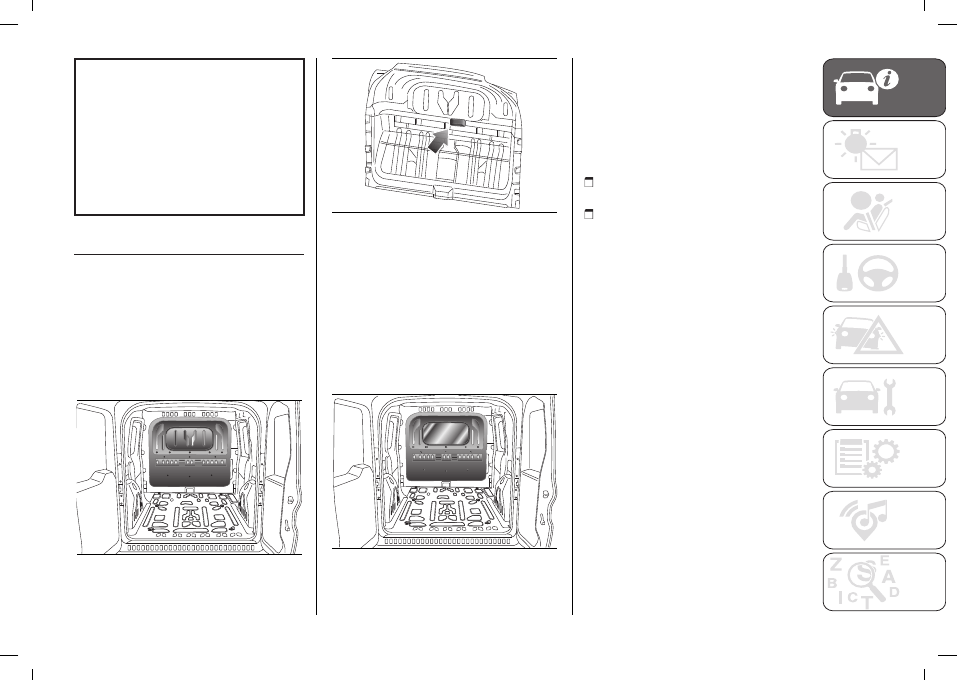

PARTITIONS

FIXED PANEL PARTITION

(for versions/markets, where provided)
Separates the passenger area from the

load compartment fig. 41.
For versions fitted with three-seater

front bench seat, the guard has the

retractor fig. 42 for the central rear seat

belt.

41

F0V0102

42

F0V0620

FIXED GLAZED

PARTITION

(for versions/markets, where provided)
This has a central window so you can

keep an eye on your load fig. 43.
For versions fitted with three-seater

front bench seat, the guard has the

retractor fig. 42 for the central rear seat

belt.

43

F0V0103

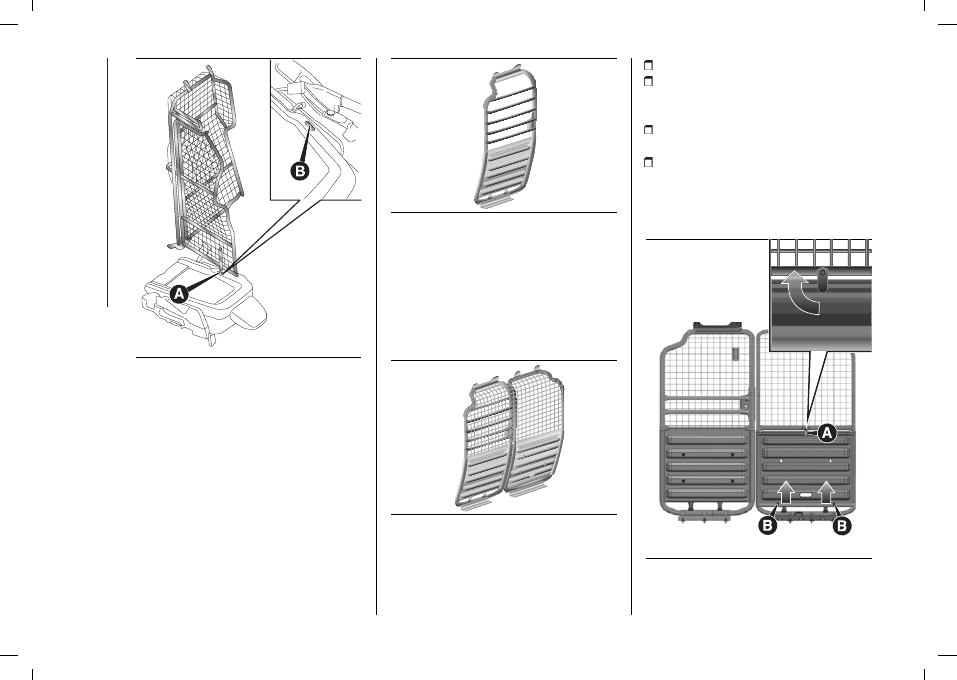

SPLIT ROTATING

PARTITION

(for versions/markets, where provided)
Should it be necessary to transport

long, bulky loads, the passenger side

panel can be removed and fixed to the

driver’s side, as follows fig. 44:

lay the foldaway passenger seat flat

(see previous pages);

from inside the load compartment,

rotate the locking hook, remove the

panel, releasing it from the 4 passenger

side pins, and fit the panel on the

driver’s side pins (B), then rotate

locking hook (A).
To put the partition back in its normal

position, follow the same procedure in

reverse.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

KNOWING YOUR VEHICLE

24

44

F0V0219

DRIVER’S SIDE TUBULAR

PARTITION

(for versions with 3-seater bench)
On versions with 3-seater bench there

is a fixed ladder fig. 45 that protects

the driver if the load transported is

unstable.

45

F0V0577

PARTITION WITH

COMPLETE GRILLE

(for versions/markets, where provided)
On versions with 3-seater bench, a

complete partition may be requested

fig. 46 to protect all occupants of the

vehicle.

46

F0V0578

If long loads need to be transported,

the passenger side panel can be

dismantled and placed over the driver

side panel, proceeding as follows:

fold the passenger seat away;

from inside the load compartment,

rotate the locking hook (A) fig. 47 90

°

anticlockwise;

raise the panel, releasing it from the

pins (B) fig. 47;

arrange the panel, placing it over that

on the driver side, aligning the holes

(C) fig. 48 on the removed panel with

the locking pins (D) fig. 48 on the driver

side panel.

47

F0V0602

-------------------------------------------------------------------------------------------------------------------------------------------------------------

25

48

F0V0603

49

F0V0604

WARNING Do not place loads on the

rotated panel fig. 49 and do not leave

the panel in rotated position to avoid

damage.

HEAD RESTRAINTS

FRONT

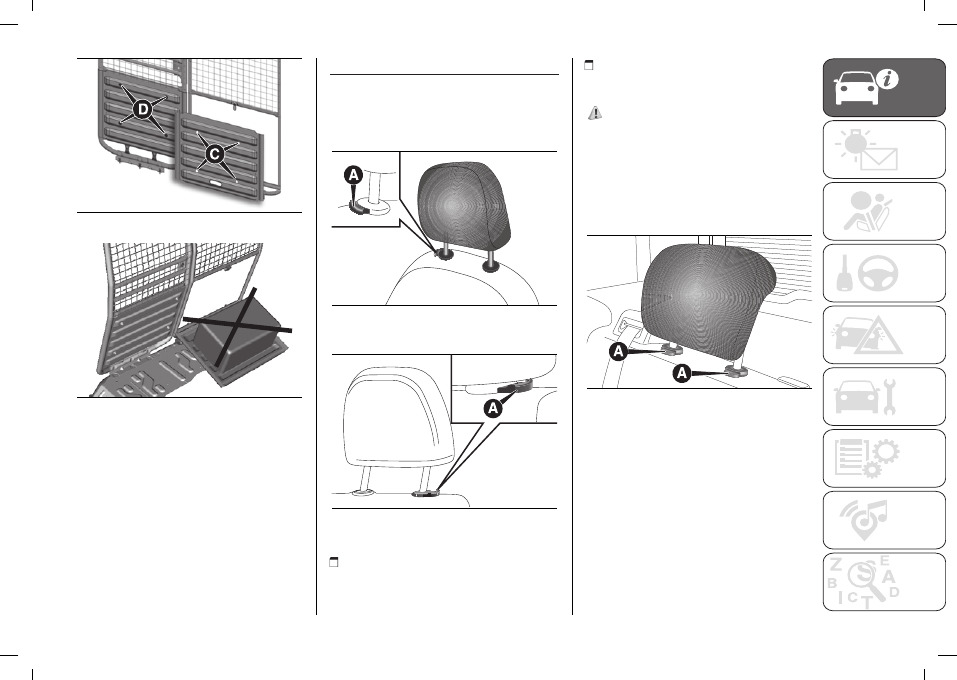

The head restraints are height-

adjustable and lock into the desired

position automatically.

50

F0V0105

Front bench version fig. 51;

51

F0V0553

Adjustment

upward adjustment: raise the head

restraint until it clicks into place.

downward adjustment: press button

(A) fig. 50-fig. 51and lower the head

restraint.

23) 24)

REAR

(for versions/markets, where provided)
To use them, lift them up.
To put the headrests away, press

buttons (A)fig. 52 and push them down

into the backrest.

52

F0V0119

To extract the head restraints, raise

them until you hear the click (which

indicates they are in the position of

use).

WARNING If the rear seats are used,

always set the head restraints in the

"completely raised" position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 1 2 ..

///////////////////////////////////////
