Fiat 500 Gucci (2012 year). Manual

Front/Rear Side Marker Lamps

1. Remove portion of the wheel liner to allow hand
access to side marker lamp.

2. Rotate the bulb socket counterclockwise, and remove
the bulb and socket assembly from the housing.

3. Pull the bulb from the socket and insert the replace-
ment bulb.

4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.

5. Reinstall the wheel liner

Rear Tail, Stop, Backup And Turn Signal Lamps

1. Open the liftgate.

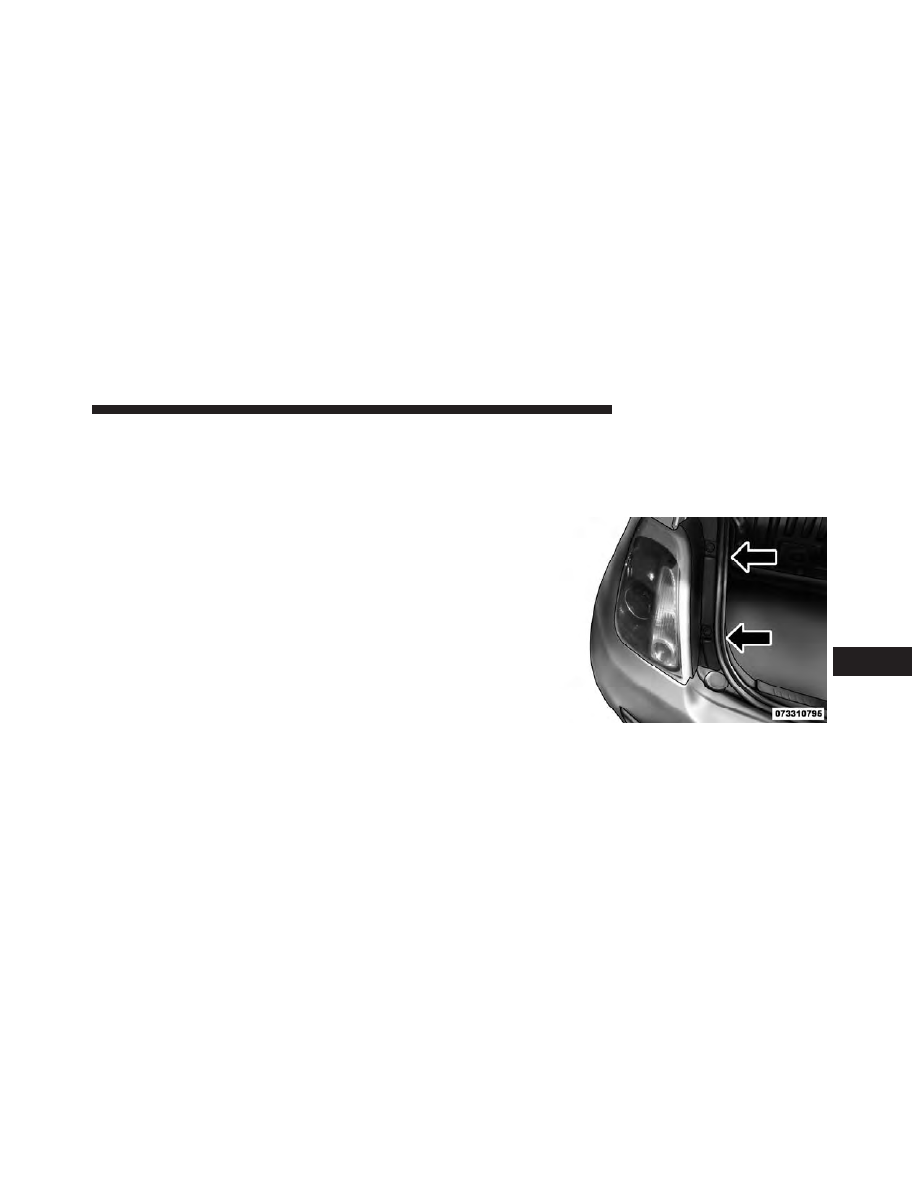

2. Remove the two screws and remove the tail lamp
assembly.

MAINTAINING YOUR VEHICLE

341

3. Unsnap backplate and separate from the lamp hous-
ing.

4. Remove the tail, stop, or turn signal bulbs by pushing
them slightly and turning counter-clockwise.

5. Remove the backup lamp bulb by pulling straight out.

6. Replace lamps as required and reinstall lamp.

Center High Mounted Stop Lamp (CHMSL)

1. Remove the two guard caps and the two fastening
screws.

2. Remove the center high mounted stop lamp assembly.

3. Disconnect the electric connector.

4. Press the retaining device and open the bulb holder.

5. Remove the snap-fitted bulb to be replaced and re-
place it.

6. Close the back cap locking it properly.

7. Reinstall the two fastening screws and reinstall the
guard caps.

342

MAINTAINING YOUR VEHICLE

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)

10.5 Gallons

40 Liters

Engine Oil with Filter
1.4 Liter Engine

4 Quarts

4 Liters

Cooling System
1.4 Liter Engine (MOPAR

威 Antifreeze/Engine Coolant

10 Year/152,000 Mile Formula or equivalent) — with Manual
Transmission

4.6 Quarts

4.4 Liters

1.4 Liter Engine (MOPAR

威 Antifreeze/Engine Coolant

10 Year/152,000 Mile Formula or equivalent) — with Auto-
matic Transmission

5.8 Quarts

5.5 Liters

MAINTAINING YOUR VEHICLE

343

FLUIDS, LUBRICANTS, AND GENUINE PARTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

MOPAR

威 Antifreeze/Coolant 10 Year/152,000 Mile Formula OAT (Or-

ganic Additive Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS-12106.

Engine Oil

Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.

Engine Oil Filter

MOPAR

威 Engine Oil Filter or equivalent.

Spark Plugs

DCPR7E-N-10 (Gap 0.040 in [1.02 mm])

Fuel Selection

87 Octane Acceptable — 91 Octane Recommended

344

MAINTAINING YOUR VEHICLE

Chassis

Component

Fluid, Lubricant, or Genuine Part

Manual Transmission – If Equipped MOPAR

威 C635 DDCT/MTX Transmission Fluid

Automatic Transmission – If
Equipped

MOPAR

威 AW-1 Transmission Fluid

Brake Master Cylinder

MOPAR

威 DOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake

fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.

MAINTAINING YOUR VEHICLE

345

MAINTENANCE SCHEDULES

CONTENTS

䡵 Maintenance Schedule . . . . . . . . . . . . . . . . . . 348

▫ Required Maintenance Intervals . . . . . . . . . . 349

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULE

The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.

The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.

Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).

NOTE:

• The oil change indicator message will not monitor the

time since the last oil change. Change your vehicles oil
if it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.

• Change your engine oil more often if you drive your

vehicle off-road for an extended period of time.

• Under no circumstances should oil change intervals

exceed 8,000 miles (13,000 km) or 6 months, whichever
comes first.

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by refer-
ring to the steps described under “Electronic Vehicle Infor-
mation Center (EVIC)/Change Engine Oil” in “Under-
standing Your Instrument Panel” for further information.

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

348

MAINTENANCE SCHEDULES

At Each Stop For Fuel

• Check the engine oil level about five minutes after a

fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.

• Check the windshield washer solvent and add if

required.

Once A Month

• Check tire pressure and look for unusual wear or

damage.

• Inspect the battery and clean and tighten the terminals

as required.

• Check the fluid levels of the engine coolant reservoir

and brake master cylinder, and add as needed.

• Check all lights and other electrical items for correct

operation.

At Each Oil Change

• Change the engine oil filter.
• Inspect the brake hoses and lines.

CAUTION!

Failure to perform the required maintenance items
may result in damage to the vehicle.

Required Maintenance Intervals

Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

349

8,000 Miles (13,000 km) or
6 Months Maintenance Service
Schedule

Included in the Maintenance Program

❏ Change the engine oil and engine oil fil-

ter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
8,000 miles (13 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

16,000 Miles (26,000 km) or 12 Months Maintenance Service
Schedule

Included in the Maintenance Program

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

16,000 miles (26 000 km).

❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the en-

gine air cleaner filter; replace if necessary.

❏ Inspect exhaust system.

❏ Replace cabin filter.

❏ Clean and lube sun roof tracks.

❏ Inspect brake linings.

❏ Inspect CV joints.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

350

MAINTENANCE SCHEDULES

24,000 Miles (39,000 km) or
18 Months Maintenance
Service Schedule

Included in the Maintenance Program

❏ Change the engine oil and engine oil fil-

ter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
24,000 miles (39 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

351

32,000 Miles (52,000 km) or 24 Months Maintenance Service Schedule

Included in the Maintenance Program

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 32,000 miles (52 000 km).

❏ Inspect exhaust system.

❏ Replace the spark plugs.

❏ Replace the engine air cleaner filter.

❏ Replace cabin filter.

❏ Clean and lube sun roof tracks.

❏ Check and adjust hand brake.

❏ Inspect brake linings.

❏ Inspect CV joints.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for damage, wear, improper looseness or end play; re-

place if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

352

MAINTENANCE SCHEDULES

40,000 Miles (65,000 km) or
30 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
40,000 miles (65 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

48,000 Miles (78,000 km) or 36 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

48,000 miles (78 000 km).

❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the

engine air cleaner filter; replace if necessary.

❏ Inspect exhaust system.

❏ Replace cabin filter.

❏ Clean and lube sun roof tracks.

❏ Inspect brake linings.

❏ Inspect CV joints.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

353

56,000 Miles (91,000 km) or
42 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
56,000 miles (91 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

64,000 Miles (104,000 km) or 48 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

64,000 miles (104 000 km).

❏ Inspect exhaust system.

❏ Replace the spark plugs.

❏ Replace the engine air cleaner filter.

❏ Replace cabin filter.

❏ Clean and lube sun roof tracks.

❏ Check and adjust hand brake.

❏ Inspect brake linings.

❏ Inspect CV joints.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

354

MAINTENANCE SCHEDULES

72,000 Miles (117,000 km) or
54 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
72,000 miles (117 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

80,000 Miles (130,000 km) or 60 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

80,000 miles (130 000 km).

❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the

engine air cleaner filter; replace if necessary.

❏ Inspect exhaust system.

❏ Replace cabin filter.

❏ Clean and lube sun roof tracks.

❏ Inspect brake linings.

❏ Inspect CV joints.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

MAINTENANCE SCHEDULES

355

88,000 Miles (143,000 km) or
66 Months Maintenance
Service Schedule

❏ Change the engine oil and engine oil

filter.

❏ Rotate the tires, rotate at the first sign of

irregular wear, even if it occurs before
88,000 miles (143 000 km).

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

96,000 Miles (156,000 km) or 72 Months Maintenance Service
Schedule

❏ Change the engine oil and engine oil filter.

❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before

96,000 miles (156 000 km).

❏ Inspect exhaust system.

❏ Replace the spark plugs.

❏ Inspect and replace PCV valve if necessary.

❏ Replace the engine air cleaner filter.

❏ Replace cabin filter.

❏ Clean and lube sun roof tracks.

❏ Check and adjust hand brake.

❏ Inspect brake linings.

❏ Inspect CV joints.

❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all parts for

damage, wear, improper looseness or end play; replace if necessary.

Odometer Reading

Date

Repair Order #

Dealer Code

Signature, Authorized Service Center

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

356

MAINTENANCE SCHEDULES

Fiat 500 Gucci (2012 year). Manual - part 22
