Manual Transmission – If Equipped

Lubricant Selection
Use only the manufacturers recommended transmission
fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further information.

Fluid Level Check
Check the fluid level by removing the fill plug. The fluid
level should be between the bottom of the fill hole and a
point not more than 3/16 in (4.7 mm) below the bottom
of the hole.

Add fluid, if necessary, to maintain the proper level.

Frequency Of Fluid Change
Under normal operating conditions, the fluid installed at
the factory will give satisfactory lubrication for the life of
the vehicle. Fluid changes are not necessary unless lubri-
cant has become contaminated with water.

NOTE:

If contaminated with water, the fluid should be

changed immediately.

Automatic Transmission – If Equipped

The automatic transmission and differential assembly are
contained within a single housing.

The fluid level in the automatic transmission should be
checked whenever the vehicle is serviced. Operation with
an improper fluid level will greatly reduce the life of the
transmission and the fluid.

Selection Of Lubricant
It is important that the proper lubricant is used in the
transmission to assure optimum transmission perfor-
mance. Use only manufacturer’s recommended transmis-
sion fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further informa-
tion. It is important that the transmission fluid be main-
tained at the prescribed level using the recommended

MAINTAINING YOUR VEHICLE

325

fluid. No chemical flushes should be used in any trans-
mission; only the approved lubricant may be used.

Special Additives
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes to aid in detecting fluid
leaks. In addition, avoid using transmission sealers as
they may adversely affect seals.

CAUTION!

Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.

Fluid Level Check
The automatic transmission has no dipstick and is dealer
serviced only.

Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper
maintenance intervals

Appearance Care And Protection From Corrosion

Protection Of Body And Paint From Corrosion
Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make roads
passable in snow and ice and those that are sprayed on
trees and road surfaces during other seasons, are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants,
road surfaces on which the vehicle is operated, extreme
hot or cold weather and other extreme conditions will
have an adverse effect on paint, metal trim, and under-
body protection.

326

MAINTAINING YOUR VEHICLE

The following maintenance recommendations will enable
you to obtain maximum benefit from the corrosion
resistance built into your vehicle.

What Causes Corrosion?
Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.

The most common causes of corrosion are:

• Road salt, dirt and moisture accumulation.
• Stone and gravel impact.
• Insects, tree sap and tar.
• Salt in the air near sea coast localities.
• Atmospheric fallout/industrial pollutants.

Washing

• Wash your vehicle regularly. Always wash your ve-

hicle in the shade using MOPAR

威 Car Wash or a mild

car wash soap, and rinse the panels completely with
clear water.

• If insects, tar or other similar deposits have accumu-

lated on your vehicle, use MOPAR

威 Super Kleen Bug

and Tar Remover or equivalent to remove.

• Use a high quality cleaner wax, such as MOPAR威

Cleaner Wax or equivalent to remove road film, stains
and to protect your paint finish. Take care never to
scratch the paint.

• Avoid using abrasive compounds and power buffing

that may diminish the gloss or thin out the paint
finish.

MAINTAINING YOUR VEHICLE

327

CAUTION!

• Do not use abrasive or strong cleaning materials

such as steel wool or scouring powder, which will
scratch metal and painted surfaces.

• Use of power washers exceeding 1,200 psi

(8 274 kPa) can result in damage or removal of
paint and decals.

Special Care

• If you drive on salted or dusty roads or if you drive

near the ocean, hose off the undercarriage at least once
a month.

• It is important that the drain holes in the lower edges

of the doors, rocker panels and trunk be kept clear and
open.

• If you detect any stone chips or scratches in the paint,

touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.

• If your vehicle is damaged due to a collision or similar

cause which destroys the paint and protective coating,
have your vehicle repaired as soon as possible. The
cost of such repairs is considered the responsibility of
the owner.

• If you carry special cargo such as chemicals, fertilizers,

de-icer salt, etc., be sure that such materials are well
packaged and sealed.

• If a lot of driving is done on gravel roads, consider

mud or stone shields behind each wheel.

• Use MOPAR威 Touch Up Paint or equivalent on

scratches as soon as possible. Your authorized dealer
has touch up paint to match the color of your vehicle.

328

MAINTAINING YOUR VEHICLE

Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome-plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion. To remove
heavy soil, use MOPAR

威 Wheel Cleaner or select a

nonabrasive, non-acidic cleaner. Do not use scouring
pads, steel wool, a bristle brush or metal polishes. Only
MOPAR

威 cleaners or equivalent are recommended. Do

not use oven cleaner. Avoid automatic car washes that
use acidic solutions or harsh brushes that may damage
the wheels’ protective finish.

Stain Repel Fabric Cleaning Procedure – If
Equipped
Stain Repel seats may be cleaned in the following man-
ner:

• Remove as much of the stain as possible by blotting

with a clean, dry towel.

• Blot any remaining stain with a clean, damp towel.

• For tough stains, apply MOPAR威 Total Clean or a mild

soap solution to a clean, damp cloth and remove the
stain. Use a fresh, damp towel to remove soap residue.

• For grease stains, apply MOPAR威 Multi-Purpose

Cleaner or a high quality cleaner, to a clean, damp
cloth and remove the stain. Use a fresh, damp towel to
remove soap residue.

• Do not use any harsh solvents or any other form of

protectants on Stain Repel products.

Interior Care
Use MOPAR

威 Total Clean or equivalent to clean fabric

upholstery and carpeting.

Use MOPAR

威 Total Clean or equivalent to clean vinyl

upholstery.

MOPAR

威 Total Clean or equivalent is specifically recom-

mended for leather upholstery.

MAINTAINING YOUR VEHICLE

329

Your leather upholstery can be best preserved by regular
cleaning with a damp, soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR

威 Total Clean or equivalent. Care should be

taken to avoid soaking your leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean
your leather upholstery. Application of a leather condi-
tioner is not required to maintain the original condition.

WARNING!

Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas, they may cause respiratory harm.

Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.

Plastic is not as scratch resistant as glass and, therefore,
different lens cleaning procedures must be followed.

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.

Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.

Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR

威 Glass Cleaner or any commercial

household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear

330

MAINTAINING YOUR VEHICLE

quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.

Instrument Panel Cover
The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.

Instrument Panel Bezels

CAUTION!

When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.

1. Clean with a wet, soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean, damp rag.

2. Dry with a soft cloth.

MAINTAINING YOUR VEHICLE

331

Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.

If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the seat belts from the
car to wash them. Dry with a soft cloth.

Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.

Convertible Top Care – If Equipped

NOTE:

Lubricate the top rails with Berulub FR 43 every

2000 cycles or if scratching noises due to dust are present.

CAUTION!

Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:

(Continued)

CAUTION! (Continued)

• Avoid high-pressure car washes, as they can dam-

age the top material. Also, increased water pres-
sure may force past the weather strips.

• Remove any standing water from the top and dry

the surface before opening it. Operating the top,
opening a door or lowering a window while the
top is wet may allow water to drip into the
vehicles interior.

• Use care when washing the vehicle, water pressure

directed at the weather strip seals may cause water
to leak into the vehicles interior.

Immediate removal of any contaminant is recommended.
Regular washing of the top will enhance its life and
appearance, and make successive cleanings easier. Do not
subject the top to excessive heat. Frequently vacuum the
top and storage compartment.

332

MAINTAINING YOUR VEHICLE

Washing
Hand washing is highly recommended. Automatic car
washing equipment can damage the top material. If you
must use an automatic car wash, soft cloth systems are
preferred.

CAUTION!

Avoid high-pressure car washes, as they can damage
the top material. Also, increased water pressure may
force water past the weather strips.

General Cleaning
Careful vacuuming of the top before washing is helpful
in removing dust and other foreign particles. Wash in
partial shade instead of direct sun. Wet the entire vehicle
before washing the top. The top should be washed with
a soft, natural bristle scrub brush, and a mild soap
solution such as liquid dishwashing soap. Do not use
detergent.

CAUTION!

Never use an abrasive type cleaner or bleaches.
Cleaners should not contain silicones, organic sol-
vents, petroleum distillates, or plasticizers. Always
wait until the top is thoroughly dry before lowering
it into the storage area.

Scrub in all directions, covering an area of about two
square feet at a time. Avoid heavy scrubbing. Rinse the
entire vehicle with water to remove all soap and dirt from
the top fabric and to prevent streaking on painted and
chrome surfaces. Allow the top to dry before lowering.
Vacuuming the top with a wet/dry shop vacuum will
decrease the top’s drying time, ensure removal of all dirt,
and delete streaks in the material. Multiple cleanings
may be necessary to remove stubborn stains. If stains
persist, contact your local authorized dealer for further
suggestions.

MAINTAINING YOUR VEHICLE

333

FUSES

Interior Fuses

The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.

Cavity

Vehicle

Fuse

Number

Mini

Fuse

Description

F12

7.5 Amp

Brown

Right Low Beam

F32

5 Amp

Tan

Front and Rear
Ceiling Lights
Trunk and Door
Courtesy Lights

F53

5 Amp

Tan

Instrument Panel
Node

F38

20 Amp

Yellow

Central Door Lock-
ing

F36

10 Amp

Red

Diagnostic Socket,
Car Radio, Climate
Control System

F43

20 Amp

Yellow

Bi-Directional
Washer

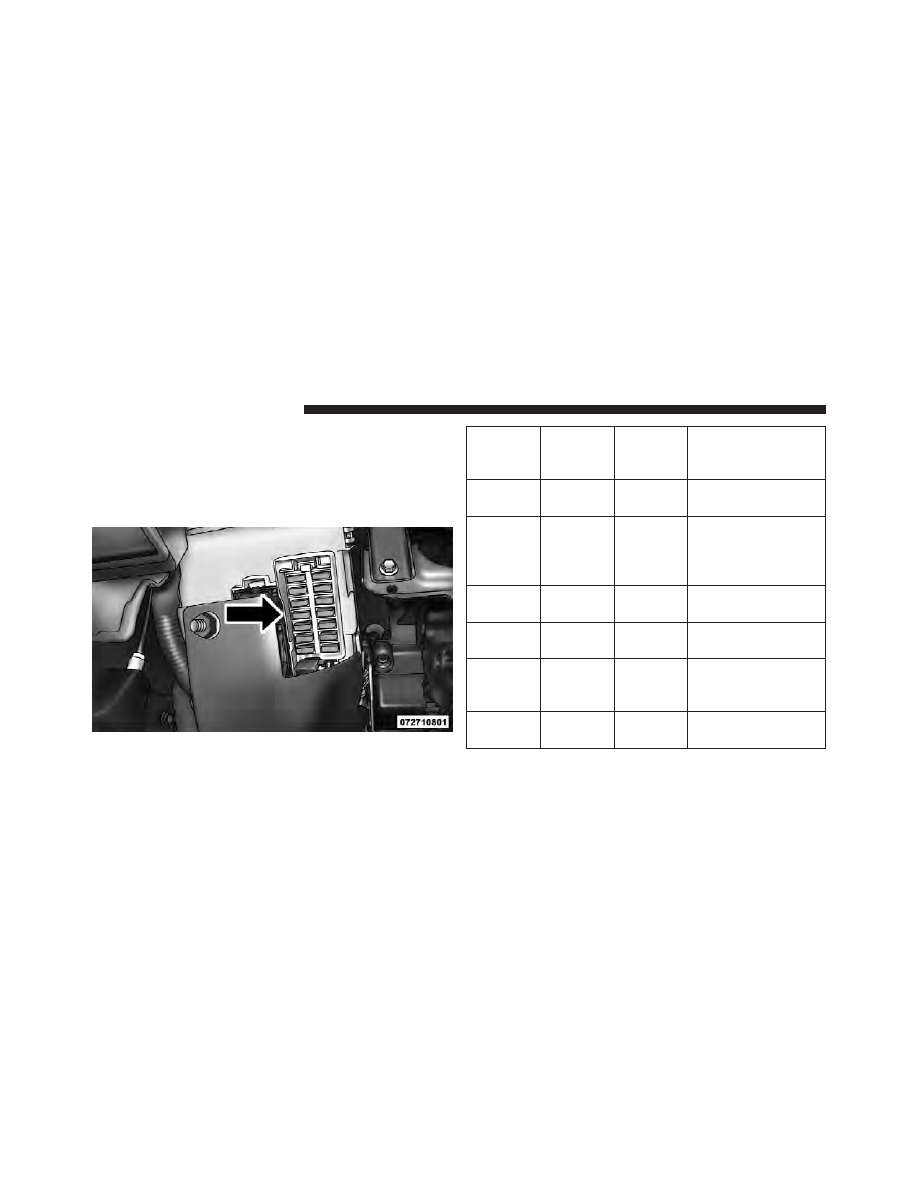

Fuse Panel

334

MAINTAINING YOUR VEHICLE

Cavity

Vehicle

Fuse

Number

Mini

Fuse

Description

F48

20 Amp

Yellow

Passenger Power
Window

F13

7.5 Amp

Brown

Left Low Beam,
Headlamp Leveling

F50

7.5 Amp

Brown

Airbag

F51

5 Amp

Tan

Car Radio Switch,
Climate Control
System, Stop Light,
Clutch

Cavity

Vehicle

Fuse

Number

Mini

Fuse

Description

F37

5 Amp

Tan

Stop Light Switch,
Instrument Panel
Node

F49

5 Amp

Tan

Exterior Mirror,
GPS, Electric Mir-
ror, Parking Sensor

F31

5 Amp

Tan

Ignition, Climate
Control

F47

20 Amp

Yellow

Driver Power Win-
dow

MAINTAINING YOUR VEHICLE

335

Underhood Fuses

The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, press the release tabs and remove the cover.

The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.

Cavity Maxi Fuse

Mini Fuse

Description

F01

60 Amp

Blue

Body Controller

F02

20 Amp

Yellow

Audio Amplifier

F03

20 Amp

Yellow

Ignition Switch

F04

40 Amp

Orange

Anti-Lock Brake
Pump

F05

70 Amp

Tan

Electric Power
Steering

F06

20 Amp

Yellow

Radiator Fan -
Single Speed

F06

30 Amp

Green

Radiator Fan -
Low Speed

F07

40 Amp

Orange

Radiator Fan -
High Speed

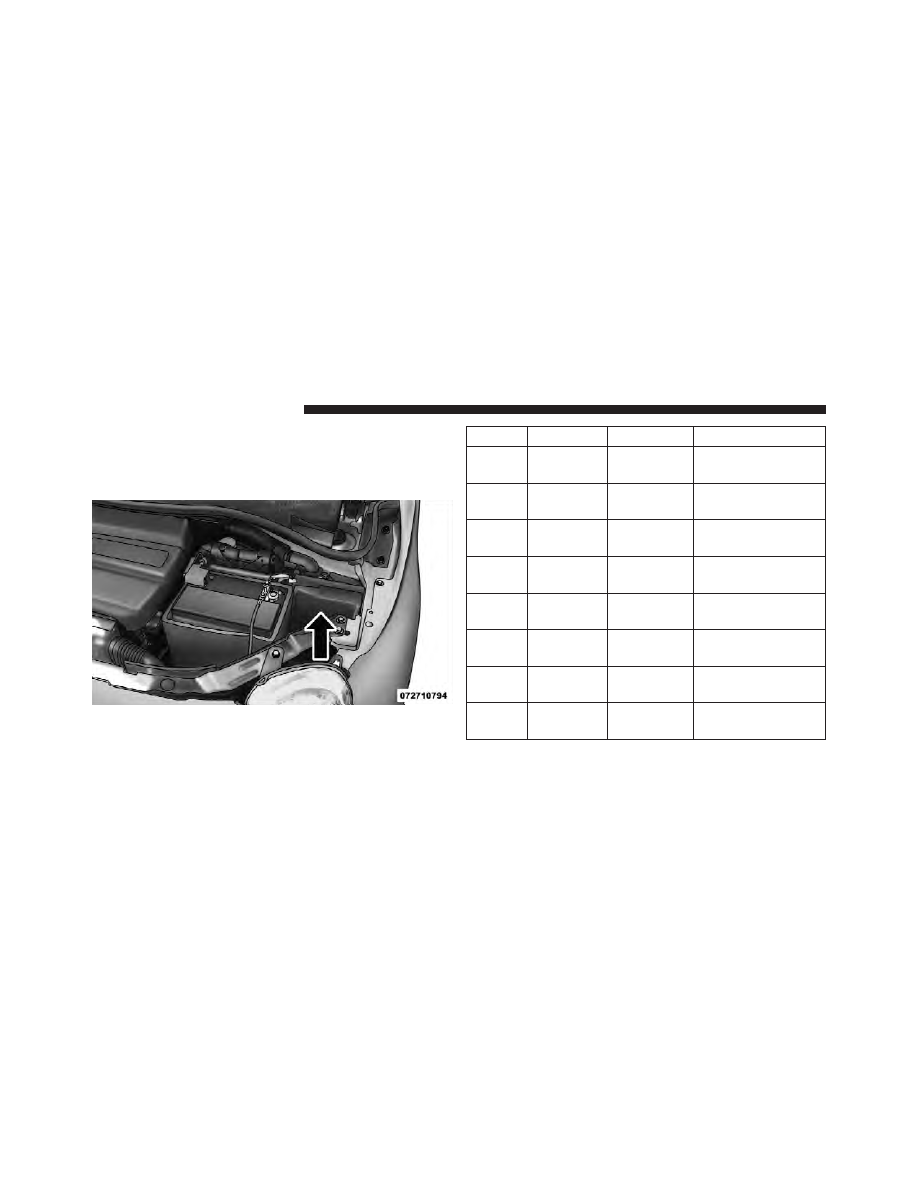

Front Distribution Unit

336

MAINTAINING YOUR VEHICLE

Cavity Maxi Fuse

Mini Fuse

Description

F08

30 Amp

Green

Blower Motor

F09

10 Amp

Red

Powertrain

F10

10 Amp

Red

Horn

F11

15 Amp

Blue

Powertrain

F11

10 Amp

Red

Powertrain (Multi-
air – If Equipped)

F14

5 Amp Tan High beam (Shut-

ter)

F15

15 Amp

Blue

Cigar Lighter

F16

7.5 Amp

Brown

Transmission

Cavity Maxi Fuse

Mini Fuse

Description

F17

25 Amp

White

Powertrain (Multi-
air – If Equipped)

F17

15 Amp

Blue

Powertrain

F18

15 Amp

Blue

Powertrain

F18

5 Amp Tan Powertrain (Multi-

air – If Equipped)

F19

7.5 Amp

Brown

Air Conditioning

F20

15 Amp

Blue

Heated Seats – If
Equipped

F21

15 Amp

Blue

Fuel Pump

F23

20 Amp

Yellow

Anti-Lock Brake
Valves

MAINTAINING YOUR VEHICLE

337

Cavity Maxi Fuse

Mini Fuse

Description

F24

7.5 Amp

Brown

Stability Control
System

F30

15 Amp

Blue

Fog Lamps

F82

30 Amp

Green

Sunroof/
Convertible Top

F84

10 Amp

Red

Transmission

F85

15 Amp

Blue

Rear Defroster,
Heated Mirrors

F87

5 Amp Tan Lights

F90

5 Amp Tan Heated Mirrors

VEHICLE STORAGE

If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.

• Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of

service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

338

MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS

Interior Lights

Bulb Type

Overhead Lamp . . . . . . . . . . . . . . . . . . . . . . . . C5W
Courtesy Lamp . . . . . . . . . . . . . . . . . . . . . . . . W5W

Exterior Lights

Bulb Type

Front Low and High Beam Headlamp. . . . . . . . . HIR2
Front Parking/Daytime Running Lamps. . . . . W21/5W
Front Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . H11
Front Side Marker Lamps . . . . . . . . . . . . . . . . . W3W
Front Turn Signal Lamps . . . . . . . . . . . . . . . . WY21W
Side Direction Lamps . . . . . . . . . . . . . . . . . . . . W5W
Rear Turn Signal Lamps . . . . . . . . . . . . . . . . . PY21W
Rear Side Marker Lamps . . . . . . . . . . . . . . . . . . W3W
Rear Tail and Stop Lamps . . . . . . . . . . . . . . P21W/5W
Rear Backup Lamps . . . . . . . . . . . . . . . . . . . . W16W
Center High Mounted Stop Lamp . . . . . . . . . . . W5W
License Plate Lamps . . . . . . . . . . . . . . . . . . . . . . LED

(See Authorized Dealer)

NOTE:

Numbers refer to commercial bulb types that

can be purchased from your authorized dealer.

If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.

BULB REPLACEMENT

Headlamps

1. Remove the plastic cap from the back of the headlamp
housing.

2. Rotate the bulb counter-clockwise.

3. Remove the bulb and replace as needed.

4. Install the bulb and rotate clockwise to lock in place.

5. Reinstall the plastic cap.

MAINTAINING YOUR VEHICLE

339

Front Turn Signal, Parking And Daytime Running
Lamps

1. Turn the steering wheel completely to the left or right.

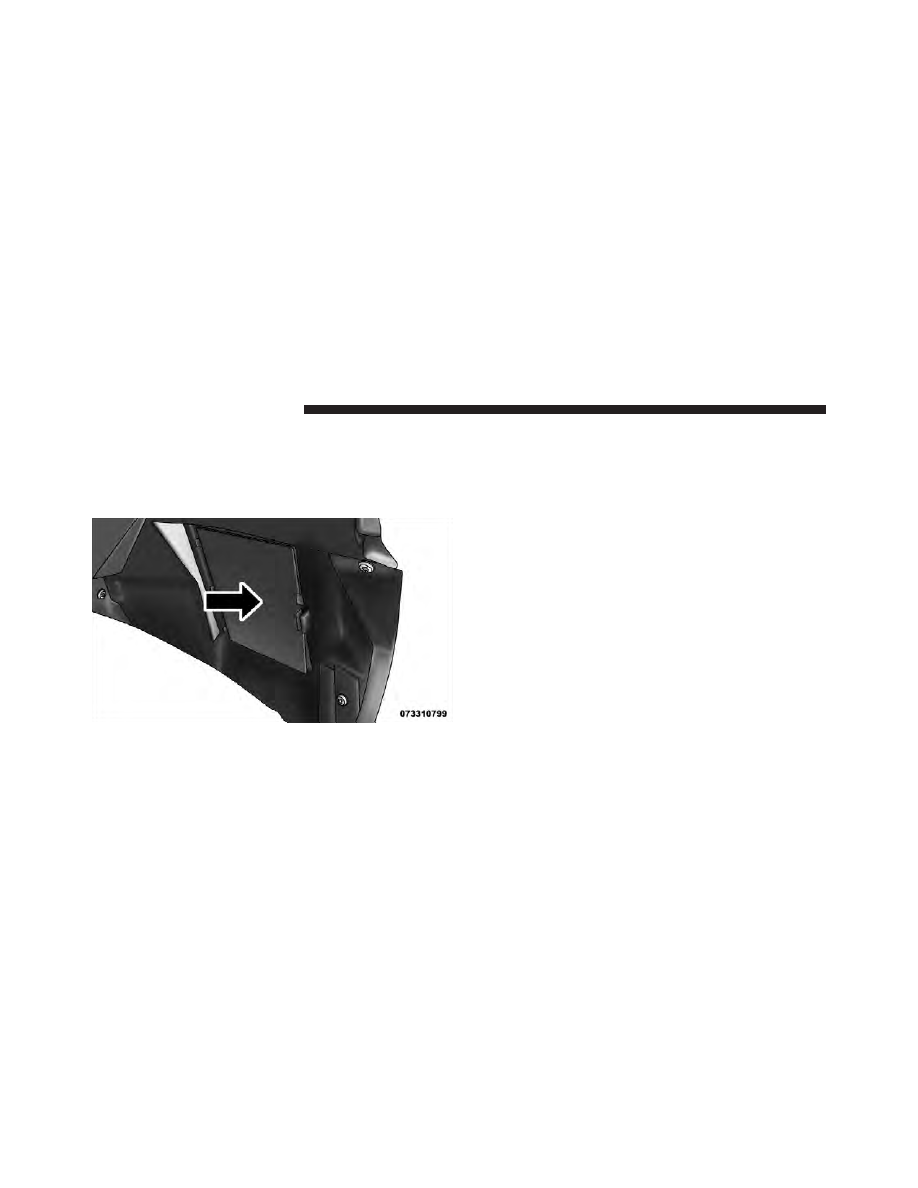

2. Open the wheel housing access door.

3. Remove the plastic cap from the back of the lamp
housing.

4. Rotate bulb/socket counter-clockwise.

5. Remove the bulb and replace as needed.

6. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.

7. Reinstall the plastic cap.

Front Fog Lamps

To replace the front fog lights, see your authorized dealer.

340

MAINTAINING YOUR VEHICLE

Fiat 500 Gucci (2012 year). Manual - part 21
