Selection Of Next/Previous Folder
Press the

button to select a next folder or the

button to select the previous folder. The display will
show the number of the folder.

The folders are selected cyclically. The first folder is
selected after the last folder and vice versa.

If no other folder/track is selected in the next 2 seconds,
the first track on the new folder will be played.

At that moment selected the last track in the folder is
playing, the next folder will be played.

Structure Of The Folders
The radio with MP3 player:

• Recognizes only the folders that effectively contain

MP3 format files

• If the MP3 files on a CD-ROM are structured in

sub-folders their structure is compressed to a single
level structure, where the sub-folders are taken to the
level of the main folders.

Troubleshooting

General

Sound Volume Low
The Fader function should be adjusted to the values “F”
(front) only to prevent the reduction in radio output
power and the cancelling of the volume if the Fader level
adjustment is equal to R+9.

Source Can Not Be Selected
Nothing has been loaded. Load the CD or the MP3 CD to
be listened to.

UNDERSTANDING YOUR INSTRUMENT PANEL

181

CD Player

The Cd Does Not Play
The CD is dirty. Clean the CD.

The CD is scratched. Try using another CD.

The Cd Can Not Be Loaded
A CD is already loaded. Press the

button and remove

the CD.

MP3 File Reading

Track Skips While Playing Mp3 Files
The CD is scratched or dirty.

The Duration Of The Mp3 Tracks Is Not Correctly
Displayed.
In some cases (due to the recording mode) the duration of
the MP3 tracks can be displayed incorrectly.

Operating Instructions — Hands-Free Phone (If
Equipped)
Refer to the appropriate “BLUE&ME™ User’s Manual”
for further information.

Personal/Portable Navigation Device (PND) — If
Equipped
A Personal/Portable Navigation Device (PND) is avail-
able as optional equipment for this vehicle, refer to the
Navigation User Guide for further information.

iPod

姞

/USB/MEDIA PLAYER CONTROL — IF

EQUIPPED

This feature allows an iPod

威 or external USB device to be

plugged into the USB port, located in the glove compart-
ment.

182

UNDERSTANDING YOUR INSTRUMENT PANEL

Refer to the appropriate Blue&Me™ radio User’s Manual
for iPod

威 or external USB device support capability.

STEERING WHEEL AUDIO CONTROLS

The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.

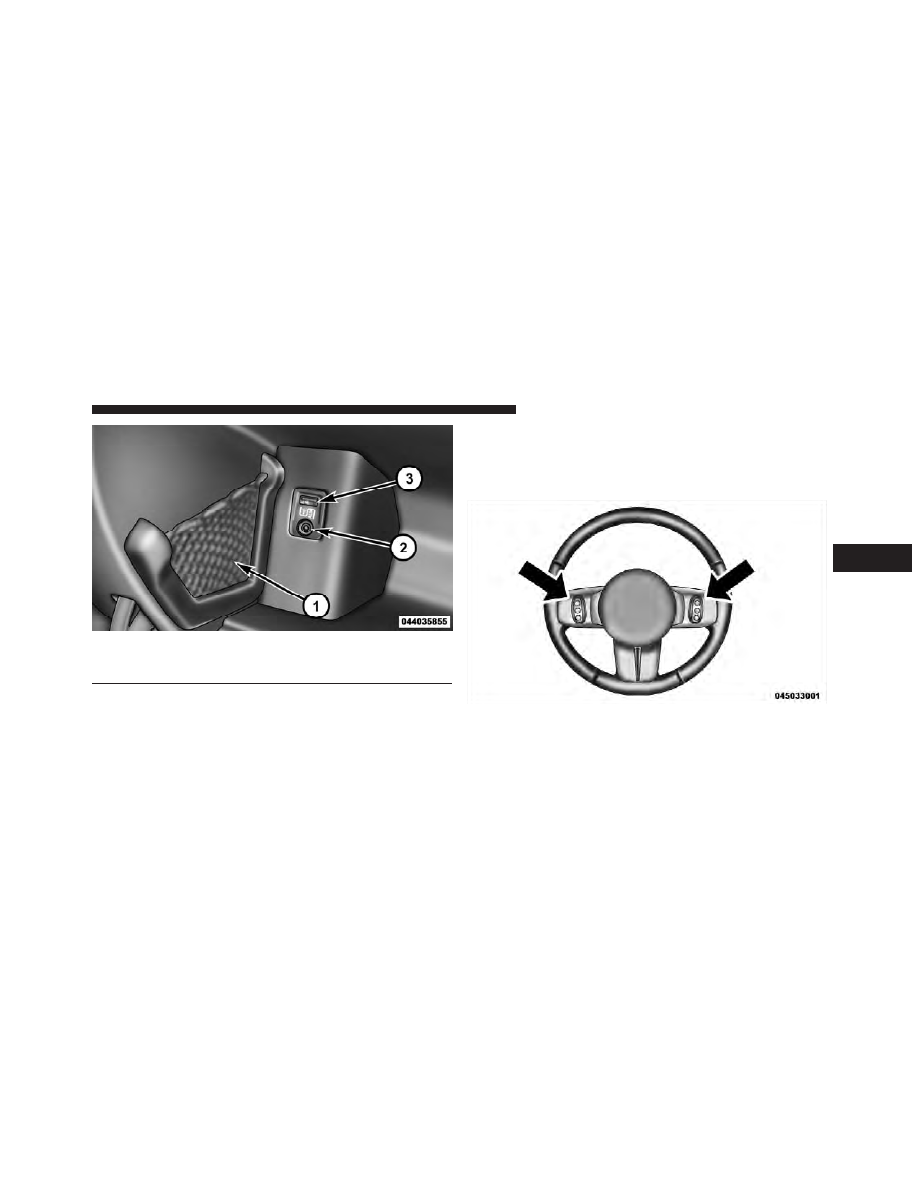

1 — iPod

威 Or External USB Device Holder

2 — Cable Jack
3 — USB Connector

Remote Sound System Controls (Back View Of Steering

Wheel)

UNDERSTANDING YOUR INSTRUMENT PANEL

183

The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.

Pressing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
CD/AUX/Media Player, etc.) and can also be used to
select/enter an item while scrolling through menu.

The left-hand control is a rocker-type switch with a
pushbutton in the center. The function of the left-hand
control is different depending on which mode you are in.

The following describes the left-hand control operation in
each mode.

Radio Operation

Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.

The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset pushbutton.

CD Player Operation

Pressing the top of the switch once will go to the next
track on the CD. Pressing the bottom of the switch once
will go to the beginning of the current track, or to the
beginning of the previous track if it is within one second
after the current track begins to play.

If you press the switch up or down twice, it plays the
second track; three times, it will play the third, etc.

184

UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Instructions — Hands-Free Phone (If
Equipped)

Refer to the appropriate Blue&Me™ User’s Manual for
further information.

CD/DVD DISC MAINTENANCE

To keep a CD/DVD in good condition, take the following
precautions:

1. Handle the disc by its edge; avoid touching the
surface.

2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.

3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.

4. Do not use solvents such as benzene, thinner, cleaners,
or anti-static sprays.

5. Store the disc in its case after playing.

6. Do not expose the disc to direct sunlight.

7. Do not store the disc where temperatures may become
too high.

NOTE:

If you experience difficulty in playing a particu-

lar disc, it may be damaged (i.e., scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have protection encoding. Try a known
good disc before considering disc player service.

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation.

UNDERSTANDING YOUR INSTRUMENT PANEL

185

CLIMATE CONTROLS

The air conditioning and heating system is designed to
make you comfortable in all types of weather.

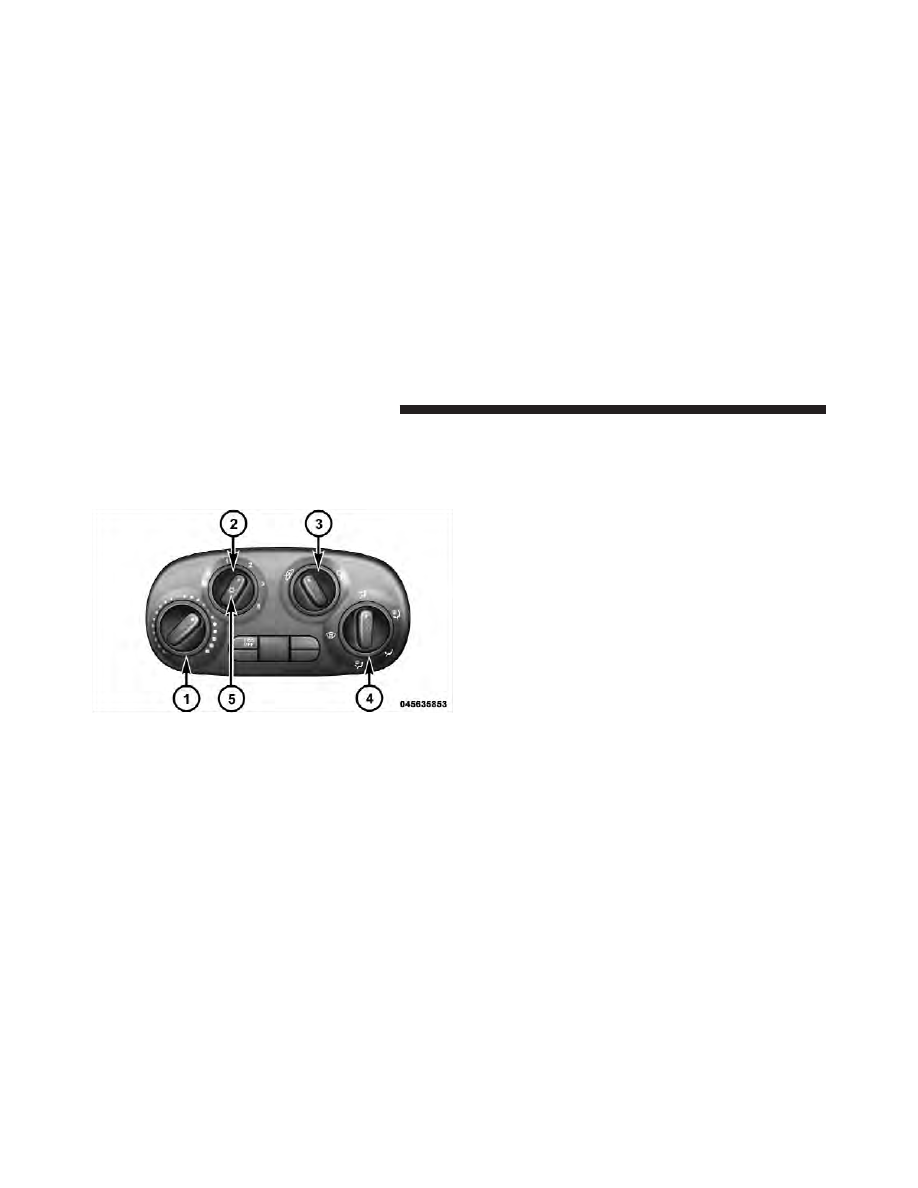

Manual Heating And Air Conditioning

The Manual Climate controls consist of a series of rotary
dials and one inner push knob.

1. Temperature Control
Rotate this control to regulate the temperature of the air
inside the passenger compartment. Rotating the dial to
the left into the blue area of the scale indicates cooler
temperatures, while rotating to the right into the red area
indicates warmer temperatures.

2. Blower Control
Rotate this control to regulate the amount of air forced
through the ventilation system in any mode. The blower
speed increases as you move the control to the right from
the “0” (OFF) position. There are four blower speeds.

3. Recirculation Control
Rotate this control to change the system between recir-
culation mode and outside air mode. Recirculation can be
used when outside conditions such as smoke, odors,
dust, or high humidity are present.

Manual Temperature Control (MTC)

186

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

• Continuous use of the Recirculation mode may make

the inside air stuffy and window fogging may occur.
Extended use of this mode is not recommended.

• The use of the Recirculation mode in cold or damp

weather could cause windows to fog on the inside,
because of moisture buildup inside the vehicle. Select
the outside air position for maximum defogging.

• Recirculation can be used in all modes except for

Defrost and Mix.

• The A/C can be deselected manually without disturb-

ing the mode control selection.

4. Mode Control
Rotate this control to change the system between Modes
(Panel, Bi-Level, Floor, Mix, Defrost).

• Panel

Air is directed through the outlets in the instrument
panel. These outlets can be adjusted to direct airflow.

NOTE:

The center instrument panel outlets can be

aimed so that they are directed toward the rear seat
passengers for maximum airflow to the rear.

• Bi-Level

Air is directed through the panel and floor outlets.

• Floor

Air is directed through the floor outlets with a
small amount flowing through the defrost and side

window demister outlets.

• Mix

Air is directed through the floor, defrost, and side
window demister outlets. This setting works best in
cold or snowy conditions that require extra heat to

UNDERSTANDING YOUR INSTRUMENT PANEL

187

the windshield. This setting is good for maintaining
comfort while reducing moisture on the windshield.

• Defrost

Air is directed through the windshield and side
window demister outlets. Use this mode with

maximum blower and temperature settings for best
windshield and side window defrosting.

NOTE:

The air conditioning compressor operates in Mix

or Defrost, even if the Air Conditioning (A/C) button is
not pressed. This dehumidifies the air to help dry the
windshield. To improve fuel economy, use these modes
only when necessary.

5. A/C Button
Press this button to engage the Air Conditioning. A light
will illuminate when the Air Conditioning system is
engaged.

MAX A/C
For maximum cooling, use the A/C and recirculation
modes at the same time.

ECONOMY MODE
If economy mode is desired, press the A/C button to turn
OFF the indicator light and the A/C compressor. Then,
move the temperature control to the desired temperature.

188

UNDERSTANDING YOUR INSTRUMENT PANEL

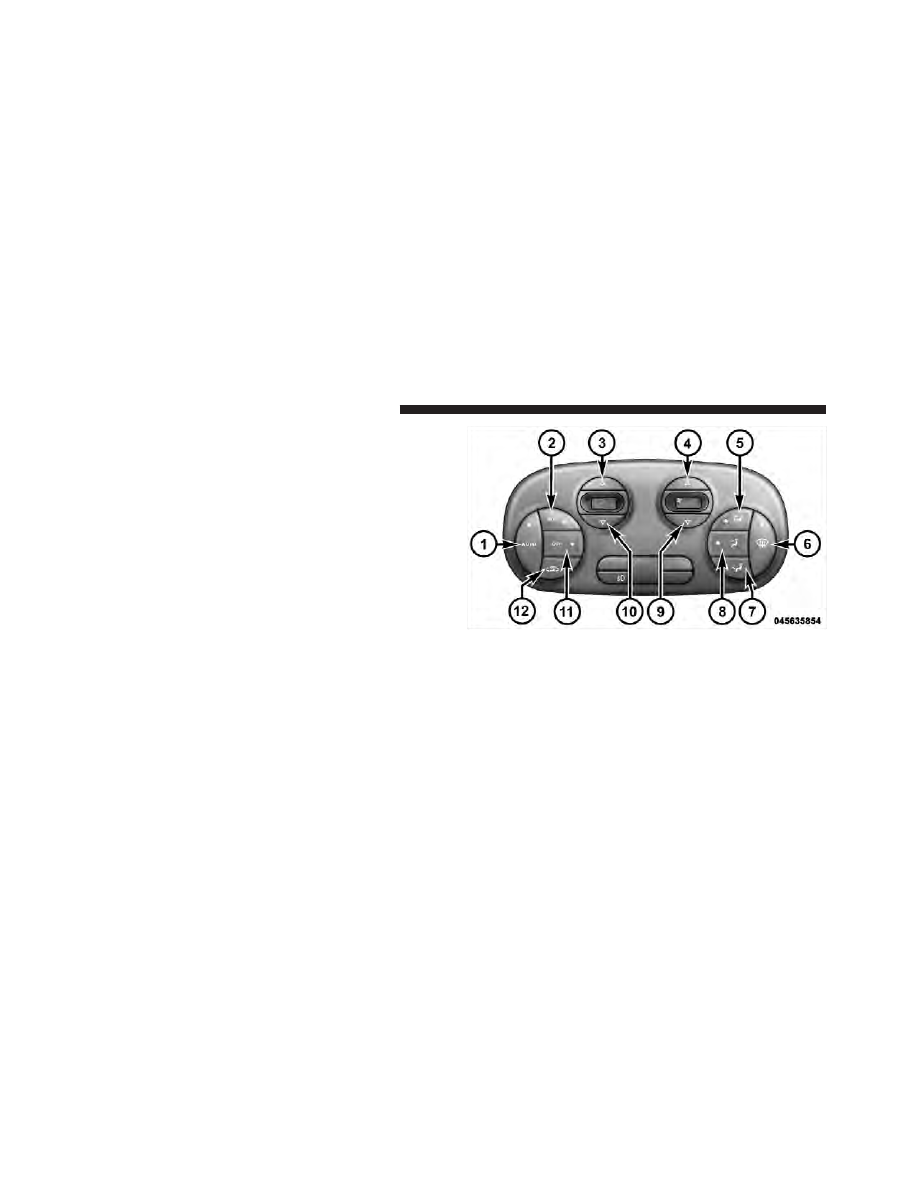

Automatic Temperature Control (ATC) — If
Equipped

• The Automatic Temperature Control (ATC) allows the

driver to select individual comfort settings.

• The system provides set-and-forget operation for op-

timum comfort and convenience.

• The system can be controlled manually, if desired.

The ATC system automatically maintains the interior
comfort level desired by the driver and passenger.

1. AUTO Temperature Control (ATC) Button
Controls airflow, temperature, distribution, and air recir-
culation automatically. Press and release to select. Per-
forming this function will cause the ATC to switch
between manual mode and automatic modes. Refer to
“Automatic Operation” for more information.

Automatic Temperature Control (ATC)

190

UNDERSTANDING YOUR INSTRUMENT PANEL

2. A/C Button
Press and release to change the current Air Conditioning
(A/C) setting. Performing this function will cause the
ATC to switch into manual mode.

3. Temperature Control Up Button
Provides temperature up control. Push the button for
warmer temperature settings.

4. Blower Control Up Button
There are 12 blower speeds. The blower speed increases
as you press this button. Performing this function will
cause the ATC to switch into manual mode.

5. Mix Mode
Air is directed through the floor, defrost, and side win-
dow demister outlets. This setting works best in cold or
snowy conditions that require extra heat to the wind-
shield. This setting is good for maintaining comfort while
reducing moisture on the windshield. Performing this
function will cause the ATC to switch into manual mode.

6. Front Defrost
Press and release to change the current setting. The
indicator illuminates when ON. The blower will auto-
matically default to medium-high if the Defrost mode is
selected. Performing this function will cause the ATC to
switch into manual mode.

7. Floor Mode
Air is directed through the floor outlets with a small
amount flowing through the defrost and side window
demister outlets.

8. Panel Mode
Air is directed through the outlets in the instrument
panel. These outlets can be adjusted to direct airflow.
Performing this function will cause the ATC to switch
into manual mode.

NOTE:

The center instrument panel outlets can be

aimed so that they are directed toward the rear seat
passengers for maximum airflow to the rear.

UNDERSTANDING YOUR INSTRUMENT PANEL

191

9. Blower Control Down Button
There are 12 blower speeds. The blower speed decreases
as you press this button. Performing this function will
cause the ATC to switch into manual mode.

10. Temperature Control Down Button
Provides temperature down control. Push the button for
cooler temperature settings.

11. Climate Control ON/OFF Button
Press and release to turn the Climate Control ON or OFF.

12. Recirculation Control Button
Press and release to change the current setting. The
indicator illuminates when ON.

NOTE:

• When in Defrost mode, the Recirculation button will

flash if pressed. This indicates that you can not pro-
ceed to this mode due to fogging risk.

• When the Auto indicator is on and the Recirculation

indicator is off, the Recirculation is in AUTO mode. If
the Recirculation indicator is on, the Recirculation
setting is manual and Recirculation is on.

Automatic Operation

1. Press the AUTO button on the Automatic Temperature
Control (ATC) Panel, the indicator will illuminate when
on.

2. Next, adjust the temperature you would like the
system to maintain by adjusting the temperature control
buttons. Once the desired temperature is displayed, the
system will achieve and automatically maintain that
comfort level.

3. When the system is set up for your comfort level, it is
not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.

192

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts
the temperature, mode and fan speed to provide
comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric

units by selecting the US/M customer-programmable
feature. Refer to the “Electronic Vehicle Information
Center (EVIC) — Customer-Programmable Features”
in this section of the manual.

To provide you with maximum comfort in the Automatic
mode during cold start-ups, the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into AUTO mode.

Manual Operation
This system offers a full complement of manual override
features.

NOTE:

Each of these features operates independently

from each other. If any feature is controlled manually,
temperature control will continue to operate automati-
cally.

There are 12 fixed blower speeds. Use
the blower control up or down buttons
to regulate the amount of air forced
through the system in any mode you
select. The blower speed increases as
you press or hold the blower control up
button and decreases when you press or
hold the blower control down button.

The blower fan speed can be set to any fixed speed by
pressing the blower control up or down buttons. The fan
will now operate at a fixed speed until additional speeds
are selected. This allows the front occupants to control
the volume of air circulated in the vehicle and cancel the
AUTO mode.

Blower Control

UNDERSTANDING YOUR INSTRUMENT PANEL

193

The operator can also select the direction of the airflow
by selecting one of the following positions.

Panel Mode

Air comes from the outlets in the instrument panel.
Each of these outlets can be individually adjusted to

direct the flow of air. The air vanes of the center outlets
and outboard outlets can be moved up and down or side
to side to regulate airflow direction. There is a shut off
wheel located below the air vanes to shut off or adjust the
amount of airflow from these outlets.

Floor Mode

Air comes from the floor outlets. A slight amount of
air is directed through the defrost and side window

demister outlets.

Bi-Level

Air is directed through the panel and floor outlets.
Press and release the Panel mode button and Floor

mode button to enter Bi-Level mode, the indicators
illuminate when ON. Performing this function will cause
the ATC to switch into manual mode.

Mix Mode

Air comes from the floor, defrost and side window
demister outlets. This mode works best in cold or
snowy conditions. It allows you to stay comfortable

while keeping the windshield clear.

Defrost Mode

Air comes from the windshield and side window
demister outlets. Use Defrost mode with maximum

temperature settings for best windshield and side win-
dow defrosting. When the defrost mode is selected, the
blower will automatically default to medium-high.

NOTE:

While operating in the other modes, the system

will not automatically sense the presence of fog, mist or
ice on the windshield. Defrost mode must be manually
selected to clear the windshield and side glass.

194

UNDERSTANDING YOUR INSTRUMENT PANEL

Air Conditioning (A/C)
The Air Conditioning (A/C) button allows the operator
to manually activate or deactivate the air conditioning
system. When in A/C mode with the ATC set to a cool
temperature, dehumidified air flows through the air
outlets. If Economy mode is desired, press the A/C
button to turn off the A/C mode in the ATC display and
deactivate the A/C system.

NOTE:

• If the system is in Mix or Defrost Mode, the A/C can

be turned off, but the A/C system shall remain active
to prevent fogging of the windows.

• If fog or mist appears on the windshield or side glass,

select Defrost mode and increase blower speed.

Recirculation Control

When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the RECIRCULATION control button.

Recirculation mode should only be used temporarily. The
recirculation LED will illuminate when this button is
selected. Push the button a second time to turn off the
Recirculation mode LED and allow outside air into the
vehicle.

NOTE:

In cold weather, use of Recirculation mode may

lead to excessive window fogging. The Recirculation
mode is not allowed in the Defrost mode to improve
window clearing operation. Recirculation will be dis-
abled automatically if this mode is selected.

UNDERSTANDING YOUR INSTRUMENT PANEL

195

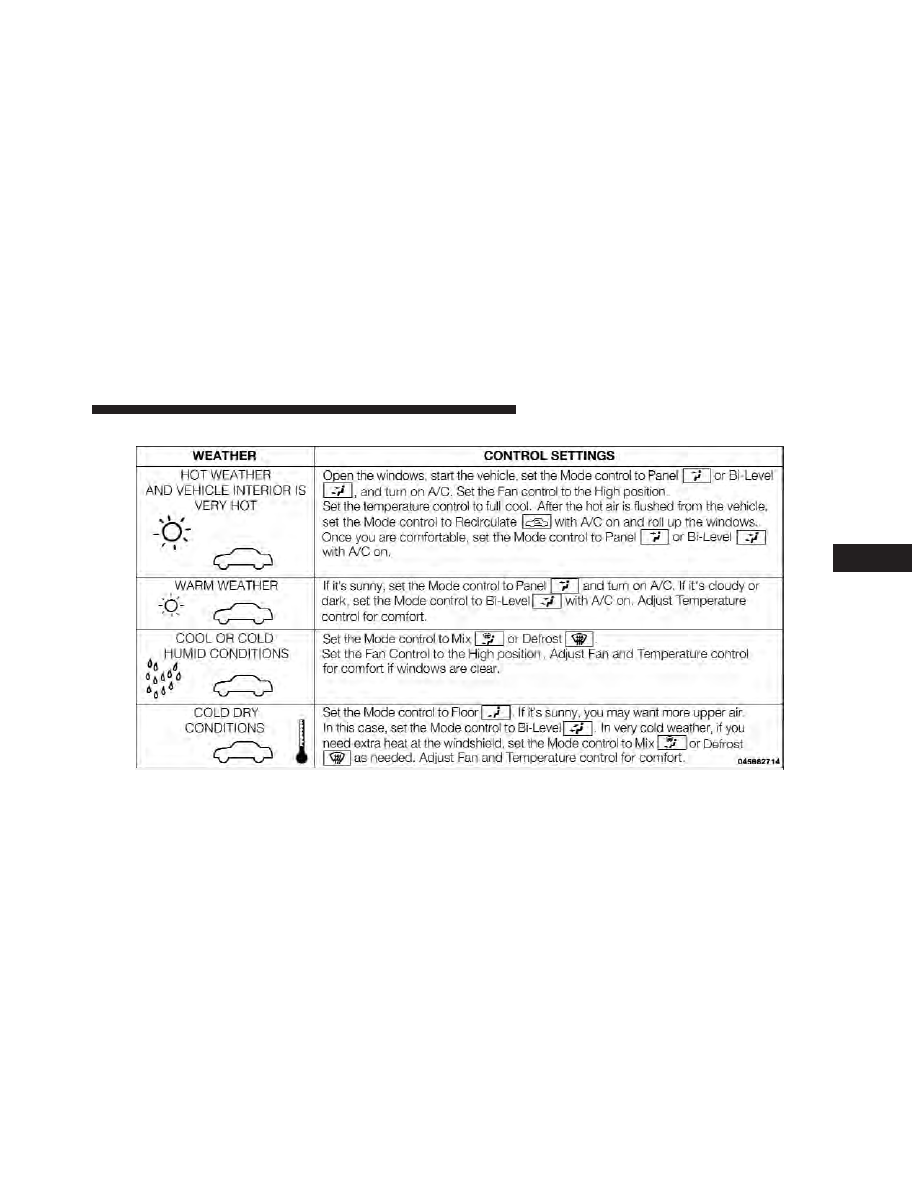

Operating Tips

Window Fogging
Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the A/C button) on
will clear the fog. Adjust the temperature control, air
direction, and blower speed to maintain comfort.

As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
DEFROST mode.

Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette

smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.

Summer Operation

NOTE:

In some cases during high temperature opera-

tion, the air conditioning system performance may be
reduced. This is to help protect the engine from overheat-
ing during the high load condition.

Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use Recir-
culation A/C mode to provide additional comfort while
in automatic mode.

Winter Operation
When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other
obstructions.

196

UNDERSTANDING YOUR INSTRUMENT PANEL

Fiat 500 Gucci (2012 year). Manual - part 12
