Fiat 500 Gucci (2012 year). Manual

2. Briefly press the MENU ESC button to go back to the
menu screen or press and hold the MENU ESC (approxi-
mately one second) to go back to the main screen without
storing settings.

Speed Beep (Speed Limit)
With this function it is possible to set the car speed limit
(mph or km/h); when this limit is exceeded the driver is
immediately alerted.

To set the speed limit, proceed as follows:

1. Briefly press the MENU ESC button. The display will
show the message (Speed Beep).

2. Press the + or – button to select speed limit activation
(On) or deactivation (Off).

3. When the function is activated (On), briefly press the
MENU ESC

button to display the presently set activation

speed. Pressing the + or – buttons selects the speed limit.
Press MENU ESC to confirm selection.

NOTE:

Selection is possible between 20 and 125 mph or

km/h, depending on the selected unit. The setting will
increase/decrease by five units each time the +/– button
is pressed. Press and hold the +/– button to increase/
decrease the setting rapidly. Save the setting by briefly
pressing the button when you approach the required
setting.

• Briefly press the MENU ESC button to go back to the

menu screen, or press and hold the MENU ESC button
(approximately one second) to go back to the main
screen without storing the settings.

To cancel the setting, proceed as follows:

1. Briefly press the MENU ESC button. “On” will flash
on the display.

2. Press the – button. “Off” will flash on the display.

UNDERSTANDING YOUR INSTRUMENT PANEL

149

3. Briefly press the MENU ESC button to go back to the
menu screen, or press and hold the MENU ESC button
(approximately one second) to go back to the main screen
without storing the settings.

Trip B Data (Trip B On)
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.

For further information see “Trip Computer.”

For activation / deactivation, proceed as follows:

1. Briefly press the MENU ESC button. “On” or “Off”
will flash on the display (according to previous setting).

2. Press the + or – button to select the setting.

Set Time (Clock)
This function may be used to set the clock through two
sub-menu items: “Time” and “Mode.”

Proceed as follows:

1. Briefly press the MENU ESC button. The display will
show the two sub-menu items “Time” and “Mode.”

2. Press the + or – button to navigate the two sub-menu
items.

3. Select the required option and then press the MENU
ESC

button.

4. When accessing the “Time” sub-menu item, briefly
press the MENU ESC button and “hours” will flash on
the display.

5. Press the + or – button for setting.

6. Briefly press the MENU ESC button and “minutes”
will flash on the display.

7. Press the + or – button for setting.

150

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

• The setting will increase or decrease by one unit each

time the + or – button is pressed. Press and hold the
button to increase/decrease the setting rapidly. Save
the setting by briefly pressing the button when you
approach the required setting.

• Briefly press the MENU ESC button to return to the

“Time” sub-function.

• When accessing the “Mode” submenu, briefly press

the MENU ESC button. The previously set display
format will flash on the display.

• Press the + or – button to select “24h” or “12h.”

When you have selected the required settings, briefly
press the MENU ESC button to go back to the Time,
Mode sub-menu screen, or press and hold the MENU
ESC

button (approximately one second) to go back to the

main screen without storing the settings.

Set Date
This function may be used to set the date (day - month -
year).

To change the date proceed as follows:

1. Briefly press the MENU ESC button and “year” will
flash on the display.

2. Press the + or – button for setting.

3. Briefly press the MENU ESC button and “month” will
flash on the display.

4. Press the + or – button for setting.

5. Briefly press the MENU ESC button and “day” will
flash on the display.

6. Press the + or – button for setting.

NOTE:

The setting will increase or decrease by one unit

each time the + or – button is pressed. Press and hold the

UNDERSTANDING YOUR INSTRUMENT PANEL

151

or – button to increase/decrease the setting rapidly.

Save the setting by briefly pressing the button when you
approach the required setting.

• Briefly press the MENU ESC button to go back to the

menu screen, or press and hold the MENU ESC button
(approximately one second) to go back to the main
screen without storing the settings.

See Radio (Repeat Audio Information)
With this function active, the EVIC display shows infor-
mation relevant to the sound system.

• Radio: tuned radio station frequency, automatic tuning

activation or AutoSTore.

• CD audio, CD MP3: track number.

To activate (On) or to deactivate (Off) the sound system
info displaying proceed as follows:

1. Briefly press the MENU ESC button “On” or “Off”
will flash on the display (according to the previous
setting).

2. Press the + or – button for setting.

If the radio has BLUE&ME™, refer to the appropriate
“BLUE&ME™ User’s Manual” for further information.

Speed Display
When this function is activated the cluster will display
the vehicle speed (MPH or km/h).

152

UNDERSTANDING YOUR INSTRUMENT PANEL

To activate (On) or to deactivate (Off) the speed display
feature, proceed as follows:

1. Briefly press the MENU ESC button. “MPH”, “km/
h”, then “Off” will flash on the display (according to
previous setting).

2. Press the + or – button to select display deactivation
“Off”, “MPH” or “km/h”.

3. Briefly press the MENU ESC button to go back to the
menu screen, or press and hold the MENU ESC button
(approximately one second) to go back to the main
screen.

Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 15 mph
(24 km/h).

To change the setting proceed as follows:

1. Briefly press the MENU ESC button “On” or “Off”
will flash on the display (according to the previous
setting).

2. Press the + or – button for setting.

Units (Set Units)
This function may be used to set the measurement unit in
three submenus: “Distance,” “Temperature” and “Fuel
Economy.”

To set the required unit, proceed as follows:

1. Briefly press the MENU ESC button to display the
three sub-menus.

UNDERSTANDING YOUR INSTRUMENT PANEL

153

2. Press the + or – button to navigate the three sub-
menus.

3. Select the required sub-menu and then briefly press
the MENU ESC button.

4. When accessing the “Distance” submenu: briefly press
the MENU ESC button. Either “mi” or “km” will appear
on the display (according to the previous setting).

5. Press the + or – button for setting.

6. Briefly press the MENU ESC button to return to the
sub-menu.

7. When accessing the “Fuel Economy” submenu, briefly
press the MENU ESC button. Either “mpg,” “km/l ” or
“l/100km” will appear on the display (according to the
previous setting).

If the distance unit set is “mi,” the fuel economy unit will
be displayed in “mpg.”

If the distance unit set is “km,” the fuel economy unit will
be displayed in either km/l or l/100km.

1. Press the + or – button for setting.

2. Briefly press the MENU ESC button to return to the
sub-menu.

3. When accessing the “Temperature” submenu: briefly
press the MENU ESC button. Either “°F” or “°C” will
appear on the display (according to the previous setting).

4. Press the + or – button for setting.

5. Briefly press the MENU ESC button to return to the
sub-menu.

When you have made the required settings, briefly press
the MENU ESC button to go back to the sub-menu
screen, or press and hold the MENU ESC button (ap-
proximately one second) to go back to the main screen
without storing the settings.

154

UNDERSTANDING YOUR INSTRUMENT PANEL

Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English, German, Portuguese, Spanish,
French, Dutch, Polish.

To set the required language, proceed as follows:

1. Briefly press the MENU ESC button. The previously
set “language” will flash on the display.

2. Press the + or – button for setting.

Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.

To adjust the volume proceed as follows:

1. Briefly press the MENU ESC button. The previously
set volume “level” will flash on the display.

2. Press the + or – button for setting.

Button Volume (Button Volume Adjustment)
This function may be used to adjust the volume of the
beep accompanying the buttons. MENU ESC , + or – can
be adjusted according to 8 levels.

To adjust the volume, proceed as follows:

1. Briefly press the MENU ESC button. The previously
set volume “level” will flash on the display.

2. Press the + or – button for setting.

UNDERSTANDING YOUR INSTRUMENT PANEL

155

Belt Buzzer (Buzzer Activation For S.B.R.
Indication)
This function will only be displayed after a FIAT Group
Automobiles Dealership has deactivated the S.B.R.
system.

Daytime Running Lamps (DRL)
This function may be used to activate / deactivate the
Daytime Running Lamps.

Proceed as follows to switch this function on or off:

1. Briefly press the MENU ESC button to display the
three sub-menus.

2. Briefly press the MENU ESC button. “On” or “Off”
will flash on the display (according to previous setting).

3. Press the + or – button for setting.

4. Briefly press the MENU ESC button to go back to the
menu screen, or press and hold the button (approxi-
mately one second) to go back to the main screen without
storing the settings.

Hill Start Assist
This function is used when starting a vehicle from a stop
on a hill. Hill Start Assist maintains the same level of
brake pressure the driver applied for a short period of
time after the foot has been removed from the brake
pedal.

Proceed as follows to switch this function on or off:

1. Briefly press the MENU ESC button. “On” or “Off”
will flash on the display (according to previous setting).

2. Press the + or – button for setting.

156

UNDERSTANDING YOUR INSTRUMENT PANEL

3. Briefly press the MENU ESC button to go back to the
menu screen, or press and hold the button (approxi-
mately one second) to go back to the main screen without
storing the settings.

Exit Menu
This function closes the initial menu screen.

Briefly press the MENU ESC button to go back to the
main screen.

Press the – button to return to the first menu option
(Speed Beep).

Press the + button to return to the last menu option
(Daylights).

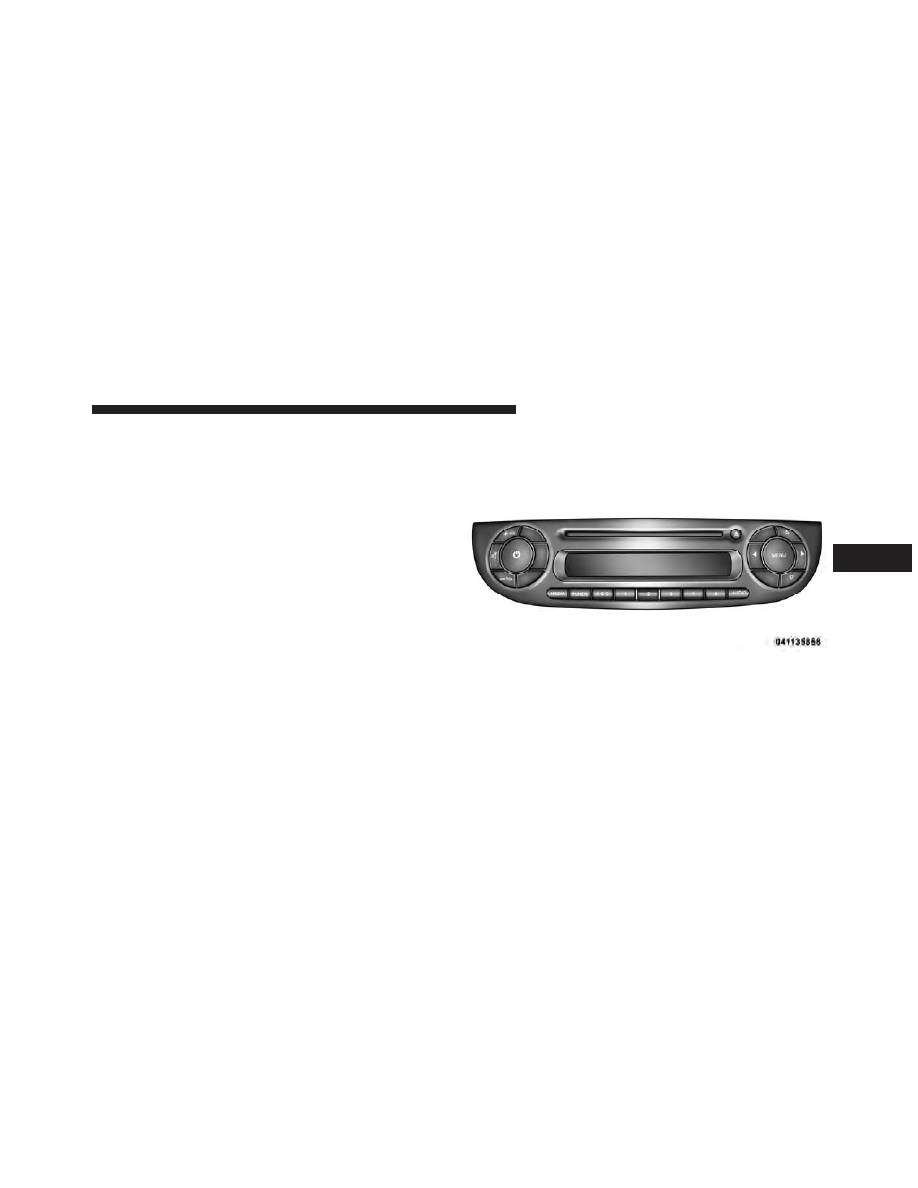

SALES CODE (RAB) RADIO

Introduction

The radio has been designed according to the specifica-
tions of the passenger compartment, with a personalized
design to match the style of the dashboard.

UNDERSTANDING YOUR INSTRUMENT PANEL

157

If the radio has BLUE&ME™, refer to the appropriate
“BLUE&ME™ User’s Manual” for further information.

The instructions for use are given below and we recom-
mend you to read them carefully.

Suggestions

Road Safety
Please, learn how to use all different radio functions (e.g.
store stations) before beginning to drive.

Reception Conditions
Reception conditions change constantly while driving.
Reception may be interfered with by the presence of
mountains, buildings or bridges, or when you are far
away from the broadcaster.

WARNING!

Having the volume turned up high can cause the
driver to no be able to hear important traffic sounds,
i.e. sirens, horns, etc. This could cause an accident.
Always adjust the volume so that you can still hear
background noises.

Care And Maintenance
Clean the cover with a soft antistatic cloth only. Cleaning
and polishing products could damage the surface.

CDs
The presence of dirt, scratches or distortions on the CDs
could cause skipping and poor sound quality while it is
playing. For optimal playback conditions, follow these
guidelines:

• Only use branded CDs.

158

UNDERSTANDING YOUR INSTRUMENT PANEL

• Clean every CD thoroughly removing any finger

marks or dust using a soft cloth. Hold CDs by the
outside and clean them from the middle outwards.

• Never use chemicals (e.g. antistatics or thinners or

sprays) for cleaning as they could damage the surface
of the CDs.

• After listening to them place CDs back in their boxes

to prevent them from being damaged.

• Do not expose CDs to direct sunlight, high tempera-

tures or moisture for long periods.

• Do not stick labels on the CD surface or write on the

recorded surface with pencils or pens.

• Do not use CDs that are very scratched, flawed,

distorted, etc. Using discs like these will result in
malfunctions or damage to the player.

• The use of original CD media is required for the best

quality audio production. Correct operation is not
guaranteed when CD-R/RW media are used that were
not correctly burned and/or with a maximum capacity
above 650 Mb.

• Do not use commercially available protective sheets

for CDs or discs, with stabilizers, etc. as they could get
stuck in the internal mechanism and damage the disc.

• If a copy-protected CD is used, it may take a few

seconds before the system starts to play it. The CD
player cannot be guaranteed to play all protected
discs. The fact that the CD is protected from being
copied is often shown in very small letters or is
difficult to read on the actual CD cover where it may
be, for example, “COPY CONTROL”, “COPY PRO-
TECTED”, “THIS CD CANNOT BE PLAYED ON A
PC/MAC”.

UNDERSTANDING YOUR INSTRUMENT PANEL

159

• The CD player is capable of reading most compression

systems currently in use, following the development
of these systems, the reading of all compression for-
mats is not guaranteed.

Technical Specifications

The complete system consists of:

• Two 165 mm diameter midwoofer speakers, one

speaker in each of the front doors.

• Two 22 mm diameter tweeter speakers, one speaker in

each of the front pillars.

• Two 100 mm diameter full range speakers, one speaker

in each of the rear side panels.

• Antenna on the car roof.
• Radio with CD/MP3 player.

With Bose

威 Premium Audio system (if equipped):

• Two 165 mm diameter midwoofer speakers.
• Two 11 mm tweeter speakers in the front pillars.
• Two 100 mm full range speakers, one speaker in each

of the rear side panels.

• A subwoofer under the right front seat.
• An amplifier in the trunk on the right-hand side panel.
• Antenna on the car roof.
• Radio with CD/MP3 player.

160

UNDERSTANDING YOUR INSTRUMENT PANEL

Quick Guide

Radio Controls

BUTTON

GENERAL FUNCTIONS

MODE

Short button press

Off

Long button press

TUNER

AM, FM, SAT (if equipped) source se-
lection

Short repeated button press

A-B-C

Cycles A, B, C presets for AM, FM,
SAT (if equipped)

Short repeated button press

MEDIA

CD/AUX/Media Player (if equipped
and present) source selection

Short repeated button press

BUTTON

GENERAL FUNCTIONS

MODE

(Mute/Pause Button)

Volume activation/deactivation (Mute/
Pause)

Short button press

AUDIO

Audio adjustments: low tones (BASS),
high tones (TREBLE), left/right balance
(BALANCE), front/rear balance
(FADER)

Menu activation: short button press
Adjustment type selection: press
or

Adjustment of values: press

UNDERSTANDING YOUR INSTRUMENT PANEL

161

BUTTON

GENERAL FUNCTIONS

MODE

(Information Button)

Song, Artist, Album, Genre, Playlist,
Folder information (if available) in CD,
Media Player and Satellite (if so
equipped); Toggles RBDS information
in FM

Advanced functions adjustment

Menu activation: short button press
Adjustment type selection: press
or

Adjustment of values: press

+Vol/–Vol

Volume adjustment

Press + button: volume increase Press –
button: volume decrease

BUTTON

RADIO FUNCTIONS

MODE

Radio Station Search:
• Automatic Search
• Manual Search

Automatic search: press buttons

(long press for fast forward)

Manual search: press buttons

(long press for fast forward)

162

UNDERSTANDING YOUR INSTRUMENT PANEL

BUTTON

RADIO FUNCTIONS

MODE

1 2 3 4 5

Current radio station storing

Long button press for memory preset 1
to 5 respectively

Stored station recall

Short button press for memory preset 1
to 5 respectively

BUTTON

CD FUNCTIONS

MODE

CD ejection

Short button press

Previous/next track play

Short button press

CD track fast forward/rewind

Long button press

Previous/next folder play (for CD-MP3) Short button press

General Information

The radio offers the following functions:

Radio Section
• PLL tuning with FM/AM/MW frequency bands
• RBDS (Radio Broadcast Data System)
• Automatic/manual station tuning

• FM Multipath detector
• Manual storing of 25 stations (base radio) and 40

stations (if equipped with Satellite): 15 on FM band
(5 on FMA, 5 on FMB, 5 on FMC), 10 on AM band
(5 on AMA, 5 on AMB), 15 on Satellite Band - if
equipped (5 on SATA, 5 on SATB, 5 on SATC)

UNDERSTANDING YOUR INSTRUMENT PANEL

163

• SPEED VOLUME function: Customer selectable auto-

matic volume adjustment depending on the car speed

• Automatic Stereo/Mono selection

CD Section

• Track selection (forward/backward)
• Fast forward/rewind through tracks
• CD Display function: display of track number and on

mp3 discs (song title, artist) and time elapsed since
start of the track

• Playing Audio CD, CD-R and CD-RW

WARNING!

On multimedia CDs, besides audio tracks, there are
data tracks too. Playing this type of CD could cause
hissing at a volume that could jeopardize road safety
as well as causing damage to the final stages and the
speakers.

CD/MP3 Section
• MP3-Info function (ID3-TAG)
• Folder selection (previous/next)
• Track selection (forward/backward)
• Fast forward/rewind through tracks
• MP3 Display function: display of folder name, ID3-

TAG information, time elapsed since the start of the
track, name of the file

• Playing audio or data CD, CD-R and CD-RW

164

UNDERSTANDING YOUR INSTRUMENT PANEL

Fiat 500 Gucci (2012 year). Manual - part 10
