Left-hand side. Pull the rear of the
fuel filler door to open it.

C

Right-hand side. Pull the rear of the
fuel filler door to open it.

D

FUEL TANK CAPACITY

Advertised Capacity

The advertised capacity is the maximum
amount of fuel that you can add to the fuel
tank after running out of fuel. Included in the
advertised capacity is an empty reserve. The
empty reserve is an unspecified amount of
fuel that remains in the fuel tank when the
fuel gauge indicates empty.

Note: The amount of fuel in the empty
reserve varies and should not be relied upon
to increase driving range.

FUEL AND REFUELING –
TROUBLESHOOTING

FUEL AND REFUELING – WARNING
LAMPS

If it illuminates when you are
driving, refuel as soon as possible.

FUEL AND REFUELING –
INFORMATION MESSAGES

Refueling System Warning

If the fuel tank filler valve does not fully close,
a message could appear in the information
display.

Message

Check Fuel Fill Inlet

If the message appears, do the following:

1. Stop your vehicle as soon as it is safe to

do so and switch the engine off.

2. Shift into park (P) or neutral (N).

3. Apply the parking brake.

4. Fully open the fuel filler door.
5. Check the fuel tank filler valve for any

debris that may be restricting its
movement.

6. Remove any debris from the fuel tank

filler valve.

7. Fully insert a fuel pump nozzle or the fuel

filler funnel provided with your vehicle
into the fuel filler pipe.  See Locating the
Fuel Filler Funnel (page 211).   This action
should dislodge any debris that may be
preventing the fuel tank filler valve from
fully closing.

8. Remove the fuel pump nozzle or fuel filler

funnel from the fuel filler pipe.

9. Fully close the fuel filler door.

Note: The message may not immediately
reset. If the message continues to appear
and a warning lamp illuminates, have your
vehicle checked as soon as possible.

216

Fuel and Refueling

WHAT IS THE CATALYTIC
CONVERTER

The catalytic converter is part of your
vehicle's emissions system and filters harmful
pollutants from the exhaust gas.

CATALYTIC CONVERTER
PRECAUTIONS

WARNING: Do not park, idle or drive

your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire.

WARNING: The normal operating

temperature of the exhaust system is very
high. Never work around or attempt to
repair any part of the exhaust system until
it has cooled. Use special care when
working around the catalytic converter.
The catalytic converter heats up to a very
high temperature after only a short period
of engine operation and stays hot after the
engine is switched off.

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

To avoid damaging the catalytic converter:
•

Do not crank the engine for more than
10 seconds at a time.

•

Do not run the engine with a spark plug
lead disconnected.

•

Do not push-start or tow-start your
vehicle. Use booster cables. See Jump
Starting the Vehicle (page 392).

•

Use the correct fuel. See Fuel and
Refueling (page 210).

•

Do not switch the ignition off when your
vehicle is moving.

•

Avoid running out of fuel.

•

Have the items listed in scheduled
maintenance information performed
according to the specified schedule.

Note: Do not make any unauthorized
changes to your vehicle or engine. By law,
vehicle owners and anyone who
manufactures, repairs, or services a fleet of
vehicles are not permitted to intentionally
remove an emission control device or
prevent it from working.

217

Catalytic Converter

CATALYTIC CONVERTER –
TROUBLESHOOTING

CATALYTIC CONVERTER – WARNING
LAMPS

Your vehicle has an on-board diagnostics
system that monitors the emission control
system. If any of the following warning lamps
illuminate, this may indicate that the on-board
diagnostics system has detected an emission
control system malfunction.

Continuing to drive your vehicle may cause
reduced power or the engine to stop.  Failure
to respond to a warning lamp may cause
damage that your vehicle Warranty may not
cover.  Have your vehicle checked as soon
as possible.

218

Catalytic Converter

AUTOMATIC TRANSMISSION
PRECAUTIONS

WARNING: Apply the parking brake,

shift into park (P), switch the ignition off
and remove the key before you leave your
vehicle. Failure to follow this instruction
could result in personal injury or death.

WARNING: When your vehicle is

stationary, keep the brake pedal fully
pressed when shifting gears. Failure to
follow this instruction could result in
personal injury, death or property damage.

WARNING: Do not apply the brake

pedal and accelerator pedal
simultaneously. Applying both pedals
simultaneously for more than a few
seconds will limit engine performance,
which may result in difficulty maintaining
speed in traffic and could lead to serious
injury.

AUTOMATIC TRANSMISSION
POSITIONS

PARK (P)

This position locks the driveline and prevents
the wheels from turning. Come to a complete
stop before putting your vehicle into and out
of park (P).

The electric parking brake could apply when
you shift to park (P) without the brake pedal
fully pressed. The electric parking brake
applies when you shift to park (P) on large
slopes. The electric parking brake releases
with the drive away release function or
manually as described in the Releasing the
Electric Parking Brake section. See Electric
Parking Brake (page 236).

Note: A warning tone sounds if you open the
driver door and you have not shifted the
transmission selector to park (P).

REVERSE (R)

WARNING: Shift into reverse (R) only

when your vehicle is stationary.

In reverse (R) power is transmitted to the
driven wheels.

NEUTRAL (N)

WARNING: In neutral (N) your vehicle

is free to roll.

In neutral (N) power is not transmitted to the
driven wheels.

DRIVE (D)

In drive (D) power is transmitted to the driven
wheels.

219

Automatic Transmission

SHIFTING YOUR VEHICLE INTO
GEAR

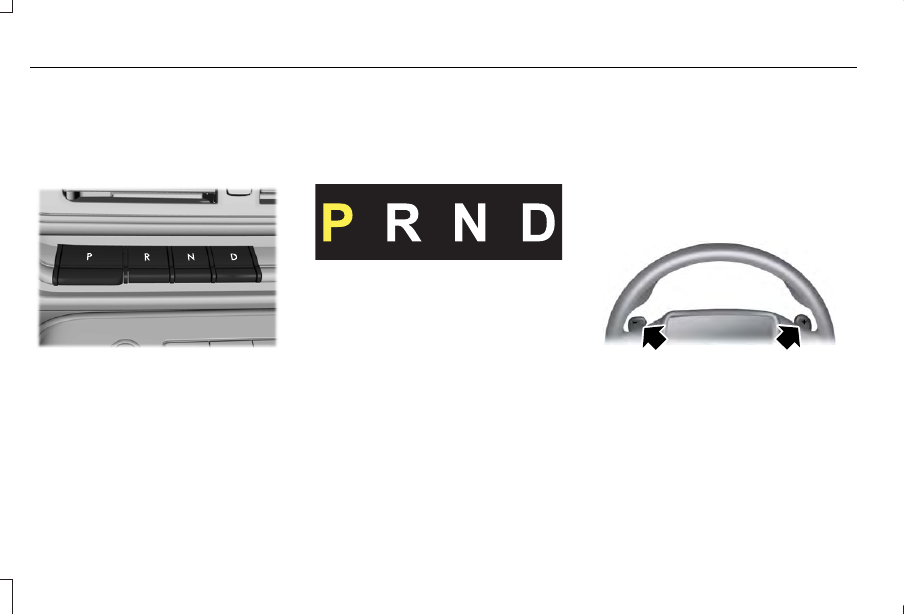

The transmission selector is on the center
stack.

E247220

1. Press and hold the brake pedal.

2. Press a button to select a position.

Note: The position illuminates on the
transmission selector.

AUTOMATIC TRANSMISSION
POSITION INDICATORS

The instrument cluster displays the current
position.

E358682

Note: The position could illuminate on the
transmission selector.

MANUALLY SHIFTING GEARS

SHIFTING USING THE PADDLE
SHIFTERS

The instrument cluster displays the current
gear. The current gear flashes when your
vehicle cannot shift into the requested gear.
Your vehicle will not shift if the requested
gear raises or lowers the engine speed
beyond the limit.

Your vehicle could shift when you fully press
the accelerator or brake pedal.

Note: Prolonged driving with high engine
speed could cause vehicle damage not
covered by the vehicle warranty.

Note: Selecting certain drive modes could
affect the response you receive when your
vehicle shifts into the requested gear.

E144821

Manually Shifting Gears in Drive (D)

Use this feature when overtaking another
vehicle, or to temporarily change gear:

•

Pull any paddle to switch the feature on.

•

Pull the right (+) paddle to upshift.

220

Automatic Transmission

•

Pull the left (-) paddle to downshift.

•

Hold the + paddle for a few seconds to
switch the feature off.

Note: The feature switches off after a short
period of time if you do not pull either
paddle.

TEMPORARY NEUTRAL MODE

WHAT IS TEMPORARY NEUTRAL
MODE

This mode keeps your vehicle in neutral (N),
for a limited time, when you exit your vehicle
or switch your vehicle off.

Note: Do not tow your vehicle in this mode.

TEMPORARY NEUTRAL MODE
LIMITATIONS

Your vehicle could shift to park (P) after 30
minutes, or when the vehicle battery charge
level is low. Prolonged use of this mode can
cause the vehicle battery to run out of
charge.

Do not tow your vehicle in this mode. Failure
to follow these instructions could result in
vehicle damage not covered by the vehicle
warranty.

ENTERING TEMPORARY NEUTRAL
MODE

1. Power your vehicle on.

2. Bring your vehicle to a complete stop.
3. Press and hold the brake pedal.

4. Shift into neutral (N).

Note: An instructional message appears.

5. Press the neutral (N) button.

Note: A confirmation message appears
when your vehicle enters the mode.

6. Release the brake pedal.

Note: Your vehicle is free to roll.

7. Switch your vehicle off.

Note: Do not tow your vehicle in this mode.

Note: The neutral (N) indicator on the
transmission selector may flash in this mode.

EXITING TEMPORARY NEUTRAL
MODE

1. Press the brake pedal.

2. Shift into park (P), or power your vehicle

on and shift into drive (D) or reverse (R).

AUTOMATIC RETURN TO PARK (P)

WHAT IS AUTOMATIC RETURN TO
PARK (P)

Your vehicle shifts into park (P) if you attempt
to exit your vehicle without the transmission
in park (P).

221

Automatic Transmission

HOW DOES AUTOMATIC RETURN TO
PARK (P) WORK

Your vehicle shifts into park (P) when your
vehicle is stationary and any of the following
occur:
•

You switch the vehicle off.

•

You open the driver door with your
seatbelt unlatched.

•

You unlatch the driver seatbelt when the
driver door is open.

Note: Do not use automatic return to park
(P) when your vehicle is moving, except in
an emergency.  See Starting and Stopping
the Engine (page 200).

AUTOMATIC RETURN TO PARK (P)
LIMITATIONS

Automatic return to park may not work if the
door ajar switch is malfunctioning.

See an authorized dealer if any of the
following occur:

•

Door ajar indicator does not illuminate
with the driver door open.

•

Door ajar indicator illuminates with the
driver door closed.

•

Transmission not in park message
appears with the driver door closed, after
you shift out of park (P).

AUTOMATIC TRANSMISSION
AUDIBLE WARNINGS

Transmission Not In Park (P) Audible
Warning

Sounds if you open the driver door before
shifting into park (P).

Park Selection Audible Warning

Sounds when you shift into park (P).

222

Automatic Transmission

HOW DOES FOUR-WHEEL DRIVE
WORK

Using the 1-Speed Automatic Four-
Wheel Drive System

The 1-speed automatic four-wheel drive
system utilizes an electronically controlled
on-demand 1-speed transfer case. This
system monitors various vehicle sensory
inputs to provide an increased level of
performance. This system offers the driver
two-wheel drive high, four-wheel drive auto
and four-wheel drive high as available modes
of operation via the selectable drive mode
switch. When four-wheel drive auto is
selected, the system continuously varies
power to the front wheels for optimum
performance for all on-road conditions. When
four-wheel drive high is selected, the system
provides power to the front and rear wheels
for use in off-road or slippery conditions such
as deep snow, sand or mud. There is further
information on driving in unique driving
conditions.  See Driving Hints (page 384).

Using the 2-Speed Automatic Four-
Wheel Drive System

 (If Equipped)

The 2-speed automatic four-wheel drive
system utilizes an electronically controlled
on-demand 2-speed transfer case. This
system monitors various vehicle sensory
inputs to provide an increased level of
performance. This system offers the driver
two-wheel drive high, four-wheel drive auto,
four-wheel drive high, and four-wheel drive
low as available modes of operation. When
four-wheel drive auto is selected, the system
continuously varies power to the front wheels
for optimum performance for all on-road
conditions. When either four-wheel drive high
or four-wheel drive low are selected with the
appropriate drive modes , the four-wheel
drive system provides electronically locked
power to the front and rear wheels for use
in off-road or slippery conditions such as
deep snow, sand or mud. Selecting slow
climb also provides additional gearing for
increased torque multiplication for conditions
like deep sand, snow, steep slopes, or pulling

heavy objects. See Slow Climb (page 296).
Additionally, the system is capable of
recreational flat towing by putting the
transfer case into neutral (N). See
Recreationally Towing Your Vehicle (page
397).

There is further information on driving in
unique driving conditions. See Driving Hints
(page 384).

FOUR-WHEEL DRIVE
PRECAUTIONS

WARNING: Vehicles with a higher

center of gravity (utility and four-wheel
drive vehicles) handle differently than
vehicles with a lower center of gravity
(passenger cars). Avoid sharp turns,
excessive speed and abrupt steering in
these vehicles. Failure to drive cautiously
increases the risk of losing control of your
vehicle, vehicle rollover, personal injury
and death.

223

Four-Wheel Drive

 (If Equipped)

WARNING: Do not become

overconfident in the ability of four-wheel
drive vehicles. Although a four-wheel drive
vehicle may accelerate better than a
two-wheel drive vehicle in low traction
situations, it won't stop any faster than
two-wheel drive vehicles. Always drive at
a safe speed.

Truck and utility vehicles can differ from
some other vehicles. Your vehicle could be
higher to allow it to travel over rough terrain
without getting stuck or damaging
underbody components. The differences that
make your vehicle so versatile also make it
handle differently than an ordinary passenger
car. Always maintain steering wheel control,
especially in rough terrain. Since sudden
changes in terrain can result in abrupt
steering wheel motion, make sure you grip
the steering wheel from the outside. Do not
grip the spokes. Drive cautiously to avoid
vehicle damage from concealed objects such

as rocks and stumps. Drive slower in strong
crosswinds which can affect the normal
steering characteristics of your vehicle. Be
extremely careful when driving on pavement
made slippery by loose sand, water, gravel,
snow or ice.

Note: Do not use four-wheel drive high or
four-wheel drive low mode on dry, hard
surfaced roads. Doing so can produce
excessive noise, increase tire wear and can
damage drive components.

FOUR-WHEEL DRIVE LIMITATIONS

Operating Four-Wheel Drive with a
Spare or Mismatched Tires

 (If Equipped)

On four-wheel drive vehicles, the size of the
spare tire can affect the four-wheel drive
system. If there is a significant difference
between the size of the spare tire and the
remaining tires, you could have limited
four-wheel drive functionality. When driving
with the full-size dissimilar spare wheel and
tire assembly, we recommend that you do
not:

•

Exceed 50 mph (80 km/h) with a
four-wheel drive mode turned on.

•

Use a four-wheel drive mode on dry
pavement.

Driving with the full-size dissimilar spare
wheel and tire assembly can limit four-wheel
drive functionality. You can experience the
following:

•

Additional noise from the transfer case
or other drive components.

Use of a dissimilar spare wheel and tire
assembly can lead to impairment of the
following:

•

Comfort and noise.

•

Winter weather driving capability.

•

Wet driving capability.

•

Four-wheel drive capability.

Note: Your vehicle could have a front air
dam that can become damaged, due to
reduced ground clearance, when taking your
vehicle off-road. You can remove this air
dam by removing the eight bolts that secure
it.

224

Four-Wheel Drive

 (If Equipped)

Note: Your vehicle could have side steps
that can become damaged, due to reduced
ground clearance, when taking your vehicle
off-road. Remove side steps before driving
your vehicle off-road.

SELECTING A FOUR-WHEEL DRIVE
MODE

To select a specific four-wheel drive mode
please select one of the desired drive
modes. For additional information.  See
Selecting a Drive Mode (page 294).

Note: When shifting to and from four-wheel
drive information display will show shifting
in progress message indicating that the
system is in the process of making a shift.

Note: Do not perform this operation if the
rear wheels are slipping or while applying
the accelerator pedal.

If the system detects a fault, a warning
message appears in the information display.
See Four-Wheel Drive – Information
Messages (page 229).

Note: Do not use SLIPPERY, DEEP
CONDITIONS or SLOW CLIMB on dry, hard
surfaced roads. Doing so produces
excessive noise, increases tire wear and may
damage drive components. The 4X4 system
in these modes is only intended for
consistently slippery or loose surfaces.

Shifting to or from Slow Climb (4L)

To select or exit SLOW CLIMB (4L):

1. Bring your vehicle to a speed of 3.1 mph

(5 km/h) or less.

2. Place the transmission in neutral (N).

3. Select SLOW CLIMB on the drive mode

control switch.

The information display will display a
message indicating a four-wheel drive shift
is in progress. If any of the above shift
conditions are not present, the shift will not
occur and the information display will display
information guiding the driver through the
proper shifting procedures. If there is a
transfer case tooth blockage a message will

display in the information display. To alleviate
this condition, place the transmission in a
forward gear, move your vehicle forward
approximately 4.9 ft (1.5 m), and shift the
transmission back to neutral (N) to allow the
transfer case to complete the range shift.

Note: You could hear some noise as the
system shifts or engages which is normal. If
the system detects a fault, a warning
message appears in the information display.
See Four-Wheel Drive – Information
Messages (page 229).

FOUR-WHEEL DRIVE MODES

TWO-WHEEL DRIVE HIGH

2H turns on when you select NORMAL or
CONSERVE. Two-wheel drive high is for
general on-road driving. Power is sent to the
rear wheels only.

Note: Two-wheel drive high can turn on or
off based on Drive Mode selection See Drive
Mode Control (page 293).

225

Four-Wheel Drive

 (If Equipped)

FOUR-WHEEL DRIVE AUTO

4A turns on when you select EXCITE,
NORMAL 4x4 AUTO or SLIPPERY.
Four-wheel drive auto provides electronically
controlled four-wheel drive power to both
the front and rear wheels, as required, for
increased traction in varying on-road
conditions. The four-wheel drive auto tuning
varies based on selected Drive Mode. See
Selecting a Drive Mode (page 294).

Note: Four-wheel drive auto can turn on or
off automatically based on Drive Mode
selection. See Selecting a Drive Mode (page
294).

FOUR-WHEEL DRIVE HIGH

4H turns on when you select DEEP
CONDITIONS. Four-wheel drive high
provides electronically locked four-wheel
drive power to both the front and rear wheels
for use in off-road or winter conditions such
as deep snow, sand or mud. This mode is
not for use on dry pavement.

Note: Four-wheel drive high can turn on or
off automatically based on Drive Mode
selection. See Selecting a Drive Mode (page
294).

FOUR-WHEEL DRIVE LOW

4L turns on when you select SLOW CLIMB.
Four-wheel drive low provides electronically
or mechanically locked four-wheel drive
power to both the front and rear wheels for
use on low traction surfaces, but does so
with additional gearing for increased torque
multiplication. This mode is only for off-road
conditions such as deep sand, steep slopes,
or pulling heavy objects.

Note: Four-wheel drive low can turn on or
off automatically based on drive mode
selection. See Selecting a Drive Mode (page
294).

FOUR-WHEEL DRIVE INDICATORS

Two-wheel Drive High

E181778

Momentarily illuminates when
two-wheel drive high is selected.

Four-wheel Drive Auto

E181781

Continuously illuminates when
four-wheel drive auto is selected.

Four-wheel Drive High

E181779

Continuously illuminates when
four-wheel drive high is selected.

Four-wheel Drive Low

 (If Equipped)

E181780

Continuously illuminates when
four-wheel drive low is selected.

FOUR-WHEEL DRIVE DRIVING HINTS

EMERGENCY MANEUVERS

In an unavoidable emergency situation
where a sudden sharp turn must be made,
remember to avoid over-driving your vehicle
(i.e. turn the steering wheel only as rapidly
and as far as required to avoid the
emergency). Excessive steering can result
in loss of vehicle control. Apply smooth
pressure to the accelerator pedal or brake

226

Four-Wheel Drive

 (If Equipped)

pedal when changes in vehicle speed are
required. Avoid abrupt steering, acceleration
and braking. This could result in an increased
risk of vehicle roll over, loss of vehicle control
and personal injury. Use all available road
surface to bring your vehicle to a safe
direction of travel.

In the event of an emergency stop, avoid
skidding the tires and do not attempt any
sharp steering wheel movements.

If your vehicle goes from one type of surface
to another (i.e. from concrete to gravel) there
can be a change in the way your vehicle
responds to a maneuver, i.e. steering,
acceleration or braking.

DRIVING IN SAND

When driving over sand, try to keep all four
wheels on the most solid area of the trail.
Avoid reducing the tire pressures but shift
to a lower gear and drive steadily through
the terrain. Apply the accelerator slowly and
avoid excessive wheel slip.

When driving at slow speeds in deep sand
under high outside temperatures, use a low
gear when possible. Low gear operation can
maximize the engine and transmission
cooling capability.

Avoid driving at excessive speed. This
causes vehicle momentum to work against
you and your vehicle could become stuck to
the point that assistance may be required
from another vehicle. Remember, you may
be able to back out the way you came if you
proceed with caution.

DRIVING THROUGH MUD AND WATER

WARNING: Do not spin the wheels

at over 34 mph (55 km/h). The tires may
fail and injure a passenger or bystander.

Mud

Be cautious of sudden changes in vehicle
speed or direction when you are driving in
mud. Even four-wheel drive vehicles can lose
traction in slick mud. If your vehicle does
slide, steer in the direction of the slide until
you regain control of your vehicle. After
driving through mud, clean off residue stuck
to rotating driveshafts and tires. Excess mud
stuck on tires and rotating driveshafts can
cause an imbalance that could damage drive
components.

Water

If you must drive through high water, drive
slowly. Traction or brake capability may be
limited. When driving through water,
determine the depth and avoid water higher
than the bottom of the hubs. If the ignition
system gets wet, your vehicle may stall. Once
through water, test the brakes. Wet brakes
do not stop your vehicle as effectively as dry
brakes. Drying improves by applying light
pressure to the brake pedal while moving
slowly.

227

Four-Wheel Drive

 (If Equipped)

Note: Driving through deep water may
damage the transmission. If the front or rear
axle is submerged in water, the axle
lubricant and power transfer unit lubricant
should be checked and changed if
necessary.

DRIVING ON HILLY OR SLOPING
TERRAIN

Although natural obstacles may make it
necessary to travel diagonally up or down a
hill or steep incline, you should try to drive
straight up or straight down.

Note: Avoid turning on steep slopes or hills.
A danger lies in losing traction, slipping
sideways and possible vehicle roll over.
Whenever driving on a hill, determine
beforehand the route you can use. Do not
drive over the crest of a hill without seeing
what conditions are on the other side. Do
not drive in reverse over a hill without the
aid of an observer.

When climbing a steep slope or hill, start in
a lower gear rather than downshifting to a
lower gear from a higher gear once the
ascent has started. This reduces strain on
the engine and the possibility of stalling.

If your vehicle stalls, do not try to turnaround
because this could cause vehicle roll over.
It is better to reverse back to a safe location.

Apply just enough power to the wheels to
climb the hill. Too much power can cause
the tires to slip, spin or lose traction, resulting
in loss of vehicle control.

Descend a hill in the same gear you would
use to climb up the hill to avoid excessive
brake application and brake overheating. Do
not descend in neutral. Disengage overdrive
or move the transmission selector lever to a
lower gear. When descending a steep hill,
avoid sudden hard braking as you could lose
control. The front wheels have to be turning
in order to steer your vehicle.

Note: If your vehicle has anti-lock brakes,
apply the brakes steadily. Do not pump the
brakes.

DRIVING ON SNOW AND ICE

Four-wheel drive vehicles have advantages
over two-wheel drive vehicles in snow and
ice but can skid like any other vehicle.
Should you start to slide while driving on
snowy or icy roads, turn the steering wheel
in the direction of the slide until you regain
control.

Avoid sudden applications of power and
quick changes of direction on snow and ice.
Apply the accelerator slowly and steadily
when starting from a full stop. Avoid sudden
braking. Although a four-wheel drive vehicle
can accelerate better than a two-wheel drive
vehicle in snow and ice, it cannot stop any
faster as braking occurs at all four wheels.
Do not become overconfident as to road
conditions.

Make sure you allow sufficient distance
between you and other vehicles for stopping.
Drive slower than usual and consider using
one of the lower gears. In emergency
stopping situations, apply the brake steadily.
Do not pump the brake pedal.  See Anti-Lock
Braking System Limitations (page 233).

228

Four-Wheel Drive

 (If Equipped)

Note: Excessive tire slippage can cause
transmission damage.

FOUR-WHEEL DRIVE –
TROUBLESHOOTING

FOUR-WHEEL DRIVE – WARNING
LAMPS

Illuminates when a four-wheel
drive or power train fault is
present.

Note: When a system fault is present, the
system can typically remain in whichever
mode was selected prior to the fault
condition occurring. It does not default to
two-wheel drive in all circumstances. When
this warning is displayed, have your vehicle
serviced by an authorized dealer.

FOUR-WHEEL DRIVE – INFORMATION MESSAGES

Action

Message

A four-wheel drive system fault is present.  Have your vehicle checked

as soon as possible.

Check 4x4

The four-wheel drive system is making a shift.

4x4 Shift in Progress

Displays when you attempt to switch to four-wheel drive low mode

and you do not shift the transmission to neutral (N).

For 4x4 LOW Shift to N

Displays when you attempt to switch to four-wheel drive low mode

and your vehicle's speed is greater than 3 mph (5 km/h).

For 4x4 LOW Slow to 3 MPH

For 4x4 LOW Slow to 5 km/h

Displays when you attempt to switch from four-wheel drive low mode

and you do not shift the transmission to neutral (N).

To Exit 4x4 LOW Shift to N

229

Four-Wheel Drive

 (If Equipped)

Action

Message

Displays when you attempt to switch from four-wheel drive low mode

and your vehicle's speed is greater than 3 mph (5 km/h).

To Exit 4x4 LOW Slow to 3 MPH

To Exit 4x4 LOW Slow to 5 km/h

Displays when there is a transfer case gear tooth blockage while

shifting to or from four-wheel drive low mode or to the neutral state.
Place the transmission in a forward gear, move your vehicle forward

approximately 5 ft (1.5 m), and shift the transmission back to neutral

(N) to allow the transfer case to complete the range shift.

Shift Delayed Drive Forward

Displays when the four-wheel system detects elevated system

temperature and temporarily stops providing power to the front

wheels. The system automatically resumes normal function when the

system temperature returns to normal.

4x4 Temporarily Disabled

Displays when the four-wheel drive system resumes normal function.

4x4 Restored

Displays when the four-wheel drive system detects driving condition
which temporarily require greater four-wheel drive performance. The

system automatically resumes normal function after the system no

longer detects these driving conditions.

4X4 Temporarily Locked

Displays when the system requires an additional transmission shift to

neutral (N) to complete a transfer case shift.

Shift to Neutral

230

Four-Wheel Drive

 (If Equipped)

WHAT IS THE ELECTRONIC
LIMITED-SLIP DIFFERENTIAL

The electronic limited-slip differential system
directs torque, enabling the vehicle to drive
over terrain and road conditions that a
conventional axle cannot. The system is
active at all times and requires no input from
the driver.

Note: If your vehicle is not at optimal
operating conditions or a system fault is
present, a warning may display in the
instrument cluster. Depending on the
warning, you may need to service your
vehicle.

Operating the Electronic Limited-Slip
Differential with a Spare or Mismatched
Tires

If your vehicle has an electronic limited-slip
differential, do not use a spare tire of a
different size than the tire provided. If you
have a spare tire installed, a message may
appear indicating the system has disabled
automatically or reduced function to prevent
system overheat and damage. We
recommend you reinstall the repaired or
replaced spare tire as soon as possible.
When you replace the spare tire, the system
resumes normal operation on the next key
cycle.

Trailer Towing

The electronic limited-slip differential
enhances vehicle stability during trailer tow
operation. During high demand trailering
events, such as steep slopes, high speeds
or with a spare tire, the system may provide
a warning in the instrument cluster and
reduce function or enter a temporarily
disabled state. To resume normal function,
stop the vehicle in a safe location and allow
the unit to adequately cool. Once the system
reaches normal operating temperatures,
system function restores and the electronic
limited-slip differential restored message
displays.

231

Electronic Limited-Slip Differential

 (If Equipped)
