Head-Up Display (HUD)

Follow onscreen directions to confirm or modify your settings.

Brightness

Follow onscreen directions to confirm or
modify your settings.

Vertical Position

HUD Adjustments

Image Rotation

Turns the distance to empty, time and temperature on and off.

HUD Content

Select Your Setting

Cruise and Lane Control

Note: When you save a memory preset position, your current HUD settings are also saved to that memory preset position.  See What Is the
Memory Function (page 185).

152

Head Up Display

 (If Equipped)

HEAD UP DISPLAY INDICATORS

E355334

Signaling and traffic indication.

A

Left information group.

B

Advanced driver assistance
systems display area.

C

Navigation display area.

D

Status bar.

E

Speedometer display area.

F

Signaling and Traffic Indication

Displays turn signal indicators, blind spot
information, if turn signal indicators are
active, and cross traffic alert.

Left Information Group

Displays incoming call information.

Advanced Driver Assistance Systems
Display Area

Displays adaptive cruise control and lane
keeping system status and warnings.

Navigation Display Area

Displays navigation next turn instructions.

Status Bar

Displays distance to empty, time and outside
air temperature. Next to distance to empty,
the fuel gauge fill color changes to yellow in
low fuel conditions. You can switch off the
status bar in the head up display settings
menu.

Speedometer Display Area

Displays current vehicle speed, speed limit,
if available in the map database, and your
transmission gear selection.

153

Head Up Display

 (If Equipped)

HEAD UP DISPLAY – TROUBLESHOOTING

HEAD UP DISPLAY – INFORMATION MESSAGES

Action

Message

The system is malfunctioning or something is obstructing the display.

Make sure that the head up display is free from obstruction. If the

message continues to appear, have your vehicle checked as soon as

possible.

Head Up Display System Fault See Manual

Press the button on the steering wheel or center console. The head

up display menu appears in the instrument cluster display. Make sure
the blue frame is fully visible. Do not manually move the screen. This

can cause damage not covered by your vehicle's warranty.

Head Up Display To Position Use the Information Display

154

Head Up Display

 (If Equipped)

WHAT IS REMOTE START

The system allows you to remotely start your
vehicle and to adjust the interior temperature
according to the settings that you chose.

REMOTE START PRECAUTIONS

WARNING: Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start the
engine. Failure to follow this instruction
could result in personal injury or death.

REMOTE START LIMITATIONS

Remote start does not work under the
following conditions:

•

The alarm horn is sounding.

•

The hood is open.

•

The transmission is not in park (P).

•

The ignition is on.

•

The battery voltage is below the
minimum operating voltage.

Note: Do not use remote start if your fuel
level is low.

Note: To use remote start with Lincoln Way
or Phone as a Key, enable the modem. See
Connecting the Vehicle to a Wi-Fi Network
(page 482).

ENABLING REMOTE START

1. Using the instrument cluster display

controls on the steering wheel, select
Settings.

2. Select Vehicle.

3. Select Remote Start.

4. Switch System on.
Note: To use remote start, make sure that
the modem is enabled.  See Enabling and
Disabling the Modem (page 482).

REMOTELY STARTING AND
STOPPING THE VEHICLE

Remotely Starting the Vehicle

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

Note: You can also use the Lincoln Way App
to start the vehicle.

Note: The direction indicators flash twice.

Note: The parking lamps turn on when the
vehicle is running.

Note: The horn sounds if the system fails to
start.

Note: All other vehicle systems remain off
when you have remotely started the vehicle.

Note: The vehicle remains secured when
you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the ignition on and drive your vehicle.

155

Remote Start

Remotely Stopping the Vehicle

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

EXTENDING THE REMOTE START
DURATION

To extend the remote start duration during
remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

If the duration is set to 15 minutes, the
duration extends by another 15 minutes. This
provides a total of 30 minutes.

Note: Remote start can only be extended
once.

Note: A maximum of two remote starts, or
one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.

REMOTE START REMOTE
CONTROL INDICATORS

Remote Control Feedback

An LED on the remote control provides status
feedback of remote start or stop commands.

Status

LED

Remote start

successful.

Solid green.

Remote stop

successful.

Solid red.

Request failed or

status not received.

Blinking red.

Status incomplete.

Blinking green.

REMOTE START SETTINGS

SWITCHING CLIMATE CONTROL LAST
SETTINGS ON AND OFF

1. Using the instrument cluster display

controls on the steering wheel, select
Settings.

2. Select Vehicle.

3. Select Remote Start Setup.

4. Select Climate Control.

5. Select Auto or Last settings.

Note: If you switch the last settings on, the
system remembers the last used settings.

SWITCHING THE HEATED SEAT
SETTINGS ON AND OFF

1. Using the instrument cluster display

controls on the steering wheel, select
Settings.

2. Select Vehicle.

3. Select Remote Start.

4. Select Seats.

156

Remote Start

5. Select Auto or Off.

Note: If you switch the heated seat settings
on, the heated seats turn on during cold
weather.

Note: You cannot adjust the heated seat
settings when you have remotely started the
engine.

SWITCHING THE HEATED STEERING
WHEEL SETTINGS ON AND OFF

1. Using the instrument cluster display

controls on the steering wheel, select
Settings.

2. Select Vehicle.

3. Select Remote Start.

4. Select Seats and Wheel.

5. Select Auto or Off.

Note: If you switch the heated steering wheel
settings on, the heated steering wheel turns
on during cold weather.

Note: You cannot adjust the heated steering
wheel settings when you have remotely
started the engine.

SETTING THE REMOTE START
DURATION

You can set a duration for the engine to run.

Note: Wait a few seconds before remotely
starting the engine after the engine stops
running.

1. Using the instrument cluster display

controls on the steering wheel, select
Settings.

2. Select Vehicle.

3. Select Remote Start.

4. Select Duration.

157

Remote Start

IDENTIFYING THE CLIMATE
CONTROL UNIT

E293088

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE CONTROL
ON AND OFF

Press the button.

SWITCHING RECIRCULATED AIR
ON AND OFF

Press the button to recirculate air
currently in the passenger
compartment.

Note: Recirculated air may turn off
automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR CONDITIONING
ON AND OFF

Press the button.

Note: Under certain conditions, the air
conditioning compressor could continue to
operate after you switch air conditioning off.

Note: To keep the system and its
components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

Press the button to switch the
windshield air vents on.

SWITCHING MAXIMUM DEFROST
ON AND OFF

E265038

Press the button to access
additional controls for the climate
system.

Press the button.

Air flows through the windshield air vents,
and the blower motor adjusts to the highest
speed.

158

Climate Control

You can also use this setting to defog and
clear the windshield of a thin covering of ice.

Note: To prevent window fogging, you
cannot select recirculated air when
maximum defrost is on.

Note: The heated rear window also turns on
when you select maximum defrost.

SWITCHING MAXIMUM COOLING
ON AND OFF

Press the button.

Note: When you switch maximum cooling
off, air conditioning remains on.

SWITCHING THE HEATED REAR
WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off after

a short period of time.

Note: This button also activates the heated
mirrors.

Note: Do not use harsh chemicals, razor
blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

Turn the control to adjust the
volume of air circulated in the
vehicle.

SETTING THE TEMPERATURE

E266187

E266186

Press the toggle button on the left-hand side
of the climate control upward or downward
to set the left-hand temperature.

Note: This control also adjusts the right-hand
side temperature when you switch off dual
zone mode.

Press the toggle button on the right-hand
side of the climate control upward or
downward to set the right-hand temperature.

DIRECTING THE FLOW OF AIR

E265038

Press the button to access
additional controls for the climate
system.

159

Climate Control

Directing Air to the Windshield Air
Vents

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen.

Directing Air to the Instrument Panel
Air Vents

E265283

Press the button to activate the
selection screen.

E244097

Press the button on the
touchscreen.

Directing Air to the Footwell Air Vents

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

Note: When you switch auto mode on, lights
on the blower motor control do not illuminate
to indicate the blower motor speed.

Adjust the blower motor control or air
distribution control to switch auto mode off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode button.

Description

Auto Mode Indicator Status

The blower motor speed is reduced. Use this setting to minimize the amount of noise from the
blower motor. This setting increases the time taken to cool the interior.

One indicator illuminated.

The blower motor speed is moderate.

Two indicators illuminated.

The blower motor speed is increased. Use this setting to reduce the time taken to cool the interior.
This setting increases the amount of noise from the blower motor.

Three indicators illuminated.

160

Climate Control

SWITCHING DUAL MODE ON AND OFF

E265280

Press the button.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air from
the footwell air vents regardless of the
air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

•

Remove any snow, ice or leaves from the
air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you
feel cold air through the air vents.

Automatic Climate Control

•

Adjusting the settings when your vehicle
interior is extremely hot or cold is not
necessary. Automatic mode is best
recommended to maintain set
temperature.

•

The system adjusts to heat or cool the
interior to the temperature you select as
quickly as possible.

•

For the system to function efficiently, the
instrument panel and side air vents
should be fully open.

•

If you press AUTO during cold outside
temperatures, the system directs air flow
to the windshield and side window air
vents.In addition, the blower motor may
run at a slower speed until the engine
warms up.

•

If you press AUTO during hot
temperatures and the inside of the
vehicle is hot, the system uses
recirculated air to maximize interior
cooling. Blower motor speed may also
reduce until the air cools.

Quickly Heating the Interior

1. Press AUTO.

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for Heating

1. Press AUTO.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

161

Climate Control

Quickly Cooling the Interior

1. Press MAX A/C.
2. Drive with the windows open for a short

period of time.

Recommended Settings for Cooling

1. Press AUTO.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

Defogging the Side Windows in Cold
Weather

1. Press and release defrost or maximum

defrost.

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as a
starting point, then adjust the setting as
necessary.

162

Climate Control

IDENTIFYING THE REAR PASSENGER CLIMATE CONTROL UNIT

E357000

Note: Depending on your vehicle option
package, the controls could look different
from what you see here.

E283811

Press the icon on the touchscreen
to access the climate control
features.

SWITCHING THE REAR
PASSENGER CLIMATE CONTROLS
ON AND OFF

Press and release the button to
switch the rear climate control on
or off.

Note: If the system is on and Max Defrost is
switched on through the front climate
controls, the system turns off. It turns back
on when Max Defrost is switched off.

Note: If Max Defrost is switched on, the
system can be turned on at the same time.

SETTING THE BLOWER MOTOR
SPEED

Press the buttons on the touchscreen to
adjust the volume of air circulated in the rear
passenger compartment.

163

Rear Passenger Climate Control

E356421

E356422

SETTING THE TEMPERATURE

Press the buttons on the touchscreen to set
the temperature in the rear passenger
compartment.

E356421

E356422

DIRECTING THE FLOW OF AIR

Directing Air to the Rear Console Air
Vents

E244097

Press the button on the
touchscreen to direct airflow to the
rear console air vents.

Directing Air to the Rear Footwell Air
Vents

Press the button on the
touchscreen to direct airflow to
rear footwell air vents.

Note: Air can be directed through any
combination of air vents.

REAR AUTO MODE

SWITCHING REAR AUTO MODE ON
AND OFF

Press the button on the
touchscreen to switch rear
automatic operation on, then set

the temperature.

The system adjusts the blower motor speed,
air distribution, air conditioning operation to
reach and maintain the temperature you
have set.

REAR PASSENGER CLIMATE
CONTROL INDICATORS

Illuminates when the rear climate
controls are locked through the
front climate controls.

Note: If the rear climate controls are locked
and the rear climate system is turned off, the
indicator illuminates for a few seconds when
you try to use any of the rear climate
controls.

164

Rear Passenger Climate Control

WHAT IS THE CABIN AIR FILTER

The cabin air filter improves the quality of air
in your vehicle by trapping dust, pollen and
other particles.

REPLACING THE CABIN AIR FILTER

Replace the filter at regular intervals.   See
Scheduled Maintenance (page 528).

The cabin air filter is behind the glove
compartment.

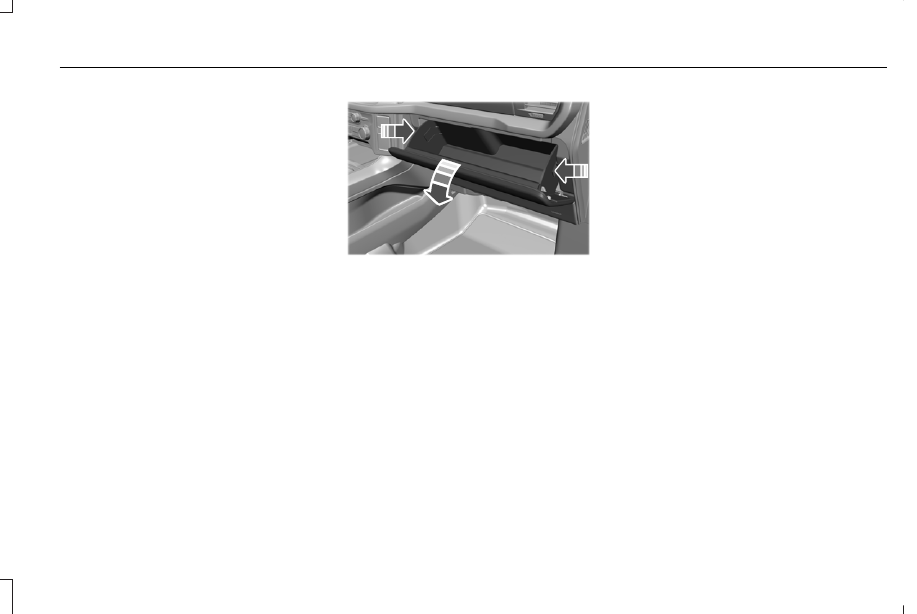

To remove the lower glove compartment and
access the filter:

1. Open the glove compartment.

E311296

2. Press the tab on each side.

3. Fully lower the glove compartment.

4. Pull the glove compartment toward you.

165

Interior Air Quality

FRONT SEAT PRECAUTIONS

WARNING: Sitting improperly, out of

position or with the seatback reclined too
far can take weight off the seat cushion
and affect the decision of the passenger
sensing system, resulting in serious injury
or death in the event of a crash. Always sit
upright against your seat back, with your
feet on the floor.

WARNING: Do not recline the seat

backrest too far as this can cause the
occupant to slide under the seatbelt,
resulting in personal injury in the event of
a crash.

WARNING: Do not place objects

higher than the top of the seat backrest.
Failure to follow this instruction could result
in personal injury or death in the event of
a sudden stop or crash.

WARNING: Do not adjust the driver

seat or seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control of
your vehicle.

SITTING IN THE CORRECT
POSITION

E68595

When you use them properly, the seat, head
restraint, seatbelt and airbags will provide
optimum protection in the event of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base of
your spine as far back as possible.

•

Do not recline the seat backrest so that
your torso is more than 30 degrees from
the upright position.

•

Adjust the head restraint so that the top
of it is level with the top of your head and
as far forward as possible. Make sure that
you remain comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in (25 cm)
between your breastbone and the airbag
cover.

•

Hold the steering wheel with your arms
slightly bent.

166

Front Seats

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the seatbelt
over the center of your shoulder and
position the lap strap tightly across your
hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

POWER SEATS

HEAD RESTRAINT COMPONENTS

E327921

The head restraints consist of:

An energy absorbing head
restraint.

A

Two steel stems.

B

Guide sleeve adjust and release
button.

C

Guide sleeve unlock and remove
button (If equipped).

D

ADJUSTING THE HEAD RESTRAINT

WARNING: Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraint when your vehicle
is moving.

WARNING: The head restraint is a

safety device. Whenever possible it should
be installed and properly adjusted when
the seat is occupied. Failure to adjust the
head restraint properly could reduce its
effectiveness during certain impacts.

WARNING: Adjust the head restraints

for all passengers before you drive your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraints when your
vehicle is moving.

To raise the head restraint, pull the head
restraint up.

To lower the head restraint:

1. Press and hold the adjust and release

button.

2. Push the head restraint down.

To tilt the head restraint - if equipped:

167

Front Seats
