EXTERIOR LIGHTING CONTROL

E344567

Headlamps on.

A

Autolamps on.

B

Parking lamps on.

C

Lamps off.

D

Press the toggle switch upward or downward
to make a selection.

Note: The lighting control defaults to
autolamps each time you switch your vehicle
on.

HEADLAMPS

USING THE HIGH BEAM HEADLAMPS

E339556

Push the lever away from you to
switch the high beam on.

Push the lever forward again or pull the lever
toward you to switch the high beams off.

Slightly pull the lever toward you and release
it to flash the headlamps.

SWITCHING HEADLAMP EXIT DELAY
ON AND OFF

To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.

To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.

Note: The headlamps turn off after three
minutes with any door open or 30 seconds
after the last door closes.

ADJUSTING THE LEVEL OF THE
HEADLAMPS

Your vehicle has a dynamic leveling system.
The headlamps do not require additional aim
adjustment.

HEADLAMP INDICATORS

Lamps On

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

120

Exterior Lighting

Headlamp High Beam

Illuminates when you switch the
high beam headlamps on.

HEADLAMPS – TROUBLESHOOTING

HEADLAMPS – FREQUENTLY ASKED
QUESTIONS

Why is there condensation in the
headlamps?

Headlamps have vents to accommodate
normal changes in air pressure.
Condensation can be a natural
by-product of this design. When moist
air enters the lamp assembly through
the vents, there is a possibility that
condensation can occur when the
temperature is cold. When normal
condensation occurs, a fine mist can
form on the interior of the lens. The fine
mist eventually clears and exits through
the vents during normal operation.

How much condensation is acceptable?

The presence of a fine mist, for example
no streaks, drip marks or large droplets.
A fine mist covers less than 50% of the
lens.

How long may it take for the acceptable
condensation to be cleared?

Clearing time may take as long as 48
hours under dry weather conditions.

How much condensation is unacceptable?

A water puddle inside the lamp. Streaks,
drip marks or large droplets present on
the interior of the lens.

What should I do if unacceptable
condensation is present?

Have your vehicle checked as soon as
possible.

Why do my headlamps turn off when I have
them switched on when I switch my vehicle
off?

The battery saver turns the headlamps
off after a short period of time after you
switch your vehicle off.

AUTOLAMPS

WHAT ARE AUTOLAMPS

WARNING: The system does not

relieve you of your responsibility to drive
with due care and attention. You may need
to override the system if it does not turn
the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low light
situations or when the windshield wipers
operate.

AUTOLAMP SETTINGS

1. Press Settings on the touchscreen.

2. Press Vehicle Settings.

3. Press Lighting.

4. Press Autolamp Delay.

5. Press a setting.

121

Exterior Lighting

EXTERIOR LAMPS

SWITCHING THE TURN SIGNAL
LAMPS ON AND OFF

E273180

Push the lever up or down to
switch the turn signal lamps on.

Set the lever to the middle position to switch
the turn signal lamps off.

Note: Tap the lever up or down to make the
turn signal lamps flash three times.

SWITCHING THE DAYTIME RUNNING
LAMPS ON AND OFF - VEHICLES
WITH: CONFIGURABLE DAYTIME
RUNNING LAMPS

WARNING: The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

1. Press Settings on the touchscreen.

2. Press Vehicle Settings.

3. Press Lighting.

4. Switch Daytime Running Lights on or

off.

The daytime running lamps turn on when all
of the following occur:
•

You switch the system on.

•

You switch your vehicle on.

•

The transmission is not in park (P) for
vehicles with automatic transmissions or
you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note: Other lighting control positions do not
turn on the daytime running lamps.

SWITCHING THE DAYTIME RUNNING
LAMPS ON AND OFF - VEHICLES
WITH: DAYTIME RUNNING LAMPS
(DRL)

WARNING: The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

122

Exterior Lighting

Daytime running lamps are always on unless
you switch on the headlamps or your vehicle
is in park (P).

SWITCHING THE FRONT FOG LAMPS
ON AND OFF

The front fog lamp button is on the lighting
control.

Press the button to switch the front
fog lamps on or off.

Note: Only switch the front fog lamps on
during reduced visibility.

Note: The brightness of the daytime running
lamps may decrease when the front fog
lamps are switched on.

Note: When the lighting control is in the
autolamps position, you cannot switch the
fog lamps on unless the headlamps are on.

SWITCHING WELCOME LIGHTING ON
AND OFF

Welcome lighting slowly turns on the exterior
lamps when you approach your vehicle with
an authenticated device or unlock the doors.

1. Press Settings on the touchscreen.
2. Press Vehicle Settings.

3. Press Lighting.

4. Switch Welcome Lighting on or off.

EXTERIOR LAMP INDICATORS

Front Fog Lamp

It illuminates when you switch the
front fog lamps on.

Turn Signal Lamp

It flashes when you switch the turn
signal lamps on.

Note: An increase in the rate of flashing
warns of a failed turn signal lamp.

EXTERIOR LAMP AUDIBLE WARNING

Exterior Lamps On

Sounds when you open the driver door and
the exterior lamps are on.

AUTOMATIC HIGH BEAM CONTROL

HOW DOES AUTOMATIC HIGH BEAM
CONTROL WORK

Automatic high beam control turns the high
beams on if it is dark enough and no other
traffic is present. If it detects an approaching
vehicle’s headlamps or tail lamps, or street
lighting ahead, the system turns the high
beams off.

A camera sensor, centrally mounted behind
the windshield of your vehicle, continuously
monitors conditions to turn the high beams
on and off.

123

Exterior Lighting

E327596

Without automatic high beam
control.

A

With automatic high beam control.

B

AUTOMATIC HIGH BEAM CONTROL
PRECAUTIONS

WARNING: The system does not

relieve you of your responsibility to drive
with due care and attention. You may need
to override the system if it does not turn
the high beams on or off.

WARNING: The system may not

switch the high beams off if the lights of
oncoming vehicles are hidden by
obstacles, for example guard rails.

WARNING: Do not use the system in

poor visibility, for example fog, heavy rain,
spray or snow.

WARNING: You may need to

override the system when approaching
other road users.

WARNING: You may need to

override the system during inclement
weather.

AUTOMATIC HIGH BEAM CONTROL
REQUIREMENTS

The system turns the high beams on if all of
the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough that
you require high beams.

•

There is no traffic in front of your vehicle.

•

The vehicle speed is greater than
approximately 32 mph (52 km/h).

124

Exterior Lighting

AUTOMATIC HIGH BEAM CONTROL
LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough
that you do not require high beams.

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

•

The system detects severe rain, snow or
fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 19 mph (30 km/h).

SWITCHING AUTOMATIC HIGH BEAM
CONTROL ON AND OFF

1. Press Settings on the touchscreen.

2. Press Vehicle Settings.

3. Press Lighting.

4. Switch Auto Highbeam on or off.

AUTOMATIC HIGH BEAM CONTROL
INDICATORS

Illuminates to confirm when the
system is ready to assist.

OVERRIDING AUTOMATIC HIGH BEAM
CONTROL

E273182

Push the lever away from you to switch the
high beam on.

Push the lever away from you again to switch
the high beams off.

Push the lever away from you for a third time
to switch automatic high beam control back
on.

125

Exterior Lighting

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Description

Message

The camera has reduced visibility.  Clean the windshield.  If the message continues to appear,
have your vehicle checked as soon as possible.

Front Camera Low Visibility Clean Screen

The camera has malfunctioned.  Wait a short period of time for the camera to cool down.  If the
message continues to appear, have your vehicle checked as soon as possible.

Front Camera Temporarily Not Available

The camera has malfunctioned.  Have your vehicle checked as soon as possible.

Front Camera Malfunction Service
Required

GLARE FREE LIGHTING

 (IF EQUIPPED)

HOW DOES GLARE FREE LIGHTING
WORK

Glare free lighting enhances visibility and
minimizes glare for other road users.

126

Exterior Lighting

E220921

Without glare free lighting.

A

With glare free lighting.

B

GLARE FREE LIGHTING PRECAUTIONS

WARNING: The system does not

relieve you of your responsibility to drive
with due care and attention. You may need
to override the system if it does not adapt
the light.

WARNING: The system may not

adapt the lighting to avoid glare if the lights
of oncoming vehicles are hidden by
obstacles such as guard rails.

WARNING: You may need to

override the system when approaching
other road users.

WARNING: You may need to

override the system during inclement
weather.

WARNING: Do not use the system in

poor visibility, for example fog, heavy rain,
spray or snow.

GLARE FREE LIGHTING
REQUIREMENTS

The system turns on if all of the following
occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough.

•

Your vehicle speed is greater than
approximately 32 mph (52 km/h).

The system adapts the lighting to avoid glare
if all of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The system detects an approaching
vehicle's headlamps or rear lamps.

127

Exterior Lighting

GLARE FREE LIGHTING LIMITATIONS

The system turns off if any of the following
occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough.

•

The system detects severe rain, snow or
fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 19 mph (30 km/h).

Note: The deactivation speed is lower on
curves.

SWITCHING GLARE FREE LIGHTING
ON AND OFF

1. Press Settings on the touchscreen.
2. Press Vehicle Settings.

3. Press Lighting.

4. Switch Glarefree Lighting on or off.

GLARE FREE LIGHTING INDICATORS

Illuminates to confirm when the
system is ready to assist.

OVERRIDING GLARE FREE LIGHTING

E273182

Push the lever away from you to switch the
high beams on.

Push the lever away from you again to switch
the high beams off.

Push the lever away from you for a third time
to switch glare free lighting back on.

128

Exterior Lighting

GLARE FREE LIGHTING – TROUBLESHOOTING

 (IF EQUIPPED)

GLARE FREE LIGHTING – INFORMATION MESSAGES

Description

Message

The camera has reduced visibility.  Clean the windshield.  If the message continues to appear,
have your vehicle checked as soon as possible.

Front Camera Low Visibility Clean Screen

The camera has malfunctioned.  Wait a short period of time for the camera to cool down.  If the
message continues to appear, have your vehicle checked as soon as possible.

Front Camera Temporarily Not Available

The camera has malfunctioned.  Have your vehicle checked as soon as possible.

Front Camera Malfunction Service
Required

ADAPTIVE FRONT LIGHTING

HOW DOES ADAPTIVE FRONT
LIGHTING WORK

Dynamic Bending Lamps

Adaptive front lighting moves the light into
the curve when you are steering around a
curve or if the camera detects lane markings
indicating a curve.

129

Exterior Lighting

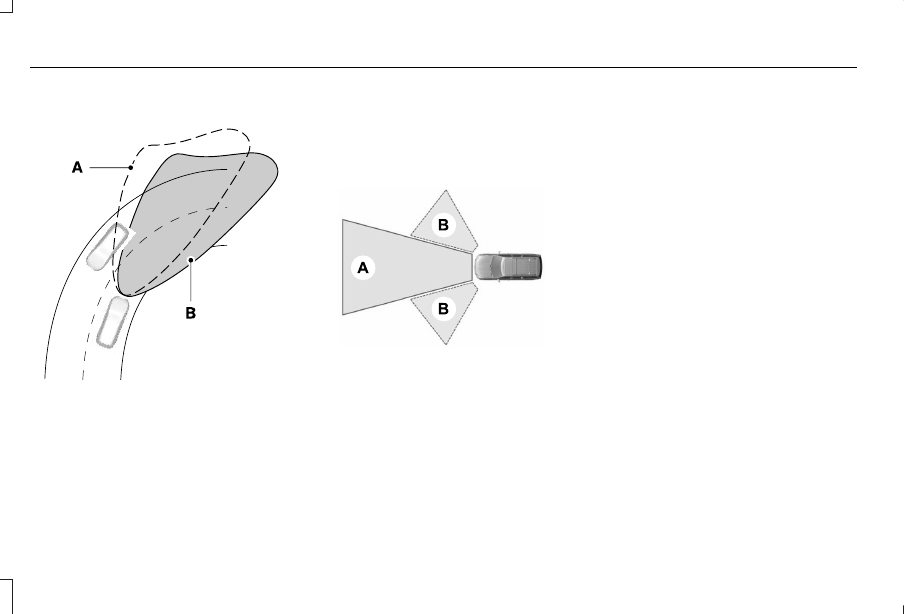

E161714

Without adaptive front lighting.

A

With adaptive front lighting.

B

Situational Supplemental Lighting

Adaptive front lighting provides supplemental
light on the road depending on your vehicle
speed, steering wheel input, and camera
detection of stop or yield traffic signs.

E275680

Standard low beam.

A

Supplemental lighting.

B

SWITCHING ADAPTIVE FRONT
LIGHTING ON AND OFF

Set the lighting control to the autolamps
position to use adaptive front lighting.

Note: Other lighting control positions do not
turn on adaptive front lighting.

130

Exterior Lighting

SWITCHING ALL OF THE INTERIOR
LAMPS ON AND OFF

The lamps turn on under the following
conditions:

•

You open any door.

•

You press a button on the remote control.

•

You press the all lamps on button on the
overhead console.

Press to switch all interior lamps
on or off.

SWITCHING THE FRONT INTERIOR
LAMPS ON AND OFF

E339273

The front interior lamp switches are on the
overhead console.

Note: The position of each button on the
overhead console depends on your vehicle.

Individual Map Lamps

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

SWITCHING THE REAR INTERIOR
LAMPS ON AND OFF

E281231

The rear interior lamps may be above the
rear seat or above the rear windows.

Press to switch the lamps on or off.

Note: If you switch the rear lamps on through
the overhead console, you cannot switch
them off with the rear lamp switch.

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function switches the
courtesy and door lamps on or off.

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF

Press to switch the interior lamp
function on and off.

Note: The indicator lamp illuminates amber
when the door function is off.

131

Interior Lighting

ADJUSTING THE INSTRUMENT
PANEL LIGHTING BRIGHTNESS

The instrument lighting dimmer buttons are
on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

AMBIENT LIGHTING

SWITCHING AMBIENT LIGHTING ON
AND OFF

1. Press Settings on the touchscreen.
2. Press Vehicle Settings.

3. Press Ambient Light.

4. Press a color.

ADJUSTING AMBIENT LIGHTING

Drag the selected color up or down.

INTERIOR LIGHTING –
TROUBLESHOOTING

INTERIOR LIGHTING – FREQUENTLY
ASKED QUESTIONS

Why do my courtesy lamps or interior lamps
turn off when I have them switched on
when I switch my vehicle off?

The battery saver turns the courtesy
lamps and interior lamps off after a short
period of time after you switch your
vehicle off.

132

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the power windows. Failure
to follow this instruction could result in
personal injury.

WARNING: When closing the power

windows, verify they are free of obstruction
and make sure that children and pets are
not in the proximity of the window
openings.

Press the window control switch
to open the window.  Lift the
window control switch to close the

window.

Note: The power windows operate with the
ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

One-Touch Open

Fully press the window control switch and
release it.  Press again or lift it to stop the
window.

One-Touch Close

Fully lift the window control switch and
release it.  Press again or lift it to stop the
window.

Resetting One-Touch Close

Carry out all steps within 30 seconds of
starting the sequence.

1. Close the window.

2. Press and hold the window control switch

until the window is fully open. Keep the
window control switch pressed for a few
seconds.

3. Lift and hold the window control switch

until the window is fully closed. Keep the
window control switch held for a few
seconds.

4. Press and hold the window control switch

until the window is fully open. Keep the
window control switch pressed for a few
seconds.

5. Lift and hold the window control switch

until the window is fully closed. Keep the
window control switch held for a few
seconds.

Note: Repeat the procedure if the window
does not close when you use one-touch.

GLOBAL OPENING AND CLOSING

WHAT IS GLOBAL OPENING AND
CLOSING

You can use the remote control to operate
the windows with the ignition off.

133

Windows

USING GLOBAL OPENING

1. Press and release the unlock button on

the remote control.

2. Within one second, press and hold the

unlock button on the remote control.

3. Release the button when the windows

start to open.

Press the lock or the unlock button on the
remote control to stop global opening.

Note: Global opening will only respond to a
press and hold of the unlock button for a
short period of time after the unlock button
is pressed on the remote control.

SWITCHING GLOBAL OPENING ON
AND OFF

1. Press the menu button on the steering

wheel to enter the information display
main menu.

2. Select Settings.

3. Select Vehicle.

4. Select Windows.

5. Switch Remote Open on or off.

USING GLOBAL CLOSING

WARNING: When closing the power

windows, verify they are free of obstruction
and make sure that children and pets are
not in the proximity of the window
openings.

1. Press and hold the lock button on the

remote control.

2. Release the button when the windows

start to close.

Press the lock or the unlock button on the
remote control to stop global closing.

Note: Bounce-back is on during global
closing.  See What Is Window Bounce-Back
(page 134).

SWITCHING GLOBAL CLOSING ON
AND OFF

1. Press the menu button on the steering

wheel to enter the information display
main menu.

2. Select Settings.

3. Select Vehicle.
4. Select Windows.
5. Switch Remote Close on or off.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING: If you override

bounce-back, the window does not reverse
if it detects an obstacle. Take care when
closing the windows to avoid personal
injury or damage to your vehicle.

1. Close the window until it reaches the

point of resistance and let it reverse.

134

Windows

2. Lift and hold the window control switch

within two seconds to override
bounce-back and close the window.
Bounce-back is now disabled and you
can close the window manually.

Note: The window goes past the point of
resistance and you can fully close it.

Note: If the window does not close, have
your vehicle checked as soon as possible.

LOCKING THE REAR WINDOW
CONTROLS

Press the window control switch
to lock or unlock the rear window
controls.  It illuminates when you

lock the rear window controls.

135

Windows
