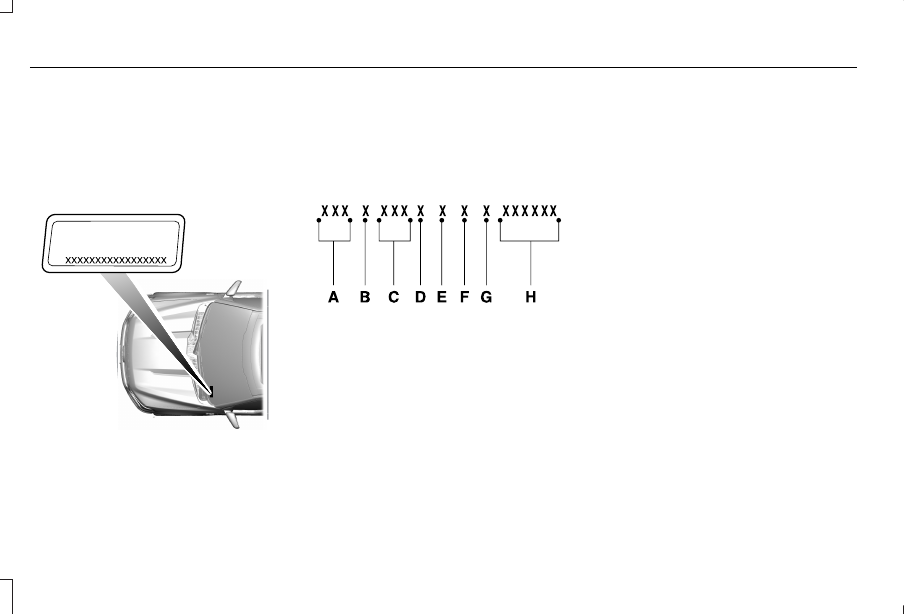

VEHICLE IDENTIFICATION NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E311767

In the graphic, XXXX is representative of
your vehicle identification number.

VEHICLE IDENTIFICATION NUMBER
OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

A

Brake system, gross vehicle weight
rating, restraint devices and their
locations.

B

Make, vehicle line, series, body
type.

C

Engine or motor type.

D

Check digit.

E

Model year.

F

Assembly plant.

G

Production sequence number.

H

422

Vehicle Identification

WHAT IS A CONNECTED VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with the
Lincoln Way app, it could allow you to
monitor and control your vehicle further, for
example checking the tire pressures, and
the vehicle location. For additional
information, refer to the local Lincoln website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require a subscription.
For additional information, see the Lincoln
Way app. Some restrictions, third party terms
and message or data rates may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO A
MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

1. Press Settings.

2. Press Lincoln Connect.

3. Press Connectivity Settings.

4. Switch connectivity features on or off.

CONNECTING LINCOLN WAY TO THE
MODEM

1. Make sure that the modem is enabled

using the vehicle settings menu.

2. Open the Lincoln Way app on your

device and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option for vehicle details.

5. Select the option to activate your vehicle.

6. Make sure that the name on the screen

matches the name shown in your Lincoln
Way account.

7. Confirm that your Lincoln Way account

is connected to the modem.

CONNECTING THE VEHICLE TO A
WI-FI NETWORK

1. Press Settings.

2. Press Wi-Fi.

423

Connected Vehicle

3. Switch Wi-Fi on.

4. Press View Available Networks.

5. Select an available Wi-Fi network.

Note: Enter the network password to
connect to a secure network.

CONNECTED VEHICLE – TROUBLESHOOTING

CONNECTED VEHICLE – FREQUENTLY ASKED QUESTIONS - VEHICLES WITH: MODEM

Possible Cause and Resolution

Symptom

I cannot confirm the connection of my Lincoln
Way account to the modem.

– Modem is not enabled.

•

Switch connectivity features on.

– Weak network signal.

•

Move your vehicle closer to a place where the network signal is not obstructed.

424

Connected Vehicle

CONNECTED VEHICLE – FREQUENTLY ASKED QUESTIONS

Possible Cause and Resolution

Symptom

I cannot connect to a Wi-Fi network.

– Password error.

•

Enter the correct network password.

– Weak network signal.

•

Move your vehicle closer to the Wi-Fi hotspot or to a place where the network signal
is not obstructed.

– Multiple access points in range with the same SSID.

•

Use a unique name for your SSID. Do not use the default name unless it contains a
unique identifier, for example as part of the MAC address.

The Wi-Fi connection disconnects after
successful connection.

– Weak network signal.

•

Move your vehicle closer to the Wi-Fi hotspot or to a place where the network signal
is not obstructed.

I am close to a Wi-Fi hotspot but the network
signal strength is weak.

– Obstructed network signal.

•

If your vehicle has a heated windshield, position your vehicle so that the windshield
is not facing the Wi-Fi hotspot.

•

If your vehicle has metallic tinting on the windows but not on the windshield, position
your vehicle so that the windshield is facing the Wi-Fi hotspot or open the windows
that are facing the hotspot.

•

If your vehicle has metallic tinting on the windows and the windshield, open the
windows that are facing the hotspot.

425

Connected Vehicle

Possible Cause and Resolution

Symptom

If your vehicle is in a garage and you have the garage door closed, open the garage
door.

•

I cannot see a network in the list of available
networks that I expect to see.

– Hidden network.

•

Make the network visible and try again.

I cannot see the Wi-Fi hotspot name when I
search for Wi-Fi networks on my cell phone
or other device.

– System limitation.

•

Make sure Wi-Fi hotspot visibility is on.

•

The system does not provide a Wi-Fi hotspot at this time.

– Weak network signal.

•

Move your vehicle closer to the Wi-Fi hotspot or to a place where the network signal
is not obstructed.

– Wi-Fi hotspot in high demand or has a slow Internet connection.

•

Use a more reliable Wi-Fi hotspot.

Software downloads take too long.

– No software update available.
– Wi-Fi network requires a subscription or acceptance of terms and conditions.

•

Test the connection using another device. If the network requires a subscription or
acceptance of terms and conditions, contact the network service provider.

The system seems to connect to a Wi-Fi
network and the signal strength is excellent
but the software does not update.

426

Connected Vehicle

CREATING A VEHICLE WI-FI
HOTSPOT

You can create a Wi-Fi hotspot in your
vehicle and allow devices to connect to it for
access to the Internet.

E280315

Select the settings option on the
feature bar.

1. Select Lincoln Way.
2. Select Vehicle Hotspot.

Note: The vehicle hotspot default setting is
on.

3. Select Settings.

4. Select Wi-Fi Visibility.

Note: The Wi-Fi Visibility default setting is
on.

Finding the Wi-Fi Hotspot Name and
Password

E280315

Select the settings option on the
feature bar.

1. Select Lincoln Way.

2. Select Vehicle Hotspot.

3. Select Settings.
Note: The SSID is the hotspot name.

4. Select View Password.

Connecting a Device to the Wi-Fi
Hotspot

1. On your device, switch Wi-Fi on and

select the hotspot from the list of
available Wi-Fi networks.

2. When prompted, enter the password.

Purchasing a Data Plan

1. Connect a device to the hotspot.

Note: The vehicle network carrier’s portal
opens on your device.

2. If the portal does not open on your

device, open a website and it redirects
to the vehicle network carrier’s portal.

Note: Secure websites do not redirect.

Note: If you have an active plan, the system
does not redirect to the vehicle network
carrier’s portal when you connect a device.
Visit the vehicle network carrier’s website to
purchase more data.

Note: If data usage information is available
in the vehicle hotspot menu, it is
approximate.

Note: If you carry out a master reset, the
system does not remove your vehicle from
your vehicle network carrier’s account. To
remove your vehicle from the account,
contact your vehicle network carrier.

Note: The vehicle network carrier provides
Vehicle Hotspot services, subject to your
vehicle network carrier agreement, coverage
and availability.

CHANGING THE VEHICLE WI-FI
HOTSPOT NAME OR PASSWORD

E280315

Select the settings option on the
feature bar.

1. Select Lincoln Way.

427

Vehicle Wi-Fi Hotspot

2. Select Vehicle Hotspot.

Note: The vehicle hotspot default setting is
on.

3. Select Settings.

4. Select Edit.
5. Select Change SSID Name.

6. Enter your required SSID.

7. Select Done.

8. Select Change Password.

9. Enter your required password.

10.

Select Done.

Changing the Wi-Fi Hotspot Band

Note: The Vehicle Hotspot frequency band
is selectable as 2.4GHZ or 5.0 GHZ
depending upon your device capabilities. To
change the Vehicle Hotspot frequency band,
you will need to perform the following steps.

1. Select Settings.

2. Select Vehicle Hotspot.

3. Select Settings.

4. Select Edit.

5. Under the option change frequency

band.

6. Select 2.4 GHZ or 5.0 GHZ.

428

Vehicle Wi-Fi Hotspot

AUDIO SYSTEM PRECAUTIONS

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Listening to loud audio for long periods of
time could damage your hearing.

IDENTIFYING THE AUDIO UNIT

E286905

Depending on your vehicle option package,
the controls may look different from what
you see here.

SWITCHING THE AUDIO UNIT ON
AND OFF

Press the button on the volume
control.

SELECTING THE AUDIO SOURCE

Audio Unit

E308143

Press the button to open the media
source menu.

You can press this multiple times to change
to the audio source or scroll through the
media sources.

Touchscreen

Press Sources on the touchscreen to open
the media source menu.

PLAYING OR PAUSING THE AUDIO
SOURCE

Touchscreen

Press to pause playback. Press
again to resume playback.

Note: Not all sources can be paused.

429

Audio System

ADJUSTING THE VOLUME

E248939

Turn to adjust the volume.

Some vehicles may be able to adjust the
volume using buttons on the steering wheel.

SWITCHING SHUFFLE MODE ON
AND OFF

Press the button on the
touchscreen to switch shuffle
mode on or off.

Note: Not all sources have shuffle mode.

SWITCHING REPEAT MODE ON
AND OFF

Press the button on the
touchscreen to switch repeat mode
on or off.

Note: Not all sources have repeat mode.

SETTING A MEMORY PRESET

1. Select a station or channel.

2. Press and hold a memory preset button

on the touchscreen.

Note: The audio mutes briefly while the
system saves the preset and returns once it
is stored.

Note: You can save presets from multiple
sources to the memory preset bar.

MUTING THE AUDIO

Press the button on the steering
wheel to mute the audio.

Press to mute the signal. Press
again to restore the signal.

ADJUSTING THE SOUND
SETTINGS

Balance and Fade

 (If Equipped)

1. Press Settings on the touchscreen.

2. Press Sound Settings.

3. Press Balance / Fade.

4. Press the arrows to adjust the settings.

Tone Settings

1. Press Settings on the touchscreen.

2. Press Sound Settings.

430

Audio System

3. Press Tone Settings.

4. Press the arrows or slider bar to adjust

the settings.

Speed Compensated Volume

1. Press Settings on the touchscreen.

2. Press Sound Settings.

3. Press Speed Compensated Volume.

4. Press a setting.

Occupancy Mode

 (If Equipped)

1. Press Settings on the touchscreen.

2. Press Sound Settings.

3. Press Occupancy Mode.

4. Press a setting.

Sound Mode

 (If Equipped)

1. Press Settings on the touchscreen.

2. Press Sound Settings.

3. Press Sound Mode.

4. Press a setting.

SETTING THE CLOCK AND DATE

1. Press Settings on the touchscreen.
2. Press Clock Settings.

3. Set the time.
Note: The AM and PM options are not
available if 24-hour mode is on.

Switching Automatic Time Updates On
and Off

1. Press Settings on the touchscreen.

2. Press Clock Settings.

3. Switch Automatic time zone update on

or off.

AM/FM RADIO

AM/FM RADIO LIMITATIONS

The further you travel from an AM or FM
station, the weaker the signal and the weaker
the reception.

Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with the
reception.

When you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the
audio system muting.

431

Audio System

SELECTING A RADIO STATION

Manually Selecting a Radio Station

E270235

Turn to search through the radio frequency
band.

Using Direct Tune

1. Press Direct Tune to open the number

pad.

2. Enter the station you prefer.

Note: You can only enter a valid station for
the audio source you are currently listening
to.

Using Seek

Press either button. The system
stops at the first station it finds in
that direction.

Using the Station List

1. Press Browse.

Note: Available on FM radio only.

2. Press a station.

SWITCHING THE DISPLAY ON AND
OFF

Audio Unit

E272035

Press the button.

Touchscreen

To switch the display off:

1. Press Settings on the touchscreen.

2. Press Display Settings.

3. Press Display Off.

Note: The display defaults to on each time
you switch your vehicle on.

To switch the display on, press anywhere on
the touchscreen.

DIGITAL RADIO

WHAT IS DIGITAL RADIO

HD Radio™ technology is the digital evolution
of analog AM/FM radio.

For additional information, visit

www.HDRadio.com

.

432

Audio System

HD Radio Technology is manufactured under
license from iBiquity Digital Corporation and
foreign patents. HD Radio and the HD and
HD Radio logos are proprietary trademarks
of DTS. The vehicle manufacturer and DTS
are not responsible for the content sent using
HD Radio technology. Content may be
changed, added or deleted at any time at
the station owner's discretion.

HOW DOES DIGITAL RADIO WORK

Your system has a special receiver that
allows it to receive digital broadcasts in
addition to analog broadcasts.

HD1 signifies the main programming status
and is available in both analog and digital
broadcasts. Other multicast stations are only
available digitally and could contain new or
different content.

Note: When the system first receives an HD1
station, it plays the station in the analog
version until it verifies the station is an HD
Radio station. Then it shifts to the digital
version.

Note: There is an audio mute delay when
switching to an HD2 or HD3 station because
the system has to reacquire and decode the
digital signal.

DIGITAL RADIO LIMITATIONS

If you are outside the reception area, the
system could not work.

If you are on the fringe of the reception area,
the station could mute due to weak signal
strength.

Note: If you are listening to HD1, the system
changes back to the analog broadcast until
the digital broadcast is available again. If
you are listening to any other multicast
channels, the station mutes and stays muted
unless it is able to connect to the digital
signal again.

Depending on the station quality, you could
hear a slight sound change when the station
changes between analog and digital audio.

You cannot access a saved HD station if your
vehicle is outside the station’s reception
area.

SWITCHING DIGITAL RADIO
RECEPTION ON AND OFF

1. Press Settings on the touchscreen.

2. Press Radio Settings.

3. Switch AM HD Radio or FM HD Radio

on or off.

DIGITAL RADIO INDICATORS

HD Radio Indicator

The indicator appears when HD Radio is on
and you tune to a station broadcasting HD
Radio technology.

E142616

The color of the indicator changes to indicate
the system status.

433

Audio System

Gray indicates the system is acquiring a
digital station.

Orange indicates digital audio is playing.

Multicast Indicator

The multicast indicator appears if the current
station is broadcasting multiple digital
broadcasts. The highlighted numbers
indicate additional digital channels available.

Note: For stations that have more than one
HD multicast, the HD indicator and radio text
appears as a button. Press the button to
cycle through all of the HD stations on that
specific frequency.

SATELLITE RADIO

WHAT IS SATELLITE RADIO

Your factory-installed SiriusXM radio system
includes a limited subscription term, which
begins on the date of sale or lease of your
vehicle. See an authorized dealer for
availability.

For additional information about extended
subscription terms, visit

www.SiriusXM.com

in the United States,

www.SiriusXM.ca

 in

Canada, or call SiriusXM at 1-888-539-7474.

Note: SiriusXM reserves the unrestricted
right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Neither SiriusXM and its affiliates nor Ford
Motor Company and its affiliates will be
liable to you or any third party for any such
modification, suspension or termination.

SATELLITE RADIO LIMITATIONS

For optimal reception performance, keep the
antenna clear of snow and ice build-up and
keep luggage and other material as far away
from the antenna as possible. Placing
luggage over the antenna may reduce
performance. Factory-installed and
aftermarket vehicle structures including, but
not limited to, roof racks and soft top roofs
in a partially open position could reduce
reception performance.

Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with your
reception.

When you pass a ground-based
broadcast-repeating tower, a stronger signal
may overtake a weaker one and could result
in the audio system muting. Your display
could show an error message to indicate the
interference.

LOCATING THE SATELLITE RADIO
IDENTIFICATION NUMBER

1. Select SiriusXM as the audio source.

2. Tune to channel 0.

SELECTING A CHANNEL

Manually Selecting a Channel

E328569

E328570

Press the button to find the
previous or next available radio
channel.

434

Audio System

Linear Tuner

The linear tuner is displayed when manually
selecting a channel. You can swipe left or
right on the linear tuner carousel to navigate
through the channel list. Tap on a channel
title to listen to it.

Using Direct Tune

1. Press the channel up or down button to

open the linear tuner screen.

2. Press Direct Tune to open the number

pad.

3. Enter the channel you prefer.

Using Seek

Press either button.

Using the Channel List

1. Press Browse.

2. Select a channel.

SATELLITE RADIO SETTINGS

Subscription

Your subscription status is displayed. You
can subscribe or manage your subscription
directly from the touchscreen.

Listener Add/Switch

You can create up to five listener profiles per
SiriusXM account. Each listener profile can
be personalized with a name and profile
image.

Note: Requires a trial or active subscription
to use.

Note: A default profile is available when no
listener profiles are created.

SiriusXM Favorites

SiriusXM Favorites are shown for the active
listener profile. While you are listening to
SiriusXM, you can save favorites by:

•

Tapping the currently tuned channel or
show logo on the SiriusXM audio screen.
A favorite icon appears next to the logo
when it is saved as a favorite.

•

Tuning to a channel or show you want to
save as a favorite. Navigate to the
SiriusXM Favorites screen and press the
Add Current button. The currently tuned
channel or show is saved as a favorite.

•

Saving a radio preset. This saves the
currently tuned SiriusXM channel or show
as a favorite.

Note: Requires a trial or active subscription
to use.

Listening History

Listening history is a list of recently listened
to SiriusXM content and is shown for the
active listener profile. You can view, manage
and reset the listening history using the
controls on the touchscreen.

Note: Requires a trial or active subscription
to use.

435

Audio System

Listener Settings

Listener settings apply to the active listener
profile.

Note: Requires a trial or active subscription
to use.

Note: A default profile is available when no
listener profiles are created.

Help and Support

You can contact SiriusXM Customer Care
directly from SYNC and view information
required to manage your SiriusXM account.

SETTING AN ALERT

E343640

Set a notification for the current
song, artist, or sports team by
pressing the icon. The system

alerts you when it plays again on any
channel. Selecting this button allows you to
enable and edit alerts.

Note: Notifications can be switched on or
off and edited in the satellite radio settings.

436

Audio System

CENTER DISPLAY PRECAUTIONS

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

CENTER DISPLAY LIMITATIONS

Speed-restricted Features

For your safety, some features are not
available while the vehicle is in motion at or
above 5 mph (8 km/h). Settings that are not
critical while driving your vehicle are shown
as restricted on your display. Some of these
settings include:

•

System updates.

•

Personal profiles setup.

•

Valet mode setup.

•

Driver assistance settings.

Vehicle Settings
•

MyKey setup.

•

Door keypad code setup.

•

Backup start passcode setup.

These restricted features become available
when your vehicle is no longer in motion.

STATUS BAR

The bar is on top of the display and indicates
the status of your vehicle's features.

Audio System

E353221

Audio system muted.

Connected Device

Cell phone microphone muted.

E353213

Phone call in progress.

E353208

Media player connected.

Cell phone network signal
strength.

Cell phone roaming.

E335295

Text message received.

E353216

Unread email message.

Automatic crash notification system
off.

E335293

Cell phone battery status.

Vehicle Data

E353219

Wi-Fi available.

437

Center Display Overview
