Lincoln Nautilus (2022 year). Manual in english - page 25

MOTORCRAFT PARTS - 2.0L

Motorcraft Part Number

Component

FA-1912A

Air filter element.

BAGM-94RH7-800

Battery.

FP-71A

Cabin air filter.

FP-80 (odor)

Cabin air filter.

FL-910-S

Engine oil filter.

1

SP-578

Spark plug.

WW-2350 (driver side)

Windshield wiper blade.

WW-1750 (passenger side)

WW-1206 (rear window)

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at www.fordparts.com. We engineer these parts for your
vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty
could be void for any damage related to use of other parts.

406

Capacities and Specifications

MOTORCRAFT PARTS - 2.7L

Motorcraft Part Number

Component

FA-1912A

Air filter element.

BAGM-94RH7-800

Battery.

FP-71A

Cabin air filter.

FP-80 (odor)

Cabin air filter.

FL-2062A

Engine oil filter.

1

SP-578

Spark plug.

WW-2350 (driver side)

Windshield wiper blade.

WW-1750 (passenger side)

WW-1206 (rear window)

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at www.fordparts.com. We engineer these parts for your
vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty
could be void for any damage related to use of other parts.

407

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L

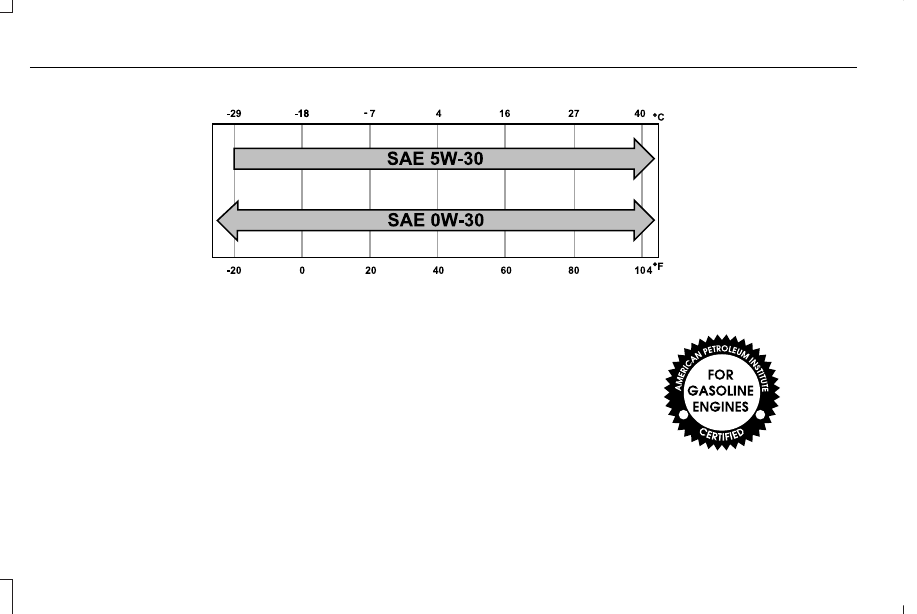

Use oil that meets the defined specification
and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

We recommend Motorcraft motor oil for your
vehicle. If Motorcraft oil is not available, use
motor oils of the recommended viscosity
grade that display the API Certification Mark
for gasoline engines.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that your vehicle
warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.5 qt (5.2 L)

All.

408

Capacities and Specifications

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

409

Capacities and Specifications

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L

Use oil that meets the defined specification
and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

410

Capacities and Specifications

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

We recommend Motorcraft motor oil for your
vehicle. If Motorcraft oil is not available, use
motor oils of the recommended viscosity
grade that meet API SP requirements and
display the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that your vehicle
warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

411

Capacities and Specifications

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,

use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

412

Capacities and Specifications

COOLING SYSTEM CAPACITY AND
SPECIFICATION - 2.0L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

9.7 qt (9.2 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

413

Capacities and Specifications

COOLING SYSTEM CAPACITY AND
SPECIFICATION - 2.7L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

12.5 qt (11.8 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

414

Capacities and Specifications

FUEL TANK CAPACITY

Capacities

Quantity

Variant

18.4 gal (69.7 L)

Front-wheel drive.

18.5 gal (70 L)

All-wheel drive.

415

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND SPECIFICATION -
2.0L

WARNING: The air conditioning

refrigerant system contains refrigerant

under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Use refrigerant and oil that meets the defined
specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.2 fl oz (95 ml)

20.8 oz (0.59 kg)

All.

416

Capacities and Specifications

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft®(Canada)
YN-35(U.S. & Canada)

417

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND SPECIFICATION -
2.7L

WARNING: The air conditioning

refrigerant system contains refrigerant

under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Use refrigerant and oil that meets the defined
specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.2 fl oz (95 ml)

20.8 oz (0.59 kg)

All.

418

Capacities and Specifications

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft®(Canada)
YN-35(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

419

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute
qualité Motorcraft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined specification
and viscosity grade.

If you do not use fluid that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note: We recommend you use Dot 4 Low
Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

420

Capacities and Specifications

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de
frein automobile haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

421

Capacities and Specifications
