vehicle and reimburse the buyer in an
amount equal to the actual price paid or
payable by the consumer (less a reasonable
allowance for consumer use). The consumer
has the right to choose whether to receive
a refund or replacement vehicle.

California Civil Code Section 1793.22(b)
presumes that the manufacturer has had a
reasonable number of attempts to conform
the vehicle to its applicable express
warranties if, within the first 18 months of
ownership of a new vehicle or the first
18,000 mi (29,000 km), whichever occurs
first:

1. Two or more repair attempts are made

on the same non-conformity likely to
cause death or serious bodily injury OR

2. Four or more repair attempts are made

on the same nonconformity (a defect or
condition that substantially impairs the
use, value or safety of the vehicle) OR

3. The vehicle is out of service for repair of

nonconformities for a total of more than
30 calendar days (not necessarily all at
one time).

In the case of 1 or 2 above, the consumer
must also notify the manufacturer of the need
for the repair of the nonconformity at the
following address:

Ford Motor Company
16800 Executive Plaza Drive
Mail Drop 3NE-B
Dearborn, MI 48126

You are required to submit your warranty
dispute to BBB AUTO LINE before asserting
in court any rights or remedies conferred by
California Civil Code Section 1793.22(b). You
are also required to use BBB AUTO LINE
before exercising rights or seeking remedies
created by the Federal Magnuson-Moss
Warranty Act, 15 U.S.C. sec. 2301 et seq. If
you choose to seek redress by pursuing
rights and remedies not created by California
Civil Code Section 1793.22(b) or the
Magnuson-Moss Warranty Act, resort to BBB
AUTO LINE is not required by those statutes.

THE BETTER BUSINESS BUREAU
(BBB) AUTO LINE PROGRAM (U.S.
ONLY)

Your satisfaction is important to Ford Motor
Company and to your dealer. If a warranty
concern has not been resolved using the
three-step procedure outlined earlier in this
chapter in the Getting the Services you need
section, you may be eligible to participate in
the BBB AUTO LINE program.

The BBB AUTO LINE program consists of
two parts – mediation and arbitration. During
mediation, a representative of the BBB will
contact both you and Ford Motor Company
to explore options for settlement of the claim.
If an agreement is not reached during
mediation or you do not want to participate
in mediation, and if your claim is eligible, you
may participate in the arbitration process. An
arbitration hearing will be scheduled so that
you can present your case in an informal
setting before an impartial person. The
arbitrator will consider the testimony
provided and make a decision after the
hearing.

275

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Disputes submitted to the BBB AUTO LINE
program are usually decided within forty days
after you file your claim with the BBB. You
are not bound by the decision, and may
reject the decision and proceed to court
where all findings of the BBB Auto Line
dispute, and decision, are admissible in the
court action. Should you choose to accept
the BBB AUTO LINE decision, Ford is then
bound by the decision, and must comply with
the decision within 30 days of receipt of your
acceptance letter.

BBB AUTO LINE Application: Using the
information provided below, please call or
write to request a program application. You
will be asked for your name and address,
general information about your new vehicle,
information about your warranty concerns,
and any steps you have already taken to try
to resolve them. A Customer Claim Form will
be mailed that will need to be completed,
signed and returned to the BBB along with
proof of ownership. Upon receipt, the BBB
will review the claim for eligibility under the
Program Summary Guidelines.

You can get more information by calling
BBB AUTO LINE at 1-800-955-5100, or
writing to:

BBB AUTO LINE
3033 Wilson Boulevard, Suite 600
Arlington, Virginia 22201

BBB AUTO LINE applications can also be
requested by calling the Ford Motor
Company Customer Relationship Center at
1-800-392-3673.

For additional information refer to the Better
Business Bureau website.

Note: Ford Motor Company reserves the
right to change eligibility limitations, modify
procedures, or to discontinue this process
at any time without notice and without
obligation.

UTILIZING THE
MEDIATION/ARBITRATION
PROGRAM (CANADA ONLY)

For vehicles delivered to authorized
Canadian dealers. In those cases where you
continue to feel that the efforts by Ford of
Canada and the authorized dealer to resolve
a factory-related vehicle service concern
have been unsatisfactory, Ford of Canada
participates in an impartial third party
mediation/arbitration program administered
by the Canadian Motor Vehicle Arbitration
Plan (CAMVAP).

The CAMVAP program is a straight forward
and relatively speedy alternative to resolve
a disagreement when all other efforts to
produce a settlement have failed. This
procedure is without cost to you and is
designed to eliminate the need for lengthy
and expensive legal proceedings.

276

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In the CAMVAP program, impartial third-party
arbitrators conduct hearings at mutually
convenient times and places in an informal
environment. These impartial arbitrators
review the positions of the parties, make
decisions and, when appropriate, render
awards to resolve disputes. CAMVAP
decisions are fast, fair, and final as the
arbitrator’s award is binding on both you and
Ford of Canada.

CAMVAP services are available in all
Canadian territories and provinces. For more
information, without charge or obligation, call
your CAMVAP Provincial Administrator
directly at 1-800-207-0685 or visit
www.camvap.ca.

GETTING ASSISTANCE OUTSIDE
THE U.S. AND CANADA

Before exporting your vehicle to a foreign
country, contact the appropriate foreign
embassy or consulate. These officials can
inform you of local vehicle registration
regulations and where to find unleaded fuel
or petrol/gas engines or the proper sulfur
fuel for diesel engines.

If you cannot find the proper fuel
recommended for your vehicle, contact our
Customer Relationship Center.

The use of improper fuels in your vehicle
without proper conversion may damage the
effectiveness of your emission control system
and may cause engine knocking or serious
engine damage. Ford Motor Company or
Ford of Canada is not responsible for any
damage caused by use of improper fuel.
Using improper fuels may also result in
difficulty importing your vehicle back into the
United States.

If your vehicle must be serviced while you
are traveling or living in Asia-Pacific Region,
Sub-Saharan Africa, U.S. Virgin Islands and/or
Puerto Rico, Central America, the Caribbean,
and Israel and the Middle East, contact the
nearest authorized dealer. If the authorized
dealer cannot help you, contact the
corresponding Ford Customer Assistance
Center:

FORD MOTOR COMPANY

Customer Relationship Centers in:

277

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E-mail

Fax

Phone

Customer Relationship Center

apemcrc@ford.com

N/A

N/A

Asia Pacific

expcac@ford.com

-

+1 313 594 4857

Caribbean and Central America

menacac@ford.com

971 4 3327 266

Ford

Middle East

80004443673

Lincoln

80004441067

UAE

80004441066

Saudi Arabia

8008443673

Mobily and Zain cell phone users

in Saudi

800850078

Kuwait

22280384

nafcrc@ford.com

N/A

N/A

North Africa

278

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E-mail

Fax

Phone

Customer Relationship Center

prcac@ford.com

N/A

+1-800-841-3673

Puerto Rico and U.S. Virgin Islands

ssacrc@ford.com

N/A

N/A

Sub-Saharan Africa

infokr1@ford.com or

infokr@lincoln.com

N/A

+82-02-1600-6003

South Korea

If you buy your vehicle in North America and
then relocate to any of the above locations,
register your vehicle identification number
(VIN) and new address with Ford Global
Trade Services by emailing,
expcso@ford.com.

If you are in another foreign country, contact
the nearest authorized dealer. In the event
your inquiry is unresolved, communicate your
concern with the dealership’s Sales Manager,
Service Manager or Customer Relations
Manager. If you require additional assistance
or clarification, please contact the respective
Customer Relationship Center as previously
listed.

Customers in the U.S. should call
1-800-392-3673.

ORDERING ADDITIONAL OWNER'S
LITERATURE

To order the publications in this portfolio,
contact Helm, Incorporated at:

HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service

Or to order a free publication catalog, call
toll free: 1-800-782-4356

Monday-Friday 8:00 a.m. - 6:00 p.m. EST

Helm, Incorporated can also be reached by
their website:

www.helminc.com

(Items in this catalog may be purchased by
credit card, check or money order.)

279

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REPORTING SAFETY DEFECTS
(U.S. ONLY)

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying Ford
Motor Company.

If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
Ford Motor Company.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to

www.safercar.gov

; or write to:

Administrator

1200 New Jersey Avenue, Southeast

Washington, D.C. 20590

You can also obtain other information
about motor vehicle safety from

www.safercar.gov

.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)

Website

1-800-333-0510

Phone

280

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Ford of Canada Contact Information

www.ford.ca

Website

1-800-565-3673

Phone

281

Customer Assistance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

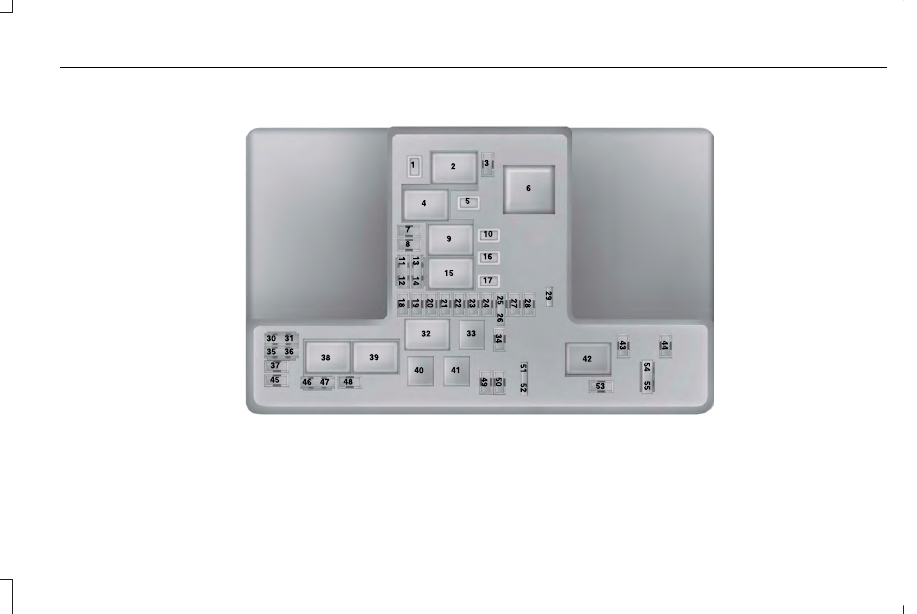

FUSE SPECIFICATION CHART

Power Distribution Box

WARNING: Always disconnect the

battery before servicing high current fuses.

WARNING: To reduce risk of

electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.

If you disconnect and reconnect the battery,
you need to reset some features.  See
Changing the 12V Battery (page 312).

282

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E144783

283

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Protected Component

Fuse Rating

Fuse or Relay Number

Wiper Motor 2.

25A

1

1

Not used.

2

Rain sensor.

15A

2

3

Blower motor relay.

4

Power point 3 - back of console.

20A

1

5

Not used.

6

Powertrain control module - vehicle power 1.

20A

2

7

Powertrain control module power.

Powertrain control module - vehicle power 2.

20A

2

8

Emissions components.

Powertrain control module relay.

9

Power point 1 - driver front.

20A

1

10

Powertrain control module - vehicle power 4.

15A

3

11

Ignition coils.

Powertrain control module - vehicle power 3.

15A

3

12

Non-emissions components.

284

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Protected Component

Fuse Rating

Fuse or Relay Number

Fuel door mechanism.

10A

2

13

Not used (spare).

10A

2

14

Run/start relay.

15

Power point 2 - console.

20A

1

16

Power point 4.

20A

1

17

Powertrain and hybrid powertrain control module - keep
alive power.

10A

2

18

Run/start electronic power assist steering.

10A

2

19

Run/start lighting.

10A

2

20

Adaptive cruise control.

Run/start transmission switch.

15A

2

21

HEV inverter.

USB smart charger.

5A

2

22

Run/start: blind spot information system, rear view camera,
heads-up display, shifter.

15A

2

23

Not used.

24

285

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Protected Component

Fuse Rating

Fuse or Relay Number

Run/start anti-lock brake system.

10A

3

25

Run/start powertrain control module.

10A

3

26

Heater control valve (HCV) power 5.

10A

2

27

Right hand side headlamp ballast.

20A

2

28

Left hand side headlamp ballast.

20A

2

29

Not used.

30

Not used.

31

Hybrid electric vehicle pulse width modulated fan relay.

32

Not used.

33

Not used.

34

Not used (spare).

15A

2

35

Hybrid electric vehicle battery electronic control module fan.

15A

3

36

Not used.

37

Vacuum pump #1 relay.

38

286

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Protected Component

Fuse Rating

Fuse or Relay Number

Vacuum pump #2 relay.

39

Fuel pump relay.

40

Horn relay.

41

Not used.

42

Fuel door motor.

10A

2

43

Not used.

44

Vacuum pump monitor.

5A

2

45

Not used (spare).

10A

2

46

Brake on/off switch.

10A

3

47

Horn.

20A

2

48

Air flow monitor.

5A

2

49

Battery energy control module.

15A

2

50

Hybrid content vehicle power 1.

15A

3

51

Hybrid powertrain control module.

287

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Protected Component

Fuse Rating

Fuse or Relay Number

Hybrid content vehicle power 2.

15A

3

52

Battery energy control module.

Multi-contour seats.

10A

2

53

Hybrid content vehicle power 3.

10A

3

54

Coolant pump.

Hybrid content vehicle power 4.

10A

3

55

Air conditioning compressor.

M Case fuse.

Micro 2 fuse.

Micro 3 fuse.

Note: Spare fuses can vary per amperage depending on the trim level of the vehicle.

288

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power Distribution Box - Bottom

E145983

There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:

1. Release the two latches on both sides of

the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center of

the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

289

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E144949

290

Fuses

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     15      16      17      18     ..
