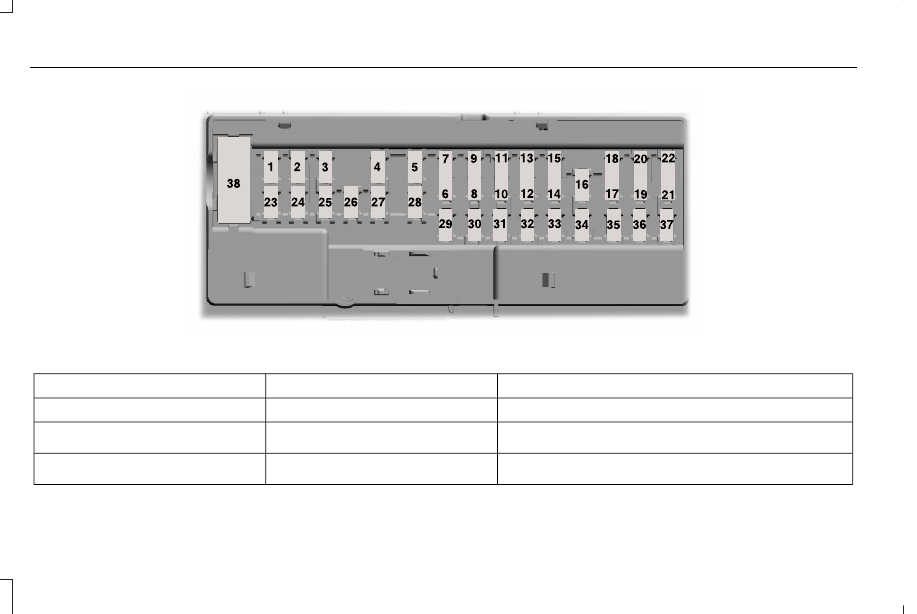

Protected Component

Fuse Rating

Fuse or Relay Number

Fuel pump feed.

30A

1

56

Not used.

-

57

Not used.

-

58

Vacuum pump relay.

40A

2

59

Pulse width modulated fan.

40A

1

60

Not used.

-

61

Body control module 1.

50A

2

62

Not used.

-

63

Not used.

-

64

Front heated seat.

20A

1

65

Not used (spare).

15A

2

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

291

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used (spare).

50A

1

71

Panoramic roof number 1.

30A

1

72

Moonroof.

Not used (spare).

20A

2

73

Driver seat module.

30A

1

74

Not used.

-

75

e-Shifter.

20A

1

76

Front climate controlled seats.

30A

1

77

Not used.

-

78

Blower motor.

40A

2

79

Power decklid.

30A

1

80

292

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Inverter.

40A

1

81

Anti-lock brake system pump.

60A

2

82

Wiper motor number 1.

25A

1

83

Not used.

-

84

Panoramic roof number 2.

30A

1

85

1

M Case fuse.

2

J Case fuse.

Note: Spare fuses can vary per amperage depending on the trim level of the vehicle.

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

293

Fuses

E145984

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

-

1

Lumbar.

7.5A

1

2

Driver door unlock.

20A

1

3

294

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Not used (spare).

10A

2

9

Power trunk logic.

5A

2

10

Keypad.
Cellphone passport module.

Not used (spare).

5A

2

11

Climate control.

7.5A

2

12

Gear shift.

Steering wheel column.

7.5A

2

13

Instrument cluster.
Datalink logic.

Extended power module.

10A

2

14

295

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Datalink/Gateway module.

10A

2

15

Decklid release.

15A

1

16

Not used (spare).

5A

2

17

Push button start/stop.

5A

2

18

Extended power module.

7.5A

2

19

Adaptive headlamps.

7.5A

2

20

Humidity and in-car temperature.

5A

2

21

Not used (spare).

5A

2

22

Delayed accessory (power inverter, moonroof, all smart
window, driver window switch pack).

10A

1

23

Rear sunshade.
Panoramic roof.

Central lock/unlock.

20A

1

24

Driver door (window, mirror).

30A

1

25

296

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front passenger door (window, mirror).

30A

1

26

Moonroof.

30A

1

27

Amplifier.

20A

1

28

Rear driver side door (window).

30A

1

29

Rear passenger side door (window).

30A

1

30

Not used (spare).

15A

1

31

Voice control.

10A

1

32

Display.
Radio frequency receiver.

Radio.

20A

1

33

Active noise control.
CD changer.

Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).

30A

1

34

Not used (spare).

5A

1

35

Auto-dimming rear view mirror.

15A

1

36

Heated rear seats.

297

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Continuous control damping suspension module.

Heated steering wheel.

20A

1

37

Not used.

-

38

1

Micro 2 fuse.

2

Micro 3 fuse.

Note: Spare fuses can vary per amperage depending on the trim level of the vehicle.

CHANGING A FUSE

Fuses

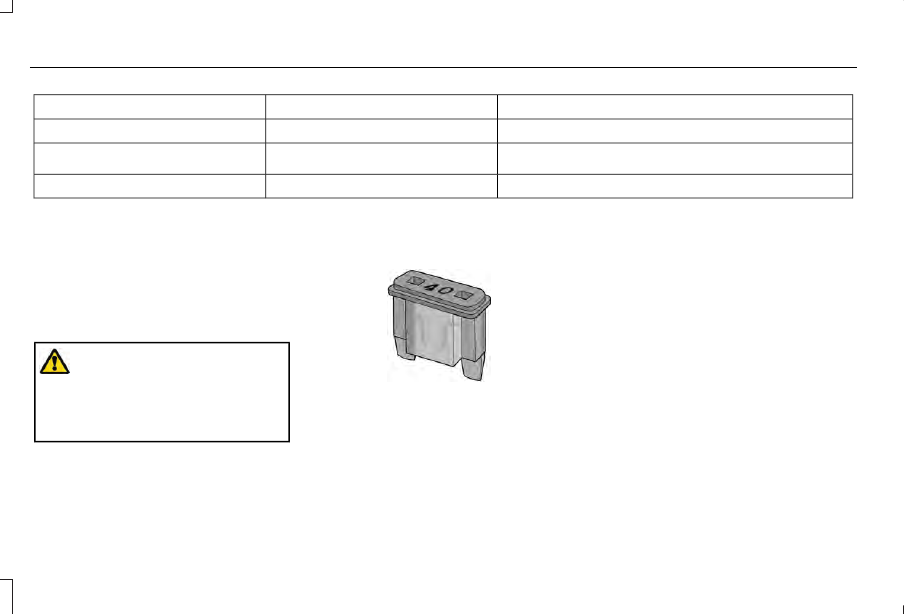

WARNING: Always replace a fuse

with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

298

Fuses

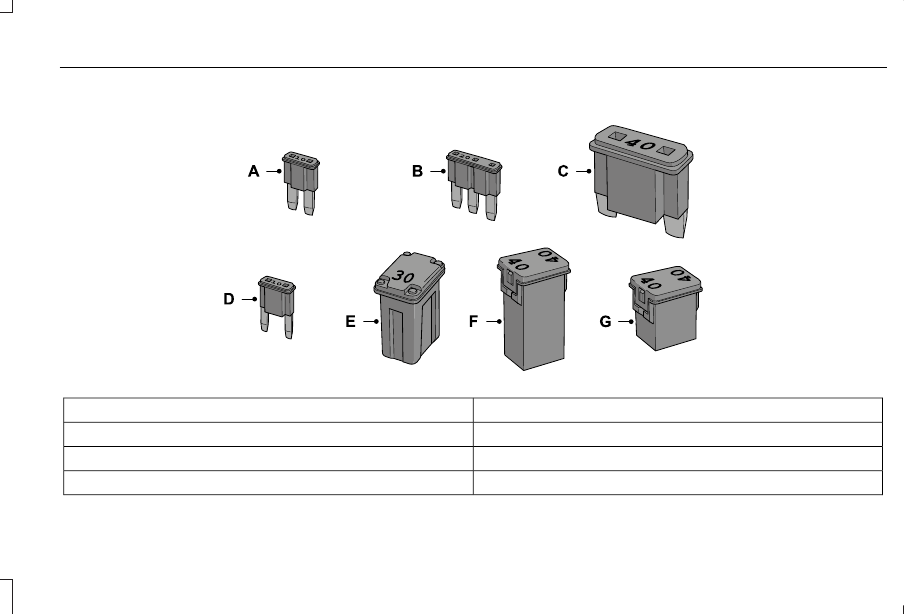

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

299

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

300

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service.  Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications.  Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1. Set the parking brake and shift the

transmission to park (P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING: To reduce the risk of

vehicle damage and personal burn injuries,
do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.

1. Set the parking brake and shift the

transmission to park (P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

Opening the Hood

E142457

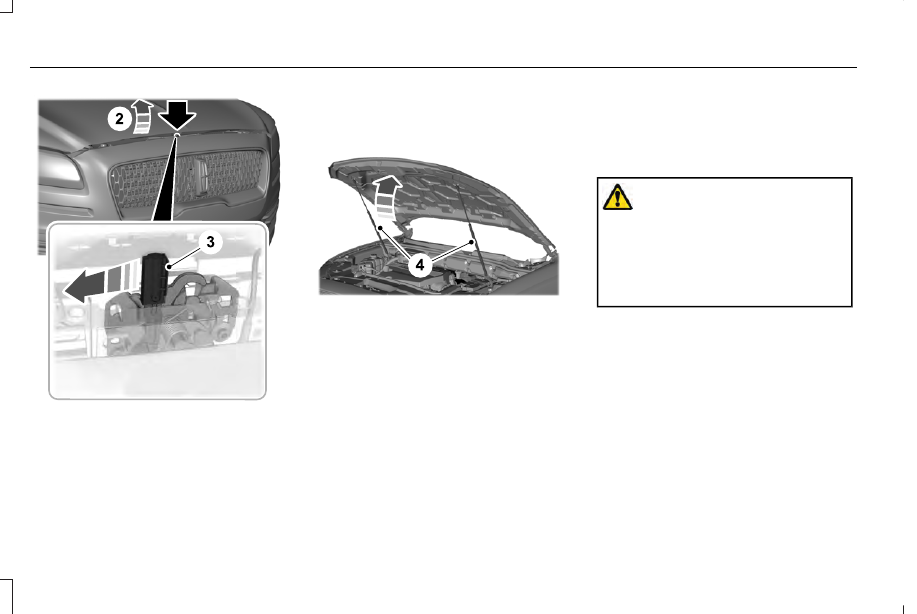

1. Inside the vehicle, pull the hood release

handle under the left-hand side of the
instrument panel.

301

Maintenance

E269403

2. Slightly lift the hood.

3. Release the hood latch by pushing the

secondary release lever to your left-hand
side.

E269400

4. Open the hood.  The hood strut supports

the hood.

Closing the Hood

1. Lower the hood and allow it to drop

under its own weight for the last 8–12 in
(20–30 cm).

Note: Make sure that the hood is correctly
closed.

UNDER HOOD OVERVIEW

WARNING: The inverter system

controller contains various high-voltage
components that can cause serious bodily
harm or death. The inverter system
controller is not serviceable and should
never be touched, probed, or tampered
with.

Note: Do not attempt to service any of the
high-voltage components or wiring. For
easier identification, the high-voltage wiring
insulation is color coated orange.

302

Maintenance

A

I

F

G

H

E

B

C

D

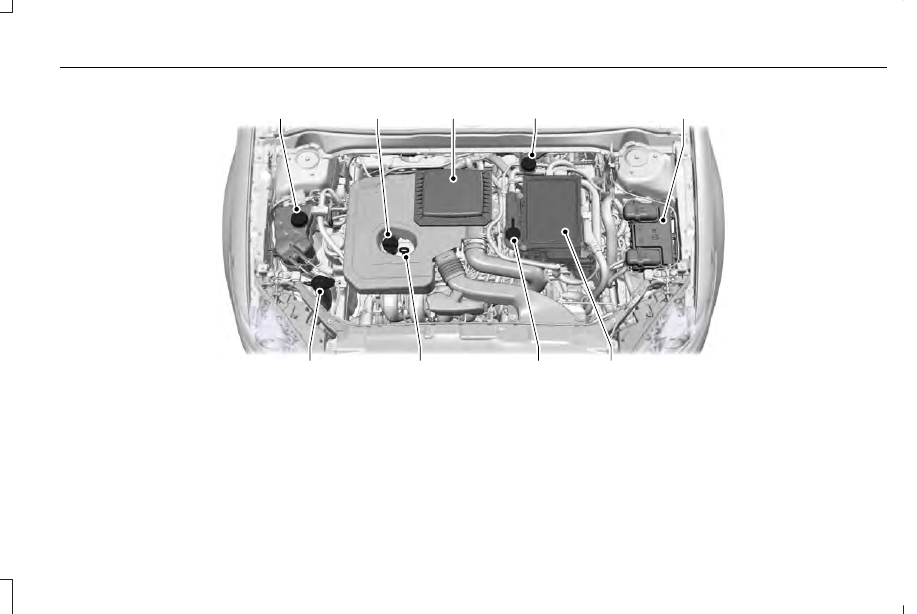

E146046

Engine coolant reservoir.  See Engine Coolant Check (page 305).

A

Engine oil filler cap.  See Engine Oil Check (page 304).

B

Air filter.  See Changing the Engine Air Filter (page 316).

C

Brake fluid reservoir.  See Brake Fluid Check (page 311).

D

Engine compartment fuse box.  See Fuses (page 282).

E

303

Maintenance

Inverter system controller.

F

Inverter system controller coolant reservoir.  See Engine Coolant Check (page 305).

G

Engine oil dipstick.  See Engine Oil Dipstick (page 304).

H

Washer system fluid reservoir.  See Washer Fluid Check (page 312).

I

ENGINE OIL DIPSTICK

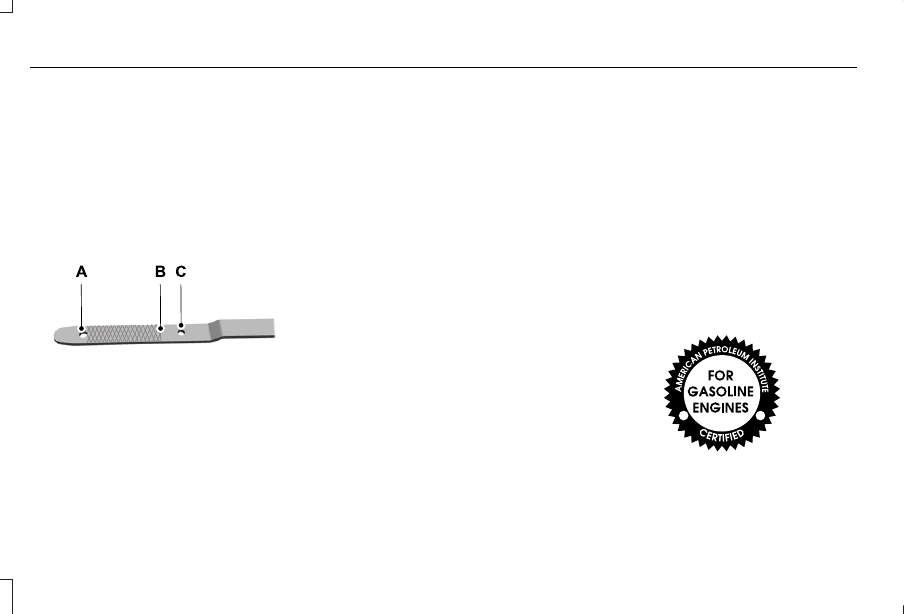

E250320

MIN

A

FULL

B

MAX

C

ENGINE OIL CHECK

Note: Check the level before starting the
engine.

Note: Make sure that the level is between
the MIN and the MAX marks.

1. Make sure that your vehicle is on level

ground.

2. Turn the engine off and wait 10 minutes

for the oil to drain into the oil pan.

3. Remove the dipstick and wipe it with a

clean, lint-free cloth. Reinstall the dipstick
and remove it again to check the oil level.

If the level is at the MIN mark, add oil
immediately.

Adding Engine Oil

Note: Do not remove the filler cap when the
engine is running.

Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage.

E142732

304

Maintenance

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricants
Specification Advisory Committee (ILSAC).

1. Remove the filler cap.
2. Add engine oil that meets our

specifications.  See Capacities and
Specifications (page 359).

3. Replace the filler cap. Turn it until you

feel a strong resistance.

OIL CHANGE INDICATOR RESET

Use the information display controls on the
steering wheel to reset the oil change
indicator.

From the main menu scroll to:

Action and description

Message

Press the right arrow button,
then from this menu scroll to
the following message.

Settings

Press the right arrow button,
then from this menu scroll to
the following message.

Vehicle

Press the right arrow button,
then from this menu scroll to
the following message.

Oil Life

Press and hold the OK button
until the instrument cluster
displays the following
message.

Hold OK to
Reset

Reset Successful

When the oil change indicator
resets the instrument cluster
displays 100%.

Remaining Life

{00}%

Action and description

Message

If the instrument cluster
displays one of the following
messages, repeat the
process.

Not Reset

Reset Cancelled

ENGINE COOLANT CHECK

WARNING: Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap with
a thick cloth to prevent the possibility of
scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

305

Maintenance

WARNING: Do not put coolant in the

windshield washer reservoir. If sprayed on
the windshield, coolant could make it
difficult to see through the windshield.

WARNING: To reduce the risk of

personal injury, make sure the engine is
cool before unscrewing the coolant
pressure relief cap. The cooling system is
under pressure. Steam and hot liquid can
come out forcefully when you loosen the
cap slightly.

WARNING: Do not add coolant

further than the MAX mark.

Your vehicle has two separate cooling
systems. One for cooling the engine and a
separate system for cooling the inverter
system controller that is specific to the hybrid
operating system. The two systems operate
similarly, with the inverter system controller
cooling system generally operating at a lower
temperature and pressure.

When the engine is cold, check the
concentration and level of the coolant at the
intervals listed in the scheduled maintenance
information. See Scheduled Maintenance
(page 462).

Note: Make sure that the coolant level is
between the MIN and the MAX marks on
the coolant reservoir.

Note:  Coolant expands when it is hot.  The
level may extend beyond the MAX mark.

Maintain coolant concentration within 48%
to 50%, which equates to a freeze point
between -30°F (-34°C) and -34°F (-37°C).
Coolant concentration should be checked
using a refractometer. We do not recommend
the use of hydrometers or coolant test strips
for measuring coolant concentration.

Adding Coolant

WARNING: Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap with
a thick cloth to prevent the possibility of
scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

WARNING: Do not add engine

coolant when the engine is on or the
cooling system is hot. Failure to follow this
instruction could result in personal injury.

Note:  Automotive fluids are not
interchangeable.  Do not use coolant or
windshield washer fluid outside of its
specified function and vehicle location.

306

Maintenance
