12 Volt DC Power Point

WARNING: Do not plug optional

electrical accessories into the cigar lighter
socket. Incorrect use of the cigar lighter
can cause damage not covered by the
vehicle warranty, and can result in fire or
serious injury.

Note: When you switch the ignition on, you
can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

If the power supply does not work after you
switch the ignition off, switch the ignition on.
Note: Do not hang any accessory from the
accessory plug.

Note: Do not use the power point over the
vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note: Always keep the power point caps
closed when not in use.

Do not insert objects other than an accessory
plug into the power point.  This damages the
power point and may blow the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

Locations

Power points may be in the following
locations:
•

On the front of the center console.

•

Inside the center console.

•

On the rear of the center console.

110 Volt AC Power Point

WARNING: Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design. Doing so may
cause the power point to overload due to
powering multiple devices that can reach
beyond the 150 watt load limit and could
result in fire or serious injury.

Note: The power point turns off when you
switch the ignition off, or when the battery
voltage drops below 11 volts.

You can use the power point for electric
devices that require up to 150 watts.  It is on
the rear of the center console.

163

Auxiliary Power Points

E194174

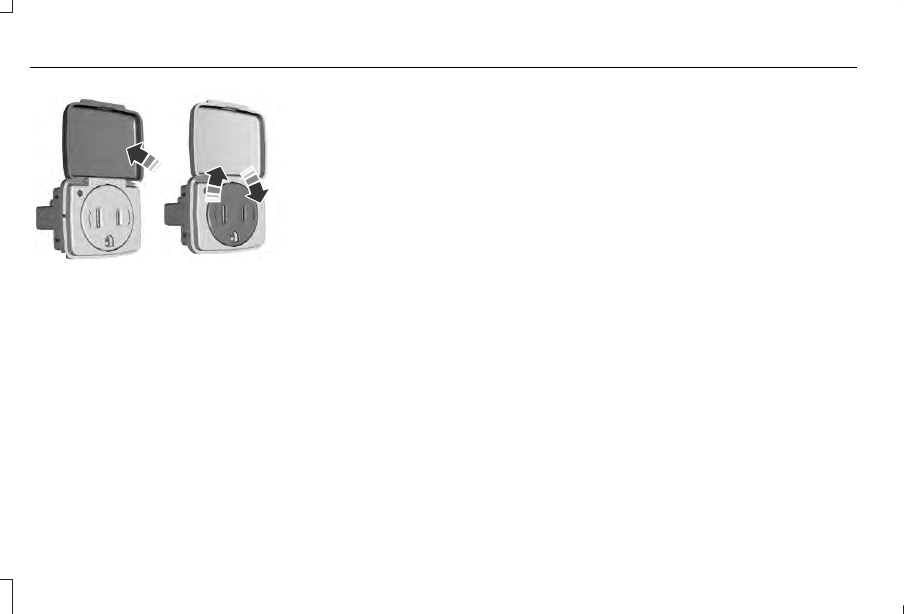

To gain access to the outlet contacts, press
the plug against the outlet and rotate
clockwise.

When the indicator light on the power point
is:
•

On: The power point is working, the
ignition is on and a device is plugged in.

•

Off: The power point is off, the ignition is
off or no device is plugged in.

•

Flashing: The power point is in fault
mode.

The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit.  Unplug your device and
switch the ignition off.  Switch the ignition
back on, but do not plug your device back
in.  Let the system cool off and switch the
ignition off to reset the fault mode.  Switch
the ignition back on and make sure the
indicator light remains on.

Do not use the power point for certain
electric devices, including:
•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven refrigerators.

•

Measuring devices, which process
precise data, such as medical equipment
or measuring equipment.

•

Other appliances requiring an extremely
stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

164

Auxiliary Power Points

CENTER CONSOLE

Stow items in the cup holder carefully as
items may become loose during hard
braking, acceleration or crashes, including
hot drinks which may spill.

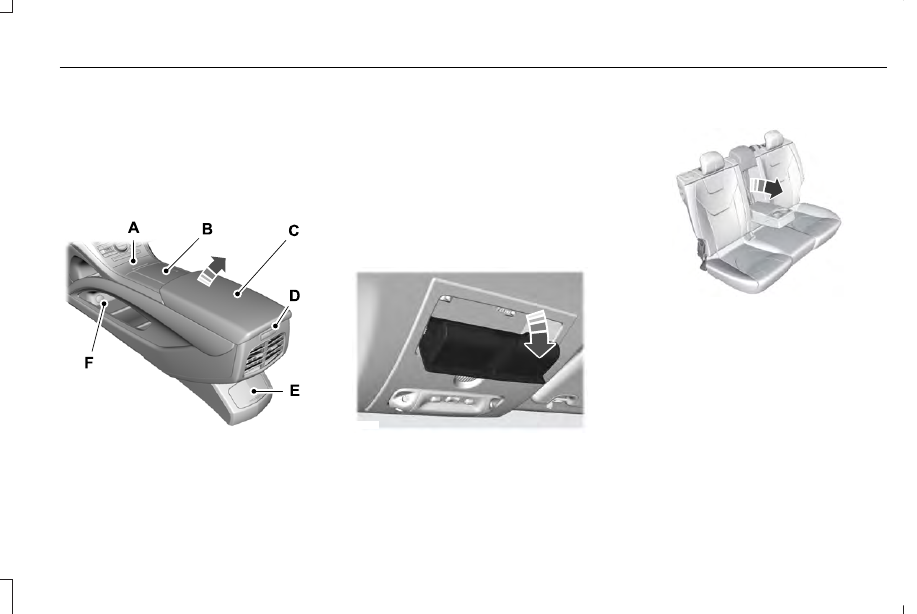

Available console features include:

E228739

Front storage bin with remote USB
port.

A

Cup holders.

B

Storage compartment with auxiliary
power point and USB port.

C

Heated rear seats.

D

AC power point, auxiliary power
point, and charger USB ports.

E

Two auxiliary power points.

F

OVERHEAD CONSOLE

E266392

Press near the rear edge of the door to open
it.

REAR SEAT ARMREST

E144635

Fold the armrest down to use the armrest.

165

Storage Compartments

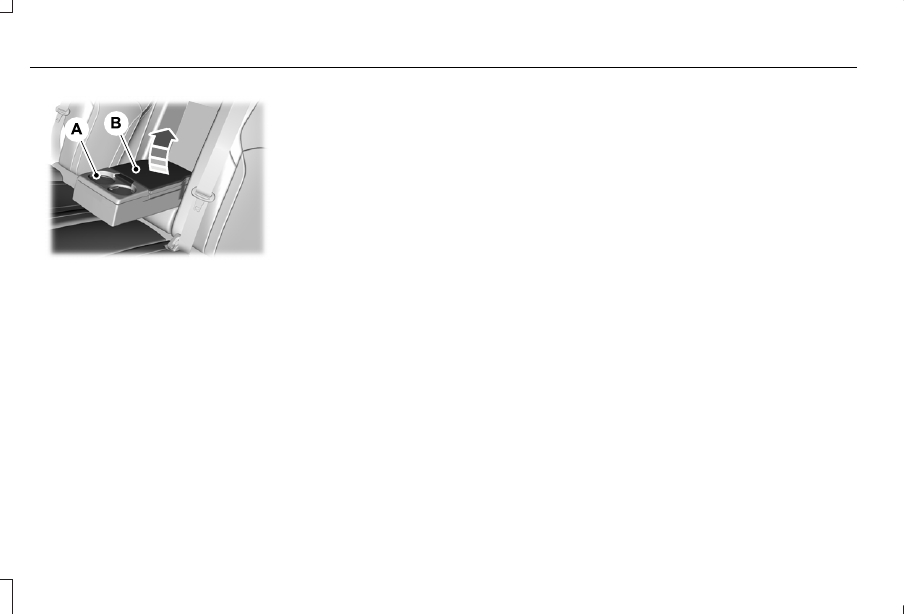

E298216

Cup holders.

A

Storage compartment with optional
audio controls.

B

166

Storage Compartments

GENERAL INFORMATION

WARNING: Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING: Do not park, idle or drive

your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire.

WARNING: Do not start the vehicle

in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always
open the garage door before you start the
vehicle.

WARNING: If you smell exhaust

fumes inside your vehicle, have your
vehicle checked by an authorized dealer
immediately. Do not drive your vehicle if
you smell exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 mi (8 km)
after you reconnect it. This is because the
engine management system must realign
itself with the engine. You can disregard any
unusual driving characteristics during this
period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start your vehicle, avoid pressing
the accelerator pedal until the ready to drive
indicator illuminates. Only use the
accelerator pedal when you have difficulty
starting your vehicle.

KEYLESS STARTING

Note: The keyless starting system may not
function if the key is close to metal objects
or electronic devices such as cellular
phones.

Note: A valid key must be located inside
your vehicle to switch the ignition on and
start the vehicle.

Ignition Modes

E164319

167

Starting and Stopping the Engine

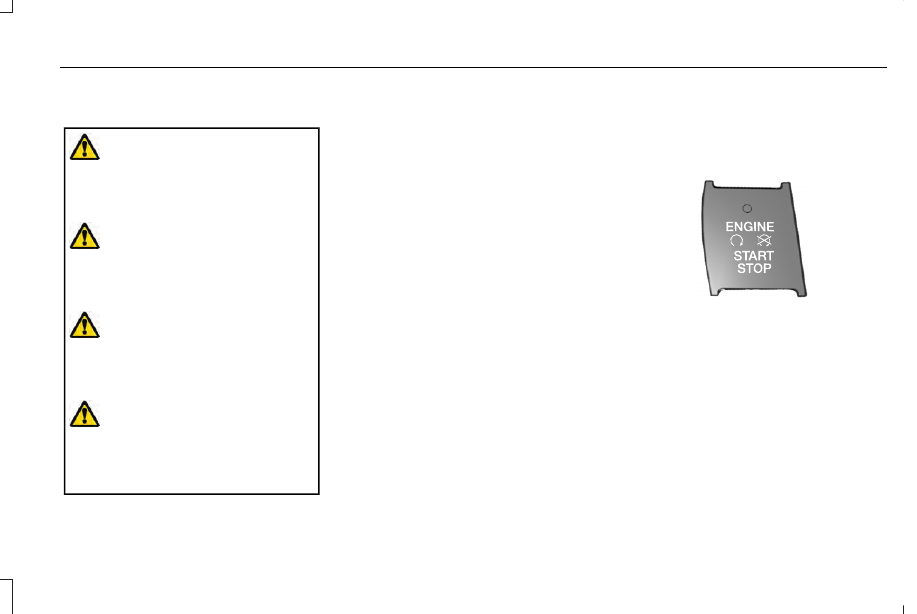

The keyless starting system has three
modes:
•

Off: Turns the ignition off.
•

Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode,
or when the vehicle is running but is
not moving.

•

On: All electrical circuits are operational
and the warning lamps and indicators
illuminate.
•

Without applying the brake pedal,
press and release the button once.

•

Start: Starts the vehicle. The engine may
not start when the vehicle starts.
•

Press the brake pedal, and then press
the button until the vehicle starts. An
indicator light on the button
illuminates when the ignition is on
and when the vehicle starts.

STARTING A HYBRID ELECTRIC
VEHICLE SYSTEM

When the engine starts for the first time on
your drive, the idle speed increases, this
helps to warm up the engine. If the engine
idle speed does not slow down automatically,
have your vehicle checked by an authorized
dealer.

Note:  You can crank the engine for a total
of 60 seconds without the engine starting
before the starting system temporarily
disables.  The 60 seconds does not have to
be all at once.  For example, if you crank the
engine three times for 20 seconds each time,
without the engine starting, you reached the
60-second time limit.  A message appears
in the information display alerting you that
you exceeded the cranking time.  You
cannot attempt to start the engine for at
least 15 minutes.

Note:  After 15 minutes, you are limited to a
15-second engine cranking time.  You need
to wait 60 minutes before you can crank the
engine for 60 seconds again.

Before starting your vehicle, check the
following:
•

Make sure all occupants have fastened
their seatbelts.

•

Make sure the headlamps and electrical
accessories are off.

•

Make sure the parking brake is on.

•

Put the transmission in P.

Note: Do not touch the accelerator pedal.

1. Fully depress the brake pedal.
2. Press the button.

Note: The green ready indicator illuminates
letting you know that your vehicle is ready
for driving. Since your vehicle is equipped
with a silent key start, the engine may not
start when your vehicle starts.  See Hybrid
Vehicle Operation (page 173).

The system does not function if:
•

The key frequencies are jammed.

•

The key battery has no charge.

If you are unable to start your vehicle, do the
following:

168

Starting and Stopping the Engine

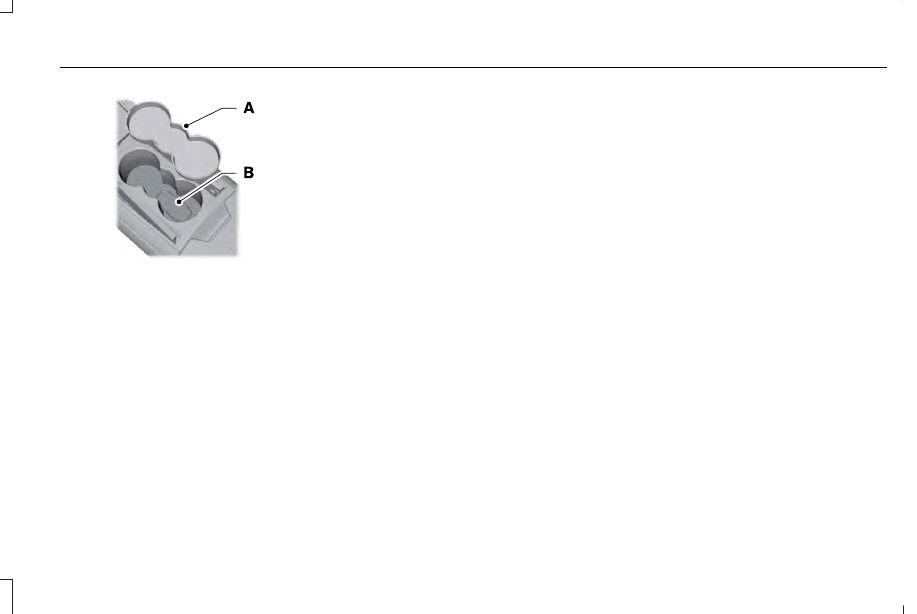

E155835

1. Remove the rubber covering (A) in the

cupholder. With the buttons facing
upward and the unlock button facing the
front of your vehicle, place the first
intelligent access key into the backup
slot (B).

2. With the key in this position, press the

brake pedal, then the START button to
switch the ignition on and start your
vehicle.

Fast Restart

The fast restart feature allows you to restart
your vehicle within 20 seconds of switching
it off, even if it does not detect a valid
passive key.

Within 20 seconds of switching your vehicle
off, press the brake pedal and press the
button. After 20 seconds, you can no longer
start your vehicle if it does not detect a valid
passive key.

Once your vehicle starts, it remains running
until you press the button, even if your
vehicle does not detect a valid passive key.
If you open and close a door while your
vehicle is running, the system searches for
a valid passive key. You cannot start your
vehicle if the system does not detect a valid
passive key within 20 seconds.

Automatic Shutdown

This feature automatically shuts down your
vehicle if it has been idling for an extended
period. The ignition also turns off in order to
save battery power. Before your vehicle
shuts down, a message appears in the
information display showing a timer counting

down from 30 seconds. If you do not
intervene within 30 seconds, your vehicle
shuts down. Another message appears in
the information display to inform you that
your vehicle has shut down in order to save
fuel. Start your vehicle as you normally do.

Automatic Shutdown Override

Note: You cannot permanently switch off the
automatic shutdown feature. When you
switch it off temporarily, it turns on at the
next ignition cycle.

You can stop the shutdown, or reset the
timer, at any point before the 30-second
countdown has expired by doing any of the
following:

169

Starting and Stopping the Engine

•

Interacting with your vehicle, for example
pressing the brake or accelerator pedal.

•

You can temporarily switch off the
shutdown feature any time the ignition is
on (for the current ignition cycle only).
Use the information display to do so.  See
Information Displays (page 110).

•

During the countdown before shutdown,
you are prompted to press OK or RESET
(depending on your type of information
display) to temporarily switch the feature
off (for the current ignition cycle only).

Switching Off Your Vehicle When It Is
Stationary

1. Put the transmission in position P.

2. Press the button once.

3. Apply the parking brake.

Note: This switches off the ignition, all
electrical circuits, warning lamps and
indicators.

Note: If your vehicle is left running for 30
minutes without any interaction, it
automatically shuts down.

Switching Off Your Vehicle When It Is
Moving

WARNING: Switching off the engine

when your vehicle is still moving results in
a significant decrease in braking
assistance. Higher effort is required to
apply the brakes and to stop your vehicle.
A significant decrease in steering
assistance could also occur. The steering
does not lock, but higher effort could be
required to steer your vehicle. When you
switch the ignition off, some electrical
circuits, for example airbags, also turn off.
If you unintentionally switch the ignition
off, shift into neutral (N) and restart the
engine.

1. Put the transmission in position N and

use the brakes to bring your vehicle to a
safe stop.

2. When your vehicle has stopped, put the

transmission in position P.

3. Press and hold the button for one

second, or press it three times within two
seconds.

4. Apply the parking brake.

Guarding Against Exhaust Fumes

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

Important Ventilating Information

If you stop your vehicle and then leave the
engine idling for long periods of time, we
recommend that you do one of the following:

•

Open the windows at least 1 in (3 cm).

•

Set your climate control to outside air.

170

Starting and Stopping the Engine

ENGINE BLOCK HEATER

WARNING: Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

WARNING: Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING: Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power cable
and may cause an electrical short resulting
in fire, injury and property damage.

Note: The heater is most effective when
outdoor temperatures are below 0°F (-18°C).

The heater acts as a starting aid by warming
the engine coolant. This allows the climate
control system to respond quickly. The
equipment includes a heater element,
installed in the engine block and a wire
harness. You can connect the system to a
grounded 120-volt AC electrical source.

We recommend that you do the following for
a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by Underwriter’s
Laboratory (UL) or Canadian Standards
Association (CSA). This extension cord
must be suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord plug
connections are free and clear of water.
This could cause an electric shock or fire.

•

If the block heater cord is under the
hood, Do Not remove the wiring from its
original location. Do Not close the hood
on the extension wiring.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the electrical
hookup once the system has been
operating for approximately 30 minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is checked
for proper operation before winter.

171

Starting and Stopping the Engine

Using the Engine Block Heater

Make sure the receptacle terminals are clean
and dry prior to use. Clean them with a dry
cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours of
energy per hour of use. The system does not
have a thermostat. It achieves maximum
temperature after approximately three hours
of operation. Using the heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity.

172

Starting and Stopping the Engine

HYBRID VEHICLE OPERATION

This hybrid vehicle combines electric and
gasoline propulsion to provide breakthrough
performance and improved efficiency.

Familiarizing yourself with these unique
characteristics will provide an optimal driving
experience from your new vehicle.

Note: You may notice higher engine speeds
upon start-up. This temporary condition is
normal and necessary to heat up the cabin
and minimize emissions.

Starting:

E144692

When you start your vehicle, a
green ready indicator light will
appear in the lower right portion

of the instrument cluster and a ready to drive
message will appear in the middle of the left
cluster screen, letting you know that your
vehicle is ready for driving.

The engine may not start because this
vehicle is equipped with silent key start. This
fuel saving feature allows your vehicle to be
ready–to–drive without requiring the gas
engine to be running. This indicator will
remain on while your vehicle is on, whether
the engine is running or not to indicate your
vehicle is capable of movement (using its
electric motor, engine, or both). Typically, the
engine will not start unless the vehicle is
cold, a climate control change is requested,
or the accelerator is pressed.

Driving:

The gas engine automatically starts and
stops to provide power when needed and
to save fuel when not needed. While
coasting at low speeds, coming to a stop, or
standing, the gas engine normally shuts
down and your vehicle operates in
electric-only mode.

Conditions that may cause the engine to start
up or remain running include:
•

Considerable vehicle acceleration.

•

Vehicle speed above 85 mph (137 km/h).
However, the maximum speed for
electric-only operation may be lower
while driving in hot temperatures or on
hilly terrain.

•

Ascending a hill.

•

Charge level of high voltage battery is
low.

•

Very high or low outside temperature (to
provide system cooling or heating).

•

Engine not warm enough to provide
passenger requested cabin temperature.

Stopping:

The gas engine may shut off to conserve fuel
as you come to a stop. Restarting your
vehicle is not required. Simply step on the
accelerator when you are ready to drive.

173

Unique Driving Characteristics

Transmission Operation:

Due to the technologically advanced,
electronically-controlled continuously
variable transaxle, you will not feel shift
changes like those of a non-hybrid vehicle.

Note: Since engine speed is controlled by
the transmission, it may seem elevated at
times. This is normal hybrid operation and
helps deliver fuel efficiency and
performance.

Neutral:

We recommend that you do not idle the
vehicle in neutral (N) for an extended period
of time because this will discharge your high
voltage battery, shut off your air conditioning
and heating, and decrease fuel economy.
The engine will not start or stop, and cannot
provide power to the hybrid system in neutral
(N).

Low:

Low (L) is designed to mimic the enhanced
engine braking available in non-hybrid
vehicles. Low gear will produce high engine
speeds to provide necessary engine braking.
This is normal and will not damage your
vehicle. In low gear, the gas engine will
remain on more often than in drive (D).

Reverse:

In reverse (R), vehicle speed is limited to
22 mph (35 km/h).

Battery:

Your hybrid is equipped with a high voltage
battery. A cool battery maintains battery life
and provides the best possible performance.
The high voltage battery is cooled by cabin
air drawn from vent holes in the trim panels
behind the rear seats. Avoid placing objects
at the vent holes that block airflow to the
high voltage battery.

Engine:

The engine speed in your hybrid is not
directly tied to your vehicle speed. Your
vehicle's engine and transmission are
designed to deliver the power you need at
the most efficient engine speed. During
heavy accelerations, your hybrid may reach
high engine speeds (up to 6000 RPM).

In prolonged mountainous driving, you may
see the engine speed changing without your
input. This is intentional and maintains the
battery charge level. You may also notice
during extended downhill driving that your
engine continues to run instead of shutting
off.

During this engine braking, the engine stays
on, but it is not using any fuel. You may also
hear a slight whine or whistle when operating
your vehicle. This is the normal operation of
the electric generator in the hybrid system.

174

Unique Driving Characteristics

During certain events (such as vehicle
servicing) your low voltage 12-volt battery
may become disconnected or disabled. Once
the battery is reconnected and after driving
the vehicle, the engine may continue to
operate for three to five seconds after the
key is turned to off. This is a normal
condition.

Braking:

Your hybrid is equipped with standard
hydraulic braking and regenerative braking.
Regenerative braking is performed by your
transmission and it captures brake energy
and stores it in your high voltage battery.

Driving to Optimize Fuel Economy

Note: Having your engine running is not
always an indication of inefficiency. In some
cases, it is actually more efficient than
driving in electric mode.

Your fuel economy should improve
throughout your hybrid's break-in period. As
with any vehicle, your driving habits and
accessory usage can significantly impact
your fuel economy. For best results, keep in
mind these tips:

•

Keep the tires properly inflated and only
use the recommended size.

•

Aggressive driving increases the amount
of energy required to move your vehicle.
In general, you can achieve better fuel
economy with mild to moderate
acceleration and deceleration. Moderate
braking is particularly important since it
allows you to maximize the energy
captured by the regenerative braking
system.

Additional Tips:
•

Do not carry extra loads.

•

Be mindful of adding external
accessories that may increase
aerodynamic drag.

•

Observe posted speed limits.

•

Perform all scheduled maintenance.

•

There is no need to wait for your engine
to warm up. The vehicle is ready to drive
immediately after starting.

ECOSELECT

EcoSelect is a drive mode for non plug-in
vehicles designed to offer the best possible
fuel economy with tradeoffs in vehicle
performance and comfort.

E198654

To switch EcoSelect on, press the
ECO button.

A graphic displays on your information
display when EcoSelect is on.

Your vehicle will remember the last selected
mode whenever you start your vehicle.

EcoSelect allows your vehicle to operate
more efficiently. You will notice:
•

Less aggressive cooling.

•

Softer acceleration.

•

Increased deceleration when coasting.

175

Unique Driving Characteristics

•

Changes in engine behavior.

•

ECO cruise control activation.

HYBRID VEHICLE FREQUENTLY ASKED QUESTIONS

Answer

Question

The high voltage battery is electrically isolated from the rest of the

vehicle when the key is off. When you switch the key on, high voltage
contactors inside the battery are closed to make the electricity avail-
able to the motor and generator and enable the vehicle to drive. The
clicks are the sound of these contactors as they close and open during

start up and shut down.

What are the series of clicks from the cargo area when I first turn the

key in the ignition?

The vehicle's computer will determine if an engine start is required

at key-on. Silent key start will start the engine if it is necessary for

cabin heating, windshield defrost, or if the outside temperature is low.

Why does the engine sometimes start at key-on?

There are several reasons the engine stays on for an extended amount

of time when you first start it. One common reason is to make sure

that the emissions components are warm enough to minimize tailpipe
emissions. As the climate gets cooler, this engine-on time is extended.

Why does it take a long time before the engine shuts down?

The engine is required to turn on above this speed to protect the

transmission hardware.

Why does my engine never shut down above 85 mph (137 km/h)

176

Unique Driving Characteristics

Answer

Question

In order to make sure that the climate control system can begin heating

the cabin or defrosting the windshield as soon as a driver requests

it, the engine coolant temperature has to be kept sufficiently hot.

Keeping the engine on is required to maintain the correct coolant

temperature.

Why does my engine stay on when it is extremely cold outside?

Your vehicle's engine and transmission are designed to deliver the

power you need at the most efficient engine speed. This may be

higher than expected during heavy accelerations, and may fluctuate

when driving at a steady speed. These are characteristics of the

Atkinson engine cycle and the transmission technology that help

maximize your hybrid's fuel economy.

Why does my engine rev up so high sometimes when I accelerate?

Change the engine oil every 10,000 mi (16,000 km) or once per year

under normal operating conditions.

What is the engine oil change service interval?

Yes.  Your hybrid vehicle can use E15 (15% ethanol, 85% gasoline)

fuel, but you may notice slightly reduced fuel economy because

ethanol contains less energy per gallon than gasoline.  Your hybrid

vehicle is not designed to use E85 (85% ethanol).

Can I put E15 or E85 in my vehicle, and how will it affect my fuel

economy?

177

Unique Driving Characteristics

Answer

Question

The high voltage battery system is designed to last the life of the

vehicle and requires no maintenance.

How long will my high voltage battery last? Does it need maintenance?

There are no provisions for charging the conventional hybrid high

voltage battery from a power supply external to the vehicle.

Can you charge the battery with a plug into an AC outlet?

Yes.  Your hybrid vehicle can be flat towed with all four wheels on

the ground.

Can I tow the hybrid behind my motor home with all four wheels on

the ground?

178

Unique Driving Characteristics
