HEAD RESTRAINTS

WARNING: Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk of
neck injury in the event of a crash. Do not
adjust the head restraint when your vehicle
is moving.

WARNING: The adjustable head

restraint is a safety device. Whenever
possible, it should be installed and properly
adjusted when the seat is occupied. Failure
to adjust the head restraint properly could
reduce its effectiveness during certain
impacts.

WARNING: Install the head restraint

properly to help minimize the risk of neck
injury in the event of a crash.

Note: Adjust the seatback to an upright
driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Front seat head restraint

E138642

Rear seat outboard head restraints

E153105

Rear center head restraint

E138645

147

Seats

The head restraints consist of:

an energy absorbing head restraint

A

two steel stems

B

guide sleeve adjust and unlock
button

C

guide sleeve unlock and remove
button

D

Adjusting the Head Restraint

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold button C.
2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches

its highest position.

2. Press and hold buttons C and D.
3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Tilting Head Restraints

The front head restraints have a tilting
feature for extra comfort. To tilt the head
restraint, do the following:

E144727

1. Adjust the seatback to an upright driving

or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivoting it forward
again will then release it to the rearward,
untilted position.

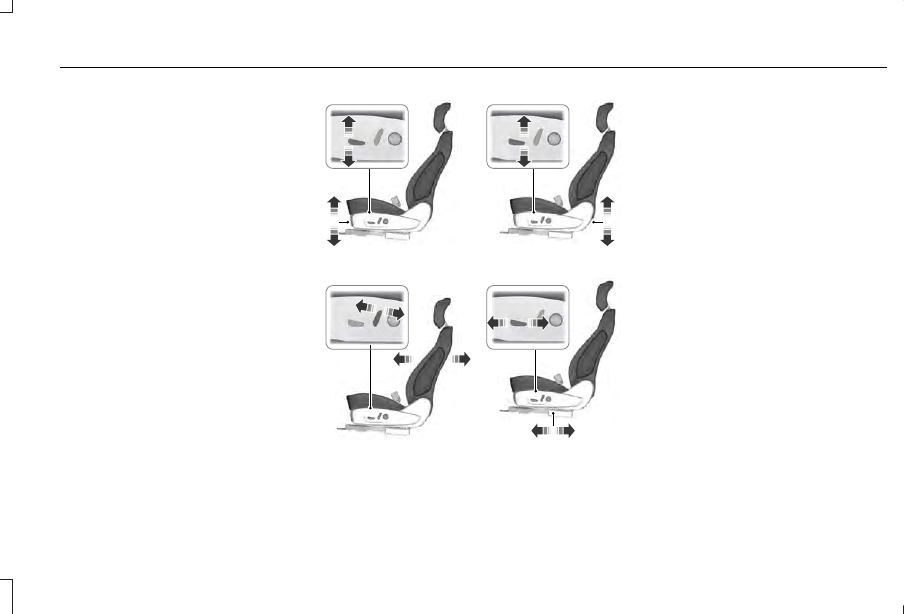

POWER SEATS

WARNING: Do not adjust the driver

seat or seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control of
your vehicle.

WARNING: Do not place cargo or

any objects behind the seatback before
returning it to the original position.

148

Seats

E144632

149

Seats

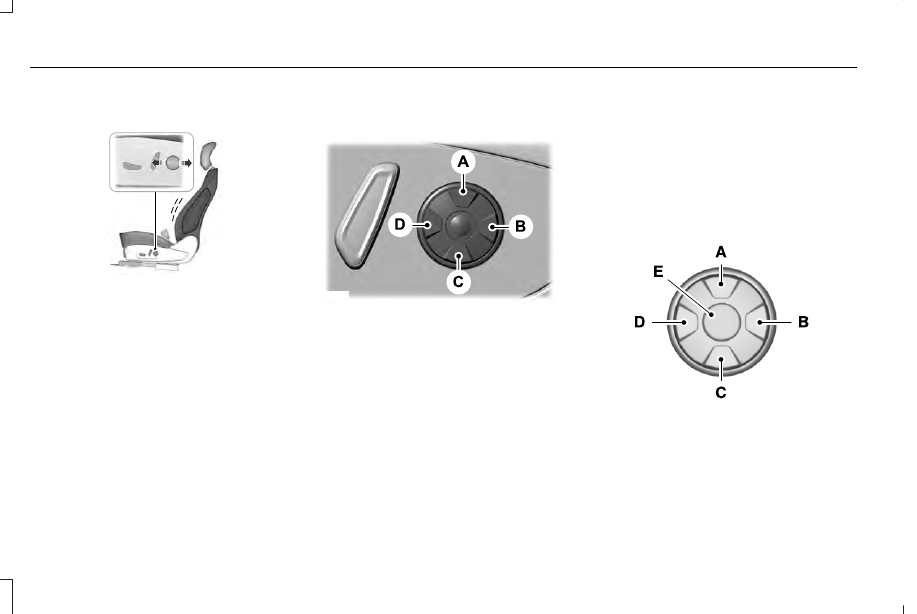

Adjusting the Lumbar Support

E165608

Adjusting the Four-Way Lumbar
Support

 (If Equipped)

E223345

Press to increase upper lumbar
only.

A

Press to decrease upper and lower
lumbar.

B

Press to increase lower lumbar
only.

C

Press to increase upper and lower
lumbar.

D

Adjusting the Multi-Contour Front
Seats With Active Motion

 (If Equipped)

Note: The engine must be running or the
vehicle must be in accessory mode to
activate the seats.

Note: Allow a few seconds for any selection
to activate. The seat backrest and cushion
massage cannot function at the same time.

E156301

150

Seats

Lumbar and Bolster Mode

Massage Mode

Upper lumbar

Back massage intensity adjustment

A

Lumbar decrease

Massage intensity decrease and off

*

B

Lower lumbar

**

Cushion massage intensity adjustment

C

Lumbar increase

Massage intensity increase

D

-

On and off

E

*

The massage feature defaults to an alternating massage mode with back massage intensity adjustment. The lumbar and bolster features

default to the middle lumbar mode.

**

Press C a second time to adjust the back bolster. Press C a third time to adjust the cushion bolster.

You can also adjust this feature through the touchscreen.

E142607

Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour
Seats.

When switched on, the system displays
directions for you to adjust the lumbar
settings in your seat or to set the massage
function.

To access and make adjustments to the
lumbar setting:

1. Choose the desired seat to adjust.

2. Press the + or - to adjust the lumbar

intensity.

To access and make adjustments to the
massage setting:

1. Press the Menu Settings icon, then

Vehicle. Choose Multi-Contour Seats.

2. Choose the desired seat to adjust.

3. Press OFF, LO or HI.

151

Seats

MEMORY FUNCTION

WARNING: Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants are
clear of moving parts.

WARNING: Do not use the memory

function when your vehicle is moving.

This feature automatically recalls the position
of the following features:

•

Driver seat.

•

Power mirrors.

•

Power steering column.

The memory control is on the driver door.

E223340

Saving a PreSet Position

1. Adjust the memory features to your

desired position.

2. Press the SET button until you hear a

single tone.

3. Press the desired preset button until you

hear a single tone.

You can save up to two preset memory
positions. You can save a memory preset at
any time.

Recalling a PreSet Position

Press and release the preset button
associated with your desired driving position.
The memory features move to the position
stored for that preset.

Note: You can only recall a preset memory
position when you switch the ignition off, or
when the transmission is in park (P) or
neutral (N) if the ignition is on and the vehicle
is not moving.

You can also recall a preset memory position
by:
•

Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.

•

Unlocking the intelligent driver door
handle if a linked key fob is present.

Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.

Note: Pressing any active memory feature
control - power seat, mirror, or steering
column (or any memory button) during a
memory recall cancels the operation.

152

Seats

Linking a PreSet Position to your
Remote Control or Intelligent Access
Key Fob

Your vehicle can save the preset memory
positions for up to two remote controls or
intelligent access (IA) keys.

After you have saved your desired memory
preset positions:

1. Press and hold the desired preset button

for about three seconds until you hear a
single tone.

2. Within three seconds, press the lock

button on the remote control you are
linking.

To unlink a remote control, follow the same
procedure – except in step 2, press the
unlock button on the remote control.

Note: If more than one linked remote control
or intelligent access key is in range, the
memory function moves to the settings of
the first key to initiate a memory recall.

Easy Entry and Exit Feature

If you enable the easy entry and exit feature,
it automatically moves the driver seat
position rearward up to 2 in (5 cm) when you
switch the ignition off.

The driver seat returns to the previous
position when you switch the ignition on.

You can enable or disable this feature in the
information display.  See General
Information (page 110).

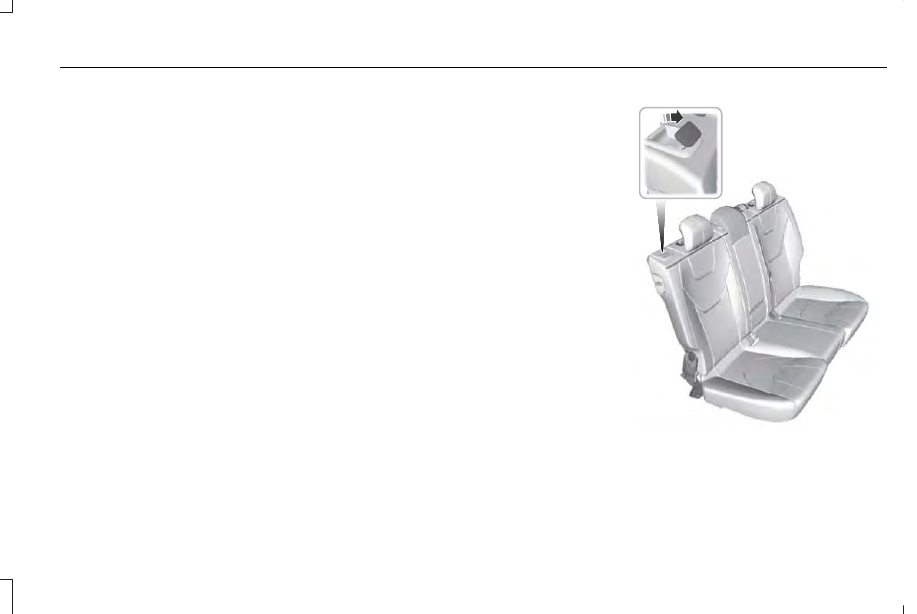

REAR SEATS

Note: Your vehicle may have split seatbacks
that you must fold individually.

Note: Make sure the center safety belt is
unbuckled before folding the seatback.

To lower the seat back(s) from inside the
vehicle, do the following:

E144634

1. Pull the handle to release the seatback.

2. Push the seatback forward.

153

Seats

E164098

3. Stow the safety belt in the stowage clip.

This will prevent the safety belt from
getting caught in the seat latch.

When raising the seat back(s), make sure you
hear the seat latch into place.

HEATED SEATS

 (IF EQUIPPED)

Front Seats

WARNING: People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.
Do not puncture the seat with pins,
needles or other pointed objects. This may
damage the heating element which may
cause the heated seat to overheat. An
overheated seat may cause serious
personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

154

Seats

Rear Seats

WARNING: Persons who are unable

to feel pain to the skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion, or other physical conditions,
must exercise care when using the seat
heater. The seat heater may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion,
because this may cause the seat heater to
overheat. Do not puncture the seat with
pins, needles, or other pointed objects
because this may damage the heating
element which may cause the seat heater
to overheat. An overheated seat may
cause serious personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid is spilled on the seat. Allow
the seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

The rear seat heat controls are located on
the rear of the center console.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

The heated seat module resets at every
ignition run cycle. While the ignition is on,
press the high or low heated seat switch to
enable heating mode. When activated, they
will turn off automatically when you turn the
engine off.

CLIMATE CONTROLLED SEATS

Heated Seats

WARNING: People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.

155

Seats

Do not puncture the seat with pins,
needles or other pointed objects. This may
damage the heating element which may
cause the heated seat to overheat. An
overheated seat may cause serious
personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146322

Touch the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Cooled Seats

The cooled seats will only function when the
engine is running.

E146309

To operate the cooled seats:

Press the cooled seat symbol to cycle
through the various cooling settings and off.
More indicator lights indicate cooler settings.

If the engine falls below 350 RPM while the
cooled seats are on, the feature will turn itself
off. You will need to reactivate it.

Climate controlled seat air filter
replacement

Your vehicle is equipped with lifetime air
filters that are integrated with the seats.
Regular maintenance or replacement is not
needed.

156

Seats

UNIVERSAL GARAGE DOOR
OPENER

HomeLink Wireless Control System

WARNING: Do not use the system

with any garage door opener that does not
have the safety stop and reverse feature
as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.

Note:  Make sure that the garage door and
security device are free from obstruction
when you are programming.  Do not program
the system with the vehicle in the garage.

Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.

Note: We recommend that upon the sale or
lease termination of your vehicle, you erase
the programmed function buttons for security
reasons. See Erasing the Function Button
Codes.

Note: You can program a maximum of three
devices. To change or replace any of the
three devices after it has been initially
programmed, you must first erase the current
settings. See Erasing the Function Button
Codes.

E142657

The universal garage door opener replaces
the common hand-held garage door opener
with a three-button transmitter that is
integrated into the driver’s sun visor.

The system includes two primary features, a
garage door opener and a platform for
remote activation of devices within the home.
As well as being programmed for garage
doors, the system transmitter can be
programmed to operate entry gate operators,
security systems, entry door locks and home
or office lighting.

Additional system information can be found
online at www.homelink.com,
www.youtube.com/HomeLinkGentex or by
calling the toll-free help line on
1-800-355-3515.

In-Vehicle Programming

This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.

Note: The programming steps below assume
you will be programming HomeLink that was
not previously programmed.

Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal.

157

Garage Door Opener

E142658

1. With your vehicle parked outside of the

garage, turn your ignition to the on
position, but do not start your vehicle.

2. Hold your hand-held garage door

transmitter 2–6 in (5–14 cm) away from
the HomeLink button you want to
program.

3. Using both hands, simultaneously, press

and hold the desired HomeLink button
and the hand-held transmitter button. DO
NOT release either one until the
HomeLink indicator light flashes slowly
and then rapidly. When the indicator light
flashes rapidly, both buttons may be
released. The rapid flashing indicates
successful training.

Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See Gate Operator
/ Canadian Programming.

4. Press and hold the HomeLink button you

programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.

If the indicator light stays on, the
programming is complete. No further action
is needed.

If the indicator light flashes rapidly for 2
seconds and then turns to a constant light,
the HomeLink button is not programmed yet.
See Programming Your Garage Door
Opener Motor.

To program additional buttons, repeat Steps
1 – 4.

For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.

Programming Your Garage Door Opener
Motor

Note: You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener.

E142659

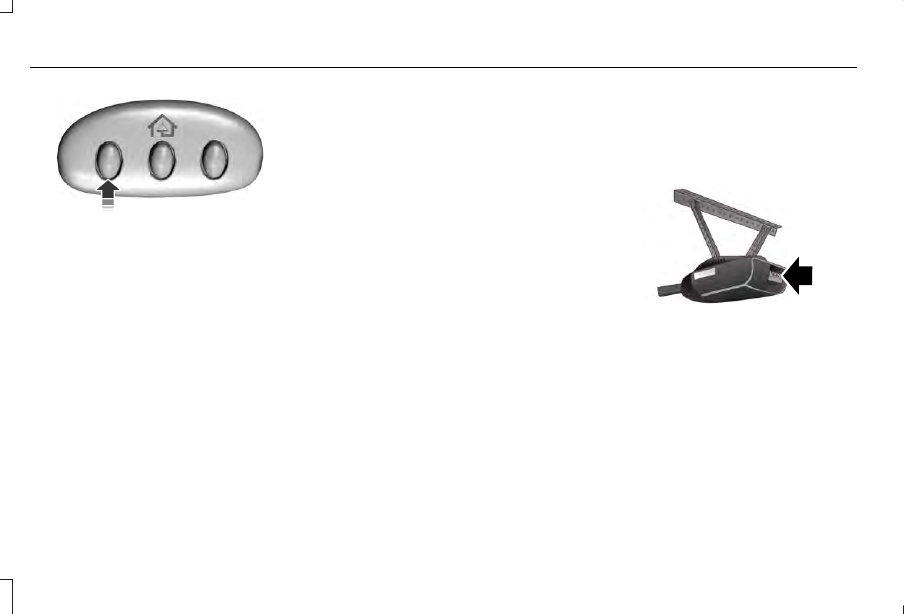

1. Press the learn button on the garage

door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

158

Garage Door Opener

E142658

3. Press and hold the function button you

want to program for 2 seconds, then
release. Repeat this step. Depending on
your brand of garage door opener, you
may need to repeat this sequence a third
time.

Gate Operator / Canadian Programming

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit) after
several seconds of transmission – which may
not be long enough for HomeLink to pick up
the signal during programming. Similar to
this Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.

Note: If programming a garage door opener
or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

1. Press and hold the HomeLink button

while you press and release, every two
seconds, your hand-held transmitter until
the HomeLink indicator light changes
from a slow to a rapidly blinking light.

2. Release both the HomeLink and

hand-held transmitter buttons.

3. Continue programing HomeLink. See

In-Vehicle Programming.

Erasing the Function Button Codes

Note: You cannot erase individual buttons.

E142660

1. Press and hold the outer two function

buttons simultaneously for approximately
20 seconds until the indicator lights
above the buttons flash rapidly.

2. When the indicator lights flash, release

the buttons. The codes for all buttons are
erased.

Reprogramming a Single Button

To program a device to a previously trained
button, follow these steps:

1. Press and hold the desired button. Do

NOT release the button.

159

Garage Door Opener

2. The indicator light will begin to flash after

20 seconds. Without releasing the
button, follow Step 1 in the Programming
section.

For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.

Programming to a Genie Intellicode 2
Garage Door Opener

Note: The Genie Intellicode 2 transmitter
must already be programmed to operate
with the garage door opener.

Note: To program HomeLink to the
transmitter you must first put the transmitter
into programming mode.

B

A

E142661

Red indicator light

A.

Green indicator light

B.

1. Press and hold one of the buttons on the

hand-held transmitter for 10 seconds. The
indicator light will change from green to
red and green.

2. Press the same button twice to confirm

the change to programming mode. If
done properly the indicator light will
appear red.

3. Hold the transmitter within 1–3 in

(2–8 cm) of the button on the visor you
want to program.

4. Press and hold both the programmed

Genie button on the hand-held
transmitter and the button you want to
program. The indicator light on the visor
will flash rapidly when the programming
is successful.

Note: The Genie transmitter will transmit for
up to 30 seconds. If HomeLink does not
program within 30 seconds the Genie
transmitter will need to be pressed again. If
the Genie transmitter indicator light displays
green and red, release the button until the
indicator light turns off before pressing the
button again.

Once HomeLink has been programmed
successfully, the Genie transmitter must be
changed out of program mode. To do this:

1. Press and hold the previously

programmed Genie button on the
hand-held transmitter for 10 seconds. The
indicator light will change from red to red
and green.

2. Press the same button twice to confirm

the change. If done correctly the indicator
light will turn green.

160

Garage Door Opener

Programming HomeLink to the Genie
Intellicode Garage Door Opener Motor

Note: You may need a ladder to access the
garage door opener motor.

E142662

1. Press and hold the program button on

the garage door opener motor until both
blue indicator lights turn on.

2. Release the program button. Only the

smaller round indicator light should be
on.

3. Press and release the program button.

The larger purple indicator light will flash.

Note: The next two steps must be completed
in 30 seconds.

4. Press and release the Genie Intellicode

2 hand-held transmitter’s previously
programmed button. Both indicator lights
on the garage door opener motor unit
should now flash purple.

5. Press and hold the previously

programmed button on the visor for 2
seconds. Repeat this step up to 3 times
until the garage door moves.

Programming is now complete.

Clearing a HomeLink Device

To erase programming from the three
HomeLink buttons press and hold the two
outer HomeLink buttons until the indicator
light begins to flash. The indicator light will
begin flashing in 10 to 20 seconds, at which
time both buttons should be released.
Programming has now been erased, and the
indicator light should blink slowly to indicate
the device is in train mode when any of the
three HomeLink buttons are pressed.

FCC and RSS-210 Industry Canada
Compliance

This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

WARNING: Changes or modifications

not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

161

Garage Door Opener

This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. End Users must follow the
specific operating instructions for satisfying
RF exposure compliance. This transmitter
must be at least 8 in (20 cm) from the user
and must not be co-located or operating in
conjunction with any other antenna or
transmitter.

The term “IC:” before the
certification/registration number only signifies
that Industry Canada technical specifications
were met.

162

Garage Door Opener
