GETTING TO KNOW YOUR VEHICLE

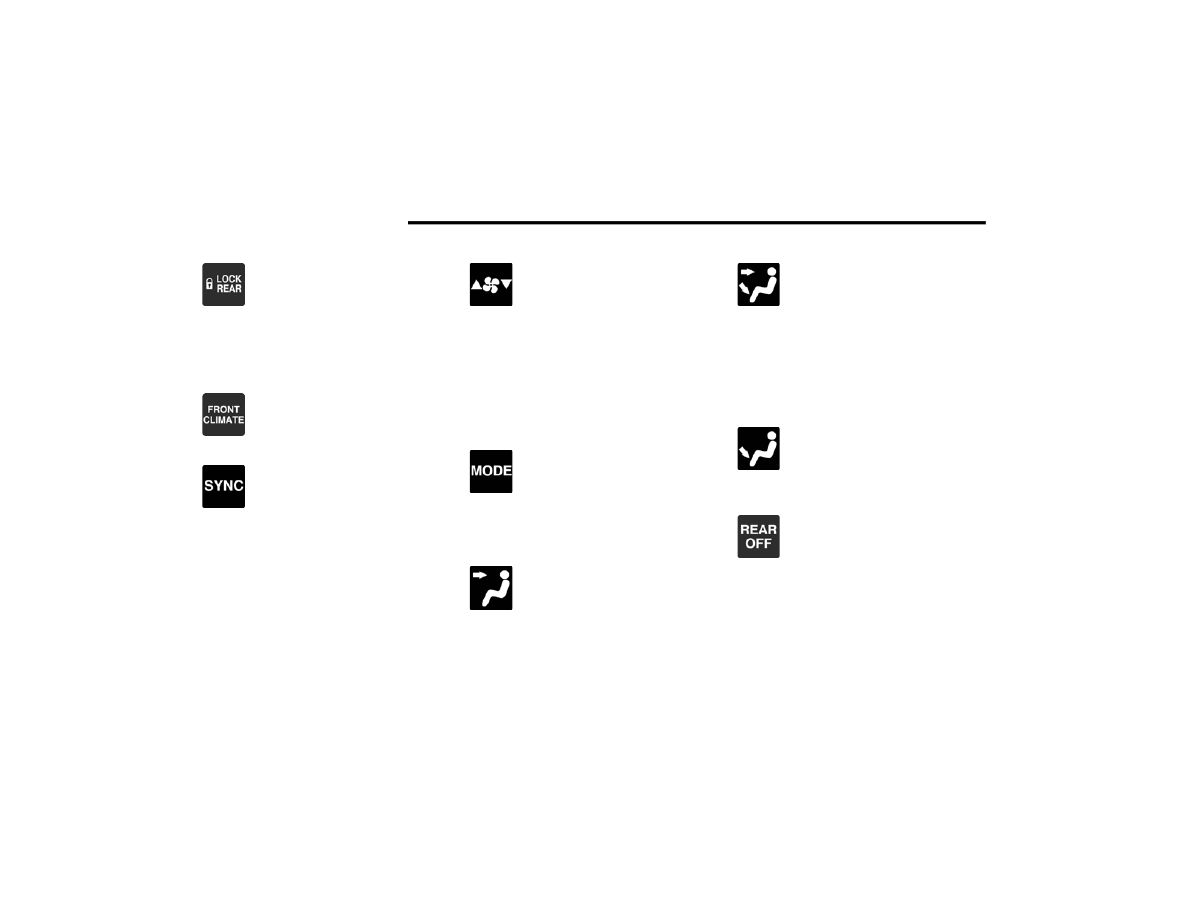

REAR LOCK BUTTON

Press and release this button to lock out

the rear manual temperature controls

from adjusting the rear temperature and

blower settings. The LOCK REAR

indicator will illuminate when LOCK REAR is on.

Press and release this button again to exit the

feature.

FRONT CLIMATE BUTTON

Press and release to return to the Front

Climate Control Screen.

SYNC BUTTON

Press the SYNC (or SYNC To Driver)

button on the touchscreen to toggle the

SYNC feature on/off. The SYNC indicator

will illuminate when SYNC is on. SYNC is

used to synchronize the front passenger

temperature and rear passenger temperature,

mode, and blower settings with the driver

temperature, mode, and blower settings. Changing

the front passenger temperature or rear passenger

temperature, mode, or blower settings while in

SYNC will automatically exit this feature.
NOTE:

The SYNC setting is only available on the

touchscreen.

REAR BLOWER CONTROL

Rear Blower Control is used to regulate

the amount of air forced through the rear

climate system. There are seven blower

speeds available. The speeds can be

selected using the buttons on the touchscreen.

Use the small blower icon (or blower icon with the

downward arrow) to reduce the blower setting, and

the large blower icon (or blower icon with the

upward arrow) to increase the blower setting.

Blower can also be selected by pressing the blower

bar area between the icons.

REAR MODE CONTROL

Select Mode by pressing one of the Mode

buttons on the touchscreen to change

the airflow distribution mode. The rear

airflow distribution mode can be

adjusted so air comes from the headliner outlets,

the floor outlets or both.

HEADLINER MODE

Air comes from the outlets in the

headliner. Each of these outlets can be

individually adjusted to direct the flow of

air. Moving the air vanes of the outlets to

one side shuts off the airflow.

BI-LEVEL MODE

Press this button on the touchscreen to

change the air distribution mode to

Bi-Level Mode. In Bi-Level Mode, air

comes from both the headliner outlets

and the floor outlets.
NOTE:

In many temperature positions, the Bi-Level mode

is designed to provide cooler air out of the head

liner outlets and warmer air from the floor outlets.

FLOOR MODE

Press this button on the touchscreen to

change the air distribution mode to Floor

Mode. In Floor Mode, air comes from the

floor outlets.

REAR CLIMATE CONTROL OFF BUTTON

To manually set the rear blower controls

to off, press the Rear Climate Control/

Blower Off button.

GETTING TO KNOW YOUR VEHICLE

Rear Automatic Temperature Control

The rear system temperature control buttons are

located on the headliner on the passenger side of

the vehicle.

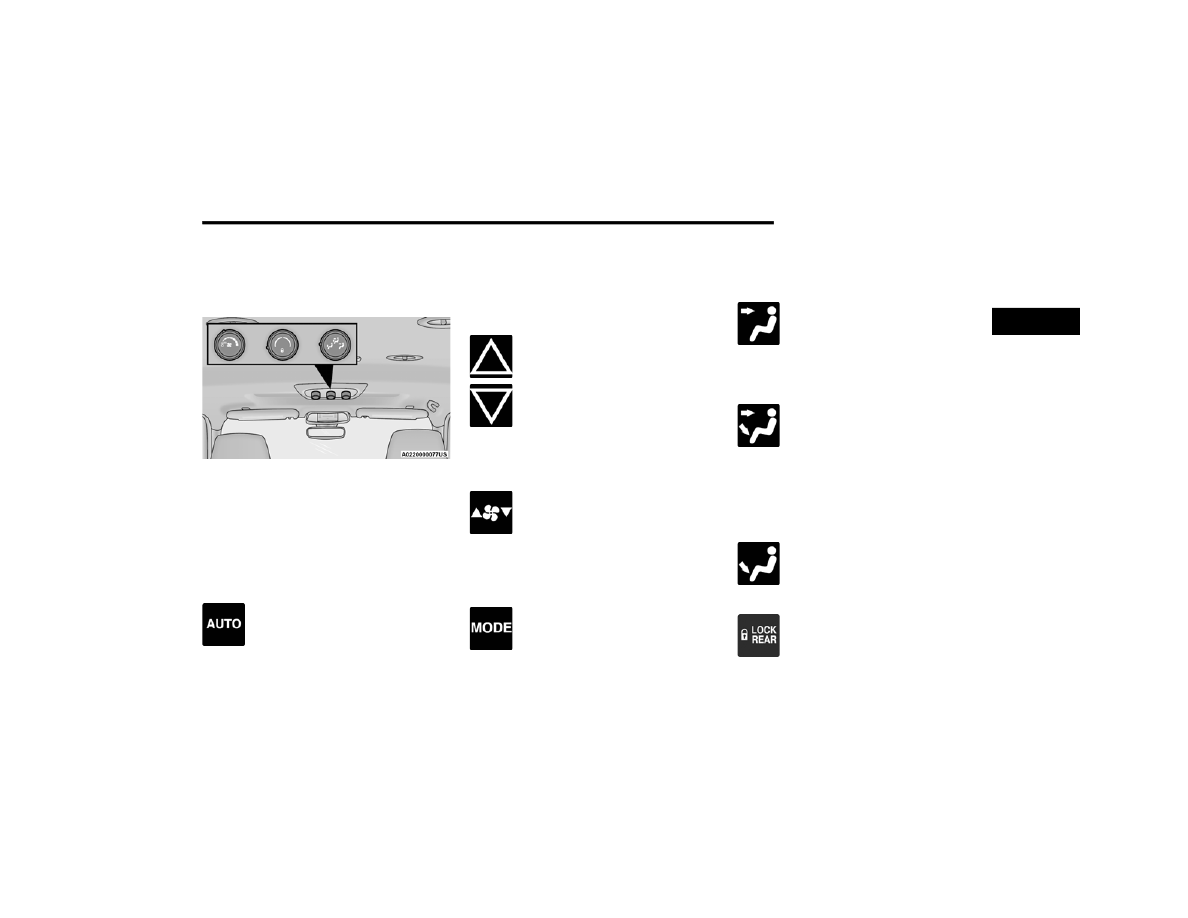

Rear Automatic Climate Controls

The rear ATC system has floor air outlets at the rear

right side of the third row seats and overhead

outlets at each outboard rear seating position.

The system provides heated air through the floor

outlets or cool, dehumidified air through the

headliner outlets.

AUTO BUTTON

Turn the blower knob to the AUTO setting.

This feature automatically controls the

rear interior cabin temperature by

adjusting airflow distribution and

amount. Changing the blower knob to any

other blower setting will cause the rear system to

switch to manual mode

page 60.

REAR TEMPERATURE CONTROL

Turn the rear temperature knob to adjust the

temperature.

Turn the knob to the right (clockwise) to

raise the temperature.

Turn the knob to the left

(counterclockwise) to lower the

temperature.

The rear temperature setting is displayed in the

control head.

REAR BLOWER CONTROL

Turn the rear blower knob to regulate the

amount of air forced through the system

in any mode you select. The blower speed

increases as you move the knob

clockwise from the off position. The rear blower

setting is displayed in the control head.

REAR MODE CONTROL

Turn the rear mode knob to adjust airflow

distribution. The rear mode settings are

displayed in the control head. The rear

airflow distribution mode can be

adjusted so air comes from the headliner outlets,

the floor outlets, or both.

HEADLINER MODE

Air comes from the outlets in the

headliner. Each of these outlets can be

individually adjusted to direct the flow of

air. Moving the air vanes of the outlets to

one side will shut off the airflow.

BI-LEVEL MODE

Air comes from both the headliner outlets

and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode

is designed to provide cooler air out of the head

liner outlets and warmer air from the floor outlets.

FLOOR MODE

Air comes from the floor outlets.

REAR TEMPERATURE LOCK

The Rear Temperature Lock symbol on

the control head is illuminated when the

rear controls are locked by the front

system.

GETTING TO KNOW YOUR VEHICLE

Rear Lock

Pressing the Rear Temperature Lock button on the

Uconnect touchscreen, illuminates a lock symbol

in the rear display. The rear temperature and air

source are controlled from the front Uconnect

system.
Rear second row occupants can only adjust the

rear ATC control when the Rear Temperature Lock

button is turned off.
The rear ATC is located in the headliner, near the

center of the vehicle.



Press the Rear Temperature Lock button on the

Uconnect touchscreen. This turns off the Rear

Temperature Lock icon in the rear temperature

knob.



Rotate the Rear Blower, Rear Temperature and

the Rear Mode Control knobs to suit your

comfort needs.



ATC is selected by adjusting the rear blower

knob counterclockwise to AUTO.

Once the desired temperature is displayed, the

ATC System will automatically achieve and

maintain that comfort level. When the system is

set up for your comfort level, it is not necessary to

change the settings. You will experience the

greatest efficiency by simply allowing the system to

function automatically.

UTOMATIC

EMPERATURE

ONTROL

(ATC)

Automatic Operation

1. Push the AUTO button on the front Automatic

Temperature Control (ATC) Panel and the

word “AUTO” will illuminate in the front ATC

display, along with two temperatures for the

driver and front passenger. The system will

then automatically regulate the amount of

airflow.

2. Adjust the temperature you would like the

system to maintain, by adjusting the driver,

passenger, and rear temperatures. Once the

desired temperature is displayed, the system

will achieve and automatically maintain that

comfort level.

3. When the system is set up for your comfort

level, it is not necessary to change the

settings. You will experience the greatest

efficiency by simply allowing the system to

function automatically.

NOTE:

It is not necessary to move the temperature

settings. The system automatically adjusts the

temperature, mode and fan speed to provide

comfort as quickly as possible.
To provide you with maximum comfort in the

automatic mode, during cold start-ups, the blower

fan will remain on low until the engine warms up.

The fan will engage immediately if the Defrost

mode is selected, or by changing the front blower

knob setting.

Manual Operation Override

This system offers a full complement of manual

override features. The AUTO symbol in the front

ATC display will be turned off when the system is

being used in the manual mode.
NOTE:

The system will not automatically sense the

presence of fog, mist or ice on the windshield.

Defrost mode must be manually selected to clear

the windshield and side glass.

LIMATE

OICE

ECOGNITION

Adjust vehicle temperatures hands-free and keep

everyone comfortable while you keep moving

ahead.
Push the VR button on the steering wheel. After the

beep, say one of the following commands:



“Set driver temperature to 70 degrees”



“Set passenger temperature to 70 degrees”

Did you know: Voice Command for Climate may

only be used to adjust the interior temperature of

your vehicle. Voice Command will not work to

adjust the heated seats or steering wheel if

equipped.

GETTING TO KNOW YOUR VEHICLE

PERATING

IPS

Refer to the chart at the end of this section for

suggested control settings for various weather

conditions.

Summer Operation

The engine cooling system must be protected with

a high-quality antifreeze coolant to provide proper

corrosion protection and to protect against engine

overheating. A solution of 50% OAT (Organic

Additive Technology) coolant that meets the

requirements of FCA Material Standard MS.90032

and 50% water is recommended

page 312.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling

system is functioning properly and the proper

amount, type, and concentration of coolant is

used. Use of the Air Recirculation mode during

Winter months is not recommended, because it

may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control

system when the vehicle is being stored for an

extended period of time, see

page 304.

Window Fogging

Interior fogging on the windshield can be quickly

removed by turning the mode selector to Defrost.

The Defrost/Floor mode can be used to maintain a

clear windshield and provide sufficient heating.

If side window fogging becomes objectionable,

increase blower speed to improve airflow and

clearing of the side windows. Vehicle windows tend

to fog on the inside in mild but rainy or humid

weather.

NOTE:



Recirculate without A/C should not be used for

long periods, as fogging may occur.



Automatic Temperature Controls (ATC) will auto

matically adjust the climate control settings to

reduce or eliminate window fogging on the front

windshield. When this occurs, recirculation will

be unavailable.

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the air distribution

box, they could plug the water drains. In Winter

months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed

page 262.

Stop/Start System — If Equipped

While in an Autostop, the Climate Control system

may automatically adjust airflow to maintain cabin

comfort. Customer settings will be maintained

upon return to an engine running condition.

CAUTION!

Interior air enters the Rear Automatic

Temperature Control system through an intake

grille, located in the right side trim panel behind

the third row seats. The heater outlets are

located in the right side trim panel, just behind

the passenger second row door. Do not block or

place objects directly in front of the inlet grille or

heater outlets. The electrical system could

overload causing damage to the blower motor.

GETTING TO KNOW YOUR VEHICLE

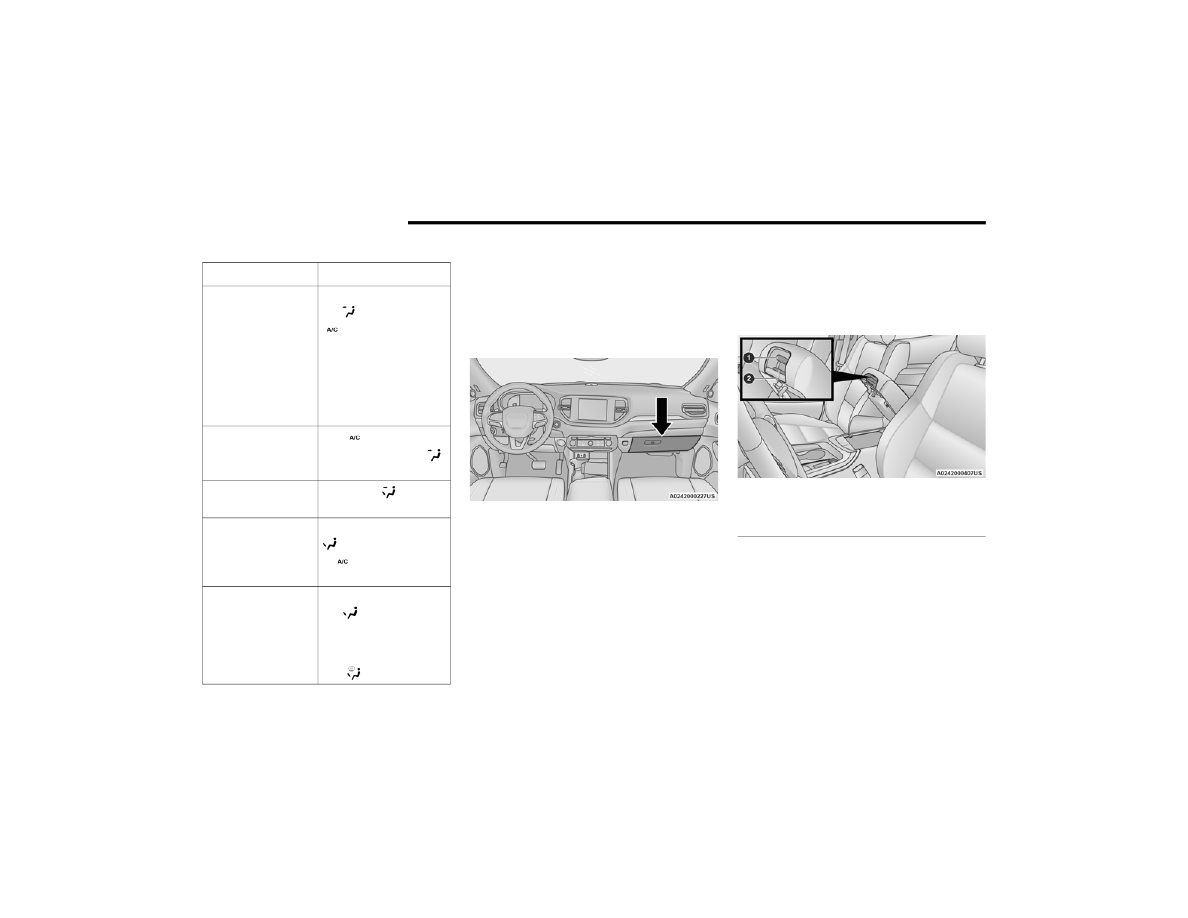

Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

TORAGE

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.

Glove Compartment

To open the glove compartment, pull the release

handle.

Front Center Console

The front center console contains both an upper

and a lower storage area.
To open the upper storage compartment, pull

upward on the small latch located on the lid.

Storage Compartment Latches

Lift upward on the larger of the latches to access

the lower storage compartment.

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is

Very Hot

Set the mode control to

(Panel Mode),

(A/C) on, and blower

on high. Roll down the

windows for a minute to

flush out the hot air.

Adjust the controls

as needed to

achieve comfort.

Warm Weather

Turn (A/C) on and set

the mode control to

(Panel Mode).

Cool Sunny

Operate in (Bi-Level

Mode).

Cool & Humid

Conditions

Set the mode control to

(Floor Mode) and turn

(A/C) on to keep

windows clear.

Cold Weather

Set the mode control to

(Floor Mode).

If windshield fogging

starts to occur,

move the control to

(Mix Mode).

1 — Upper Storage Compartment Latch
2 — Lower Storage Compartment Latch

GETTING TO KNOW YOUR VEHICLE

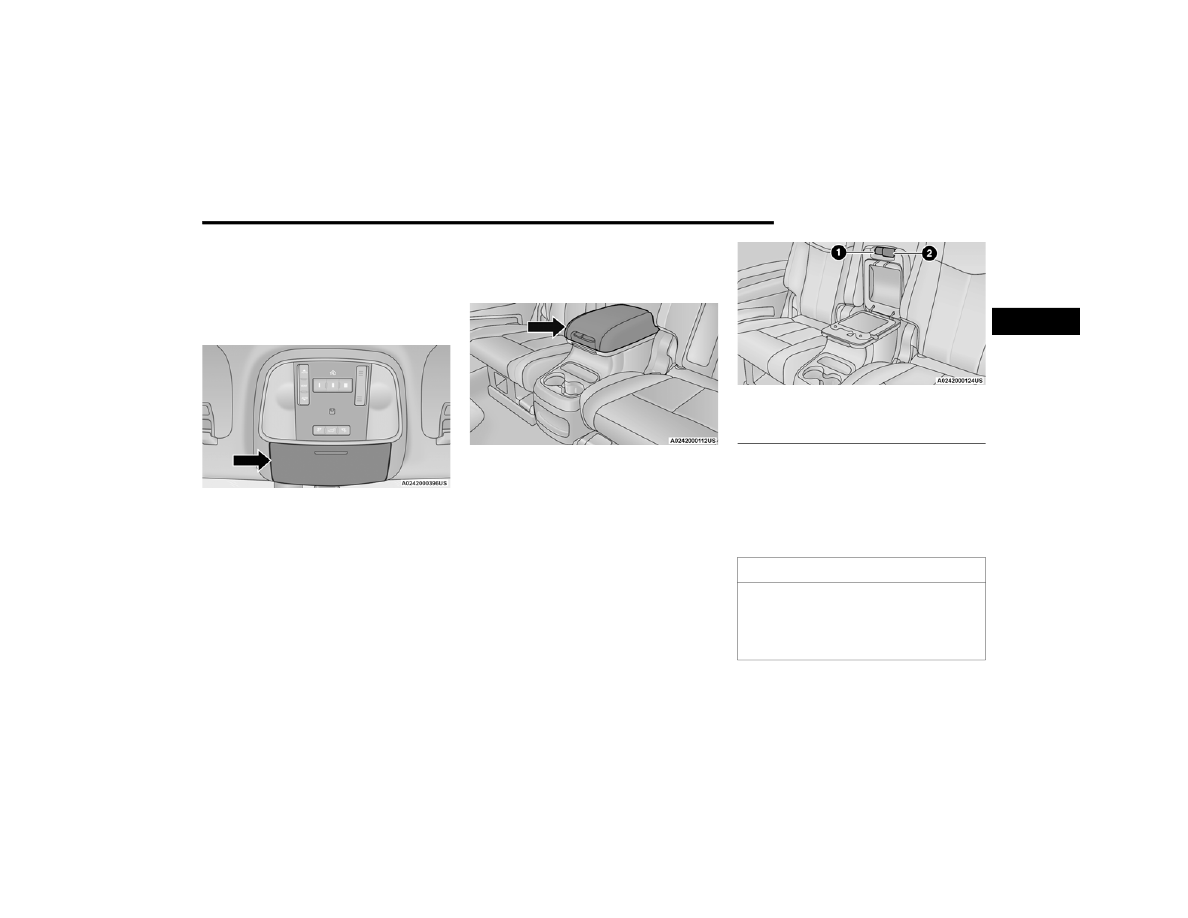

Sunglasses Bin Door

At the front of the console a compartment is

provided for the storage of a pair of sunglasses.

The storage compartment access is a “push/push”

design. Push the push cover on the door to open.

Push the push cover on the door to close.

Sunglasses Bin Door

Rear Full Center Console — If Equipped

The rear full center console contains both an upper

and a lower storage area.

Storage Compartment

To open the upper storage compartment, pull

upward on the small latch located on the front of

the lid.
Lift upward on the larger of the latches to access

the lower storage compartment.

Storage Compartment Latches

NOTE:

Lower storage compartment light is always on with

ignition in the ON/RUN position.
The upper storage compartment may also be lifted

forward. Push in the release button located on the

back of the lid.

1 — Upper Storage Compartment Latch
2 — Lower Storage Compartment Latch

CAUTION!

Remove any items stored in the console

cupholders or devices with cords routing through

upper storage area. Damage may occur to upper

console lid and device cables when upper

storage compartment is lifted forward.

GETTING TO KNOW YOUR VEHICLE

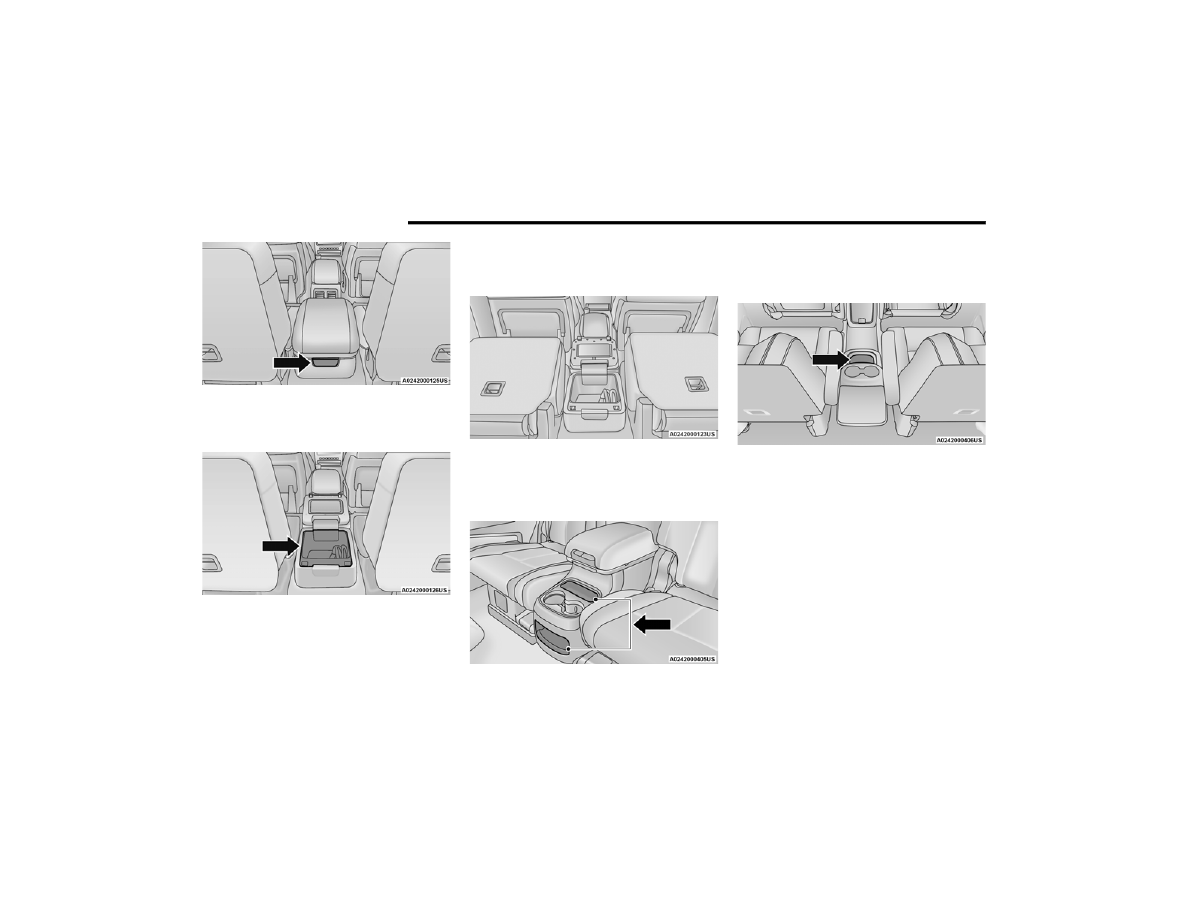

Storage Compartment Rear Push Button

When lifted forward there is access to the lower

storage compartment.

Lower Storage Compartment

NOTE:

When the lower storage compartment is accessed,

it allows the armrest to flip forward for “Fold-Flat

mode”. Fold-Flat mode allows the console armrest

to be lowered below the Fold-Flat seat plane and

protects the armrest vinyl from damage when

using the vehicle to haul cargo.

Fold-Flat Mode

Open storage areas, or cubby bins with removable

liners, are located rearward of the cupholders and

in the lower front of the console.

Console Cubby Bins

Rear Mini Center Console — If Equipped

An open storage area, or cubby bin with removable

liner, is located in the front of the console.

Console Cubby Bin

USB/AUX C

ONTROL

This feature allows an external USB device to be

plugged into the USB port.
Plugging in a smartphone device to a USB port may

activate Android Auto™ or Apple CarPlay®

features, if equipped. For further information, refer

to “Android Auto™” or “Apple CarPlay®” in the

Owner’s Manual Supplement.

GETTING TO KNOW YOUR VEHICLE

Connecting The AUX Audio Input Or

External USB Device

Use the connection cable to connect an external

USB device to the vehicle’s USB/AUX connector

port which is located in the center console.
The USB ports on the media hub are equipped with a

Smart Electronic Voltage Regulator (Smart Charge)

feature. This feature allows a device to charge for up

to one hour after the vehicle is powered off.

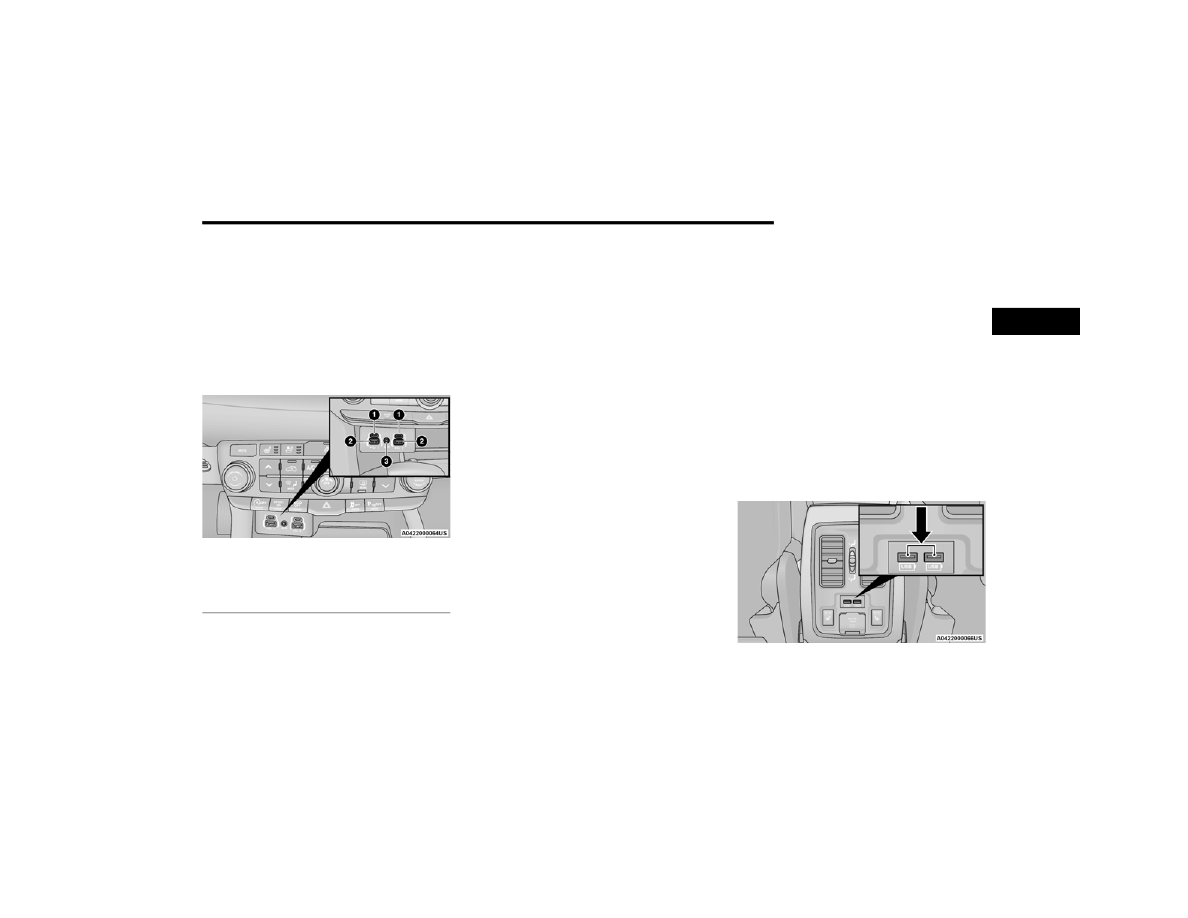

Integrated Center Console USB/AUX Media HUB

Once the audio device is connected and

synchronized to the vehicle’s USB control system

(an external USB device may take a few minutes to

connect), the audio device starts charging and is

ready for use.
Once a device is connected to the USB port, it will

begin charging and is ready for use with the

system. Type C and Type A charge-only USB ports

can be used at the same time but cannot be used

simultaneously while playing media. When both

Type C and Type A charge-only USB ports are in use

they will be charged at a reduced rate.
NOTE:

If the audio device battery is completely

discharged, it may not communicate with the USB

control system until a minimum charge is attained.

Leaving the audio device connected to the USB

control system may charge it to the required level.

Using This Feature

By using an external USB device to connect to

the USB port:



The audio device can be played on the vehicle’s

sound system, providing metadata (artist, track

title, album, etc.) information on the radio display.

NOTE:

Depending on track configuration, track infor

mation may not be present on the radio display.



The audio device can be controlled using the

radio buttons to Play, Browse, and List the

contents.



The audio device battery charges when plugged

into the USB/AUX connector (if supported by the

specific audio device).

NOTE:

For further information, refer to the Uconnect

Owner’s Manual Supplement.

Second Row USB Charging Port

Second Row USB Charging ports can be used for

charging purposes only. Use the connection cable

to connect an external USB device to the vehicle’s

USB charging ports which are located either on the

rear of the front center console and/or in the

second row center console.

Rear Center Console USB Ports

1 — Mini-USB Type C Port
2 — Standard USB Type A Port
3 — AUX Port

GETTING TO KNOW YOUR VEHICLE

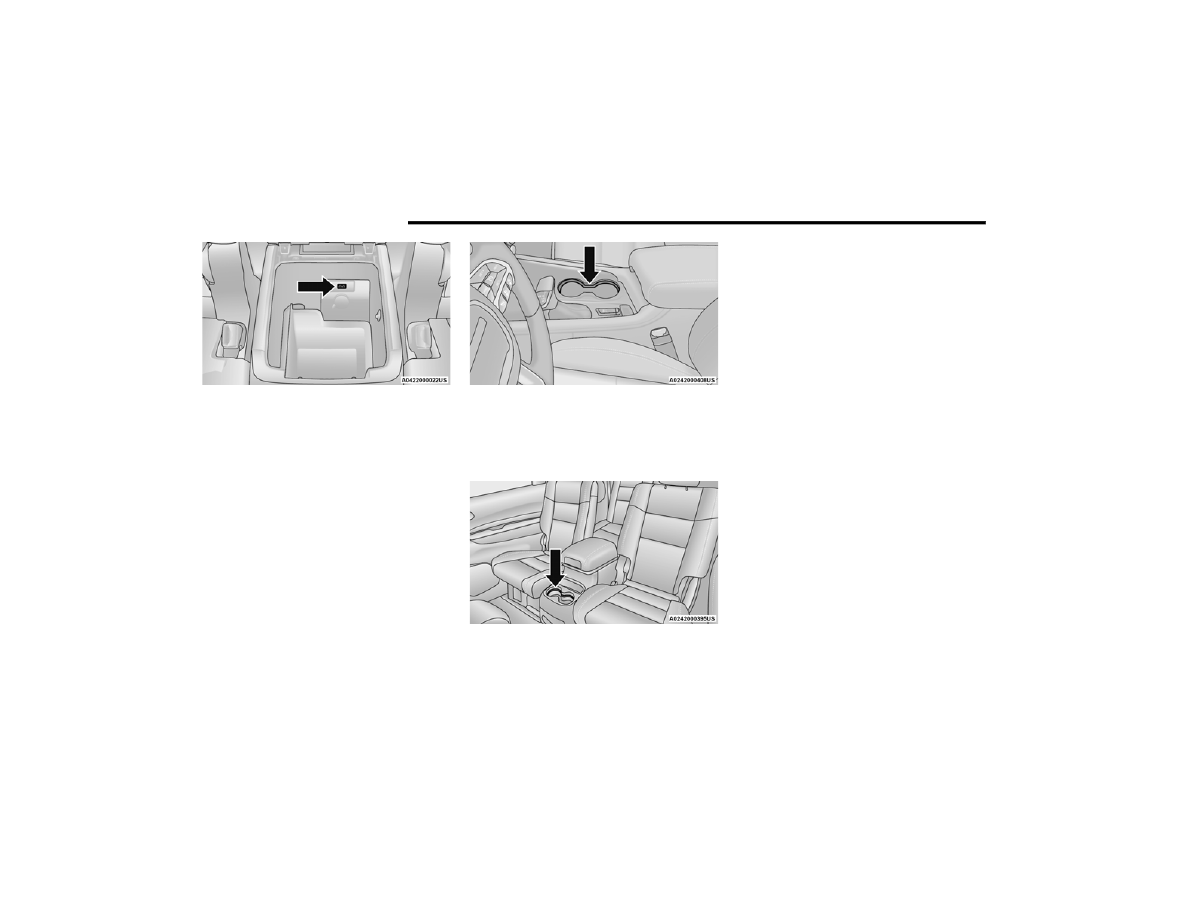

Second Row Center Console USB Port

NOTE:

Charge unsupported devices with the Charge Only

USB ports. If an unsupported device is plugged into

a Media USB port, a message will display on the

touchscreen that the device is not supported by

the system.

IGHTED

UPHOLDERS

— I

QUIPPED

On some vehicles, the front cupholders are

equipped with a light ring that illuminates the

cupholders for the front passengers.

Light Ring In Front Cupholder

The rear cupholders may also be equipped with a

light ring that illuminates the cupholders for the

rear passengers. The light ring is controlled by the

Dimmer Control

page 51.

Light Ring In Rear Cupholder

LECTRICAL

OWER

UTLETS

Your vehicle is equipped with 12 Volt (13 Amp)

power outlets that can be used to power cellular

phones, small electronics and other low powered

electrical accessories. The power outlets are

labeled with either a “key” or a “battery” symbol to

indicate how the outlet is powered. Power outlets

labeled with a key symbol are powered when the

ignition switch is in the ON or ACC position, while

the outlets labeled with a battery symbol are

connected directly to the battery, and are powered

at all times.
NOTE:



All accessories connected to the battery

powered outlets should be removed or turned

off when the vehicle is not in use to protect the

battery against discharge.



Do not exceed the maximum power of

160 Watts (13 Amps) at 12 Volts. If the

160 Watt (13 Amp) power rating is exceeded the

fuse protecting the system needs to be

replaced.



Power outlets are designed for accessory plugs

only. Do not insert any other object in the power

outlets as this will damage the outlet and blow

the fuse. Improper use of the power outlet can

cause damage not covered by your New Vehicle

Limited Warranty.

GETTING TO KNOW YOUR VEHICLE

The front power outlet is located to the right of the

climate controls.

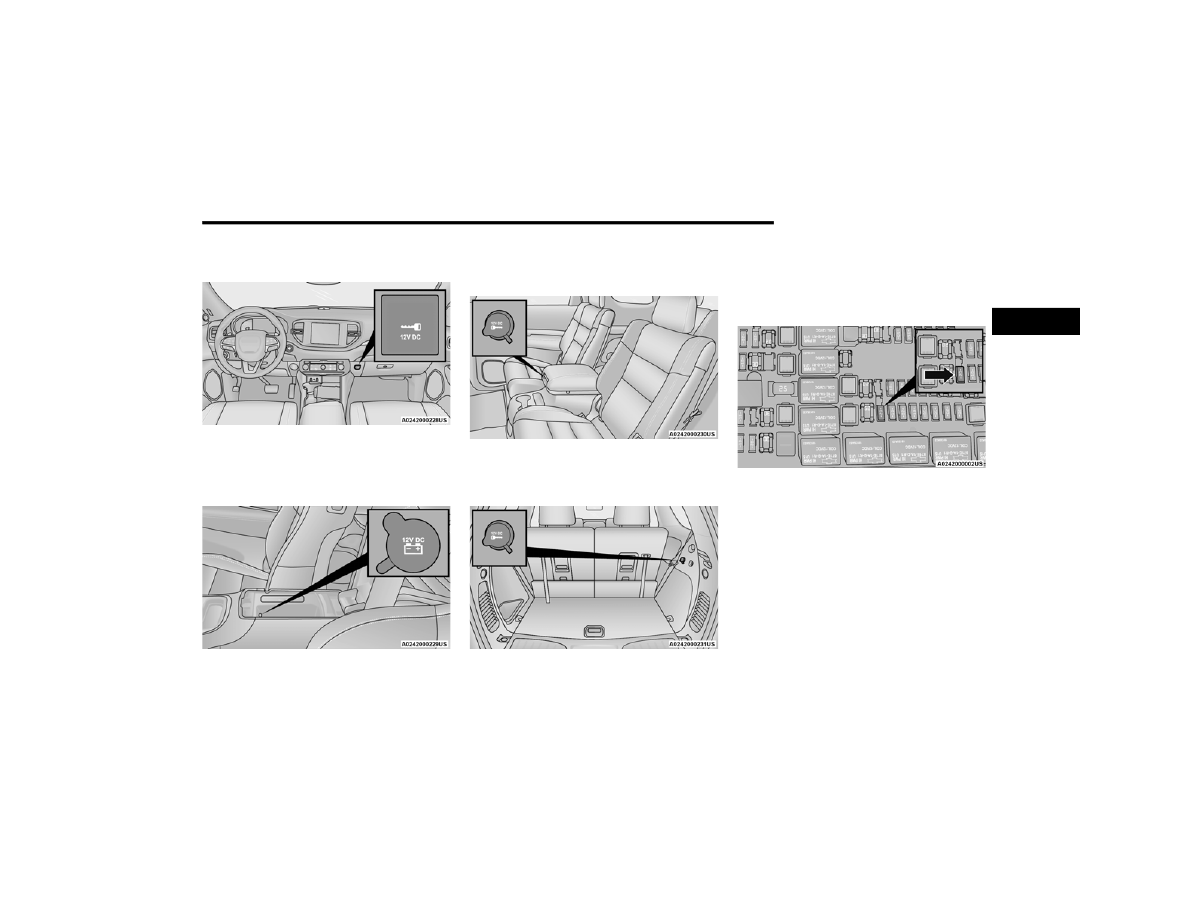

Front Power Outlet

In addition to the front power outlet, there is also a

power outlet located in the storage area of the

center console.

Front Center Console Outlet

If your vehicle is equipped with a rear full center

console, there is also a power outlet located in the

lower storage area of the rear full center console.

Rear Full Center Console Outlet

The rear cargo power outlet is located in the

right rear cargo area.

Rear Cargo Power Outlet

NOTE:

The rear cargo power outlet can be changed to

“battery” powered at all times by switching the

power outlet right rear quarter panel fuse in the

fuse panel from fuse location F90 to F91.

Rear Cargo Power Outlet Fuse

GETTING TO KNOW YOUR VEHICLE

(Continued)

Power Outlet Fuse Locations

OWER

NVERTER

— I

QUIPPED

There is a 115 Volt, 150 Watt inverter outlet

located on the back of the center console to

convert DC current to AC current. This outlet can

power cellular phones, electronics and other low

power devices requiring power up to 150 Watts.

Certain video game consoles exceed this power

limit, as will most power tools.

Power Inverter

The power inverter is designed with built-in

overload protection. If the power rating of

150 Watts is exceeded, the power inverter

automatically shuts down. Once the electrical

device has been removed from the outlet the

inverter should automatically reset. To avoid

overloading the circuit, check the power ratings on

electrical devices prior to using the inverter.

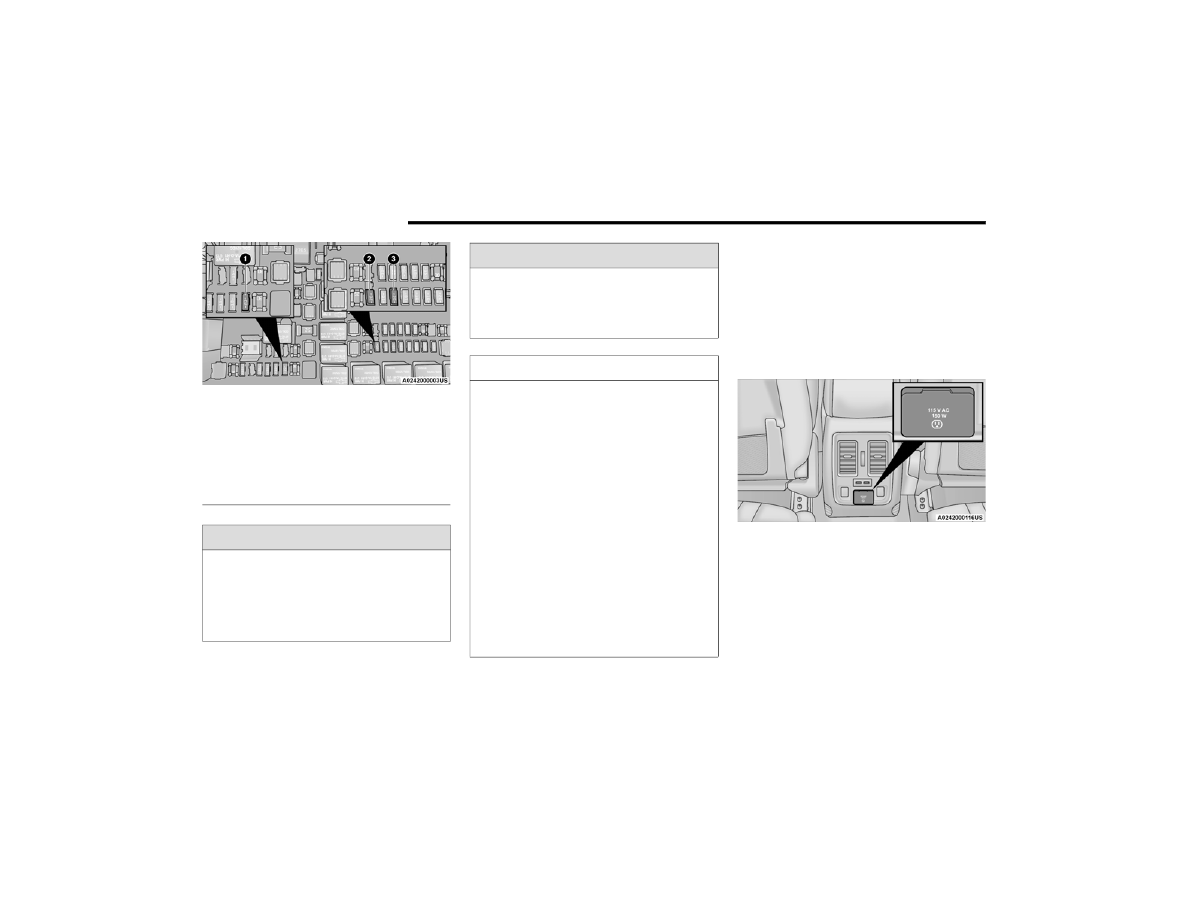

1 — F104 Fuse 20 A Yellow Power Outlet

Console Bin
2 — F90–F91 Fuse 20 A Yellow Power Outlet

Right Rear Quarter Panel
3 — F93 Fuse 20 A Yellow Cigar Lighter

Instrument Panel

WARNING!

To avoid serious injury or death:



Only devices designed for use in this type of

outlet should be inserted into any 12 Volt

outlet.



Do not touch with wet hands.



Close the lid when not in use and while driving

the vehicle.



If this outlet is mishandled, it may cause an

electric shock and failure.

CAUTION!



Many accessories that can be plugged in draw

power from the vehicle's battery, even when

not in use (i.e., cellular phones, etc.). Eventu

ally, if plugged in long enough, the vehicle's

battery will discharge sufficiently to degrade

battery life and/or prevent the engine from

starting.



Accessories that draw higher power (i.e.,

coolers, vacuum cleaners, lights, etc.) will

degrade the battery even more quickly. Only

use these intermittently and with greater

caution.



After the use of high power draw accessories,

or long periods of the vehicle not being started

(with accessories still plugged in), the vehicle

must be driven a sufficient length of time to

allow the generator to recharge the vehicle's

battery.

WARNING!

GETTING TO KNOW YOUR VEHICLE

IRELESS

HARGING

—

QUIPPED

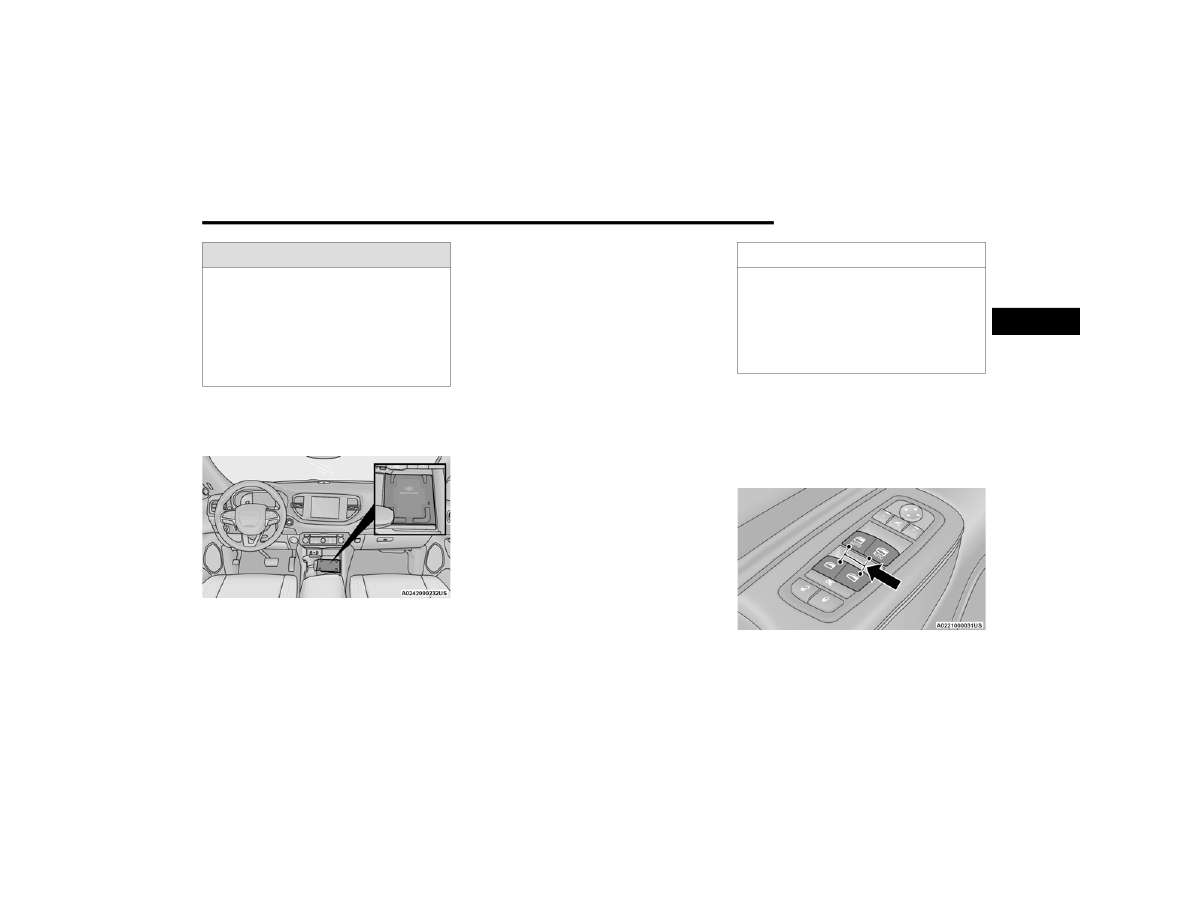

Wireless Charging Pad

Your vehicle may be equipped with a 15W 3A Qi

wireless charging pad located below the center

stack by the cupholders. This charging pad is

designed to wirelessly charge your Qi enabled

mobile phone. Qi is a standard that allows wireless

charging of your mobile phone.
Your mobile phone must be designed for Qi

wireless charging. If the phone is not equipped

with Qi wireless charging functionality, an

aftermarket sleeve or a specialized back plate can

be purchased from your mobile phone provider or

a local electronics retailer. Please see your

phone’s owner’s manual for further information.
The wireless charging pad is equipped with an

anti-slip mat to hold your mobile phone in place,

and an LED indicator.
LED Indicator Status:



No Light: Charging pad is idle or searching for a

device.



Blue Light: Device is detected, and is charging.



Red Light/Flashing: Internal error, or foreign

object is detected.

NOTE:



The wireless charging pad will not work if any of

the four doors or the liftgate are open, even if

the engine is running.



Using a phone case may interfere with wireless

charging.

WINDOWS

OWER

INDOWS

The power window controls are located on the

driver's door trim panel.

Power Window Switches

WARNING!

To avoid serious injury or death:



Do not insert any objects into the receptacles.



Do not touch with wet hands.



Close the lid when not in use.



If this outlet is mishandled, it may cause an

electric shock and failure.

CAUTION!

The key fob should not be placed on the

charging pad or within 6 inches (15 cm) of it.

Doing so can cause excessive heat buildup and

damage to the fob. Placing the fob in close

proximity of the charging pad blocks the fob from

being detected by the vehicle and prevents the

vehicle from starting.

GETTING TO KNOW YOUR VEHICLE

The passenger door windows can also be operated

by using the single window controls on the

passenger door trim panel. The window controls

will operate only when the ignition is in the ON/

RUN or ACC position.
To open the window part way (manually), push the

switch to the first detent and release it when you

want the window to stop.
The power window controls remain active for up to

10 minutes after the ignition has been placed in

the OFF position. Opening a vehicle front door will

cancel this feature.

Automatic Window Features

Auto-Down Feature
Both the driver and front passenger window

switches have an Auto-Down feature. Push the

window switch past the first detent, release, and

the window will go down automatically.
To cancel the Auto-Down movement, operate the

switch in either the up or down direction and

release the switch.
Auto-Up Feature With Anti-Pinch Protection —

Driver And Front Passenger Door Only
Lift the window switch fully upward to the second

detent, release, and the window will go up

automatically.
To stop the window from going all the way up

during the Auto-Up operation, push down on the

switch briefly.
If the window runs into any obstacle during

Auto-Up, it will reverse direction and then go back

down. Remove the obstacle and use the window

switch again to close the window.
NOTE:

Any impact due to rough road conditions may

trigger the auto reverse function unexpectedly

during Auto-Up. If this happens, pull the switch

lightly to the first detent and hold it to close the

window manually.

Reset Auto-Up

Should the Auto-Up feature stop working, the

window may need to be reset. To reset Auto-Up:
1. Make sure the door is fully closed.
2. Pull the window switch up to close the window

completely and continue to hold the switch up

for an additional two seconds after the window

is closed.

3. Push the window switch down firmly to the

second detent to open the window completely

and continue to hold the switch down for an

additional two seconds after the window is

fully open.

WARNING!

Never leave children unattended in a vehicle,

and do not let children play with power windows.

Do not leave the key fob in or near the vehicle, or

in a location accessible to children, and do not

leave the ignition of a vehicle equipped with

Keyless Enter ‘n Go™ in the ACC or ON/RUN

position. Occupants, particularly unattended

children, can become entrapped by the windows

while operating the power window switches.

Such entrapment may result in serious injury

or death.

WARNING!

There is no anti-pinch protection when the

window is almost closed. To avoid personal

injury be sure to clear your arms, hands, fingers

and all objects from the window path before

closing.

GETTING TO KNOW YOUR VEHICLE

Window Lockout Switch

The window lockout switch on the driver's door trim

panel allows you to disable the window controls on

the rear passenger doors. To disable the window

controls, push and release the window lockout

button. To enable the window controls, push and

release the window lockout button again.

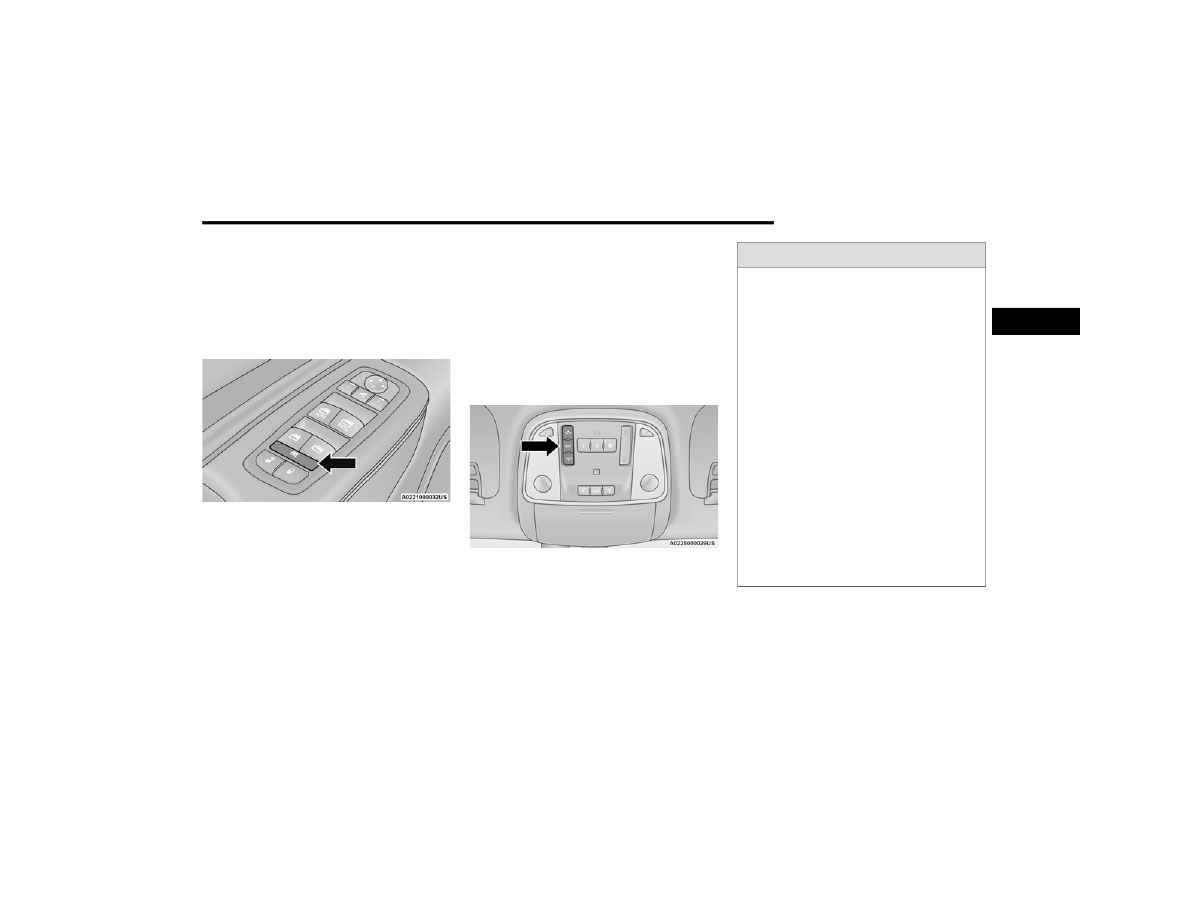

Power Window Lockout Switch

IND

UFFETING

Wind buffeting can be described as the perception

of pressure on the ears or a helicopter-type

sound in the ears. Your vehicle may exhibit wind

buffeting with the windows down, or the sunroof

(if equipped) in certain open or partially open

positions. This is a normal occurrence and can be

minimized. If the buffeting occurs with the rear

windows open, open the front and rear windows

together to minimize the buffeting. If the buffeting

occurs with the sunroof open, adjust the sunroof

opening to minimize the buffeting or open any

window.

POWER SUNROOF — IF EQUIPPED

The power sunroof switch is located between the

sun visors on the overhead console.

Power Sunroof Switch

WARNING!



Never leave children unattended in a vehicle,

or with access to an unlocked vehicle. Never

leave the key fob in or near the vehicle, or in a

location accessible to children. Do not leave

the ignition of a vehicle equipped with Keyless

Enter ‘n Go™ in the ACC or ON/RUN position.

Occupants, particularly unattended children,

can become entrapped by the power sunroof

while operating the power sunroof switch.

Such entrapment may result in serious injury

or death.



In a collision, there is a greater risk of being

thrown from a vehicle with an open sunroof.

You could also be seriously injured or killed.

Always fasten your seat belt properly and

make sure all passengers are also properly

secured.



Do not allow small children to operate the

sunroof. Never allow your fingers, other body

parts, or any object, to project through the

sunroof opening. Injury may result.

GETTING TO KNOW YOUR VEHICLE

PENING

LOSING

UNROOF

Express Open/Close
Push the switch rearward and release it within

one-half second; the sunroof and sunshade will

open automatically and stop at full open position.
Push the switch forward and release it within

one-half second and the sunroof will close

automatically from any position.
During Express Open or Express Close operation,

any movement of the sunshade switch will stop the

shade.
Manual Open/Close
Push and hold the switch rearward; the sunroof

and sunshade will open and automatically stop at

full open position.
Push and hold the switch forward and the sunroof

will close from any position and stop at a full closed

position.
Any release of the switch during open or close

operation will stop the sunroof movement. The

sunroof will remain in a partially opened position

until the switch is operated and held again.

Venting The Sunroof
Push and release the "Vent" button within one-half

second and the sunroof will open to the vent

position. This is called “Express Vent”, and it will

occur regardless of sunroof position. During

Express Vent operation, any movement of the

switch will stop the sunroof.

UNSHADE

PERATION

The sunshade can be opened manually. However,

the sunshade will open automatically as the

sunroof opens.
NOTE:

The sunshade cannot be closed if the sunroof is

open.

INCH

ROTECT

EATURE

This feature will detect an obstruction in the

closing of the sunroof during the Express Close

operation. If an obstruction in the path of the

sunroof is detected, the sunroof will automatically

retract. Remove the obstruction if this occurs.

NOTE:

If three consecutive sunroof close attempts result

in Pinch Protect reversals, Pinch Protect will

disable and the sunroof must be closed in Manual

Mode.

UNROOF

AINTENANCE

Use only a non-abrasive cleaner and a soft cloth to

clean the glass panel. Periodically check for and

clear out any debris that may have collected in

the tracks.

GNITION

PERATION

NOTE:



The power sunroof switch can remain active in

Accessory Delay for up to approximately

10 minutes after the vehicle’s ignition is placed

to the OFF position. Opening either front door

will cancel this feature.



This feature is programmable using the

Uconnect system

page 156.

WARNING!

There is no anti-pinch protection when the sunroof

is almost closed. To avoid personal injury be sure

to clear your arms, hands, fingers and all objects

from the top’s path before closing.

GETTING TO KNOW YOUR VEHICLE

HOOD

PENING

OOD

To open the hood, two latches must be released.
1. Pull the release lever located underneath the

driver’s side of the instrument panel.

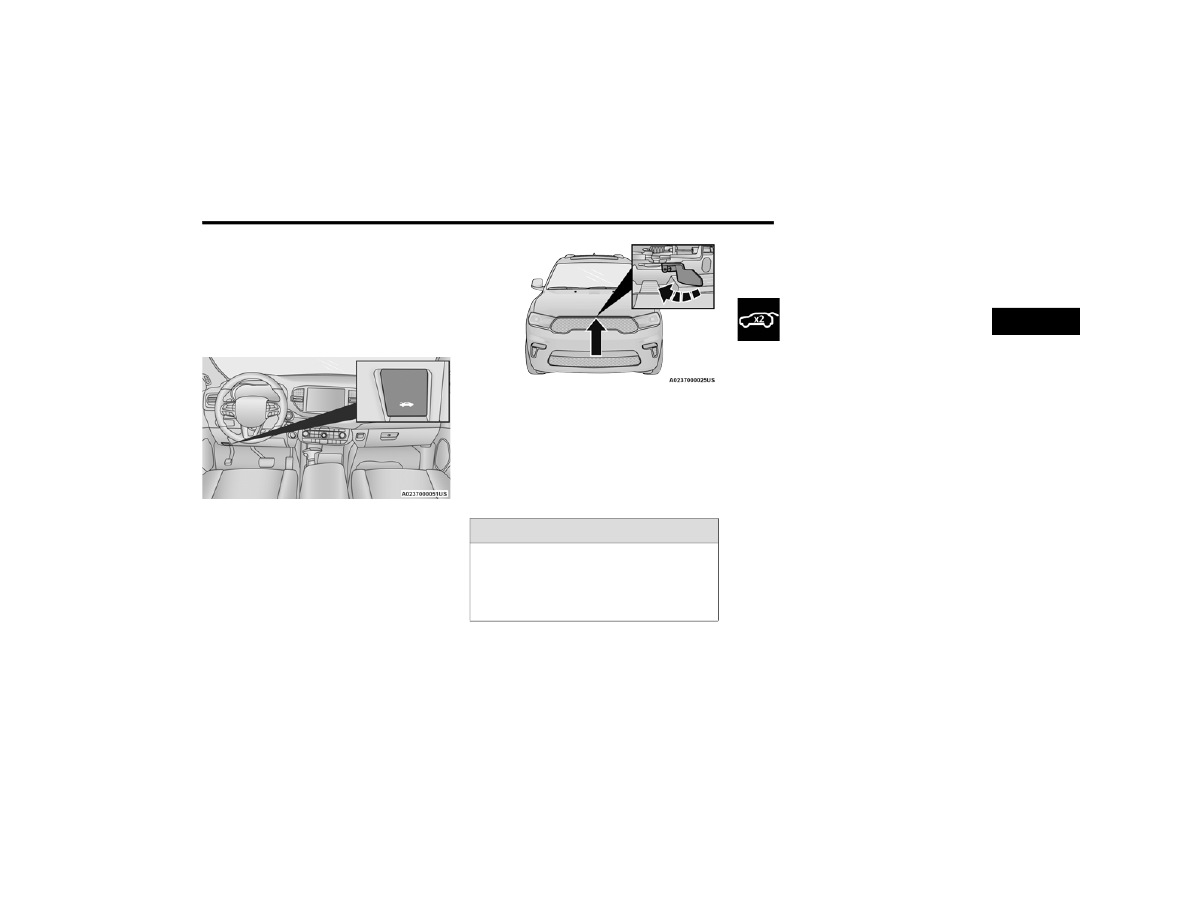

Hood Release

2. Reach under the hood from outside the

vehicle, move the safety latch to the left and

lift the hood.

Safety Latch Location

LOSING

OOD

In one continuous motion, pull down on the front

edge of the hood with moderate force until the

angle is below the crossover point (where the gas

props are no longer resisting) and let the hood

continue to fall closed from its own inertia.

LIFTGATE

OWER

IFTGATE

— I

QUIPPED

The power liftgate may be opened by

pushing the liftgate release handle

page 23 or by pushing the liftgate

button on the key fob. Push the liftgate

button on the key fob twice within five seconds to

open or close the power liftgate.
NOTE:



When using the liftgate button on the key fob to

open the liftgate while the vehicle is locked, only

the liftgate will unlock leaving the other doors to

remain locked. Closing the liftgate will not relock

the liftgate. The lock button on the key fob, or

the Passive Entry lock button must be pushed to

relock.



If the electronic liftgate handle is used to open

the liftgate and all the doors unlock, the liftgate

and vehicle doors must be locked again. Use the

key fob, Passive Entry lock button, or the power

door lock switches on the front door panels.

The power liftgate may also be opened or closed by

pushing the liftgate button located on the front

overhead console. If the liftgate is fully open, it can

be closed by pushing the liftgate button located on

the left rear trim panel. If the liftgate is in motion,

pushing the button again will reverse the liftgate.

WARNING!

Be sure the hood is fully latched before driving

your vehicle. If the hood is not fully latched, it

could open when the vehicle is in motion and

block your vision. Failure to follow this warning

could result in serious injury or death.

Dodge Durango (2022 year). Manual in english - page 4
