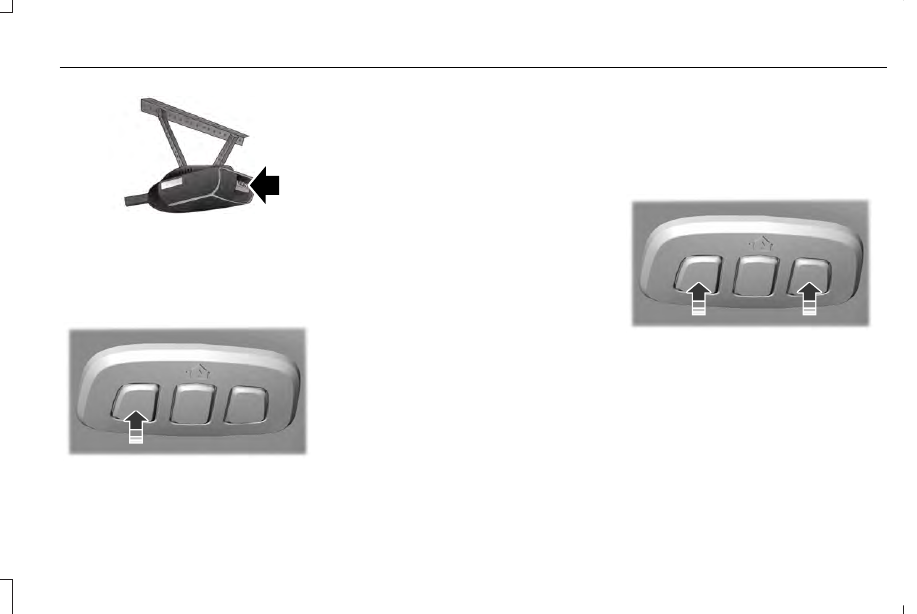

1. Press the learn button on the garage

door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

E188212

3. Press and hold the function button you

want to program for 2 seconds, then
release. Repeat this step. Depending on
your brand of garage door opener, you
may need to repeat this sequence a third
time.

Gate Operator / Canadian Programming

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit) after
several seconds of transmission – which may
not be long enough for HomeLink to pick up
the signal during programming. Similar to
this Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.

Note: If programming a garage door opener
or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

1. Press and release, every two seconds,

your hand-held transmitter until the
HomeLink indicator light changes to a
rapidly blinking or continuously on light.

2. Release the hand-held transmitter button.

3. Continue programing HomeLink. See

In-Vehicle Programming, Step 4.

Erasing the Function Button Codes

Note: You cannot erase individual buttons.

E188213

1. Press and hold the outer two function

buttons simultaneously for approximately
10 seconds until the indicator light above
the buttons flashes rapidly.

2. When the indicator light flashes, release

the buttons. You erased the codes for all
buttons.

183

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Garage Door Opener

Reprogramming a Single Button

To program a device to a previously trained
button, follow these steps:

1. Press and hold the desired button. Do

NOT release the button.

2. The indicator light begins to flash after

20 seconds. Without releasing the
button, follow Step 1 in the Programming
section.

For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.

FCC and RSS-210 Industry Canada
Compliance

This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

Note: Changes or modifications to your
device not expressly approved by the party
responsible for compliance can void the
user’s authority to operate the equipment.

This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. End Users must follow the
specific operating instructions for satisfying
RF exposure compliance. This transmitter
must be at least 8 in (20 cm) from the user
and must not be co-located or operating in
conjunction with any other antenna or
transmitter.

The term “IC:” before the
certification/registration number only signifies
that Industry Canada technical specifications
were met.

184

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Garage Door Opener

12 Volt DC Power Point

WARNING: Do not plug optional

electrical accessories into the cigar lighter
socket. Incorrect use of the cigar lighter
can cause damage not covered by the
vehicle warranty, and can result in fire or
serious injury.

Note: When you switch the ignition on, you
can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

If the power supply does not work after you
switch the ignition off, switch the ignition on.
Note: Do not hang any accessory from the
accessory plug.

Note: Do not use the power point over the
vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note: Always keep the power point caps
closed when not in use.

Do not insert objects other than an accessory
plug into the power point. This damages the
power point and may blow the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

USB Port and Power Point Locations

USB Ports and Power Points may be in the
following locations:
•

On the lower instrument panel.

•

Inside the center console.

•

On the front of the center console.

•

On the rear of the center console.

•

In the cargo area.

•

On the passenger side floor panel.

•

3rd row on the quarter trim panels.

Note: Some of the USB ports may not have
data transfer capabilities.

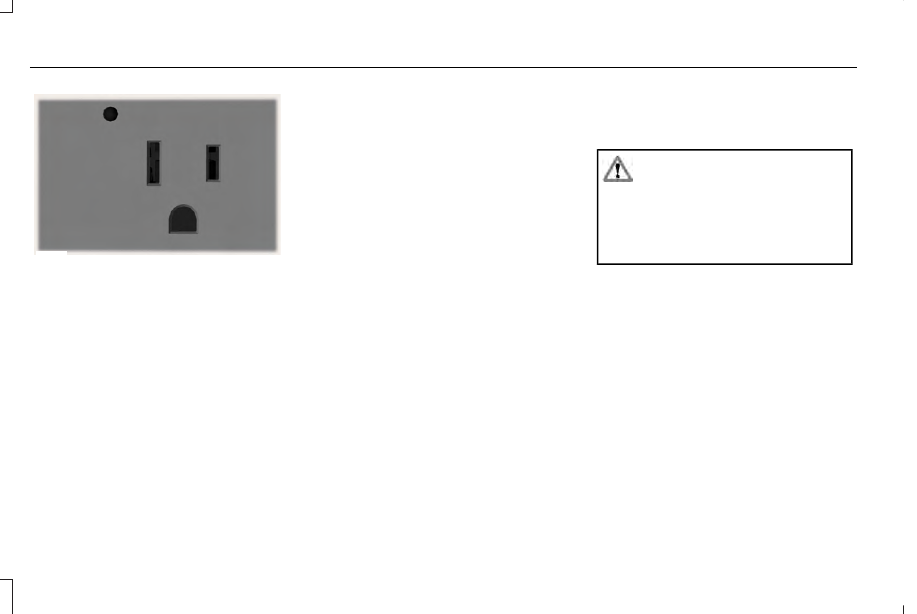

110 Volt AC Power Point

 (If Equipped)

WARNING: Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design. Doing so may
cause the power point to overload due to
powering multiple devices that can reach
beyond the 150 watt load limit and could
result in fire or serious injury.

Note: The power point turns off when you
switch off the ignition, when the vehicle is
not in accessory mode or when the battery
voltage drops below 11 volts.

You can use the power point for electric
devices that require up to 150 watts. It is on
the rear of the center console.

185

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Auxiliary Power Points

E247586

When the indicator light on the power point
is:
•

On: The power point is working, the
ignition is ON or the vehicle is in
accessory mode.

•

Off: The power point is OFF, the ignition
is OFF or the vehicle is not in accessory
mode.

•

Flashing: The power point is in fault
mode.

Due to the different technologies used on
its construction, some devices may exceed
the capacity shown on its label when they
are initially plugged-in.

The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit.  Unplug your device and
switch the ignition off.  Switch the ignition
back on, but do not plug your device back
in.  Let the system cool off and switch the
ignition off to reset the fault mode.  Switch
the ignition back on and make sure the
indicator light remains on.

Do not use the power point for certain
electric devices, including:
•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven refrigerators.

•

Measuring devices, which process
precise data, such as medical equipment
or measuring equipment.

•

Other appliances requiring an extremely
stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

WIRELESS ACCESSORY
CHARGING

 (IF EQUIPPED)

WARNING: Wireless charging

devices can affect the operation of
implanted medical devices, including
cardiac pacemakers. If you have any
implanted medical devices, we recommend
that you consult with your physician.

Note: Devices without built-in Qi wireless
charging receivers require an additional Qi
receiver or sleeve.

The system supports one Qi wireless
charging compatible device on the charging
area.

Keep the charging area clean and remove
foreign objects prior to charging a device.

Do not place items with a magnetic strip, for
example passports, parking tickets or credit
cards, near the charging area when charging
a device. Damage may occur to the magnetic
strip.

186

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Auxiliary Power Points

Do not place metal objects, for example
remote controls, coins and candy wrappers,
on or near the charging area when charging
a device. Metal objects may heat up and
degrade the charging performance.

Note: The rate of charge, or charging power,
is controlled by the device. During charging,
the device and the charger may heat up, this
is normal. If the battery gets hotter than
usual, the charger may stop charging.

E250812

The charging area is on the center console
or lower instrument panel. See Center
Console (page 189).

You can charge a device if the vehicle is off
when in accessory mode or if SYNC is on.

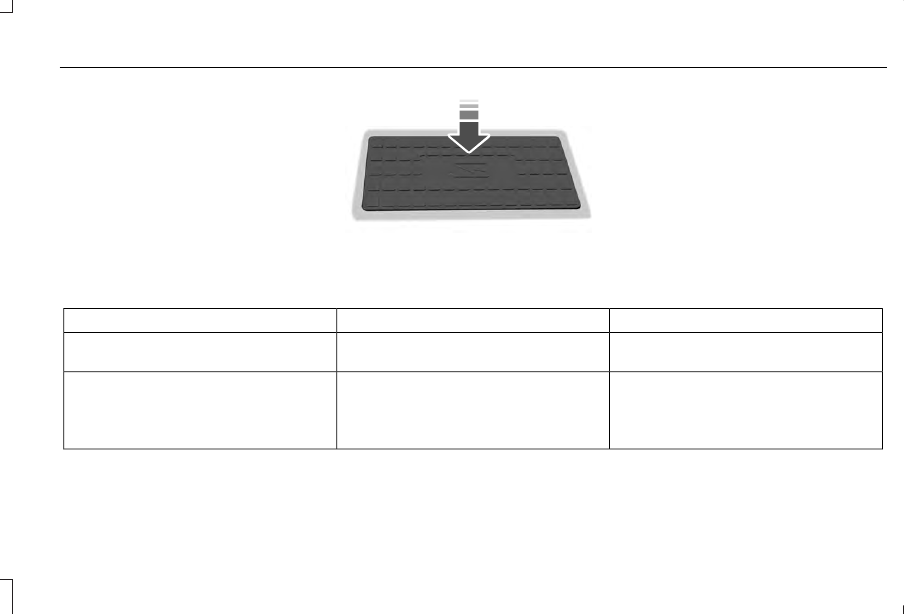

To begin charging, place the device on the
center of the charging surface with the
charging side down. The charging stops after
your device reaches a full charge.

Note: If the system detects a foreign object
or if the device is misaligned on the charging
area, a message appears in the display.

Description

Behavior

Message

This message appears when wireless charging

begins.

Message on screen display or pop-up window.

Wireless Charger Active

The system stops charging your device if the

system detects the phone is misaligned, or a

foreign metal object is on the charging

surface.

Pop-up window.

Charging Terminated

Phone misaligned or object between phone

and charger detected. Correct the condition

to resume charging.

FCC ID: L2C0066T

187

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Auxiliary Power Points

This equipment has been tested and found
to comply with part 18 of the FCC Rules.
•

This equipment generates, uses and can
radiate radio frequency energy and may
cause harmful interference to radio
communications. There is no guarantee
that the interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, please consult
the dealer.

•

This product is not end-user serviceable.

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
•

This device may not cause interference,
and

•

This device must accept any interference,
including interference that may cause
undesired operation of the device.

Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

188

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Auxiliary Power Points

CENTER CONSOLE

Stow items in the cup holder carefully as
items may become loose during hard
braking, acceleration or crashes, including
hot drinks which may spill.

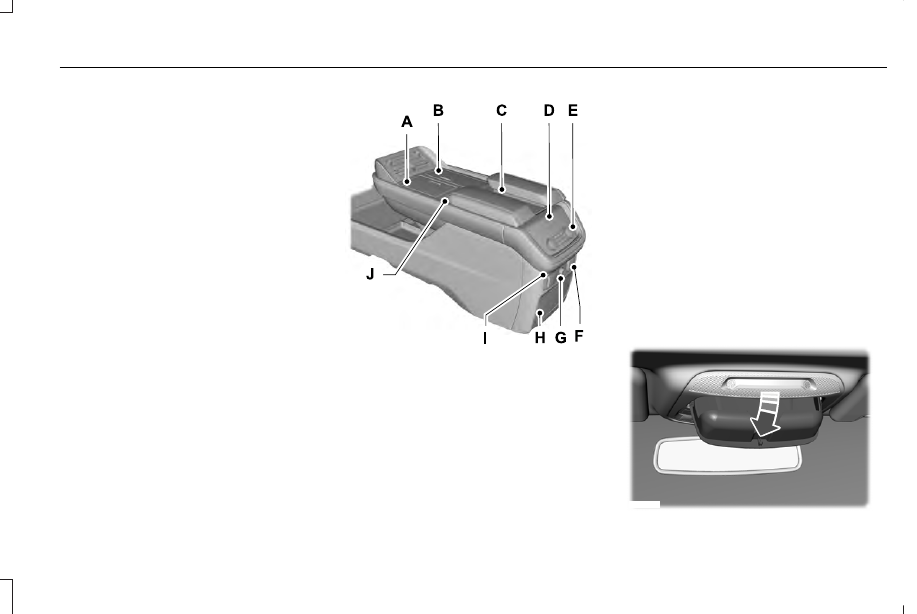

Available console features include:

E247439

Front storage compartment with
USB ports, auxiliary power point
and wireless charger.

A

Cup holders with auxiliary storage
bin.

B

Storage compartment with auxiliary
power point.

C

Rear audio controls/Rear window
shade controls.

D

Rear climate controls.

E

AC power point.

F

Auxiliary power point or cigar
lighter.

G

Rear cup holders.

H

Dual USB port.

I

Terrain management switch and
electric parking brake.

J

OVERHEAD CONSOLE

E224352

189

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Storage Compartments

Press near the rear edge of the door to open
it.

190

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Storage Compartments

GENERAL INFORMATION

WARNING: Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING: Do not park, idle or drive

your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire.

WARNING: Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always
open the garage door before you start the
engine.

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 mi (8 km)
after you reconnect it.  This is because the
engine management system must realign
itself with the engine.  You can disregard any
unusual driving characteristics during this
period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the engine.

KEYLESS STARTING

Note: The system may not function if the
passive key is close to metal objects or
electronic devices, for example keys or a
cell phone.

Note: A valid passive key must be located
inside your vehicle to switch the power on
and start your vehicle.

Note: A light on the button illuminates when
the ignition is on and when your vehicle
starts.

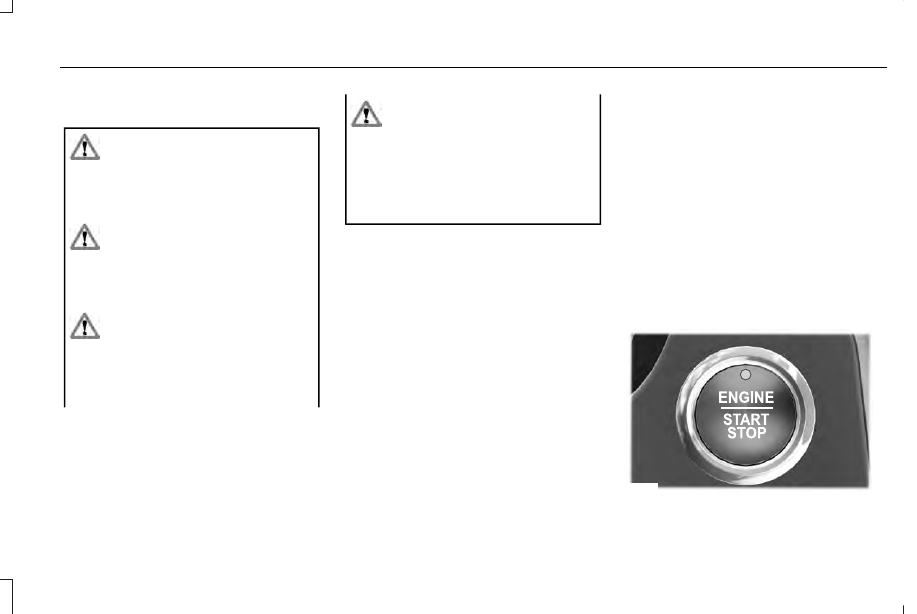

Switching the Ignition On

E144447

191

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Starting and Stopping the Engine

Press the push button ignition switch once
without your foot on the brake pedal. It is on
the instrument panel near the steering wheel.
All electrical circuits and accessories are
operational and the warning lamps and
indicators illuminate.

Press the push button ignition switch again
without your foot on the brake pedal to
switch the ignition off.

STARTING A GASOLINE ENGINE

When you start the engine, the idle speed
increases.

This helps to warm up the engine. If the
engine idle speed does not slow down
automatically, have your vehicle checked by
an authorized dealer.

Note:  You can crank the engine for a total
of 60 seconds without the engine starting
before the starting system temporarily
disables.  The 60 seconds does not have to
be all at once.  For example, if you crank the
engine three times for 20 seconds each time,
without the engine starting, you reached the
60-second time limit.  You cannot attempt
to start the engine for at least 15 minutes.
After 15 minutes, you are limited to a
15-second engine cranking time.  You need
to wait 60 minutes before you can crank the
engine for 60 seconds again.

Before starting your vehicle, check the
following:
•

Make sure all occupants have fastened
their seatbelts.

•

Make sure the headlamps and electrical
accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park (P).

Note: Do not touch the accelerator pedal.

Note: You must have your intelligent access
key in your vehicle to shift the transmission
out of park (P).

1. Fully depress the brake pedal.

2. Press the push button ignition switch.

The system does not function if:
•

The passive key frequencies are jammed.

•

The key battery has no charge.

If you are unable to start your vehicle, do the
following:

E247437

192

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Starting and Stopping the Engine

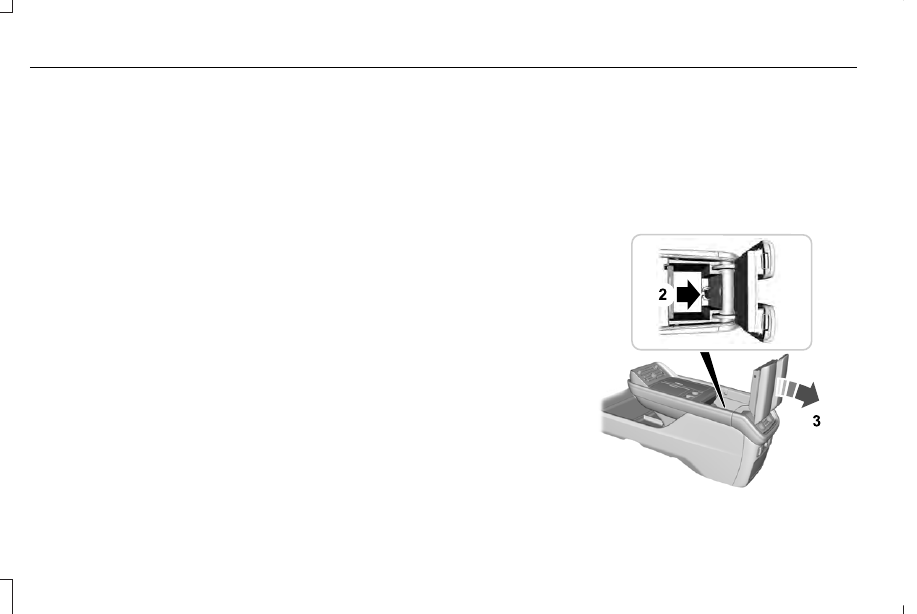

1. Open the floor console storage

compartment lid.

2. Insert the passive key into the backup

slot.

3. With the passive key in this position, you

can use the push button ignition switch
to switch the ignition on and start your
vehicle.

Fast Restart

The fast restart feature allows you to restart
your vehicle within 20 seconds of switching
it off, even if it does not detect a valid
passive key.

Within 20 seconds of switching the engine
off, press the brake pedal and press the push
button ignition switch. After 20 seconds, you
can no longer start your vehicle if it does not
detect a valid passive key.

Once your vehicle starts, it remains running
until you press the push button ignition
switch, even if your vehicle does not detect
a valid passive key. If you open and close a
door while your vehicle is running, the
system searches for a valid passive key. You
cannot start your vehicle if the system does
not detect a valid passive key within 20
seconds.

Failure to Start

If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:

1. Fully depress the brake pedal.

2. Shift into park (P).

3. Fully press the accelerator pedal and

hold it there.

4. Start the engine.

Automatic Engine Shutdown

For vehicles with a keyless ignition, this
automatically shuts down your vehicle if it
has been idling for an extended period.  The
ignition also turns off to save battery power.
Before your vehicle shuts down, a message
appears in the information display showing
a timer counting down.  If you do not
intervene within 30 seconds, your vehicle
shuts down.  Another message appears in
the information display to inform you that
your vehicle has shut down to save fuel.
Start your vehicle as normal.

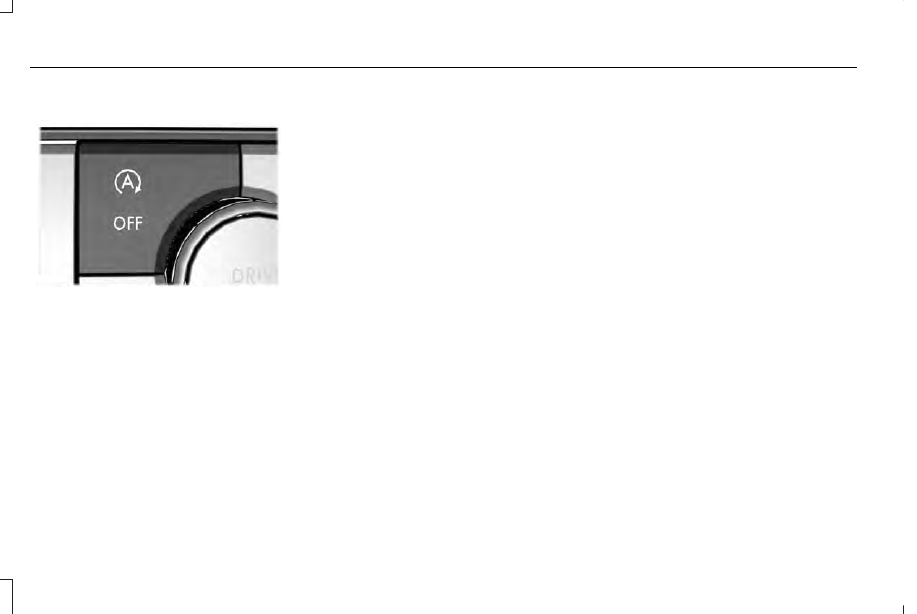

Automatic Engine Shutdown Override

Note:  You cannot permanently switch off
the automatic shutdown.  When you switch
it off temporarily, it turns on at the next
ignition cycle.

193

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Starting and Stopping the Engine

You can stop the shutdown, or reset the
timer, at any point before the 30-second
countdown has expired by doing any of the
following:
•

Interacting with your vehicle, for example
pressing the brake or accelerator pedal.

•

You can temporarily switch off the
shutdown feature any time the ignition is
on using the information display.  See
Information Displays (page 120).  The
feature only remains off for the current
ignition cycle.

•

During the 30-second countdown, the
system prompts you to press OK or
RESET to temporarily switch the feature
off for the current ignition cycle only.

Stopping the Engine When Your
Vehicle is Stationary

1. Shift into park (P).

2. Press the push button ignition switch.

3. Apply the parking brake.

Note: The ignition, all electrical circuits and
all warning lamps and indicators will be
turned off.

Note: If the engine is idling for 30 minutes,
the ignition and engine automatically shuts
down.

Stopping the Engine When Your
Vehicle is Moving

WARNING: Switching off the engine

when the vehicle is still moving will result
in a loss of brake and steering assistance.
The steering will not lock, but higher effort
will be required. When the ignition is
switched off, some electrical circuits,
including air bags, warning lamps and
indicators may also be off. If the ignition
was turned off accidentally, you can shift
into neutral (N) and re-start the engine.

1. Shift into neutral and use the brakes to

bring your vehicle to a safe stop.

2. When your vehicle has stopped, shift into

park (P).

3. Press and hold the push button ignition

switch, or press it three times within two
seconds.

4. Apply the parking brake.

Guarding Against Exhaust Fumes

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

Important Ventilating Information

If you stop your vehicle and then leave the
engine idling for long periods, we
recommend that you do one of the following:
•

Open the windows at least 1 in (3 cm).

•

Set your climate control to outside air.

ENGINE BLOCK HEATER

 (IF EQUIPPED)

WARNING: Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

194

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Starting and Stopping the Engine

WARNING: Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING: Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power cable
and may cause an electrical short resulting
in fire, injury and property damage.

Note: The heater is most effective when
outdoor temperatures are below 0°F (-18°C).

The heater acts as a starting aid by warming
the engine coolant. This allows the climate
control system to respond quickly. The
equipment includes a heater element
(installed in the engine block) and a wire
harness. You can connect the system to a
grounded 120-volt AC electrical source.

We recommend that you do the following for
a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by Underwriter’s
Laboratory (UL) or Canadian Standards
Association (CSA). This extension cord
must be suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord plug
connections are free and clear of water.
This could cause an electric shock or fire.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the electrical
hookup once the system has been
operating for approximately 30 minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is checked
for proper operation before winter.

Using the Engine Block Heater

Make sure the receptacle terminals are clean
and dry prior to use. Clean them with a dry
cloth if necessary.

The heater uses 0.4 to 1.0 kilowatt-hours of
energy per hour of use. The system does not
have a thermostat. It achieves maximum
temperature after approximately three hours
of operation. Using the heater longer than
three hours does not improve system
performance and unnecessarily uses
electricity.

195

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Starting and Stopping the Engine

AUTO-START-STOP

The system helps reduce fuel consumption
by automatically stopping and restarting the
engine when your vehicle has stopped.  The
engine restarts automatically when you
release the brake pedal.

In some situations, your vehicle may restart
automatically, for example:
•

To maintain interior comfort.

•

To recharge the battery.

Note: Power assist steering turns off when
the engine is off.

Note: If your vehicle is flex fuel capable,
Auto-Start-Stop is inhibited for a short time
after a refuel event when the system is
verifying the fuel type being used.

WARNING: Always fully apply the

parking brake. Make sure you shift into
park (P) for vehicles with an automatic
transmission. Switch the ignition off and
remove the key whenever you leave your
vehicle.

WARNING: Before opening the hood

or performing any maintenance, fully apply
the parking brake, shift into park (P) or
neutral (N) and switch the ignition off.

WARNING: Always switch the ignition

off before leaving the vehicle. If the ignition
is switched on an automatic restart may
occur at any time.

WARNING: The system may require

the engine to automatically restart when
the auto-start-stop indicator illuminates
green or flashes amber. Failure to follow
this instruction could result in personal
injury.

The Auto-Start-Stop system status is
available at a glance within the information
display.  See Information Displays (page
120).

Enabling Auto-Start-Stop

The system automatically enables every time
you start your vehicle if:

•

You do not press the Auto-Start-Stop
button (not illuminated).

•

Your vehicle exceeds an initial speed of
3 mph (5 km/h) after you have initially
started your vehicle.

•

You have stopped your vehicle.

•

Your foot is on the brake pedal.

•

The transmission is in drive.

•

Not in Excite mode (enable by pressing
the Auto-Start-Stop button).

•

The driver door is closed.

•

There is adequate brake vacuum.

•

The interior compartment has cooled or
warmed to an acceptable level.

•

The front windshield defroster is off.

•

You have not turned the steering wheel
rapidly or you do not have it at a sharp
angle.

•

The vehicle is not on a steep road grade.

•

The battery is within optimal operating
conditions, (with the battery state of
charge and temperature in range).

•

The engine coolant is at operating
temperature.

196

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Unique Driving Characteristics

•

Elevation is below about 11,000 ft
(3,350 m).

•

Ambient temperature is moderate.

•

If equipped with selectable drive modes
and when you select Normal, Conserve,
Slippery.

•

The trailer is not connected.

•

Tow haul mode not engaged.

•

You have not selected Manual mode.

The green Auto-Start-Stop
indicator light on the instrument
cluster will illuminates to indicate

when the automatic engine stop occurs.

E146361

If the instrument cluster is
equipped with a grey
Auto-Start-Stop indicator light, it

illuminates when automatic engine stop is
not available due to one of the above noted
conditions not being met.

Automatic Engine Restart

Any of the following conditions results in an
automatic restart of the engine:
•

You have removed your foot from the
brake pedal.

•

You press the accelerator pedal.

•

You press the accelerator and the brake
pedal at the same time.

•

The driver seatbelt becomes unfastened
or the driver door is ajar.

•

Your vehicle is moving.

•

The interior compartment does not meet
customer comfort when air conditioning
or heat is on.

•

Fogging of the windows could occur and
the air conditioning is on.

•

The battery is not within optimal
operating conditions.

•

You have exceeded the maximum engine
off time.

•

When you press the Auto-Start-Stop
button with the engine automatically
stopped.

•

The front defroster is turned to the Max
setting.

•

When you shift into park (P) the engine
will restart.

Any of the following conditions may result in
an automatic restart of the engine:
•

You have increased the blower fan speed
or changed the climate control
temperature.

•

You have an electrical accessory turned
on or plugged in.

Note: You may notice that the climate seat
fan fluctuates during an automatic restart.

197

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Unique Driving Characteristics

Disabling Auto-Start-Stop

E255783

Press the Auto-Start-Stop button located on
the center console to switch the system off.
The button illuminates. This only deactivates
the system for the current ignition cycle.
Press the button again to restore
Auto-Start-Stop function.

Note: If the Shift to P, Restart Engine
message appears and the amber
Auto-Start-Stop indicator light is flashing,
automatic restart is not available. You must
restart the vehicle manually.  See
Information Displays (page 120).

If your vehicle is in an engine off
Auto-Start-Stop state and you change the
transmission to reverse ®) when the brake
pedal is not pressed, the message
Auto-Start-Stop Press Brake to Start Engine
appears. You must press the brake pedal
within 60 seconds or a shift to park (P) and
a manual restart is required.

198

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Unique Driving Characteristics
