You can also adjust this feature through the
touchscreen.

E142607

Press the Menu Settings icon, then
Vehicle. Choose Multi-Contour
Seats.

When switched on, the system displays
directions for you to adjust the lumbar
settings in your seat or to set the massage
function.

To access and make adjustments to the
lumbar setting:

1. Choose the seat you would like to adjust.

2. Press the + or - to adjust the lumbar

intensity.

To access and make adjustments to the
massage setting:

1. Press the Menu Settings icon, then

Vehicle. Choose Multi-Contour Seats.

2. Choose the seat you would like to adjust.

3. Press OFF, Low or High.

MEMORY FUNCTION

WARNING: Before activating the

memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants are
clear of moving parts.

WARNING: Do not use the memory

function when your vehicle is moving.

Driver Seat Memory

This feature automatically recalls the position
of the following:

•

Driver seat.

•

Power mirrors.

•

Power adjustable foot pedals.

•

Power steering column.

The memory control is on the driver door.

E222235

Saving a PreSet Position

1. Switch the ignition on.
2. Adjust the memory features to your

desired position.

3. Press and hold the desired preset button

until you hear a single tone.

167

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

You can save up to three preset memory
positions. You can save a memory preset at
any time.

Recalling a PreSet Position

Press and release the preset button
associated with your desired driving position.
The memory features move to the position
stored for that preset.

Note: You can only recall a driver seat preset
memory position when the ignition is off, or
when the transmission is in park (P) or
neutral (N) (and your vehicle is not moving)
if the ignition is on.

You can also recall a preset memory position
by:
•

Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.

•

Unlocking the intelligent driver door
handle if a linked key fob is present.

•

Recalling a personal profile in your SYNC
3 menu.

Note: Using a linked keyfob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.

Note: Pressing any active memory feature
adjustment control (or any memory button)
during a memory recall cancels the
operation.

Easy Entry and Exit Feature

If you enable the easy entry and exit feature,
it automatically moves the driver seat
position rearward up to 2 in (5 cm) when you
switch the ignition off.

The driver seat returns to its previous
position when you switch the ignition on.

You can switch this feature on or off in the
information display.   See Information
Displays (page 120).

Passenger Seat Memory

This feature automatically recalls the position
of the passenger seat. The memory control
is on the passenger door.

Saving a PreSet Position

1. Adjust the passenger seat to your

desired position.

2. Press and hold the desired preset button

until you hear a single tone.

You can save up to three preset memory
positions. You can save a memory preset at
any time.

Recalling a PreSet Position

Press and release the preset button
associated with your desired position. The
passenger seat features move to the position
stored for that preset. You can recall a
passenger seat preset memory at any time.

168

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

Personal Profiles

This feature allows you to create multiple
personal profiles enabling users to
personalize vehicle’s settings. You can
create one profile for each preset memory
seat button along with a guest profile. You
can recall a profile using SYNC 3 or the
preset button you selected when you created
your profile. You can also link a keyfob to
your profile, which is used to recall it.

Creating a Personal Profile

Use the SYNC display to create a personal
profile.

1. Switch the ignition on and leave the

vehicle in park (P).

2. Select the Personal Profiles button under

Settings.

3. Follow the instructions on the display.

Linking a Personal Profile to your Remote
Control or Intelligent Access Keyfob

You can save preset memory positions for
up to three remote controls or intelligent
access (IA) keys, by assigning a keyfob to a
personal profile in your SYNC 3.

Use the SYNC display to link a keyfob to a
personal profile.

1. Switch the ignition on and leave the

vehicle in park (P).

2. Select the Personal Profiles button under

Settings.

3. Touch the arrow for the profile you wish

to link a keyfob to.

4. Select the Link Keyfob button.

5. Follow the instructions on the display.

Note: If more than one linked remote control
or intelligent access key is in range, the
memory function moves to the settings of
the first key to initiate a memory recall.

Note: The guest profile consists of existing
settings when there is no driver profile
created. After you create a driver profile, the
guest profile serves as an additional driver
profile.

Note: You cannot link a personalized name,
a memory seat button or a keyfob to a guest
profile.

Personal Settings

Personal profiles allow you to personalize
positional settings such as seats and mirrors,
as well as non-positional settings such as
radio, navigation, driver assist and system
settings.  See SYNC™ 3 (page 441).  You
cannot change the menu locations and
settings of those personalized features with
personal profiles.

Note: Non-positional settings are saved to
the active driver profile whenever you
change a setting.

Note: You can save positional settings if you
press and hold a memory seat button.  See
Settings (page 504).

169

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

Recalling and Changing a Profile

You can recall a profile by:
•

Using a keyfob that has been linked to a
driver profile to access the remote start
feature, press an unlock button or open
the door with the exterior door handle.

•

Pressing a memory seat button that has
been linked to a driver profile.

•

Using the Personal Profiles menu on the
SYNC touchscreen.

Note: The recalled profile replaces the
previously active profile. If the active profile
is not your desired profile, you can change
it using any of the three methods listed.

When you switch on the personal profiles
feature:
•

Unlocking a door with a keyfob that is
not linked to a driver profile recalls
non-positional settings from the guest
profile. It will not change the positional
settings.

•

Pressing a memory seat button that is
not linked to a driver profile or has not
been saved to a preset setting recalls
non-positional settings from the guest
profile. It will not change the positional
settings.

•

Pressing a memory seat button that is
not linked to a driver profile but has been
saved to a preset setting recalls
non-positional settings from the guest
profile. It recalls the positional settings
that you saved to that memory seat
button.

See SYNC™ 3 Troubleshooting (page 524).

When you switch off the personal profiles
feature:
•

Unlocking a door with a keyfob recalls
non-positional settings from the guest
profile and still recalls positional settings
from the driver profile which the keyfob
had been linked to.

•

Pressing a memory seat button that has
not been linked to a driver profile or has
not been saved to a preset setting recalls
non-positional settings from the guest
profile. It will not change the positional
settings.

•

Pressing a memory seat button that has
been linked to a driver profile or has
saved to a preset setting recalls
non-positional settings from the guest
profile. It recalls the positional settings
that you saved to that memory seat
button.

170

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

REAR SEATS

Folding the Second Row 40% Seat

WARNING: Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

E246710

1. Locate the handle on the side of the seat

cushion by the door.

2. Pull up on the handle to fold the seat

backrest.

Note: Use caution when folding the seat
backrest to the flat position as the seat
moves forward when you lift the release
handle.

To return the seat to the upright position:

E246709

1. Lift the seat backrest toward the rear of

the vehicle.

2. Rotate the seat backrest until you hear a

click, locking it in the upright position.

Adjusting the Second Row Outermost
40% Seat for Easy Entry

WARNING: Do not drive your vehicle

with a seat that is unlatched or in the
folded position. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

WARNING: Check under the seat

cushion to make sure no cargo or objects
are under the seat cushion before
returning the seat cushion to its original
position, and that the seat cushion locks
into place. Failure to do so may prevent
the seat from operating properly in the
event of a crash, which could increase the
risk of serious injury.

171

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

WARNING: Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

Note: You can move the outermost seats
forward to allow access to the third row
seats.

This feature allows for easier entry and exit
to and from the third row seat.

E257686

1. Pull the lever.

2. Tilt the seat and slide the complete seat

forward.

172

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

E246708

3. When exiting your vehicle from the third

row seats, pull the lever up on the upper
corner of the outermost seats.

4. To return the seat to the seating position,

slide the seat rearward while pulling
down on the seat backrest until the latch
fully engages.

5. To move the seat further back, pull the

lever under the front of the seat and slide
it backward.

Note:  You must move the seat to the full
forward position before you move it
rearward. Otherwise, the seat may not slide
properly rearward.

Note: You can slide the outermost seats
forward when using a child restraint.

Power Easy Entry

 (If Equipped)

WARNING: Do not drive your vehicle

with a seat that is unlatched or in the
folded position. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

173

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

WARNING: Check under the seat

cushion to make sure no cargo or objects
are under the seat cushion before
returning the seat cushion to its original
position, and that the seat cushion locks
into place. Failure to do so may prevent
the seat from operating properly in the
event of a crash, which could increase the
risk of serious injury.

WARNING: Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

The easy entry seat allows for easier entry
and exit to and from the third row seat.

E247495

1. Press the button on the rear quarter trim

panel to unlock the rear of the seat.

2. Push the seat forward to gain access to

the third row seat.

Reclining the Second Row Outermost
40% Seat Backrest

WARNING: Reclining the seatback

can cause an occupant to slide under the
seat's seatbelt, resulting in severe personal
injuries in the event of a crash.

E247681

The release handle is on the outermost side
of the seat cushion. Lift it to adjust the seat
backrest to your desired position.

Folding the Second Row Center 20%
Seat

 (If Equipped)

WARNING: To prevent possible

damage to the seat or seatbelts, make sure
that the seatbelts are not fastened before
folding the seatback.

174

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

WARNING: Do not place cargo or

any objects behind the seat backrest
before returning it to the original position.
Pull on the seat backrest to make sure that
it has fully latched after returning the seat
backrest to its original position. An
unlatched seat may become dangerous if
you stop suddenly or have a crash.

E247331

The release handle is on the upper right seat
backrest. Pull the handle to release the
folding seat latch.

To return the seat to the upright position,
rotate the seat backrest until you hear a click,
locking it in the upright position.

Note: Use the same release handle to
recline the seat backrest.

Adjusting the Second Row Center 20%
Seat

 (If Equipped)

Note: Move this seat forward to keep a child
in a child restraint close to the front seat
occupants. Move the seat to the full
rearward position when it is occupied by
older children or adults, including children
in booster seats.

E247034

Lift the handle to move the seat forward or
rearward.

Power Folding Rear Seats

Note: Similar to the battery saver feature,
the power rear seat functions disable 10
minutes after you switch the ignition off. The
transmission must be in park (P) and the
liftgate, or liftgate glass must be open in
order to operate the seats.

Note: Be sure the third-row center head
restraint is in the lowered position before
you power the rear seats down. The
third-row outermost head restraints fold
when you press the fold button.

The control buttons are on the left-hand rear
quarter trim panel (accessible from the
liftgate area).

175

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

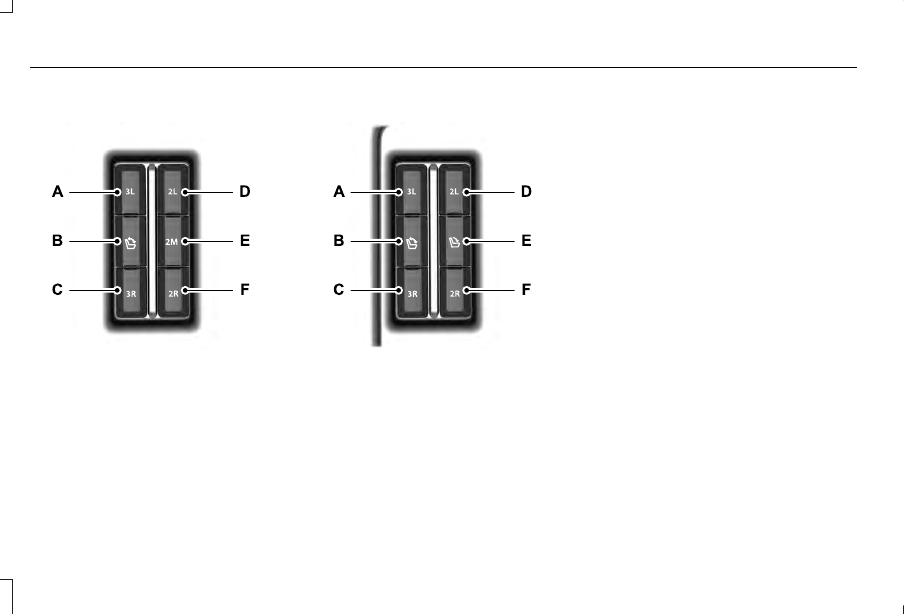

With Second-Row Bench Seats

E257920

With Second-Row Captain Chairs

E246705

Folds the left-hand third-row seat.

A

Folds both third-row seats.

B

Folds the right-hand third-row seat.

C

Folds the left-hand second-row
seat.

D

Folds the second-row bench
center seat or both second-row
captain chair seats.

E

Folds the right-hand second-row
seat.

F

To return the second-row seat backrest to
the original position, rotate the seat backrest
up until it latches in the upright position. The
seat backrest clicks when it is locked into
position.

To return the third-row seat backrest to the
original position, press the corresponding
control again.

If the power rear seat is disabled after 10
minutes, you can enable the seat by:
•

Opening any door.

•

Pressing the unlock button on the key
fob.

•

Pressing any keyless entry keypad
button.

•

Switching the ignition on.

176

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

Folding Down the Rear Seats to the Load
Floor

WARNING: To prevent possible

damage to the seat or seatbelts, make sure
that the seatbelts are not fastened before
folding the seatback.

WARNING: Do not place cargo or

any objects behind the seatback before
returning it to the original position.

The third-row seats have obstacle detection
that prevents the seats from folding or
returning if they are obstructed.

Power Recline

WARNING: Do not recline a rear seat

on which a child restraint is installed.
Failure to follow this instruction could
reduce the effectiveness of the child
restraint.

The third-row power recline buttons are on
the quarter trim panel on each side of the
vehicle.

E246706

Moves the seat backrest rearward.

A

Moves the seat backrest forward.

B

HEATED SEATS

 (IF EQUIPPED)

Front Seats

WARNING: People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.
Do not puncture the seat with pins,
needles or other pointed objects. This may
damage the heating element which may
cause the heated seat to overheat. An
overheated seat may cause serious
personal injury.

177

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Rear Seats

WARNING: Persons who are unable

to feel pain to the skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion, or other physical conditions,
must exercise care when using the seat
heater. The seat heater may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion,
because this may cause the seat heater to
overheat. Do not puncture the seat with
pins, needles, or other pointed objects
because this may damage the heating
element which may cause the seat heater
to overheat. An overheated seat may
cause serious personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid is spilled on the seat. Allow
the seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

The rear seat heat controls are located on
the rear of the center console.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

178

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

The heated seat module resets at every
ignition run cycle. While the ignition is on,
press the high or low heated seat switch to
enable heating mode. When activated, they
will turn off automatically when you turn the
engine off.

CLIMATE CONTROLLED SEATS

 (IF

EQUIPPED)

Heated Seats

WARNING: People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must use caution when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that may block the
heat, such as a blanket or cushion. This

can cause the heated seat to overheat. Do
not puncture the seat with pins, needles
or other pointed objects. This damages the
heating element and can cause the heated
seat to overheat. An overheated seat may
cause serious personal injury.

Note: The heated seats switch on during a
remote start if they are enabled through the
information displays.  See General
Information (page 120).

Note: The heated seats may also switch on
when you start your vehicle if they were on
when you previously switched your vehicle
off.

Note: Do not do the following:

•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

E146322

Press this symbol to cycle through the
various heat settings and off. More indicator
lights indicate warmer settings.

Ventilated Seats

Note: The ventilated seats switch on during
a remote start if they are enabled through
the information displays.  See General
Information (page 120).

Note: The ventilated seats may also switch
on when you start your vehicle if they were
on when you previously switched your
vehicle off.

Note: Do not do the following:

179

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

•

Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.

•

Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.

The ventilated seats only function when the
engine is running.

E224689

Press this symbol to cycle through the
various ventilation settings and off. More
indicator lights indicate higher fan speeds.

If the engine falls below 350 RPM while the
ventilated seats are on, the feature turns
itself off. You need to reactivate it.

Note: To improve comfort, use the ventilated
seats along with the vehicle’s air
conditioning system.

180

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Seats

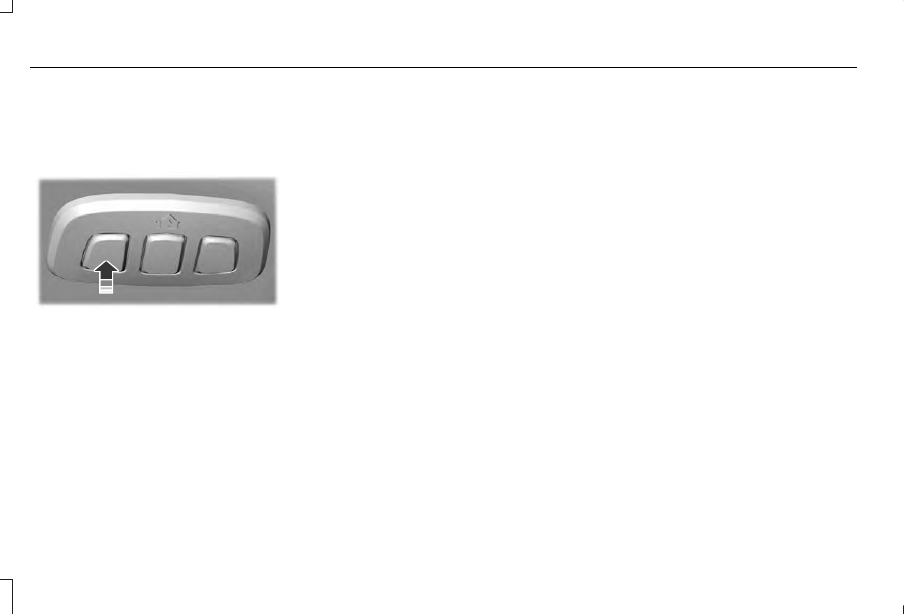

UNIVERSAL GARAGE DOOR
OPENER

HomeLink Wireless Control System

WARNING: Make sure that the

garage door and security device are free
from obstruction when you are
programming. Do not program the system
with the vehicle in the garage.

WARNING: Do not use the system

with any garage door opener that does not
have the safety stop and reverse feature
as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.

Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.

Note: We recommend that upon the sale or
lease termination of your vehicle, you erase
the programmed function buttons for security
reasons. See Erasing the Function Button
Codes later in this section.

Note: You can program a maximum of three
devices. To change or replace any of the
three devices after it has been initially
programmed, you must first erase the current
settings. See Erasing the Function Button
Codes.

E188211

The universal garage door opener replaces
the common hand-held garage door opener
with a three-button transmitter integrated
into the driver’s sun visor.

The system includes two primary features, a
garage door opener and a platform for
remote activation of devices within the home.
You can program garage doors as well as
entry gate operators, security systems, entry
door locks and home or office lighting.

Additional system information can be found
online at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.

In-Vehicle Programming

This process is to program your in-vehicle
HomeLink function button with your
hand-held transmitter.

Note: The programming steps below assume
you will be programming HomeLink that was
not previously programmed. If your
HomeLink was previously programmed, you
may need to erase your HomeLink buttons.
See Erasing the Function Button Codes.

181

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Garage Door Opener

Note: Put a new battery in the hand-held
transmitter. This helps ensure quicker
training and accurate transmission of the
radio-frequency signal.

E188212

1. With your vehicle parked outside of the

garage, switch your ignition to the on
position, but do not start your vehicle.

2. Press and release the function button

that you would like to program.

3. Hold your hand-held garage door

transmitter 1–3 in (2–8 cm) away from the
HomeLink button you want to program.

4. Press and hold the hand-held transmitter

button you want to program while
watching the indicator light on HomeLink.
Continue to hold the hand-held button
until the HomeLink indicator light flashes
rapidly or is continuously on.

Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See Gate Operator
/ Canadian Programming.

5. Press and hold the HomeLink button you

programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.

If the indicator light stays on, the
programming is complete. Your device
should activate when the HomeLink button
is pressed and released.

If the indicator light flashes rapidly, press and
hold for two seconds and release the
programmed HomeLink button. Repeat the
"press/hold/release" sequence up to three
times to complete the programming process.
If your device still does not operate, you must
program your garage door. See
Programming Your Garage Door Opener
Motor.

To program additional buttons, repeat Steps
1 – 4.

For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.

Programming Your Garage Door Opener
Motor

Note: You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener.

182

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Garage Door Opener
