Note: Moisture, frost and ice build-up or
other types of contamination on the surface
of the light lens can cause non-permanent
distortion or reduced brightness of the
image. Do not use abrasive materials to
clean the lens.

Note: If you enable auto-fold and then you
fold the mirrors in to the door window glass,
the welcome mats do not turn on.

INTERIOR LAMPS

The lamps turn on under the following
conditions:
•

You open any door.

•

You press a remote control button.

•

You press the all lamps on button on the
overhead console.

Front Interior Lamp

E262162

The front interior lamp switches are on the
overhead console.

Note: The position of each button on the
overhead console depends on your vehicle.

All Lamps On

Press to switch all interior lamps
on.

All Lamps Off

E262185

Press to switch all interior lamps
off.

Individual Dome Lamps

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

Interior Lamp Function

Press to switch the interior lamp
function on and off.

When the interior lamp function is off and
you open a door, the courtesy and door
lamps stay off.

When the interior lamp function is on and
you open a door, the courtesy and door
lamps turn on.

Note: The indicator lamp lights amber when
the door function is off.

Individual Map Lamps

Press a map lens to switch individual map
lamps on and off independently.

103

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Lighting

Rear Interior Lamps

The rear interior lamps may be above the
rear seat or above the rear windows.

Press to switch the lamps on or off.

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

AMBIENT LIGHTING

Use the touchscreen to select the following:

Select the settings option on the
feature bar.

E279027

Select ambient lighting.

E273192

Switching Ambient Lighting On

Touch a color once.

Changing the Color

Touch any color once.

Adjusting the Brightness

Drag the selected color up or down.

Switching Ambient Lighting Off

Touch the selected color once or drag the
selected color down to zero brightness.

104

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Lighting

POWER WINDOWS

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the power windows. Failure
to follow this instruction could result in
personal injury.

WARNING: When closing the power

windows, verify they are free of obstruction
and make sure that children and pets are
not in the proximity of the window
openings.

E146043

Note:  You may hear a pulsing noise when
just one of the windows is open.  Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it.  Press
again or lift it to stop the window.

One-Touch Up

Lift the switch fully and release it. Press or
lift it again to stop the window.

Resetting One-Touch Up

Start the engine.

1. Lift and hold the window switch until the

you fully close the door window.
Continue to hold the switch for a few
seconds after you close the window.

2. Release the window switch.

3. Press and hold the window switch until

you fully open the door window.

4. Release the window switch.

5. Lift and hold the window switch until you

fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Bounce-Back

The window will stop automatically while
closing.  It reverses some distance if there
is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING: When you override the

bounce-back feature the window will not
reverse if it detects an obstacle. Take care
when closing the windows to avoid
personal injury or damage to your vehicle.

Pull up the window switch and hold within a
few seconds of the window reaching the
bounce-back position.  The window travels
up with no bounce-back protection.  The
window stops if you release the switch
before the window fully closes.

105

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

Window Lock

E144072

Press the control to lock or unlock the rear
window controls.  It illuminates when you
lock the rear window controls.

Accessory Delay

You can use the window switches for several
minutes after you switch the ignition off or
until you open either front door.

GLOBAL OPENING AND CLOSING

You can use the remote control to operate
the windows with the ignition off.

Note: You can enable or disable this feature
in the information display or see an
authorized dealer.  See General Information
(page 120).

Note: To operate this feature, accessory
delay must not be active.

Opening the Windows

You can only open the windows for a short
time after you unlock your vehicle with the
remote control. After you unlock your vehicle,
press and hold the remote control unlock
button to open the windows. Release the
button once movement starts. Press the lock
or unlock button to stop movement.

Closing the Windows

WARNING: When closing the power

windows, you should verify they are free
of obstructions and make sure that children
and pets are not in the proximity of the
window openings.

To close the windows, press and hold the
remote control lock button. Release the
button once movement starts. Press the lock
or unlock button to stop movement.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING: Do not adjust the mirrors

when your vehicle is moving. This could
result in the loss of control of your vehicle,
serious personal injury or death.

Note: Do not use an ice scraper on the mirror
glass or housing.

106

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

E176219

Left-hand mirror.

A

Right-hand mirror.

B

Adjustment control.

C

Window lockout.

D

Power-folding mirror control.

E

To adjust a mirror:

1. Select the mirror you want to adjust. The

control will light.

2. Adjust the position of the mirror.

3. Press the mirror control again.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass.  Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Auto-Folding Mirrors

 (If Equipped)

The exterior mirrors automatically fold in
toward the glass after you place the
transmission into park (P), turn off the vehicle,
open and close the driver's side door and
lock the vehicle. The exterior mirrors
automatically unfold and return to their
driving position after you unlock the vehicle
and open and close the driver's side door.

You can switch this feature on and off
through the information display. See General
Information (page 120).

E170431

You can fold the mirrors on demand by
pressing the power-folding mirror control
located on the door.  The control lights and
the mirrors fold in toward the glass.  Press
the control again to unfold the mirrors.  The
control light turns off.

Note: If you use the power-folding control to
fold the mirrors on demand and the auto fold
feature is switched on, you must use the
control again to unfold them.

107

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

Loose Mirror

If your power-folding mirrors are manually
folded, they may not work properly even
after you re-position them. You need to reset
them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

To reset the power-fold feature, use the
power-folding mirror control to fold and
unfold the mirrors. You may hear a loud noise
as you reset the power-folding mirrors. This
sound is normal. Repeat this process as
needed each time the mirrors are manually
folded.

Heated Exterior Mirrors

See Heated Exterior Mirrors (page 156).

Memory Mirrors

You can save and recall the mirror positions
through the memory function.  See Memory
Function (page 167).

Auto-Dimming Feature

The driver’s exterior mirror automatically
dims when the interior auto-dimming mirror
turns on.

Signal Indicator Mirrors

 (If Equipped)

The outer portion of the appropriate mirror
housing blinks when you switch on the
direction indicator.

Lincoln Welcome Mat

Projection lights, on the bottom of the mirror
housings, project an image onto the ground
a short distance from the vehicle.

360-Degree Camera

 (If Equipped)

See 360 Degree Camera (page 252).

Blind Spot Monitor

See Blind Spot Information System (page
271).

INTERIOR MIRROR

WARNING: Do not adjust the mirrors

when your vehicle is moving. This could
result in the loss of control of your vehicle,
serious personal injury or death.

Note: Do not clean the housing or glass of
any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.

You can adjust the interior mirror to your
preference. Some mirrors also have a second
pivot point. This lets you move the mirror
head up or down and from side to side.

108

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

Auto-Dimming Mirror

Note:  Do not block the sensors on the front
and back of the mirror.  A rear center
passenger or raised rear center head
restraint may also block light from reaching
the sensor.

The mirror dims to reduce the effect of bright
light from behind. It returns to normal when
the bright light from behind is no longer
present or if you shift into reverse (R).

CHILDMINDER MIRROR

On overhead consoles, the childminder
mirror allows the driver to view the rear
seating area.

WARNING: Do not use the

childminder mirror to view rearward traffic,
do not allow rear passengers to distract
you from the driving task, and make sure
the rear view mirror has a clear view of
rearward traffic. Failure to do so could
increase the risk of a crash from an unseen
vehicle, which may result in serious injury.

E190497

Pull down the rear edge of the childminder
mirror to open. You can adjust the
childminder mirror to any position up to full
open to aid in visibility.

TOLL READER

Installing the Toll Reader

Install the toll reader or radio-controlled
equipment on the driver side of the
windshield behind the interior mirror.

Note: Follow the manufacturer's installation
instructions.

E274072

109

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

SUN VISORS

E138666

Rotate the sun visor toward the side window
and extend it rearward for extra shade.

Illuminated Vanity Mirror

E162197

Lift the cover to switch the lamp on.

MOONROOF

 (IF EQUIPPED)

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the moonroof. Failure to
follow this instruction could result in
personal injury.

WARNING: When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the roof
opening.

The moonroof controls are located on the
overhead console and have a one-touch
open and close feature. To stop its
movement during one-touch operation, press
the control a second time.

110

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

Opening and Closing the Moonroof

E258458

Moonroof open.

A

Moonroof vent.

B

Sunshade open.

C

Sunshade close.

D

Moonroof close.

E

Note: If you press and hold the moonroof
open or sunshade open buttons, the
moonroof or sunshade moves proportionally
to how long you hold the button. The same
also applies to the moonroof close and
sunshade close buttons.

Moonroof Open

Press and immediately release to fully open
the moonroof. If there is a comfort stop
position, the moonroof first opens to the
comfort stop position. Press and immediately
release the control again to open the
moonroof fully.

Moonroof Vent

Press and release to vent the moonroof.

Sunshade Open

Press and release to open the sunshade.
The sunshade opens automatically with the
moonroof. You can also open the sunshade
with the moonroof closed.

Note: The sunshade stops short of its fully
opened position for the comfort of rear
passengers. To open the sunshade fully,
press the control again.

Sunshade Close

Press and release to close the sunshade.

Note: The sunshade does not fully close
unless the moonroof glass is fully closed.

Moonroof Close

Press and release to close the moonroof
from either the open or vent positions.

Bounce-Back

The moonroof automatically reverses some
distance if an obstacle is detected while
closing.

To override this feature, press and hold the
moonroof close control within two seconds
after the roof comes to a stop following a
bounce-back reversal.

LIFTGATE WINDOW

Opening the Liftgate Window

Note: To avoid vehicle damage, use care
when operating the liftgate when the liftgate
window is open.

111

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

With the Outside Control Buttons

E247048

Liftgate window.

A

Liftgate.

B

1. Press button A.

2. Pull the liftgate window upward.

With the Keypad

The liftgate window also opens with the
keypad.  See Keyless Entry (page 76).

112

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Windows and Mirrors

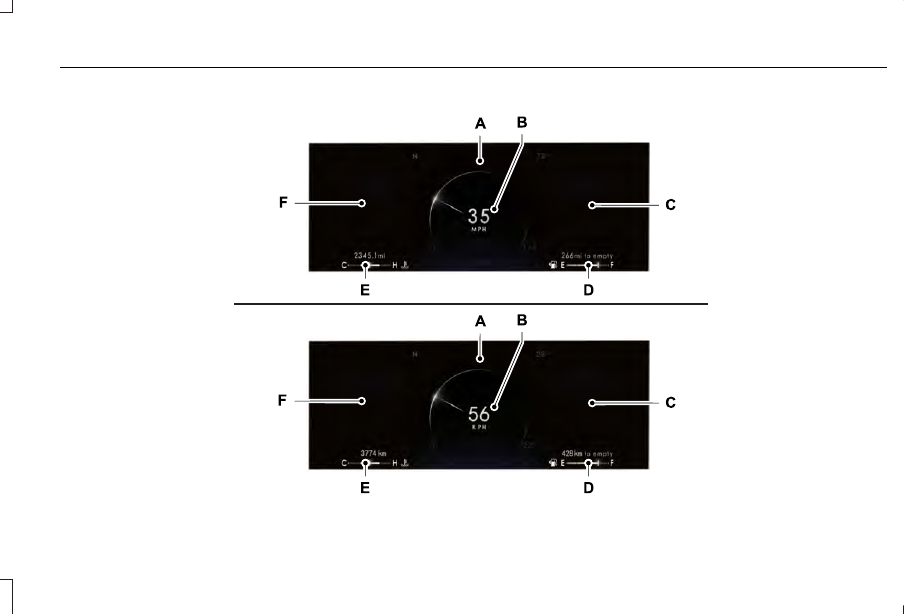

GAUGES

Note: Clusters shown in single gauge view.

E271984

113

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster

Status Bar.

A

Speedometer.

B

Right Information Group.

C

Fuel Gauge.

D

Coolant Gauge.

E

Left Information Group.

F

Status Bar

Displays information related to the current
audio source, compass direction and outside
air temperature.

Left and Right Information Group

Information that appears depends on current
gauge view and on-demand settings.  See
General Information (page 120).

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Engine Coolant Temperature Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and let
the engine cool.

WARNING: Do not remove the

coolant reservoir cap when the cooling
system is hot. Wait 10 minutes for the
cooling system to cool down. Cover the
coolant reservoir cap with a thick cloth to
prevent the possibility of scalding and
slowly remove the cap. Failure to follow
this instruction could result in personal
injury.

WARNING LAMPS AND
INDICATORS

The following warning lamps and indicators
alert you to a vehicle condition that may
become serious.  Some lamps illuminate
when you start your vehicle to make sure
they work.  If any lamps remain on after
starting your vehicle, refer to the respective
system warning lamp for further information.

Note: Some warning indicators appear in
the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

114

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster

Adaptive Cruise Control Indicator

 (If

Equipped)

E144524

It illuminates when you switch the
system on.

It illuminates white when the

system is in standby mode.  It illuminates
green when you set the adaptive cruise
speed.

See Using Cruise Control (page 255).

Anti-Lock Brake System Warning Lamp

If it illuminates when you are
driving, this indicates a
malfunction.  Your vehicle

continues to have normal braking without
the anti-lock brake system function.  Have
your vehicle checked as soon as possible.

Auto Hold Active

E197933

Illuminates when the system holds
your vehicle stationary.

Auto Hold Unavailable

E197934

Illuminates when the system is on,
but unavailable to hold your
vehicle stationary.

Auto-Start-Stop Indicator

It illuminates when the engine has
automatically stopped.  It flashes
to inform you when the engine

needs to restart.  The indicator is shown with
a strikethrough if the system is not available.

See Auto-Start-Stop (page 196).

Automatic Headlamp High Beam
Indicator

 (If Equipped)

It illuminates when the system
automatically turns the headlamp
high beam on.

See Automatic High Beam Control (page
100).

Battery

It illuminates when you switch the
ignition on.

If it illuminates when the engine is

running this indicates a malfunction.  Have
your vehicle checked as soon as possible.

Blind Spot Monitor

E151262

It illuminates when you switch the
system off.

See Blind Spot Information

System (page 271).

115

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster

Brake System Warning Lamp

WARNING: Driving your vehicle with

the warning lamp on is dangerous. A
significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note: Indicators vary depending on region.

This lamp is a dual function lamp and will
illuminate when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have your
vehicle checked as soon as
possible if the lamp continues to

illuminate.

Cruise Control Indicator

E71340

It illuminates when you switch the
system on.

See Using Cruise Control (page

255).

Direction Indicator

Illuminates when the left or right
turn signal or the hazard warning
flasher is turned on.  Flashes

during operation.  An increase in the rate of
flashing warns of a failed indicator bulb.

Door Ajar

It illuminates when you switch the
ignition on and remains on if any
door or the hood is open.

Electric Park Brake

E146190

Illuminates or flashes when the
electric parking brake has a
malfunction.  See Electric Parking

Brake (page 226).

Electronic Limited Slip Differential

 (If

Equipped)

E163170

Illuminates when using the
electronic limited slip differential.

Engine Coolant Temperature Warning
Lamp

If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating.  Stop your

vehicle as soon as it is safe to do so and
switch the engine off.  Have your vehicle
checked as soon as possible.

116

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster

See Engine Coolant Check (page 364).

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a malfunction.  Stop

your vehicle as soon as it is safe to do so
and switch the engine off.  Check the engine
oil level.

See Engine Oil Check (page 362).

Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by your authorized
dealer immediately.

Fasten Rear Seatbelt

 (If Equipped)

E206718

Illuminates and a chime sounds to
signal the rear seatbelts are not
buckled.

Fasten Seatbelt Warning Lamp

E71880

It illuminates and a chime sounds
until you fasten the seatbelts.

Four-Wheel Drive Indicators

E181778

Illuminates momentarily when you
select two-wheel drive high.

E181781

Illuminates when the automatic
four-wheel drive system is
engaged.

E181780

Illuminates when four-wheel drive
low is engaged.

E181779

Illuminates when four-wheel drive
high is engaged.

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates a

malfunction.  Have the system checked.

Headlamp High Beam Indicator

It illuminates when you switch the
headlamp high beam on.  It flashes
when you use the headlamp

flasher.

Hill Descent

 (If Equipped)

Illuminates when you switch hill
descent on.

Hood Ajar

E246598

Displays when the ignition is on
and the hood is not completely
closed.

Liftgate Ajar

E162453

Displays when the ignition is on
and the liftgate is not completely
closed.

Low Fuel Level Warning Lamp

If it illuminates when you are
driving, refuel as soon as possible.

117

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster

Low Tire Pressure Warning Lamp

It illuminates when your tire
pressure is low. If the lamp remains
on with the engine running or

when driving, check your tire pressure as
soon as possible.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp is
functional. If it does not illuminate when you
switch the ignition on, or begins to flash at
any time, have the system checked by your
authorized dealer.

Low Beam Malfunction Warning Lamp

E181350

It illuminates when there is a
malfunction with the low beam
headlamp bulb.

Low Washer Fluid Level Warning Lamp

E132353

It illuminates when the washer fluid
is low.

Parking Lamps

Illuminates when you switch the
parking lamps on.

Powertrain Fault

Illuminates when a powertrain or
an 4WD fault has been detected.
Contact an authorized dealer.

Service Engine Soon

If it illuminates when the engine is
running this indicates a
malfunction.  The On Board

Diagnostics system has detected a
malfunction of the vehicle emission control
system.

If it flashes, engine misfire may be occurring.
Increased exhaust gas temperatures could
damage the catalytic converter or other
vehicle components. Drive in a moderate
fashion (avoid heavy acceleration and
deceleration) and have your vehicle
immediately serviced.

It illuminates when you switch the ignition
on prior to engine start to check the bulb and
to indicate whether your vehicle is ready for
Inspection and Maintenance (I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.

See Catalytic Converter (page 207).

Stability Control and Traction Control
Indicator

E138639

Flashes during operation.

If it does not illuminate when you
switch the ignition on, or remains

on when the engine is running, this indicates
a malfunction.  Have your vehicle checked
as soon as possible.

See Using Stability Control (page 233).

118

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster
