Stability Control and Traction Control
Off Warning Lamp

E130458

It illuminates when you switch the
system off.

Tow Haul Indicator

 (If Equipped)

E246592

It illuminates when you switch the
system on.

AUDIBLE WARNINGS AND
INDICATORS

Keyless Warning Alert

The horn will sound twice when you exit your
vehicle with the intelligent access key and
your vehicle is in RUN, indicating your vehicle
is still on.

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Parking Brake On Warning Chime

Sounds when you have left the parking brake
on and drive your vehicle. If the warning
chime remains on after you have released
the parking brake, have the system checked
by your authorized dealer immediately.

119

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Instrument Cluster

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

You can control various systems on your
vehicle using the quick action menu (QAM)
buttons on the right-hand side of the steering
wheel. The information display provides the
corresponding information.

Note: Some options may appear slightly
different or not at all if the items are optional.

Note: Trailer options are not available if your
vehicle speed is greater than 3 mph (5 km/h).

Note: Some MyKey menu options only
appear if MyKey is enabled and at least one
MyKey is programmed.

E204495

This icon gives you the ability to
switch a feature on or off. A check
in the box indicates the feature is

on, and unchecked indicates the feature is
off.

120

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

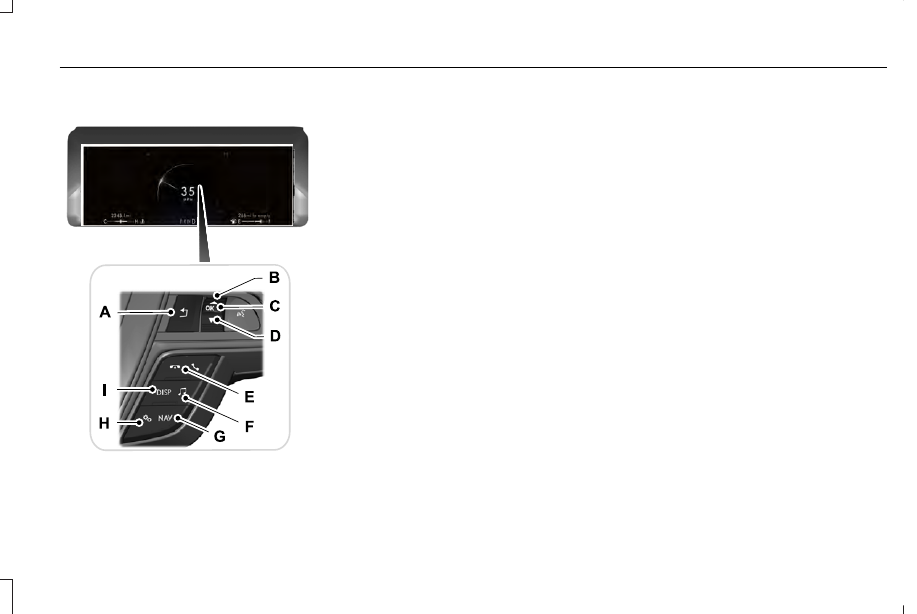

Information Display Controls

E247519

Back Button.

A

Toggle Up.

B

OK Button.

C

Toggle Down.

D

Phone QAM Buttons.

E

Audio QAM Button.

F

Navigation QAM Button.

G

Settings QAM Button.

H

Display QAM Button.

I

Note: The DISP button is replaced with a
HUD button on vehicles equipped with a
head up display (HUD).  See Head Up
Display (page 148).

Note: The NAV button is replaced with a
compass button on vehicles without
navigation.

•

Press one of the QAM buttons to enter a
menu.

•

Toggle (B) and (D) to scroll through and
highlight the options within a menu.

•

Press (C) to enter a sub-menu.

•

Press (A) to exit a menu.

•

Press the open menu's QAM button at
any time to close the menu (escape
button).

•

Press (C) to choose and confirm settings
or messages.

121

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Settings

SETTINGS

SPEEDOMETER km/h

DISPLAY SETUP

SPEEDOMETER MPH

ADD TACHOMETER TO VIEW

Enter the submenu and select your setting

MEASUREMENT UNITS

TEMPERATURE

TIRE PRESSURE

LANGUAGE

TRACTION CONTROL

HILL DESCENT

TRAILER SWAY CONTROL

Enter the submenu and select your setting

TOW HAUL

BLIND SPOT

DRIVER ASSIST-
ANCE

TRAILER BLINDSPOT

CROSS TRAFFIC ALERT

Enter the submenu and select your setting

CRUISE CONTROL

122

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

SETTINGS

DRIVER ALERT

Enter the submenu and select your setting

LANE KEEPING SYSTEM

PRE-COLLISION

Enter the submenu and select your setting

TRAILER STATUS

TOWING

TRAILER OPTIONS

CONNECTION CHECKLIST

ALARM

VEHICLE

ADVANCED
SETTINGS

AUTO ENGINE OFF

EASY ENTRY/EXIT

LIGHTING

LOCKS

MIRRORS

NEUTRAL TOW

OIL LIFE RESET

POWER LIFTGATE

REMOTE START

123

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

SETTINGS

POWER RUNNING BOARD

TIRE MONITOR

WINDOWS

WIPERS

Enter the submenu and select your setting

MyKey

Note: Once you select a trailer, it remains active until you set it as no longer active. An active trailer still accumulates miles even after you
physically disconnect it from your vehicle.

Note: If your vehicle is not equipped with a head up display, use the DISP button to access your DISPLAY SETUP options.

Information Screens

INFO/TRIP/FUEL On Demand information
appears on the right-hand side of your
instrument cluster in single gauge view and
in the center of your instrument cluster when
ADD TACHOMETER TO VIEW is switched
on.

INFO/TRIP/FUEL

NO CONTENT

TRIP 1

TRIP 2

FUEL ECONOMY

SEATBELTS

INFO/TRIP/FUEL

124

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

INFO/TRIP/FUEL

TIRE PRESSURE

TRAILER INFORMATION

•

NO CONTENT - Displays a blank area.

•

TRIP 1 - Displays distance traveled,
average fuel economy, and time spent
for trip. Press and hold OK to reset.
•

TRIP 2 information is the same as
TRIP 1.

•

FUEL ECONOMY - Displays your
vehicle's average fuel economy. Press
and hold OK to reset.

•

SEATBELTS - Displays a graphic of the
connection status of the rear seatbelts.

•

TIRE PRESSURE - Displays a graphic of
current vehicle tire pressures.

•

TRAILER INFORMATION - Displays the
transmission temperature and trailer gain.

Head Up Display

 (If Equipped)

See Head Up Display (page 148).

Phone

See General Information (page 441).

Audio

See General Information (page 441).

Navigation

 (If Equipped)

See General Information (page 441).

INFORMATION MESSAGES

Note:  Depending on your vehicle options
and instrument cluster type, not all of the
messages will display or be available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have.

E222314

Press the OK button to acknowledge and
remove some messages from the information
display. Other messages will be removed
automatically after a short time.

Certain messages need to be confirmed
before you can access the menus.

125

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Active Park

Action

Message

The system requires service due to a malfunction. Have the system checked by an authorized

dealer.

Active Park Fault

Adaptive Cruise Control

Action

Message

A radar malfunction is preventing the adaptive cruise from engaging.  See Using Adaptive Cruise

Control (page 256).

Adaptive Cruise Malfunction

Front Sensor Not Aligned

Conditions exist such that the adaptive cruise cannot function properly.  See Using Adaptive

Cruise Control (page 256).

Adaptive Cruise Not Available

The radar is blocked because of poor radar visibility due to bad weather or ice/mud/water in

front of radar. Driver can typically clean the sensor to resolve.  See Using Adaptive Cruise

Control (page 256).

Adaptive Cruise Not Available Sensor

Blocked See Manual

Displayed when the automatic braking has been disabled.

Normal Cruise Active Automatic Braking

Turned Off

Displayed when the adaptive cruise has reinstated controls to the driver.

Adaptive Cruise - Driver Resume Control

Displays when the vehicle speed is too slow to activate the adaptive cruise.

Adaptive Cruise Speed Too Low to

Activate

126

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Adaptive Headlamps

Action

Message

Displays when a fault with the system has occurred. Contact an authorized dealer as soon as

possible.

Check Headlamp System See Manual

Alarm

Action

Message

The alarm has been triggered due to unauthorized entry.  See Anti-Theft Alarm (page 86).

Vehicle Alarm To Stop Alarm, Start Vehicle.

Automatic Engine Shutdown

Action

Message

The engine is getting ready to shut off.

Vehicle Shuts Off In {seconds:#0} Seconds

The engine has shut off to help increase fuel economy.

Vehicle Shut Off to Save Energy

The engine is getting ready to shut off. You can press OK on the left steering wheel button to

override the shut down.

Vehicle Shuts Off in {seconds:#0} Seconds

Press Ok to Override

127

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Battery and Charging System

Action

Message

The charging system needs servicing. If the warning stays on or continues to come on, contact

an authorized dealer as soon as possible.

Check Charging System

The charging system needs servicing. If the warning stays on or continues to come on, contact

an authorized dealer as soon as possible.

Charging System Service Soon

The charging system needs servicing. Contact an authorized dealer as soon as possible.

Charging System Service Now

The battery management system determines that the battery is at a low state of charge. Turn

your ignition off as soon as possible to protect the battery. This message clears once you restart

your vehicle and the battery state of charge has recovered.

Battery State of Charge Low

The battery management system determines that the battery is at a low state of charge. Turn

the ignition off as soon as possible to protect the battery. This message will clear once the vehicle
has been started and the battery state of charge has recovered. Turning off unnecessary electrical

loads will allow faster battery state-of-charge recovery.

Turn Power Off To Save Battery

Displayed when the battery management system detects an extended low-voltage condition.

Various vehicle features will be disabled to help preserve the battery. Turn off as many of the

electrical loads as soon as possible to improve system voltage. If the system voltage has

recovered, the disabled features will operate again as normal.

Low Battery Features Temporarily Turned

Off

128

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Blind Spot Information and Cross Traffic Alert System

Action

Message

A fault with the system has occurred. Contact an authorized dealer as soon as possible.

Blindspot System Fault

The system sensors are blocked. Contact an authorized dealer as soon as possible.  See Blind

Spot Information System (page 271).

Blindspot Not Available Sensor Blocked

See Manual

The system detects a vehicle.  See Blind Spot Information System (page 271).

Vehicle Coming From X

The blind spot information system and cross traffic alert system sensors are blocked.  See Blind

Spot Information System (page 271).

Cross Traffic Not Available Sensor Blocked

See Manual

A fault with the system has occurred. Contact an authorized dealer as soon as possible.

Cross Traffic System Fault

The system automatically turns off and displays this message when you connect a trailer to the

vehicle that does not have a trailer blind spot system or when you switch the trailer blind spot

system off through the information display. See Blind Spot Information System (page 271).

Cross Traffic Alert Deactivated Trailer

Attached

The system automatically turns off and displays this message when you connect a trailer to the

vehicle that does not have a trailer blind spot system or when you switch the trailer blind spot

system off through the information display.  See Blind Spot Information System (page 271).

Blind Spot Alert Deactivated Trailer

Attached

Displays when the trailer connected is a fifth wheel or gooseneck, or when the trailer width is

wider than 10 ft (2.7 m) or longer than 33 ft (10 m).

Trailer Blind Spot Not available Due to

Invalid Trailer

129

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Doors and Locks

Action

Message

The door listed is not completely closed.

X Door Ajar

The luggage compartment is not completely closed.

Trunk Ajar

The driver’s door is opened, your vehicle is in park and the engine is on.

Engine ON

Displays when the hood is not completely closed.

Hood Ajar

Displays when the door switches have been disabled.

Switches Inhibited Security Mode

There is a system malfunction with the child locks. Contact an authorized dealer as soon as

possible.

Child Lock Malfunction Service Required

Displays the factory keypad code after the keypad has been reset.  See Keyless Entry (page

76).

Factory Keypad Code {X X X X X}

Driver Alert

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

130

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Drivetrain

Action

Message

Displays if the electronic limited slip differential system encounters a hardware failure. Have

your vehicle checked as soon as possible.

Check Electronic Limited Slip Differential

Displays if an electronic limited slip differential system fault is present. Have your vehicle checked

as soon as possible.

Electronic Limited Slip Differential Off See

Owner's Manual

Displays when the electronic limited slip differential system resumes normal function.

Electronic Limited Slip Differential Restored

to Normal

Displays if the electronic limited slip differential system temporarily turns off due to overheating
or an undersized spare tire. If an undersized spare tire is installed, replace the spare tire with a
full-sized tire as soon as possible. If not, stop the vehicle in a safe location and allow the system

to cool.

Electronic Limited Slip Differential

Temporarily Disabled

Displays if the electronic limited slip differential has limited functionality. This could be due to

an undersized spare tire or caused by the system overheating. If an undersized spare tire is

installed, replace the spare tire with a full-sized tire as soon as possible. If an undersized spare

tire is not installed, the vehicle has reduced functionality. Have your vehicle checked as soon

as possible.

Electronic Limited Slip Differential Reduced

Torque

131

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Action

Message

Displays when you select a drive mode that does not allow the electronic limited slip differential
to turn on. This may also display when the electronic limited slip differential has a fault and the

vehicle requests the locking feature.

Electronic Limited Slip Differential Locking

Feature Not Available

The transfer case is in the neutral position. This message indicates that your vehicle is safe to

be towed with all four wheels on the ground.

Neutral Tow Enabled Leave Transmission

in Neutral

The transfer case is NOT in the neutral position. This message indicates that your vehicle is NOT

safe to be towed with all four wheels on the ground.

Neutral Tow Disabled

Four-Wheel Drive

Action

Message

A 4X4 system fault is present. Contact an authorized dealer as soon as possible.

Check 4x4

The 4X4 system is making a shift.

4x4 Shift in Progress

Displays when you attempt to switch to 4X4 LOW and you do not shift the

transmission to neutral (N).

For 4x4 LOW Shift to N

Displays when you attempt to switch to 4X4 LOW and your vehicle's speed is

greater than 3 mph (5 km/h).

For 4x4 LOW Slow to 3 MPH

Displays when you attempt to switch from 4X4 LOW and you do not shift the

transmission to neutral (N).

To Exit 4x4 LOW Shift to N

132

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Action

Message

Displays when you attempt to switch from 4X4 LOW and your vehicle's speed

is greater than 3 mph (5 km/h).

To Exit 4x4 LOW Slow to 3 MPH

May display when there is a transfer case gear tooth blockage while shifting to

or from 4L or to the neutral state.

Shift Delayed Pull Forward

Displays when the system turns off the clutch due to excessive stress. The system

automatically turns on the clutch after it cools.

4x4 Temporarily Disabled

Displays when the 4X4 system has been restored to its original setting.

4x4 Restored

Displays when the 4X4 system temporarily turns on 4H from 4A after detecting

driving conditions that require greater 4X4 performance. The system automatically

returns to 4A after the system no longer detects these driving conditions.

4x4 Temporarily Locked

Fuel

Action

Message

An early reminder of a low fuel condition.

Fuel Level Low

The fuel fill inlet may not be properly closed.

Check Fuel Fill Inlet

133

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays

Hill Start Assist

Action

Message

Displays when hill start assist is not available. Contact your authorized dealer.  See Hill Start

Assist (page 228).

Hill Start Assist Not Available

Keys and Intelligent Access

Action

Message

A reminder to press the brake while starting your vehicle.

To START Press Brake

The key is not detected by the system.  See Keyless Starting (page 191).

No Key Detected

The Start Stop button is pressed to shut off the engine and an Intelligent Access key is not

detected inside your vehicle.

Restart Now or Key is Needed

Your vehicle is in the accessory ignition state.

Full Accessory Power Active

There is a problem with your vehicle’s starting system. See an authorized dealer for service.

Starting System Fault

During spare key programming, an intelligent access key is programmed to the system.

Key Program Successful

During spare key programming, the maximum number of keys have been programmed.

Max Number of Keys Learned

Displayed during spare key programming, when an intelligent access key has failed to be

programmed.

Key Program Failure

134

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Information Displays
