Smartphone Connectivity

 (If Equipped)

SYNC 3 allows you to use Apple CarPlay and
Android Auto to access your phone.

When you use Apple CarPlay or Android
Auto, you can:
•

Make calls.

•

Send and receive messages.

•

Listen to music.

•

Use your phone's voice assistant.

Apple CarPlay and Android Auto disable
some SYNC 3 features.

Most Apple CarPlay and Android Auto
features use mobile data.

Apple CarPlay

Apple CarPlay requires an iPhone 5 or newer
with iOS 7.1 or newer. Updating to the latest
iOS version is recommended.

1. Plug your phone into a USB port.  See

USB Port (page 369).

2. Follow the prompts on the touchscreen.

3. Follow the prompts that appear on your

phone to allow access to Apple CarPlay.

After completing the setup, your phone
connects to Apple CarPlay automatically
when plugged into a USB port.

To disable this feature from the Settings
screen, select:

Menu Item

Apple CarPlay Preferences

Your device is listed if SYNC detects Apple
CarPlay. Select the name of your device.

Switch Apple CarPlay off.

To return to SYNC 3, go to the Apple CarPlay
home screen and select the SYNC app.

Note: Contact Apple for Apple CarPlay
support.

Android Auto

Android Auto is compatible with most
devices with Android 5.0 or newer.

1. Download the Android Auto app to your

device from Google Play to prepare your
device (this may require mobile data
usage).

Note: The Android Auto App may not be
available within your current market.

2. Plug your device into a USB Port.  See

USB Port (page 369).

3. Follow the prompt on the touchscreen.

4. Follow the prompts that appear on your

device.

Note: You may be prompted to update
additional apps on your device. This may
require mobile data usage.

To disable this feature from the Settings
screen, select:

Menu Item

Android Auto Preferences

Your device is listed if SYNC detects
Android Auto. Select the name of your
device.

Switch Android Auto off.

Note: You may need to slide your Settings
screen to the left to select Apple CarPlay
Preferences or Android Auto Preferences.

423

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

To return to SYNC 3, select the speedometer
icon in the Android Auto menu bar at the
bottom of the touchscreen, and then touch
the option to return to SYNC.

Note: Contact Google for Android Auto
support.

NAVIGATION

Your navigation system is comprised of two
main features, destination mode and map
mode.

Map Mode

Map mode shows advanced viewing
comprised of 2D city maps, 3D landmarks
and 3D city models (when available). 2D city
maps show detailed outlines of buildings,
visible land use, landscape features, and
detailed railroad infrastructure for the most
essential cities around the globe.

3D landmarks appear as clear, visible objects
that are typically recognizable and have a
certain tourism value.

3D city models are complete 3D models of
entire city areas including navigable roads,
parks, rivers and rendered buildings. 3D
landmarks and city models appear in 3D map
mode only. Coverage of these varies and
improves with updated map releases.

E207752

Select the zoom in icon to see a
closer view of the map.

E207753

Select the zoom out icon to see a
farther away view of the map.

You can adjust the view in preset increments.
You can also pinch to zoom in or out of the
map.

The information bar tells you the names of
streets, cities or landmarks as you hover over
them with the crosshair curser.

You can change your view of the map by
tapping on the location indicator icon on the
right hand side of the screen. You can
choose from the following options:

E207750

Heading up (2D map) This always
shows the direction of forward
travel to be upward on the screen.
This view is available for map

scales up to 3 mi (5 km).

E207749

North up (2D map) always shows
the northern direction to be
upward on the screen.

E207748

3D map mode provides an
elevated perspective of the map.
Adjust this viewing angle and
rotate the map 180 degrees by

touching the map twice, and then dragging
your finger along the shaded bar with arrows
at the bottom of the map.

E207751

Re-center the map by pressing this
icon whenever you scroll the map
away from your vehicle’s current
location.

424

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

E251780

E251779

Mute: Press to mute the audio
navigation guidance. Press the
button again to un-mute the
guidance.

E207754

Points of Interest (POI) grouping
icon: You can choose up to three
POI icons to display on the map. If
the chosen POIs are located close

together or are at the same location a box is
used to display a single category icon

instead of repeating the same icon, in order
to reduce clutter. When you select the box
on the map, a pop-up appears indicating how
many POIs are in this location. Select the pop
up to see a list of the available POIs. You can
scroll through and select POIs from this list.

If your vehicle is low on charge or fuel,
station icons automatically display on the
map.

If you have subscribed to SiriusXM Traffic
and Travel Link (where available), traffic flow
will be indicated on the map by green (clear),
yellow (slowing), and red (stopped) road
highlights. Traffic flow is indicated where the
information is available and varies across the
US.

You can choose to display traffic icons on
the map representing twelve different types
of incidents.  See Settings (page 444).

You can set a destination by hovering above
a location and selecting:

Button

Start

Destination Mode

To set a destination, press:

Description

Menu Item

Destination

Enter a navigation destination in any of the following formats:

Street Address

Search

425

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Description

Menu Item

(number, street, city, state)

For example "12 Mainstreet Dearborn MI"

Partial Address
(number, street) if searching in current state
(number, street and zip code (or postal code in Canada)) if searching out of state
You can enter unique addresses that contain door number prefixes with or without the prefix. For example,
you could enter "6N340 Fairway Lane" or "340 Fairway Lane".

City

(name or zip code)

Point of Interest

(name or category)

Intersection

(street 1 / street 2)
(street 1 and street 2)
(street 1 & street 2)
(street 1 @ street 2)
(street 1 at street 2)

Latitude and Longitude

(##.###### , ##.######)

426

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Description

Menu Item

This is in a decimal degrees format, one to six decimal places are accepted.

You are given autocomplete options below the address bar to select as you type.
If you do not give an exact destination, a menu displays with your possible selections.

Collections of your last 40 navigation destinations display here.

Previous Destinations

You can select any option from the list to select it as your destination.

Select this option to remove all previous destinations.

Delete All

Select to navigate to your set Home destination.

Home

The time it takes to travel from your current location to Home displays.
To set your Home, press:

A prompt appears asking if you would like to create a favorite for home. Select:

Home

Enter a location into the search bar and press:

Yes

Save

Select to navigate to your set Work destination.

Work

The time it takes to travel from your current location to Work displays.
To set your Work:

A prompt appears asking if you would like to create a favorite for work. Select:

Work

Enter a location into the search bar and press:

Yes

Save

427

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Description

Menu Item

Favorites include any location you have previously saved.

Favorites

To add Favorites:

Select this button and enter a location into the destination bar.

Add a Favorite

Select this option to have the system locate the address you have entered.

Search

Select this button when the address you have entered appears on the screen.

Save

The address saves as a favorite and you see the favorites screen. You can now select this address from the
favorites screen.

POI categories that may display (based on market and vehicle configuration):

Point of Interest (POI)
Categories

Food

Fuel

Hotel

ATM

Press to view additional categories. Once you have selected a category, follow the menus to
find what you are looking for.

See All

Inside of these categories you can search by:

Nearby

428

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Description

Menu Item

Along Route

Near Destination

In a City

Once you have chosen your destination, press:

Action and Description

Menu Item

This saves the destination to your favorites.

Save

This shows you a map of your entire route. You can then choose your route from three different options.

Start

Uses the fastest moving roads possible.

Fastest

Uses the shortest distance possible.

Shortest

Uses the most fuel-efficient route.

Economical Route

The time and distance for each route also displays.

On the route screen, you can choose to cancel the current navigation. The system asks for confirmation then
returns you to the map mode screen.

Cancel

429

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Once you have chosen you destination, press:

Action and Description

Menu Item

The system uses a variety of screens and prompts to guide you to your destination.

Start

During Route guidance, you can press the maneuver arrow icon on the map if you want the system to repeat
route guidance instructions. When the system repeats the last guidance instruction, it updates the distance to
the next guidance instruction, since it detects that the vehicle is moving.
The navigation map shows your estimated time of arrival, remaining travel time and the distance to your
destination.
SYNC 3 may not always announce vehicle arrival at the exact point of your destination and you may have to
cancel a route manually.

Navigation Menu

In map mode and during active navigation
you can access the navigation menu.

During active navigation, touch the bottom
of the screen to view the menu and other
buttons.

To access the Navigation menu, press:

Button

Menu

You can then select:

A full screen map displays during navigation.

Full Map

Screen View

430

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Button

Highway exit information displays on the right hand side of the screen during navigation.

Highway Exit Info

Points of interest icons display for restaurants, hotels, fuel stations and ATMs when they
are present at the exit. You can select the POI icons to receive a listing of specific locations.
You can select the POI location as a waypoint or destination if desired.

Only available during an active route. Displays all of the turns on the current route.

Turn List

You can choose to avoid any road on the turn list by selecting the road from the list. A
screen then appears and you can press:

Avoid

The system calculates a new route and displays a new turn list.

You can find the SiriusXM Traffic and Travel Link information by pressing this button. This information requires
an active subscription to SiriusXM Traffic and Travel Link.

Traffic List

When a route is not active, a list of nearby traffic incidents displays (if any are present).
When a route is active, you can choose to display a list of traffic nearby or on the route.

Press this button to adjust your preferences.  See Settings (page 444).

Navigation Settings

Provides your current location city and the nearest road.

Where Am I?

The following are only available on the menu during an active navigation route:

The system asks for confirmation and then returns you to the map mode screen.

Cancel Route

Press this to see a map of the full route.

View Route

An alternate route displays in comparison with the current route.

Detour

431

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Button

Only available if you have an active waypoint on your route. See Waypoints later in this section for information
on how to set waypoints.

Edit Waypoints

Use this button to re-order or remove your waypoints.

Optimize Order

You can also have
the system set the
order for you by
pressing:

Go

To return to your
route press:

Waypoints

You can add a waypoint to a navigation route
as a destination along your route.

To add a waypoint:

1. Select the search icon (magnifying glass)

while on an active route. This brings up
the destination menu.

2. Set your destination using any of the

given methods. Once the destination has
been selected, the screen allows you to
set the destination as a waypoint by
selecting:

432

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Menu Item

The waypoint list then appears and you are able to re-order all of your
waypoints by selecting the menu icon on the right hand side of the
location. You can select up to five waypoints.

Add Waypoint

Optimize Order

You can also have the system set the order for you by pressing:

Go

To return to your route, press:

SYNC AppLink

The AppLink app allows you to use some
SYNC 3 navigation features on your phone.

First Mile Navigation

When you switch your ignition off, the
location of your vehicle is recorded and sent
to your SYNC AppLink app. The location of
your vehicle can be viewed within the app.
You can also view walking directions to your
vehicle.

Last Mile Navigation

When you park near your destination, the
system provides walking directions to your
destination.

POI Search

Your paired phone can be used to access
additional points of interest (POI). These
points of interest can only be access when
your phone is paired.

Send To Car

You can send destinations to your navigation
system using a computer or phone using
AppLink.

cityseeker

 (If Equipped)

Note: cityseeker point of interest (POI)
information is limited to approximately 1,110
cities (1,049 in the United States, 36 in
Canada and 15 in Mexico).

E225487

433

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

cityseeker, when available, is a service that
provides more information about certain
points of interest such as restaurants, hotels
and attractions.

When you have selected a point of interest,
the location and information appear, such as
address, phone number and a star rating.

Press More Information to see a photo, a
review, a list of services and facilities, the
average room or meal price and the web
address. This screen displays the point of
interest icons.

For restaurants, cityseeker can provide
information such as star rating, average cost,
review, handicap access, hours of operation,
and website address.

For hotels, cityseeker can provide
information such as star rating, price
category, review, check-in and checkout
times, hotel service icons and website
address. Hotel service icons include:

•

Restaurant

•

Business center

•

Handicap facilities

•

Laundry

•

Refrigerator

•

24 hour room service

•

Fitness center

•

Internet access

•

Pool

•

Wi-Fi

Attractions include nearby landmarks,
amusement parks, historic buildings and
more. cityseeker can provide information
such as star rating, reviews, hour of operation
and admission price.

SiriusXM Traffic and Travel Link

 (If

Equipped)

SiriusXM Traffic and Travel Link is available
on vehicles equipped with navigation and
only in select markets. You must activate and
subscribe to receive SiriusXM Traffic and
Travel Link information. It helps you locate
the best gas prices, find movie listings, get
current traffic alerts, view the weather map,
get accurate ski conditions and see current
sports scores.  See Apps (page 441).

The system calculates a reasonable efficient
route based on available speed limits, traffic,
and road conditions. You may know a local
short cut that is more efficient at a given time
than the route provided by SYNC 3, but you
should expect a slight difference in minutes
or miles with the SYNC 3 route.

Navigation Map Updates

Annual navigation map updates are available
for purchase through your dealership, by
calling 1-866-462-8837 in the United States
and Canada or 01-800-557-5539 in Mexico.
You can also visit:

Website

www.navigation.com/sync

You need to specify the make and model of
your vehicle to determine if there is an
update available.

434

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

HERE is the digital map provider for the
navigation application. If you find map data
errors, you may report them directly to HERE
by going to www.here.com/mapcreator.
HERE evaluates all reported map errors and
responds with the result of their investigation
by e-mail.

Map coverage includes the USA (including
Puerto Rico and the US Virgin Islands),
Canada and Mexico.

ELECTRIC VEHICLE INFORMATION

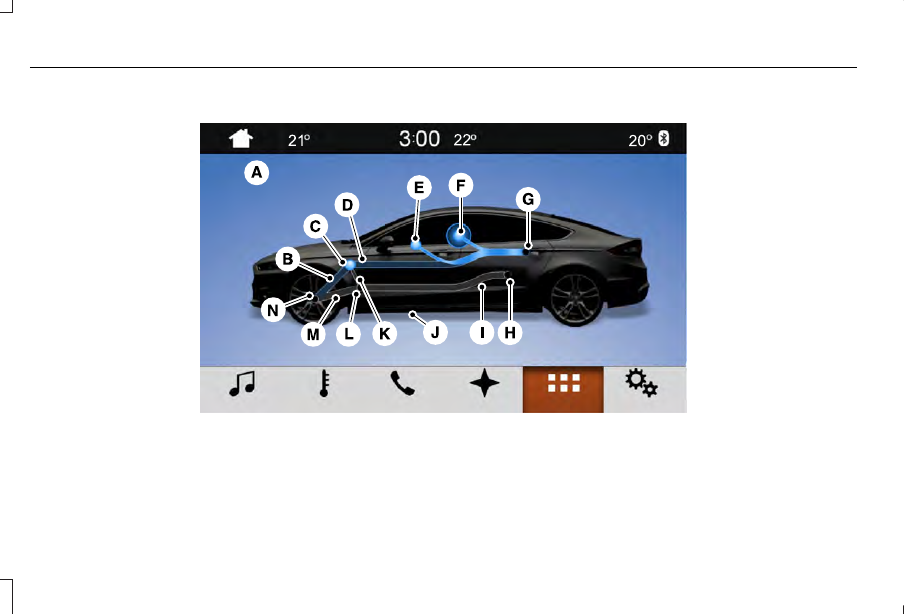

Power Flow

E260071

The power flow information for
your Hybrid vehicle is available
through the Apps section of the

touch screen.

435

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

E241957

436

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Description

Item

Callout

This indicates which mode is active within the vehicle system.

Power Flow

A

Action and Description

Menu Item

The electric motor and gasoline engine are
powering the vehicle.

Status: Hybrid Drive

The hybrid system is storing power in the
high-voltage battery.

Status: Charging HV Battery

The vehicle is either at rest, or sharing very
little power between the electric system parts.

Status: Idle

The vehicle is driving in electric mode (the
power is coming from the electric motor). The
gasoline engine is off in this mode.

Status: Electric Drive

Shows the direction of power flow between the wheels and the electric motor.

Motor-to-Wheel Flow

B

Represents the hybrid electric motor. The higher the motor power is, the larger the
circle around this node. Any time the vehicle is ready to be driven, the motor node
illuminates.

Electric Motor

C

Shows the direction of power flow between the high-voltage battery and the electric
motor. Flow toward the motor indicates the battery is providing power to accelerate
the vehicle (discharging the battery). Flow toward the battery indicates the electric
motor is providing power to the battery (charging the battery).

1

Battery-to-Motor
Flow

D

437

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3

Description

Item

Callout

Includes all power usage from the low voltage accessories such as the climate control
fan, headlights and heated seats. The higher the power usage is from these
accessories, the larger the circle around the node. This node illuminates anytime the
vehicle is on since there is always some low level power in use.

2

Other

E

Includes the power usage from the high-voltage climate control components such
as the electric A/C compressor. The higher the power usage is from these compon-
ents, the larger the circle around this node.

2,3

Climate

F

Represents your high-voltage battery. A circle illuminates around the node when the
high-voltage battery is receiving power from regenerative braking or engine charging.
The higher the power going into the high-voltage battery, the larger the circle around
this node.

Battery

G

Represents the fuel tank in the vehicle.

Fuel

H

Shows flow from the fuel tank to the engine when the engine is on and using fuel
(there are some cases where the engine is on, but not using any fuel). When the
engine is on, but not using fuel, the engine node is active, but the fuel flow path is
off. An example of this is when your foot is off the accelerator pedal and the vehicle
is traveling at a high speed.

Fuel-to-Engine Flow

I

Provides you with the reason(s) the gasoline engine is on. When the gasoline engine
is off, this display does not appear. Engine On due to reasons displayed by the system
are in a chart following this list.

Engine On due to:

J

438

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

SYNC™ 3
