FUSE SPECIFICATION CHART

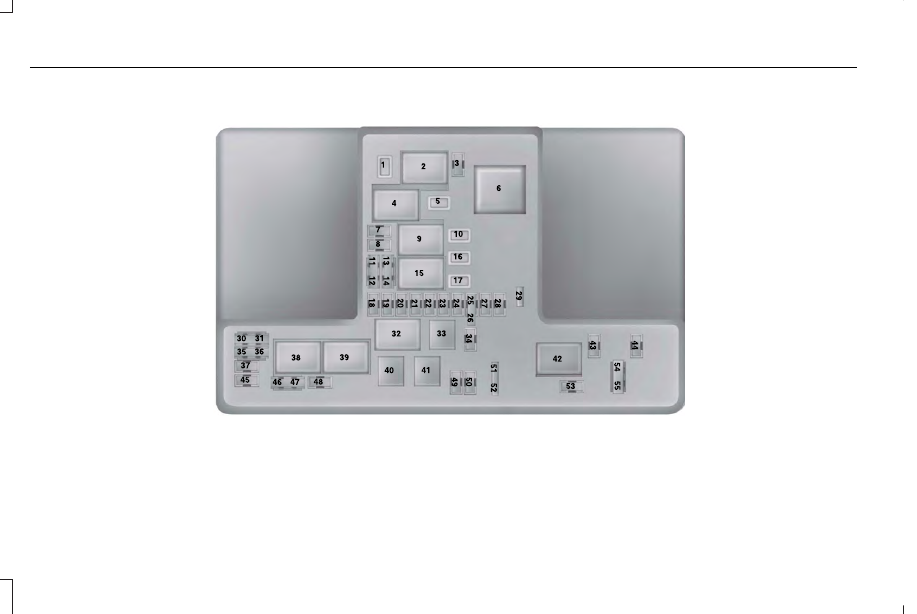

Power Distribution Box

WARNING: Always disconnect the

battery before servicing high current fuses.

WARNING: To reduce risk of electrical

shock, always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.

If you disconnect and reconnect the battery,
you need to reset some features.  See
Changing the 12V Battery (page 308).

279

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

E144783

280

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Wiper Motor 2.

25A

1

1

Not used.

–

2

Rain sensor.

15A

2

3

Blower motor relay.

–

4

Power point 3 - back of console.

20A

1

5

Not used.

–

6

Powertrain control module - vehicle power 1.

20A

2

7

Powertrain control module power.

Powertrain control module - vehicle power 2.

20A

2

8

Emissions components.

Powertrain control module relay.

–

9

Power point 1 - driver front.

20A

1

10

Powertrain control module - vehicle power 4.

15A

3

11

Ignition coils.

Powertrain control module - vehicle power 3.

15A

3

12

Non-emissions components.

281

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Fuel door mechanism.

10A

2

13

Not used (spare).

10A

2

14

Run/start relay.

–

15

Power point 2 - console.

20A

1

16

Power point 4.

20A

1

17

Powertrain and hybrid powertrain control module - keep
alive power.

10A

2

18

Run/start electronic power assist steering.

10A

2

19

Run/start lighting.

10A

2

20

Adaptive cruise control.

Run/start transmission switch.

15A

2

21

HEV inverter.

USB smart charger.

5A

2

22

Run/start: blind spot information system, rear view camera,
heads-up display, shifter.

15A

2

23

Not used.

–

24

282

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Run/start anti-lock brake system.

10A

3

25

Run/start powertrain control module.

10A

3

26

HCV PWR 5.

10A

2

27

Right hand side headlamp ballast.

20A

2

28

Left hand side headlamp ballast.

20A

2

29

Not used.

–

30

Not used.

–

31

Hybrid electric vehicle pulse width modulated fan relay.

–

32

Not used.

–

33

Not used.

–

34

Not used (spare).

15A

2

35

Hybrid electric vehicle battery electronic control module fan.

15A

3

36

Not used.

–

37

Vacuum pump #1 relay.

–

38

283

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Vacuum pump #2 relay.

–

39

Fuel pump relay.

–

40

Horn relay.

–

41

Not used.

–

42

Fuel door motor.

10A

2

43

Not used.

–

44

Vacuum pump monitor.

5A

2

45

Not used (spare).

10A

2

46

Brake on/off switch.

10A

3

47

Horn.

20A

2

48

Air flow monitor.

5A

2

49

Battery energy control module.

15A

2

50

Hybrid content vehicle power 1.

15A

3

51

Hybrid powertrain control module.

284

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Hybrid content vehicle power 2.

15A

3

52

Battery energy control module.

Multi-contour seats.

10A

2

53

Hybrid content vehicle power 3.

10A

3

54

Coolant pump.

Hybrid content vehicle power 4.

10A

3

55

Air conditioning compressor.

1

M Case fuse.

2

Micro 2 fuse.

3

Micro 3 fuse.

285

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

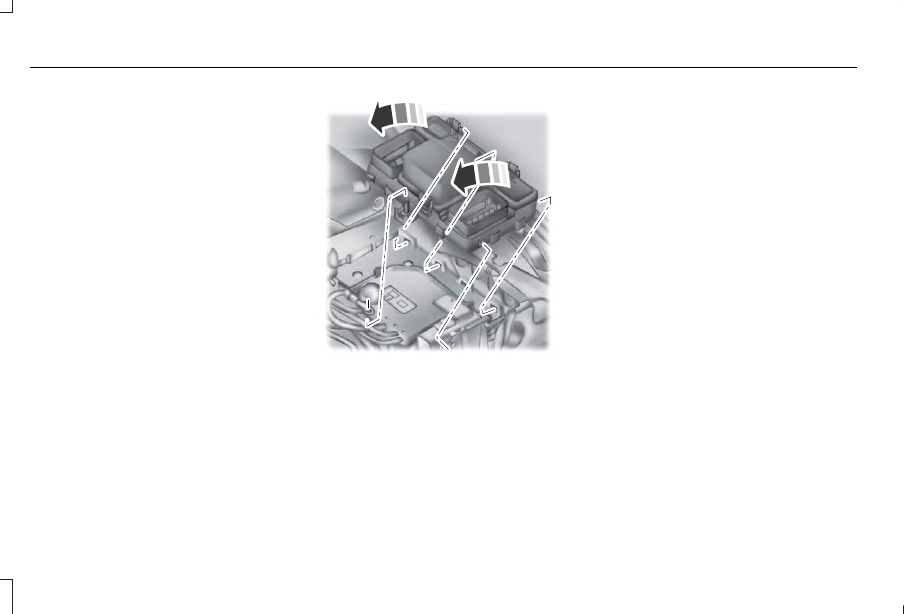

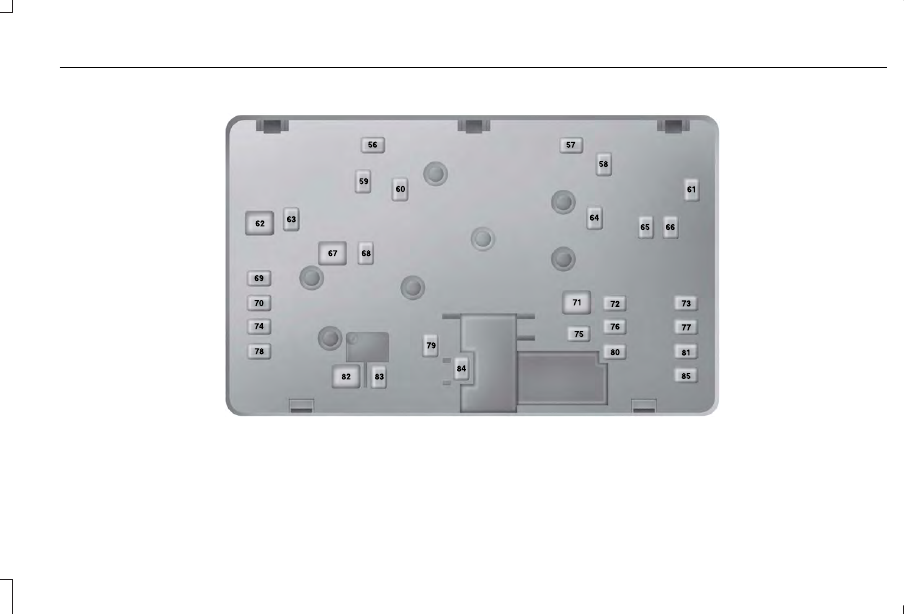

Power Distribution Box - Bottom

E145983

There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:

1. Release the two latches on both sides of

the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center of

the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

286

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

E144949

287

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Fuel pump feed.

30A

1

56

Not used.

-

57

Not used.

-

58

Vacuum pump relay.

40A

2

59

Pulse width modulated fan.

40A

1

60

Not used.

-

61

Body control module 1.

50A

2

62

Not used.

-

63

Not used.

-

64

Front heated seat.

20A

1

65

Not used (spare).

15A

2

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

288

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used (spare).

50A

1

71

Panoramic roof #1.

30A

1

72

Moonroof.

Not used (spare).

20A

2

73

Driver seat module.

30A

1

74

Not used.

-

75

e-Shifter.

20A

1

76

Front climate controlled seats.

30A

1

77

Not used.

-

78

Blower motor.

40A

2

79

Power decklid.

30A

1

80

289

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Inverter.

40A

1

81

Anti-lock brake system pump.

60A

2

82

Wiper motor #1.

25A

1

83

Not used.

-

84

Panoramic roof #2.

30A

1

85

1

M Case fuse.

2

J Case fuse.

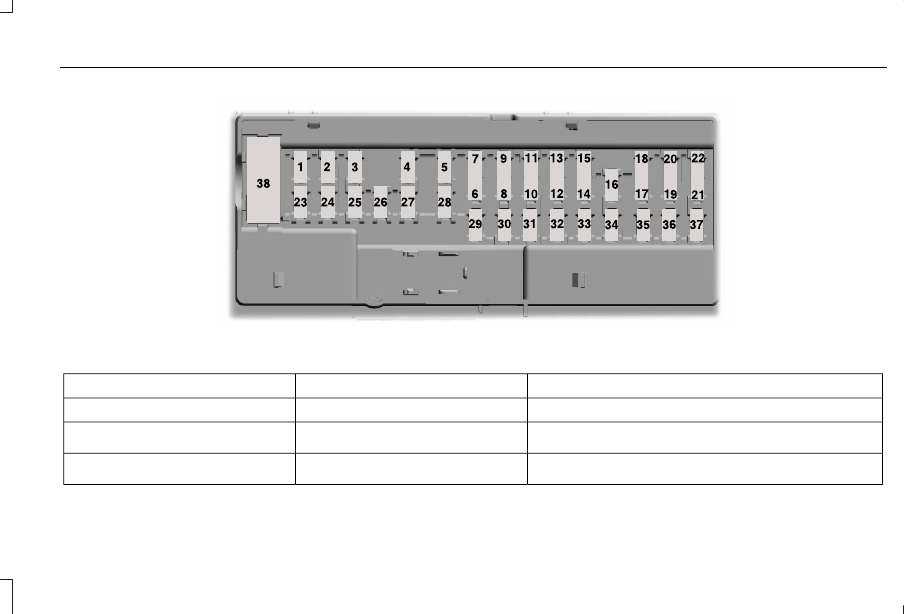

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

290

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

E145984

Protected Component

Fuse Rating

Fuse or Relay Number

Not used.

-

1

Lumbar.

7.5A

1

2

Driver door unlock.

20A

1

3

291

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Not used (spare).

10A

2

9

Power trunk logic.

5A

2

10

Keypad.
Cellphone passport module.

Not used (spare).

5A

2

11

Climate control.

7.5A

2

12

Gear shift.

Steering wheel column.

7.5A

2

13

Instrument cluster.
Datalink logic.

Extended power module.

10A

2

14

292

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Datalink/Gateway module.

10A

2

15

Decklid release.

15A

1

16

Not used (spare).

5A

2

17

Push button start/stop.

5A

2

18

Extended power module.

7.5A

2

19

Adaptive headlamps.

7.5A

2

20

Humidity and in-car temperature.

5A

2

21

Pedestrian sounder (spare).

5A

2

22

Delayed accessory (power inverter, moonroof, all smart
window, driver window switch pack).

10A

1

23

Rear sunshade.
Panoramic roof.

Central lock/unlock.

20A

1

24

Driver door (window, mirror).

30A

1

25

293

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Fuses

Protected Component

Fuse Rating

Fuse or Relay Number

Front passenger door (window, mirror).

30A

1

26

Moonroof.

30A

1

27

Amplifier.

20A

1

28

Rear driver side door (window).

30A

1

29

Rear passenger side door (window).

30A

1

30

Not used (spare).

15A

1

31

Voice control.

10A

1

32

Display.
Radio frequency receiver.

Radio.

20A

1

33

Active noise control.
CD changer.

Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).

30A

1

34

Not used (spare).

5A

1

35

Auto-dimming rear view mirror.

15A

1

36

Heated rear seats.
