Right Information Display Controls

E179397

•

Press the up and down arrow buttons to
scroll through and highlight the options
within a menu.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a menu.

•

Press the OK button to choose and
confirm your selection.

Main menu

From the main menu bar on the right side of
the information display, you can choose from
the following categories:

Entertainment

See General Information (page 110).

Phone

See General Information (page 110).

Navigation or Compass

See General Information (page 110).

Fuel Economy

Use the up or down arrow buttons to choose
between the following display options.

Note: The information display will remember the menu level 2 state when you change the individual key state from the RUN to the OFF
position.

Fuel Economy

Menu level 5

Menu level 4

Menu level 3

Menu level 2

—

—

Flowers

Efficiency Leaves

—

—

Help

119

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Fuel Economy

—

5, 10 or 30 minutes

Duration

Fuel History

(Instantaneous Fuel Economy + Fuel

Economy History + Avg Fuel

Economy)

—

—

Help

—

—

Help

Coach

Efficiency Leaves

Efficiency leaves indicate short term driving
efficiency measured over the last few
minutes. The more leaves and vines that
appear on the display, the better your fuel
economy. Leaves and vines will occasionally
appear and disappear to indicate a change
in your driving efficiency.

Flowers appear on the efficiency leaves
screen in addition to the leaves and vines.
The flowers indicate long term driving
efficiency. The more flowers that appear on
the display, the more efficiently you have
driven. Once earned, the flowers will remain
unless reset, unlike the leaves, which come
and go as your short term fuel economy
changes.

Flowers can be reset in the information
displays settings menu under Driving History.
See General Information (page 110).

Fuel History

From left to right this view includes an
instantaneous fuel economy gauge, historical
fuel economy data and average fuel
economy. The historical data represents an
average over time intervals of either 1, 2 or
6 minutes, with the leftmost interval being
the most recent. Shown at the bottom of the
view is the total time duration for the 5
intervals. You can select total duration in the
options menu. Intervals shown in grey color
are from the previous drive. The blue
horizontal line represents the average fuel
economy value shown to the right.

Note: Hold OK to reset fuel history and
average fuel economy.

Coach

This view provides a comparison of your
recent acceleration, braking and cruising
behavior, then recommends the most
efficient use of energy under present
conditions. The horizontal bars fill from left
to right with best behavior and appear blue
when at least half full. When the bars are less
than half full, the color is amber, suggesting
that you need a change in your driving
behavior to achieve better energy efficiency.

Note: Fuel Economy will be impacted by your
use of brakes, accelerator and accessories,
as well as environmental conditions such as
hills and weather.

120

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Note: Fuel economy is not always a measure
of appropriate driving behavior. For example,
when driving uphill and maintaining an
appropriate speed, your instant fuel
economy may not be good (losing leaves)
but the Coach may show a blue bar for
Acceleration and Cruising.

Common Displays

Both Average fuel economy and an
instantaneous fuel economy gauge are
included in Engage, Empower and MyView
(if selected) on the left information display.
They are also included in Fuel History on the
right information display.

Average Fuel Economy

Average Fuel Economy is continuously
averaged since the last reset. You can reset
your average fuel economy by pressing and
holding the OK button on the corresponding
steering wheel controls.

Note: Average fuel economy cannot be reset
in MyView.

Instantaneous Fuel Economy

If your instantaneous fuel economy is greater
than the maximum value displayed, a + sign
will be shown next to the maximum scale
number. When your vehicle is operating on
battery power only, EV will display and the
gauge fill will show in blue.

INFORMATION MESSAGES

Note:  Depending on your vehicle options
and instrument cluster type, not all of the
messages will display or be available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have.

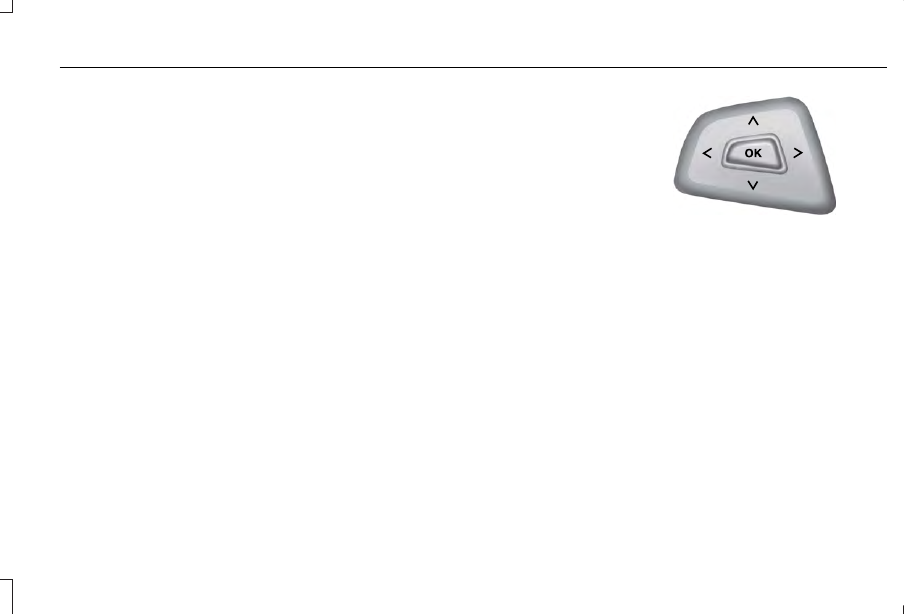

E145981

Press the OK button to acknowledge and
remove some messages from the information
display. Other messages will be removed
automatically after a short time.

Certain messages need to be confirmed
before you can access the menus.

121

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Active Park

Action

Message

Displayed when the system needs service. Contact your authorized dealer as soon as possible.

Active Park Fault

Adaptive Cruise Control

Action

Message

Displayed when a radar malfunction is preventing the ACC from engaging.  See Using Adaptive

Cruise Control (page 223).

Adaptive Cruise Malfunction

Displayed when conditions exist such that the adaptive cruise cannot function properly.  See

Using Adaptive Cruise Control (page 223).

Adaptive Cruise Not Available

Displayed when the radar is blocked because of poor radar visibility due to bad weather or ice/
mud/water in front of radar. Driver can typically clean the sensor to resolve.  See Using Adaptive

Cruise Control (page 223).

Adaptive Cruise Not Available Sensor

Blocked See Manual

Displayed when the automatic braking has been disabled.

Normal Cruise Active Automatic Braking

Turned Off

Displayed when a radar malfunction is preventing the ACC from engaging.

Front Sensor Not Aligned

122

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Action

Message

Displayed when the adaptive cruise has reinstated controls to the driver.

Adaptive Cruise - Driver Resume Control

Displays when the vehicle speed is too slow to activate the adaptive cruise.

Adaptive Cruise Speed Too Low to

Activate

Displays when the vehicle speed is getting too low for adaptive cruise.

Adaptive Cruise Shift Down

Adaptive Headlamps

Action

Message

Displays when a fault with the system has occurred. Contact an authorized dealer as soon as

possible.

Check Headlamp System See Manual

AdvanceTrac™

Action

Message

Displayed when the system has detected a condition that requires service. Contact your

authorized dealer as soon as possible.

Service AdvanceTrac

Displayed when the traction control has been disabled or enabled by the driver.

AdvanceTrac Off On

123

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Airbag

Action

Message

Displays when the system detects a malfunction due to a blocked sensor.

Occupant Sensor BLOCKED Remove

Objects Near Passenger Seat

Alarm

Action

Message

Displays when the alarm has been triggered due to unauthorized entry.  See Anti-Theft Alarm

(page 78).

Vehicle Alarm To Stop Alarm, Start Vehicle.

Automatic Engine Shutdown

Action

Message

Displays when the engine is getting ready to shut off.

Engine Shuts Off In {seconds to shut off:#0}

Seconds

Displays when the engine has shut off to help increase fuel economy.

Engine Shut Off For Fuel Economy

Displays when the engine is getting ready to shut off. You can press OK on the left steering

wheel button to override the shut down.

Engine Shuts Off in {seconds to shut off:#0}

Seconds Press Ok to Override

124

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Battery and Charging System (12 volt)

Action

Message

Displayed when the charging system needs servicing. If the warning stays on or continues to

come on, contact your authorized dealer as soon as possible.

Check Charging System

Displayed when the battery management system detects an extended low-voltage condition.

Various vehicle features will be disabled to help preserve the battery. Turn off as many of the

electrical loads as soon as possible to improve system voltage. If the system voltage has

recovered, the disabled features will operate again as normal

Low Battery Features Temporarily Turned

Off

Displayed when the battery management system determines that the battery is at a low state of

charge. Turn the ignition off as soon as possible to protect the battery. This message will clear

once the vehicle has been started and the battery state of charge has recovered. Turning off

unnecessary electrical loads will allow faster battery state-of-charge recovery.

Turn Power Off To Save Battery

Battery and Charging System (High Voltage)

Action

Message

Displays when the vehicle is ready to drive.

Ready to Drive

125

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Blind Spot Information and Cross Traffic Alert System

Action

Message

Displayed when a fault with the system has occurred. Contact your authorized dealer as soon

as possible.

Blindspot System Fault

Displayed when the system sensors are blocked. Contact your authorized dealer as soon as

possible. See Blind Spot Information System (page 239).

Blindspot Not Available Sensor Blocked

See Manual

Displayed when the system detects a vehicle.  See Blind Spot Information System (page 239).

Cross Traffic Vehicle Coming From X

Displayed when the system sensors are blocked.  See Blind Spot Information System (page

239).

Cross Traffic Not Available Sensor Blocked

See Manual

Displays when a fault with the system has occurred. Contact your authorized dealer as soon as

possible.

Cross Traffic System Fault

Doors and Locks

Action

Message

Displays when the door(s) listed is not completely closed and the vehicle is moving.

X Door Ajar

Displays when the door(s) listed is not completely closed.

Displays when the luggage compartment is not completely closed.

Trunk Ajar

Displays when the hood is not completely closed.

Hood Ajar

126

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Action

Message

Displays when the door switches have been disabled.

Switches Inhibited Security Mode

Displays when there is a system malfunction with the child locks. Contact your authorized dealer

as soon as possible.

Child Lock Malfunction Service Required

Displays the factory keypad code after the keypad has been reset.  See Keyless Entry (page

73).

Factory Keypad Code {X X X X X}

Driver Alert

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

Fuel

Action

Message

Displayed as an early reminder of a low fuel condition.

Fuel Level Low

Displayed when the fuel fill inlet may not be properly closed.

Check Fuel Fill Inlet

Wait for up to 15 seconds while the fuel system depressurizes.

Fuel Door Opening

127

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Action

Message

The fuel system has finished depressurizing and you can begin to refuel.

Fuel Door Open

A reminder to close the fuel door.

Close Fuel Door

There is an error in attempting to refill your vehicle.

Refuel Error See Manual

Hill Start Assist

Action

Message

Displays when hill start assist is not available. Contact your authorized dealer.  See Auto Hold

(page 199).

Hill Start Assist Not Available

Keys and Intelligent Access

Action

Message

Displayed as a reminder to press the brake while starting the vehicle.

To START Press Brake

Displayed if the key is not detected by the system.  See Using Adaptive Cruise Control (page

223).

No Key Detected

Displayed when the start/stop button is pressed to shut off the engine and an Intelligent Access

key is not detected inside the vehicle.

Restart Now or Key is Needed

Displayed when the vehicle is in the run ignition state.

Run Power Active

128

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Action

Message

This message is displayed when there is a problem with your vehicle’s starting system. See your

authorized dealer for service.

Starting System Fault

Displayed during spare key programming, when an Intelligent Access key is programmed to the

system.

Key Program Successful

Displayed during spare key programming, when an Intelligent Access key has failed to be

programmed.

Key Program Failure

Displayed during spare key programming when the maximum number of keys have been

programmed.

Max Number of Keys Learned

Displayed during spare key programming when not enough keys have been programmed.

Not Enough Keys Learned

Displays when the key battery is low. Change the battery as soon as possible.

Key Battery Low Replace Soon

Displayed when an attempt is made to program a spare key using two existing MyKeys.

Could Not Program Integrated Key

Displayed as a reminder that the vehicle is on.

Vehicle is ON

129

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Lane Keeping System

Action

Message

The system has malfunctioned. Contact your authorized dealer as soon as possible.

Lane Keeping Sys. Malfunction Service

Required

The system has detected a condition that has caused the system to be temporarily unavailable.

Front Camera Temporarily Not Available

The system has detected a condition that requires the windshield to be cleaned to operate

properly.

Front Camera Low Visibility Clean Screen

The system has malfunctioned. Contact your authorized dealer as soon as possible.

Front Camera Malfunction Service

Required

Displayed when the system requests the driver to keep their hands on the steering wheel.

Keep Hands on Steering Wheel

Maintenance

Action

Message

Stop the vehicle as soon as safely possible, turn off the engine. Check the oil level. If the warning

stays on or continues to come on with your engine running, contact your authorized dealer as

soon as possible.

Low Engine Oil Pressure

Displayed when the engine oil life remaining is 10% or less. See General Maintenance Information

(page 486).

Change Engine Oil Soon

Displayed when the oil life left reaches 0%.  See General Maintenance Information (page 486).

Oil Change Required

130

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Action

Message

Indicates the brake fluid level is low and the brake system should be inspected immediately.

See Brake Fluid Check (page 307).

Brake Fluid Level Low

Displays when the brake system needs servicing. Stop the vehicle in a safe place. Contact your

authorized dealer.

Check Brake System

Displays when the engine coolant temperature is excessively high. Stop the vehicle in a safe

place and contact your authorized dealer.

Engine Coolant Over Temperature

Displays when the motor electronics are overheating. Stop the vehicle as soon as safely possible,
turn off the vehicle and let it cool. If the warning stays on or continues to come on, contact your

authorized dealer as soon as possible.

Motor Coolant Over Temperature

Displays when the washer fluid is low and needs to be refilled.

Washer Fluid Level Low

Displays when the engine has reduced power in order to help reduce high coolant temperatures.

Power Reduced to Lower Engine Temp

Displayed when the kit needs service. See your authorized dealer.

Service Tire Mobility Kit

Displays to indicate that the vehicle is still in Transport or Factory mode. This may not allow some

features to operate properly. See your authorized dealer.

Transport / Factory Mode

Informs the driver that the powertrain needs service due to a powertrain malfunction.

See Manual

131

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

MyKey

Action

Message

Displayed during key programming when MyKey cannot be programmed.

MyKey not Created

Displays when MyKey is active.

MyKey Active Drive Safely

Displays when starting the vehicle and MyKey is in use and the MyKey speed limit is on.

Speed Limited to XX MPH/km/h

Displays when a MyKey is in use and the MyKey speed limit is on and the vehicle speed is

approaching 80 mph (130 km/h).

Near Vehicle Top Speed

Displays when a MyKey is in use and the MyKey speed limit is reached.

Vehicle at Top Speed of MyKey Setting

Displays when MyKey is active.

Check Speed Drive Safely

Displays when a MyKey is in use and Belt-Minder is activated.

Buckle Up to Unmute Audio

Displays when a MyKey is in use and AdvanceTrac is activated.

AdvanceTrac On - MyKey Setting

Displays when a MyKey is in use and Traction control is activated.

Traction Control On - MyKey Setting

Displays when a MyKey is in use and park aid is activated.

MyKey Park Aid Cannot be Deactivated

Displayed when the lane keeping aid is on per MyKey settings.

Lane Keeping Alert On MyKey Setting

132

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Park Aid

Action

Message

Displays when the system has detected a condition that requires service. Contact your authorized

dealer. See Rear Parking Aid (page 206).

Check Front Park Aid

Displays when the system has detected a condition that requires service. Contact your authorized

dealer. See Rear Parking Aid (page 206).

Check Rear Park Aid

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

Park Brake

Action

Message

The electric parking brake is set and a manual release is attempted without the brake pedal

being pressed.

To Release: Press Brake and Switch

The electric parking brake is set and an automatic release is attempted but cannot be performed.

Perform a manual release.

Park Brake Use Switch to Release

The electric parking brake is set and your vehicle speed exceeds 3 mph (5 km/h). Release park

brake before continued driving.

Release Park Brake

The electric parking brake is not fully applied.

Park Brake Not Applied

133

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Action

Message

The electric parking brake is not fully released.

Park Brake Not Released

The electric parking brake system has been put into a special mode that is used to allow service

of the rear brakes. Contact an authorized dealer.

Park Brake Maintenance Mode

The electric park brake system has detected a condition that requires service. Some functionality

may still be available. See an authorized dealer.

Park Brake Limited Function Service

Required

The electric parking brake system has detected a condition that requires service. See an

authorized dealer.

Park Brake Malfunction Service Now

Numerous park brake applies have overheated the system. Wait 2 minutes before attempting

to apply again.

Park Brake System Overheated

Power Steering

Action

Message

The power steering system has detected a condition that requires service. See your authorized

dealer.

Steering Fault Service Now

The power steering system is not working. Stop the vehicle a safe place. Contact your authorized

dealer.

Steering Loss Stop Safely

The power steering system has detected a condition within the power steering system or passive

entry or passive start system requires service. Contact your authorized dealer.

Steering Assist Fault Service Required

134

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays
