Lincoln MKZ Hybrid (2019 year). Manual - part 6





Headlamp High Beam

E273182

Push the lever away from you to
switch the high beam on.

Push the lever away from you again or pull
the lever toward you to switch the high beam
off.

Flashing the Headlamp High Beam

E273181

Slightly pull the lever toward you and release
it to flash the headlamps.

AUTOLAMPS

WARNING: The system does not

relieve you of your responsibility to drive with
due care and attention. You may need to
override the system if it does not turn the
headlamps on in low visibility conditions, for
example daytime fog.

E142451

When the lighting control is in the autolamps
position, the headlamps turn on in low light
situations, or when the wipers turn on.

The headlamps remain on for a period of
time after you switch the ignition off.  Use
the information display controls to adjust the
period of time that the headlamps remain
on.

Note:  If you switch the autolamps on, you
cannot switch the high beams on until the
system turns the low beams on.

87

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Windshield Wiper Activated Headlamps

When you switch the autolamps on, the
headlamps turn on within 10 seconds of
switching the wipers on.  They turn off
approximately 60 seconds after you switch
the windshield wipers off.

The headlamps do not turn on with the
wipers:

During a single wipe.

When using the windshield washers.

If the wipers are in intermittent mode.

Note: If you switch the autolamps and the
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.

INSTRUMENT LIGHTING DIMMER

Note: If you disconnect and connect the
battery, or fully discharge and charge the
battery, the illuminated components switch
to the maximum setting.

E165337

A

B

Press repeatedly or press and hold
to dim.

A

Press repeatedly or press and hold
to brighten.

B

HEADLAMP EXIT DELAY

Note: Perform steps one through four within
a 10 second period. Autolamps and parking
lamps turn on.

Switch the headlamps and parking lamps on
and off with the following sequence:

1. Deselect the autolamps.

2. Switch on the vehicle.

3. Switch off the vehicle.
4. Select the autolamps.

5. To switch the lamps off, deselect the

autolamps after about three minutes.

DAYTIME RUNNING LAMPS

WARNING: The daytime running lamps

system does not activate the rear lamps and
may not provide adequate lighting during
low visibility driving conditions. Make sure
you switch the headlamps on, as appropriate,
during all low visibility conditions. Failure to
do so may result in a crash.

88

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Type One - Conventional (Non-
Configurable)

The daytime running lamps turn on when:
1. Switching the ignition on.
2. The transmission is not in park (P) for

vehicles with automatic transmissions, or
releasing the parking brake for vehicles
with manual transmissions.

3. The lighting control is in the off, parking

lamp or autolamps positions.

4. The headlamps are off.

Type Two - Configurable

Switch the daytime running lamps on or off
using the information display.  See
Information Displays (page 110).

The daytime running lamps turn on when:
1. The lamps are on in the information

display.

2. Switching the ignition on.
3. The transmission is not in park (P) for

vehicles with automatic transmissions, or
releasing the parking brake for vehicles
with manual transmissions.

4. The lighting control is in the autolamps

position.

5. The headlamps are off.

The other lighting control switch positions
do not turn on the daytime running lamps.

If the daytime running lamps are off in the
information display, the lamps stay off in all
switch positions.

AUTOMATIC HIGH BEAM
CONTROL

 (If Equipped)

WARNING: The system does not

relieve you of your responsibility to drive with
due care and attention. You may need to
override the system if it does not turn the
high beams on or off.

The system turns on high beams if it is dark
enough and no other traffic is present. If it
detects an approaching vehicle’s headlamps
or tail lamps, or street lighting ahead, the
system turns off high beams before they can
distract other road users. Low beams remain
on.

Note: The system may not operate properly
if the sensor is blocked. Keep the windshield
free from obstruction or damage.

Note: The system may not operate properly
in cold or inclement conditions. You can
switch on the high beams by overriding the
system.

Note: If the system detects a blockage, for
example bird droppings, bug splatter, snow
or ice, the system goes into low beam mode
until you clear the blockage. A message may
appear in the information display if the
camera is blocked.

Note: Using much larger tires or equipping
vehicle accessories such as snowplows can
modify your vehicle's ride height and
degrade automatic high beam control
performance.

89

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A camera sensor, centrally mounted behind
the windshield of your vehicle, continuously
monitors conditions to turn the high beams
on and off.

Once the system is active, the high beams
turn on if:

The ambient light level is low enough.

There is no traffic in front of your vehicle.

The vehicle speed is greater than
approximately 32 mph (51 km/h).

The system turns the high beams off if:

The ambient light level is high enough
that high beams are not required.

The system detects an approaching
vehicle's headlamps or tail lamps.

The vehicle speed falls below
approximately 27 mph (44 km/h).

The system detects severe rain, snow or
fog.

The camera is blocked.

Switching the System On and Off

Switch the system on using the information
display.   See Information Displays (page
110).

E142451

Switch the lighting control to the autolamps
position.  See Autolamps (page 87).

Overriding the System

Push the lever away from you to switch
between high beam and low beam.

Automatic High Beam Indicator

The indicator illuminates to confirm
when the system is ready to assist.

ADAPTIVE HEADLAMPS

 (If Equipped)

The headlamp beams move in the same
direction as the steering wheel. This provides
more visibility when driving around curves.

A. Without adaptive headlamps.
B. With adaptive headlamps.

90

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E161714

B

A

The system only works with the lighting
control in the autolamp position.   You can
switch this feature on or off in the information
display.

Note: There is a delay of two to five seconds
before the system operates when you drive
your vehicle.

Note: The system is only active at speeds
above 3 mph (5 km/h).

System Check

 (If Equipped)

The system has a power-up movement check
feature. When you start your vehicle, the
lamps track left to right, then back to center
to alert the driver that the system is working
properly.

DIRECTION INDICATORS

E273180

Push the lever up or down to use
the direction indicators.

Indicating a Lane Change

Tap the lever up or down to make the
direction indicators flash three times to
indicate a lane change.

WELCOME LIGHTING

The Lincoln welcome mat projection lights
are on the bottom of the exterior mirror
housings. They project an image onto the
ground a short distance from your vehicle
when welcome lighting or lighted entry turns
on.

For auto-fold mirrors, the Lincoln welcome
mat turns on when welcome lighting or
lighted entry turns on and the mirrors fold in
upon locking or using the switch on the door.

You can switch this feature on or off in the
information display.

91

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Note: Moisture, frost and ice build-up or
other types of contamination on the surface
of the light lens can cause non-permanent
distortion or reduced brightness of the
image. Do not use abrasive materials to
clean the lens.

Note: If you enable auto-fold and then you
fold the mirrors in to the door window glass,
the welcome mats do not turn on.

INTERIOR LAMPS

The lamps turn on under the following
conditions:

You open any door.

You press a remote control button.

You press the all lamps on button on the
overhead console.

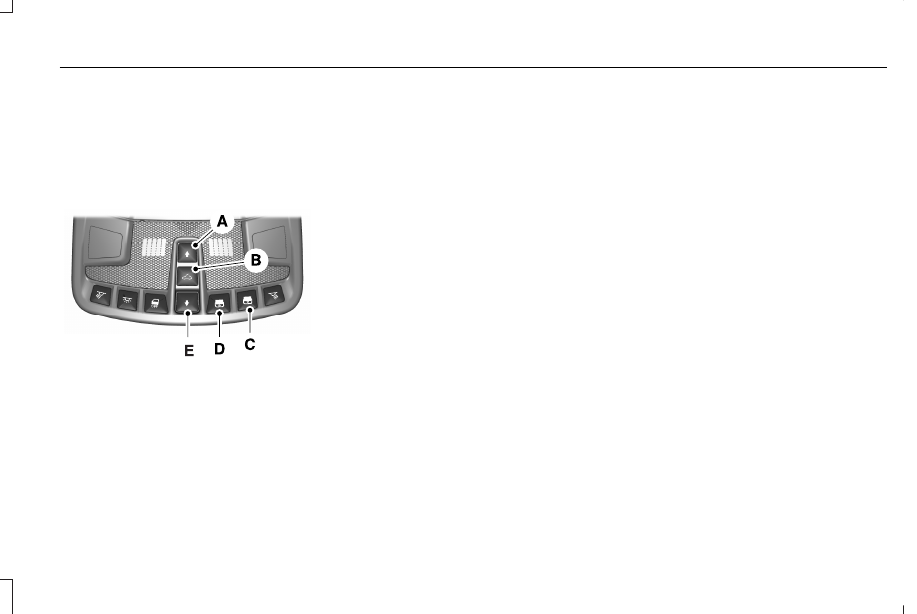

Front Interior Lamp

E262162

The front interior lamp switches are on the
overhead console.

Note: The position of each button on the
overhead console depends on your vehicle.

All Lamps On

Press to switch all interior lamps
on.

All Lamps Off

E262185

Press to switch all interior lamps
off.

Individual Dome Lamps

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

Interior Lamp Function

Press to switch the interior lamp
function on and off.

When the interior lamp function is off and
you open a door, the courtesy and door
lamps stay off.

When the interior lamp function is on and
you open a door, the courtesy and door
lamps turn on.

Note: The indicator lamp lights amber when
the door function is off.

Individual Map Lamps

Press a map lens to switch individual map
lamps on and off independently.

92

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear Interior Lamps

The rear interior lamps may be above the
rear seat or above the rear windows.

Press to switch the lamps on or off.

AMBIENT LIGHTING

 (If Equipped)

Use the touchscreen to select the following:

Select the settings option on the
feature bar.

E279027

Select ambient lighting.

E273192

Switching Ambient Lighting On

Touch a color once.

Changing the Color

Touch any color once.

Adjusting the Brightness

Drag the selected color up or down.

Switching Ambient Lighting Off

Touch the selected color once or drag the
selected color down to zero brightness.

93

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

POWER WINDOWS

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the power windows. Failure
to follow this instruction could result in
personal injury.

WARNING: When closing the power

windows, verify they are free of obstruction
and make sure that children and pets are not
in the proximity of the window openings.

E146043

Note: You may hear a pulsing noise when
just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it.  Press
again or lift it to stop the window.

One-Touch Up

Lift the switch fully and release it. Press or
lift it again to stop the window.

Resetting One-Touch Up

Start the engine.

1. Lift and hold the window switch until you

fully close the door window. Continue to
hold the switch for a few seconds after
you close the window.

2. Release the window switch.

3. Press and hold the window switch until

you fully open the door window.

4. Release the window switch.

5. Lift and hold the window switch until you

fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Bounce-Back

The window will stop automatically while
closing. It reverses some distance if there is
an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING: If you override

bounce-back, the window does not reverse
if it detects an obstacle. Take care when
closing the windows to avoid personal injury
or damage to your vehicle.

Pull up the window switch and hold within a
few seconds of the window reaching the
bounce-back position. The window travels
up with no bounce-back protection. The
window stops if you release the switch
before the window fully closes.

94

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Window Lock

E144072

Press the control to lock or unlock the rear
window controls.  It illuminates when you
lock the rear window controls.

Accessory Delay

You can use the window switches for several
minutes after you switch the ignition off or
until you open either front door.

GLOBAL OPENING AND CLOSING

You can use the remote control to operate
the windows with the ignition off.

Note: You can enable or disable this feature
in the information display or see an
authorized dealer.  See General Information
(page 110).

Note: To operate this feature, accessory
delay must not be active.

Opening the Windows

You can only open the windows for a short
time after you unlock your vehicle with the
remote control. After you unlock your vehicle,
press and hold the remote control unlock
button to open the windows and vent the
moonroof. Release the button once
movement starts. Press the lock or unlock
button to stop movement.

Closing the Windows

WARNING: When closing the windows

and moonroof, you should verify they are
free of obstructions and make sure that
children and pets are not in the proximity of
the window openings.

To close the windows and moonroof, press
and hold the remote control lock button.
Release the button once movement starts.
Press the lock or unlock button to stop
movement.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING: Do not adjust the mirrors

when your vehicle is moving.

95

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

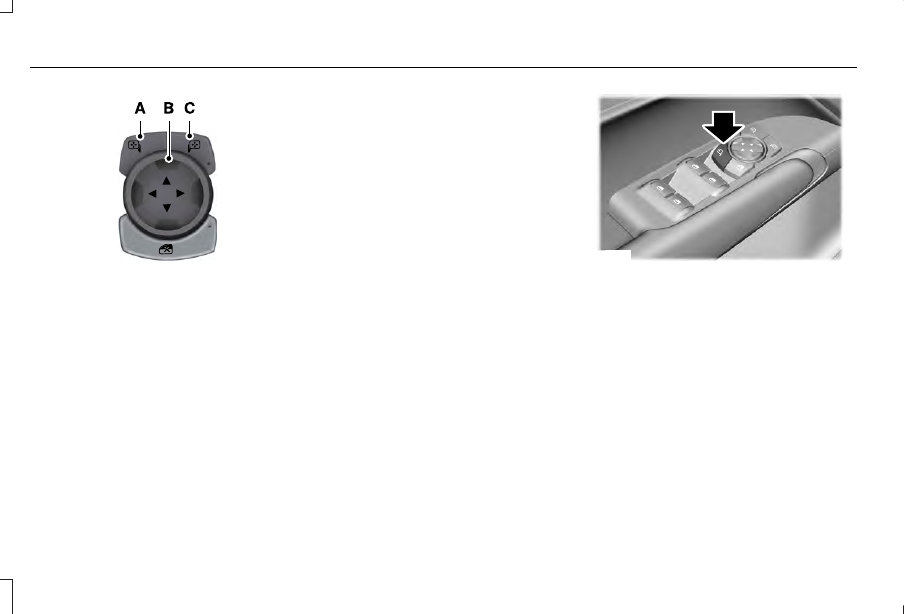

E144073

Left-hand mirror.

A

Adjustment control.

B

Right-hand mirror.

C

To adjust a mirror:

1. Select the mirror you want to adjust. The

control illuminates.

2. Adjust the position of the mirror.

3. Press the mirror switch again.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning the mirror
to its original position.

Auto-Folding Mirrors

 (If Equipped)

The exterior mirrors automatically fold in
toward the glass after you place the
transmission into park (P), turn off the vehicle,
open and close the driver's side door and
lock the vehicle. The exterior mirrors
automatically unfold and return to their
driving position after you unlock the vehicle
and open and close the driver's side door.

You can switch this feature on and off
through the information display. See General
Information
 (page 110).

E170431

You can fold the mirrors on demand by
pressing the power-folding mirror control
located on the door. The control lights and
the mirrors fold in toward the glass. Press
the control again to unfold the mirrors. The
control light turns off.

Note: If you use the power-folding control to
fold the mirrors on demand and the auto fold
feature is switched on, you must use the
control again to unfold them.

96

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Loose Mirror

If your power-folding mirrors are manually
folded, they may not work properly even
after you re-position them. You need to reset
them if:

The mirrors vibrate when you drive.

The mirrors feel loose.

The mirrors do not stay in the folded or
unfolded position.

One of the mirrors is not in its normal
driving position.

To reset the power-fold feature, use the
power-folding mirror control to fold and
unfold the mirrors. You may hear a loud noise
as you reset the power-folding mirrors. This
sound is normal. Repeat this process as
needed each time the mirrors are manually
folded.

Heated Exterior Mirrors

See Heated Exterior Mirrors (page 144).

Memory Mirrors

You can save and recall the mirror positions
through the memory function.  See Memory
Function
 (page 152).

Auto-Dimming Feature

 (If Equipped)

The driver exterior mirror automatically dims
when the interior auto-dimming mirror turns
on.

Signal Indicator Mirrors

The outer portion of the appropriate mirror
housing blinks when you switch on the
direction indicator.

Lincoln Welcome Mat

Projection lights, on the bottom of the mirror
housings, project an image onto the ground
a short distance from the vehicle.  See
Lighting (page 86).

Integrated Blind Spot Mirrors

 (If Equipped)

WARNING: Objects in the blind spot

mirror are closer than they appear.

Blind spot mirrors have an integrated convex
mirror built into the upper outboard corner
of the exterior mirrors. Their design can
increase your visibility along the side of your
vehicle.

Check the main mirror first before a lane
change, then check the blind spot mirror. If
no vehicles are present in the blind spot
mirror and the traffic in the adjacent lane is
at a safe distance, signal that you intend to
change lanes. Glance over your shoulder to
verify traffic is clear and carefully change
lanes.

97

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A

B

C

E138665

The image of the approaching vehicle is
small and near the inboard edge of the main
mirror when it is at a distance. The image
becomes larger and begins to move
outboard across the main mirror as the
vehicle approaches (A). The image transitions
from the main mirror and begins to appear
in the blind spot mirror as the vehicle
approaches (B). The vehicle transitions to
your peripheral field of view as it leaves the
blind spot mirror (C).

Blind Spot Monitor

 (If Equipped)

See Blind Spot Information System (page
239).

INTERIOR MIRROR

WARNING: Do not adjust the mirror

when your vehicle is moving.

Note: Do not clean the housing or glass of
any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.

You can adjust the interior mirror to your
preference. Some mirrors also have a second
pivot point. This lets you move the mirror
head up or down and from side to side.

Auto-Dimming Mirror

Note: Do not block the sensors on the front
and back of the mirror. Mirror performance
may be affected. A rear center passenger
or raised rear center head restraint may also
block light from reaching the sensor.

The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a clear
view when backing up.

98

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SUN VISORS

E138666

Rotate the sun visor toward the side window
and extend it rearward for extra shade.

Illuminated Vanity Mirror

E162197

Lift the cover to switch the lamp on.

SUN SHADES

Note: Do not try to move the sun shade
manually.

The power rear sun shade covers the rear
window of the vehicle.

E145986

The control is in the overhead console.

The sun shade has a one-touch up and down
feature. Press and release the control to
move the sun shade. To stop motion, press
the control a second time.

The sun shade automatically retracts when
you shift the transmission into R (Reverse).

MOONROOF

 (If Equipped)

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the moonroof. Failure to
follow this instruction could result in personal
injury.

99

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING: When closing the

moonroof, verify that it is free of obstruction
and make sure that children and pets are not
in the proximity of the roof opening.

Type 1

The sliding shade can be manually opened
or closed when the moonroof is closed. Pull
the shade toward the front of the vehicle to
close it.

The moonroof controls are on the overhead
console and have a one-touch open and
close feature. To stop it during one-touch
operation, touch the control a second time.

Opening and Closing

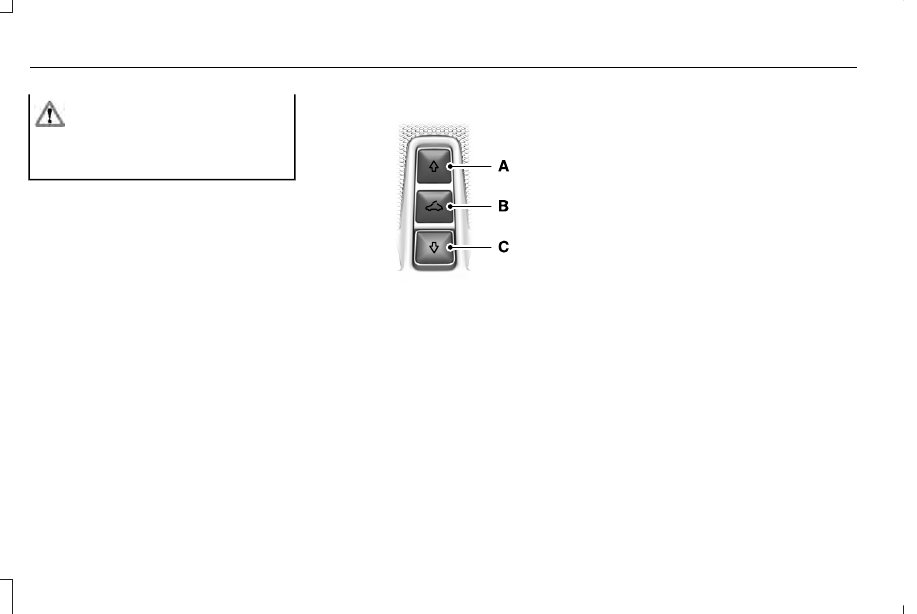

E144499

Open

A

Vent

B

Close

C

Press A to open the moonroof. It will stop
short of the fully opened position.

Note: This position helps to reduce wind
noise or rumbling which may happen with
the moonroof fully open. Press A again to
fully open the moonroof.

Press C to close the moonroof.

Venting the Moonroof

Press and release to close the sunshade. If
fully open, the sunshade stops after covering
the rear glass panel. Press and release again
to fully close the sunshade.

Bounce-Back

The moonroof reverses some distance if an
obstacle is detected while closing.

Press and hold C within two seconds of a
bounce-back event to override this function.

Type 2

Note: With the panoramic moonroof fully
open and vehicle speed increasing to about
50 mph (80 km/h), the moonroof opening
panel closes about 8 in (20 cm) to reduce
excessive wind noise at higher speeds. This
feature only functions one time per key cycle,
so that you can open the glass further if
desired.

100

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The moonroof controls are on the overhead
console and have a one-touch open and
close feature. To stop its movement during
one-touch operation, press the control a
second time.

Opening and Closing

E191272

Moonroof open.

A

Moonroof vent.

B

Sunshade open.

C

Sunshade close.

D

Moonroof close.

E

Moonroof Open

Press and release to open the moonroof.
The moonroof stops short of the fully opened
position.  Press and release the control again
to open the moonroof fully.

Moonroof Vent

Press and release to vent the moonroof.

Sunshade Open

Press and release to open the sunshade.
The sunshade opens with the moonroof. You
can also open the sunshade with the
moonroof closed.

Note: The sunshade stops short of its fully
opened position for the comfort of rear
passengers. To open the sunshade fully,
press the control again.

Sunshade Close

Press and release to close the sunshade. If
fully open, the sunshade stops after covering
the rear glass panel. Press and release again
to fully close the sunshade.

Moonroof Close

Press and release to close the moonroof
from either the open or vent positions.

Bounce-Back

The moonroof reverses some distance if an
obstacle is detected while closing.

To override this feature, press and hold the
moonroof close control within two seconds
after the roof comes to a stop following a
bounce-back reversal or two successive
reversals.

101

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Windows and Mirrors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

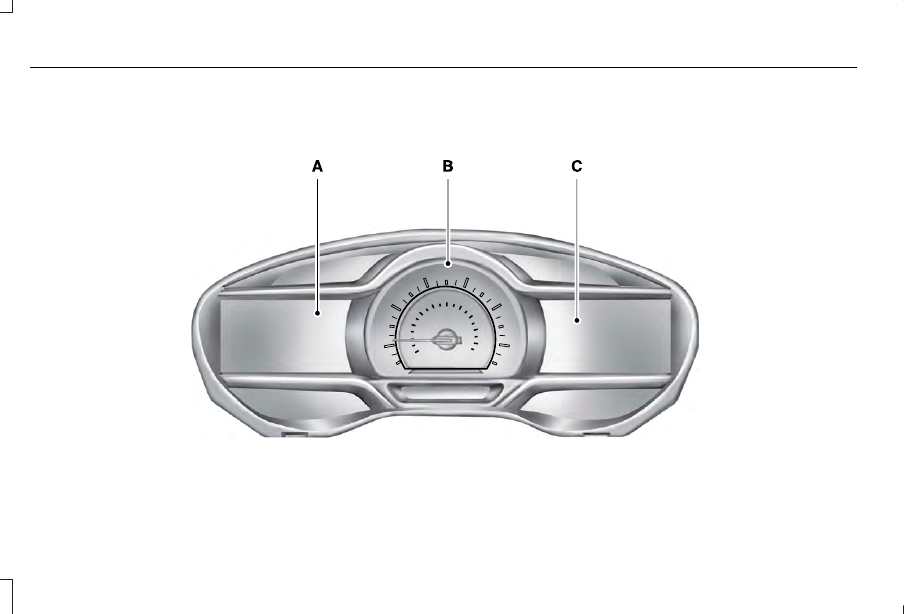

GAUGES

E271818

102

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
