CRASH SENSORS AND AIRBAG
INDICATOR

WARNING: Modifying or adding

equipment to the front end of the vehicle
(including frame, bumper, front end body
structure and tow hooks) may affect the
performance of the airbag system, increasing
the risk of injury. Do not modify the front end
of the vehicle.

Your vehicle has a collection of crash and
occupant sensors which provide information
to the restraints control module. The
restraints control module deploys (activates)
the front seatbelt system, the adaptive
collapsible steering column, driver airbag,
passenger airbag, knee airbag(s), seat
mounted side airbags, Safety Canopy and
optional rear inflatable seatbelts. Based on
the type of crash, the restraints control
module will deploy the appropriate safety
devices.

The restraints control module also monitors
the readiness of the above safety devices
plus the crash and occupant sensors. The
readiness of the safety system is indicated
by a warning indicator light in the instrument
cluster or a backup tone (if equipped).
Routine maintenance of the airbag is not
required.

A difficulty with the system is indicated by
one or more of the following:

E67017

The readiness light will not
illuminate immediately after the
ignition is turned on.

•

The readiness light will either flash or
stay lit.

•

A series of five beeps will be heard (If
equipped). The tone pattern will repeat
periodically until the problem, the light
or both are repaired.

If any of these things happen, even
intermittently, have the supplemental
restraint system serviced at an authorized
dealer immediately. Unless serviced, the
system may not function properly in the
event of a crash.

The seatbelt pretensioners and the front
airbag supplemental restraint system are
designed to activate when the vehicle
sustains frontal deceleration sufficient to
cause the restraints control module to deploy
a safety device.

The fact that the seatbelt pretensioners or
front airbags did not activate for both front
seat occupants in a crash does not mean
that something is wrong with the system.
Rather, it means the restraints control module
determined the accident conditions (crash
severity, belt usage) were not appropriate to
activate these safety devices.
•

The design of the front airbags is to
activate only in frontal and near-frontal
crashes (not rollovers, side impacts or
rear impacts) unless the crash causes
sufficient frontal deceleration.

•

The seatbelt pretensioners and rear
inflatable seatbelts are designed to
activate in frontal, near-frontal and side
crashes and rollovers.

•

The knee airbag(s) may deploy based on
crash severity and occupant conditions.

55

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Supplementary Restraints System

•

The design of the side airbags is to inflate
in certain side impact crashes. Side
airbags may activate in other types of
crashes if the vehicle experiences
sufficient sideways motion or
deformation.

•

The design of the Safety Canopy is to
inflate in certain side impact crashes or
rollover events. The Safety Canopy may
activate in other types of crashes if the
vehicle experiences sufficient sideways
motion or deformation, or a certain
likelihood of rollover.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as
possible. Airbags must be disposed of by
qualified personnel.

56

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Supplementary Restraints System

GENERAL INFORMATION ON
RADIO FREQUENCIES

This device complies with Part 15 of the FCC
Rules and with Licence exempt RSS
Standards of Industry Canada. Operation is
subject to the following two conditions:
•

This device may not cause harmful
interference, and

•

This device must accept any interference
received, including interference that may
cause undesired operation.

WARNING: Changes or modifications

not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

The typical operating range for your
transmitter is approximately 33 ft (10 m).
Vehicles with the remote start feature will
have a greater range. One of the following
could cause a decrease in operating range:
•

weather conditions

•

nearby radio towers

•

structures around the vehicle

•

other vehicles parked next to your
vehicle

Other short-distance radio transmitters, such
as amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems may operate on the same
frequency as your remote control. If other
transmitters are operating on those
frequencies, you may not be able to use your
remote control. Using your remote control
near some types of electronic equipment,
such as USB devices, computers or cell
phones can interfere with remote operation.
Operating your remote control near metal or
metallic-finished purses, bags or clothing can
interfere with remote operation. You can lock
and unlock the doors with the key.

Note: Make sure to lock your vehicle before
leaving it unattended.

Note: If you are in range, the remote control
will operate if you press any button
unintentionally.

Intelligent Access

The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
•

You touch the inside of any exterior door
handle within 3 ft (1 m) proximity of an
intelligent access key.

•

You press the luggage compartment
button.

•

You press a button on the transmitter.

If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation.  See Remote Control (page 58).

57

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Keys and Remote Controls

REMOTE CONTROL

Intelligent Access Key

Note: The ready to drive indicator may be
off and you may not be able to shift out of
park (P) unless the intelligent access key is
inside your vehicle.

E218688

The intelligent access keys operate the
power locks and the remote start system.
The key must be in your vehicle to use the
push button start.

E151795

Note:  Your vehicle keys came with a
security label that provides important key
cut information.  Keep the label in a safe
place for future reference.

Removable Key Blade

The intelligent access key also contains a
removable key blade that you can use to
unlock your vehicle.

E218689

Push the release button and pull the key
blade out.

Replacing the Battery

Note: Refer to local regulations when
disposing of transmitter batteries.

Note: Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board.

58

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Keys and Remote Controls

Note:  Replacing the battery does not erase
the programmed key from your vehicle.  The
transmitter should operate normally.

A message appears in the information
display when the remote control battery is
low. See Information Messages (page 121).

The remote control uses one coin-type
three-volt lithium battery CR2450 or
equivalent.

E218689

1. Push the release button and pull the key

blade out.

E218690

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

E218691

3. Insert a suitable tool, for example a

screwdriver, in the position shown and
carefully remove the battery.

4. Install a new battery with the + facing

upward.

59

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Keys and Remote Controls

5. Reinstall the battery cover and the key

blade.

Car Finder

E138623

Press the button twice within three
seconds.  A tone sounds and the
direction indicators flash.  We

recommend you use this method to locate
your vehicle, rather than using the panic
alarm.

Sounding the Panic Alarm

Note: The panic alarm only operates when
the ignition is off.

E138624

Press the button to sound the
panic alarm.  Press the button
again or switch the ignition on to

turn it off.

Remote Start

WARNING: To avoid exhaust fumes,

do not use remote start if your vehicle is
parked indoors or in areas that are not well
ventilated.

Note: Do not use remote start if your fuel
level is low.

E138625

The remote start button is on the
transmitter.

This feature allows you to start your vehicle
from the outside.  The transmitter has an
extended operating range.

You can configure your automatic climate
control to operate when you remote start
your vehicle. See Climate Control (page 141).

Many states and provinces have restrictions
for the use of remote start. Check your local
and state or provincial laws for specific
requirements regarding remote start
systems.

The remote start system does not work if any
of the following occur:
•

The ignition is on.

•

The anti-theft alarm triggers.

•

You switch the feature off in the
information display.

•

The hood is open.

•

The transmission is not in park (P).

•

The battery voltage is below the
minimum operating voltage.

Remote Control Feedback (If Equipped)

An LED on the remote control provides status
feedback of remote start or stop commands.

Status

LED

Remote start

successful

Solid green

Remote stop

successful

Solid red

Request failed or

status not received

Blinking red

Status incomplete

Blinking green

60

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Keys and Remote Controls

Remote Starting your Vehicle

Note:  You must press each button within
three seconds of each other.  If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators do
not flash twice and the horn does not sound.

E138626

The label on your transmitter details the
starting procedure.

1. Press the lock button to lock all the

doors.

2. Press the remote start button twice.  The

exterior lamps flash twice.

A tone sounds if the system fails to start.

Note: You must press the push button
ignition switch on the instrument panel once
while applying the brake pedal before
driving your vehicle.

The power windows do not work during
remote start and the radio does not turn on
automatically.

The parking lamps remain on and your
vehicle will run for 5, 10 or 15 minutes,
depending on the setting.

Extending the Engine Running Time

To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running.  If
the duration is set to 15 minutes, the duration
extends by another 15 minutes.  For example,
if your vehicle had been running from the
first remote start for 5 minutes, your vehicle
continues to run now for a total of 30
minutes.  You can extend the engine running
time duration to a maximum of 30 minutes.

Wait at least five seconds before remote
starting after the engine stops running.

Turning Your Vehicle Off After Remote
Starting

E138625

Press the button once.  Your
vehicle and the parking lamps turn
off.

You may have to be closer to your vehicle
than when starting due to ground reflection
and the added noise of your running vehicle.

You can switch this feature on or off in the
information display. See General Information
(page 110).

Memory Feature

You can program your intelligent access key
to recall memory positions. See Memory
Function (page 152).

REPLACING A LOST KEY OR
REMOTE CONTROL

Replacement keys or remote controls can
be purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle.  See Passive
Anti-Theft System (page 77).

61

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Keys and Remote Controls

PRINCIPLE OF OPERATION

MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. You can program the
restrictions to all keys except one. Any keys
that you did not program are administrator
keys or admin keys.

You can use admin keys to:
•

Create a MyKey with certain vehicle
restrictions.

•

Program certain MyKey settings.

•

Clear all MyKey restrictions.

After you program a MyKey, you can view
the following information through the
information display:
•

The total number of admin keys and
MyKeys for your vehicle.

•

The total distance a MyKey driver
traveled with your vehicle.

Note: Every MyKey receives the same
restrictions and settings. You cannot
program them individually.

Note: For vehicles equipped with a
push-button start switch: When both a MyKey
and an admin key are present when you
start your vehicle, the system recognizes the
admin key only.

Standard Settings

Not every vehicle includes the features listed
below. If your vehicle has this equipment,
then you cannot change the following
settings when using a MyKey:
•

Seatbelt reminder or Belt-Minder™. MyKey
mutes the audio system until drivers, and
in some instances, passengers, fasten
their seatbelts. Note: If your vehicle
includes an AM/FM radio or a very basic
audio system, then the radio may not
mute.

•

Earlier low-fuel warning. The low-fuel
warning activates earlier for MyKey
drivers, giving them more time to refuel.

•

Certain driver alerts, stability systems or
parking aids turn on automatically when
you use the MyKey system. For example,
Blind Spot Information System (BLIS),
cross traffic alert, lane departure warning
or forward collision warning. Note: MyKey
drivers may be able to turn the lane
departure warning feature off, but this
feature turns back on automatically with
every new key cycle.

•

Restricted touchscreen operation in some
markets. For example, MyKey may
prevent manual navigation destination
input while the vehicle is in any gear
other than park (P) or when the vehicle
reaches a certain rate of speed.

•

Satellite radio adult content restrictions,
if this feature is available in your market.

Optional Settings

You can configure certain vehicle feature
settings when you first create a MyKey. You
can also change the settings afterward with
an admin key.

62

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

MyKey™

Note: Not every feature applies to every
vehicle in every market. When they are
available for your vehicle, then they appear
in your information display, providing choices
to switch them on or off, or to select a more
specific setting.

•

Various vehicle speed limits so the
MyKey driver cannot exceed certain
speeds. The information display shows
warnings followed by an audible tone
when the MyKey driver reaches the set
speed. You cannot override the set
speed by fully depressing the accelerator
pedal.

WARNING: Do not set MyKey

maximum speed limit to a limit that will
prevent the driver from maintaining a safe
speed considering posted speed limits and
prevailing road conditions. The driver is
always responsible to drive in accordance
with local laws and prevailing conditions.
Failure to do so could result in accident or
injury.

•

Various vehicle speed reminders so
MyKey drivers know when their vehicle
speed approaches the limits. Warnings
appear in your information display and a
tone sounds when the MyKey drivers
exceed the set vehicle speed.

•

The audio system's maximum volume
limits to 45% so MyKey drivers can
concentrate on the road. A message
appears in the information display when
MyKey drivers attempt to exceed the
limited volume. MyKey also disables the
automatic volume control. Note: If your
vehicle includes an AM/FM radio or a
very basic audio system, then the radio
may not limit.

•

Always on setting. This setting forces
certain features to remain on and active
for MyKey drivers. For example, E911 or
emergency assistance and the do not
disturb features stay on even if a MyKey
driver uses the feature's control to switch
it off. When you select, you will not be
able to turn off Advance Trac or traction
control (if your vehicle has this feature).

CREATING A MYKEY

Use the information display to create a
MyKey:

1. Insert the key you want to program into

the ignition.  See Starting a Hybrid
Electric Vehicle System (page 167). If your
vehicle is equipped with a push-button
start, place the remote control into the
backup slot.  See Passive Anti-Theft
System (page 77).

2. Switch the ignition on.

3. Access the main menu in the information

display and then scroll through the
menus to change the settings of your
MyKey. From the MyKey menu select the
option Create MyKey.  See Information
Displays (page 110).

4. When prompted, hold the OK button until

you see a message informing you to label
this key as a MyKey. The programmed
restrictions apply when you key off, open
and close the driver door and restart your
vehicle with the programmed key or
transmitter.

63

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

MyKey™

MyKey is successfully created. Make sure
you label it so you can distinguish it from the
admin keys.

You can also program configurable settings
for the key(s). See Programming and
Changing Configurable Settings.

Programming and Changing
Configurable Settings

Use the information display to access your
configurable MyKey settings.

1. Switch the ignition on using an admin key

or transmitter you want to program.

2. Access the main menu in the information

display and then scroll through the
menus to change the settings of your
MyKey.  See Information Displays (page
110).

3. Follow the instructions in the display.

Note: You can clear or change your MyKey
settings at any time during the same key
cycle as you created the MyKey. Once you
have switched the vehicle off, however, you
will need an admin key to change or clear
your MyKey settings.

CLEARING ALL MYKEYS

When you clear your MyKeys, you remove
all restrictions and return all MyKeys to their
original admin key status at once. To clear
all MyKeys of all MyKey settings, use the
information display.

1. Switch the ignition on using an admin

key.

2. Access the main menu in the information

display and then scroll through the
menus to begin clearing your MyKey
programming.  See Information Displays
(page 110).

3. Follow the instructions in the display.

4. A confirmation message appears in the

display after you finish clearing your
MyKeys.

Note: When you clear your MyKeys, you
remove all restrictions and return all MyKeys
to their original admin key status. You cannot
remove the MyKey restrictions individually.

CHECKING MYKEY SYSTEM
STATUS

You can find information about your
programmed MyKeys by using the
information display.  See Information
Displays (page 110).

MyKey Distance

Tracks the distance when drivers use a
MyKey. The only way to delete the
accumulated distance is by using an admin
key to clear all MyKeys. If the distance does
not accumulate as expected, then the
intended user is not using the MyKey, or an
admin key user recently cleared and then
recreated a MyKey.

Number of MyKeys

Indicates the number of MyKeys
programmed to your vehicle. Use this feature
to detect how many MyKeys you have for
your vehicle and determine when all MyKeys
have been deleted.

64

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

MyKey™

Number of Admin Keys

Indicates how many admin keys are
programmed to your vehicle. Use this feature
to determine how many admin keys you have
for your vehicle, and detect if an additional
MyKey has been programmed.

USING MYKEY WITH REMOTE
START SYSTEMS

MyKey is not compatible with non
Lincoln-approved, aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for a
Lincoln-approved remote start system.

MYKEY TROUBLESHOOTING

Potential Causes

Condition

The key or transmitter used to start the vehicle does not have admin privileges.

I cannot create a MyKey.

Vehicles with keyless start: Make sure you place the transmitter into the backup slot.  See Passive
Anti-Theft System (page 77).
The key or transmitter used to start the vehicle is the only admin key. There always has to be at
least one admin key.
The passive anti-theft system is disabled or in unlimited mode.

The transmitter used to start your vehicle does not have admin privileges.

I cannot program the configurable
settings.

There are no MyKeys programmed to the vehicle. See Creating a MyKey (page 63).

The key or transmitter used to start the vehicle does not have admin privileges.

I cannot clear the MyKeys.

No MyKeys are created. See Creating a MyKey (page 63).

Purchase a new key or transmitter from an authorized dealer.

I lost the only admin key.

65

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

MyKey™

Potential Causes

Condition

Program a spare key or transmitter. You may need to see an authorized dealer.  See Passive Anti-
Theft System (page 77).

I lost a key.

The MyKey user is not using the MyKey.

The MyKey distance does not accumu-
late.

An admin key holder cleared the MyKeys and created new MyKeys.
The key system has been reset.

An admin transmitter is present at vehicle start.

No MyKey functions with the trans-
mitter.

There are no MyKeys programmed to your vehicle.  See Creating a MyKey (page 63).

66

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

MyKey™

LOCKING AND UNLOCKING

You can use the power door lock control or
the remote control to lock and unlock your
vehicle.

Power Door Locks

The power door lock control is on the driver
and front passenger door panels.

E138628

Unlock.

A

Lock.

B

Door Lock Indicator

An LED on each door window trim illuminates
when you lock the door.  It remains on for
up to 10 minutes after you switch the ignition
off.

Door Lock Switch Inhibitor

When you electronically lock your vehicle,
the power door lock switch and interior trunk
release switch will not operate after 20
seconds.  You must unlock your vehicle with
the remote control or keyless keypad, or
switch the ignition on, to restore function to
these switches.  You can switch this feature
on or off in the information display.  See
Information Messages (page 121).

Note: Switch the ignition on and off after
changing the setting in the information
display.

Rear Door Unlocking and Opening

Pull the interior door handle twice to unlock
and open a rear door.  The first pull unlocks
the door and the second pull opens the door.

Remote Control

You can use the remote control at any time.

Unlocking the Doors (Two-Stage Unlock)

E138629

Press the button to unlock the
driver door.

Press the button again within three

seconds to unlock all doors.  A tone sounds
and the direction indicators flash.

Press and hold both the lock and unlock
buttons on the remote control for three
seconds to change between driver door or
all doors unlock mode.  The direction
indicators will flash twice to indicate a
change to the unlocking mode.  Driver door
mode only unlocks the driver door when you
press the unlock button once.  All door mode
unlocks all doors when you press the unlock
button once.  The unlocking mode applies
to the remote control, keyless entry keypad
and intelligent access.  You can also change
between the unlocking modes using the
information display.  See Information
Messages (page 121).

67

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Doors and Locks

Locking the Doors

E138623

Press the button to lock all doors.
A tone sounds and the direction
indicators flash.

Press the button again within three seconds
to confirm that all the doors are closed.  The
doors lock again, a tone sounds and the
direction indicators flash if all the doors and
the luggage compartment are closed.

Mislock

If any door or the luggage compartment is
open, or if the hood is open on vehicles with
an anti-theft alarm or remote start, a tone
sounds and the direction indicators do not
flash.  You can switch this feature on or off
in the information display.  See Information
Messages (page 121).

Opening the Luggage Compartment

E138630

Press twice within three seconds
to open the luggage compartment.

Make sure to close and latch the luggage
compartment before driving your vehicle. An
unlatched luggage compartment may cause
objects to fall out or block your view.

Note: The luggage compartment release
button only works when your vehicle speed
is below 3 mph (5 km/h).

Activating Intelligent Access

General Information

You can unlock and lock the vehicle without
taking the keys out of your pocket or purse
when your intelligent access key is within
3 ft (1 m) of your vehicle. Intelligent access
uses a sensor on the back of the door handle
for unlocking and a separate sensor on the
face of each door handle for locking.

The system does not function if:
•

Your vehicle battery has no charge.

•

The key battery has no charge.

•

The passive key frequencies are jammed.

Note: The system may not function if the key
is close to metal objects or electronic
devices, for example keys or a cell phone.

Note: If the system does not function, use
the key blade to lock and unlock your
vehicle. See Remote Control (page 58).

Unlocking Using Intelligent Access

E248553

With your intelligent access key within 3 ft
(1 m) of your vehicle, touch the unlock sensor
on the back of the door handle for a brief
period and then pull on the door handle to
unlock, being careful to not touch the lock
sensor at the same time or pulling the door
handle too quickly. The intelligent access
system requires a brief delay to authenticate
your intelligent access key fob.

Locking Using Intelligent Access

E248554

68

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Doors and Locks

With your intelligent access key within 3 ft
(1 m) of your vehicle, touch the outer door
handle lock sensor for approximately one
second to lock, being careful to not touch
the unlock sensor on the back of the door
handle at the same time. After locking, you
can immediately pull on the door handle to
confirm locking occurred without
inadvertently unlocking.

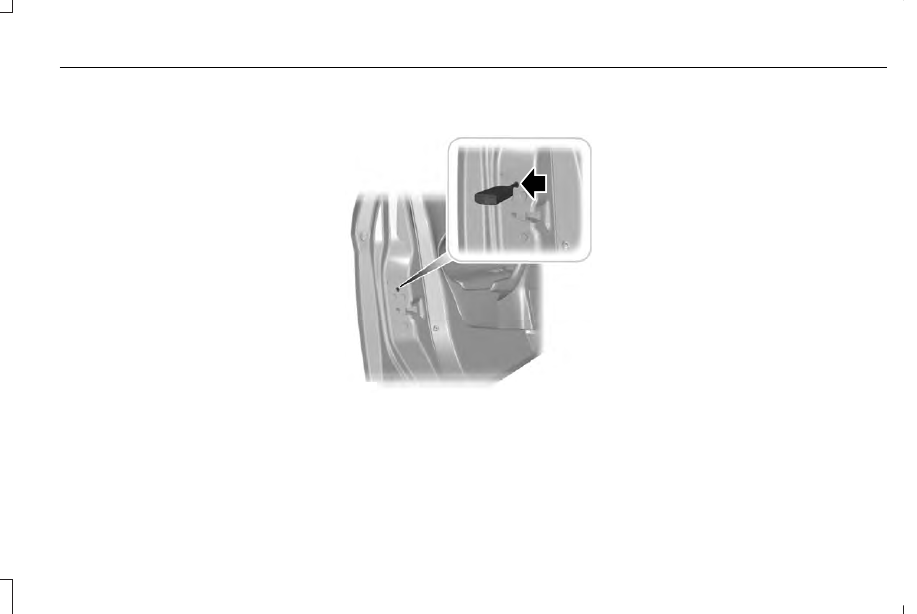

Locking and Unlocking the Doors with
the Key Blade

E112203

If the central locking function does not
operate, lock the doors individually using the
key in the position shown.

On the driver side, turn the key clockwise to
lock. On the passenger side, turn the key
counterclockwise to lock.

Smart Unlocks for Intelligent Access
Keys

This feature helps to prevent you from
locking your intelligent access key inside
your vehicle's passenger compartment or
rear cargo area.

When you electronically lock your vehicle
with any door open, the transmission is in
park (P) and the ignition is off, the system
searches for an intelligent access key inside
your vehicle after you close the last door.  If
the system finds a key, all of the doors
immediately unlock and a tone sounds,
indicating a key is inside.

You can override the smart unlock feature
and intentionally lock the intelligent access
key inside your vehicle.

To do this, lock your vehicle after you have
closed all the doors by:
•

Using the keyless entry keypad.

•

Pressing the lock button on another
intelligent access key.

•

Touching the locking area on the front of
the door handle with another intelligent
access key in your hand.

69

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Doors and Locks

When you open one of the front doors and
lock your vehicle using the power door lock
control, all doors will lock then unlock if:
•

The ignition is on.

•

The ignition is off and the transmission
is not in park (P).

Autolock

 (If Equipped)

Autolock locks all the doors when:
•

All doors are closed.

•

The ignition is on.

•

You shift into any gear putting your
vehicle in motion.

•

Your vehicle reaches a speed greater
than 12 mph (20 km/h).

Autolock repeats when:
•

You open then close any door while the
ignition is on and your vehicle speed is
9 mph (15 km/h) or lower.

•

Your vehicle reaches a speed greater
than 12 mph (20 km/h).

Autounlock

Autounlock unlocks all the doors when:
•

The ignition is on, all the doors are
closed, and your vehicle has been
moving at a speed greater than 12 mph
(20 km/h).

•

Your vehicle comes to a stop and you
switch the ignition off or to the accessory
position.

•

You open the driver door within 10
minutes of switching the ignition off or to
accessory.

Note: The doors will not autounlock if you
electronically lock your vehicle after you
switch the ignition off and before you open
the driver door.

Enabling or Disabling Autounlock

You can enable or disable the autounlock
feature in the information display or an
authorized dealer can do it for you. See
General Information (page 110).

Illuminated Entry

The interior lamps and some exterior lamps
illuminate when you unlock the doors with
the remote control.

The illuminated entry system turns off the
lights if:
•

The ignition is on.

•

You press the remote control lock button.

•

After 25 seconds of illumination.

The lights do not turn off if:
•

You turn them on with the lamp control.

•

Any door is open.

Illuminated Exit

The interior lamps and some exterior lamps
illuminate when all doors are closed and you
switch the ignition off.

The lamps turn off when all the doors remain
closed and:
•

25 seconds have elapsed.

•

You press the push button ignition
switch.

70

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Doors and Locks
