Lincoln MKZ Hybrid (2019 year). Manual - part 2

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according to
the child restraint manufacturer's
instructions. Be sure the belt webbing is
not twisted.

E142531

4. Insert the belt tongue into the proper

buckle (the buckle closest to the direction
the tongue is coming from) for that
seating position until you hear a snap and
feel the latch engage. Make sure the
tongue is latched securely by pulling on
it.

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder portion
of the belt and pull downward until you
pull all of the belt out.

Note: The automatic locking mode is
available on the front passenger and rear
seats.

6. Allow the belt to retract to remove slack.

The belt clicks as it retracts to indicate it
is in the automatic locking mode.

23

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

7. Try to pull the belt out of the retractor to

make sure the retractor is in the
automatic locking mode (you should not
be able to pull more belt out). If the
retractor is not locked, unbuckle the belt
and repeat Steps 5 and 6.

E142533

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining slack
that exists once the extra weight of the

child is added to the child restraint. It also
helps to achieve the proper snugness of
the child restraint to your vehicle.
Sometimes, a slight lean toward the
buckle provides extra help to remove
remaining slack from the belt.

9. Attach the tether strap (if the child

restraint is equipped).

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and back
to make sure the seat is securely held
in place. To check this, grab the seat at
the belt path and attempt to move it
side to side and forward and back.
There should be no more than 1 in
(2.5 cm) of movement for proper
installation.

We recommend checking with a NHTSA
Certified Child Passenger Safety Technician
to make certain the child restraint is properly
installed. In Canada, check with Transport
Canada for referral to a Child Car Seat Clinic.

24

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

Inflatable Seatbelts

E142528

1. Position the child safety seat in a seat

with a combination lap and shoulder belt.

E146522

2. After positioning the child safety seat in

the proper seating position, grasp the
shoulder belt and lap belt together
behind the belt tongue.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according to
the child restraint manufacturer's
instructions. Be sure the belt webbing is
not twisted.

25

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

E146523

4. Insert the belt tongue into the proper

buckle (the buckle closest to the direction
the tongue is coming from) for that
seating position until you hear a snap and
feel the latch engage. Make sure the
tongue is latched securely by pulling on
it.

E146524

5. To put the retractor in the automatic

locking mode, grasp the lap portion of
the inflatable seatbelt and pull upward
until you pull all of the belt out.

Note: The automatic locking mode is
available on the front passenger and rear
seats.

Note: Unlike the standard seatbelt, the
inflatable seatbelt's unique lap portion locks
the child restraint for installation. The ability
for the shoulder portion of the belt to move
freely is normal, even after the lap belt has
been put into the automatic locking mode.

Note: The lock-off device on some child
restraints may not accommodate the
shoulder portion of the inflatable seatbelt.
Follow all instructions provided by the
manufacturer of the child restraint regarding
the necessary and proper use of the lock-off
device. In some instances, these devices
have been provided only for use in vehicles
with seatbelt systems that would otherwise
require a locking clip.

6. Allow the belt to retract to remove slack.

The belt clicks as it retracts to indicate it
is in the automatic locking mode.

7. Try to pull the belt out of the retractor to

make sure the retractor is in the
automatic locking mode (you should not
be able to pull more belt out). If the
retractor is not locked, unbuckle the belt
and repeat Steps 5 and 6.

26

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

E146525

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling down on the lap belt in order to
force slack from the belt. This is
necessary to remove the remaining slack
that will exist once the extra weight of
the child is added to the child restraint.
It also helps to achieve the proper
snugness of the child restraint to your
vehicle. Sometimes, a slight lean toward
the buckle will additionally help to
remove remaining slack from the belt.

9. Attach the tether strap (if the child

restraint is equipped).

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and back
to make sure the seat is securely held
in place. To check this, grab the seat at
the belt path and attempt to move it
side to side and forward and back.
There should be no more than 1 in
(2.5 cm) of movement for proper
installation.

We recommend checking with a NHTSA
Certified Child Passenger Safety Technician
to make certain the child restraint is properly
installed. In Canada, check with Transport
Canada for referral to a Child Car Seat Clinic.

Using Lower Anchors and Tethers for

CHildren (LATCH)

WARNING: Do not attach two child

safety restraints to the same anchor. In a
crash, one anchor may not be strong enough
to hold two child safety restraint attachments
and may break, causing serious injury or
death.

WARNING: Depending on where you

secure a child restraint, and depending on
the child restraint design, you may block
access to certain seatbelt buckle assemblies
and LATCH lower anchors, rendering those
features potentially unusable. To avoid risk
of injury, make sure occupants only use
seating positions where they are able to be
properly restrained.

27

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

The LATCH system is composed of three
vehicle anchor points: two lower anchors
where the seat backrest and seat cushion
meet (called the seat bight) and one top
tether anchor behind that seating position.

LATCH compatible child safety seats have
two rigid or webbing mounted attachments
that connect to the two lower anchors at the
LATCH equipped seating positions in your
vehicle. This type of attachment method
eliminates the need to use seatbelts to attach
the child restraint. However, you can still use
the seatbelt to attach the child restraint. For
forward-facing child restraints, the top tether
strap must also be attached to the proper
top tether anchor if a top tether strap has
been provided with your child restraint.

E142535

Your vehicle has LATCH lower anchors for
child restraint installation at the seating
positions marked with the child restraint
symbol.

E144054

The LATCH anchors are at the rear section
of the rear seat between the cushion and
seat backrest below the symbols as shown.
Follow the child restraint manufacturer's
instructions to properly install a child restraint
with LATCH attachments. Follow the
instructions on attaching child safety seats
with tether straps.

Attach LATCH lower attachments of the child
restraint only to the anchors shown.

Use of Inboard Lower Anchors from the
Outboard Seating Positions (Center Seating
Use)

WARNING: The standardized spacing

for LATCH lower anchors is 11 in (280 mm)
center to center. Do not use LATCH lower
anchors for the center seating position
unless the child restraint manufacturer's
instructions permit and specify using anchors
spaced at least as far apart as those in this
vehicle.

28

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

The lower anchors at the center of the
second row rear seat are spaced 18 in
(46 cm) apart. You cannot install a child
restraint with rigid LATCH attachments at the
center seating position. You can only use
LATCH compatible child restraints (with
attachments on belt webbing) at this seating
position provided that the child restraint
manufacturer's instructions permit use with
the anchor spacing stated. Do not attach a
child restraint to any lower anchor if an
adjacent child restraint is attached to that
anchor.

Each time you use the safety seat, check that
the seat is properly attached to the lower
anchors and tether anchor, if applicable. Tug
the child restraint from side to side and
forward and back where it is secured to your
vehicle. The seat should move less than 1 in
(2.5 cm) when you do this for a proper
installation.

If the safety seat is not anchored properly,
the risk of a child being injured in a crash
greatly increases.

Combining Seatbelt and LATCH Lower
Anchors for Attaching Child Safety Seats

When used in combination, either the
seatbelt or the LATCH lower anchors may
be attached first, provided a proper
installation is achieved. Attach the tether
strap afterward, if included with the child
restraint.

Using Tether Straps

Many forward-facing child safety
seats include a tether strap which
extends from the back of the child

safety seat and hooks to an anchoring point
called the top tether anchor. Tether straps
are available as an accessory for many older
safety seats.

Contact the manufacturer of your child
restraint for information about ordering a
tether strap, or to obtain a longer tether strap
if the tether strap on your safety seat does
not reach the appropriate top tether anchor
in your vehicle.

Once you install the child safety seat using
either the seatbelt, the lower anchors of the
LATCH system, or both, you can attach the
top tether strap.

The tether strap anchors in your vehicle are
in the following positions (shown from top
view):

E142537

Perform the following steps to install a child
safety seat with tether anchors:

29

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

Note: If you install a child restraint with rigid
LATCH attachments, do not tighten the
tether strap enough to lift the child restraint
off your vehicle seat cushion when the child
is seated in it. Keep the tether strap just snug
without lifting the front of the child restraint.
Keeping the child restraint just touching your
vehicle seat gives the best protection in a
severe crash.

1. Route the child safety seat tether strap

over the back of the seat. For the
outermost seating positions, route the
tether strap under the head restraint and
between the head restraint posts. For the
center seating positions, route the tether
strap over the top of the head restraint.
If needed, you can also remove the head
restraints.

E144274

2. Locate the correct anchor for the

selected seating position, then open the
tether anchor cover.

E144275

3. Clip the tether strap to the anchor as

shown.

4. Tighten the child safety seat tether strap

according to the manufacturer's
instructions.

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend its
use.

BOOSTER SEATS

WARNING: Do not put the shoulder

section of the seatbelt or allow the child to
put the shoulder section of the seatbelt
under their arm or behind their back. Failure
to follow this instruction could reduce the
effectiveness of the seatbelt and increase
the risk of injury or death in a crash.

Note: Some booster seat seatbelt guides
may not accommodate the shoulder portion
of the inflatable seatbelt.

Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child safety seat (generally
children who are less than 57 in (1.45 m) tall,
are greater than age four (4) and less than
age twelve (12), and between 40 lb (18 kg)
and 80 lb (36 kg) and upward to 100 lb
(45 kg) if recommended by your child
restraint manufacturer). Many state and
provincial laws require that children use
approved booster seats until they reach age
eight, a height of 57 in (1.45 m) tall, or 80 lb
(36 kg).

30

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

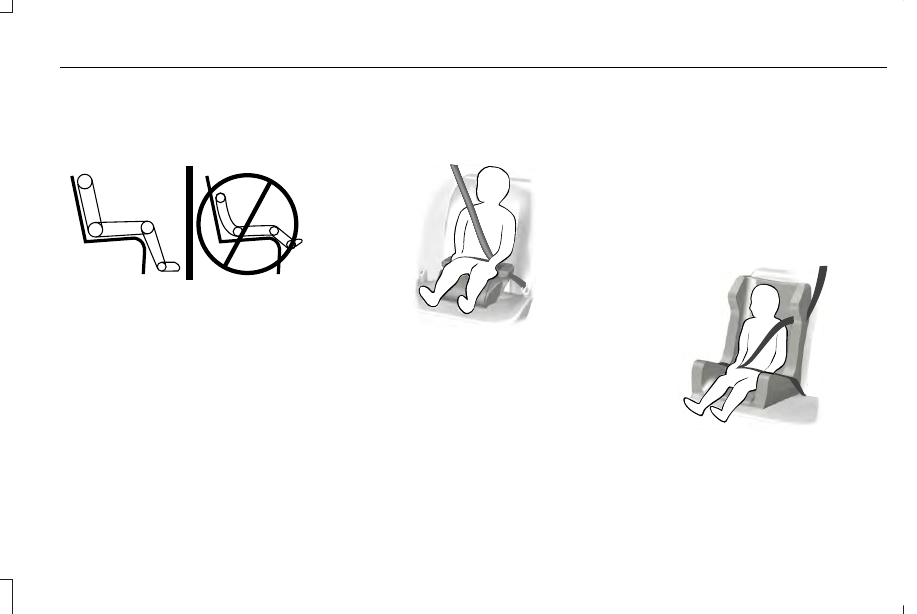

Booster seats should be used until you can
answer YES to ALL of these questions when
seated without a booster seat:

E142595

•

Can the child sit all the way back against
their vehicle seat backrest with knees
bent comfortably at the edge of the seat
cushion?

•

Can the child sit without slouching?

•

Does the lap belt rest low across the
hips?

•

Is the shoulder belt centered on the
shoulder and chest?

•

Can the child stay seated like this for the
whole trip?

Always use booster seats in conjunction with
your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

•

Backless booster seats

If your backless booster seat has a
removable shield, remove the shield. If a
vehicle seating position has a low seat
backrest or no head restraint, a backless
booster seat may place your child's head (as
measured at the tops of the ears) above the
top of the seat. In this case, move the
backless booster to another seating position
with a higher seat backrest or head restraint
and lap and shoulder belts, or consider using
a high back booster seat.

E70710

•

High back booster seats

31

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high back
booster seat would be a better choice.

Children and booster seats vary in size and
shape. Choose a booster that keeps the lap
belt low and snug across the hips, never up
across the stomach, and lets you adjust the
shoulder belt to cross the chest and rest
snugly near the center of the shoulder. The

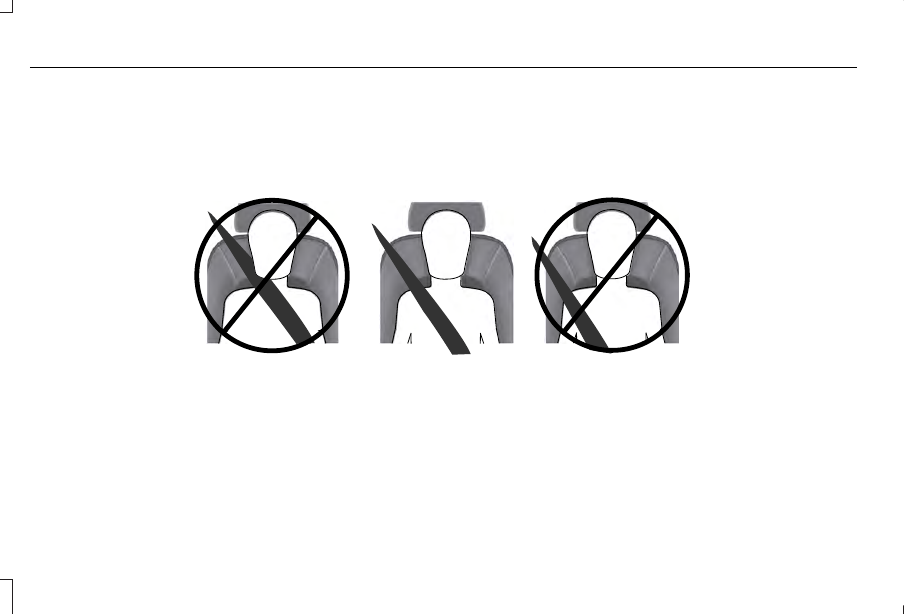

following drawings compare the ideal fit
(center) to a shoulder belt uncomfortably
close to the neck and a shoulder belt that
could slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.

E142596

32

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

E142597

If the booster seat slides on the vehicle seat
upon which it is being used, placing a
rubberized mesh sold as shelf or carpet liner
under the booster seat may improve this
condition. Do not introduce any item thicker
than this under the booster seat. Check with
the booster seat manufacturer's instructions.

CHILD RESTRAINT POSITIONING

WARNING: Do not place a rearward

facing child restraint in front of an active
airbag. Failure to follow this instruction could
result in personal injury or death.

WARNING: Properly secure children

12 years old and under in a rear seating
position whenever possible. If you are unable
to properly secure all children in a rear
seating position, properly secure the largest
child on the front seat. If you must use a
forward facing child restraint on the front
seat, move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death.

33

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

WARNING: Always carefully follow the

instructions and warnings provided by the
manufacturer of any child restraint to
determine if the restraint device is
appropriate for your child's size, height,
weight, or age. Follow the child restraint
manufacturer's instructions and warnings
provided for installation and use in
conjunction with the instructions and
warnings provided by your vehicle
manufacturer. A safety seat that is improperly
installed or utilized, is inappropriate for your
child's height, age, or weight or does not
properly fit the child may increase the risk of
serious injury or death.

WARNING: Do not allow a passenger

to hold a child on their lap when your vehicle
is moving. Failure to follow this instruction
could result in personal injury or death in the
event of a sudden stop or crash.

WARNING: Do not use pillows, books

or towels to boost your child's height. Failure
to follow this instruction could result in
personal injury or death.

WARNING: Properly secure child

restraints or booster seats when they are not
in use. They could become projectiles in a
sudden stop or crash. Failure to follow this
instruction could result in personal injury or
death.

WARNING: Do not put the shoulder

section of the seatbelt or allow the child to
put the shoulder section of the seatbelt
under their arm or behind their back. Failure
to follow this instruction could reduce the
effectiveness of the seatbelt and increase
the risk of injury or death in a crash.

WARNING: Do not leave children or

pets unattended in your vehicle. Failure to
follow this instruction could result in personal
injury or death.

34

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

Recommendations for Attaching Child Safety Restraints for Children

Use Any Attachment Method as Indicated Below by X

Combined Weight
of Child and Child

Restraint

Restraint Type

Seatbelt Only

Seatbelt and LATCH
(Lower Anchors and

Top Tether Anchor)

Seatbelt and Top

Tether Anchor

LATCH (Lower

Anchors Only)

LATCH (Lower

Anchors and Top

Tether Anchor)

X

X

Up to 65 lb

(29.5 kg)

Rear facing child

restraint

X

Over 65 lb

(29.5 kg)

Rear facing child

restraint

X

X

X

Up to 65 lb

(29.5 kg)

Forward facing

child restraint

X

X

Over 65 lb

(29.5 kg)

Forward facing

child restraint

Note: The child restraint must rest tightly
against the vehicle seat upon which it is
installed. It may be necessary to lift or
remove the head restraint.  See Seats (page
146).

CHILD SAFETY LOCKS

When these locks are set, the rear doors
cannot be opened from the inside.

35

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

E112197

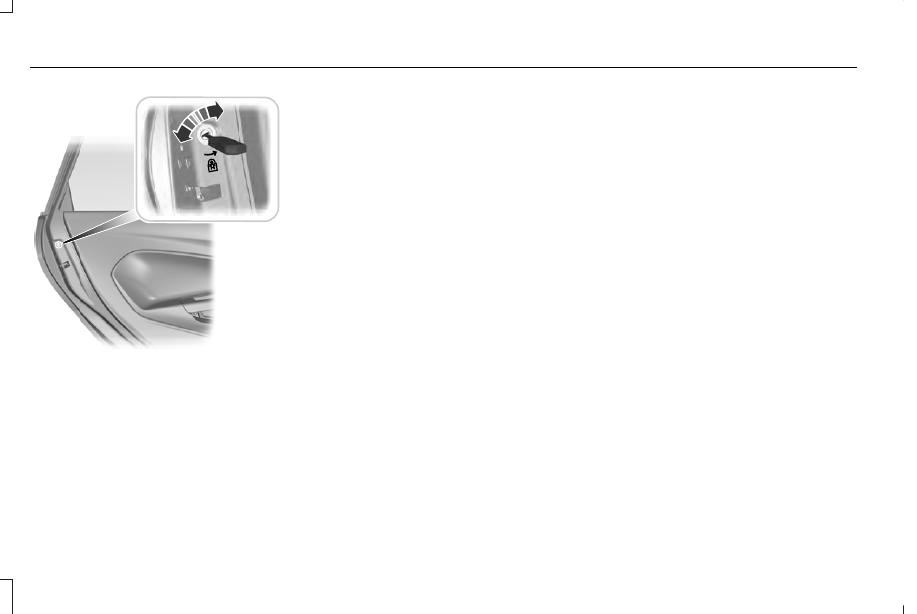

The childproof locks are located on the rear
edge of each rear door and must be set
separately for each door.

Left-Hand Side

Turn counterclockwise to lock and clockwise
to unlock.

Right-Hand Side

Turn clockwise to lock and counterclockwise
to unlock.

36

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Child Safety

PRINCIPLE OF OPERATION

WARNING: Always drive and ride with

your seatback upright and the lap belt snug
and low across the hips.

WARNING: Children must always be

properly restrained.

WARNING: Never let a passenger hold

a child on his or her lap while the vehicle is
moving. The passenger cannot protect the
child from injury in a crash.

WARNING: All occupants of your

vehicle, including the driver, should always
properly wear their seatbelts, even when an
airbag supplemental restraint system is
provided. Failure to properly wear your
seatbelt could seriously increase the risk of
injury or death.

WARNING: It is extremely dangerous

to ride in a cargo area, inside or outside of
a vehicle. In a crash, people riding in these
areas are more likely to be seriously injured
or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with
seats and seatbelts. Make sure everyone in
your vehicle is in a seat and properly using
a seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING: In a rollover crash, an

unbelted person is significantly more likely
to die than a person wearing a seatbelt.

WARNING: Each seating position in

your vehicle has a specific seatbelt assembly
made up of one buckle and one tongue
designed to be used as a pair. Use the
shoulder belt on the outside shoulder only.
Never wear the shoulder belt under the arm.
Never use a single seatbelt for more than
one person.

WARNING: Airbags can kill or injure a

child in a child restraint. Properly restrain
children 12 and under in the rear seat
whenever possible.

WARNING: Seatbelts and seats may

be hot in a vehicle that is in the sunshine.
The hot seatbelts or seats may burn a small
child. Check seat covers and buckles before
you place a child anywhere near them.

All seating positions in your vehicle have lap
and shoulder seatbelts. All occupants of the
vehicle should always properly wear their
seatbelts, even when an airbag supplemental
restraint system is provided.

The seatbelt system consists of:
•

Lap and shoulder seatbelts.

•

Shoulder seatbelt with automatic locking
mode, (except driver seatbelt).

•

Height adjuster at the front outboard
seating positions.

37

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Seatbelts

•

Seatbelt pretensioner at the front
outboard seating positions.

•

Belt tension sensor at the outboard
passenger seating position.

E71880

•

Seatbelt warning light and chime.

E67017

•

Crash sensors and monitoring system
with readiness indicator.

The seatbelt pretensioners at the front
seating positions are designed to tighten the
seatbelts when activated. In frontal and
near-frontal crashes, the seatbelt
pretensioners may be activated alone or, if
the crash is of sufficient severity, together
with the front airbags. The pretensioners may
also activate when the Safety Canopy
deploys.

FASTENING THE SEATBELTS

Standard belts shown, inflatable belts similar

The front outboard and rear safety restraints
in the vehicle are combination lap and
shoulder belts.

E142587

1. Insert the belt tongue into the proper

buckle (the buckle closest to the direction
the tongue is coming from) until you hear
a snap and feel it latch. Make sure you
securely fasten the tongue in the buckle.

E142588

2. To unfasten, press the release button

and remove the tongue from the buckle.

Using Seatbelts During Pregnancy

WARNING: Always ride and drive with

your seatback upright and properly fasten
your seatbelt. Fit the lap portion of the
seatbelt snugly and low across the hips.
Position the shoulder portion of the seatbelt
across your chest. Pregnant women must
follow this practice. See the following figure.

38

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Seatbelts
