Left Information Display.

A

Speedometer.

B

Right Information Display.

C

Left Information Display

Odometer

Located in the bottom of the display. It
registers the accumulated distance your
vehicle has traveled.

Battery Gauge:

An optional small battery gauge is provided
for Hybrid vehicles. This can be enabled in
the Settings menu under Battery Display.
See General Information (page 110).  The fill
level, or State of Charge, indicates the
amount of energy stored in the high voltage
battery as a percent of total energy capacity.
The level increases or decreases as the
battery charges and discharges during
normal operation.

Regen Display

A circular arrow symbol displays when
energy is being recaptured through the
regenerative braking system. Regen Display
can be disabled in the Settings menu.  See
General Information (page 110).

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump symbol
indicates on which side of your vehicle the
fuel filler door is located.

Note: The fuel gauge may vary slightly when
your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty reaches
75 mi (120 km) to empty for MyKey, and at
50 mi (80 km), 25 mi (40 km), 10 mi (20 km)
and 0 mi (0 km) for all vehicle keys.

Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Vehicle Settings and Personalization

Display/Trip

See General Information (page 110).

Information

See General Information (page 110).

Settings

See General Information (page 110).

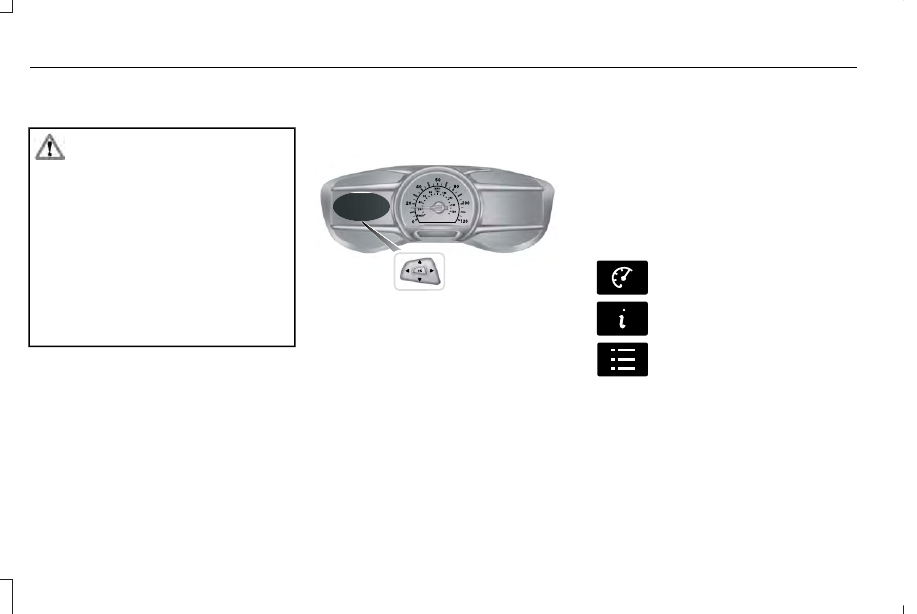

Brake Coach Display

The Brake Coach appears after your vehicle
has come to a stop. It coaches you to brake
in a manner which maximizes the amount of
energy returned through the regenerative
braking system. The percent displayed is an
indication of the regenerative braking
efficiency with 100% representing the
maximum amount of energy recovery.

103

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

This feature can be switched on or off in the
information displays settings menu.  See
General Information (page 110).

Trip Summary

Trip Summary displays upon shutting off your
vehicle. The information is cumulative over
the last trip. A new trip begins each time your
start your vehicle (when the Ready to Drive
message comes on). Corresponding trip
efficiency leaves appear on the right
information display.

•

Distance - Displays the total distance
traveled, distance traveled on battery
power only (EV distance) and Regen
distance. Regen distance is the estimated
range gained from energy recaptured
through regenerative braking.

•

Energy Use - Displays the average fuel
economy.

•

Brake Score - The percent displayed is
an indication of the regenerative braking
efficiency for the trip.

Right Information Display

Entertainment

See General Information (page 371).

Phone

See General Information (page 371).

Navigation or Compass

See General Information (page 371).

Fuel Economy

See General Information (page 110).

Vehicle Range

Located at the bottom of the display. It
indicates the estimated distance to empty
based on the fuel remaining in the tank.
Changes in your driving pattern and climate
control use may cause the value to vary.

Trip Efficiency Leaves

Trip Efficiency Leaves display upon shutting
off your vehicle. The number of leaves
represent the average for the last trip. A new
trip begins each time you start your vehicle
(when the Ready to Drive message comes
on). Corresponding Trip Summary data
displays on the left information display.

WARNING LAMPS AND
INDICATORS

The following warning lamps and indicators
alert you to a vehicle condition that may
become serious.  Some lamps illuminate
when you start your vehicle to make sure
they work.  If any lamps remain on after
starting your vehicle, refer to the respective
system warning lamp for further information.

Note: Some warning indicators appear in
the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

104

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

Adaptive Cruise Control Indicator

 (If

Equipped)

E144524

The speed control system indicator
light changes color to indicate
what mode the system is in: See

Using Adaptive Cruise Control (page 223).

On (white light): Lights when you turn the
adaptive cruise control system on. Turns off
when you turn the speed control system off.

Engaged (green light): Lights when the
adaptive cruise control system engages.
Turns off when the speed control system
disengages.

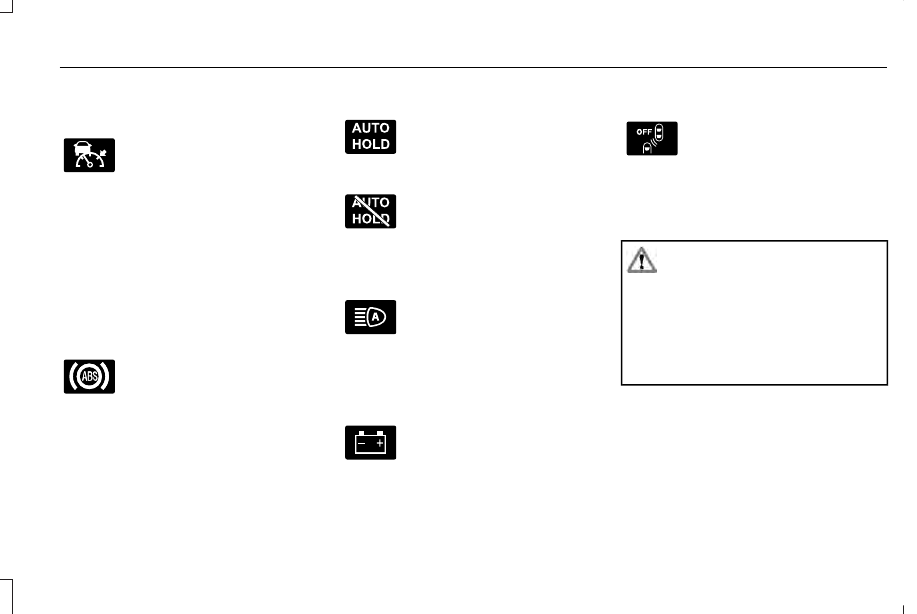

Anti-Lock Brake System Warning Lamp

If it lights when you are driving, this
indicates a malfunction. You will
continue to have the normal

braking system (without Anti-lock braking
system) unless the brake system warning
lamp also lights. Have an authorized dealer
check the system.

Auto Hold Active

E197933

It illuminates when the system
holds your vehicle stationary.

Auto Hold Unavailable

E197934

It illuminates when the system is
on, but unavailable to hold your
vehicle stationary.

Automatic Headlamp High Beam
Indicator

 (If Equipped)

It illuminates when the system
automatically turns the headlamp
high beam on.

See Automatic High Beam Control (page
89).

Battery

If it lights while driving, it indicates
a malfunction. Switch off all
unnecessary electrical equipment

and have an authorized dealer check the
system immediately.

Blind Spot Monitor

 (If Equipped)

E151262

Lights when you switch this feature
off or with a blind spot message.
See Blind Spot Information

System (page 239).   See Information
Messages (page 121).

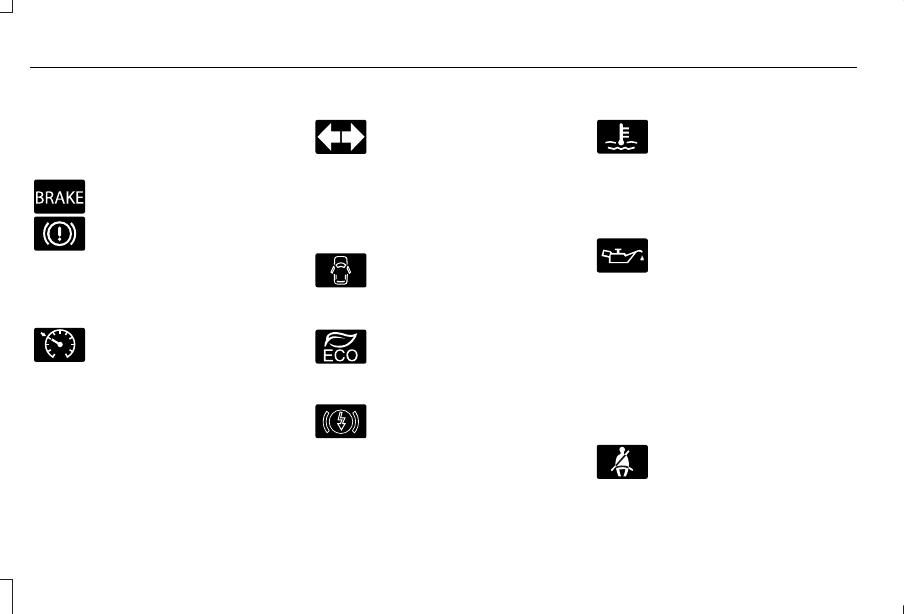

Brake System Warning Lamp

WARNING: Driving your vehicle with

the warning lamp on is dangerous. A
significant decrease in braking performance
may occur. It may take you longer to stop
your vehicle. Have your vehicle checked as
soon as possible. Driving extended distances
with the parking brake engaged can cause
brake failure and the risk of personal injury.

Note: Indicators vary depending on region.

This lamp is a dual function lamp and will
illuminate when:

105

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

E270480

If the lamp illuminates while you
are moving, you may have the
parking brake applied. Be sure that
the parking brake is off. Have your
vehicle checked as soon as
possible if the lamp continues to

illuminate.

Cruise Control Indicator

E71340

It illuminates when you switch the
system on.

See Using Cruise Control (page

222).

Direction Indicator

Lights when the left or right turn
signal or the hazard warning
flasher is switched on. If the

indicators stay on or flash faster, check for a
burned-out bulb.  See Changing a Bulb
(page 312).

Door Ajar

Lights when the ignition is on and
any door is not completely closed.

EcoSelect

E194390

Lights when you switch on this
feature.  See EcoSelect (page 173).

Electric Park Brake

E146190

Lights or flashes when the electric
parking brake malfunctions.

Engine or Motor Coolant Temperature

Lights when the engine or motor
cooling system is overheating.
Stop your vehicle in a safe place

and have an authorized dealer check the
system.

Engine Oil

It illuminates when you switch the
ignition on.

If it illuminates when the engine is

running this indicates a malfunction.  Stop
your vehicle as soon as it is safe to do so
and switch the engine off.  Check the engine
oil level.  If the oil level is sufficient, this
indicates a system malfunction.  Have your
vehicle checked as soon as possible.

See Engine Oil Check (page 301).

Fasten Seatbelt Warning Lamp

E71880

It illuminates and a chime sounds
until you fasten the seatbelts.

106

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

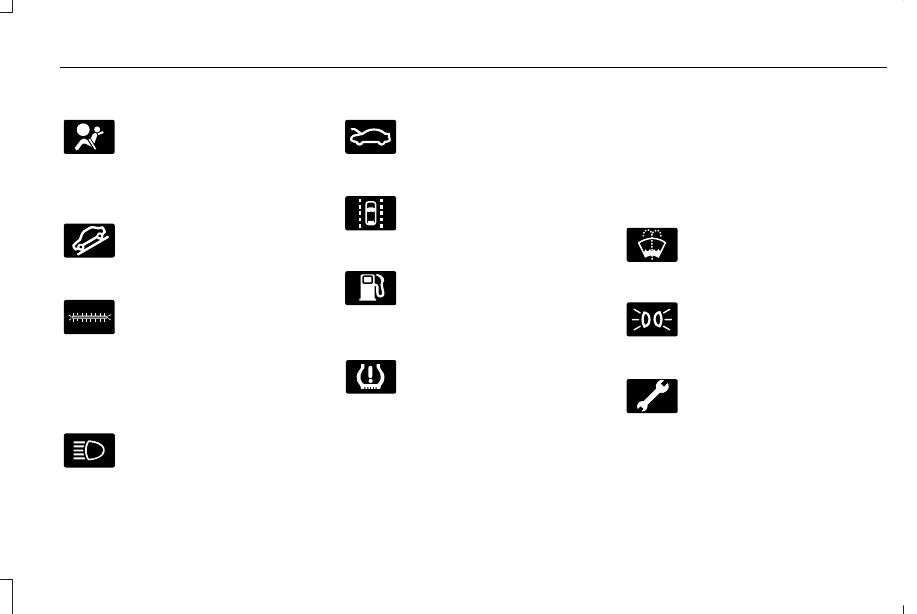

Front Airbag

E67017

Lights when you start your vehicle.
If it continues to flash or remains
on, it indicates a malfunction. Have

an authorized dealer check the system.

Grade Assist

E144523

Lights when you switch on the
grade assist function.

Heads Up Display

 (If Equipped)

E156133

A red beam of lights appears on
the windshield in certain instances
when using adaptive cruise control

and/or the collision warning system. To make
sure the display works, it will also appear
momentarily when you start your vehicle.

Headlamp High Beam Indicator

Lights when you switch on the
high-beam headlamps. Flashes
when you use the headlamp

flasher.

Hood Ajar

E159324

Lights when the ignition is on and
the hood is not completely closed.

Lane Keeping System Lamp

 (If Equipped)

E144813

Lights when you activate the lane
keeping system.

Low Fuel Level Warning Lamp

Lights when the fuel level is low or
the fuel tank is nearly empty.
Refuel as soon as possible.

Low Tire Pressure Warning Lamp

It illuminates when your tire
pressure is low. If the lamp remains
on with the engine running or

when driving, check your tire pressure as
soon as possible.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp is
functional. If it does not illuminate when you
switch the ignition on, or begins to flash at
any time, have the system checked by your
authorized dealer.

Low Washer Fluid Level Warning Lamp

E178202

Lights when the windshield washer
fluid is low.

Parking Lamps

Lights when you switch on the
parking lamps.

Powertrain Fault

Lights when your vehicle detects
a powertrain fault. Contact an
authorized dealer as soon as

possible.

107

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

Note: If your vehicle detects certain faults,
it will not allow you to operate the
accelerator pedal. If this happens, press the
brake pedal and release it. This will activate
limp home vehicle operation. In limp home
vehicle operation, your vehicle will
accelerate in a controlled manner up to a
maximum speed of 35 mph (56 km/h) on a
flat surface. If you apply the brake pedal or
move the transmission to neutral (N) you can
override your vehicle’s acceleration.

Ready to Drive

E144692

Lights when you switch on your
vehicle and it is ready to drive. A
corresponding message may

display stating ready to drive.

Service Engine Soon

If it illuminates when the engine is
running this indicates a
malfunction.  The On Board

Diagnostics system has detected a
malfunction of the vehicle emission control
system.

If it flashes, engine misfire may be occurring.
Increased exhaust gas temperatures could
damage the catalytic converter or other
vehicle components.  Drive in a moderate
fashion (avoid heavy acceleration and
deceleration) and have your vehicle
immediately serviced.

It illuminates when you switch the ignition
on prior to engine start to check the bulb and
to indicate whether your vehicle is ready for
Inspection and Maintenance (I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.

See Catalytic Converter (page 186).

Stability Control

E138639

Flashes when the system is active.
If it stays lit or does not light when
you switch on the ignition, this

indicates a malfunction. During a malfunction
the system will switch off. Have an authorized
dealer check the system immediately. See
Using Stability Control (page 204).

Stability Control Off

E130458

It illuminates when you switch the
system off.

Stop Safely

E144693

Lights if your vehicle has an
electrical component fault or failure
that will cause your vehicle to

shutdown or enter into a limited operating
mode. You may also see a message.

Trunk Ajar

E159323

Lights when the ignition is on and
the trunk is not completely closed.

108

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

AUDIBLE WARNINGS AND
INDICATORS

Keyless Warning Alert

The horn will sound twice when you exit your
vehicle with the intelligent access key and
your vehicle is in RUN, indicating your vehicle
is still on.

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Parking Brake On Warning Chime

Sounds when you have left the parking brake
on and drive your vehicle. If the warning
chime remains on after you have released
the parking brake, have the system checked
by your authorized dealer immediately.

109

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Instrument Cluster

GENERAL INFORMATION

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that you
use extreme caution when using any device
that may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

You can control various systems on your
vehicle using the information display controls
on the steering wheel.  The information
display shows the corresponding information.

Left Information Display Controls

E146303

•

Press the up and down arrow buttons to
scroll through and highlight the options
within a menu.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a menu.

•

Press and hold the left arrow button at
any time to return to the main menu
display (escape button).

•

Press the OK button to choose and
confirm settings or messages.

Main menu

From the main menu bar on the left side of
the information display, you can choose from
the following categories:

E144639

Display/Trip

E144642

Information

E100023

Settings

Scroll up or down to highlight one of the
categories, and then press the right arrow
key or OK to enter into that category. Press
the left arrow key as needed to exit back to
the main menu.

110

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Display/Trip

E144639

Use the up or down arrow buttons
to choose between the following

display options.

Note: The cluster will remember the menu
level 2 state when the individual key state
is changed from the RUN position to the OFF
position.

Display/Trip

Menu level 5

Menu level 4

Menu level 3

Menu level 2

—

—

—

Speedometer

—

—

Help

Engage

Split Power + Avg Fuel Economy +

Instantaneous Fuel Gauge + Fuel

Gauge)

—

—

Help

Empower

(Power with engine on/off threshold

+ Avg Fuel Economy + Instantaneous

Fuel Gauge + Fuel Gauge)

Average Fuel

Average Fuel

Change MyView

MyView

(MyView + Fuel Gauge)

Instantaneous Fuel

Split Power

Coolant Temp.

Power + Threshold

Accessory Power

Tach rpm x1000

Trip 1

Accessory Power

111

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Display/Trip

Trip 2

Trip 1

Fuel History

Trip 2

Coach

Fuel History

Blank

Coach

—

Blank

—

—

Help

—

—

—

Tire Pressure

—

—

Help

Trip 1

(Trip Data + Battery Gauge + Fuel

Gauge)

Trip 2

(Trip Data + Battery Gauge + Fuel

Gauge)

112

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Engage

Engage provides separate gauges for engine
power and high voltage battery power in
kilowatts (kW). The engine power gauge fill
is white and the high voltage battery power
gauge fill is blue. You can also see an
instantaneous fuel economy gauge. When
your vehicle is operating on battery power
only, you will see EV displayed and the
gauges will appear in blue.

Note: Hold OK to reset average fuel
economy.

Empower

Empower provides a power demand gauge
in kilowatts (kW) which includes an engine
on or off threshold.

•

When your vehicle is operating with
battery power only (below the threshold),
you will see EV displayed and the gauge
fill is blue.

•

When your vehicle is operating with both
the engine and the high voltage battery
providing power the gauge fill is white.

•

When power demand surpasses the
amber indicator, this level of demand and
associated fuel economy displays in
amber.

•

When the engine is on, reducing power
demand to less than the threshold will
allow the engine to turn off.

You can also see an instantaneous fuel
economy gauge.

Note: Hold OK to reset average fuel
economy.

MyView

You can choose what to display in this view.
Selecting Change MyView in the options
menu allows you to scroll through two
columns of content choices.

•

Press the up or down arrow to view
content.

•

Press OK to save your selected content

•

You must select content in both columns
before you can save your new MyView.

Unique content available in MyView:
•

Accessory Power— Indicates electrical
power demands from your vehicle’s
accessory systems. Accessories use
power but do not contribute to propelling
your vehicle. The gauge separately
displays power demand in kilowatts (kW)
for climate and other accessories.
Climate includes the power being used
by high voltage climate control
components such as the electric A/C
compressor. Other includes all power
being used by the low voltage
accessories (cabin fans, headlights and
heated seats).

•

Coolant Temp – Indicates engine coolant
temperature. At normal operating
temperature, the level indicator will be
white and will be in the normal range
(between H and C). If the engine coolant
temperature exceeds the normal range,
the level indicator will change to red to
indicate that the engine is overheating.
Stop your vehicle as soon as safely
possible, turn your vehicle off and let the
engine cool.

113

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

•

Tach rpm x 1000 — When the gasoline
engine is running, the tachometer gauge
displays the engine speed in revolutions
per minute (RPM). When your vehicle is
operating on battery power only with the
engine off, EV displays and the
tachometer is greyed out.

Note: The trip data, and average fuel
economy cannot be reset in MyView.

Trip 1 & 2

Provides trip odometer, trip average fuel
economy and trip timer.

Distance traveled on battery power only with
the engine off is shown in blue next to total
trip distance.

Information

E144642

In this mode, you can view
different vehicle system
information and perform a system

check.

Information

Displays a number of different system tutorials. Use the up or down arrows to scroll
through the tutorials. Then press OK to view.

Tutorial

Warnings

Displays the associated driver alert graphic.

Driver Alert

MyKeys (Number of MyKeys programmed)

MyKey

MyKey Miles (km) (Distance traveled using a programmed MyKey)

Admin Keys (Number of admin keys)

Settings

E100023

In this mode, you can configure
different driver setting choices.

Note: Some items are optional and may not
appear.

Note: Some MyKey items will only appear if
a MyKey is set.

114

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Settings

Menu level 6

Menu level 5

Menu level 4

Menu level 3

Menu level 2

—

On or Off

Traction Ctrl

Driver Assist

—

On or Off

Grade Assist

—

Sport, Normal or Comfort

Drive Control

—

On or Off

Blindspot

—

On or Off

Cross Traffic

—

Adaptive or Normal

Cruise Control

—

On or Off

Driver Alert

Alert only, Aid only or Alert + Aid

Mode

Lane Keeping Sys

High, Normal or Low

Intensity

High, Normal or Low

Alert Sensitivity

Pre-Collision

On or Off

Active Braking

—

On or Off

Rear Park Aid

—

Hold OK to Reset

Tire Monitor

—

On or Off

Auto Engine Off

Vehicle

115

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Settings

—

On or Off

Easy Entry / Exit

Adaptive Headlamps

Lighting

On or Off

Auto Highbeam

On or Off

Daytime Lights

Select time interval

Autolamp Delay

On or Off

Welcome Lighting

On or Off

Autolock

Locks

On or Off

Autounlock

On or Off

Audible

Feedback

On or Off

Exterior Lights

On or Off

Mislock

All doors or Driver door

Remote Unlocking

On or Off

Autofold

Mirrors

Hold OK to Initialize

Neutral Tow

Set to XXX % - Hold OK to Reset

Oil Life Reset

Enable or Disable Switch

Power Decklid

116

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Settings

Auto or Last Settings

Heater – A/C

Climate Control

Remote Start

Auto Heated or Off

Steering Wheel

Auto or Off

Front Defrost

Auto or Off

Rear Defrost

Auto or Off

Driver Seat

Auto or Off

Passenger Seat

5, 10 or 15 minutes

Duration

On or Off

Quiet Start

Enable or Disable

System

On or Off

Switch Inhibit

Select number of years

Tire Mobility Kit

On or Off

Remote Open

Windows

On or Off

Remote Close

On or Off

Courtesy Wipe

Wipers

On or Off

Rain Sensing

Hold OK to Create MyKey

Create MyKey

MyKey

117

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays

Settings

Always On or User Selectable

911 Assist

Always On or User Selectable

Advancetrac

Choose desired speed or off

Max Speed

Choose desired speed or off

Speed Minder

On or Off

Volume Limiter

Always On or User Selectable

Do Not Disturb

Hold OK to Clear All MyKeys

Clear MyKeys

Select the desired language - Hold OK to Set

Language

Display

Miles & GAL, l/100km or km/l

Distance

Units

Fahrenheit (°F) or Celsius (°C)

Temperature

psi, kPa or bar

Tire Pressure

On or Off

Brake Coach

On or Off

Battery Display

On or Off

Regen Display

Hold OK to Reset

Driving History

118

MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing

Information Displays
