Lincoln MKT (2019 year). Manual - part 23

E240523

CAPACITIES AND SPECIFICATIONS - 3.7L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air
conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

359

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Capacity

Item

6.0 qt (5.7 L)

Engine oil

13.2 qt (12.5 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

2.4 pt (1.15)

Rear differential fluid (All Wheel Drive)

10.9 qt (10.3 L)

1

Automatic transmission fluid (6F50)

11.6 qt (11 L)

1

Automatic transmission fluid (6F55)

17.9 fl oz (0.53 L)

Power Transfer Unit (PTU) fluid (All Wheel Drive)

Fill as required

Windshield washer fluid

8.9 fl oz (265 ml)

18.6 gal (70.4 L)

Fuel tank

2.31 lb (1.05 kg)

A/C refrigerant

8.96 fl oz (265 ml)

A/C refrigerant compressor oil

1

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

360

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Specifications

Materials

Specification

Name

WSS-M2C945-B1

Recommended motor oil (U.S.):
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP

WSS-M2C945-B1

Recommended Motor oil (Canada):
Motorcraft® SAE 5W-20 Super Premium Motor Oil
CXO-5W20-LSP12

WSS-M97B44-D2

Engine coolant (U.S.):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear axle fluid (U.S.):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

361

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Specification

Name

WSP-M2C197-A

Rear axle fluid (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSS-M2C938-A

Automatic transmission fluid (U.S.):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
CXT-10-LV12

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (U.S.):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

WSS-M14P19-A

Windshield washer fluid (U.S.):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

362

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Specification

Name

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
R-134a Refrigerant
CYN-19-R

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

363

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other materials
may result in brake system damage and
possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

364

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Materials

Specification

Name

WSS-M2C947-B1

Motorcraft® SAE 0W-20 Premium Synthetic Blend Motor Oil:
Engine Oil - SAE 0W-20
XO-0W20-QSP

E240522

365

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

BULB SPECIFICATION CHART

Replacement bulbs are specified in the chart
below.  Headlamp bulbs must be marked
with an authorized D.O.T. marking for North

America to make sure they have the proper
lamp performance, light brightness, light
pattern and safe visibility.  The correct bulbs
will not damage the lamp assembly or void
the lamp assembly warranty and will provide
quality bulb illumination time.

Exterior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Front side marker lamps.

24

PY24W SV+

Front direction indicator.

1

LED

LED

Front parking lamps.

35

D3S

Headlamp low beam.
Headlamp high beam.

55

H11

Front fog lamps.

LED

LED

Rear side marker lamp.

LED

LED

Reversing lamp.

LED

LED

Brake and rear lamp.
Rear direction indicator.

366

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Power (Watt)

Specification

Lamp

LED

LED

Central high mounted brake lamp.

5

C5WL

License plate lamp.

1

To replace these lamps, see your authorized dealer.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

Interior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Signal indicator mirror light.

1

5

1600XB

First row dome/map lamp.

1

Second row dome/map lamps.

1

10

211-2XB

Third row cargo lamp.

1

1.3

37

Visor vanity lamp.

1

 To replace these lamps, see your authorized dealer.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

367

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

GENERAL INFORMATION

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in the
vehicle’s CD player.

Note:  Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed.  You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs.  Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only.  Wipe it from the center of the disc
toward the edge.  Do not clean in a circular
motion.

368

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Audio System

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

369

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Audio System

Note:  The touchscreen system controls most
of the audio features. See your SYNC
information.

Adjusting the Volume

E265304

Press to adjust the volume.

Changing Radio Stations

E265272

In radio mode, press and release + or - to
search through the radio frequency band.

In satellite radio mode, press and release +
or - to find the previous or next available
satellite radio station.

Ejecting the CD

E265032

Press and release to eject a CD.

Inserting a CD

Insert a CD into the CD slot.

Switching the Audio Unit On and Off

Press and release the button.

Using Seek, Fast Forward and Reverse

E265273

In radio mode, select a frequency band and
press and release either button. The system
stops at the first station it finds in that
direction.

In CD mode, press and release to select the
next or previous track. Press and hold to
move quickly forward or backward through
the current track.

In satellite radio mode, press and release to
select the next or previous satellite radio
station. If you select a specific category (such
as jazz, rock or news), press to find the next
or previous station in the category you select.

Rear Seat Audio Controls

 (If Equipped)

Adjusting the Rear Volume

E265304

Press and release the toggle
button upward or downward to
adjust the rear volume.

Displaying the Clock

E265278

Press and release the button to
display the clock.

Selecting the Audio Modes

E265035

Press and release the button to
scroll through available audio
system modes.

Using Seek

E265273

Press and release the toggle
button upward or downward to
select the next or previous stored

radio frequency station, satellite radio
channel or CD track.

370

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Audio System

USB PORT

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

E201595

The USB port allows you to plug in media
playing devices, memory sticks and charge
devices, if supported.

MEDIA HUB

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

The media hub may be on the instrument
panel or center console.

The media hub may contain one or more of
the following inputs:

•

USB ports.  See USB Port (page 371).

•

Audio input jack.

371

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Audio System

GENERAL INFORMATION

WARNING

Driving while distracted can result in
loss of vehicle control, crash and injury.

We strongly recommend that you use
extreme caution when using any device that
may take your focus off the road. Your
primary responsibility is the safe operation
of your vehicle. We recommend against the
use of any hand-held device while driving
and encourage the use of voice-operated
systems when possible. Make sure you are
aware of all applicable local laws that may
affect the use of electronic devices while
driving.

Getting to Know Your System

The SYNC 3 system allows you to interact
with a variety of features using the
touchscreen and voice commands. By
integrating with your Bluetooth enabled
phone, the touchscreen provides easy
interaction with audio, multimedia, climate
control, navigation, and your phone's SYNC
3 compatible apps.

Using the Touchscreen

To operate the touchscreen, you can simply
touch the item or option that you want to
select. The button changes color when you
select it.

The SYNC 3 layout allows you to quickly
select the feature you wish to use.

372

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

SYNC™ 3

E269856

373

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

SYNC™ 3

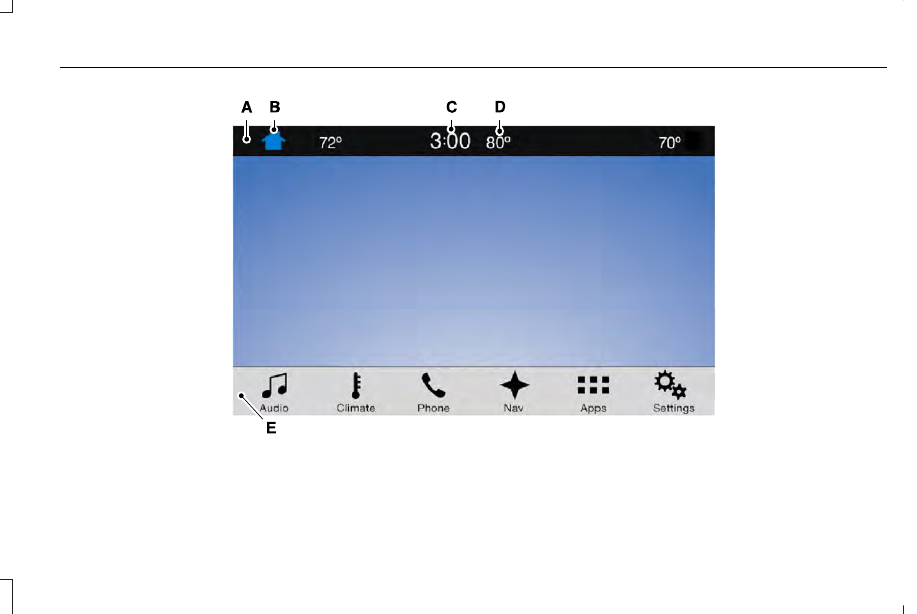

Action and Description

Menu Item

Item

This bar displays icons and messages pertaining to current system activities including climate
settings, voice commands and phone functions such as text messages.

Status Bar

A

This button is available on the main screens. Pressing it takes you to the home screen view.

Home

B

This shows the current time. You can set the clock manually or have it controlled by the vehicle's
GPS location.  See Settings (page 440).

Clock

C

This displays the current outside temperature.

Outside Temperature

D

You can touch any of the buttons on this bar to select a feature.

Feature Bar

E

The touchscreen allows you quick access to
all of your comfort, navigation,
communication and entertainment options.
Using the status and feature bar you can
quickly select the feature you want to use.

Note: Your system is equipped with a feature
that allows you to access and control audio
features for 10 minutes after you switch the
ignition off (and no doors open).

The Status Bar

Additional icons also display in the status bar
depending on market, vehicle options and
current operation. If a feature is not active,
the icon does not display. Certain icons may
move to the left or right depending on what
options are active.

374

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

SYNC™ 3
