WARNING

Under-inflation is the most common
cause of tire failures and may result

in severe tire cracking, tread separation
or blowout, with unexpected loss of
vehicle control and increased risk of
injury. Under-inflation increases sidewall
flexing and rolling resistance, resulting
in heat buildup and internal damage to
the tire. It also may result in unnecessary
tire stress, irregular wear, loss of vehicle
control and accidents. A tire can lose up
to half of its air pressure and not appear
to be flat!

You are strongly urged to buy a reliable
tire pressure gauge, as automatic
service station gauges may be
inaccurate. Ford recommends the use
of a digital or dial-type tire pressure
gauge rather than a stick-type tire
pressure gauge. Use the recommended
cold inflation pressure for optimum tire
performance and wear. Under-inflation
or over-inflation may cause uneven
treadwear patterns.

Always inflate your tires to the Ford
recommended inflation pressure even
if it is less than the maximum inflation
pressure information found on the tire.
You will find a Tire Label containing the
Ford recommended tire inflation
pressure by the tire size and other
important information located on the
B-Pillar or the edge of the driver’s door.

The Ford recommended tire inflation
pressure is also found on the Safety
Compliance Certification Label (affixed
to either the door hinge pillar, door-latch
post, or the door edge that meets the
door-latch on the B-pillar, or on the edge
of the driver’s door.

Failure to follow the tire pressure
recommendations can cause uneven
treadwear patterns and adversely affect
the way your vehicle handles.

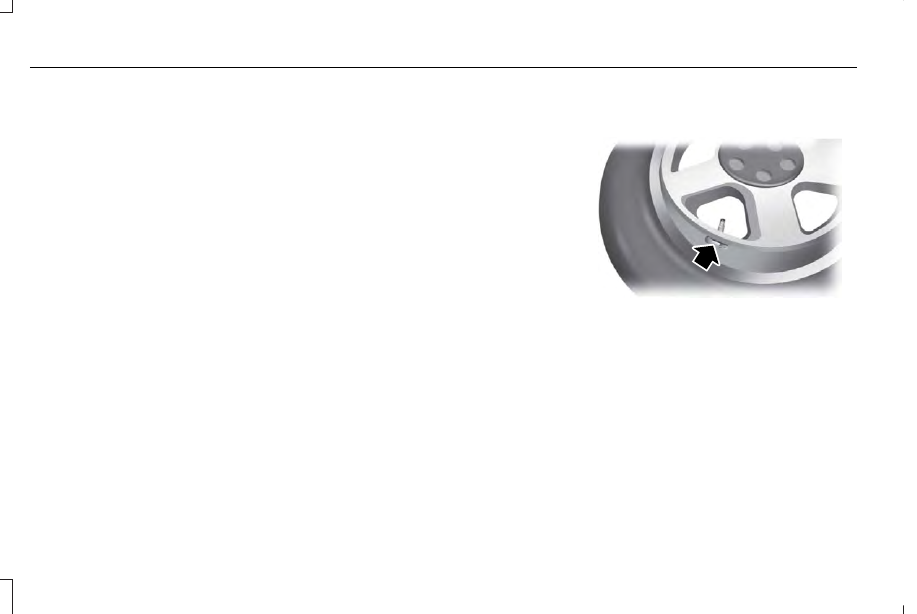

Inspecting Your Tires and Wheel Valve
Stems

Periodically inspect the tire treads for
uneven or excessive wear and remove
objects such as stones, nails or glass
that may be wedged in the tread
grooves. Check the tire and valve stems
for holes, cracks, or cuts that may permit
air leakage and repair or replace the tire
and replace the valve stem. Inspect the
tire sidewalls for cracking, cuts, bruises
and other signs of damage or excessive
wear. If internal damage to the tire is
suspected, have the tire demounted and
inspected in case it needs to be repaired
or replaced. For your safety, tires that
are damaged or show signs of excessive
wear should not be used because they
are more likely to blow out or fail.

Improper or inadequate vehicle
maintenance can cause tires to wear
abnormally. Inspect all your tires,
including the spare, frequently, and
replace them if one or more of the
following conditions exist:

327

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

Tire Wear

E142546

When the tread is worn down to one
sixteenth of an inch (2 mm), tires must
be replaced to help prevent your vehicle
from skidding and hydroplaning. Built-in
treadwear indicators, or wear bars,
which look like narrow strips of smooth
rubber across the tread will appear on
the tire when the tread is worn down to
one sixteenth of an inch (2 mm).

When the tire tread wears down to the
same height as these wear bars, the tire
is worn out and must be replaced.

Damage

Periodically inspect the tire treads and
sidewalls for damage (such as bulges in
the tread or sidewalls, cracks in the
tread groove and separation in the tread
or sidewall). If damage is observed or
suspected, have the tire inspected by a
tire professional. Tires can be damaged
during off-road use, so inspection after
off-road use is also recommended.

Age

WARNING

Tires degrade over time depending
on many factors such as weather,

storage conditions, and conditions of
use (load, speed, inflation pressure) the
tires experience throughout their lives.

In general, tires should be replaced after
six years regardless of tread wear.
However, heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process and may
require tires to be replaced more
frequently.

You should replace your spare tire when
you replace the road tires or after six
years due to aging even if it has not
been used.

328

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

U.S. DOT Tire Identification Number

Both United States and Canada Federal
regulations require tire manufacturers
to place standardized information on the
sidewall of all tires. This information
identifies and describes the fundamental
characteristics of the tire and also
provides a U.S. DOT Tire Identification
Number for safety standard certification
and in case of a recall.
This begins with the letters DOT and
indicates that the tire meets all federal
standards. The next two numbers or
letters are the plant code designating
where it was manufactured, the next two
are the tire size code and the last four
numbers represent the week and year
the tire was built. For example, the
numbers 317 mean the 31st week of
1997. After 2000, the numbers go to four
digits. For example, 2501 means the
25th week of 2001. The numbers in
between are identification codes used
for traceability. This information is used
to contact customers if a tire defect
requires a recall.

Tire Replacement Requirements

Your vehicle is equipped with tires
designed to provide a safe ride and
handling capability.

WARNINGS

Only use replacement tires and
wheels that are the same size, load

index, speed rating and type (such as
P-metric versus LT-metric or all-season
versus all-terrain) as those originally
provided by Ford. The recommended
tire and wheel size may be found on
either the Safety Compliance
Certification Label (affixed to either the
door hinge pillar, door-latch post, or the
door edge that meets the door-latch
post, next to the driver's seating
position), or the Tire Label which is
located on the B-Pillar or edge of the
driver's door. If this information is not
found on these labels, then you should
contact your authorized dealer as soon

WARNINGS

as possible. Use of any tire or wheel not
recommended by Ford can affect the
safety and performance of your vehicle,
which could result in an increased risk
of loss of vehicle control, vehicle
rollover, personal injury and death.

To reduce the risk of serious injury,
when mounting replacement tires

and wheels, you should not exceed the
maximum pressure indicated on the
sidewall of the tire to set the beads
without additional precautions listed
below. If the beads do not seat at the
maximum pressure indicated,
re-lubricate and try again.

For a mounting pressure more than
20 psi (1.38 bar) greater than the

maximum pressure, a Ford dealer or
other tire service professional should do
the mounting.

Always inflate steel carcass tires
with a remote air fill with the person

inflating standing at a minimum of 12 ft
(3.66 m) away from the wheel and tire
assembly.

329

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

WARNINGS

When inflating the tire for mounting
pressures up to 20 psi (1.38 bar)

greater than the maximum pressure on
the tire sidewall, the following
precautions must be taken to protect
the person mounting the tire:

•

Make sure that you have the correct
tire and wheel size.

•

Lubricate the tire bead and wheel
bead seat area again.

•

Stand at a minimum of 12 ft (3.66 m)

away from the wheel and tire
assembly.

•

Use both eye and ear protection.

Important: Remember to replace the

wheel valve stems when the road tires
are replaced on your vehicle.

It is recommended that the two front
tires or two rear tires generally be
replaced as a pair.

The tire pressure sensors mounted in
the wheels (originally installed on your
vehicle) are not designed to be used in
aftermarket wheels.

The use of wheels or tires not
recommended by Ford Motor Company

may affect the operation of your tire
pressure monitoring system.

If the tire pressure monitoring system
indicator is flashing, your system is
malfunctioning. Your replacement tire
might be incompatible with your tire
pressure monitoring system, or some
component of the system may be
damaged.

Safety Practices

WARNINGS

If your vehicle is stuck in snow,
mud or sand, do not rapidly spin

the tires; spinning the tires can tear the
tire and cause an explosion. A tire can
explode in as little as three to five
seconds.

WARNINGS

Do not spin the wheels at over
34 mph (55 km/h). The tires may

fail and injure a passenger or bystander.

Driving habits have a great deal to do
with your tire mileage and safety.

*Observe posted speed limits
*Avoid fast starts, stops and turns

*Avoid potholes and objects on the road

*Do not run over curbs or hit the tire
against a curb when parking

Highway Hazards

No matter how carefully you drive, there
is always the possibility that you may
eventually have a flat tire on the
highway. Drive slowly to the closest safe
area out of traffic. This may further
damage the flat tire, but your safety is
more important.

330

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

If you feel a sudden vibration or ride
disturbance while driving, or you suspect
your tire or vehicle has been damaged,
immediately reduce your speed. Drive
with caution until you can safely pull off
the road. Stop and inspect the tires for
damage. If a tire is under-inflated or
damaged, deflate it, remove wheel and
replace it with your spare tire and wheel.
If you cannot detect a cause, have the
vehicle towed to the nearest repair
facility or tire dealer to have the vehicle
inspected.

Tire and Wheel Alignment

A bad jolt from hitting a curb or pothole
can cause the front end of your vehicle
to become misaligned or cause damage
to your tires. If your vehicle seems to
pull to one side when you are driving,
the wheels may be out of alignment.
Have an authorized dealer check the
wheel alignment periodically.

Wheel misalignment in the front or the
rear can cause uneven and rapid
treadwear of your tires and should be
corrected by an authorized dealer.
Front-wheel drive vehicles and those
with an independent rear suspension (if
equipped) may require alignment of all
four wheels.

The tires should also be balanced
periodically. An unbalanced tire and
wheel assembly may result in irregular
tire wear.

Tire Rotation

Note: If your tires show uneven wear,
ask an authorized dealer to check for
and correct any wheel misalignment,
tire imbalance or mechanical problem
involved before tire rotation.

Note: Your vehicle may be equipped
with a dissimilar spare wheel and tire
assembly. A dissimilar spare wheel and
tire assembly is defined as a spare
wheel and tire assembly that is different
in brand, size or appearance from the
road tires and wheels. If you have a
dissimilar spare wheel and tire
assembly, it is intended for temporary
use only and should not be used in a
tire rotation.

Note: After having your tires rotated,
inflation pressure must be checked and
adjusted to the vehicle requirements.

Rotating your tires at the recommended
interval will help your tires wear more
evenly, providing better tire performance
and longer tire life. Sometimes irregular
tire wear can be corrected by rotating
the tires. See Wheels and Tires (page

317).

331

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

E142547

USING SNOW CHAINS

WARNING

Snow tires must be the same size, load
index, and speed rating as those

originally provided by Ford. Use of any tire
or wheel not recommended by Ford can
affect the safety and performance of your
vehicle, which could result in an increased
risk of loss of vehicle control, vehicle rollover,
personal injury, and death. Additionally, the
use of non-recommended tires and wheels
could cause steering, suspension, axle,
transfer case, or power transfer unit failure.
It is also strongly advised to follow the Ford
recommended tire inflation pressure found
on the Safety Compliance Certification Label
(affixed to either the door hinge pillar,
door-latch post, or the door edge that meets
the door-latch post, next to the driver’s
seating position), or Tire Label which is
located on the B-Pillar or the edge of the
driver door. Failure to follow the tire pressure
recommendations can cause uneven
treadwear patterns and adversely affect the
way your vehicle handles.

Note: The suspension insulation and
bumpers will help prevent vehicle damage.
Do not remove these components from your
vehicle when using snow tires and chains.

The tires on your vehicle have all-weather
treads to provide traction in rain and snow.
However, in some climates, you may need
to use snow tires and cables. If you need to
use cables, it is recommended that steel
wheels (of the same size and specifications)
be used, as cables may chip aluminum
wheels.

Follow these guidelines when using snow
tires and chains:
•

If possible, avoid fully loading your
vehicle.

•

Use only SAE Class S snow chains, snow
cables or equivalent on the front axle for
P235/55R19 equipped vehicles. The use
of snow chains, snow cables or other
traction assist devices that are larger than
SAE Class S may cause damage to your
vehicle’s wheel house, suspension or
body.

332

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

•

Do not install tire chains, cables, or
optional traction devices on the rear tires.
This could cause damage to the vehicle’s
wheel house or body.

•

Do not use tire chains, cables or optional
traction devices with optional 255/45R20
tires.

•

Install cable chains securely, verifying
that the cables do not touch any wiring,
brake lines or fuel lines.

•

Do not exceed 30 mph (48 km/h) with
tire cables on your vehicle.

•

Drive cautiously. If you hear the cables
rub or bang against your vehicle, stop
and retighten the cables. If this does not
work, remove the cables to prevent
damage to your vehicle.

•

Remove the tire cables when they are no
longer needed. Do not use tire cables on
dry roads.

TIRE PRESSURE MONITORING
SYSTEM

WARNING

The tire pressure monitoring system is
not a substitute for manually checking

tire pressures. You should periodically check
tire pressures using a pressure gauge.
Failure to correctly maintain tire pressures
could increase the risk of tire failure, loss of
control, vehicle rollover and personal injury.

Note:  You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.

Note:  If the tire pressure monitoring system
sensor becomes damaged, it may not
function.

Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to

the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle
has tires of a different size than the size
indicated on the vehicle placard or tire
inflation pressure label, you should
determine the proper tire inflation pressure
for those tires).

As an added safety feature, your vehicle has
been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates a
low tire pressure telltale when one or more
of your tires is significantly under-inflated.
Accordingly, when the low tire pressure
telltale illuminates, you should stop and
check your tires as soon as possible, and
inflate them to the proper pressure. Driving
on a significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect
the vehicle’s handling and stopping ability.

333

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the
driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The
TPMS malfunction indicator is combined with
the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subsequent
vehicle start-ups as long as the malfunction
exists.

When the malfunction indicator is illuminated,
the system may not be able to detect or
signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of
reasons, including the installation of
replacement or alternate tires or wheels on
the vehicle that prevent the TPMS from

functioning properly. Always check the TPMS
malfunction telltale after replacing one or
more tires or wheels on your vehicle to
ensure that the replacement or alternate tires
and wheels allow the TPMS to continue to
function properly.

This device complies with Part 15 of the FCC
Rules and with Licence exempt RSS
Standards of Industry Canada. Operation is
subject to the following two conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any interference

received, including interference that may
cause undesired operation.

Note: Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.

Changing Tires With a Tire Pressure
Monitoring System

E142549

Note: Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and
is not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.

You should always have your tires serviced
by an authorized dealer.

334

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

Check the tire pressure periodically (at least
monthly) using an accurate tire gauge. See
Inflating Your Tires in this chapter.

Understanding Your Tire Pressure
Monitoring System

The tire pressure monitoring system
measures pressure in your four road tires
and sends the tire pressure readings to your
vehicle. The low tire pressure warning light
will turn on if the tire pressure is significantly
low. Once the light is illuminated, your tires
are under-inflated and need to be inflated to
the manufacturer’s recommended tire
pressure. Even if the light turns on and a
short time later turns off, your tire pressure
still needs to be checked.

When Your Temporary Spare Tire is
Installed

When one of your road tires needs to be
replaced with the temporary spare, the
system will continue to identify an issue to
remind you that the damaged road wheel
and tire assembly needs to be repaired and
put back on your vehicle.

To restore the full function of the tire
pressure monitoring system, have the
damaged road wheel and tire assembly
repaired and remounted on your vehicle.

When You Believe Your System is Not
Operating Properly

The main function of the tire pressure
monitoring system is to warn you when your
tires need air. It can also warn you in the
event the system is no longer capable of
functioning as intended. See the following
chart for information concerning your tire
pressure monitoring system:

335

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

Customer action required

Possible cause

Low tire pressure warning light

Make sure tires are at the proper pressure. See Inflating your tires
in this chapter. After inflating your tires to the manufacturer’s
recommended pressure as shown on the Tire Label (located on
the edge of driver’s door or the B-Pillar), the vehicle must be driven
for at least two minutes over 20 mph (32 km/h) before the light
turns off.

Tire(s) under-inflated

Solid warning light

Repair the damaged road wheel and tire assembly and reinstall
it on the vehicle to restore system function. For a description on
how the system functions, see When your temporary spare tire
is installed in this section.

Spare tire in use

If the tires are properly inflated and the spare tire is not in use but
the light remains on, contact your authorized dealer as soon as
possible.

TPMS malfunction

Repair the damaged road wheel and tire assembly and reinstall
it on the vehicle to restore system function. For a description on
how the system functions, see When your temporary spare tire
is installed in this section.

Spare tire in use

Flashing warning light

If the tires are properly inflated and the spare tire is not in use but
the light remains on, contact your authorized dealer as soon as
possible.

TPMS malfunction

336

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

When Inflating Your Tires

When putting air into your tires (such as at a
gas station or in your garage), the tire
pressure monitoring system may not respond
immediately to the air added to your tires.

It may take up to two minutes of driving over
20 mph (32 km/h) for the light to turn off after
you have filled your tires to the
recommended inflation pressure.

How Temperature Affects Your Tire
Pressure

The tire pressure monitoring system monitors
tire pressure in each pneumatic tire. While
driving in a normal manner, a typical
passenger tire inflation pressure may
increase about 2–4 psi (14–28 kPa) from a
cold start situation. If the vehicle is stationary
overnight with the outside temperature
significantly lower than the daytime
temperature, the tire pressure may decrease
about 3 psi (21 kPa) for a drop of 30°F (17°C)
in ambient temperature. This lower pressure
value may be detected by the tire pressure
monitoring system as being significantly
lower than the recommended inflation

pressure and activate the system warning
light for low tire pressure. If the low tire
pressure warning light is on, visually check
each tire to verify that no tire is flat. If one or
more tires are flat, repair as necessary.
Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive the
vehicle to the nearest location where air can
be added to the tires. Inflate all the tires to
the recommended inflation pressure.

CHANGING A ROAD WHEEL

WARNINGS

Do not use tire sealants as they may
damage the tire pressure monitoring

system.

If the tire pressure monitor sensor
becomes damaged it may not function.

Note: The tire pressure monitoring system
indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.

Note: If your vehicle is equipped with the
optional 5th road wheel and tire assembly,
the storage location in the luggage
compartment is for temporary use only. The
optional full size road wheel and tire
assembly should be stored outside the
vehicle after delivery.

If you get a flat tire while driving, do not apply
the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe place
on the side of the road.

Have a flat serviced by an authorized dealer
in order to prevent damage to the tire
pressure monitoring system sensors.  See
Tire Pressure Monitoring System (page 333).
Replace the spare tire with a road tire as
soon as possible. During repairing or
replacing of the flat tire, have the authorized
dealer inspect the tire pressure monitoring
system sensor for damage.

337

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING

Failure to follow these guidelines could
result in an increased risk of loss of

vehicle control, injury or death.

If you have a dissimilar spare wheel and tire,
then it is intended for temporary use only.
This means that if you need to use it, you
should replace it as soon as possible with a
road wheel and tire assembly that is the
same size and type as the road tires and
wheels that were originally provided by Ford.
If the dissimilar spare tire or wheel is
damaged, it should be replaced rather than
repaired.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire assembly
that is different in brand, size or appearance
from the road tires and wheels and can be
one of three types:

1. T-type mini-spare: This spare tire begins
with the letter T for tire size and may have
Temporary Use Only molded in the sidewall.

2. Full-size dissimilar spare with label on
wheel: This spare tire has a label on the
wheel that states: THIS WHEEL AND TIRE
ASSEMBLY FOR TEMPORARY USE ONLY.

When driving with one of the dissimilar spare
tires listed above, do not:

•

Exceed 50 mph (80 km/h).

•

Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.

•

Tow a trailer.

•

Use snow chains on the end of the
vehicle with the dissimilar spare tire.

•

Use more than one dissimilar spare tire
at a time.

•

Use commercial car washing equipment.

•

Try to repair the dissimilar spare tire.

Use of one of the dissimilar spare tires listed
above at any one wheel location can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability.

3. Full-size dissimilar spare without label
on wheel

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use commercial car washing equipment.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

338

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

•

Wet weather driving capability.

•

All-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a camper
body.

•

Driving vehicles with a load on the cargo
rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly and
seek service as soon as possible.

Tire Change Procedure

WARNINGS

When one of the front wheels is off the
ground, the transmission alone will not

prevent the vehicle from moving or slipping
off the jack, even if the transmission is in park
(P).

WARNINGS

To help prevent your vehicle from
moving when changing a wheel, shift

the transmission into park (P), set the parking
brake and use an appropriate block or wheel
chock to secure the wheel diagonally
opposite to the wheel being changed. For
example, when changing the front left wheel,
place an appropriate block or wheel chock
on the right rear wheel.

No person should place any portion of
their body under a vehicle that is

supported by a jack.

Do not attempt to change a tire on the
side of the vehicle close to moving

traffic. Pull far enough off the road to avoid
the danger of being hit when operating the
jack or changing the wheel.

Always use the jack provided as
original equipment with your vehicle.

If using a jack other than the one provided,
make sure the jack capacity is adequate for
the vehicle weight, including any vehicle
cargo or modifications. If you are unsure if
the jack capacity is adequate, contact the
authorized dealer.

Note: Passengers should not remain in your
vehicle when the vehicle is being jacked.

Note: Jack at the specified locations to avoid
damage to the vehicle.

Note: If your vehicle came equipped with an
extra full size wheel and tire assembly
(placed in the cargo area), be sure to store
the wheel and tire assembly outside of the
vehicle after delivery (livery vehicles only).

Non-Limousine

Note: If the third row seat is stowed in the
floor, you will need to unstow it to access
the spare tire.

1. Park on a level surface, set the parking

brake and activate the hazard flashers.

2. Place the transmission in park (P) and

turn the engine off.

339

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

E142551

3. Block the diagonally opposite wheel.

E211099

4. Remove the carpeted floor panel located

in the rear of the vehicle, then remove
the wing nut that secures the spare tire
by turning it counterclockwise.

5. Lift and remove the spare tire from the

trunk.

6. Remove the second wing nut that

secures the jack retention bracket by
turning it counterclockwise. Then remove
the jack kit from the vehicle.

7. Remove the jack, L-shaped bolt, and the

wrench from the felt bag. Fold down the
wrench socket to use to loosen the lug
nuts and to operate the jack.

8. Remove the wheel cover with the lug

wrench tip and loosen each wheel lug
nut one-half turn counterclockwise, but
do not remove them until the wheel is
raised off the ground.

E145908

9. The vehicle jacking points are shown

above, and are depicted on the warning
label on the jack.

340

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

E201156

10.

Put the jack in the jack notch next to
the tire you are changing. Turn the jack
handle clockwise until the wheel is
completely off the ground.

11.

Remove the lug nuts with the lug
wrench.

12.

Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not
fully tighten the lug nuts until the wheel
has been lowered.

13.

Lower the wheel by turning the jack
handle counterclockwise.

1

2

3

4

5

E75442

14.

Remove the jack and fully tighten the
lug nuts in the order shown.  See
Technical Specifications (page 344).

15.

Install the wheel cover.

Limousine

1. Park on a level surface, set the parking

brake and activate the hazard flashers.

2. Place the transmission in park (P) and

turn the engine off.

E142551

3. Block the diagonally opposite wheel.

341

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

E211467

4. Remove the wing nut that secures the

spare tire by turning it counterclockwise.

5. Lift and remove the spare tire from the

trunk.

E211468

6. Remove the lug wrench (A) and jack (B)

from the jack foam pockets.

7. Remove the wheel cover with the lug

wrench tip and loosen each wheel lug
nut one-half turn counterclockwise, but
do not remove them until the wheel is
raised off the ground.

E145908

8. The vehicle jacking points are shown

above, and are depicted on the warning
label on the jack.

E201156

9. Put the jack in the jack notch next to the

tire you are changing. Turn the jack
handle clockwise until the wheel is
completely off the ground.

10.

Remove the lug nuts with the lug
wrench.

11.

Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not
fully tighten the lug nuts until the wheel
has been lowered.

342

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires
