Lincoln MKT (2019 year). Manual - part 22

12.

Lower the wheel by turning the jack
handle counterclockwise.

1

2

3

4

5

E75442

13.

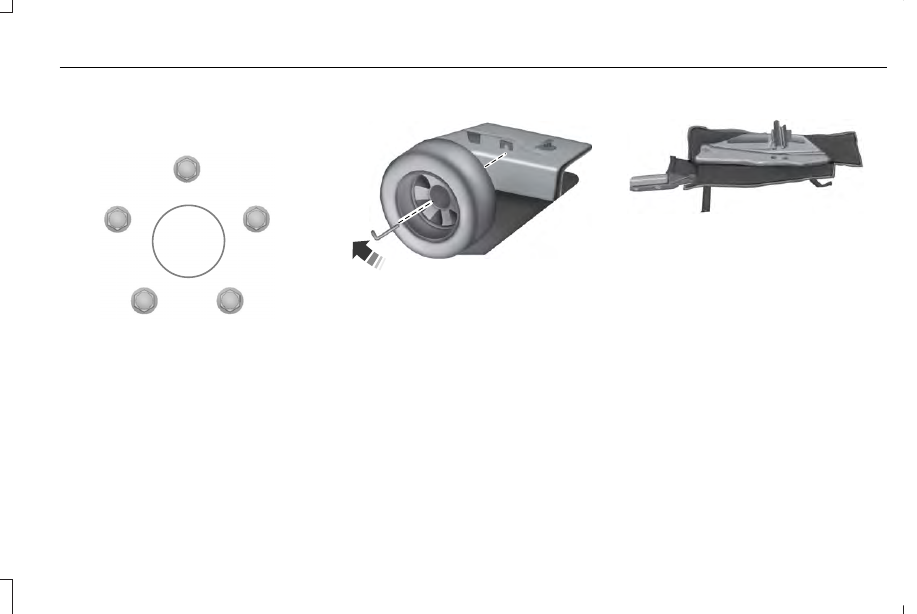

Remove the jack and fully tighten the
lug nuts in the order shown.  See
Technical Specifications (page 344).

14.

Install the wheel cover.

Stowing the flat tire

E194296

If you are stowing the flat tire, remove the
L-shaped bolt from the external pocket of
the felt bag. With the third row seat in the
raised position, stand the flat tire in the rear
of the vehicle with the tire’s valve stem facing
the rear of the vehicle. Fasten the flat tire to
the vehicle by inserting the L-shaped bolt
through one of the lug bolt holes in the
wheel. Turn it clockwise into the threaded
hole in the vehicle until the tire is secured.

If you are stowing the temporary spare tire,
place the tire over the jack and secure it with
the large wing nut.

Stowing the jack

E211100

1. Fully collapse the jack, fold the lug

wrench socket into the handle and place
the jack and wrench into the felt bag as
shown. Place the extension bolt or
L-shaped bolt into the external pocket of
the felt bag. Position the jack as shown
to make sure that the locating holes in
the jack base can be placed on the
locating tabs of the jack mounting
bracket in the spare tire tub.

2. Securely close the wrench compartment

and the jack bag using the Velcro™ straps.

3. Place the jack kit on the angled bracket

in the spare tire tub, using the locating
tabs to position the jack correctly.

343

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

E211101

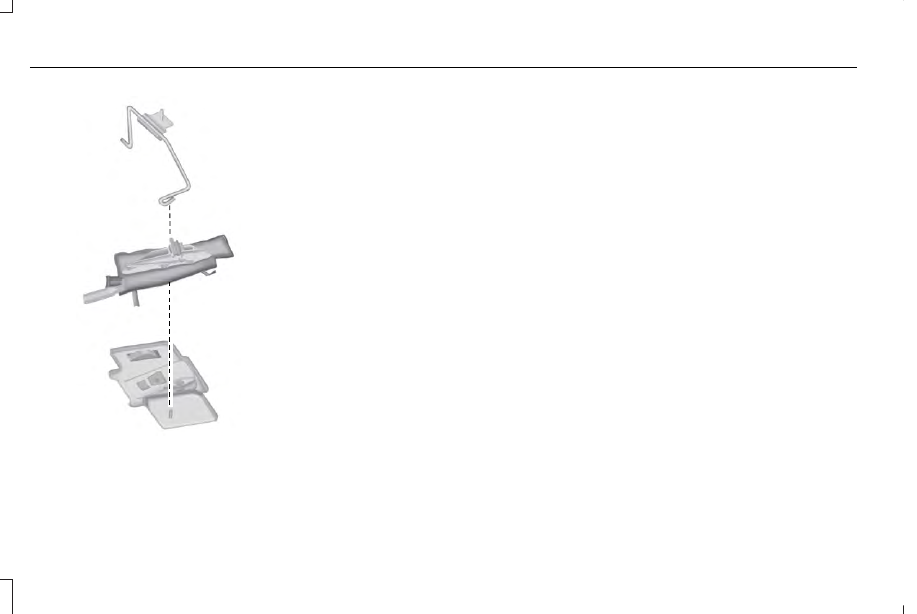

4. Insert the straight end of the jack

retention bracket through the eyelet of
the angled bracket and swing the
retention bracket over the jack. With the
jack in place, place the looped end of the
retention bracket over the threaded stud
in the trunk floor and secure it with the
plastic wing nut.

TECHNICAL SPECIFICATIONS

344

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

Wheel Lug Nut Torque Specifications

WARNING

When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attach the rotor to

the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in loss of vehicle
control, personal injury or death.

 lb.ft (Nm) *

Bolt size

100 lb.ft (135 Nm)

1/2 x 20

150 lb.ft (204 Nm)

M14 x 1.5 (Limousine only)

*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing a
flat tire, wheel removal).

345

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

E145950

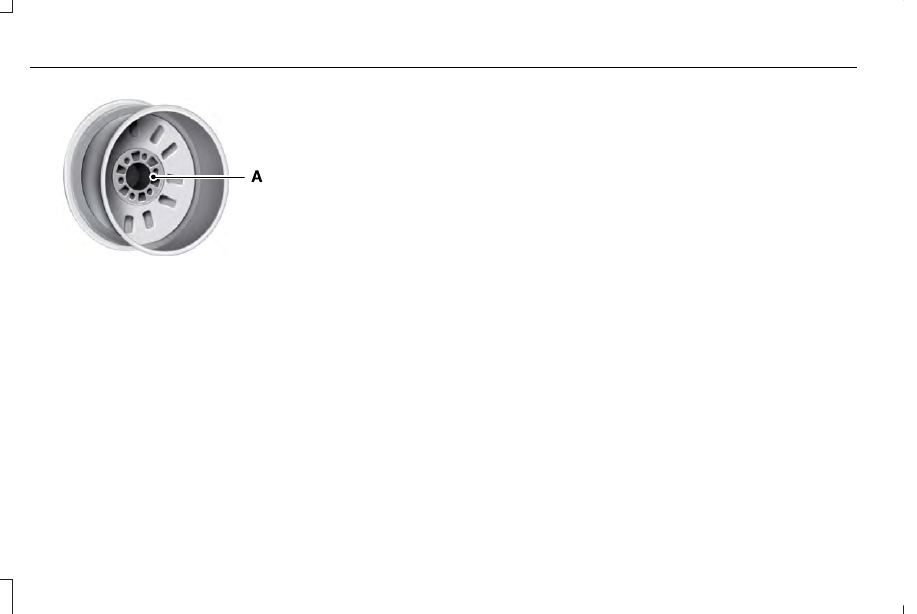

Wheel pilot bore

A

Inspect the wheel pilot hole and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.

346

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Wheels and Tires

ENGINE SPECIFICATIONS - 3.5L

3.5L

Engine

214

Cubic inches.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.030 in (0.75 mm) - 0.033 in (0.85 mm)

Spark plug gap.

10:1

Compression ratio.

Drivebelt Routing

E191904

347

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.7L

3.7L

Engine

226

Cubic inches

1-4-2-5-3-6

Firing order

Coil on plug

Ignition system

0.049 in (1.25 mm) - 0.053 in (1.35 mm)

Spark plug gap

10.5:1

Compression ratio

Drivebelt Routing

E191904

348

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L

3.5L

Component

FA-1884

Air filter element.

FL-500-S

Oil filter.

BXT-65-750

Battery.

SP-534

Spark plugs.

FP-68

Cabin air filter.

WW-2429 (driver side)

Windshield wiper blade.

WW-2235 (passenger side)

WW-1202 (rear window)

We recommend Motorcraft replacement parts available at an authorized dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 483).

349

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

MOTORCRAFT PARTS - 3.7L

3.7L Engine

Component

FA-1884

Air filter element

FL-500-S

Oil filter

BXT-65-750

Battery

SP-520

Spark plugs

FP-68

Cabin air filter

WW-2429 (driver side)

Windshield wiper blade

WW-2235 (passenger side)

WW-1202 (rear window)

We recommend Motorcraft replacement parts available at an authorized dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance, emissions and
durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance
(page 483).

350

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

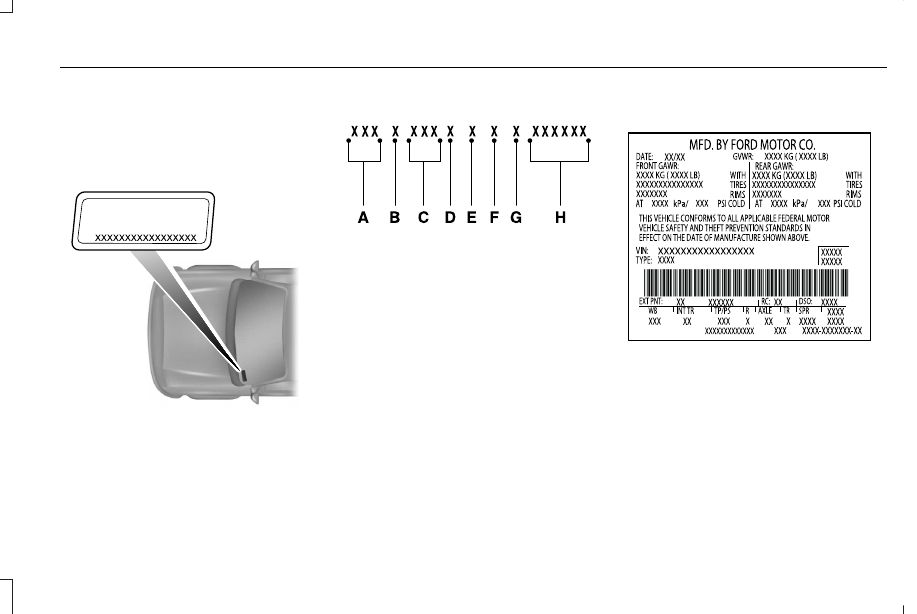

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

351

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission code
along with the transmission description.

Code

Description

G

Six-speed automatic transmission 6F55

J

Six-speed automatic transmission 6F50

352

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS - 3.5L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air
conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil.

13.7 qt (13 L)

Engine coolant.

Between MIN/MAX on brake fluid reservoir

Brake fluid.

2.4 pt (1.15)

Rear differential fluid (All Wheel Drive).

10.9 qt (10.3 L)

1

Automatic transmission fluid (6F50).

11.6 qt (11 L)

1

Automatic transmission fluid (6F55).

17.9 fl oz (0.53 L)

Power Transfer Unit (PTU) fluid (All Wheel Drive).

Fill as required

Windshield washer fluid.

18.6 gal (70.4 L)

Fuel tank.

353

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Capacity

Item

2.45 lb (1.11 kg)

A/C refrigerant.

235 ml (7.95 fl oz)

A/C refrigerant compressor oil.

1

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C946-B1

Motor oil (U.S.):
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil
XO-5W30-QSP

WSS-M2C946-B1

Motor oil (Canada):
Motorcraft® SAE 5W-30 Super Premium Motor Oil
CXO-5W30-LSP12

WSS-M97B44-D2

Engine coolant (U.S.):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

354

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Specification

Name

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid
PM-20

WSP-M2C197-A

Rear differential fluid (U.S.):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
XY-80W90-QL

WSP-M2C197-A

Rear differential fluid (Canada):
Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant
CXY-80W90-1L

WSS-M2C938-A

Automatic transmission fluid (U.S.):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid
CXT-10-LV12

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (U.S.):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL

WSL-M2C192-A

Power Transfer Unit (PTU) fluid (All Wheel Drive) (Canada):
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
CXY-75W140-1L

355

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Specification

Name

WSS-M14P19-A

Windshield washer fluid (U.S.):
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
R-134a Refrigerant
CYN-19-R

WSH-M1C231-B

A/C refrigerant compressor oil:
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

356

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

Specification

Name

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

If you use oil and fluids that do not meet the
defined specification and viscosity grade,
this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

We recommend Motorcraft® motor oil for
your vehicle.  If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that meet API
SN requirements and display the API
Certification Mark for gasoline engines.  Do
not use oil labeled with API SN service
category unless the label also displays the
API certification mark.

E142732

357

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other materials
may result in brake system damage and
possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should only
use MERCON® LV transmission fluid.  The
use of any other fluid may cause
transmission damage.

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C953-A1

Motorcraft® SAE 0W-30 Premium Synthetic Blend Motor Oil:
Engine Oil - SAE 0W-30
XO-0W30-QSP

358

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Capacities and Specifications
