MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Customer Assistance

If you buy your vehicle in North America and
then relocate to any of the above locations,
register your vehicle identification number
(VIN) and new address with Ford Global
Trade Services by emailing,
expcso@ford.com.

If you are in another foreign country, contact
the nearest authorized dealer. In the event
your inquiry is unresolved, communicate your
concern with the dealership’s Sales Manager,
Service Manager or Customer Relations
Manager. If you require additional assistance
or clarification, please contact the respective
Customer Relationship Center as previously
listed.

Customers in the U.S. should call
1-800-392-3673.

ORDERING ADDITIONAL OWNER'S
LITERATURE

To order the publications in this portfolio,
contact Helm, Incorporated at:

HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service

Or to order a free publication catalog, call
toll free: 1-800-782-4356

Monday-Friday 8:00 a.m. - 6:00 p.m. EST

Helm, Incorporated can also be reached by
their website:

www.helminc.com

(Items in this catalog may be purchased by
credit card, check or money order.)

Obtaining a French Owner’s Manual

French Owner’s Manual can be obtained
from your authorized dealer or by contacting
Helm, Incorporated using the contact
information listed previously in this section.

REPORTING SAFETY DEFECTS
(U.S. ONLY)

E142557

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying Ford
Motor Company.

If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
Ford Motor Company.

264

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Customer Assistance

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue, Southeast

Washington, D.C. 20590

You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)

Website

1–800–333–0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

265

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Customer Assistance

FUSE SPECIFICATION CHART

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

WARNINGS

To reduce risk of electrical shock,
always replace the cover to the power

distribution box before reconnecting the
battery or refilling fluid reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses that
protect the vehicle's main electrical systems
from overloads.

If you disconnect and reconnect the battery,
you will need to reset some features.  See
Changing the 12V Battery (page 299).

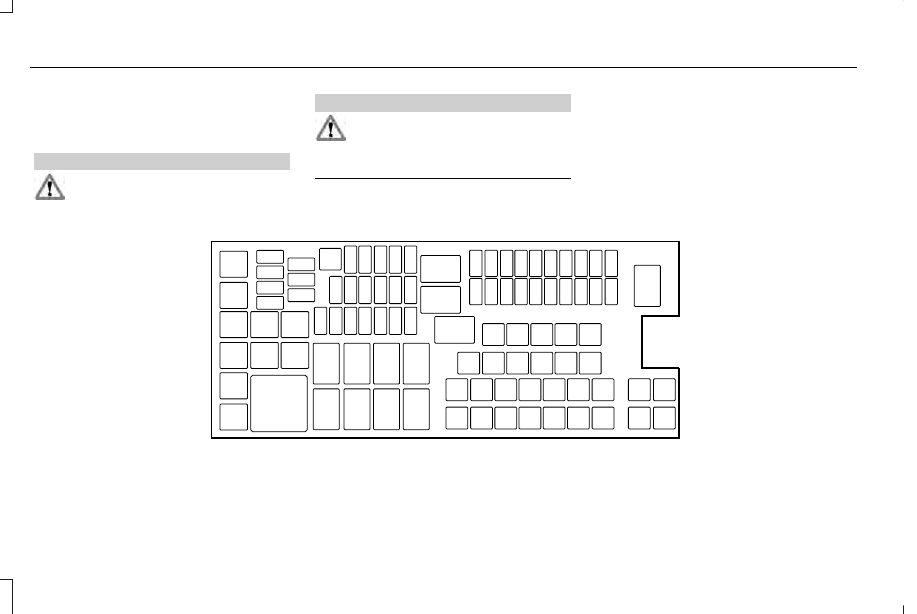

E173618

97

98

77

96

95

94

93 92 91 90 89

88

66

44

78

56

39

26

18

16

17

3

1

2

4

5

6

7

8

9

19

20

21

22

23

24

27

28

29

30

31

40

41

42

43

55

57

58

59

60

61

62

63

64

65

79

80

81

82

83

84

85

86

87

67

45

32

10

11

12

13

33

34

35

46

47

48

49

50

51

68

69

70

71

72

74

73

76

75

53

37

36

54

38

25

15

14

52

266

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Fan relay 2.

40A

1

1

Fan relay 1.

40A

1

2

Trailer brake control module.

30A

1

3

Wipers.

30A

1

4

Washer pump.

Anti-lock brake system pump.

50A

1

5

B+ #1 access circuit (limousine/livery).

50A

1

6

Power liftgate.

30A

1

7

Moonroof.

20A

1

8

Power sunshade.

Second row console power point.

20A

1

9

Third row power seats relay.

Relay

10

Heated rear window relay.

Relay

11

Trailer tow battery charge relay.

Relay

12

267

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Starter motor relay.

Relay

13

Cooling fan number 2 relay.

Relay

14

Fuel pump relay.

Relay

15

B+ #2 access circuit (limousine/livery).

40A

1

16

110V AC power point.

30A

1

17

Front blower motor relay.

40A

1

18

Starter relay.

30A

1

19

Storage bin power point.

20A

1

20

Instrument panel power point / cigar lighter.

20A

1

21

Third row seat module.

30A

1

22

Memory module.

30A

1

23

Trailer tow battery charge (non-limousine/livery).

30A

1

24

Vacuum pump relay (limousine only).

40A

1

268

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

-

25

Rear window defroster.

40A

1

26

Heated mirrors.

Cargo power point.

20A

1

27

Front climate controlled seats.

30A

1

28

Rear climate controlled seats.

30A

1

29

Rear heated seats.

20A

1

30

Electric fan relay 3.

25A

1

31

Auxiliary blower motor relay.

Relay

32

Cooling fan #1 relay.

Relay

33

Front blower motor relay.

Relay

34

Cooling fan (series) relay.

Relay

35

Not used.

-

36

Trailer tow right-hand stop/turn lamps relay.

Relay

37

Trailer tow reverse lamps relay.

Relay

38

269

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Auxiliary blower motor.

30A

1

39

Left front smart window motor.

30A

1

40

Left rear smart window motor.

30A

1

41

Passenger power seat.

30A

1

42

Anti-lock brake system valves.

20A

1

43

Windshield washer relay.

Relay

44

Rain sensor.

5A

2

45

Canister vent solenoid (3.5L engine).

5A

2

46

Washer pump.

15A

2

47

Front park lamps.

10A

2

48

Not used.

-

49

Heated mirrors.

10A

2

50

270

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Powertrain control module — Injector power monitor
(3.7L engine).

5A

2

51

Not used.

-

52

Trailer tow left-hand stop/turn lamps relay.

Relay

53

Not used.

-

54

Wiper relay.

Relay

55

Fuel injectors.

30A

2

56

Fuel pump relay.

Left-hand high intensity discharge headlamp.

20A

2

57

Alternator sensor.

10A

2

58

Brake on/off switch.

10A

2

59

Trailer tow back-up lamps.

10A

2

60

B+ #6 access circuit (limousine/livery).

20A

2

61

A/C clutch relay.

10A

2

62

Trailer tow stop/turn lamps.

15A

2

63

271

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Rear wipers.

15A

2

64

B+ #7 access circuit (limousine/livery).

20A

2

65

Powertrain control module – vehicle power relay.

Relay

66

Vehicle power #2 – oxygen sensor heater.

20A

2

67

Mass airflow sensor.
Variable camshaft timing solenoid valve.
Canister vent solenoid.
Canister purge solenoid.

Vehicle power #4 (ignition coils).

20A

2

68

Vehicle power 1 (powertrain control module).

20A

2

69

Vehicle power #3 (coil) – A/C clutch relay.

15A

2

70

Fan control relay coils 1-3.
Variable air conditioning compressor.
Auxiliary transmission warmup.
Turbo charge waste-gate control.
Electronic compressor bypass valve.
All-wheel drive module.
Positive crankcase ventilation heater.

Not used.

-

71

272

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Limousine/livery run/accessory.

5A

2

72

Limousine/livery battery saver.

5A

2

73

Not used.

-

74

Not used.

-

75

Not used.

-

76

Trailer tow park lamps relay.

Relay

77

Right high-intensity discharge headlamp.

20A

2

78

Adaptive cruise control module.

10A

2

79

B+ #3 access circuit (limousine/livery).

30A

2

80

B+ #4 access circuit (limousine/livery).

15A

2

81

Rear washer.

15A

2

82

Not used.

-

83

Trailer tow park lamps.

20A

2

84

273

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

B+ #5 access circuit (limousine/livery).

15A

2

85

Powertrain control module.

5A

2

86

Keep alive power and relay.
Powertrain control module relay.
Canister vent solenoid (3.7L engine).

Run start relay.

5A

2

87

Run start relay.

Relay

88

Anti–lock brake system module.

10A

2

89

Adaptive headlamps module.

Powertrain control module run/start.

10A

2

90

Adaptive cruise control module.

10A

2

91

Front blower relay coil.

5A

2

92

Power steering module.

Auxiliary blower motor.

5A

2

93

Rear window defroster relay.
Battery charge / vacuum pump relays.

Body control module run/start.

30A

2

94

274

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

-

95

Not used.

-

96

Not used.

-

97

A/C clutch relay.

Relay

98

1

J Case Low Profile fuse.

2

Mini fuse.

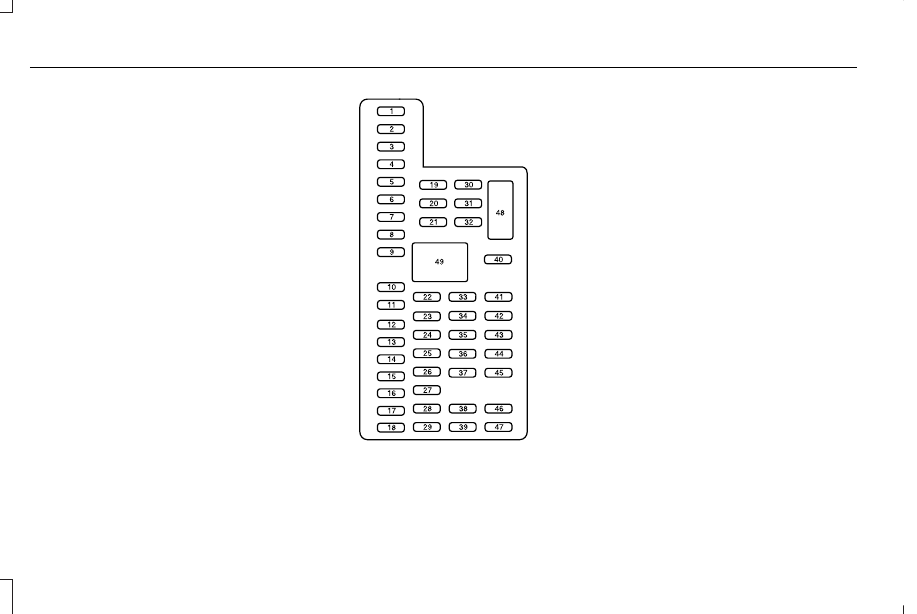

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering wheel. You may
need to remove a trim panel to access it.

275

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

E163102

276

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Passenger side rear window.

30A

1

Memory seat.

15A

2

Second row seats.

Passenger side front window.

30A

3

Demand lamps battery saver relay.

10A

4

Limousine battery saver.

Audio amplifier

20A

5

Active noise control module.

Rear climate control.

5A

6

Rear seat entertainment module (livery only).
USB power outlet.

Driver seat module logic.

7.5A

7

Left front door zone module.
Keypad.

Power liftgate.

10A

8

SYNC module.

10A

9

Electronic finish panel.
Radio frequency transceiver module.

Run accessory relay.

10A

10

277

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Front wiper motor relay.
Limousine run/accessory.

Intelligent access module logic.

10A

11

Heads-up display.

Puddle lamp.

15A

12

Backlighting LED.
Interior lighting.

Right-hand direction indicators.

15A

13

Left-hand direction indicators.

15A

14

Center high mounted stop lamp.

15A

15

Backup lamp.

Right low beam headlamp.

10A

16

Left low beam headlamp.

10A

17

Third row power seats.

10A

18

Start button.
Keypad illumination.
Brake-shift interlock.
Powertrain control module wake-up.

Smart amplifier.

20A

19

Subwoofer amplifier.

278

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses
