Lincoln MKT (2019 year). Manual - part 18

Protected Components

Fuse Rating

Fuse or Relay Number

Not used (spare).

20A

20

Extended power module.

10A

21

Horn relay.

20A

22

Steering wheel control module logic.

15A

23

Instrument cluster.

Steering wheel control module.

15A

24

Datalink.

Not used (spare).

15A

25

Push button ignition switch.

5A

26

Intelligent access module power.

20A

27

Not used (spare).

15A

28

Radio.

20A

29

Front park lamps.

15A

30

Trailer tow relay for park lamps.
Front side markers.

Trailer tow brake controller.

5A

31

Smart window motors.

15A

32

Master window and mirror switch.

279

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Lock switch illumination.
Moonroof.
110V AC power point.
Rear seat switch (livery).

Suspension module.

10A

33

Reverse park aid module.

10A

34

Automatic high beam and lane departure module.
Rear heated seat module.
Blind spot monitor module.
Rear video camera.
Interior mirror.

Climate control humidity sensor.

5A

35

Overdrive cancel switch (limousine/livery).
Heads-up display.

Heated steering wheel.

10A

36

Refrigerator.

10A

37

Not used (spare).

10A

38

High beams.

15A

39

Rear park lamps.

10A

40

License plate lamps.

280

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Rear light bar applique.

Extended power module.

7.5A

41

Not used (spare).

5A

42

Not used (spare).

10A

43

Not used (spare).

10A

44

Not used (spare).

5A

45

Climate control module.

10A

46

Fog lamp relay.

15A

47

Not used (spare).

30A Circuit breaker

48

Delayed accessory relay.

Relay

49

Body control module.

281

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

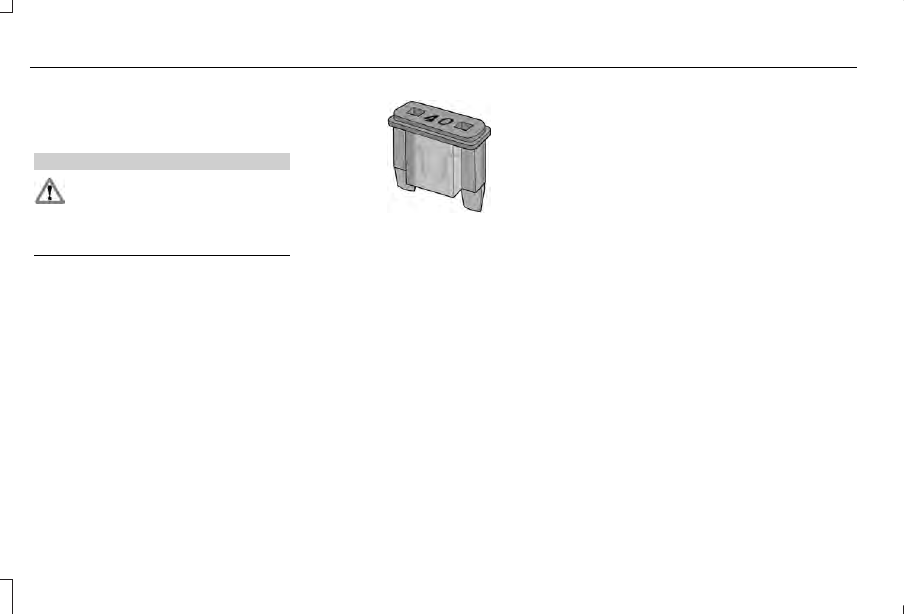

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.

Using a fuse with a higher amperage rating
can cause severe wire damage and could
start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.

282

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

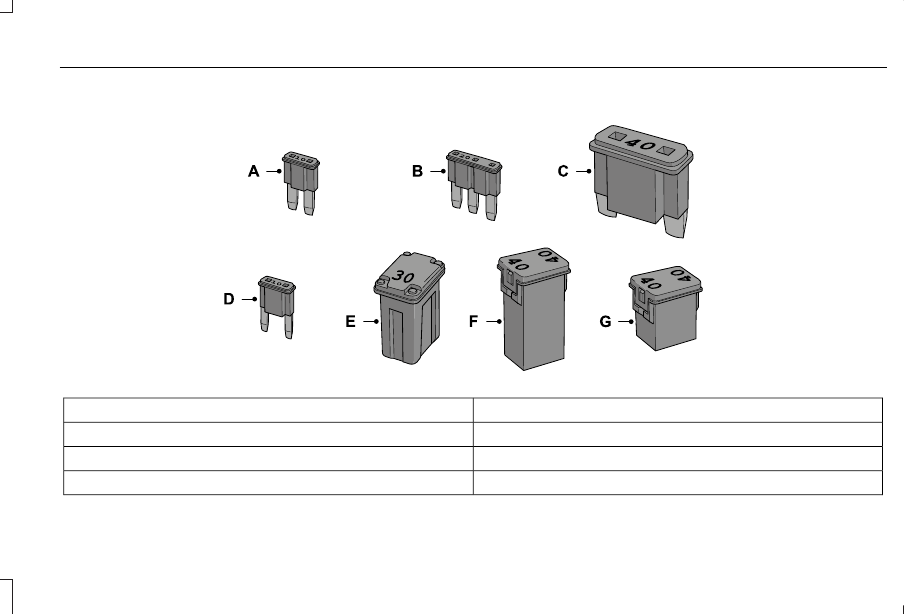

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

283

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

Fuse Type

Callout

Mini

D

M Case

E

J Case

F

J Case Low Profile

G

284

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away from
the battery and all fuel related parts.

Working with the Engine Off

1. Set the parking brake and shift to park

(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not

start your engine with the air cleaner
removed and do not remove it while the
engine is running.

1. Set the parking brake and shift to park

(P).

2. Block the wheels.

285

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

OPENING AND CLOSING THE
HOOD

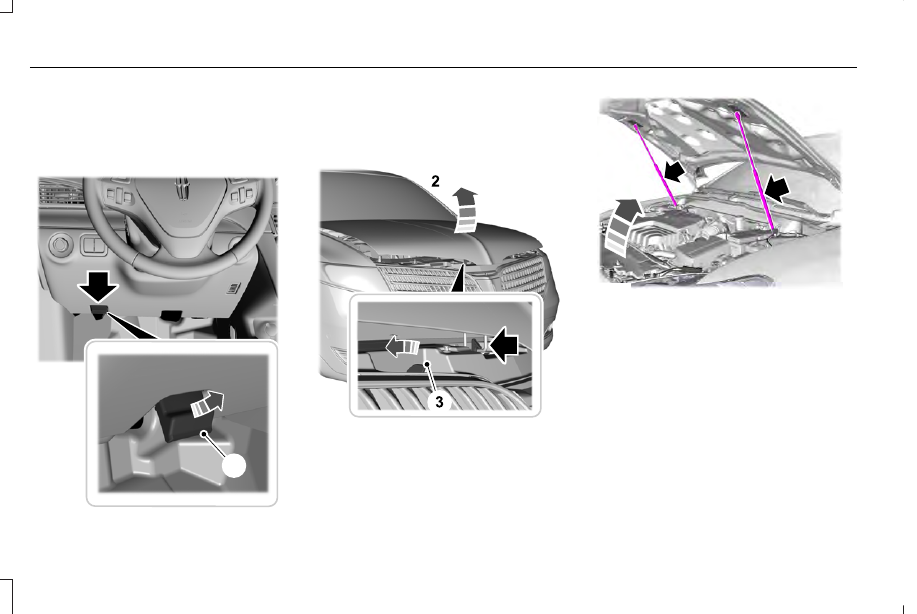

Opening the Hood

E235971

1

1. Inside the vehicle, pull the hood release

handle located under the left-hand side
of the instrument panel.

2. Slightly lift the hood.

E235972

3. Release the hood latch by pushing the

secondary release lever to your left-hand
side.

E202009

4

4. Open the hood. The hood struts

automatically support the hood.

Closing the Hood

1. Lower the hood and allow it to drop

under its own weight for the last 8–12 in
(20–30 cm).

Note: Make sure that the hood is correctly
closed.

286

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

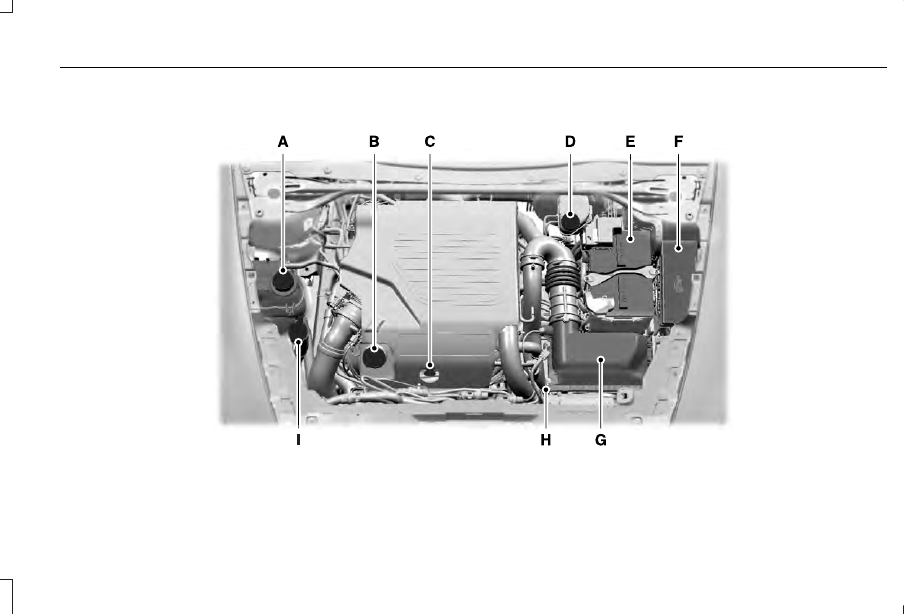

UNDER HOOD OVERVIEW - 3.5L

E173375

287

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

Engine coolant reservoir.  See
Engine Coolant Check (page 292).

A.

Engine oil filler cap.  See Engine
Oil Check (page 290).

B.

Engine oil dipstick.  See Engine Oil
Dipstick (page 290).

C.

Brake fluid reservoir.  See Brake
Fluid Check (page 298).

D.

Battery.  See Changing the 12V
Battery (page 299).

E.

Engine compartment fuse box.
See Fuses (page 266).

F.

Air filter assembly.  See Changing
the Engine Air Filter (page 305).

G.

Automatic transmission dipstick.
See Automatic Transmission Fluid
Check (page 296).

H.

Washer fluid reservoir.  See
Washer Fluid Check (page 299).

I.

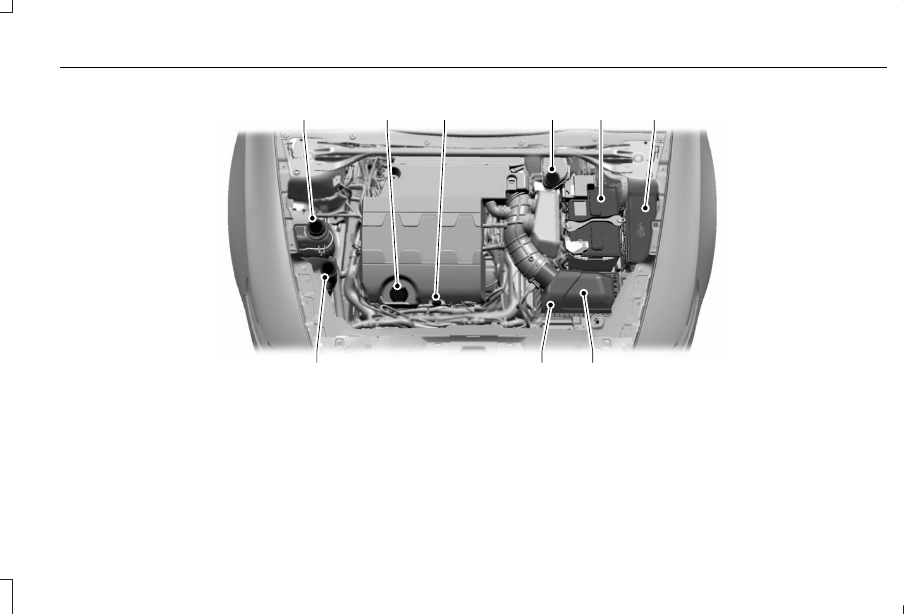

UNDER HOOD OVERVIEW - 3.7L

288

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

A

B

C

D

G

H

I

E

F

E173333

Engine coolant reservoir.  See
Engine Coolant Check (page 292).

A.

Engine oil filler cap.  See Engine
Oil Check (page 290).

B.

Engine oil dipstick.  See Engine Oil
Dipstick (page 290).

C.

Brake fluid reservoir.  See Brake
Fluid Check (page 298).

D.

Battery.  See Changing the 12V
Battery (page 299).

E.

Engine compartment fuse box.
See Fuses (page 266).

F.

Air filter assembly.  See Changing
the Engine Air Filter (page 305).

G.

289

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

Automatic transmission dipstick.
See Automatic Transmission Fluid
Check (page 296).

H.

Washer fluid reservoir.  See
Washer Fluid Check (page 299).

I.

ENGINE OIL DIPSTICK

E146429

MIN

A

MAX

B

ENGINE OIL CHECK

To check the engine oil level consistently
and accurately, do the following:

1. Make sure the parking brake is on. Make

sure the transmission is in park (P) or
neutral (N).

2. Run the engine until it reaches normal

operating temperature.

3. Make sure that your vehicle is on level

ground.

4. Switch the engine off and wait 15 minutes

for the oil to drain into the oil pan.
Checking the engine oil level too soon
after you switch the engine off may result
in an inaccurate reading.

5. Open the hood.   See Opening and

Closing the Hood (page 286).

6. Remove the dipstick and wipe it with a

clean, lint-free cloth.   See Under Hood
Overview (page 288).

7. Replace the dipstick and remove it again

to check the oil level.   See Under Hood
Overview (page 288).

8. Make sure that the oil level is between

the maximum and minimum marks. If the
oil level is at the minimum mark, add oil
immediately.   See Capacities and
Specifications (page 359).

9. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the
engine is running.

Note:  If the oil level is between the
maximum and minimum marks, the oil level
is acceptable.  Do not add oil.

Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km).

Adding Engine Oil

WARNING

Do not remove the filler cap when the
engine is running.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that may not be
covered by the vehicle Warranty.

290

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

E142732

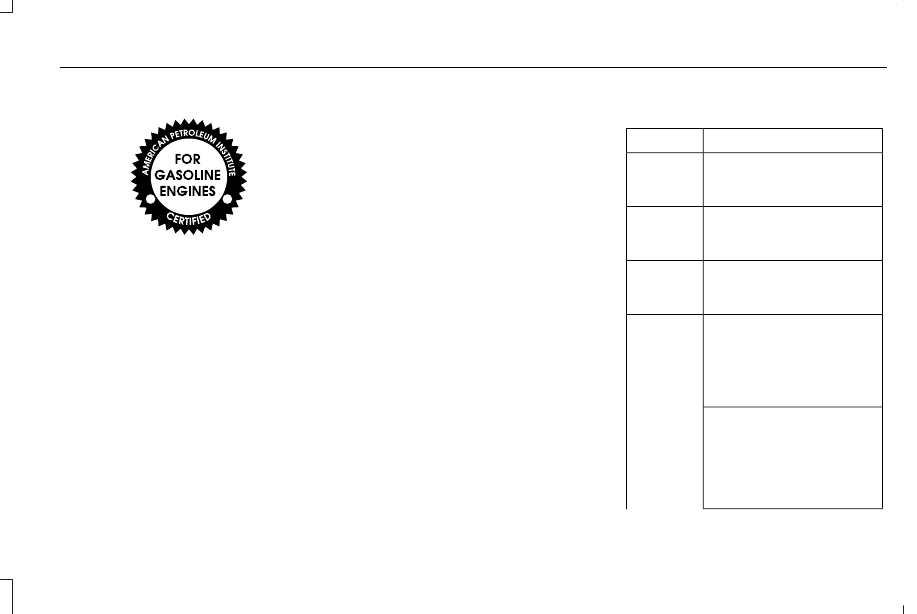

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricants
Specification Advisory Committee (ILSAC).

To top up the engine oil level do the
following:

1. Clean the area surrounding the engine

oil filler cap before you remove it.

2. Remove the engine oil filler cap.   See

Under Hood Overview (page 288).  Turn
it counterclockwise and remove it.

3. Add engine oil that meets Ford

specifications.   See Capacities and
Specifications (page 359).  You may have
to use a funnel to pour the engine oil into
the opening.

4. Recheck the oil level.

5. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

6. Replace the engine oil filler cap.  Turn it

clockwise until you feel a strong
resistance.

Note:  Do not add oil further than the
maximum mark.  Oil levels above the
maximum mark may cause engine damage.

Note: Make sure you install the oil filler cap
correctly.

Note: Soak up any spillage with an
absorbent cloth immediately.

OIL CHANGE INDICATOR RESET

Use the information display controls on the
steering wheel to reset the oil change
indicator.

From the main menu scroll to:

Action and description

Message

Press the right arrow button,
then from this menu scroll to
the following message.

Settings

Press the right arrow button,
then from this menu scroll to
the following message.

Vehicle

Press the right arrow button,
then from this menu scroll to
the following message.

Oil Life

Press and hold the OK button
until the instrument cluster
displays the following
message.

Hold OK to
Reset

Reset Successful

When the oil change indicator
resets the instrument cluster
displays 100%.

Remaining Life

{00}%

291

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

Action and description

Message

If the instrument cluster
displays one of the following
messages, repeat the
process.

Not Reset

Reset Cancelled

ENGINE COOLANT CHECK

WARNINGS

Do not remove the coolant reservoir
cap when the cooling system is hot.

Wait 10 minutes for the cooling system to
cool down. Cover the coolant reservoir cap
with a thick cloth to prevent the possibility
of scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

Do not put coolant in the windshield
washer reservoir. If sprayed on the

windshield, coolant could make it difficult to
see through the windshield.

WARNINGS

To reduce the risk of personal injury,
make sure the engine is cool before

unscrewing the coolant pressure relief cap.
The cooling system is under pressure. Steam
and hot liquid can come out forcefully when
you loosen the cap slightly.

Do not add coolant further than the
MAX mark.

When the engine is cold, check the
concentration and level of the coolant at the
intervals listed in the scheduled maintenance
information.  See Scheduled Maintenance
(page 483).

Note: Make sure that the coolant level is
between the MIN and MAX marks on the
coolant reservoir.

Note:  Coolant expands when it is hot.  The
level may extend beyond the MAX mark.

Maintain coolant concentration within 48%
to 50%, which equates to a freeze point
between -29°F (-34°C) and -35°F (-37°C).
Coolant concentration should be checked
using a refractometer. We do not recommend
the use of hydrometers or coolant test strips
for measuring coolant concentration.

Adding Coolant

WARNINGS

Do not add engine coolant when the
engine is hot. Failure to follow this

instruction could result in personal injury.

Do not remove the coolant reservoir
cap when the cooling system is hot.

Wait 10 minutes for the cooling system to
cool down. Cover the coolant reservoir cap
with a thick cloth to prevent the possibility
of scalding and slowly remove the cap.
Failure to follow this instruction could result
in personal injury.

292

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

Note:  Automotive fluids are not
interchangeable.  Take care not to put
engine coolant in the windshield washer fluid
reservoir or windshield washer fluid in the
engine coolant reservoir.

Note:  Do not use stop leak pellets, cooling
system sealants, or non-specified additives
as they can cause damage to the engine
cooling or heating systems.  Resulting
component damage may not be covered by
the vehicle Warranty.

It is very important to use prediluted coolant
approved to the correct specification in order
to avoid plugging the small passageways in
the engine cooling system.  See Capacities
and Specifications (page 347).  Do not mix
different colors or types of coolant in your
vehicle. Mixing of engine coolants or using
an incorrect coolant may harm the engine or
cooling system components and may not be
covered by the vehicle Warranty.

Note: If prediluted coolant is not available,
use the approved concentrated coolant
diluting it to 50/50 with distilled water.  See
Capacities and Specifications (page 347).
Using water that has not been deionised
may contribute to deposit formation,
corrosion and plugging of the small cooling
system passageways.

Note:  Coolants marketed for all makes and
models may not be approved to our
specifications and may cause damage to
the cooling system.  Resulting component
damage may not be covered by the vehicle
Warranty.

If the coolant level is at or below the
minimum mark, add prediluted coolant
immediately.

To top up the coolant level do the following:

1. Unscrew the cap slowly. Any pressure

escapes as you unscrew the cap.

2. Add prediluted coolant approved to the

correct specification.  See Capacities and
Specifications (page 347).

3. Add enough prediluted coolant to reach

the correct level.

4. Replace the coolant reservoir cap, turn

it clockwise until you feel a strong
resistance.

5. Check the coolant level in the coolant

reservoir the next few times you drive
your vehicle. If necessary, add enough
prediluted engine coolant to bring the
coolant level to the correct level.

If you have to add more than 1.1 qt (1 L) of
engine coolant per month, have your vehicle
checked as soon as possible. Operating an
engine with a low level of coolant can result
in engine overheating and possible engine
damage.

Note: During normal vehicle operation, the
coolant may change color from orange to
pink or light red. As long as the coolant is
clear and uncontaminated, this color change
does not indicate the coolant has degraded
nor does it require the coolant to be drained,
the system to be flushed, or the coolant to
be replaced.

In case of emergency, you can add a large
amount of water without engine coolant in
order to reach a vehicle service location. In
this instance, qualified personnel:

293

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance

1. Must drain the cooling system.

2. Chemically clean the coolant system.
3. Refill with engine coolant as soon as

possible.

Water alone, without engine coolant, can
cause engine damage from corrosion,
overheating or freezing.

Do not use the following as a coolant
substitute:
•

Alcohol.

•

Methanol.

•

Brine.

•

Any coolant mixed with alcohol or
methanol antifreeze.

Alcohol and other liquids can cause engine
damage from overheating or freezing.

Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of the
coolant.

Recycled Coolant

We do not recommend the use of recycled
coolant as an approved recycling process is
not yet available.

Dispose of used engine coolant in an
appropriate manner.  Follow your
community's regulations and standards for
recycling and disposing of automotive fluids.

Severe Climates

If you drive in extremely cold climates:
•

It may be necessary to increase the
coolant concentration above 50%.

•

A coolant concentration of 60% provides
improved freeze point protection.
Coolant concentrations above 60%
decrease the overheat protection
characteristics of the coolant and may
cause engine damage.

If you drive in extremely hot climates:
•

You can decrease the coolant
concentration to 40%.

•

Coolant concentrations below 40%
decrease the freeze and corrosion
protection characteristics of the coolant
and may cause engine damage.

Vehicles driven year-round in non-extreme
climates should use prediluted coolant for
optimum cooling system and engine
protection.

Coolant Change

At specific mileage intervals, as listed in the
scheduled maintenance information, the
coolant should be changed. Add prediluted
coolant approved to the correct specification.
See Capacities and Specifications (page
347).

Fail-Safe Cooling

Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs. The fail-safe
distance depends on ambient temperature,
vehicle load and terrain.

294

MKT (TP4) , enUSA, Edition date: 201803, First-Printing

Maintenance
