Dodge Journey (2019 year). Manual

Icon

Description

Rear Auto Button
Automatically controls the rear interior cabin temperature by adjusting airflow distribution and
amount. Performing this function will cause the system to switch between manual mode and
automatic modes. Refer to

⬙Automatic Operation⬙ within this section for more information.

Rear Lock Button
Press and release to lock out the rear manual temperature controls from adjusting the rear tem-
perature and blower settings.

Done Button
For Radio 4.3: Press and release this button to complete any climate changes.
Front Climate Button
For Uconnect 3/3 NAV: Press and release this button to change the display on the Uconnect sys-
tem back to the Front Climate Controls.
Rear Passenger Temperature Up and Down Buttons
Provides front occupants ability to control rear temperature.
For Radio 4.3: Press and hold the slide bar to increase or decrease the temperature.
For Uconnect 3/3 NAV: Press and hold the slide bar to increase or decrease the temperature or
Push the up arrow button on the touchscreen to increase the temperature and Push the down
arrow button on the touchscreen to decrease the temperature.
When the SYNC feature is active, the passenger’s temperature moves up and down with the
driver’s temperature.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

SYNC Button — If Equipped
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indica-
tor is illuminated when this feature is enabled. SYNC is used to synchronize the front and rear
passenger temperature/mode/blower settings with the driver temperature settings. Changing
the front or rear passenger temperature/mode/blower settings while in SYNC will automati-
cally exit this feature.
Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There
are seven blower speeds available. Adjusting the blower will cause automatic mode to switch to
manual operation. The speeds can be selected using the buttons on the touchscreen.
Rear Passenger Climate Control OFF Button
Press and release this button to turn the Rear Climate Controls off.

Panel Mode

Panel Mode
Press this button on the touchscreen to change the air distribution mode to Panel Mode. In
Panel Mode, air comes from the outlets in the instrument panel. Each of these outlets can be
individually adjusted to direct the flow of air. The air vanes of the center outlets and outboard
outlets can be moved up and down or side to side to regulate airflow direction. There is a shut
off wheel located below the air vanes to shut off or adjust the amount of airflow from these out-
lets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Bi-Level Mode

Bi-Level Mode
Press this button on the touchscreen to change the air distribution mode to Bi-Level Mode. In
Bi-Level Mode, air comes from the instrument panel outlets and floor outlets. A slight amount
of air is directed through the defrost and side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Press this button on the touchscreen to change the air distribution mode to Floor Mode. In Floor
Mode, air comes from the floor outlets. A slight amount of air is directed through the defrost
and side window demister outlets.

Rear Automatic Temperature Control (ATC)

1. Adjust the Rear Blower, Rear Temperature and the Rear

Modes to suit your comfort needs.

2. ATC is selected by adjusting the knob to the AUTO

position.

Rear ATC Control Features

GETTING TO KNOW YOUR VEHICLE

Once the desired temperature is displayed, the ATC System
achieves and maintain that comfort level. When the system
is set up for your comfort level, it is not necessary to
change the settings. You experience the greatest efficiency
by simply allowing the system to function automatically.

NOTE:
• It is not necessary to move the temperature settings. The

system automatically adjusts the temperature, mode and
fan speed to provide comfort as quickly as possible.

Icon

Description

Mode Knob

Mode Knob
To change the mode in the rear of the vehicle, turn the mode Control Knob to the desired mode
setting (Panel/Bi-Level/Floor). When rear controls are locked by the front system, the Rear Lock
symbol on the temperature knob is illuminated and any rear overhead adjustments are ignored.

Panel Mode

Panel Mode
Air comes from the outlets in the headliner. Each of these outlets can be individually adjusted to
direct the flow of air. Moving the air vanes of the outlets to one side will shut off the airflow.

Bi-Level Mode

Bi-Level Mode
Air comes from both the headliner outlets and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode is designed to provide cooler air out of

the headliner outlets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Air comes from the floor outlets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Rear Temperature Control Knob
To change the temperature in the rear of the vehicle, turn the Temperature Control Knob. Turn it
to the right to raise the temperature, or turn it to the left to lower the temperature. When rear con-
trols are locked by the front system, the rear lock symbol on the temperature knob is illuminated
and any rear overhead adjustments are ignored.
Rear Blower Control Knob
The rear blower control can be manually set to off, or any fixed blower speed by rotating the
Blower Control Knob in the rear of the vehicle. This allows the rear seat occupants to control the
volume of air circulated in the rear of the vehicle.
When rear controls are locked by the front system, the Rear Lock symbol on the temperature knob
is illuminated and any rear overhead adjustments are ignored.
AUTO Button — If Equipped
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Performing this function causes the system to switch between manual mode and auto-
matic modes. Refer to

⬙Automatic Operation⬙ within this section for more information.

Rear Climate Control/Blower Off
To manually set the rear blower controls to off, press the Rear Climate Control/Blower Off button.

GETTING TO KNOW YOUR VEHICLE

Climate Control Functions

A/C (Air Conditioning)

The Air Conditioning (A/C) button allows the operator to
manually activate or deactivate the air conditioning sys-
tem. When the air conditioning system is turned on, cool
dehumidified air will flow through the outlets into the
cabin. For improved fuel economy, press the A/C button to
turn off the air conditioning and manually adjust the
blower and airflow mode settings. Also, make sure to select
only Panel, Bi-Level, or Floor modes.

NOTE:
• For Manual Climate Controls, if the system is in Mix,

Floor or Defrost Mode, the A/C can be turned off, but
the A/C system shall remain active to prevent fogging of
the windows.

• If fog or mist appears on the windshield or side glass,

select Defrost mode, and increase blower speed if
needed.

• If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (located
in front of the radiator), for an accumulation of dirt or
insects. Clean with a gentle water spray from the front of
the radiator and through the condenser.

MAX A/C

MAX A/C sets the control for maximum cooling perfor-
mance.

Press and release to toggle between MAX A/C and the
prior settings. The button illuminates when MAX A/C is
on.

In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the selected
setting and MAX A/C to exit.

Recirculation

In cold weather, use of Recirculation mode may lead to
excessive window fogging. The Recirculation feature may
be unavailable (button on the touchscreen greyed out) if
conditions exist that could create fogging on the inside of
the windshield.

On systems with Manual Climate Controls, if equipped,
the Recirculation mode is not allowed in Defrost mode to
improve window clearing operation. Recirculation is dis-
abled automatically if this mode is selected. Attempting to
use Recirculation while in this mode causes the LED in the
control button to blink and then turns off.

GETTING TO KNOW YOUR VEHICLE

Automatic Temperature Control (ATC) — If
Equipped

Automatic Operation

1. Push the AUTO button on the faceplate, or the AUTO

button on the touchscreen on the Automatic Tempera-
ture Control (ATC) Panel.

2. Next, adjust the temperature you would like the system

to maintain by adjusting the driver and passenger
temperature control buttons. Once the desired tempera-
ture is displayed, the system achieves and automatically
maintains that comfort level.

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.

NOTE:
• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric units

by selecting the US/Metric customer programmable
feature. Refer to the “Uconnect Settings” in “Multime-
dia” for further information. To provide you with maxi-
mum comfort in the Automatic mode during cold start-
ups, the blower fan remains on low until the engine
warms up. The blower will increase in speed and
transition into Auto mode.

Manual Operation Override

This system offers a full complement of manual override
features. The AUTO symbol in the front ATC display will
be turned off when the system is being used in the manual
mode.

Operating Tips

NOTE:

Refer to the chart at the end of this section for

suggested control settings for various weather conditions.

GETTING TO KNOW YOUR VEHICLE

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corrosion
protection and to protect against engine overheating. OAT
coolant (conforming to MS.90032) is recommended. Refer
to “Fluids And Lubricants” in “Technical Specifications”
for proper coolant selection.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is functioning
properly and the proper amount, type, and concentration
of coolant is used. Refer to “Fluids And Lubricants” in
“Technical Specifications” for proper coolant selection. Use
of the air Recirculation mode during Winter months is not
recommended, because it may cause window fogging.

Vacation/Storage

Before you store your vehicle, or keep it out of service (i.e.,
vacation) for two weeks or more, run the air conditioning
system at idle for about five minutes, in fresh air with the
blower setting on high. This will ensure adequate system
lubrication to minimize the possibility of compressor dam-
age when the system is started again.

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,
and/or humid weather. To clear the windows, select De-
frost or Mix mode and increase the front blower speed. Do
not use the Recirculation mode without A/C for long
periods, as fogging may occur.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the win-
dow.

• Keep all objects a safe distance from the window.

100

GETTING TO KNOW YOUR VEHICLE

Outside Air Intake

Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
winter months, make sure the air intake is clear of ice,
slush, and snow.

A/C Air Filter

The climate control system filters out dust and pollen from
the air. Refer to an authorized dealer for filter replacement
instructions.

Operating Tips Chart

GETTING TO KNOW YOUR VEHICLE

101

WINDOWS

Power Windows

The window controls on the driver’s door trim panel
control all of the door windows.

There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate when the ignition is in
the ON/RUN or ACC position.

NOTE:

For vehicles equipped with Uconnect, the power

window switches will remain active for up to 10 minutes
after the ignition is cycled to the OFF position. Opening
either front door will cancel this feature. The time is
programmable. Refer to “Uconnect Settings” in “Multime-
dia” for further information.

WARNING!

Never leave children unattended in a vehicle. Do not
leave the key fob in or near the vehicle or in a location
accessible to children, and do not leave the ignition of
a vehicle equipped with Keyless Enter-N-Go in the
ACC or ON/RUN mode. Occupants, particularly unat-
tended children, can become entrapped by the win-
dows while operating the power window switches.
Such entrapment may result in serious injury or death.

Auto-Down Feature

The driver’s power window switch has an Auto-Down
feature. Push the window switch past the first detent,
release, and the window will go down automatically.

To open the window part way, push the window switch to
the first detent and release it when you want the window
to stop.

Power Window Switches

102

GETTING TO KNOW YOUR VEHICLE

To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.

Auto-Up Feature With Anti-Pinch Protection

On some models, the driver and front passenger power
window switches have an Auto-Up feature. Pull the win-
dow switch up to the second detent, release, and the
window will go up automatically.

To stop the window from going all the way up during the
Auto-Up operation, push down on the switch briefly.

To close the window part way, pull the window switch up
to the first detent and release it when you want the
window to stop.

NOTE:
• If the window runs into any obstacle during Auto-

Closure, it will reverse direction and then go back down.
Remove the obstacle and use the window switch again
to close the window.

• Any impact due to rough road conditions may trigger

the Auto-Reverse function unexpectedly during Auto-
Closure. If this happens, pull the switch lightly to the
first detent and hold to close window manually.

WARNING!

There is no anti-pinch protection when the window is
almost closed. To avoid personal injury, be sure to clear
your arms, hands, fingers, and objects from the win-
dow path before closing the window. Such entrapment
may result in serious injury.

Reset Auto-Up

Should the Auto-Up feature stop working, the window
may need to be reset. To reset Auto-Up:

1. Make sure the door is fully closed.

2. Pull the window switch up to close the window com-

pletely and continue to hold the switch up for an
additional two seconds after the window is closed.

3. Push the window switch down firmly to the second

detent to open the window completely and continue to
hold the switch down for an additional two seconds
after the window is fully open.

GETTING TO KNOW YOUR VEHICLE

103

Window Lockout Switch

The window lockout switch on the driver’s door trim panel
allows you to disable the window control on the rear
passenger doors. To disable the window controls, push and
release the window lockout button (setting it in the down
position). To enable the window controls, push and release
the window lockout button again (setting it in the up
position).

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffeting with the windows
down, or the sunroof (if equipped) in certain open or
partially open positions. This is a normal occurrence and
can be minimized. If the buffeting occurs with the rear
windows open, open the front and rear windows together
to minimize the buffeting. If the buffeting occurs with the
sunroof open, adjust the sunroof opening to minimize the
buffeting or open any window.

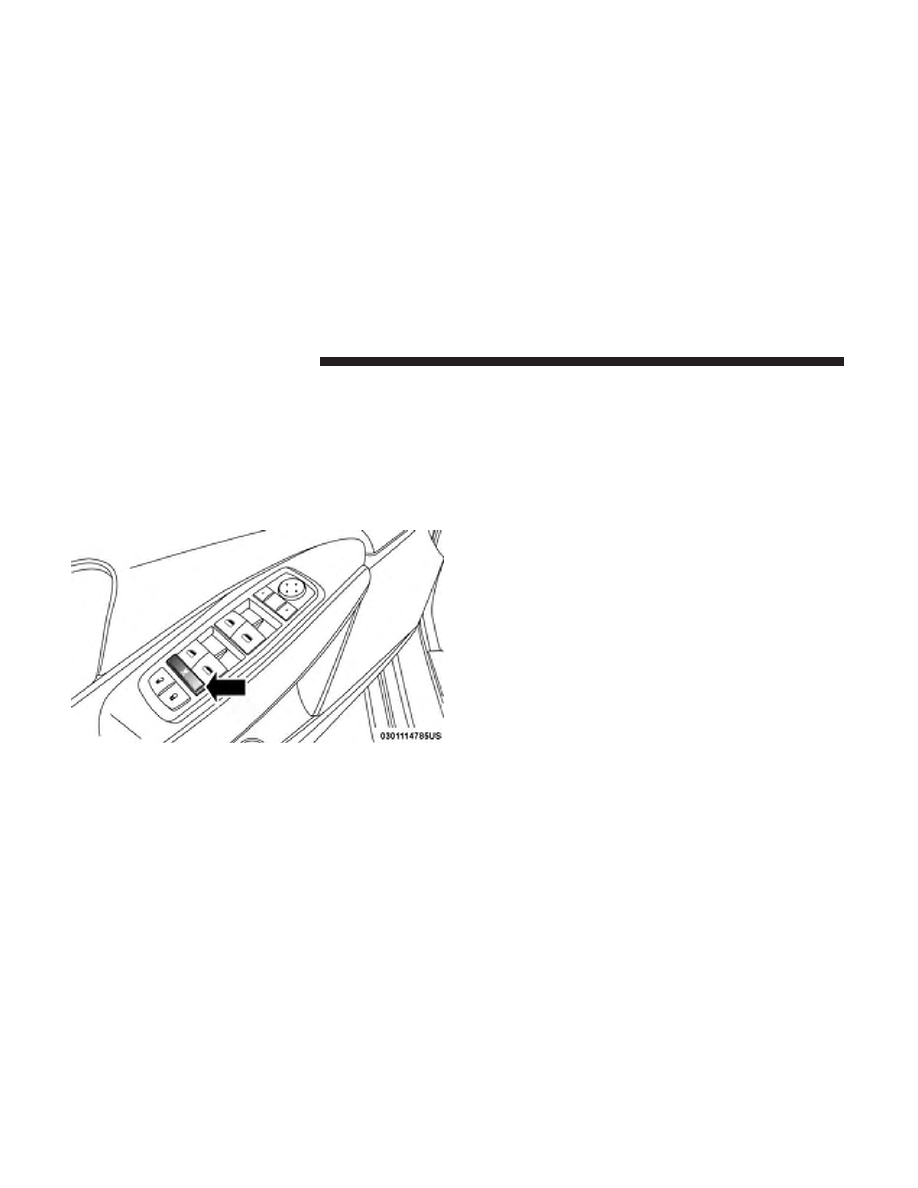

Window Lockout Switch

104

GETTING TO KNOW YOUR VEHICLE

POWER SUNROOF — IF EQUIPPED

The power sunroof switch is located between the sun
visors on the overhead console.

WARNING!

• Never leave children unattended in a vehicle, or with

access to an unlocked vehicle. Never leave the key
fob in or near the vehicle, or in a location accessible
to children. Do not leave the ignition of a vehicle
equipped with Keyless Enter-N-Go in the ACC or
ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the power sun-
roof while operating the power sunroof switch. Such
entrapment may result in serious injury or death.

• In a collision, there is a greater risk of being thrown

from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
also properly secured.

• Do not allow small children to operate the sunroof.

Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. In-
jury may result.

Power Sunroof Switch

GETTING TO KNOW YOUR VEHICLE

105

Opening Sunroof

Express

Push the switch rearward and release it within one-half
second, the sunroof and sunshade will open automatically
and stop at full open position. During Express Open
operation any other actuation of the sunroof switches will
stop the sunroof in a partially open position.

Manual Mode

Push and hold the switch rearward, the sunroof and
sunshade will open and automatically stop at full open
position. Releasing the switch while the sunroof is in
motion will stop the sunroof in a partially open position.

Vent Open

Push and release the Vent switch within one half second
and the sunroof will open to the vent position. During
Express Vent operation any other actuation of the sunroof
switches will stop the sunroof operation.

Closing Sunroof

Express

Push the switch forward and release it within one-half
second and the sunroof will close automatically from any

position. During Express Close operation any other actua-
tion of the sunroof switches will stop the sunroof in a
partially open position.

Manual Mode

Push and hold the switch forward and the sunroof will
close from any position and stop at a full closed position.
Releasing the switch while the sunroof is in motion will
stop the sunroof in a partially open position.

Wind Buffeting

Sunshade Operation

The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.

106

GETTING TO KNOW YOUR VEHICLE

NOTE:

The sunshade cannot be closed if the sunroof is

open.

Anti Pinch Protect Feature

This feature will detect an obstruction in the opening of the
sunroof during Express Close operation. If an obstruction
in the path of the sunroof is detected, the sunroof will
automatically retract. Remove the obstruction if this oc-
curs. Next, push the switch forward and release to Express
Close.

Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean the
glass panel.

Ignition Off Operation

The power sunroof switch will remain active for up to
approximately ten minutes after the ignition is turned OFF.
Opening either front door will cancel this feature.

NOTE:

Ignition Off time is programmable through the

Uconnect System. Refer to “Uconnect Settings/Customer
Programmable Features” in “Multimedia” for further in-
formation.

HOOD

Opening

Two latches must be released to open the hood.

1. Pull the hood release lever located under the left side of

the instrument panel.

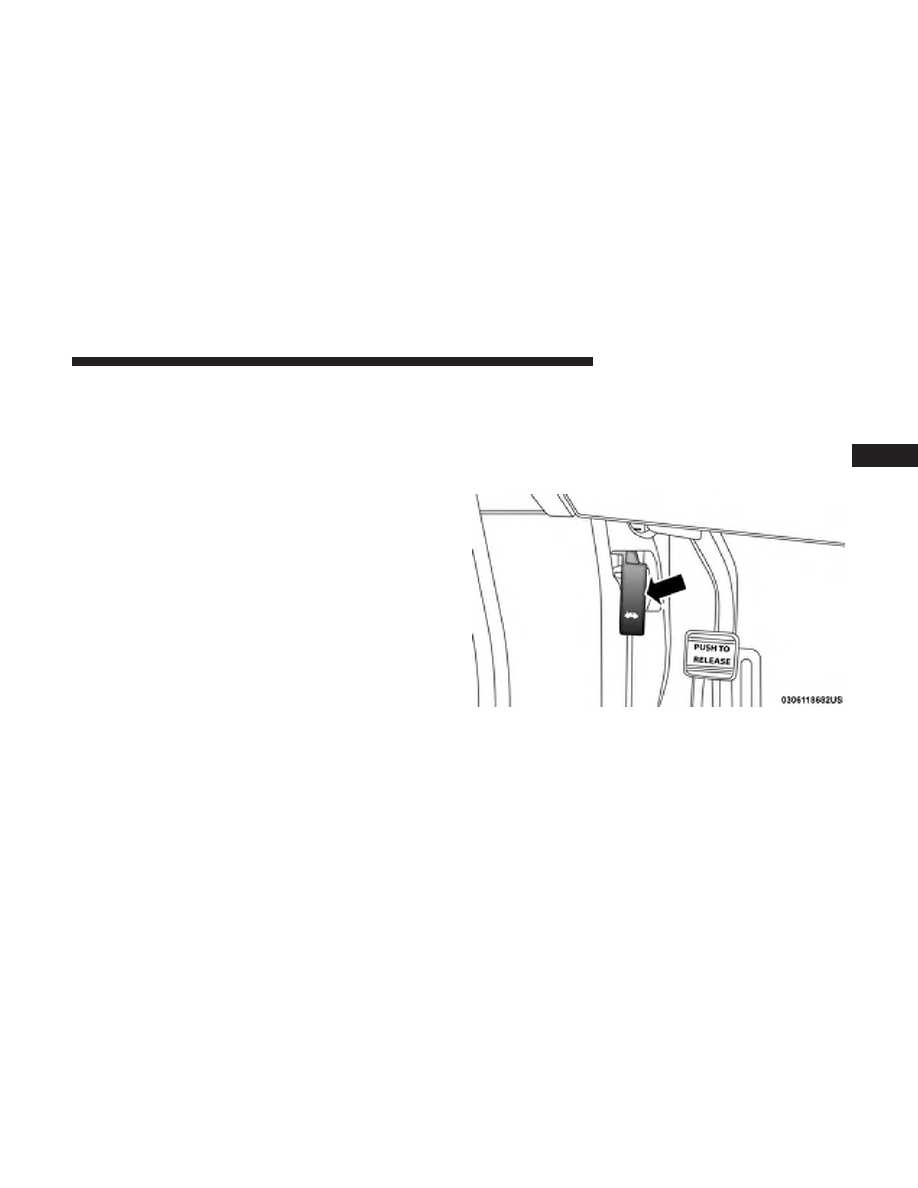

Hood Release

GETTING TO KNOW YOUR VEHICLE

107

2. Outside of the vehicle, locate the safety latch lever near

the center of the grille between the grille and hood
opening. Push the safety latch lever to the left and raise
the hood.

3. Use the hood prop rod to secure the hood in the open

position. Place the upper end of the prop rod in the hole
on the underside of the hood.

Closing

WARNING!

Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.

Underhood Safety Latch

Hood Prop Rod

108

GETTING TO KNOW YOUR VEHICLE

Dodge Journey (2019 year). Manual - part 6
