Power Mirrors

The power mirror switch is located on the driver’s door
trim panel.

Models Without Express Window Feature

Push the mirror select button marked L (left) or R (right).
Then, push one of the four arrow buttons to move the
mirror in the direction the arrow is pointing.

Models With Express Window Feature

Push and release the mirror select button marked L (left) or
R (right). Then, push one of the four arrow buttons to move
the mirror in the direction the arrow is pointing. The
selection times out after 30 seconds of inactivity in order to
guard against accidentally changing a mirror position
following an adjustment.

NOTE:

A light in the selected button will illuminate

indicating the mirror is activated and can be adjusted.

Heated Mirrors — If Equipped

These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the

rear window defroster (if equipped).

Refer to “Climate Controls” in this section for further
information.

Power Mirror Switches

GETTING TO KNOW YOUR VEHICLE

Power Folding Mirrors — If Equipped

The switch for the power folding mirrors is located be-
tween the power mirror switches L (left) and R (right).
Push the switch once and the mirrors will fold in, pushing
the switch a second time will return the mirrors to the
normal driving position.

NOTE:

If the vehicle speed is greater than 10 mph

(16 km/h), the folding feature will be disabled.

If the mirrors are in the folded position, and vehicle speed
is equal or greater than 10 mph (16 km/h), they will
automatically unfold.

Resetting The Power Folding Outside Mirrors

You may need to reset the power folding mirrors if the
following occurs:
• The mirrors are accidentally blocked while folding.
• The mirrors are accidentally manually folded/unfolded.
• The mirrors come out of the unfolded position.
• The mirrors shake and vibrate at normal driving speeds.
To reset the power folding mirrors, fold and unfold them
by pushing the button (this may require multiple button
pushes). This resets them to their normal position.

Power Folding Mirror Switch

GETTING TO KNOW YOUR VEHICLE

Illuminated Vanity Mirrors — If Equipped

An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor downward and swing the
mirror cover upward. The light will turn on automatically.
Closing the mirror cover will turn off the light.

Sun Visor “Slide-On-Rod” Feature — If Equipped

The sun visor “Slide-On-Rod” feature allows for additional
flexibility in positioning the sun visor to block out the sun.

1. Fold down the sun visor.

2. Unclip the visor from the center clip.

3. Pull the sun visor toward the inside rearview mirror to

extend it.

EXTERIOR LIGHTS

Multifunction Lever

The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the steering
column.

Illuminated Vanity Mirror

Multifunction Lever

GETTING TO KNOW YOUR VEHICLE

Headlights

The headlight switch is located on the left side of the
instrument panel. This switch controls the operation of the
headlights, parking lights, instrument panel lights, instru-
ment panel light dimming, interior lights and fog lights.

Rotate the headlight switch clockwise to the first detent for
parking lights and instrument panel light operation. Rotate
the headlight switch to the second detent for headlight,
parking light and instrument panel light operation.

Daytime Running Lights (DRL)

The Daytime Running Lights will turn on the first time the
vehicle is shifted out of PARK, and remain on unless the
parking brake is applied. Upon returning to the PARK
position, the DRLs will turn off. DRLs will turn off when
the ignition is switched off.

NOTE:

The daytime running lights can be turned on and

off using the Uconnect System, refer to “Uconnect Settings”
in “Multimedia” for further information.

High/Low Beam Switch

Push the multifunction lever away from you to switch the
headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.

Flash-To-Pass

You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the high beam headlights to turn on, and remain
on, until the lever is released.

Automatic Headlights

This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the AUTO

Headlight Switch

GETTING TO KNOW YOUR VEHICLE

position. When the system is on, the headlight time delay
feature is also on. This means the headlights will stay on
for up to 90 seconds after you place the ignition into the
OFF position. The headlight time delay can be pro-
grammed 0/30/60/90 seconds.

Refer to “Uconnect Settings” in “Multimedia” for further
information.

To turn the automatic system off, move the headlight
switch out of the AUTO position.

NOTE:

The engine must be running before the headlights

will come on in the automatic mode.

Headlights On With Wipers (Available With
Automatic Headlights Only)

When this feature is active, the headlights will turn on after
the wipers are turned on if the headlight switch is placed in
the AUTO position and programmable feature is set to ON.
In addition, the headlights will turn off when the wipers
are turned off if they were turned on by this feature.

NOTE:

The Headlights On with Wipers feature can be

turned on or off using the Uconnect System. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.

Headlight Time Delay

This feature provides the safety of headlight illumination
for up to 90 seconds when leaving your vehicle in an unlit
area.

To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then, turn off the head-
lights within 45 seconds. The delay interval begins when
the headlight switch is turned off.

NOTE:

The lights must be turned off within 45 seconds of

turning the ignition OFF to activate this feature.

If you turn the headlights, parking lights or ignition switch
ON again, the system will cancel the delay.

If you turn the headlights off before the ignition, they will
turn off in the normal manner.

NOTE:

The Headlight Time Delay is programmable using

the Uconnect System, refer to “Uconnect Settings” in
“Multimedia” for further information.

Lights-On Reminder

If the headlights or parking lights are on after the ignition
is in the OFF position, a chime will sound to alert the driver
when the driver’s door is opened.

GETTING TO KNOW YOUR VEHICLE

Fog Lights — If Equipped

The front fog light switch is built into the headlight switch.

To activate the front fog lights, turn on the parking
lights or the low beam headlights and push the

headlight switch. To turn off the front fog lights, either
push the headlight switch a second time or turn off the
headlight switch.

An indicator light in the instrument cluster illuminates
when the fog lights are turned on.

NOTE:

The fog lights will operate when the low beam

headlights or parking lights are on. However, selecting the
high beam headlights will turn off the fog lights.

Turn Signals

Move the multifunction lever up or down and the arrows
on each side of the instrument cluster display flash to show
proper operation of the front and rear turn signal lights.

NOTE:
• If either light remains on and does not flash, or there is

a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.

• A “Turn Signal On” message will appear in the instru-

ment cluster display and a continuous chime will sound
if the vehicle is driven more than 1 mile (1.6 km) with
either turn signal on.

Lane Change Assist — If Equipped

Tap the multifunction lever up or down once, without
moving beyond the detent, and the turn signal (right or
left) will flash three times then automatically turn off.

Fog Light Switch

GETTING TO KNOW YOUR VEHICLE

INTERIOR LIGHTS

Courtesy/Interior Lighting

The interior lights come on when a door is opened.

To protect the battery, the interior lights will turn off
automatically 10 minutes after the ignition is placed in the
OFF position. This will occur if the interior lights were
switched on manually or are on because a door is open.
The Battery Protection also includes the glove compart-
ment light. To restore interior light operation after auto-
matic battery protection is enabled (Lights off), either place
the ignition in the ON/RUN position or cycle the light
switch.

Front Lights

The overhead console has two courtesy lights. The lights
turn on when a front door, a rear door or the liftgate is
opened. If your vehicle is equipped with Remote Keyless
Entry the lights will also turn on when the unlock button
on the key fob is pushed. The courtesy lights also function
as reading lights. Push in on each lens to turn these lights
on while inside the vehicle. Push the lens a second time to
turn each light off. You may adjust the direction of these
lights by pushing the outside ring, which is identified with
four directional arrows.

Rear Dome Light

Rotate the instrument panel dimmer control completely
upward to the second detent to turn on the interior lights.
The interior lights will remain on when the dimmer control
is in this position.

Rotate the dimmer control downward to the last detent (off
position). The interior lights will remain off when the doors
are open.

Courtesy/Reading Light

GETTING TO KNOW YOUR VEHICLE

Dimmer Controls

The dimmer control is part of the headlight switch and is
located on the driver’s side of the instrument panel.

Rotating the dimmer control upward with the parking
lights or headlights on will increase the brightness of the
instrument panel lights.

Interior Light Defeat (Off)

Rotate the instrument panel dimmer control to the extreme
bottom (O) off position. The interior lights will remain off
when the doors are open.

Parade Mode (Daytime Brightness Feature)

Rotate the dimmer control upward to the first detent. This
feature brightens all text displays such as the odometer,
instrument cluster display, and radio when the parking
lights or headlights are on.

WIPERS AND WASHERS

The windshield wiper/washer control lever is located on
the left side of the steering column.

Instrument Panel Dimmer

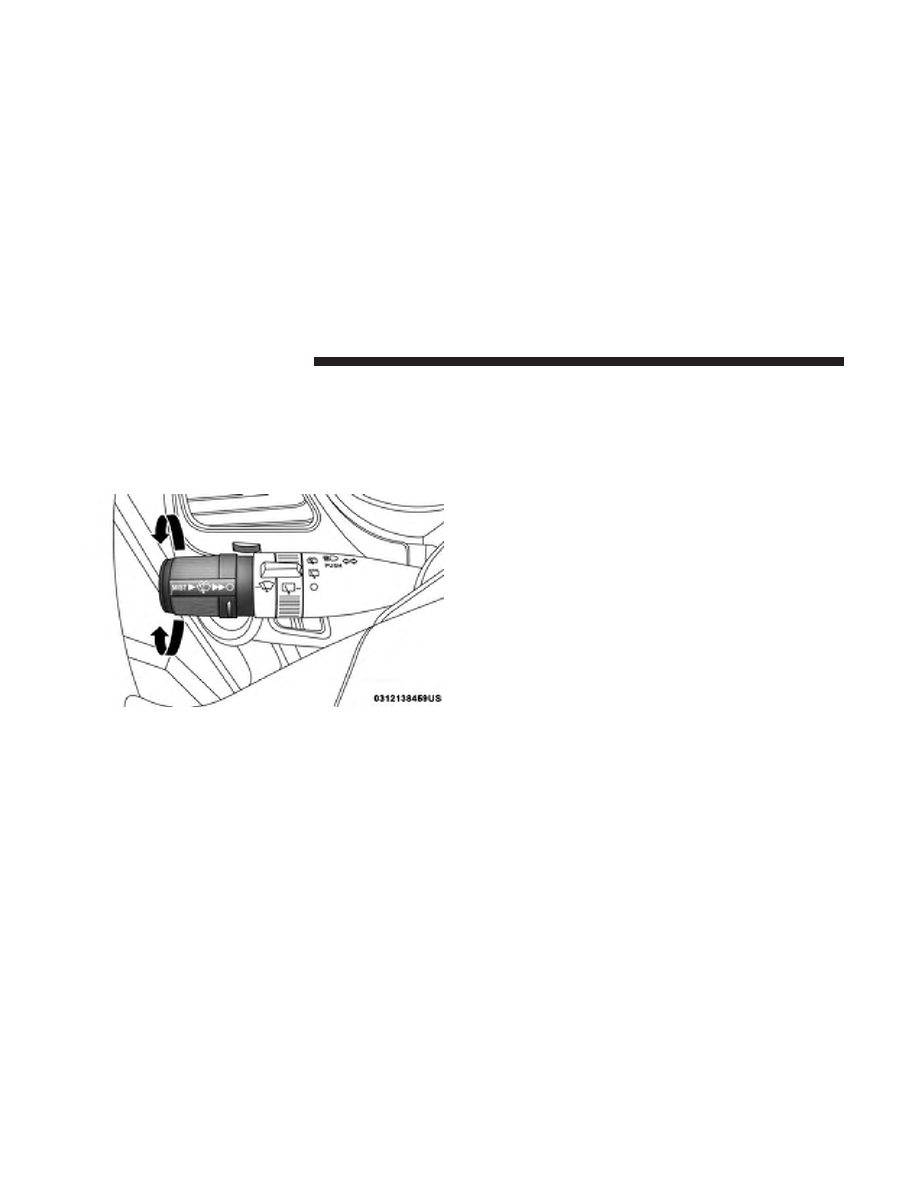

Windshield Wiper/Washer Lever

GETTING TO KNOW YOUR VEHICLE

The front wipers are operated by rotating a switch, located
at the end of the lever. For information on using the rear
window wiper/washer, refer to “Rear Window Wiper/
Washer” in this section.

Windshield Wiper Operation

Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.

NOTE:

The wipers will automatically return to the “park”

position if you turn OFF the ignition while they are
operating. The wipers will resume operation when you
turn the ignition back ON.

CAUTION!

• Turn the windshield wipers off when driving

through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.

• In cold weather, always turn off the wiper switch and

allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.

• Always remove any buildup of snow that prevents

the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.

Front Wiper Control

GETTING TO KNOW YOUR VEHICLE

Intermittent Wiper System

Use the intermittent wiper system when weather condi-
tions make a single wiping cycle, with a variable pause
between cycles, desirable. Rotate the end of the windshield
wiper/washer control lever to one of the first five detents
to select the desired delay interval.

There are five delay settings, which allow you to regulate
the wipe interval from a minimum of one cycle every two

seconds to a maximum of approximately 36 seconds be-
tween cycles at vehicle speeds below 10 mph (16 km/h). At
speeds greater than 10 mph (16 km/h), the delay varies
from a minimum of one cycle every second to a maximum
of approximately 18 seconds between cycles.

NOTE:

The wiper delay times depend on vehicle speed. If

the vehicle is moving less than 10 mph (16 km/h), delay
times will be doubled.

Windshield Washers

To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to the
second detent.

If you activate the washer while the wiper control is in the
delay range, the wipers will operate in low-speed for two
or three wipe cycles after releasing the lever and then
resume the intermittent interval previously selected.

If you activate the washer while the wiper control is in the
off position, the wipers will operate for two or three wipe
cycles and then turn off.

Front Wiper Control

GETTING TO KNOW YOUR VEHICLE

WARNING!

Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.

Mist Feature

Push the washer knob, located on the end of the multifunc-
tion lever, inward to the first detent to activate a single
wipe cycle to clear the windshield of road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the lever.

NOTE:

The mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.

Rear Window Wiper/Washer

The rear window wiper/washer control is located on the
left side of the steering column.

Rotate the switch upward to the first detent position
for rear wiper operation.

Rotate the switch upward past the first detent
position to activate the rear washer. The washer

pump will continue to operate as long as the switch is held.
Upon release, the wiper will cycle three times before
returning to the set position.

Rear Wiper/Washer

GETTING TO KNOW YOUR VEHICLE

If the rear wiper is operating when the ignition is placed in
the OFF position, the wiper will automatically return to the
“park” position. When the vehicle is restarted, the wiper
will resume function at whichever position the switch is set
at.

CAUTION!

• Turn the windshield wipers off when driving

through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.

• In cold weather, always turn off the wiper switch and

• Always remove any buildup of snow that prevents

the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.

Rear Wiper/Washer Control

GETTING TO KNOW YOUR VEHICLE

CLIMATE CONTROLS

The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen (if equipped) and on the instrument panel
below the radio.

Manual Climate Control Overview

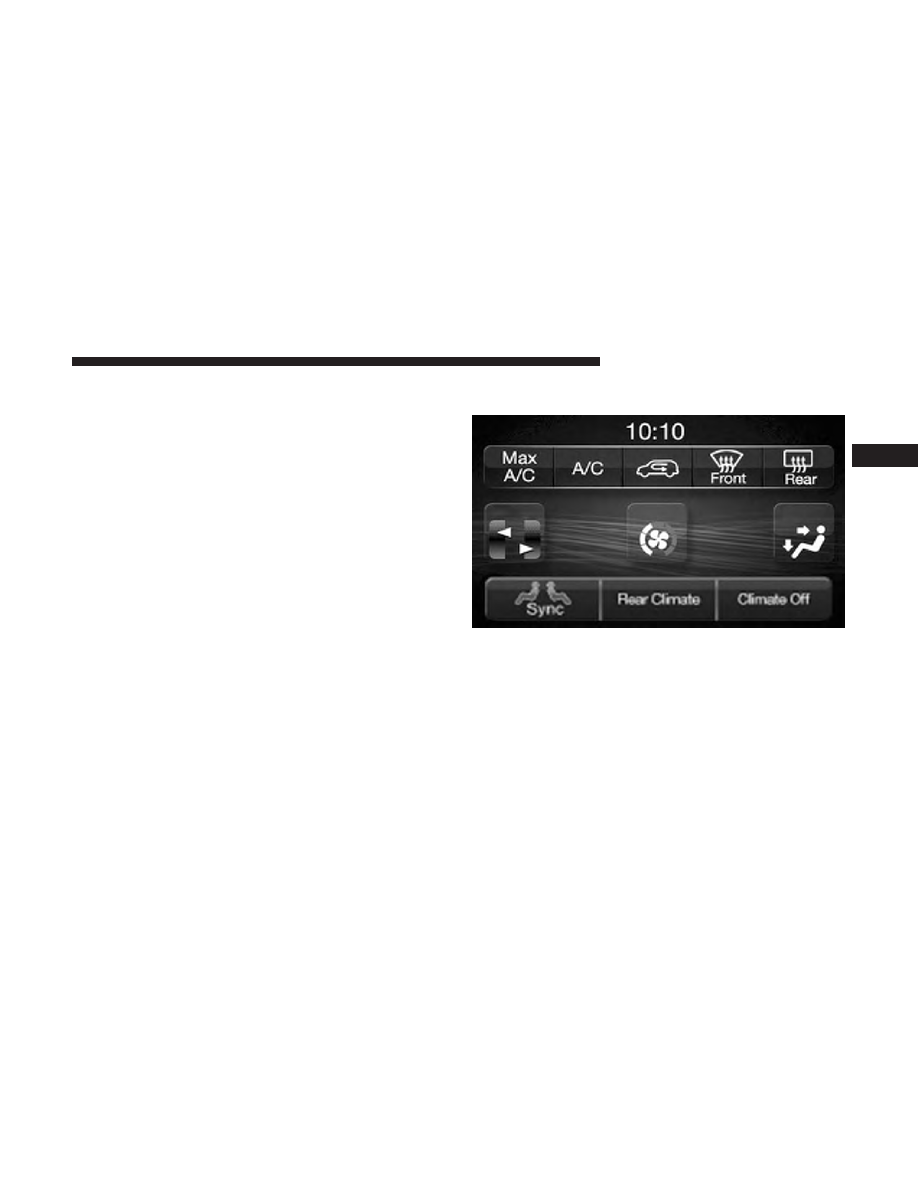

Radio 4.3 Manual Tri-Zone Temperature Controls

GETTING TO KNOW YOUR VEHICLE

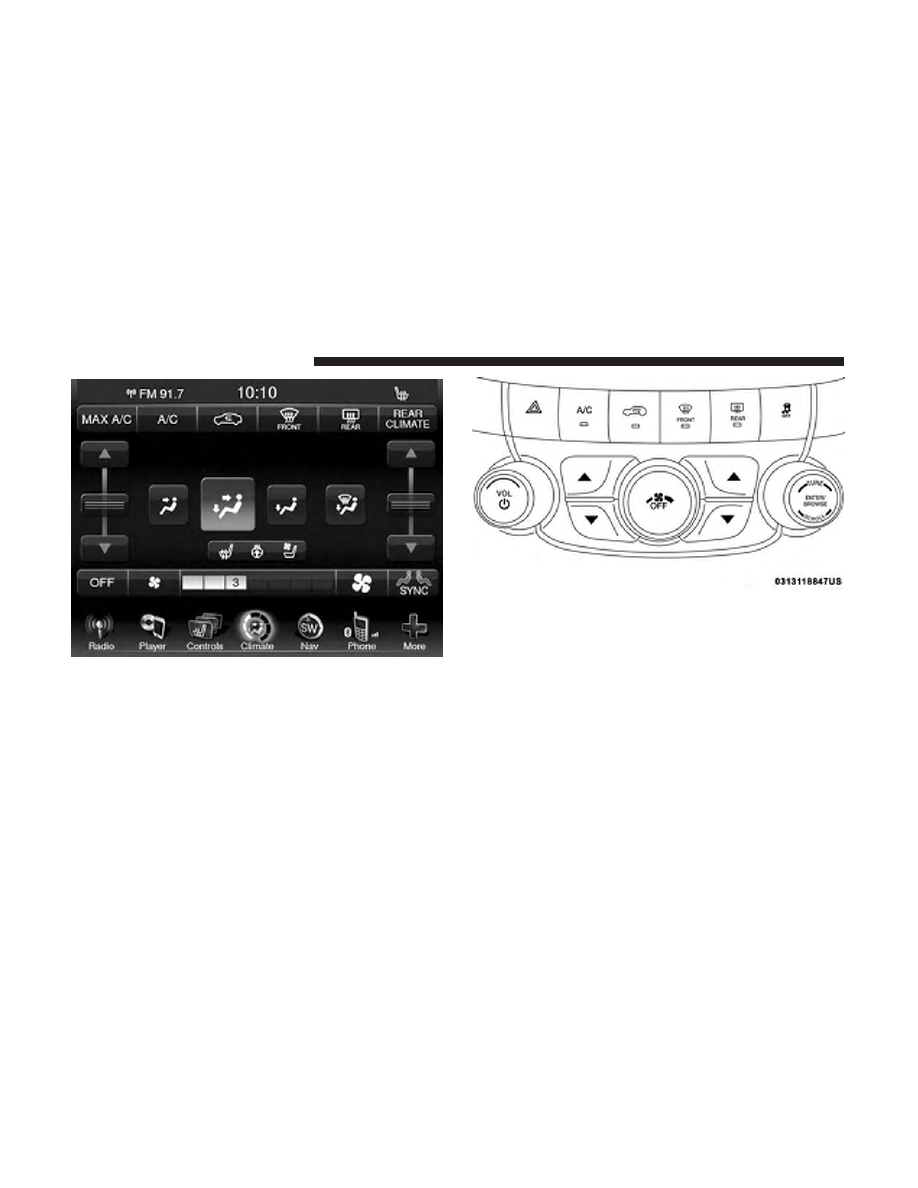

Uconnect 3/3 NAV with 8.4–inch display Tri-Zone Manual

Temperature Controls

Manual Temperature Controls — Buttons On The

Faceplate

GETTING TO KNOW YOUR VEHICLE

Manual Climate Control Descriptions

Icon

Description

MAX A/C Button
Press the button on the touchscreen to change the current setting, the indicator illuminates when
MAX A/C is on. Pressing the button again turns the MAX A/C operation to switch into manual
mode and the MAX A/C indicator turns off.

NOTE:

The MAX A/C button is only available on the touchscreen.

Faceplate Knob

Touchscreen

Buttons

Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There
are seven blower speeds available. The speeds can be selected using either the blower control
knob on the faceplate or the buttons on the touchscreen.

• Faceplate: The blower speed increases as you turn the blower control knob clockwise from

the lowest blower setting. The blower speed decreases as you turn the blower control knob
counterclockwise.

• Touchscreen:

For Radio 4.3: use the circle around the blower icon by pressing on the circle spot where you
want the blower setting to be. To increase blower, the circle bar will go clockwise. To
decrease the blower, the circle bar will move counter-clockwise.
For Uconnect 3/3 NAV: Use the small blower icon to reduce the blower setting and the large
blower icon to increase the blower setting. The blower can also be selected by pressing the
blower bar area between the icons.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Temperature Control
Provides the driver and passenger with independent temperature control. Push the red button
on the faceplate or touchscreen or press and slide the temperature bar towards the red arrow
button on the touchscreen for warmer temperature settings. Push the blue button on the face-
plate or touchscreen or press and slide the temperature bar towards the blue arrow button on
the touchscreen for cooler temperature settings.

SYNC Button
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indica-
tor is illuminated when this feature is enabled. SYNC is used to synchronize the front passenger
temperature and rear passenger temperature/mode/blower settings with the driver
temperature/mode/blower settings. Changing the front passenger temperature or rear passen-
ger temperature/mode/blower settings while in SYNC will automatically exit this feature.

REAR CLIMATE

Rear Climate Control Button
Press and release this button to access the rear climate controls. The indicator will illuminate
when the rear climate controls are ON.

Mode Control

Select Mode by pressing one of the Mode buttons on the touchscreen to change the airflow dis-
tribution mode. The airflow distribution mode can be adjusted so air comes from the instrument
panel outlets, floor outlets, defrost outlets and demist outlets. The Mode settings are as follows:

GETTING TO KNOW YOUR VEHICLE

Content .. 2 3 4 5 ..
