5. Position the new Sealant Bottle (4) in the housing so that

the Sealant Hose (3) aligns with the hose slot in the front
of the housing. Push and hold the Sealant Bottle release
button, then push the bottle into the housing by holding
the button. An audible click will be heard indicating the
bottle is locked into place. Release the button.

6. Verify that the cap is installed on the fitting at the end of

the Sealant Hose (3) and return the hose to its storage
area (located on top of the housing).

7. Return the Tire Service Kit to its storage location in the

vehicle.

JUMP STARTING

If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in another
vehicle, or by using a portable battery booster pack. Jump
starting can be dangerous if done improperly, so please
follow the procedures in this section carefully.

WARNING!

Do not attempt jump starting if the battery is frozen.
It could rupture or explode and cause personal injury.

CAUTION!

Do not use a portable battery booster pack or any other
booster source with a system voltage greater than 12
Volts or damage to the battery, starter motor, alternator
or electrical system may occur.

NOTE:

When using a portable battery booster pack, follow

the manufacturer’s operating instructions and precautions.

Preparations For Jump Start

The battery is stored under an access cover in the trunk.
Remote battery posts are located on the right side of the
engine compartment for jump starting.

NOTE:

The remote battery posts are viewed by standing

on the right side of the vehicle looking over the fender.

IN CASE OF EMERGENCY

349

WARNING!

• Take care to avoid the radiator cooling fan whenever

the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.

(Continued)

WARNING! (Continued)

• Remove any metal jewelry such as rings, watch

bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your

skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

1. Apply the parking brake, shift the automatic transmission

into PARK and place the ignition in the OFF position.

2. Turn off the heater, radio, and all unnecessary electrical

accessories.

3. If using another vehicle to jump start the battery, park

the vehicle within the jumper cable’s reach, apply the
parking brake and make sure the ignition is OFF.

WARNING!

Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.

Jump Starting Locations

(+) — Remote Positive Post
(-) — Remote Negative Post

350

IN CASE OF EMERGENCY

Jump Starting Procedure

WARNING!

Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.

CAUTION!

Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.

Connecting The Jumper Cables

1. Connect the positive (+) end of the jumper cable to the

remote positive (+) post of the vehicle with the dis-
charged battery.

2. Connect the opposite end of the positive (+) jumper

cable to the positive (+) post of the booster battery.

3. Connect the negative (-) end of the jumper cable to the

negative (-) post of the booster battery.

4. Connect the opposite end of the negative (-) jumper

cable to the remote negative (-) post of the vehicle with
the discharged battery.

WARNING!

Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.

6. Once the engine is started, remove the jumper cables in

the reverse sequence:

Disconnecting The Jumper Cables

1. Disconnect the negative (-) end of the jumper cable from

the remote negative (-) post of the vehicle with the
discharged battery.

2. Disconnect the opposite end of the negative (-) jumper

cable from the negative (-) post of the booster battery.

IN CASE OF EMERGENCY

351

3. Disconnect the positive (+) end of the jumper cable from

the positive (+) post of the booster battery.

4. Disconnect the opposite end of the positive (+) jumper

cable from the remote positive (+) post of the vehicle
with the discharged battery.

If frequent jump starting is required to start your vehicle
you should have the battery and charging system in-
spected at an authorized dealer.

CAUTION!

Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — slow down.

• In city traffic — while stopped, place the transmission in

NEUTRAL, but do not increase the engine idle speed
while preventing vehicle motion with the brakes.

NOTE:

There are steps that you can take to slow down an

impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C

system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum

heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.

352

IN CASE OF EMERGENCY

CAUTION!

Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads HOT (H), pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on HOT
(H), and you hear continuous chimes, turn the engine
off immediately and call for service.

MANUAL PARK RELEASE — 8-SPEED TRANSMISSION

WARNING!

Always secure your vehicle by fully applying the park-
ing brake before activating the Manual Park Release. In
addition, you should be seated in the driver’s seat with
your foot firmly on the brake pedal when activating the
Manual Park Release. Activating the Manual Park Re-
lease will allow your vehicle to roll away if it is not
secured by the parking brake, or by proper connection to
a tow vehicle. Activating the Manual Park Release on an
unsecured vehicle could lead to serious injury or death
for those in or around the vehicle.

In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery), a
Manual Park Release is available.

Follow these steps to use the Manual Park Release:

1. Firmly apply the parking brake.

2. Remove the console storage bin.

3. Remove the plastic cover under the bin by using the slot

provided to access the Manual Park Release lever.

4. Using a small screwdriver or similar tool, fish the tether

strap up through the opening in the console base.

Console Storage Bin

IN CASE OF EMERGENCY

353

5. Press and maintain firm pressure on the brake pedal.

6. Insert the screwdriver into the slot in the center of the

lever, and disengage the lever locking tab by pushing it
to the right.

7. While holding the locking tab in the disengaged posi-

tion, pull the tether strap to rotate the lever up and
rearward, until it locks in place in the vertical position.
The vehicle is now out of PARK and can be moved.
Release the parking brake only when the vehicle is
securely connected to a tow vehicle.

To Reset The Manual Park Release:

1. Push the latch (at the base of the lever, on the rear side)

rearward (away from the lever) to unlatch the lever.

2. Rotate the Manual Park Release lever forward and

down, to its original position, until the locking tab snaps
into place to secure the lever.

3. Pull up gently on the tether strap to confirm that the

lever is locked in its stowed position.

4. Tuck the tether strap into the base of the console.

Reinstall the Manual Park Release cover and the console
storage bin.

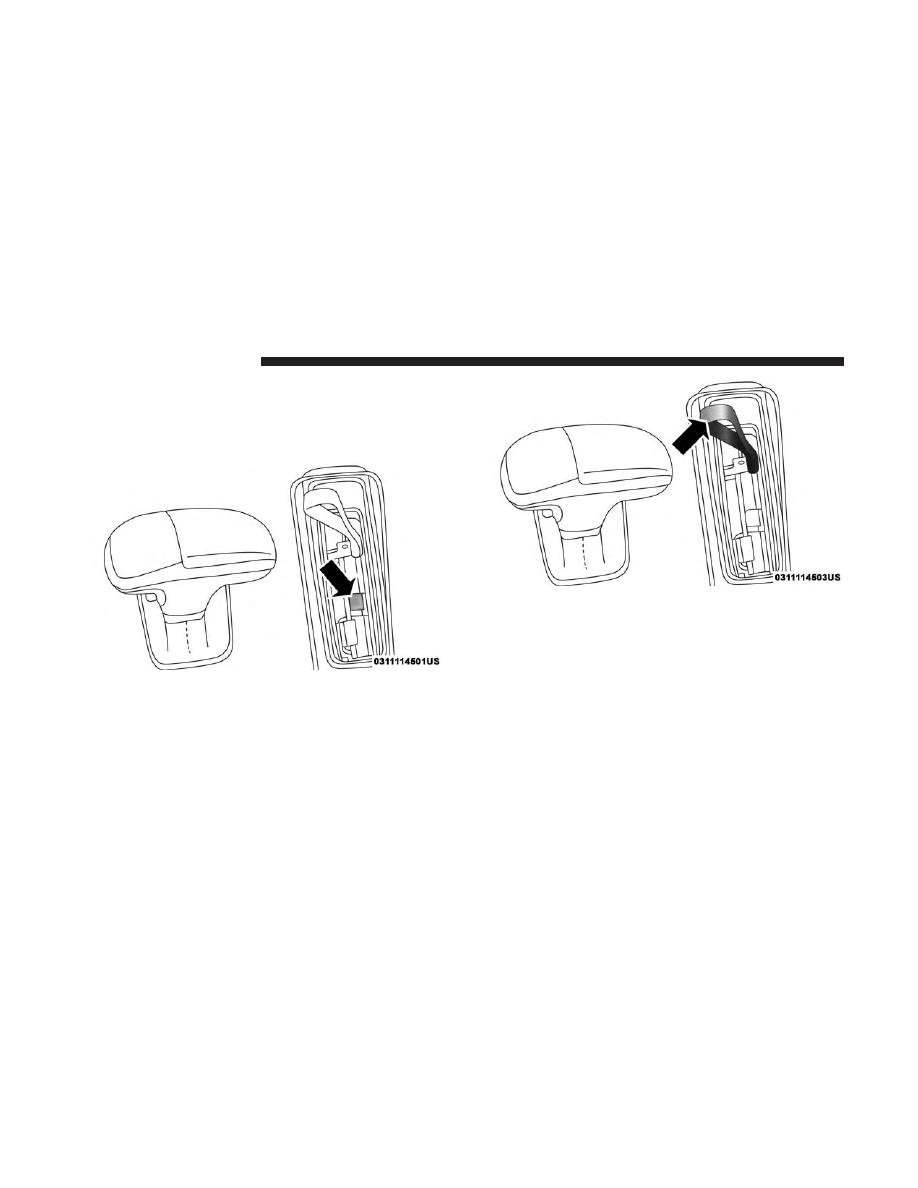

Locking Tab

Tether Strap

354

IN CASE OF EMERGENCY

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand, or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Push and hold the lock button on the gear selector.
Then, shift back and forth between DRIVE and REVERSE
while gently pressing the accelerator. Use the least amount
of accelerator pedal pressure that will maintain the rocking
motion, without spinning the wheels or racing the engine.

NOTE:
• Shifts between DRIVE and REVERSE can only be

achieved at wheel speeds of 5 mph (8 km/h) or less.
Whenever the transmission remains in NEUTRAL for
more than two seconds, you must press the brake pedal
to engage DRIVE or REVERSE.

• Push the ⬙ESC Off⬙ switch, to place the Electronic

Stability Control (ESC) system in

⬙Partial Off⬙ mode,

before rocking the vehicle. Refer to “Electronic Brake
Control System” in “Safety” for further information.
Once the vehicle has been freed, push the

⬙ESC Off⬙

switch again to restore

⬙ESC On⬙ mode.

WARNING!

Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.

CAUTION!

• Racing the engine or spinning the wheels may lead

to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and
reduce the risk of transmission failure during pro-
longed efforts to free a stuck vehicle.

(Continued)

IN CASE OF EMERGENCY

355

CAUTION! (Continued)

• When “rocking” a stuck vehicle by shifting between

DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may
result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure.

(Continued)

CAUTION! (Continued)

It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled
vehicle using a commercial towing service.

Towing

Condition

Wheels OFF
The Ground

RWD MODELS

AWD MODELS

Flat Tow

NONE

If transmission is operable:

• Transmission in NEUTRAL

• 30 mph (48 km/h) max speed

• 30 miles (48 km) max distance

NOT ALLOWED

Wheel Lift Or

Dolly Tow

Front

NOT RECOMMENDED (but, if

used, same limitations as above)

NOT ALLOWED

Rear

NOT RECOMMENDED

NOT RECOMMENDED, but, if used:

• Ignition in ON/RUN mode

• Transmission in NEUTRAL

(NOT in PARK)

Flatbed

ALL

BEST METHOD

356

IN CASE OF EMERGENCY

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed.

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.

If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to

⬙Manual Park Release⬙ in this section

for instructions on shifting the transmission out of PARK
for towing.

CAUTION!

• Do not use sling type equipment when towing.

Vehicle damage may occur.

• When securing the vehicle to a flat bed truck, do not

attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.

(Continued)

CAUTION! (Continued)

• The manufacturer does not recommend towing this

vehicle using a tow dolly. Vehicle damage may occur.

All Wheel Drive (AWD) Models

The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.

If the transmission and driveline are operable, AWD mod-
els can also be towed with the ignition in the ON/RUN
mode, the transmission in NEUTRAL (not in PARK!), and
the rear wheels OFF the ground with no limitation on
speed or distance. Since the ignition MUST be in the
ON/RUN mode to tow in this manner, AWD vehicles must
be towed with ALL FOUR wheels OFF the ground (e.g. on
a flatbed truck) if the key fob is unavailable.

CAUTION!

• Towing this vehicle using any other method can cause

severe transmission and/or transfer case damage.

• Damage from improper towing is not covered under

the New Vehicle Limited Warranty.

IN CASE OF EMERGENCY

357

Rear-Wheel Drive (RWD) Models

The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.

If flatbed equipment is not available, and the transmission
is operable, this vehicle may be flat towed (with all four
wheels on the ground) under the following conditions:
• The automatic transmission must be in NEUTRAL.

Refer to

⬙Manual Park Release⬙ in this section for instruc-

tions on shifting the transmission to NEUTRAL when
the engine is off.

• The towing speed must not exceed 30 mph (48 km/h).
• The towing distance must not exceed 30 miles (48 km).
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than
30 miles (48 km), then the only acceptable method of
towing is with a flatbed truck.

CAUTION!

Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Damage
from improper towing is not covered under the New
Vehicle Limited Warranty.

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)

This vehicle is equipped with an Enhanced Accident
Response System.

Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Enhanced Accident Re-
sponse System (EARS) function.

EVENT DATA RECORDER (EDR)

This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data that
will assist in understanding how a vehicle’s systems per-
formed under certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle.

Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Event Data Recorder (EDR).

358

IN CASE OF EMERGENCY

SCHEDULED SERVICING

3.6L And 5.7L Engines

Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.

Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E85 fuel usage will influence
when the “Change Oil” or “Oil Change Required” message
is displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (800 km).

The “Oil Change Required” message will be displayed in
the instrument cluster and a single chime will sound,
indicating that an oil change is necessary.

Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by referring
to “Instrument Cluster Display” in “Getting To Know Your
Instrument Panel” for further information.

NOTE:

Under no circumstances should oil change inter-

vals exceed 10,000 miles (16,000 km), 12 months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers.

Severe Duty All Models

Change Engine Oil at 4,000 miles (6,500 km) or 350 hours of
engine run time if the vehicle is operated in a dusty and
off-road environment, or is operated predominantly at idle
or only very low engine RPM’s. This type of vehicle use is
considered Severe Duty.

SERVICING AND MAINTENANCE

361

Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
• Check tire pressure and look for unusual wear or

damage. Rotate tires at the first sign of irregular wear,
even if it occurs before your next scheduled service.

• Check the fluid levels of the coolant reservoir, brake

master cylinder, and power steering (if equipped) and
fill as needed.

• Check function of all interior and exterior lights.

Maintenance Plan — 3.6L And 5.7L

Required Maintenance Intervals:

Refer to the maintenance schedules on the following page
for the required maintenance intervals.

At Every Oil Change Interval As Indicated By Oil

Change Indicator System:

• Change oil and filter
• Rotate the tires

Rotate at the first sign of irregular wear, even if it
occurs before your next scheduled service

• Inspect battery and clean and tighten terminals as

required

• Inspect brake pads, shoes, rotors, drums, hoses and

park brake

• Inspect engine cooling system protection and hoses
• Inspect exhaust system
• Inspect engine air cleaner if using in dusty or

off-road conditions

362

SERVICING AND MAINTENANCE

Mileage or time passed (whichever comes first)

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

10,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

12,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

Additional Inspections

Inspect the CV joints.

Inspect front suspension, tie rod ends, boot seals,
and replace if necessary.

Inspect the rear axle fluid. Inspect the front axle fluid
(All Wheel Drive Only).

Inspect the brake linings, replace as necessary.

Adjust park brake on vehicles equipped with four
wheel disc brakes.

Inspect transfer case fluid (All Wheel Drive Only).

Additional Maintenance

Replace engine air filter.

Replace cabin/air conditioning filter.

Replace spark plugs. **

Flush and replace the engine coolant at 10 years or
150,000 miles (240,000 km) whichever comes first.

SERVICING AND MAINTENANCE

363

Mileage or time passed (whichever comes first)

20,000

30,000

40,000

50,000

60,000

70,000

80,000

90,000

100,000

10,000

120,000

130,000

140,000

150,000

Or Years:

Or Kilometers:

32,000

48,000

64,000

80,000

96,000

12,000

128,000

144,000

160,000

176,000

192,000

208,000

224,000

240,000

Change the transfer case fluid; if using your vehicle
for any of the following: police, taxi, fleet, off-road, or
frequent trailer towing. (All Wheel Drive Only).

Change the rear axle fluid and on models equipped
with All Wheel Drive (AWD) change the front axle
fluid if using your vehicle for any of the following:
police, taxi, fleet, off-road, or frequent trailer towing.

Inspect and replace PCV valve if necessary.

** The spark plug change interval is mileage based only,
yearly intervals do not apply.

WARNING!

• You can be badly injured working on or around a

motor vehicle. Do only service work for which you
have the knowledge and the right equipment. If you

(Continued)

WARNING! (Continued)

have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.

• Failure to properly inspect and maintain your vehicle

could result in a component malfunction and effect
vehicle handling and performance. This could cause
an accident.

364

SERVICING AND MAINTENANCE

Dodge Charger (2019 year). Manual - part 22
